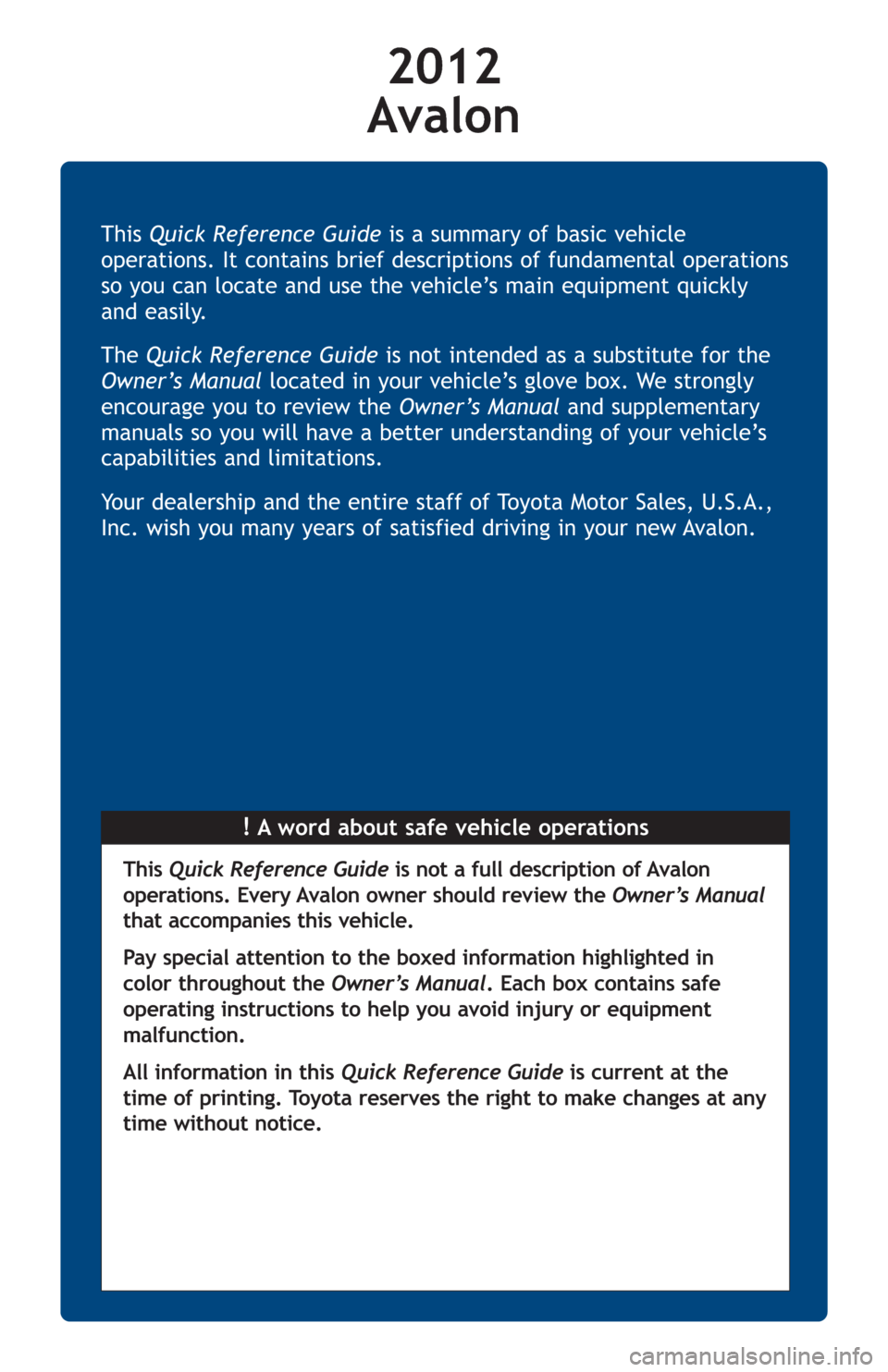

!A word about safe vehicle operations
This
Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Avalon.
This Quick Reference Guide is not a full description of Avalon
operations. Every Avalon owner should review the Owner’s Manual
that accompanies this vehicle.
Pay special attention to the boxed information highlighted in
color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at any
time without notice.
2012
Avalon

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1

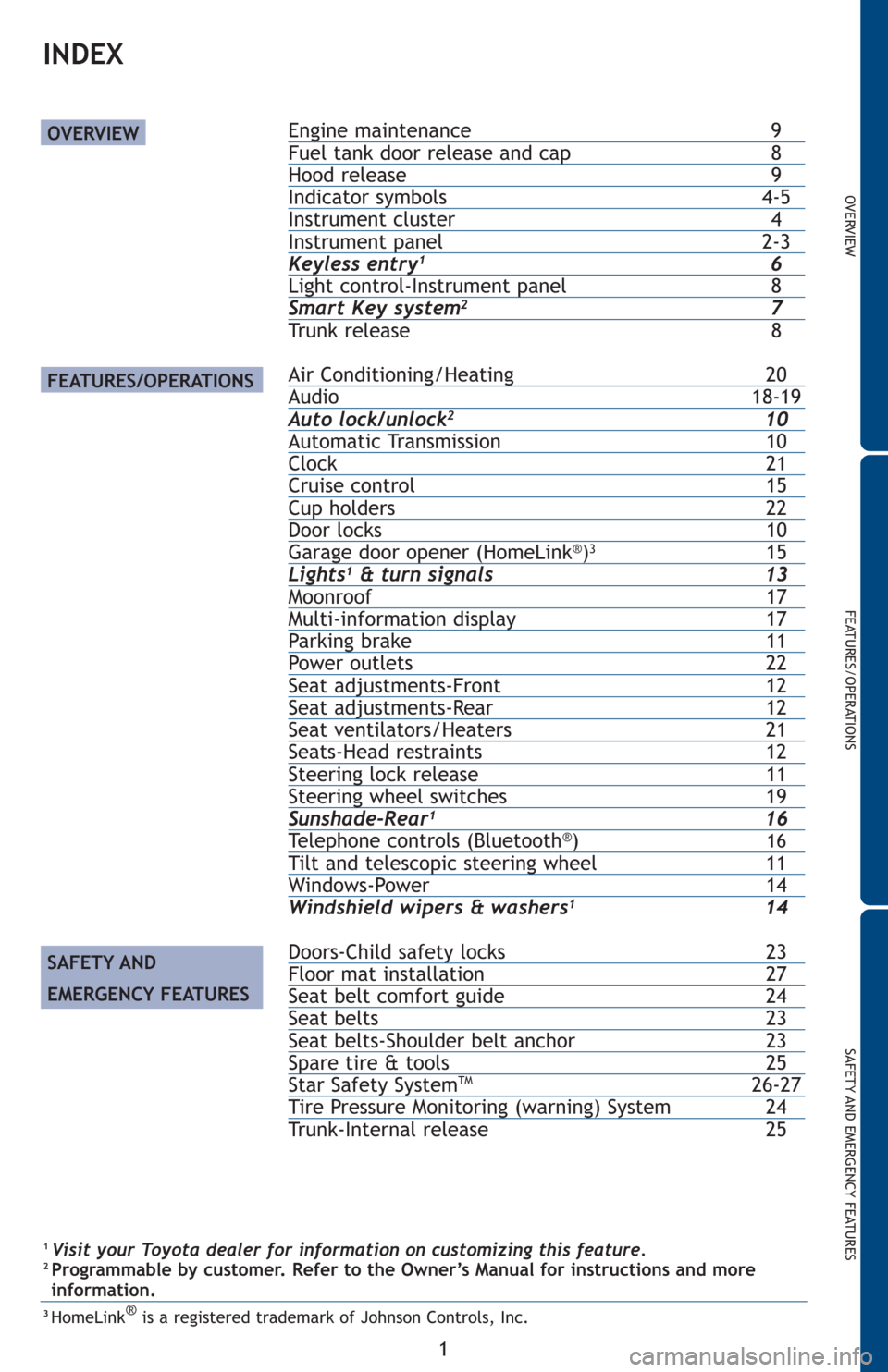

INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel 8Smart Key system27
Trunk release 8
Air Conditioning/Heating 20Audio18-19Auto lock/unlock210Automatic Transmission 10Clock 21Cruise control15Cup holders22Door locks 10Garage door opener (HomeLink®)315Lights1& turn signals13Moonroof 17Multi-information display17Parking brake 11Power outlets 22Seat adjustments-Front12Seat adjustments-Rear12Seat ventilators/Heaters 21Seats-Head restraints 12Steering lock release 11Steering wheel switches19Sunshade-Rear116Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel11Windows-Power 14
Windshield wipers & washers114
Doors-Child safety locks 23Floor mat installation27Seat belt comfort guide24Seat belts 23Seat belts-Shoulder belt anchor23Spare tire & tools 25Star Safety SystemTM26-27Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
Steering wheel controls
OVERVIEW

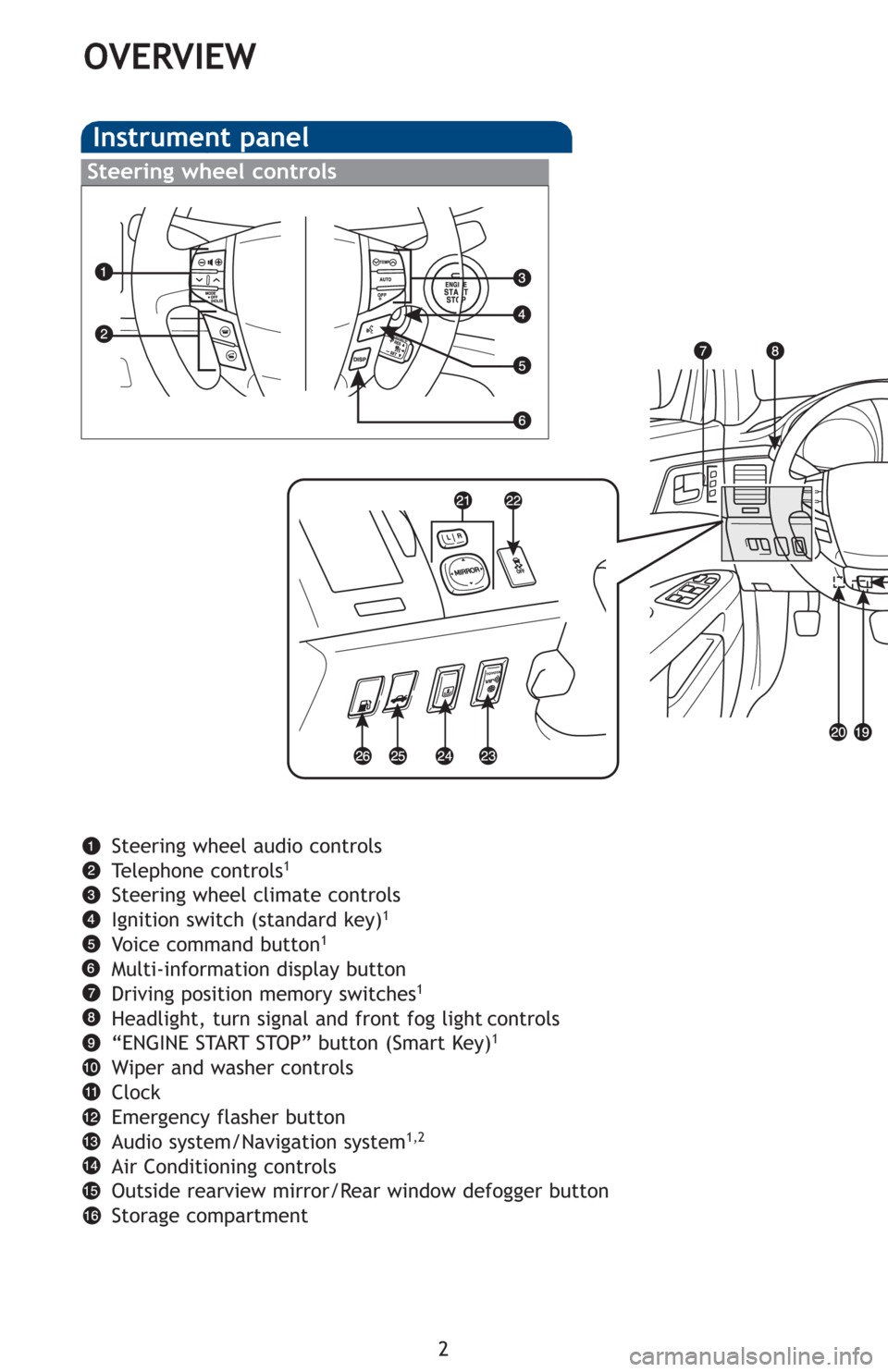

Instrument panel
Steering wheel audio controls
Telephone controls1
Steering wheel climate controls
Ignition switch (standard key)1
Voice command button1
Multi-information display button
Driving position memory switches1
Headlight, turn signal and front fog light controls
“ENGINE START STOP” button (Smart Key)1
Wiper and washer controls
Clock
Emergency flasher button
Audio system/Navigation system
1,2
Air Conditioning controls
Outside rearview mirror/Rear window defogger button
Storage compartment

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

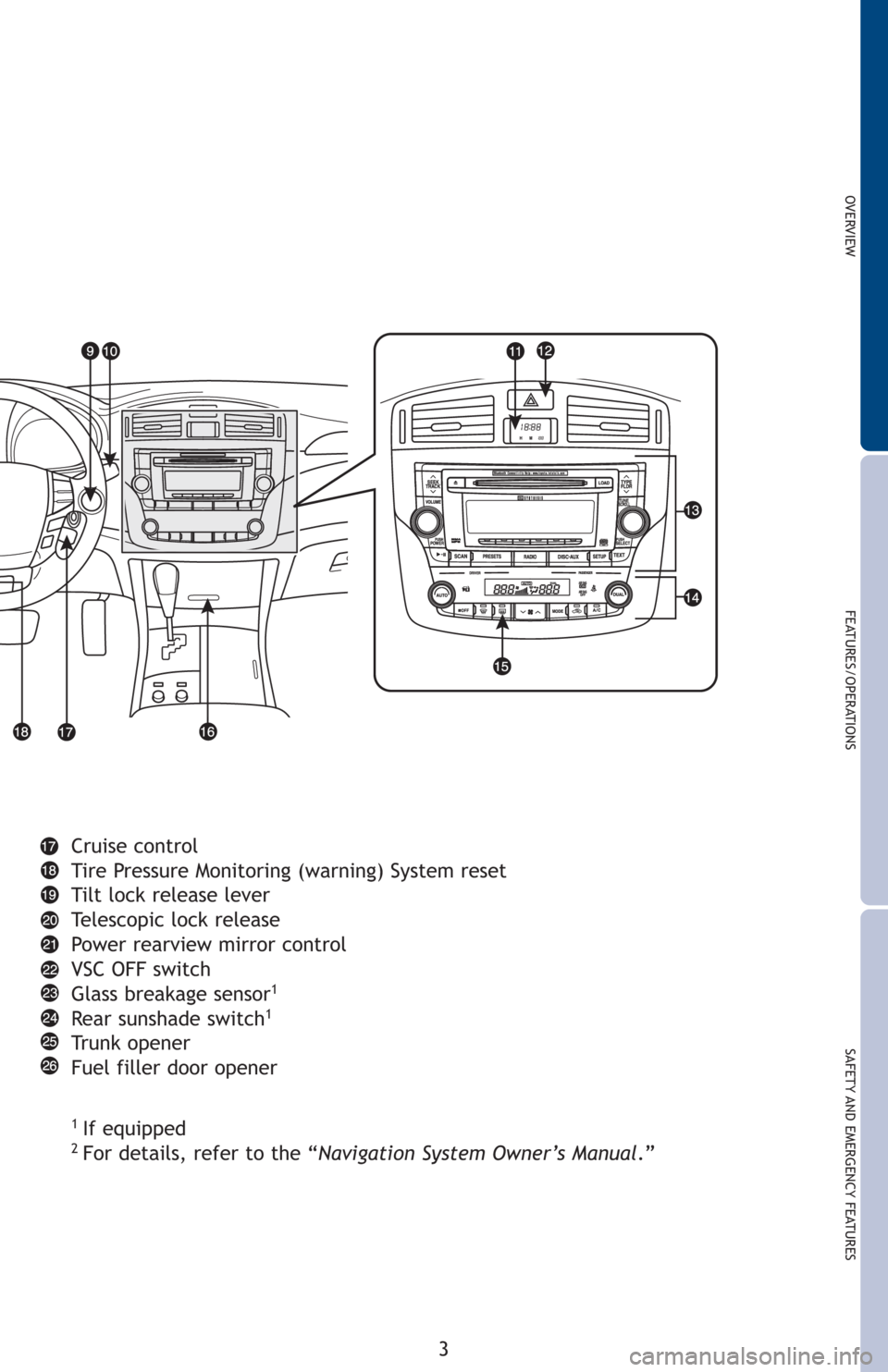

Cruise control
Tire Pressure Monitoring (warning) System reset
Tilt lock release lever
Telescopic lock release
Power rearview mirror control
VSC OFF switch
Glass breakage sensor
1
Rear sunshade switch1
Trunk opener
Fuel filler door opener
1If equipped2For details, refer to the “Navigation System Owner’s Manual .”

4
OVERVIEW
Indicator symbols

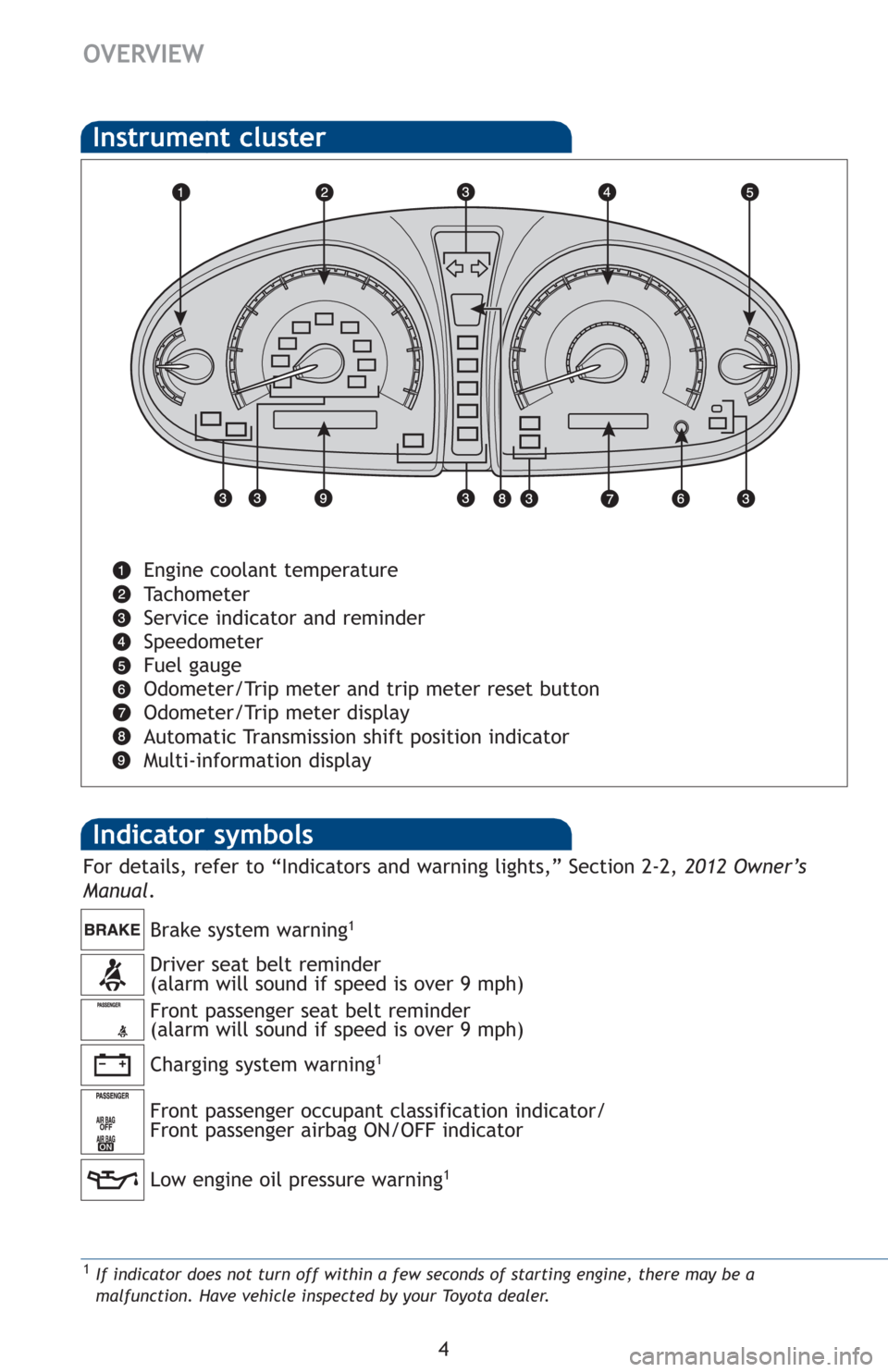

Instrument cluster
Engine coolant temperature
Tachometer
Service indicator and reminder
Speedometer
Fuel gauge
Odometer/Trip meter and trip meter reset button
Odometer/Trip meter display
Automatic Transmission shift position indicator
Multi-information display
Charging system warning1
Brake system warning1
1If indicator does not turn off within a few seconds of starting engine, \
there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Driver seat belt reminder
(alarm will sound if speed is over 9 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 9 mph)
Low engine oil pressure warning1
Front passenger occupant classification indicator/
Front passenger airbag ON/OFF indicator
For details, refer to “Indicators and warning lights,” Section 2-2\
,
2012 Owner’s
Manual .

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5

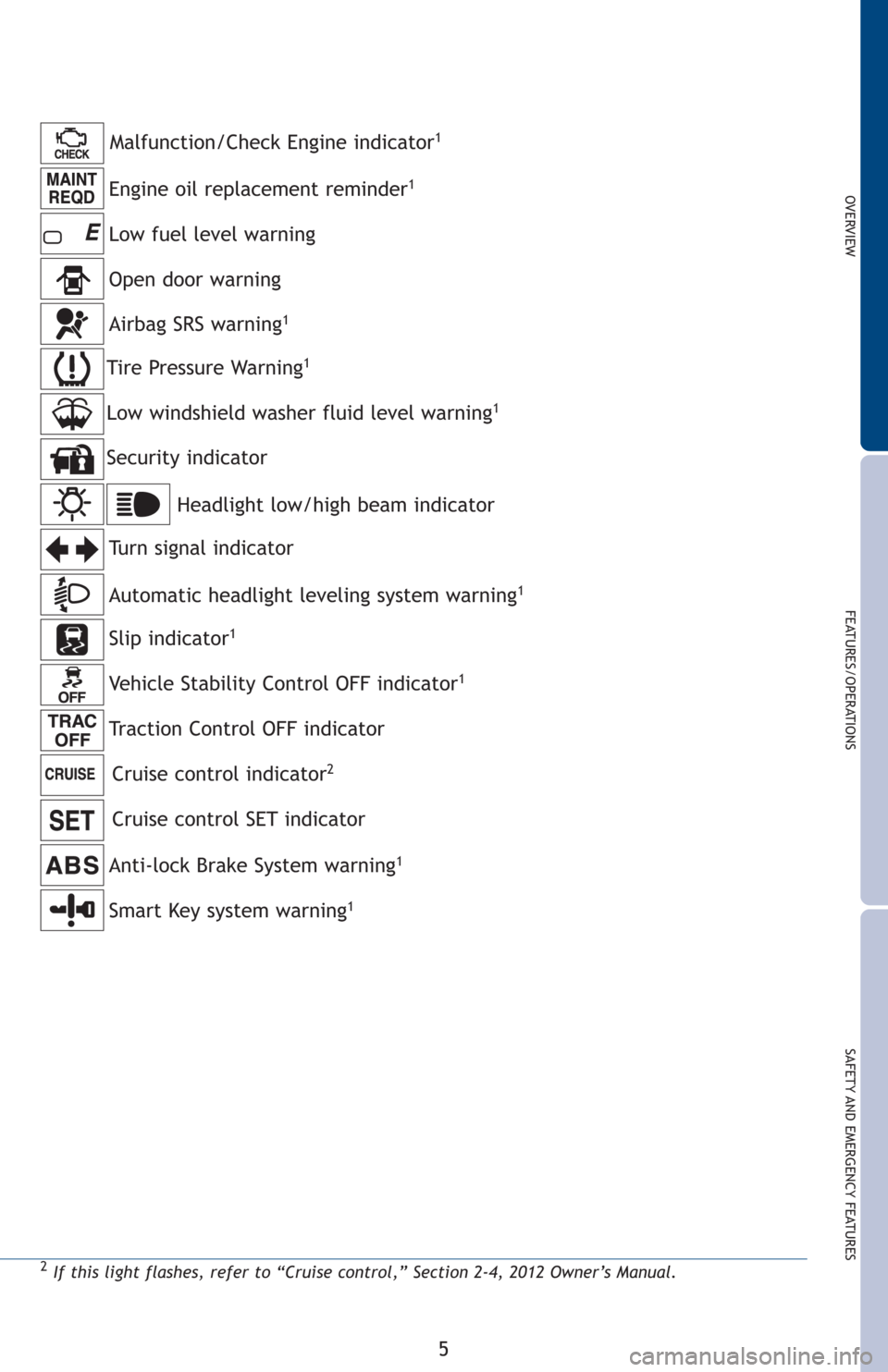

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Vehicle Stability Control OFF indicator1
Cruise control indicator2
Tire Pressure Warning1
Security indicator
Open door warning
Airbag SRS warning1
Low windshield washer fluid level warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Low fuel level warning
Automatic headlight leveling system warning1
Smart Key system warning1
2If this light flashes, refer to “Cruise control,” Section 2-4, 201\
2 Owner’s Manual.
Traction Control OFF indicator
Cruise control SET indicator

6
OVERVIEW

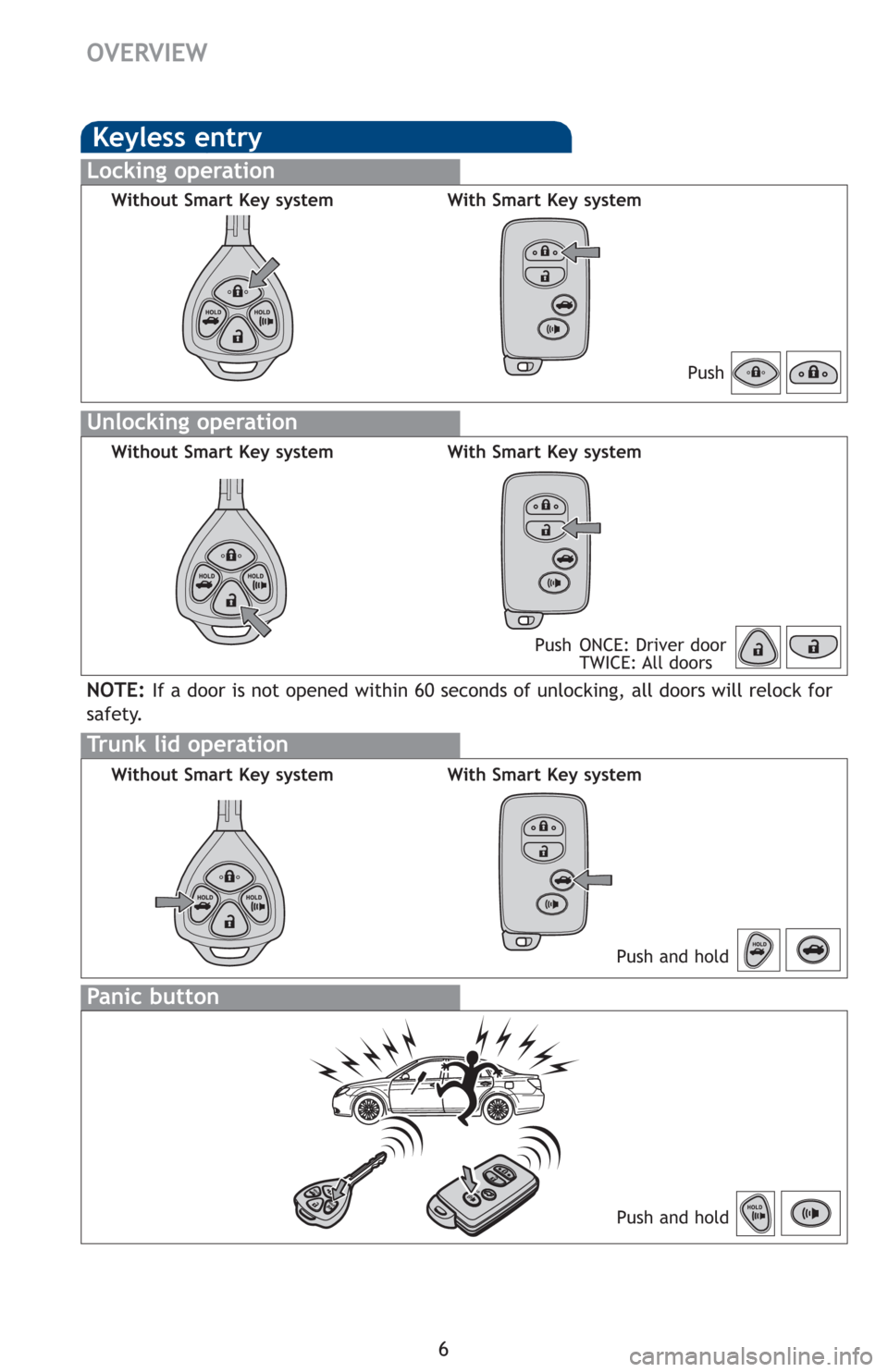

Keyless entry
Push
Push ONCE: Driver door TWICE: All doors
Locking operation
Unlocking operation
Without Smart Key system With Smart Key system
Without Smart Key systemWith Smart Key system
Trunk lid operation
Panic button
Push and hold
Push and hold
NOTE:If a door is not opened within 60 seconds of unlocking, all doors will r\
elock for
safety.
Without Smart Key system With Smart Key system

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

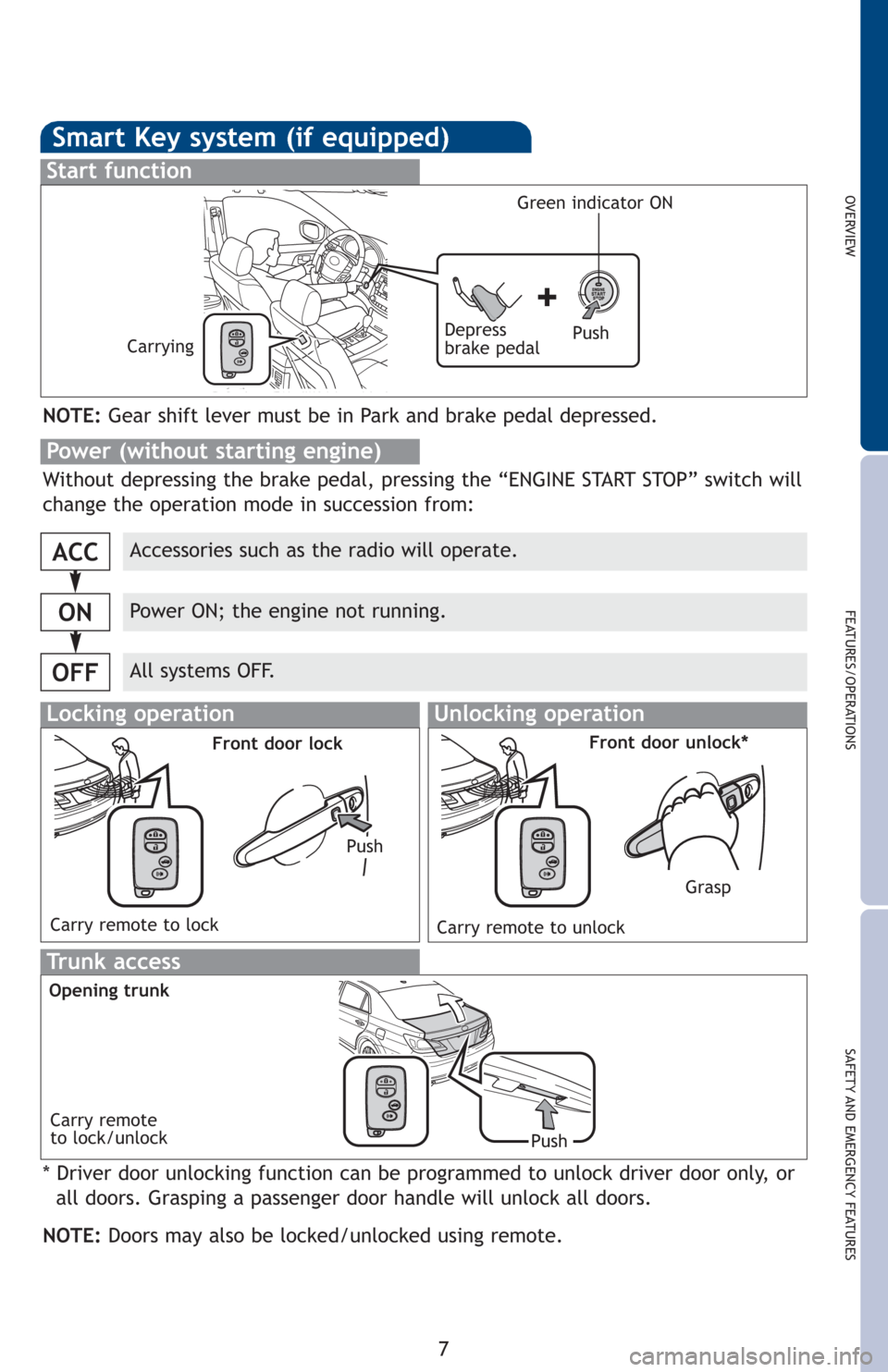

Smart Key system (if equipped)
Start function
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch will
change the operation mode in succession from:
Power (without starting engine)
* Driver door unlocking function can be programmed to unlock driver door\
only, or
all doors. Grasping a passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACC
ON
OFF
Trunk access
Opening trunk
Locking operationUnlocking operation
Carry remote to lock
Carry remote to unlock
Front door lockFront door unlock*
Push
Grasp
Push
Carry remote
to lock/unlock

8

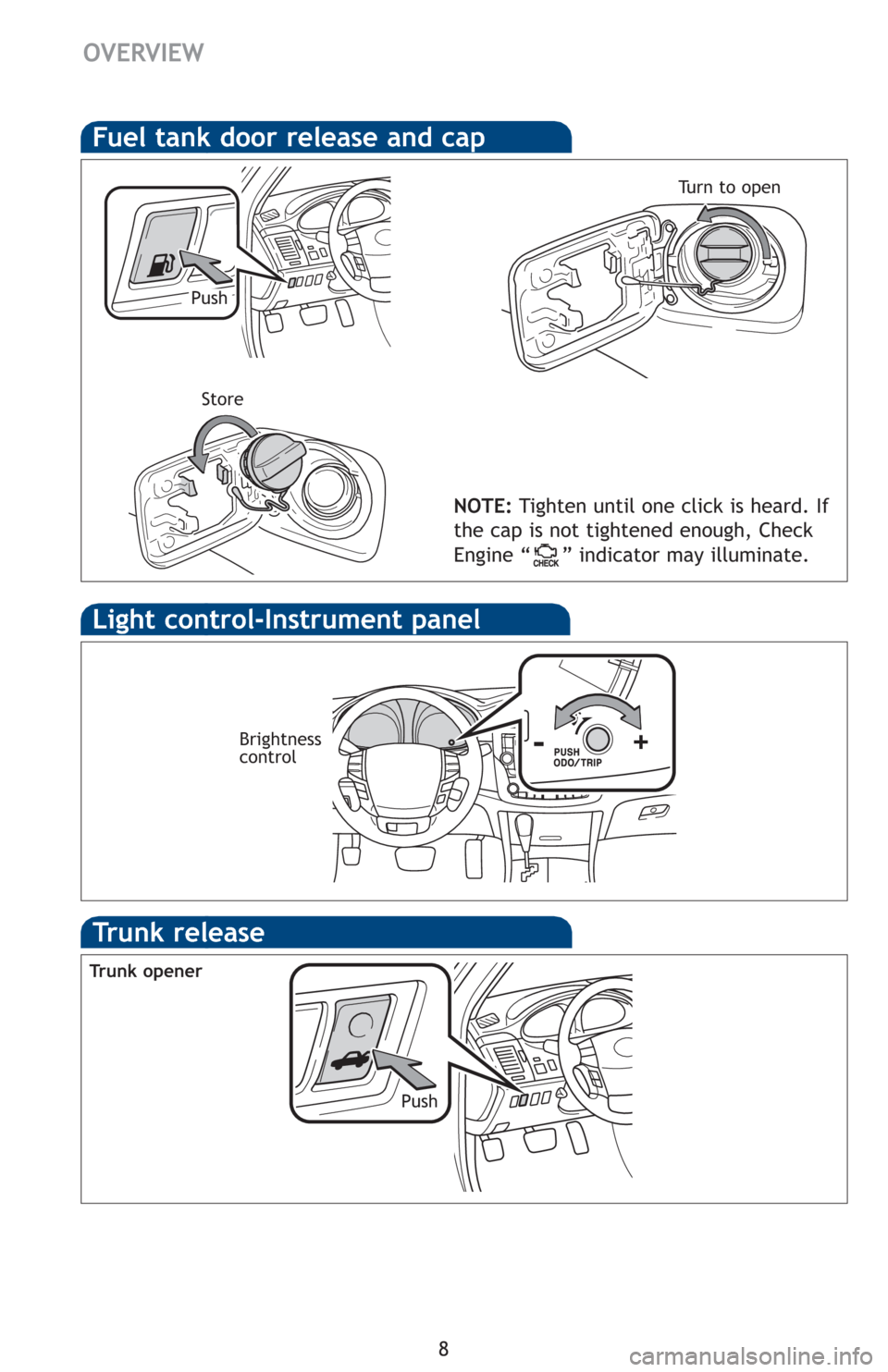

Fuel tank door release and cap
NOTE:Tighten until one click is heard. If
the cap is not tightened enough, Check
Engine “ ” indicator may illuminate.
Push Tu r n t o o p e n
Store
Light control-Instrument panel
Brightness
control-+
Trunk release
Push
Trunk opener
OVERVIEW
