ROUTE GUIDANCE
78
Other screens
TURN LIST SCREEN
On this screen, the list of turns on the guid-
ance route can be viewed.
Touching
during guid-
ance displays the turn list.
1Next street name or destination
name
2Turn direction
3Distance between turns
4Current street name ARROW SCREEN
On this screen, information about next
turns on the
guidance route can be viewed.
Touching
during guid-
ance displays the arrow screen.
1Exit number, street name contain-
ing number or next street name
2Turn direction
3Distance to the next turn
4Current street name

ROUTE GUIDANCE
81
When the vehicle is on the guidance route,
the distance and the estimated travel/arriv-
al time to the destination are displayed.
When the vehicle is not on the guidance
route, the distance and the direction of the
destination are displayed.
When driving on the guidance route and
more than one destination is set, the dis-
tance and the estimated travel/arrival time
from the current position to each destina-
tion are displayed.
1. Touch this button to display the fol-
lowing screen.
2. Touch the number button to display
the desired destination. The distance, the estimated travel time
and the estimated arrival time from the cur-
rent position to the selected destination
are displayed.
Estimated travel time is dis-
played.
Estimated arrival time is dis-
played.
To switch to estimated arrival
time.
To switch to estimated travel time.
Displayed while driving off the
guidance route. The destination
direction is indicated by an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along
the route is displayed. Travel time
and arrival time is calculated based
on the set vehicle speed information.
(See page 219.) However, when the
vehicle is not on the guidance route,
the distance is the linear distance be-
tween the current position and the
destination.
Distance and time to
destination

ROUTE GUIDANCE
82
You can add destinations and search
again for the routes.
1. Touch “Route”.
2. Touch “Add”.
3. Input an additional destination in
the same way as the destination
search. (See “Destination search” on
page 50.)
4. Touch the desired “Add Destination
Here” to determine the arrival order of
the additional destination. When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch “Route”.
2. Touch “Reorder”.
3. Select the desired destination and
press “Move Up” or “Move Down” to
change the arrival order.
4. Touch “OK”.
5. After selecting the destinations,
touch “OK”.
The system searches for the guidance
route again, and displays the entire route.
Setting and deleting
destinations —
— Adding destinations
— Reordering destinations

ROUTE GUIDANCE
83
A set destination can be deleted.
1. Touch “Route”.
2. Touch “Delete”.
When more than one destination is set, a
list will be displayed on the screen.
3. Touch the destination for deletion.
“Select All”: To select all destinations on
the list.
“Unselect All”: To unselect all of the se-
lected destinations.
A message appears to confirm the request
to delete. 4. To delete the destination(s), touch
“Yes”.
If
“Yes” is touched, the data cannot be re-
covered.
If “No” is touched, the previous screen will
return.
The system searches for the guidance
route again, and displays the entire route.
— Deleting destinations

ROUTE GUIDANCE
85
This picture shows an example of how the
system would guide around a delay
caused by a traffic jam.
1This position indicates the location of
a traffic jam caused by road repairs or
an accident.
2This route indicates the detour sug-
gested by the system.
INFORMATION
 When your vehicle is on a freeway,
the detour distance selections are
5, 15, and 25 miles (km).
 The system may not be able to cal-
culate a detour route depending on
the selected distance and sur-
rounding road conditions.
1. Touch “Route”.
2. Touch “Overview”.
The entire route from the current position
to the destination is displayed.
“OK”: To start guidance.
“Turn List”: The following screen displays
the list of the roads up to the destination.
“Preview”: To preview the route.
— Route overview

ROUTE GUIDANCE
86
You can scroll through the list of roads by
touching
or . However, not all
road names in the route may appear on the
list. If a road changes its name without re-
quiring a turn (such as on a street that runs
through two or more cities), the name
change will not appear on the list. The
street names will be displayed in order
from the starting point, along with the dis-
tance to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.
Touch “Map” on the “T urn List” screen.
The point which you choose is displayed
on the map screen.
Route preview
1. Touch “Route”.
2. Touch “Overview”.
3. Touch “Preview”.

ROUTE GUIDANCE
88
The entire route from the starting point to
the destination is displayed.
“OK”: To start guidance.
“Edit Route”: To change a route. (See
page 73.)
To select route features
A number of choices are provided on the
conditions which the system uses to deter-
mine the route to the destination.
1. Touch “Route”.
2. Touch “Preferences” to change the
conditions that determine the route to
the destination.
3. Select the desired route preference
by touching the button.
When searching for a route, the system will
avoid routes when the indicator is off.
4. After choosing the desired route
preference, touch “OK”.

ROUTE GUIDANCE
89

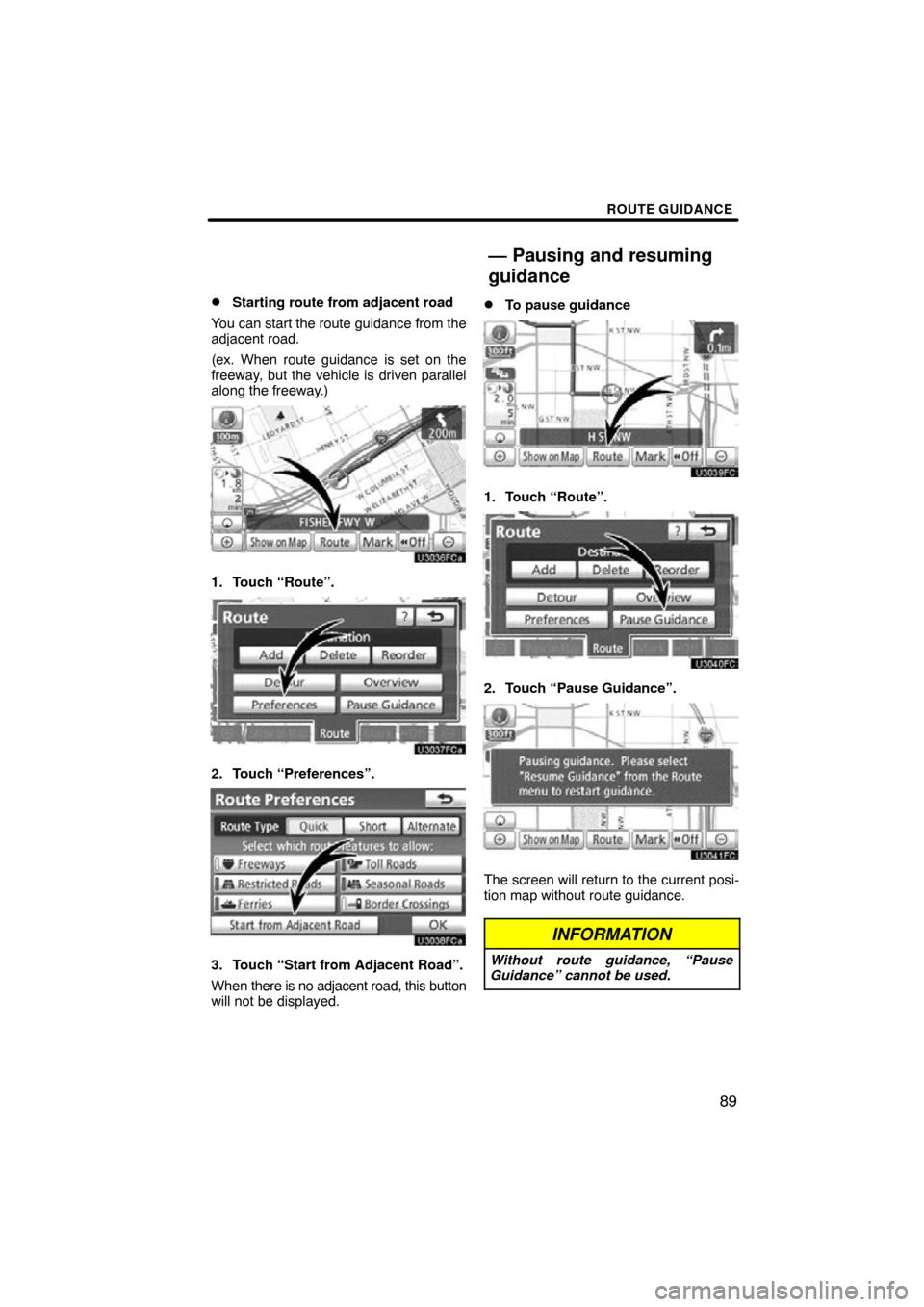

Starting route from adjacent road
You can start the route guidance from the
adjacent road.
(ex. When route guidance is set on the
freeway, but the vehicle is driven parallel
along the freeway.)
1. Touch “Route”.
2. Touch “Preferences”.
3. Touch “Start from Adjacent Road”.
When there is no adjacent road, this button
will not be displayed.
To pause guidance
1. Touch “Route”.
2. Touch “Pause Guidance”.
The screen will return to the current posi-
tion map without route guidance.
INFORMATION
Without route guidance, “Pause
Guidance” cannot be used.
— Pausing and resuming
guidance

ROUTE GUIDANCE
90

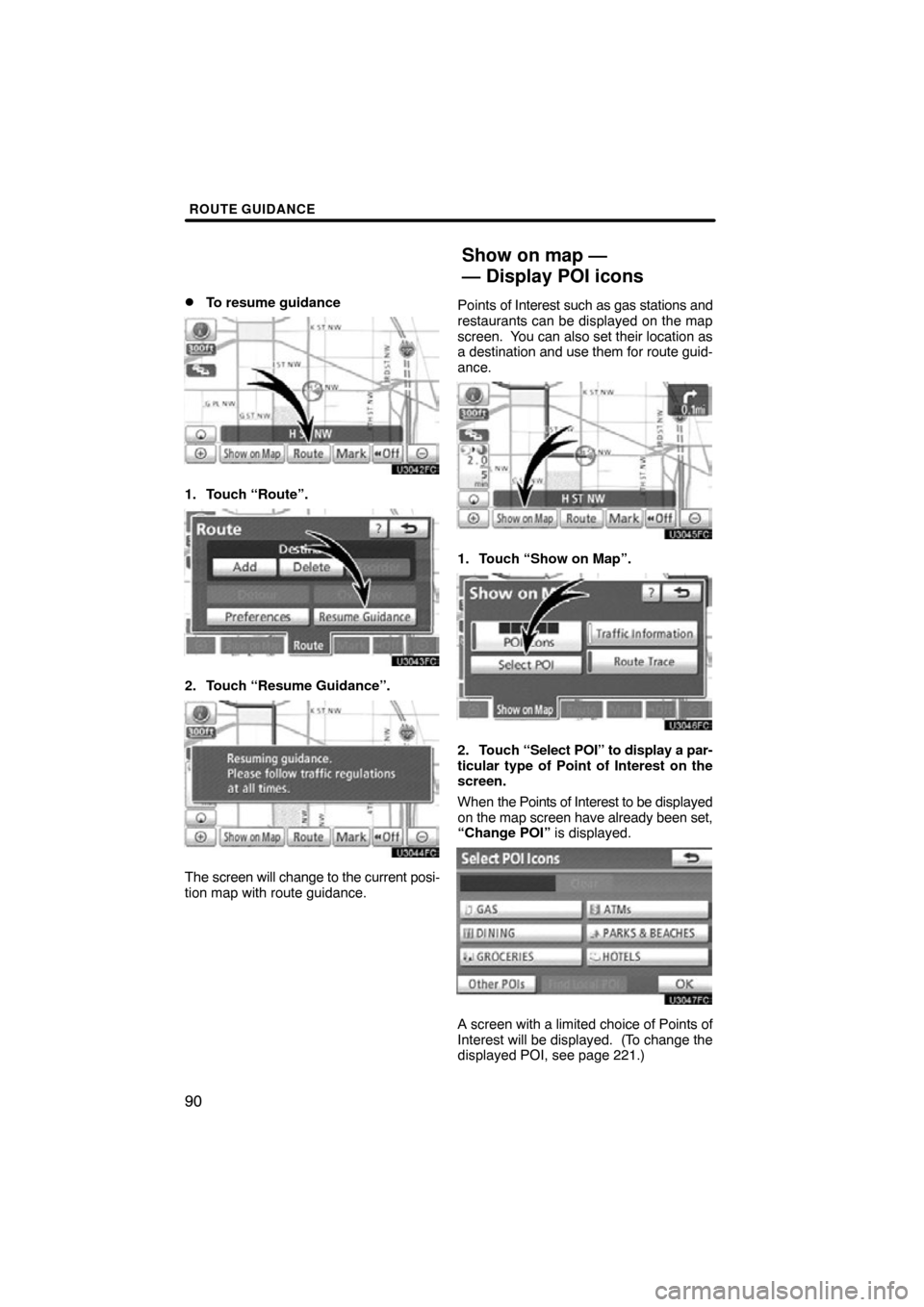

To resume guidance
1. Touch “Route”.
2. Touch “Resume Guidance”.
The screen will change to the current posi-
tion map with route guidance.Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
1. Touch “Show on Map”.
2. Touch
“Select POI” to display a par-
ticular type of Point of Interest on the
screen.
When the Points of Interest to be displayed
on the map screen have already been set,
“Change POI” is displayed.
A screen with a limited choice of Points of
Interest will be displayed. (To change the
displayed POI, see page 221.)
Show on map —
— Display POI icons

ROUTE GUIDANCE
91

Selecting POIs to be displayed
Up to 5 categories of icons can be dis-
played on the screen.
Touch the desired Point of Interest
category to display POI location sym-
bols on the map screen.
By selecting the desired POI category and
then touching “OK”, the selected POI
icons are displayed on the map screen.
To turn off the Points of Interest icons on
the map screen, touch “Clear”.
“Other POIs”: If the desired Point of Inter-
est can not be found on the limited choice
screen, touch this button.
“Find Local POI”: When searching for the
nearest Point of Interest, touch this button.
Then choose one of the categories. The
system will list the points within 200 miles
(320 km). (See page 92.) Touch “Other POIs” on the “Select POI
Icons” screen.
When a Point of Interest category is se-
lected from either the limited list or the
complete list, the screen will display sym-
bols of those locations on the map screen.
Select the desired POI categories.
The selected category icon appears on the
top left of the screen.
By selecting the desired POI category and
then touching
“OK”, the selected POI
icons are displayed on the map screen.
If the desired POI category is not on the
screen, touch “List All Categories” to list
all POI categories.
