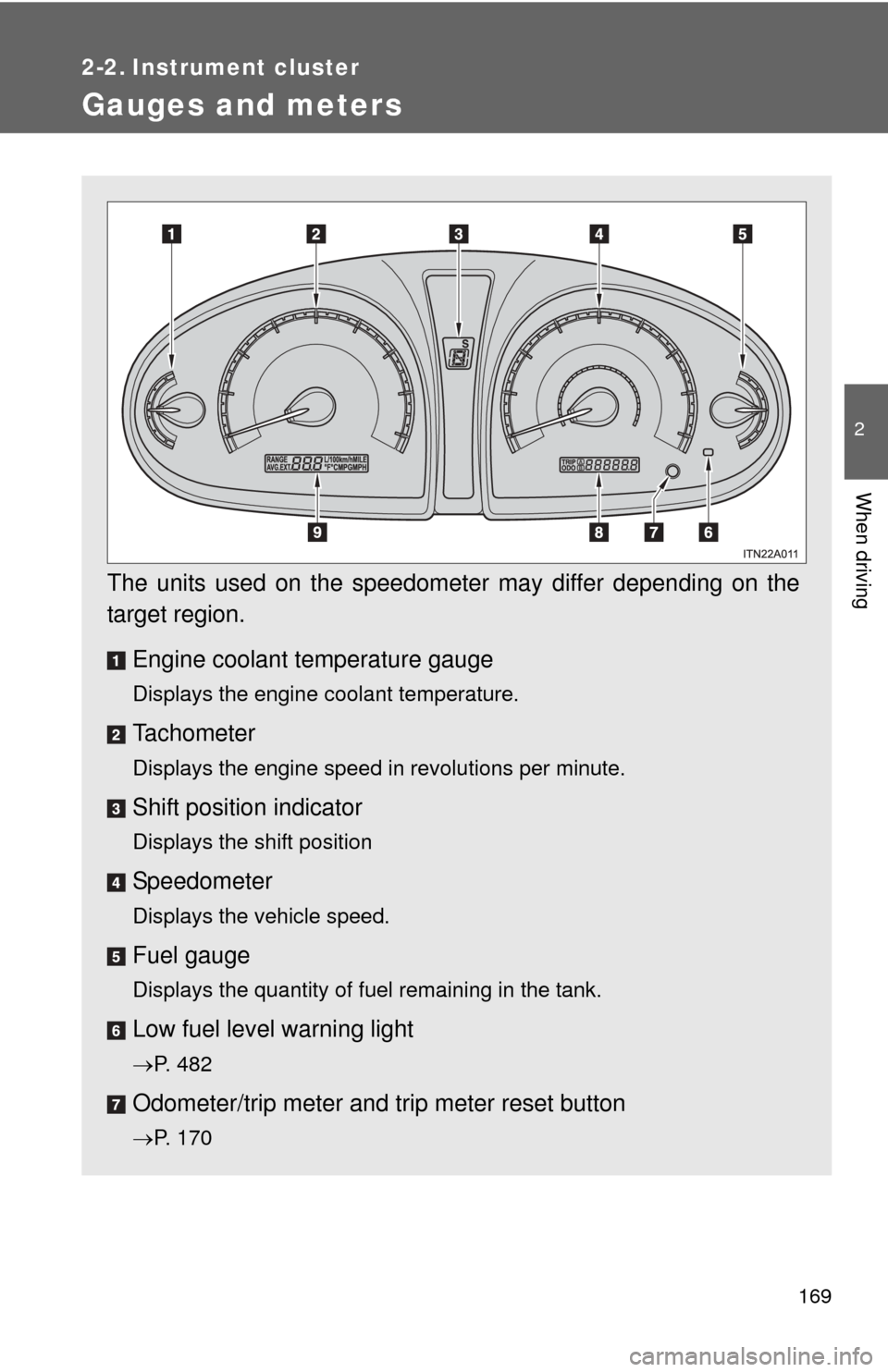

Page 169 of 580
169
2
When driving
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer may differ depending on the
target region.Engine coolant temperature gauge
Displays the engine coolant temperature.
Tachometer
Displays the engine speed in revolutions per minute.
Shift position indicator
Displays the shift position
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Low fuel level warning light
P. 482
Odometer/trip meter and trip meter reset button
P. 170
Page 170 of 580
170 2-2. Instrument cluster
Odometer and trip meter display buttonVehicles with smart key system
Pressing this button switches am ong odometer and trip meter when
the “ENGINE START STOP” switch is IGNITION ON mode.
Vehicles without smart key system
Pressing this button switches am ong odometer and trip meter when
the engine switch is in the “ON” position.
Odometer
Trip meter A
Trip meter B
Pushing and holding the button
will reset the trip meter.
Odometer/Trip meter displayOdometer
Displays the total distance the vehicle has been driven.
Trip meter
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
Multi-informat ion display
P. 175
Page 393 of 580
393
4-2. Maintenance
4
Maintenance and care
■
Repair and replacement
It is recommended that genuine Toyota parts be used for repair to ensure
performance of each system. If non-Toyota parts are used in replacement or
if a repair shop other than a Toyota dealer performs repairs, confirm the war-
ranty coverage.
■ Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance
schedule please reset the maintenance data.
To reset the data follow the procedures described below:
The oil change system should be reset. Perform the following procedures:
Switch the display to the odometer. ( P. 170)
Turn the “ENGINE START STOP” switch or the engine switch OFF.
Vehicles with smart key system: While pressing the trip meter reset
button, turn the “ENGINE START STOP” switch to IGNITION ON
mode. Continue to press and hold the button until the trip meter dis-
plays 000000.
Vehicles without smart key system: While pressing the trip meter
reset button, turn the engine switch to the “ON” position. Continue
to press and hold the button until the trip meter displays 000000.
■ Allow inspection and repairs to be performed by a Toyota dealer
● Toyota technicians are well-trained specialists and are kept up to date
with the latest service information. They are well informed about the
operations of all systems on your vehicle.
● Keep a copy of the repair order. It proves that the maintenance that has
been performed is under warranty coverage. If any problem should arise
while your vehicle is under warranty, your Toyota dealer will promptly
take care of it.
STEP1
STEP2
STEP3
Page 573 of 580
573
Alphabetical index
Maintenance
Do-it-yourself maintenance .. 399
General maintenance ........... 395
Maintenance data ................. 520
Maintenance requirements ... 392
Maintenance data .................... 393
Meter Instrument panel light
control ................................ 171
Meters .................................. 169
Mirrors
Inside rear view mirror ............ 80
Side mirror heater................. 237
Side mirrors ............................ 82
Vanity mirrors ....................... 358
Moon roof................................... 88
MP3 disc................................... 259
Multi-information display ....... 175
Noise from under vehicle ......... 18
Odometer ................................. 169
Oil Engine oil.............................. 408
Opener Fuel filler door......................... 92
Hood ..................................... 403
Trunk ...................................... 54
Outside rear view mirrors Adjustment ............................. 82
Driving position memory ......... 63
Overhead console ................... 353
Overheating, Engine ............... 512
Parking brake .......................... 167
Parking lights Replacing light bulbs ............ 455
Switch ................................... 178
Wattage ................................ 527 Personal light
Switch....................................348
Wattage .................................527
Power outlets ...........................361
Power windows ..........................85
Radiator ....................................413
Radio .........................................243
Rear seat Adjustment ..............................61
Rear sunshade .........................366
Rear turn signal lights Replacing light bulbs .............455
Wattage .................................527
Rear view monitor system ......198
Rear window defogger ............237
Replacing Fuses ....................................444
Key battery ............................440
Light bulbs .............................455
Tires ......................................491
Reporting safety defects for
U.S. owners ............................552
Seat belts Adjusting the seat belt .............71
Automatic locking retractor ................................73
Child restraint system installation ...........................130
Cleaning and maintaining the seat belts ......................390
Emergency locking
retractor ................................73
How to wear your seat belt......70
How your child should wear the seat belt ..........................74
Pregnant women, proper seat belt use ..............73
Reminder light .......................482
Seat belt extenders .................74
Seat belt pretensioners ...........72M
N
O
P
R
S
