OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 9Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel 8Smart Key system27
Trunk release 8
Air Conditioning/Heating 20Audio18-19Auto lock/unlock210Automatic Transmission 10Clock 21Cruise control15Cup holders22Door locks 10Garage door opener (HomeLink®)315Lights1& turn signals13Moonroof 17Multi-information display17Parking brake 11Power outlets 22Seat adjustments-Front12Seat adjustments-Rear12Seat ventilators/Heaters 21Seats-Head restraints 12Steering lock release 11Steering wheel switches19Sunshade-Rear116Telephone controls (Bluetooth®)16Tilt and telescopic steering wheel11Windows-Power 14
Windshield wipers & washers114
Doors-Child safety locks 23Floor mat installation27Seat belt comfort guide24Seat belts 23Seat belts-Shoulder belt anchor23Spare tire & tools 25Star Safety SystemTM26-27Tire Pressure Monitoring (warning) System 24
Trunk-Internal release 25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
Page 4 of 31
2
Steering wheel controls
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1
Steering wheel climate controls
Ignition switch (standard key)1
Voice command button1
Multi-information display button
Driving position memory switches1
Headlight, turn signal and front fog light controls
“ENGINE START STOP” button (Smart Key)1
Wiper and washer controls
Clock
Emergency flasher button
Audio system/Navigation system
1,2
Air Conditioning controls
Outside rearview mirror/Rear window defogger button
Storage compartment
Page 13 of 31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Steering lock release
Tu r n
Tu r n
With Smart Key system
Without Smart Key system
Push
Tu r n
Parking brake
Set: Depress
Release: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Angle
Length
Lock release leverLock release lever
Gently turn wheel while pressing the
“ENGINE START STOP” switch. If the
lock does not release, the switch will
flash green.
If steering lock does not disengage:
Page 18 of 31
16
FEATURES/OPERATIONS
Bluetooth®technology allows dialing or receipt of calls without taking hands from
the steering wheel or using a cable to connect the compatible telephone \
with the
system.
Refer to “Hands-free system (for cellular phone),” Section 3-4 in\
the Owner’s
Manual , for more details.
Microphone
Audio unit
Steering wheel telephone switches
Vo l u m e
Start call
End call
Voice command button
Telephone controls (Bluetooth®)
Sunshade-Rear (if equipped)
When shifting to reverse,
sunshade retracts
automatically, and then rises
again when driving forward.
Push
Page 21 of 31
“ ”Use to search within the selected audio medium (radio, CD, iPod, etc.).
“MODE” Push to turn audio ON and select an audio mode. Push and hold to turn
audio system OFF.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
19
Radio
To preset stations Tune in the desired station and hold down a preset button until
you hear a beep. Push desired preset button to select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again to hold
selection.
By inserting a mini plug into the AUX or USB/AUX audio jack, you can listen to
music from a portable audio device through the vehicle’s speaker system while in
AUX or USB/AUX mode.
AUX or USB/AUX audio jack
Steering wheel switches
Audio controlClimate control
Volume controlTemperature
selector
Auto A/C ON
System OFF
vv
Page 27 of 31
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25

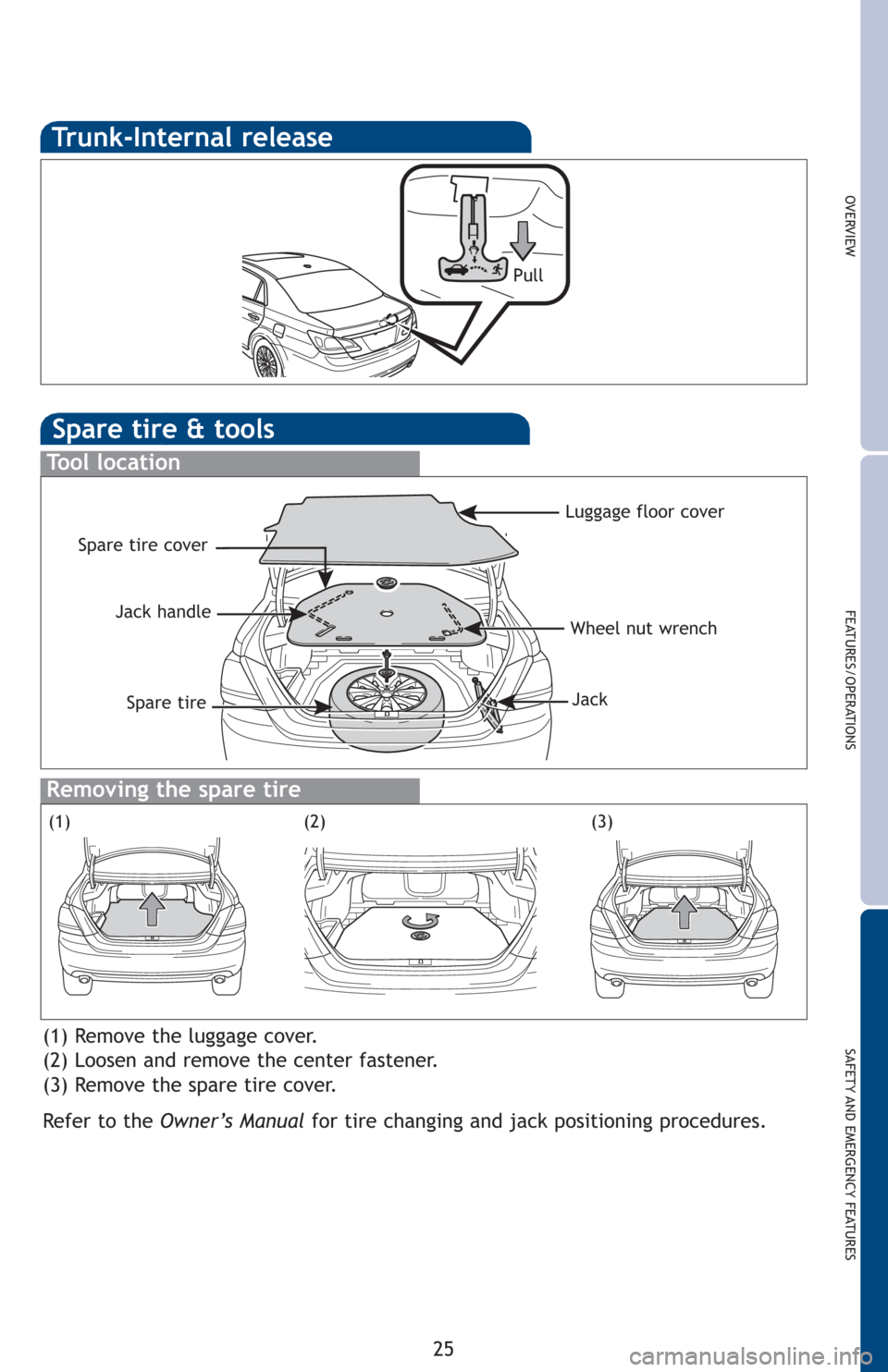

Spare tire & tools
Tool location
Removing the spare tire
(1) Remove the luggage cover.
(2) Loosen and remove the center fastener.
(3) Remove the spare tire cover.
Refer to the Owner’s Manual for tire changing and jack positioning procedures.
Spare tire
Jack handle
Luggage floor cover
Jack
Spare tire cover
Wheel nut wrench
Trunk-Internal release
Pull
(1)(2)(3)
Page 28 of 31
26
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine p\
ower and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is travelin\
g.
When it senses that the front or rear wheels begin to lose traction, VSC\
reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
Brake Assist (BA)
ABS helps prevent brakes from locking up by "pulsing" brake pressure to \
each
wheel. This limits brake lockup and provides the maximum brake effectiveness fo\
r
the current road conditions.
Toyota's ABS sensors detect which wheels are locking up and limits wheel lockup b\
y
"pulsing" each wheel's brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the maximum
traction that the current road conditions will allow, helping you stay in control.
Brake Assist is designed to detect sudden or “panic” braking, and then a\
dd braking
pressure to decrease the vehicle’s stopping distance. When there’s only a split
second to react, Brake Assist can add additional brake pressure more quickly than
just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine p\
ower, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. \
This
transfers power to the wheels that still have traction to help you drive\
safely.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain stability and balance when braking. Abrupt stops cause the vehicle to tilt
forward, reducing the braking power of the rear wheels. EBD responds to \
sudden
stops by redistributing brake force to maximize the braking effectivenes\
s of all
four wheels.
SAFETY AND EMERGENCY FEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock Braking
System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA) and Smart
Stop Technology (SST).
