TOYOTA AVALON 2013 XX40 / 4.G Owners Manual

4518-1. Specifications
8
Vehicle specifications
AVALON (U)_(OM41440U)
*:Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities

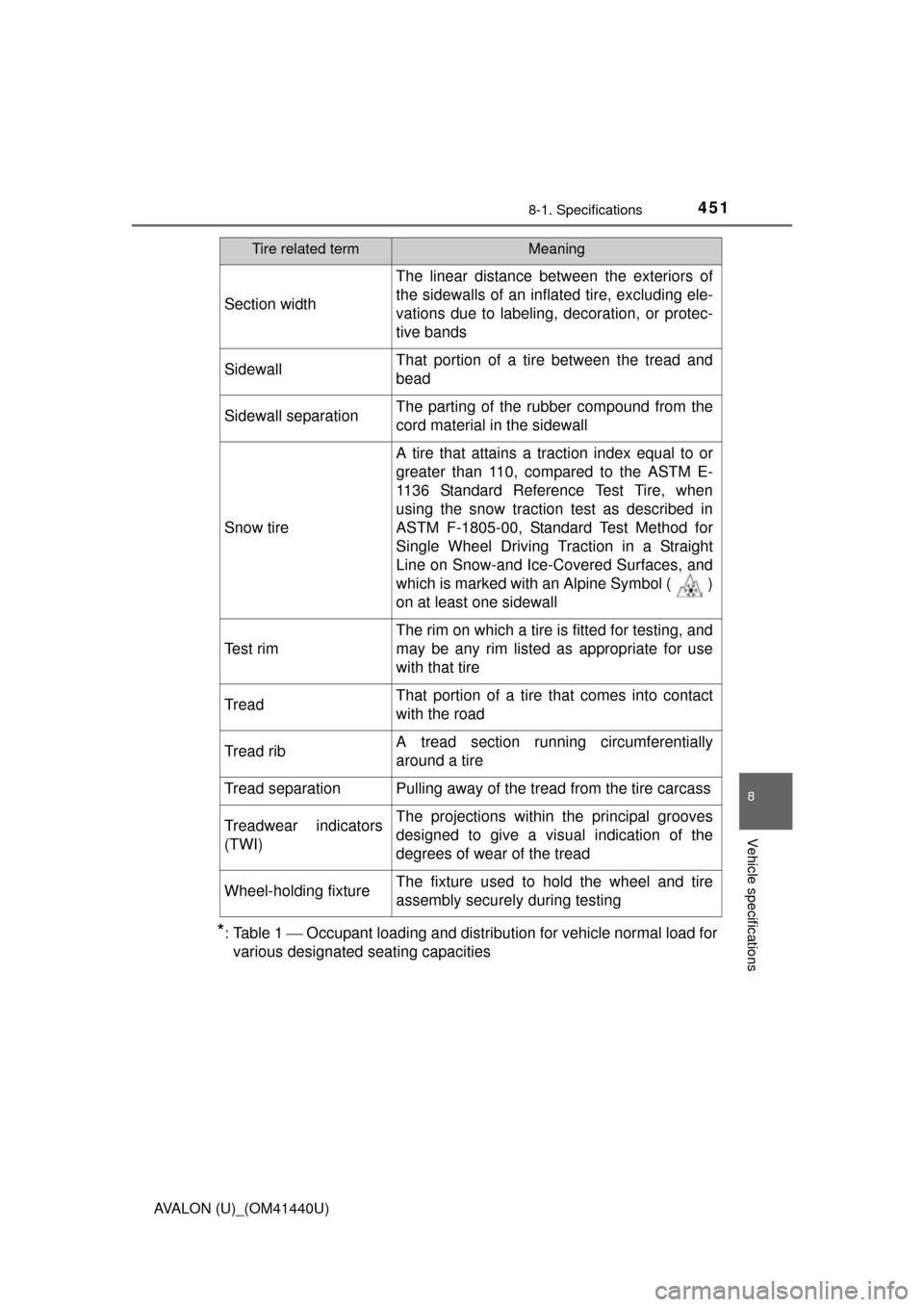

Section width
The linear distance between the exteriors of
the sidewalls of an inflated tire, excluding ele-
vations due to labeling, decoration, or protec-
tive bands
SidewallThat portion of a tire between the tread and
bead
Sidewall separationThe parting of the rubber compound from the
cord material in the sidewall
Snow tire
A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight
Line on Snow-and Ice-Covered Surfaces, and
which is marked with an Alpine Symbol ( )
on at least one sidewall
Test rim
The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
TreadThat portion of a tire that comes into contact
with the road
Tread ribA tread section running circumferentially
around a tire
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire
assembly securely during testing
Tire related termMeaning

4528-1. Specifications
AVALON (U)_(OM41440U)

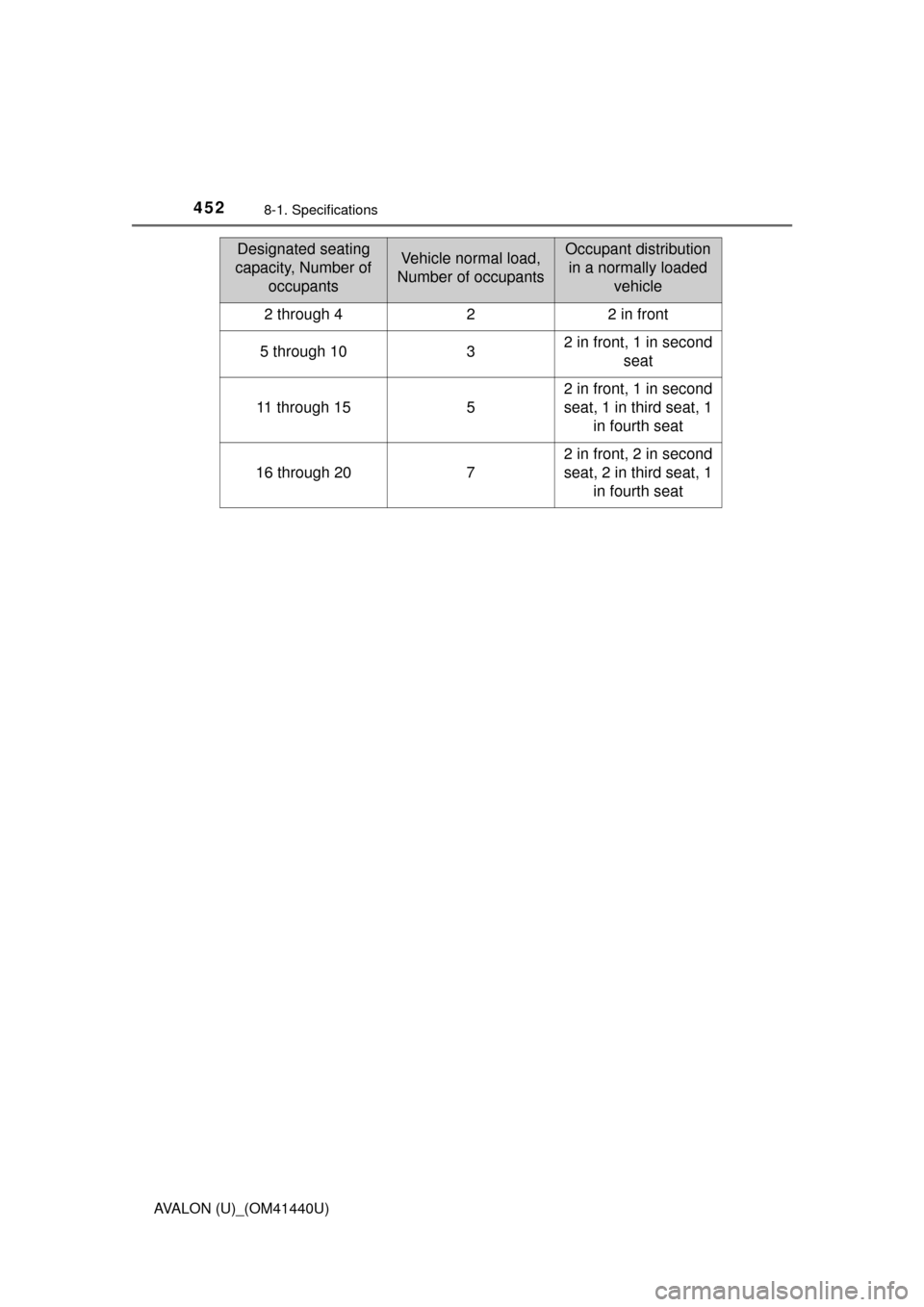

Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second
seat, 1 in third seat, 1 in fourth seat
16 through 207
2 in front, 2 in second
seat, 2 in third seat, 1 in fourth seat

453
8
Vehicle specifications
AVALON (U)_(OM41440U)
8-2. Customization
Vehicles with a Display Audio system: Settings that can be changed
using the Display Audio system
(For further information on custom izing settings using the Display
Audio system, refer to the “Dis play Audio System Owner’s Man-
ual”.)
Vehicles with a navigation system: Settings that can be changed
using the navigation system
(For further information on customizing settings using the naviga-
tion system, refer to the “Navig ation System Owner’s Manual”.)
Settings that can be changed by your Toyota dealer
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of electronic features that can be
personalized to suit your preferences. Programming these pref-
erences requires specialized e quipment and may be performed
by your Toyota dealer.
Some function settings are change d simultaneously with other func-
tions being customized. Contact your Toyota dealer for further
details.
Customizable features
1
2
3

4548-2. Customization
AVALON (U)_(OM41440U)
ItemFunctionDefault settingCustom- ized
setting
Smart key
system
and wire-
less
remote
control
(
P. 91,
106) Operation signal
(Emergency flashers)
On Off — O O
Operation signal
(Buzzer) On Off — — O
Operation buzzer vol-
ume Level 5Off to level
7 OOO
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 sec-
onds Off
—O O30 sec-onds
120 sec- onds
Open door warning
buzzerOnOff — —O
Smart
key sys-
tem

(P. 91) Smart key system On Off — — O
Number of permissible
times of continuous
smart lock
Twice Unlimited — — O
123

4558-2. Customization
8
Vehicle specifications
AVALON (U)_(OM41440U)Wireless
remote
control
(
P. 106)
Wireless remote control On Off — — O
Unlocking operation
Driver's
door
unlocked in one
step, all doors
unlocked in two steps All doors
unlocked in one step. —O O
Panic function On Off — — O
Trunk unlocking opera-
tionPress and hold
(short)
Off
——O
Press twice
One short press
Press and
hold (long)
Door lock
(
P. 109) Unlocking using a key
Driver's
door
unlocked in one
step, all doors
unlocked in two steps All doors
unlocked in one step. —O O
Speed-detecting auto-
matic door lock function Off On O O O
Opening driver's door
unlocks all doors Off On — O O
Shifting gears to P
unlocks all doors. On Off O O O
Shifting gears to posi-
tion other than P locks all
doors. On Off O O O
ItemFunctionDefault
settingCustom- ized
setting
123

4568-2. Customization
AVALON (U)_(OM41440U)Trunk
(
P. 112)
Trunk opener main
switch
ActivatedDeacti-
vated

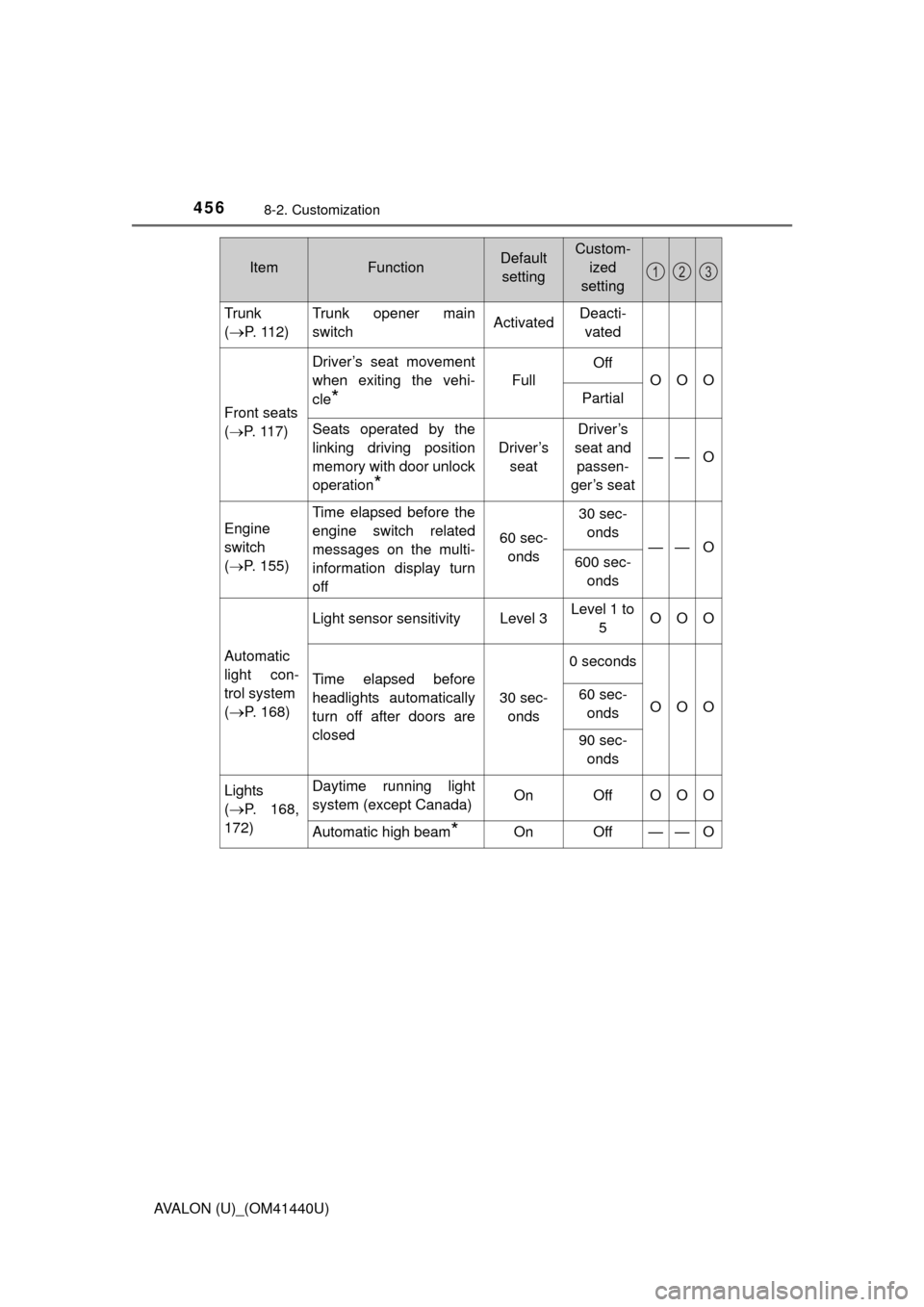

Front seats
(P. 117)
Driver’s seat movement
when exiting the vehi-
cle
*
Full
Off
OOO
Partial
Seats operated by the
linking driving position
memory with door unlock
operation
*
Driver’s
seat
Driver’s
seat and passen-
ger’s seat
——O
Engine
switch
( P. 155)
Time elapsed before the
engine switch related
messages on the multi-
information display turn
off
60 sec-
onds
30 sec- onds
——O600 sec- onds
Automatic
light con-
trol system
(
P. 168) Light sensor sensitivity Level 3
Level 1 to
5 OOO
Time elapsed before
headlights automatically
turn off after doors are
closed 30 sec-
onds 0 seconds
OOO
60 sec-
onds
90 sec- onds
Lights
(
P. 168,
172) Daytime running light
system (except Canada)
On Off O O O
Automatic high beam
*On Off — — O
ItemFunctionDefault settingCustom- ized
setting
123

4578-2. Customization
8
Vehicle specifications
AVALON (U)_(OM41440U)

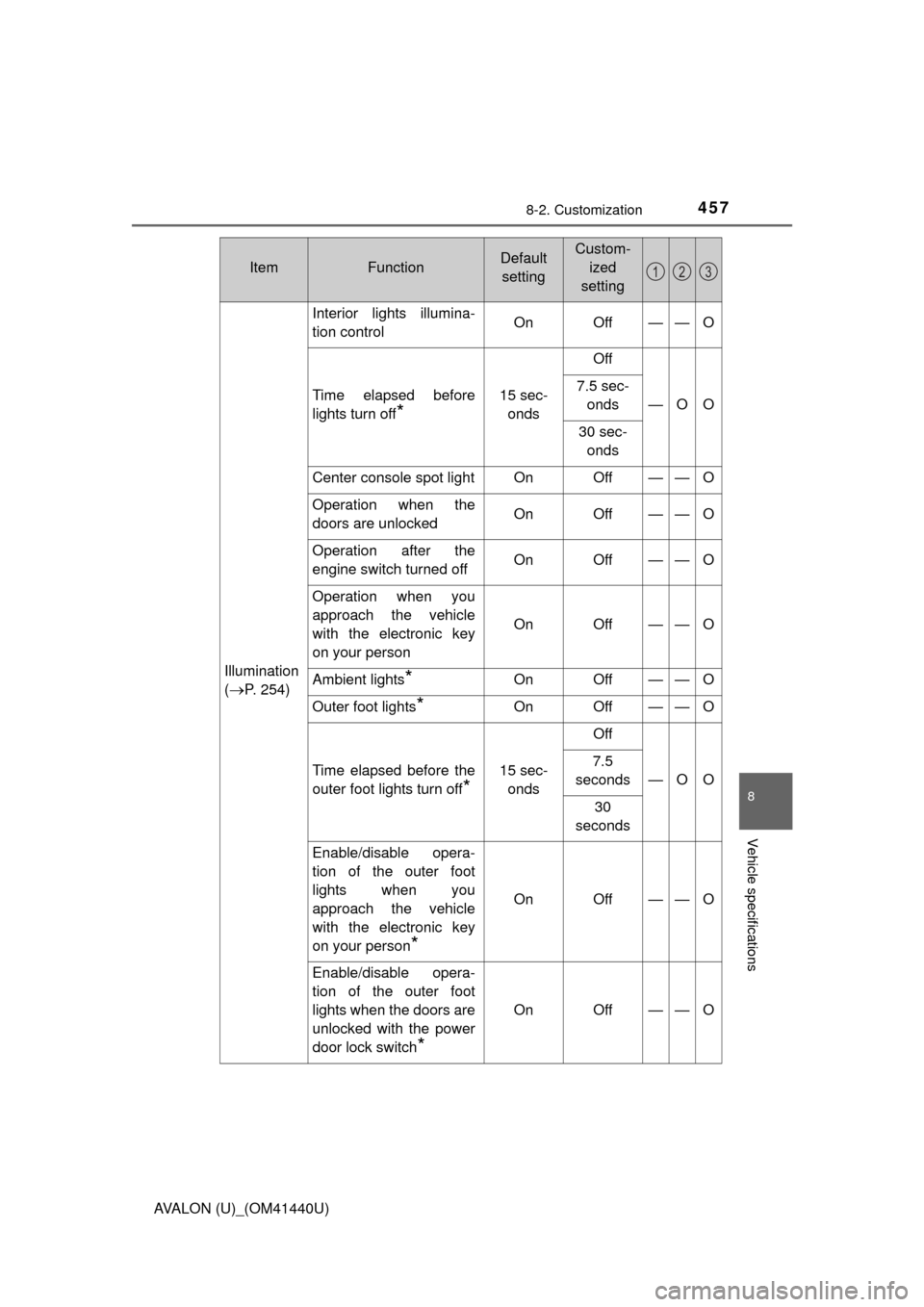

Illumination
(
P. 254)
Interior lights illumina-
tion controlOnOff——O
Time elapsed before
lights turn off
*
15 sec-onds
Off
—OO
7.5 sec- onds
30 sec-onds
Center console spot lightOnOff——O
Operation when the
doors are unlockedOnOff——O
Operation after the
engine switch turned offOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
Ambient lights*OnOff——O
Outer foot lights*OnOff——O
Time elapsed before the
outer foot lights turn off
*
15 sec-onds
Off
—OO
7.5
seconds
30
seconds
Enable/disable opera-
tion of the outer foot
lights when you
approach the vehicle
with the electronic key
on your person
*
OnOff——O
Enable/disable opera-
tion of the outer foot
lights when the doors are
unlocked with the power
door lock switch
*
OnOff——O
ItemFunctionDefault settingCustom- ized
setting
123

4588-2. Customization
AVALON (U)_(OM41440U)
*: If equipped
Instrument
panel
(
P. 79)
Instrument panel light
auto dimmer control
Level 3Level 1 to
5
——O
Automatic
air condi-
tioning sys-
tem
(
P. 238)
A/C auto switch opera-
tionAutoManual—OO
Touch but-
ton (on the
center
panel)
(
P. 238,
249)
Button sensor sensitivityLevel 3Level 1 to 3——O
Rear
sunshade
*
(P. 278)
Reverse operationOnOff——O
Time elapsed before the
reverse operation fea-
ture activates0.7
seconds
0 second
——O
0.9
seconds
1.2
seconds
CAUTION
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
ItemFunctionDefault
settingCustom- ized
setting
123

4598-2. Customization
8
Vehicle specifications
AVALON (U)_(OM41440U)
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

460
AVALON (U)_(OM41440U)

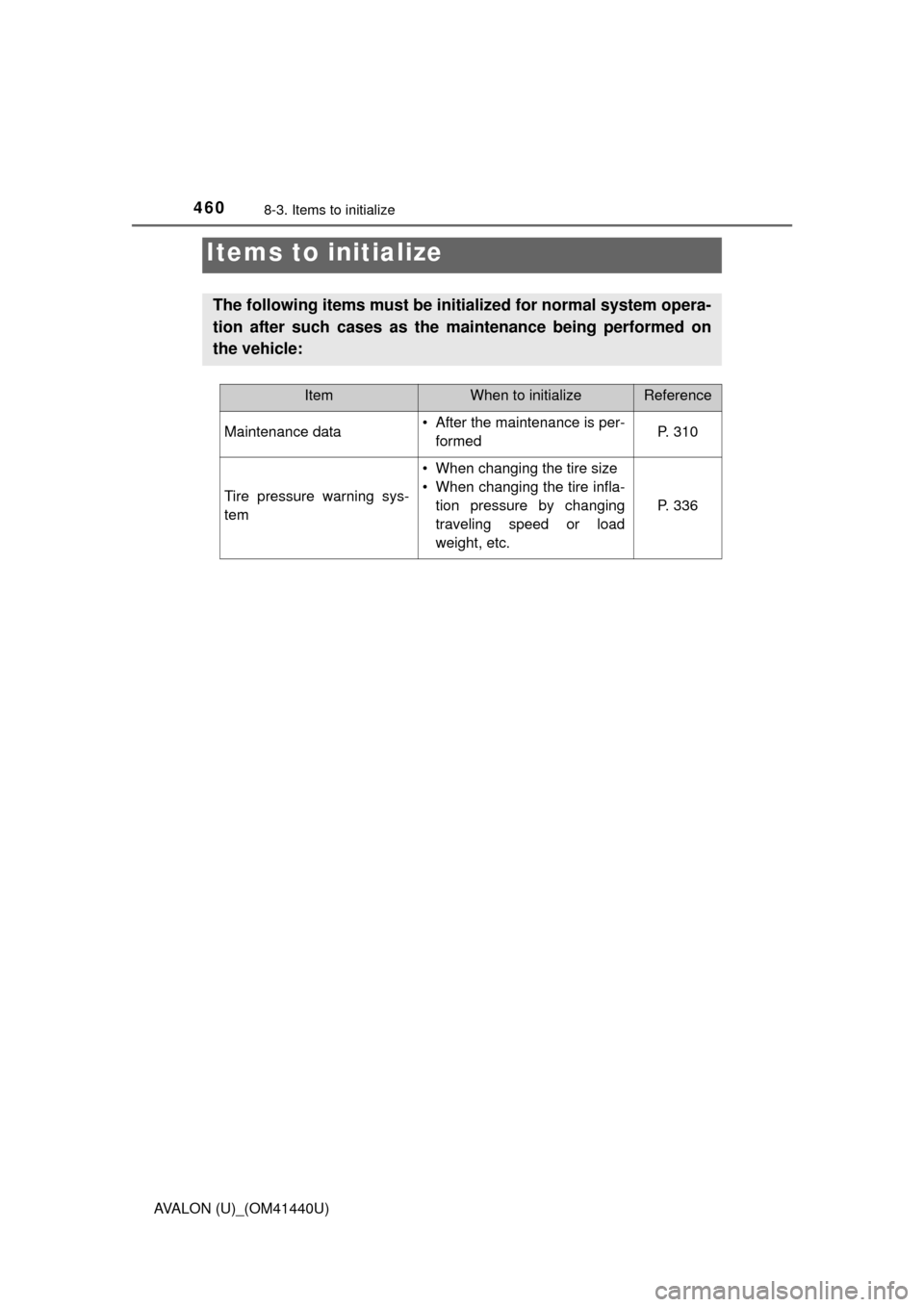

8-3. Items to initialize
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the ma intenance being performed on
the vehicle:
ItemWhen to initializeReference
Maintenance data• After the maintenance is per- formedP. 310
Tire pressure warning sys-
tem
• When changing the tire size
• When changing the tire infla-tion pressure by changing
traveling speed or load
weight, etc.
P. 336
