OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap
8
Hood release
9
Indicator

symbols
4-5
Instrument

cluster
4
Instrument

panel
2-3
Keyless entry1,2 6
Light
control-Instrument panel
8
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic
Transmission
10
BSM

(Blind Spot Monitor)
21
Clock

20
Cruise control

16
Cup

holders

22
Driving

mode select
11
Dynamic

radar cruise control
17
Garage

door opener (HomeLink
®)3 16
iPod®/USB/AUX port 21
Lights1 & turn signals 15
Moonroof
12
Multi-Information

Display
13
Parking

brake
10
Power outlets-12V

DC
14
Seat

adjustments-Front
13
Seat

ventilators/Heaters
19
Seats-Head

restraints
12
Steering

lock release
11
Steering

wheel switches
20
Tilt and

telescopic steering wheel
11
Windows-Power

12
Windshield wipers & washers

14
Wireless

charger
22

Door locks 23
Doors-Child safety locks
23
Floor

mat installation
27
Seat

belts
23
Seat

belts-Shoulder belt anchor
24
Spare

tire & tools
25
Star

Safety System
TM 26-27
Tire Pressure Monitoring (warning) System

24
Trunk-Internal

release

25
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

2
OVERVIEW
Instrument panel
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Navigation system
1,2/Display audio system1,3
“ENGINE START STOP” button
Tilt and telescopic steering lock release
Steering wheel audio controls
2,3
Paddle shift switches1
Telephone controls2,3
Voice command button2,3
Vehicle-to-vehicle distance button1
Cruise control1/Dynamic radar cruise control1
Air Conditioning controls
Clock
Outside rearview mirror/Rear window defogger button
Steering wheel controlsAutomatic Air Conditioning
(Type A)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Steering lock release
Turn
Push
Hold wheel, push lever down, set angle and length, and return lever.
Lock release lever
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Gently turn steering wheel while pressing the “ENGINE START STOP” switch. If
the lock does not release, a message informing the driver that the steering wheel
is locked will be displayed on the Multi-Information Display.
Angle
Length

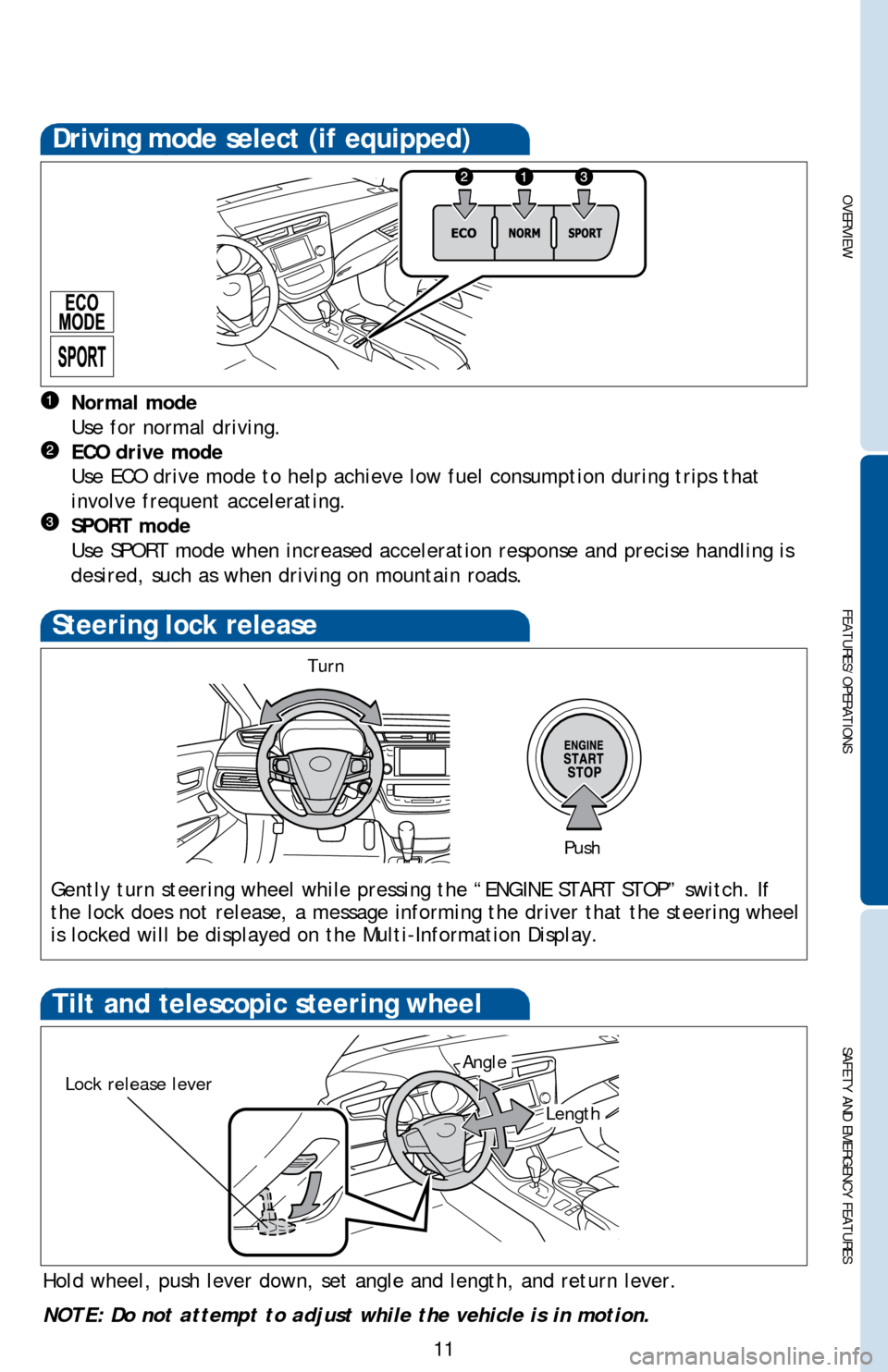

Driving mode select (if equipped)
Normal mode
Use for normal driving.
ECO drive mode
Use ECO drive mode to help achieve low fuel consumption during trips that
involve frequent accelerating.
SPORT mode
Use SPORT mode when increased acceleration response and precise handling is
desired, such as when driving on mountain roads.

20
Steering wheel switches
“ ”
Use to search within a selected audio medium (radio, CD, iPod, etc.), or to
perform certain telephone operations.
“MODE”
Push to turn audio ON and select an audio mode. Push and hold to turn the
audio system OFF.
Back switch
Returns to the previous screen.vvvv
Volume control
FEATURES/OPERATIONS

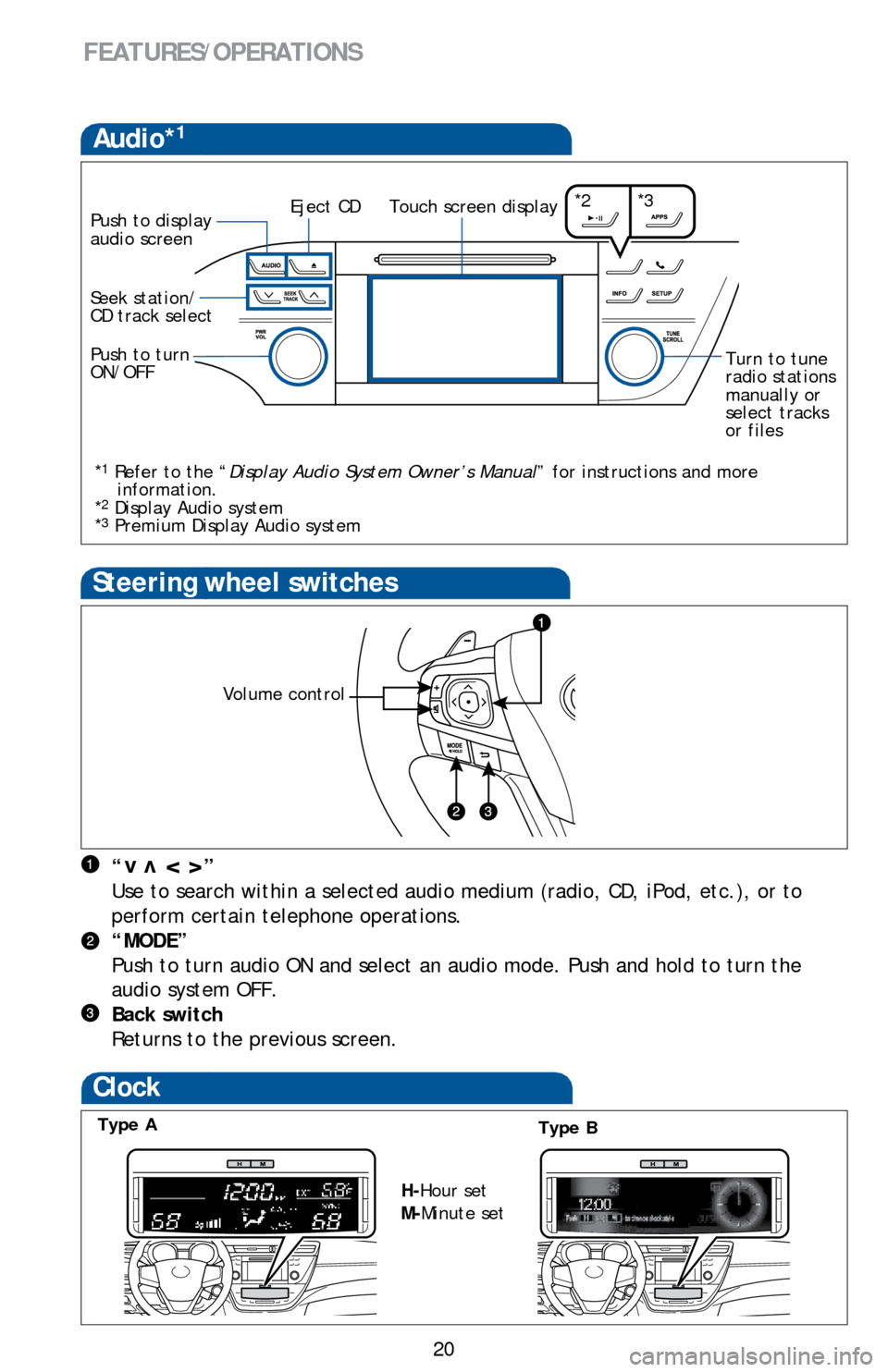

Audio*1
Touch screen displayPush to display
audio screen
Push to turn
ON/OFFEject CDTurn to tune
radio stations
manually or
select tracks
or files
Seek station/
CD track select*2*3
*
1 Refer to the “Display Audio System Owner’s Manual ” for instructions and more
information.
*
2 Display Audio system
*3 Premium Display Audio system
Clock
H-Hour set
M-Minute set
Type A Type B

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
25

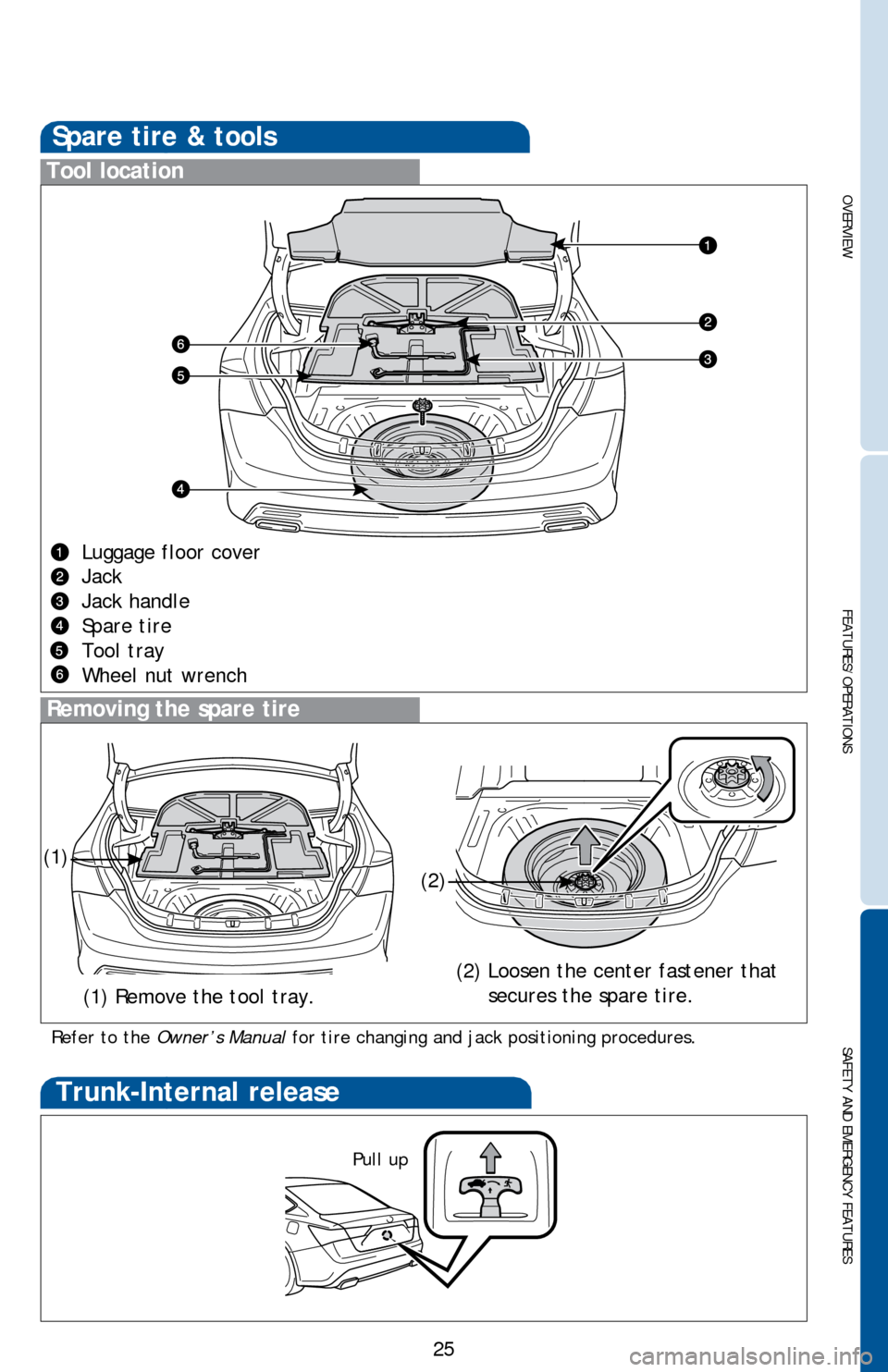

Spare tire & tools
Tool location
Luggage floor cover
Jack
Jack handle
Spare tire
Tool tray
Wheel nut wrench
Removing the spare tire
Trunk-Internal release
Pull up
Refer to the
Owner’s Manual for tire changing and jack positioning procedures.
(1)
(2)
(2) Loosen the center fastener that secures the spare tire.
(1) Remove the tool tray.

26
Star Safety SystemTM
VSC helps prevent loss of traction during cornering by reducing engine power and
applying brake force to selected wheels.
Toyota’s VSC monitors steering angle and the direction your vehicle is traveling.
When it senses that the front or rear wheels begin to lose traction, VSC reduces
engine power and applies braking to selected wheels. This helps restore traction
and vehicle control.
Vehicle Stability Control (VSC)
Anti-Lock Brake System (ABS)
ABS helps prevent brakes from locking up by “pulsing” brake pressure to each
wheel. This limits brake lockup and helps provide directional control for the
current road conditions.
Toyota’s ABS sensors detect which wheels are locking up and limits wheel lockup
by “pulsing” each wheel’s brakes independently. Pulsing releases brake pressure
repeatedly for fractions of a second. This helps the tires attain the traction that
current road conditions will allow, helping you to stay in directional control.
Brake Assist (BA)
Brake Assist is designed to detect sudden or “panic” braking, and then add braking
pressure to help decrease the vehicle’s stopping distance. When there’s only a
split second to react, Brake Assist can add additional brake pressure more quickly
than just the driver alone can. VSC helps prevent loss of traction during cornering by reducing engine power, and
Traction Control helps maintain traction on loose gravel and wet, icy, or uneven
surfaces by applying brake force to the spinning wheel(s).
Toyota’s TRAC sensors are activated when one of the drive wheels starts to slip.
TRAC limits engine output and applies the brakes to the spinning wheel. This
transfers power to the wheels that still have traction to help keep you on track.
Traction Control (TRAC)
Electronic Brake Force Distribution (EBD)
Toyota’s ABS technology has Electronic Brake-force Distribution (EBD) to help
maintain control and balance when braking. Abrupt stops can cause a vehicle
to tilt forward, reducing the braking power of the rear wheels. EBD responds to
sudden stops by redistributing brake force to enhance the braking effectiveness of
all four wheels.
SAFETY AND EMERGENCY FEATURES
All new Toyota vehicles come standard with the Star Safety SystemTM, which
combines Vehicle Stability Control (VSC), Traction Control (TRAC), Anti-lock
Braking System (ABS), Electronic Brake-force Distribution (EBD), Brake Assist (BA)
and Smart Stop Technology (SST).
