TOYOTA AVALON 2014 XX40 / 4.G Quick Reference Guide

2014
Avalon
Quick Reference Guide

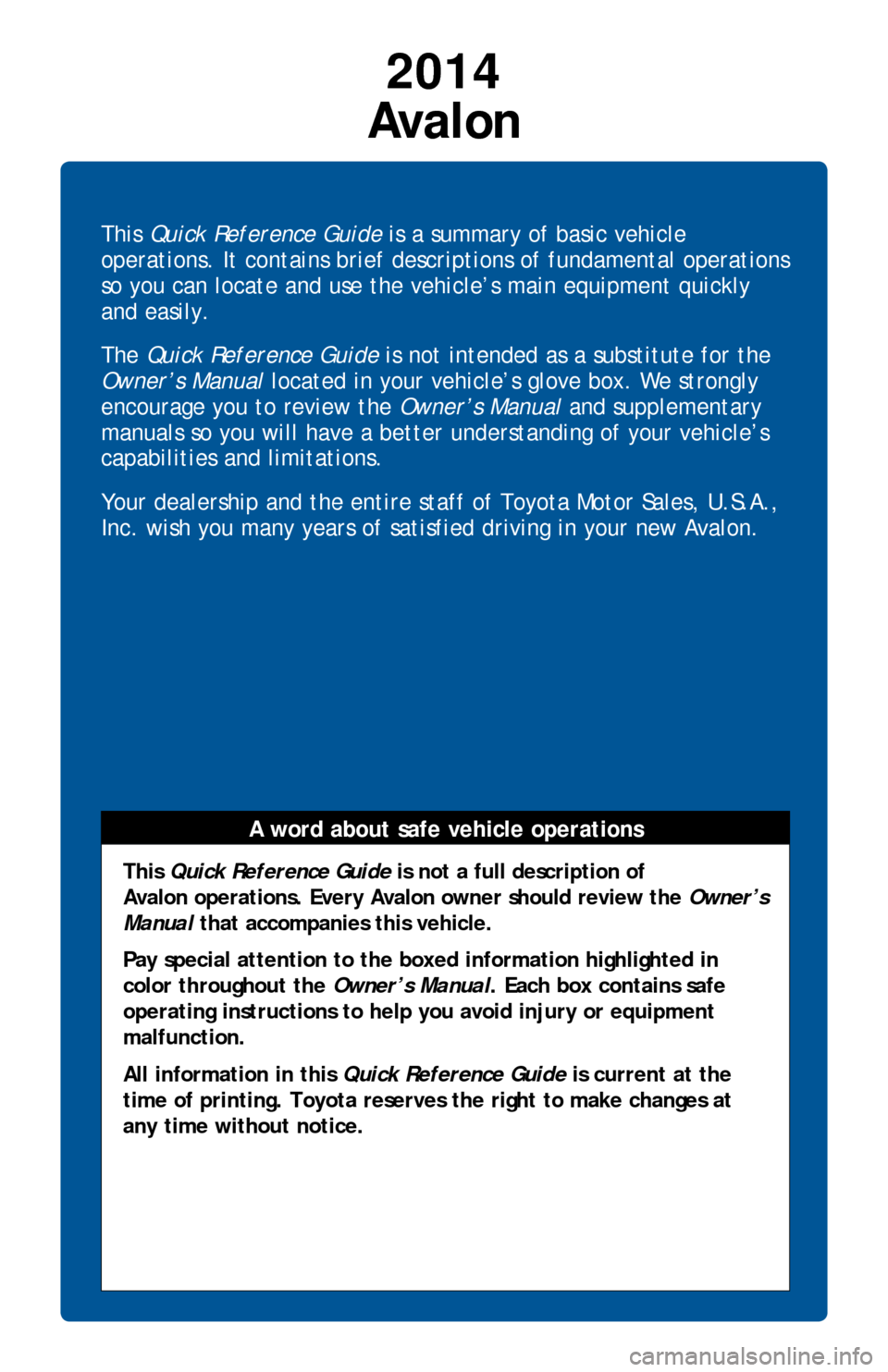

This Quick Reference Guide is a summary of basic vehicle
operations. It contains brief descriptions of fundamental operations
so you can locate and use the vehicle’s main equipment quickly
and easily.
The Quick Reference Guide is not intended as a substitute for the
Owner’s Manual located in your vehicle’s glove box. We strongly
encourage you to review the Owner’s Manual and supplementary
manuals so you will have a better understanding of your vehicle’s
capabilities and limitations.
Your dealership and the entire staff of Toyota Motor Sales, U.S.A.,
Inc. wish you many years of satisfied driving in your new Avalon.
A word about safe vehicle operations
This Quick Reference Guide is not a full description of
Avalon operations. Every Avalon owner should review the Owner’s
Manual that accompanies this vehicle.
Pay special attention to the boxed

information highlighted in

color throughout the Owner’s Manual. Each box contains safe
operating instructions to help you avoid injury or equipment
malfunction.
All information in this Quick Reference Guide is current at the
time of printing. Toyota reserves the right to make changes at
any time without notice.
2014
Avalon

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
INDEX
Engine maintenance 9
Fuel tank door release and cap
8
Hood release
9
Indicator

symbols
4-5
Instrument

cluster
4
Instrument

panel
2-3
Keyless entry1,2 6
Light
control-Instrument panel
8
Smart Key system1,2 7
Air Conditioning/Heating 18-19
Audio 20
Auto lock/unlock
2 10
Automatic
Transmission
10
BSM

(Blind Spot Monitor)
21
Clock

20
Cruise control

16
Cup

holders

22
Driving

mode select
11
Dynamic

radar cruise control
17
Garage

door opener (HomeLink
®)3 16
iPod®/USB/AUX port 21
Lights1 & turn signals 15
Moonroof
12
Multi-Information

Display
13
Parking

brake
10
Power outlets-12V

DC
14
Seat

adjustments-Front
13
Seat

ventilators/Heaters
19
Seats-Head

restraints
12
Steering

lock release
11
Steering

wheel switches
20
Tilt and

telescopic steering wheel
11
Windows-Power

12
Windshield wipers & washers

14
Wireless

charger
22

Door locks 23
Doors-Child safety locks
23
Floor

mat installation
27
Seat

belts
23
Seat

belts-Shoulder belt anchor
24
Spare

tire & tools
25
Star

Safety System
TM 26-27
Tire Pressure Monitoring (warning) System

24
Trunk-Internal

release

25
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more
information.
3 HomeLink® is a registered trademark of Johnson Controls, Inc.
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY
FEATURES

2
OVERVIEW

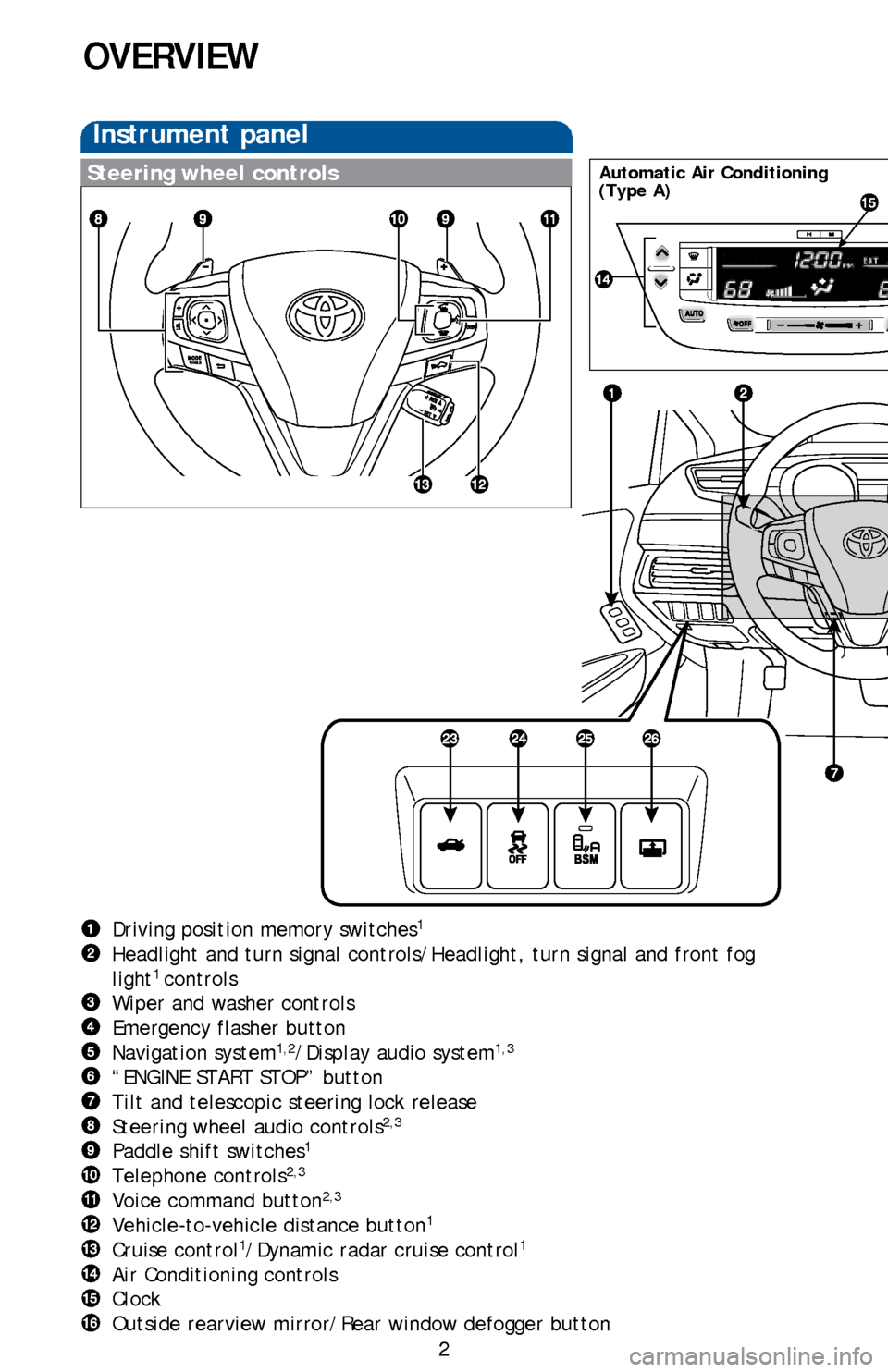

Instrument panel
Driving position memory switches1
Headlight and turn signal controls/Headlight, turn signal and front fog
light1 controls
Wiper and washer controls
Emergency flasher button
Navigation system
1,2/Display audio system1,3
“ENGINE START STOP” button
Tilt and telescopic steering lock release
Steering wheel audio controls
2,3
Paddle shift switches1
Telephone controls2,3
Voice command button2,3
Vehicle-to-vehicle distance button1
Cruise control1/Dynamic radar cruise control1
Air Conditioning controls
Clock
Outside rearview mirror/Rear window defogger button
Steering wheel controlsAutomatic Air Conditioning
(Type A)

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
3

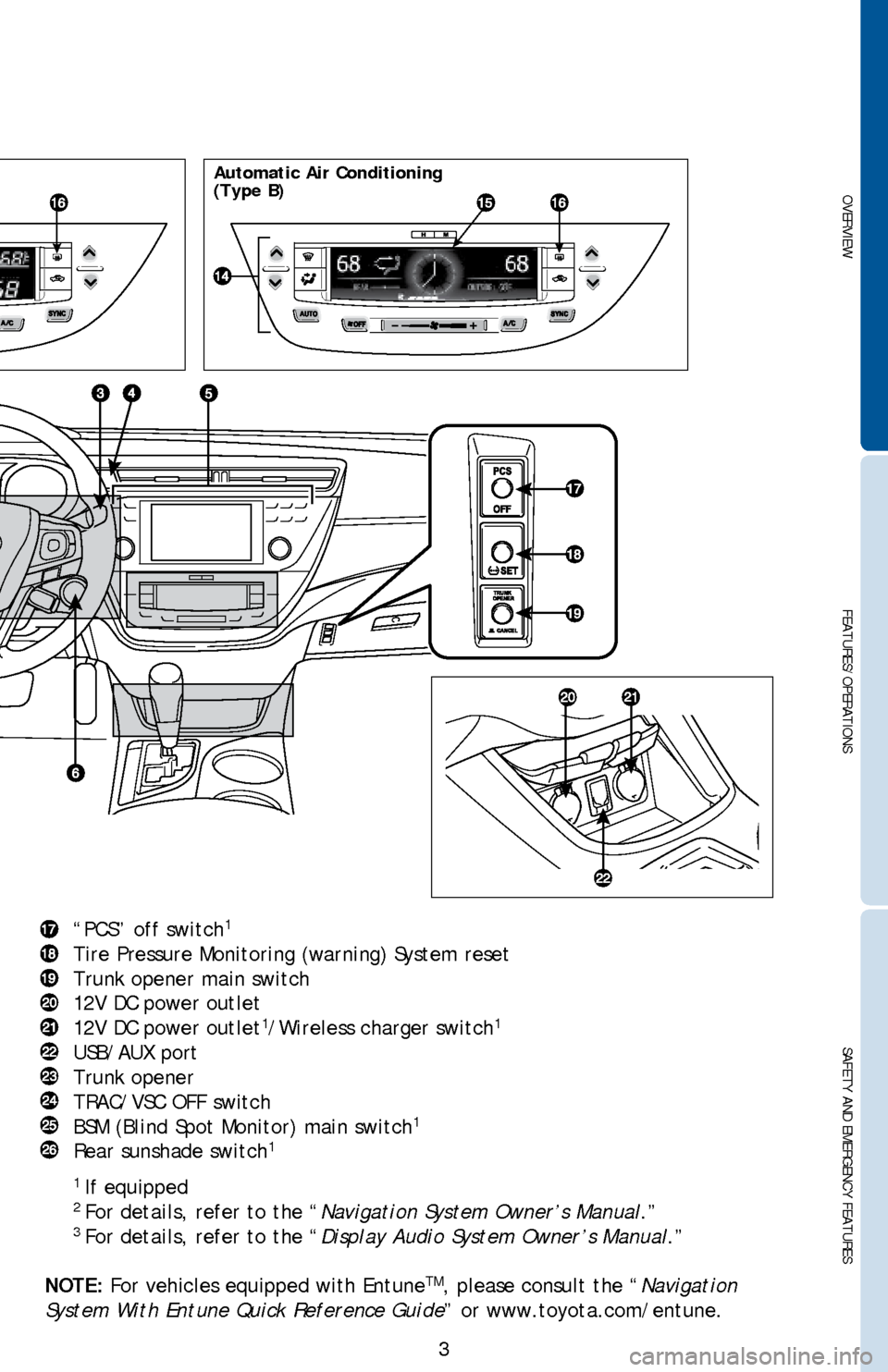

“PCS” off switch1
Tire Pressure Monitoring (warning) System reset
Trunk opener main switch
12V DC power outlet
12V DC power outlet
1/Wireless charger switch1
USB/AUX port
Trunk opener
TRAC/VSC OFF switch
BSM (Blind Spot Monitor) main switch
1
Rear sunshade switch1
1
If equipped2 For details, refer to the “Navigation System Owner’s Manual.”3 For details, refer to the “Display Audio System Owner’s Manual .”
NOTE: For vehicles equipped with Entune
TM, please consult the “Navigation
System With Entune Quick Reference Guide” or www.toyota.com/entune.
Automatic Air Conditioning
(Type B)

4
OVERVIEW

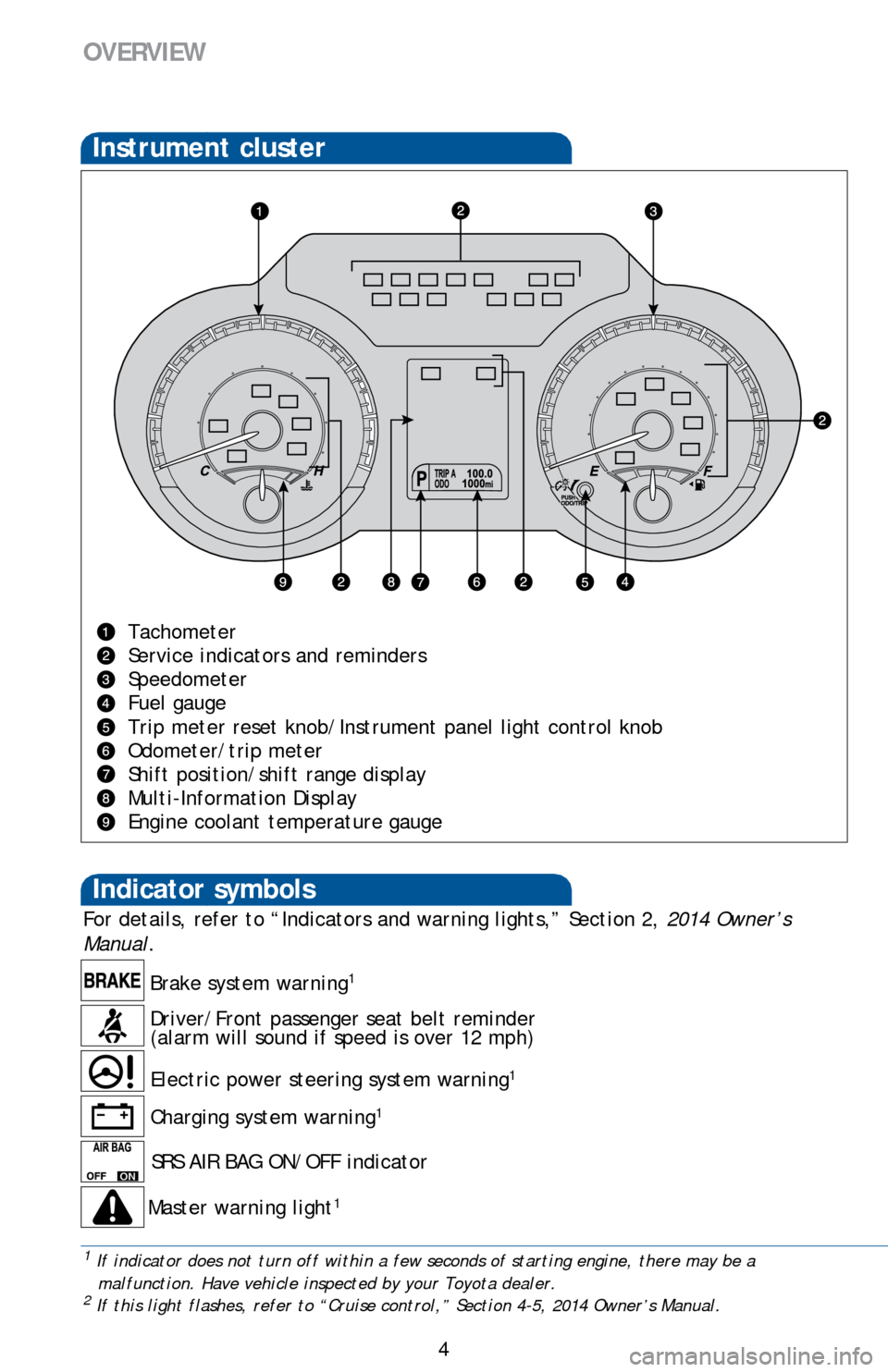

Instrument cluster
Tachometer
Service indicators and reminders
Speedometer
Fuel gauge
Trip meter reset knob/Instrument panel light control knob
Odometer/trip meter
Shift position/shift range display
Multi-Information Display
Engine coolant temperature gauge
Driver/Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Indicator symbols
Brake system warning1
For details, refer to “Indicators and warning lights,” Section 2, 2014 Owner’s
Manual .
1 If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer. 2 If this light flashes, refer to “Cruise control,” Section 4-5, 2014 Owner’s Manual.
Charging system warning1
SRS AIR BAG ON/OFF indicator
Master warning light
1
Electric power steering system warning1

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
3 If this light flashes, refer to “Dynamic radar cruise control,” Section 4-5, 2014 Owner’s Manual.4 The indicator flashes to indicate a malfunction.5 The indicator flashes faster than usual to indicate that the system is operating.

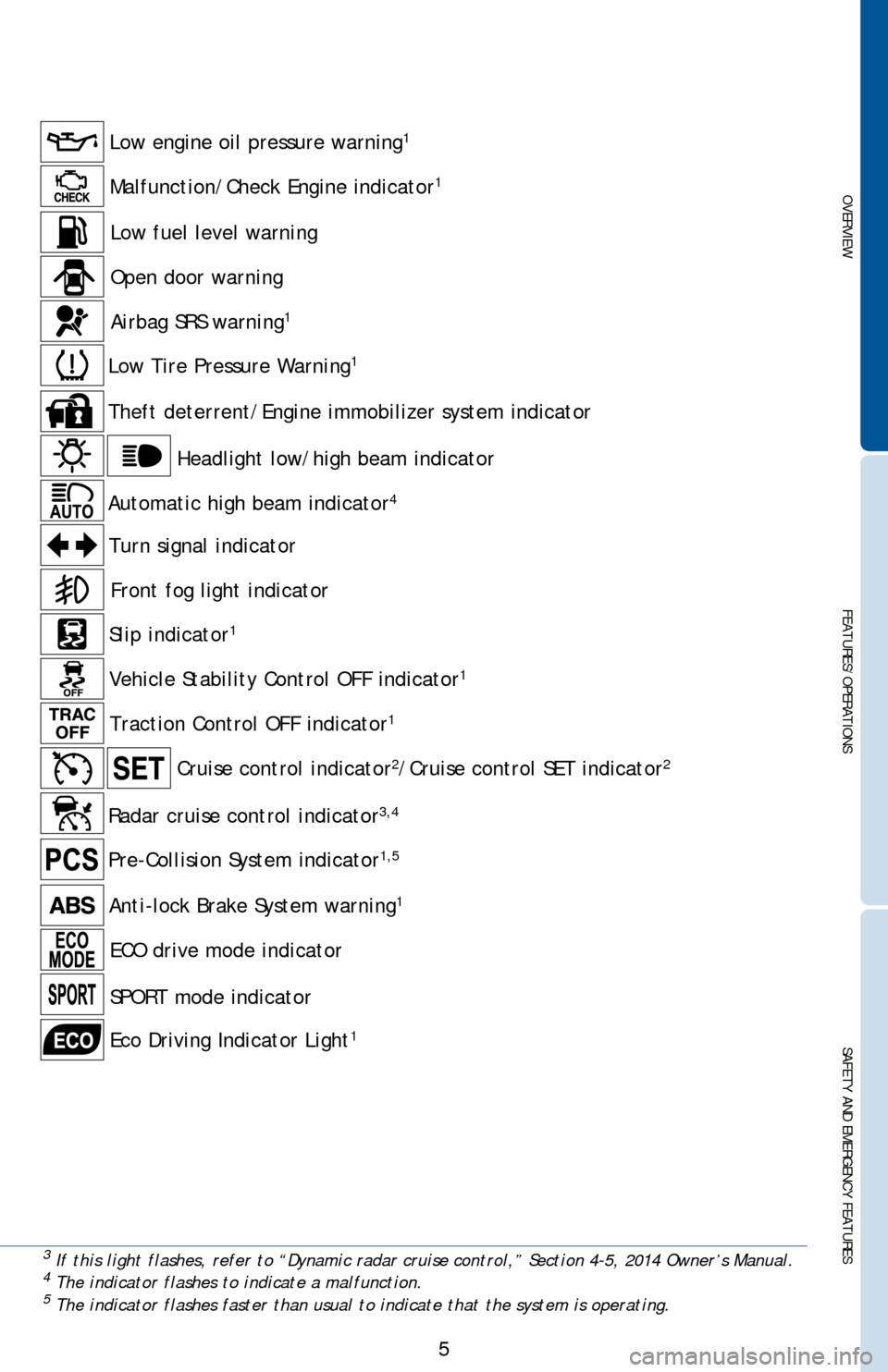

Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Cruise control indicator2/Cruise control SET indicator2
Low Tire Pressure Warning1
Theft deterrent/Engine immobilizer system indicator
Open door warning
Airbag SRS warning1
Low engine oil pressure warning1
Malfunction/Check Engine indicator1
Low fuel level warning
Front fog light indicator
ECO drive mode indicator
Anti-lock Brake System warning1
Traction Control OFF indicator1
Vehicle Stability Control OFF indicator1
SPORT mode indicator
Eco Driving Indicator Light
1
Pre-Collision System indicator1,5
Automatic high beam indicator4
Radar cruise control indicator3,4

6
OVERVIEW

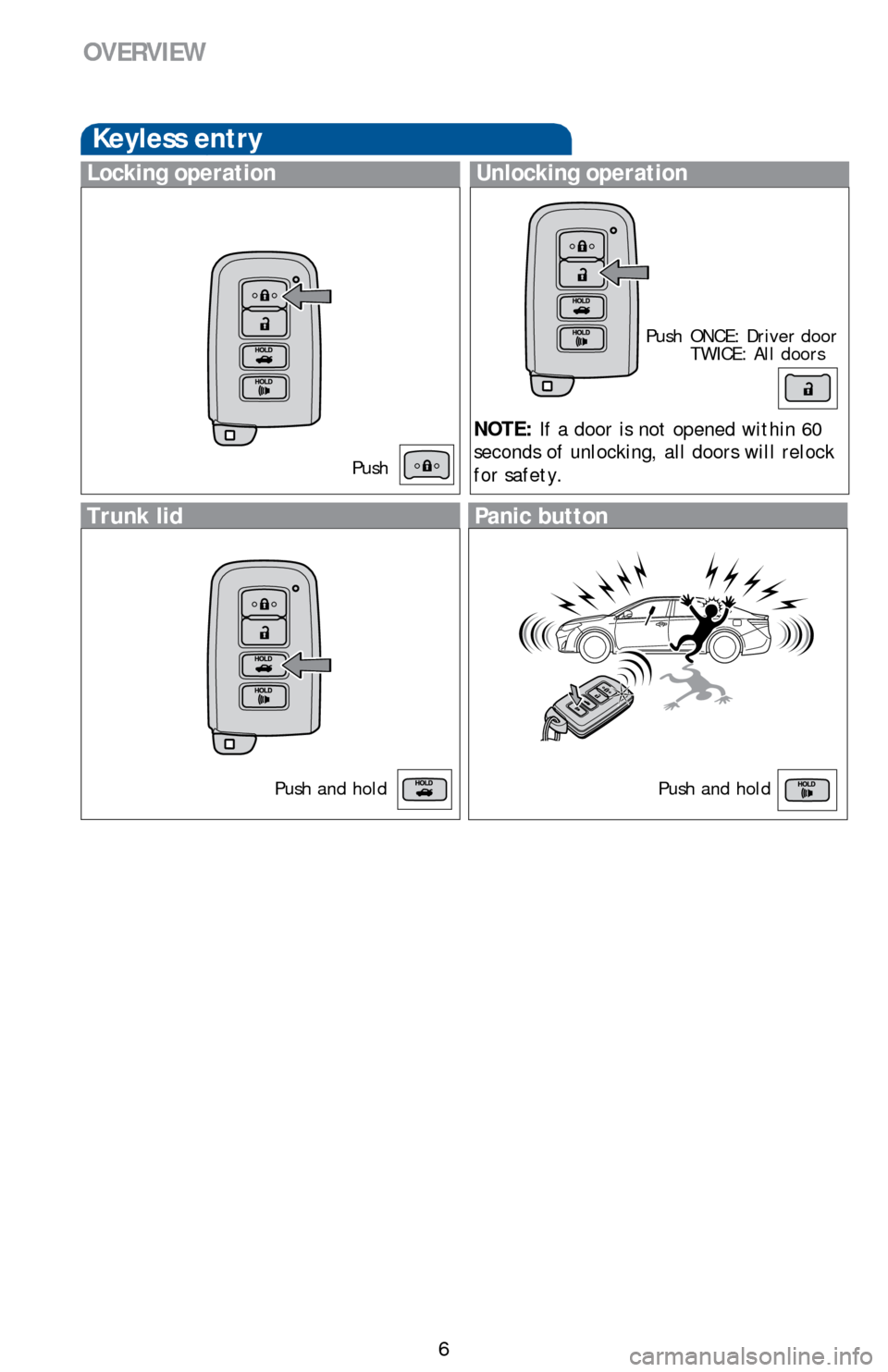

Keyless entry
Push ONCE: Driver door TWICE: All doors
Locking operationUnlocking operation
Panic button
Push and hold
NOTE: If a door is not opened within 60
seconds of unlocking, all doors will relock
for safety.
Trunk lid
Push
Push and hold

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7

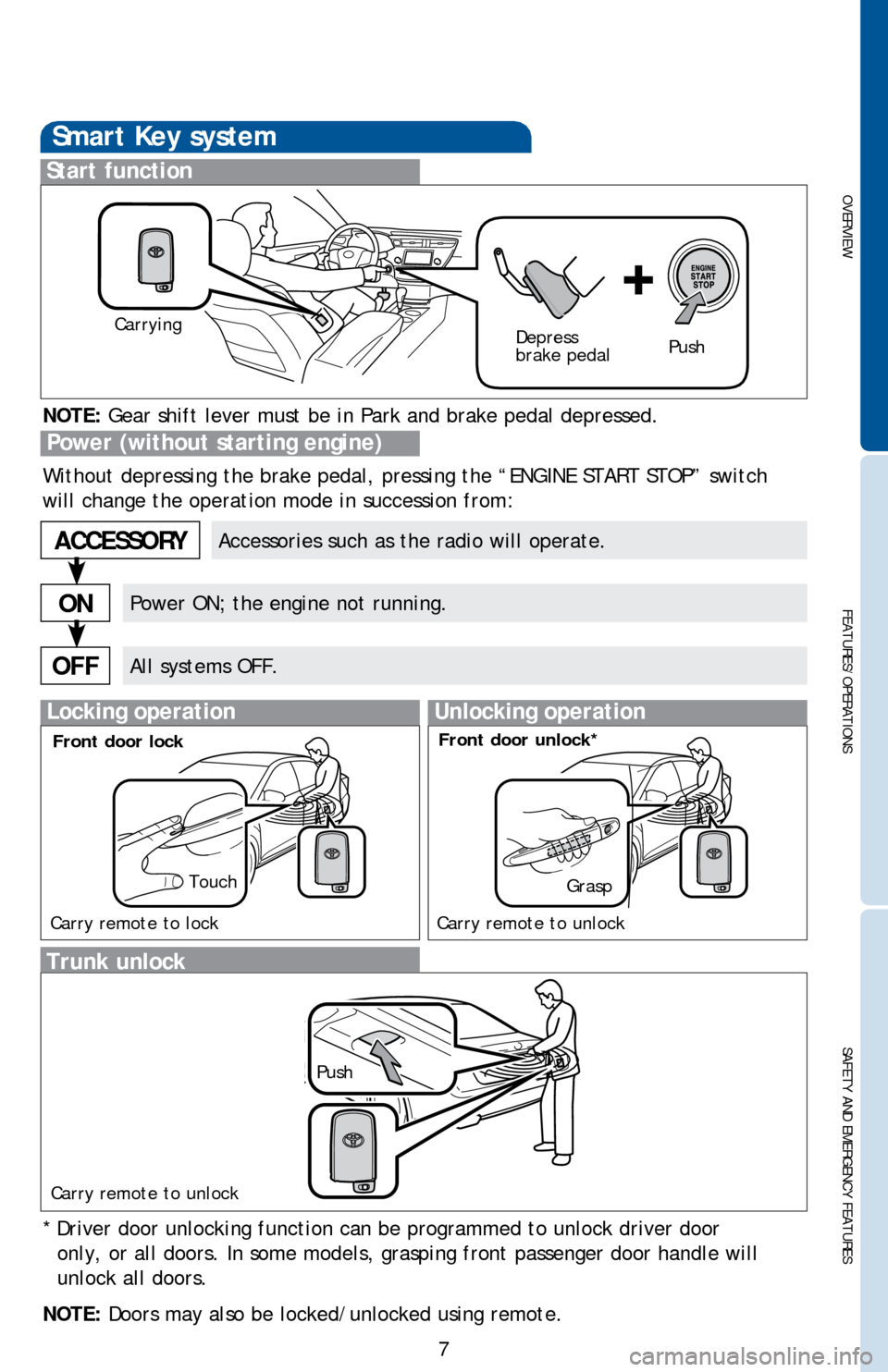

Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE: Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedal
Carrying
Without depressing the brake pedal, pressing the “ENGINE START STOP” switch
will change the operation mode in succession from:
* Driver door unlocking function can be programmed to unlock driver door
only, or all doors. In some models, grasping front passenger door handle will
unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Trunk unlock
Push
Locking operationUnlocking operation
Carry remote to lock Carry remote to unlock
Front door lock
Carry remote to unlock
Front door unlock*
Touch
Grasp

8

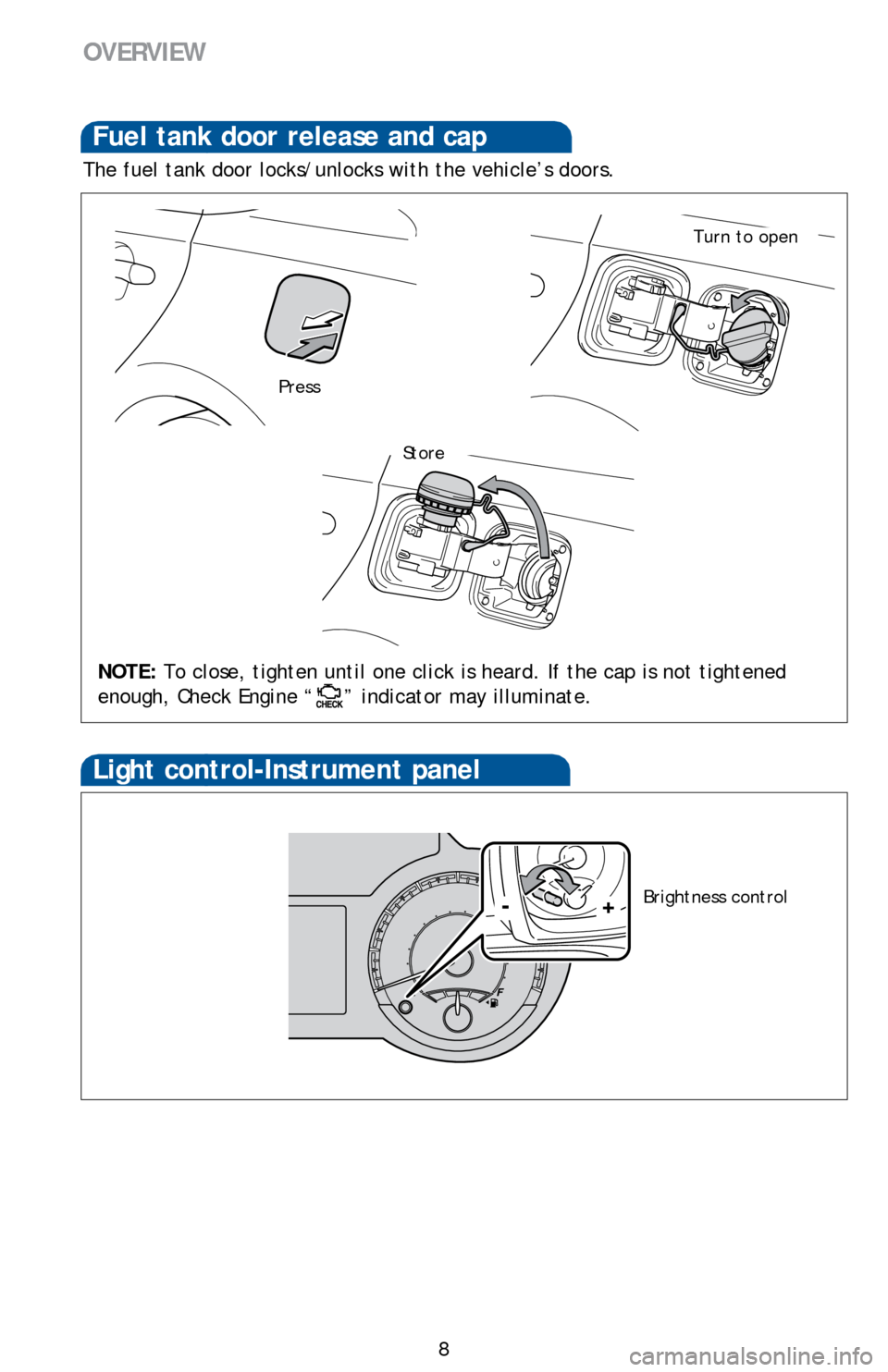

Fuel tank door release and cap
NOTE: To close, tighten until one click is heard. If the cap is not tightened
enough, Check Engine “
” indicator may illuminate.
Press
Turn to open
Store
Light control-Instrument panel
OVERVIEW
Brightness control+ -
The fuel tank door locks/unlocks with the vehicle’s doors.
