navigation TOYOTA AVALON 2015 XX40 / 4.G Navigation Manual

245
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Select the route information bar.
2Check that the list of the distance and
time is displayed.
By selecting one of the number buttons,
the desired route information is displayed.
1Select “Options” on the map screen.
2Select “Route Overview” .
3Check that the entire route map is dis-
played.
For details about this screen: P.240
DISTANCE AND TIME TO
DESTINATION
When driving on the guidance route
with more than 1 destination set, a list
of the distance with estimated travel/
arrival time from the current position to
each destination is displayed.ROUTE OVERVIEW
The entire route from the current posi-
tion to the destination can be displayed
during the route guidance.

247
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
TOLLGATE GUIDANCE
When the vehicle approaches a toll-
gate, the tollgate view will be dis-
played.
No.Information/Function
Distance from the current position to
the tollgate
Select to hide the tollgate guidance
screen. To return to the tollgate
guidance screen, select .
Remaining distance bar to the guid-
ance point
WHEN APPROACHING
INTERSECTION
When the vehicle approaches an inter-
section, the intersection guidance
screen will be displayed.
No.Information/Function
Next street name
Distance to the intersection
Select to hide the intersection guid-
ance screen. To return to the inter-
section guidance screen, select .
Remaining distance bar to the guid-
ance point

249
AVA L O N _ N a v i _ U
3. ROUTE GUIDANCE
NAVIGATION SYSTEM
8
2. TYPICAL VOICE GUIDANCE PROMPTS
As the vehicle approaches an intersec-
tion, or point, where maneuvering the
vehicle is necessary, the system’s
voice guidance will provide various
messages.
CAUTION
●Be sure to obey the traffic regulations
and keep the road condition in mind
especially when you are driving on IPD
roads. The route guidance may not have
the updated information such as the
direction of a one way street.
INFORMATION
●If a voice guidance command cannot be
heard, select on the map screen
to hear it again.
● To adjust the voice guidance volume:
P. 6 2
● Voice guidance may be made early or
late.
● If the system cannot determine the cur-
rent position correctly, you may not hear
voice guidance or may not see the mag-
nified intersection on the screen.

250
AVA L O N _ N a v i _ U
3. ROUTE GUIDANCE

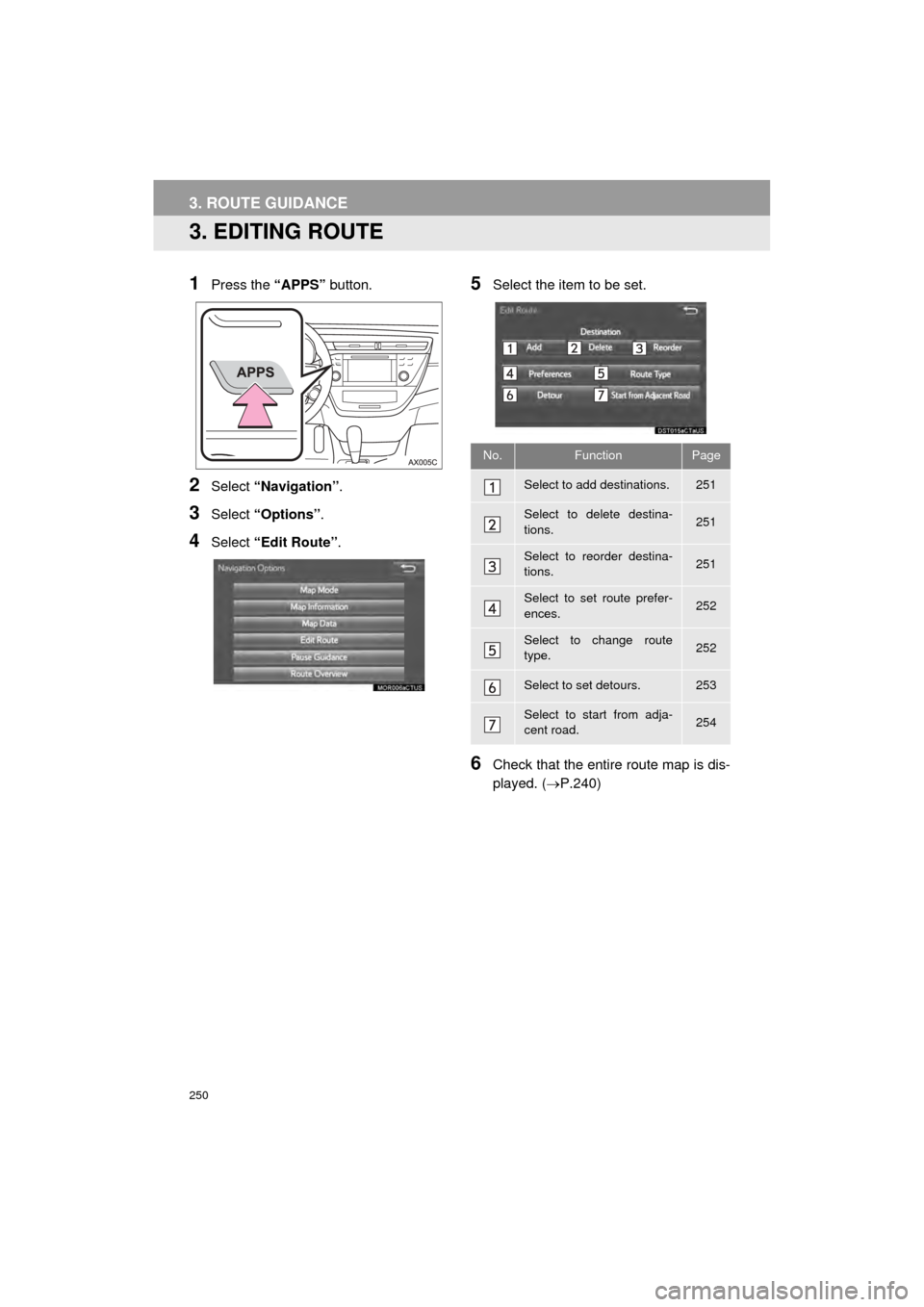

3. EDITING ROUTE
1Press the “APPS” button.
2Select “Navigation” .
3Select “Options”.
4Select “Edit Route” .
5Select the item to be set.
6Check that the entire route map is dis-
played. (P.240)
No.FunctionPage
Select to add destinations.251
Select to delete destina-
tions.251
Select to reorder destina-
tions.251
Select to set route prefer-
ences.252
Select to change route
type.252
Select to set detours.253
Select to start from adja-
cent road.254

251
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.250)
2Select “Add”.
3Search for an additional destination in
the same way as a destination search.
(P.228)
4Select “Add Destination Here” to in-
sert the new destination into the route.
1Display the “Edit Route” screen.
(P.250)
2Select “Reorder” .
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK” .
1Display the “Edit Route” screen.
(P.250)
2Select “Delete” .
3Select “Yes” when the confirmation
screen appears.
 When more than 1 destination has been
set, a list will be displayed on the screen.
Select the item(s) to be deleted.
“Delete All” : Select to delete all destina-
tions on the list.
 If more than 1 destination has been set,
the system will recalculate the route(s) to
the set destination(s) as necessary.
ADDING DESTINATIONS
REORDERING
DESTINATIONS
When more than 1 destination has
been set, the arrival order of the desti-
nations can be changed.
DELETING DESTINATIONS

253
3. ROUTE GUIDANCE
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Edit Route” screen.
(P.250)
2Select “Detour” .
3Select the desired detour distance.DETOUR SETTING
During the route guidance, the route
can be changed to detour around a
section of the route where a delay is
caused by road repairs, an accident,
etc.
No.Function
Select to detour within 1 mile of the
current position.
Select to detour within 3 miles of the
current position.
Select to detour within 5 miles of the
current position.
Select to detour on the entire route.
Select to make the system search
for the route based on traffic con-
gestion information received from
traffic information. ( P.225)

255
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
4. MEMORY POINTS
1. MEMORY POINTS SETTINGS
1Press the “APPS” button.
2Select “Setup” .
3Select “Navigation” .
4Select the desired item to be set.Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
(P.228)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No.FunctionPage
Select to set home.256
Select to set preset desti-
nations.257
Select to set the address
book.259
Select to set areas to
avoid.261
Select to delete previous
destinations.263
Select to set detailed navi-
gation settings.264

256
4. MEMORY POINTS
AVA L O N _ N a v i _ U
1Display the “Navigation Settings”
screen. (P.255)
2Select “Home” .
3Select the desired item to be set.
1Select “New”.
2Select the desired item to search for
the location. ( P.228)
3Select “OK” when the editing home
screen appears.
1Select “Edit”.
2Select the desired item to be edited.
3Select “OK”.
1Select “Delete” .
2Select “Yes” when the confirmation
screen appears.
SETTING UP HOME
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. ( P.231)
No.FunctionPage
Select to register home.256
Select to edit home.256
Select to delete home.256
REGISTERING HOME
EDITING HOME
No.FunctionPage
Select to edit the home
name.261
Select to set display of the
home name on/off.
Select to edit location infor-
mation.261
Select to edit the phone
number.261
Select to change the icon
to be displayed on the map
screen.260
DELETING HOME

257
4. MEMORY POINTS
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Navigation Settings”
screen. (P.255)
2Select “Preset Destinations” .
3Select the desired item.
1Select “Set”.
2Select the desired item to search for
the location. ( P.228)
3Select a position for this preset desti-
nation.
4Select “OK” when the editing preset
destination screen appears. ( P.258)
SETTING UP PRESET
DESTINATIONS
If a preset destination has been regis-
tered, that information can be recalled
by using preset destinations on the
“Destination” screen. ( P.231)
No.FunctionPage
Select to register a preset
destination.257
Select to edit a preset des-
tination.258
Select to delete a preset
destination.258
REGISTERING PRESET
DESTINATIONS
INFORMATION
●Up to 5 preset destinations can be regis-
tered.

259
4. MEMORY POINTS
AVA L O N _ N a v i _ U
NAVIGATION SYSTEM
8
1Display the “Navigation Settings”
screen. (P.255)
2Select “Address Book” .
3Select the desired item.
1Select “New”.
2Select the desired item to search for
the location. ( P.228)
3Select “OK” when the editing address
book entry screen appears. ( P.259)
1Select “Edit”.
2Select the desired address book entry.
3Select the item to be edited.
4Select “OK”.
SETTING UP ADDRESS
BOOK
Points on the map can be registered.
No.FunctionPage
Select to register address
book entries.259
Select to edit address book
entries.259
Select to delete address
book entries.261
REGISTERING ADDRESS
BOOK ENTRIES
INFORMATION
●Up to 100 address book entries can be
registered.
EDITING ADDRESS BOOK
ENTRIES
The icon, name, location and/or phone
number of a registered address book
entry can be edited.
No.FunctionPage
Select to edit the address
book entry name.261
Select to set display of the
address book entry name
on/off.

Select to edit location infor-
mation.261
Select to edit the phone
number.261
Select to change the icon
to be displayed on the map
screen.
260
