1. REAR VIEW MONITOR SYSTEM
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
navigation screen. ( →P.41)
AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
● The area displayed on the screen may
vary according to vehicle orientation
conditions.
● Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
● The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
● Items which are located higher than the
camera may not be displayed on the
monitor.
Screen Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If dirt or foreign matter (such as water
droplets, snow, mud etc.) is adhering
to the camera, it cannot transmit a
clear image. In this case, flush it with a
large quantity of water and wipe the
camera lens clean with a soft and wet
cloth.

170
2. TOYOTA PARKING ASSIST MONITOR
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
5. THINGS YOU SHOULD KNOW
If you notice any of the following symptoms, refer to the likely cause and the
solution, and re-check.
If the symptom is not resolved by the solution, have the vehicle inspected by
your Toyota dealer.
IF YOU NOTICE ANY SYMPTOMS
SymptomLikely causeSolution
The image is difficult to see
•The vehicle is in a dark area
• The temperature around the
lens is either high or low
• The outside temperature is
low
• There are water droplets on
the camera
• It is raining or humid
• Foreign matter (mud etc.) is
adhering to the camera
• Sunlight or headlights are
shining directly into the cam-
era
• The vehicle is under fluores-
cent lights, sodium lights,
mercury lights etc.
Back up while visually check-
ing the vehicle’s surroundings.
(Use the monitor again once
conditions have been im-
proved.)
The procedure for adjusting
the picture quality of the park-
ing assist monitor is the same
as the procedure for adjusting
the navigation screen. ( →P.41)
The image is blurry
Dirt or foreign matter (such as
water droplets, snow, mud
etc.) is adhering to the camera.Flush the camera with a large
quantity of water and wipe the
camera lens clean with a soft
and wet cloth.
The image is out of
alignmentThe camera or surrounding
area has received a strong im-
pact.Have the vehicle inspected by
your Toyota dealer.
The guide lines are very far
out of alignment
The camera position is out of
alignment.Have the vehicle inspected by
your Toyota dealer.
•The vehicle is tilted (there is
a heavy load on the vehicle,
tire pressure is low due to a
tire puncture, etc.)
• The vehicle is used on an
incline.If this happens due to these
causes, it does not indicate a
malfunction. Back up while vi-
sually checking the vehicle’s
surroundings.
The estimated course lines
move even though the
steering wheel is straightThere is a malfunction in the
signals being output by the
steering sensor.Have the vehicle inspected by
your Toyota dealer.
Guide lines are not
displayedThe trunk is open.
Close the trunk.
If this does not resolve the
symptom, have the vehicle in-
spected by your Toyota dealer.

192
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
■EDITING QUICK REPLY MESSAG-
ES
1Select “Quick Message” .
2Select corresponding to the de-
sired message to edit.
3Select “OK” when editing is complet-
ed.
*: Entune Premium Audio only
■CALLING FROM E-MAIL/SMS/MMS
MESSAGE DISPLAY
1Display the message inbox screen.
(→ P.189)
2Select the desired message.
3Select .
If there are 2 or more phone numbers,
select the desired number.
4Check that the “Call” screen is dis-
played.
This operation cannot be performed
while driving.
INFORMATION
●To reset the editquick reply messages,
select “Default” .
● “Quick Message 1” (“I am driving and
will arrive in approximately [ETA]
minutes.”)* :
This message cannot be edited and will
automatically fill in [ETA] with the
navigation calculated estimated time of
arrival on the confirm message screen.
If there are waypoints set, [ETA] to the
next waypoint will be shown.
If there is no route currently set in the
navigation system, “Quick Message 1”
cannot be selected.
CALLING THE MESSAGE
SENDER
Calls can be made to an e-mail/SMS/
MMS message sender’s phone num-
ber.
This operation can be performed while
driving.

212
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1. QUICK REFERENCE ................... 214
MAP SCREEN ..................................... 214
NAVIGATION OPTIONS SCREEN...... 216
2. MAP SCREEN OPERATION ....... 217
CURRENT POSITION DISPLAY ......... 217
MAP SCALE ........................................ 217
ORIENTATION OF THE MAP ............. 218
SWITCHING THE MAP MODE............ 219
SCREEN SCROLL OPERATION ........ 221
ADJUSTING LOCATION IN SMALL INCREMENTS ................ 221
3. MAP SCREEN INFORMATION .......................... 222
DISPLAYING MAP INFORMATION .... 222
DISPLAYING INFORMATION
ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 224
STANDARD MAP ICONS .................... 225
4. TRAFFIC INFORMATION ............ 226
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 228
1. DESTINATION SEARCH SCREEN .................................... 229
2. SEARCH OPERATION.. .............. 231
SELECTING SEARCH AREA .............. 232
SETTING HOME AS
DESTINATION................................... 232
SETTING PRESET DESTINATIONS AS DESTINATION ............................. 232
SEARCHING BY ADDRESS ................ 233
SEARCHING BY POINT OF INTEREST ....................... 234
SEARCHING FROM PREVIOUS DESTINATIONS............. 237
SEARCHING BY ADDRESS BOOK .............................. 237
SEARCHING BY EMERGENCY .......... 238
SEARCHING BY INTERSECTION AND FREEWAY ................................ 238
SEARCHING BY MAP ......................... 240
SEARCHING BY COORDINATES ....... 240
3. STARTING ROUTE GUIDANCE ....... ......................... 241
STARTING ROUTE GUIDANCE.......... 241
PAUSING GUIDANCE ......................... 244
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM*

8
213
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
4
5
6
7
9
1
2
3
8
1. ROUTE GUIDANCESCREEN .................................... 245
SCREEN FOR ROUTE GUIDANCE ... 245
ROUTE OVERVIEW............................ 246
DURING FREEWAY DRIVING............ 247
WHEN APPROACHING
INTERSECTION ............................... 248
TURN LIST SCREEN .......................... 249
TURN-BY-TURN ARROW SCREEN ........................................... 249
2. TYPICAL VOICE GUIDANCE PROMPTS.................................. 250
3. EDITING ROUTE ......................... 251
ADDING DESTINATIONS ................... 252
REORDERING DESTINATIONS ......... 252
DELETING DESTINATIONS ............... 252
SETTING ROUTE PREFERENCES ............................... 253
SELECTING ROUTE TYPE ................ 253
DETOUR SETTING ............................. 254
1. MEMORY POINTS SETTINGS ................................. 256
SETTING UP HOME ........................... 257
SETTING UP PRESET
DESTINATIONS................................ 258
SETTING UP ADDRESS BOOK ......... 260
SETTING UP AREAS TO AVOID ........ 262
DELETING PREVIOUS DESTINATIONS................................ 264
1. DETAILED NAVIGATION SETTINGS ................................. 265
SCREENS FOR NAVIGATION
SETTINGS ........................................ 265
2. TRAFFIC SETTINGS................... 269
SCREEN FOR TRAFFIC SETTINGS ........................................ 269
AUTO AVOID TRAFFIC....................... 270
MY TRAFFIC ROUTES ....................... 271
1. GPS (GLOBAL POSITIONING SYSTEM) .................... ............... 275
LIMITATIONS OF
THE NAVIGATION SYSTEM ............ 275
2. MAP DATABASE VERSION AND COVERED AREA ............. 277
MAP INFORMATION ........................... 277
ABOUT THE MAP DATA ..................... 278
3ROUTE GUIDANCE
4MEMORY POINTS
5SETUP
6TIPS FOR THE NAVIGATION
SYSTEM
NAVIGATION SYSTEM*
*: Entune Premium Audio only

214
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
218
Options buttonSelect to display the “Navigation Options” screen.216
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.275
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD Radio
broadcast, HD mark is displayed on the right.
226
Scale indicatorThis figure indicates the map scale.217

215
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.217
Current position
button/voice
guidance button•Select to display the current position address.
• Select to repeat voice guidance.250
Destination but-
tonSelect to display the “Destination” screen.229
Speed limit iconIndicates the speed limit on the current road. The
display of the speed limit icon can be set to on/off.222
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
245
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
245
No.NameFunctionPage

216
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U

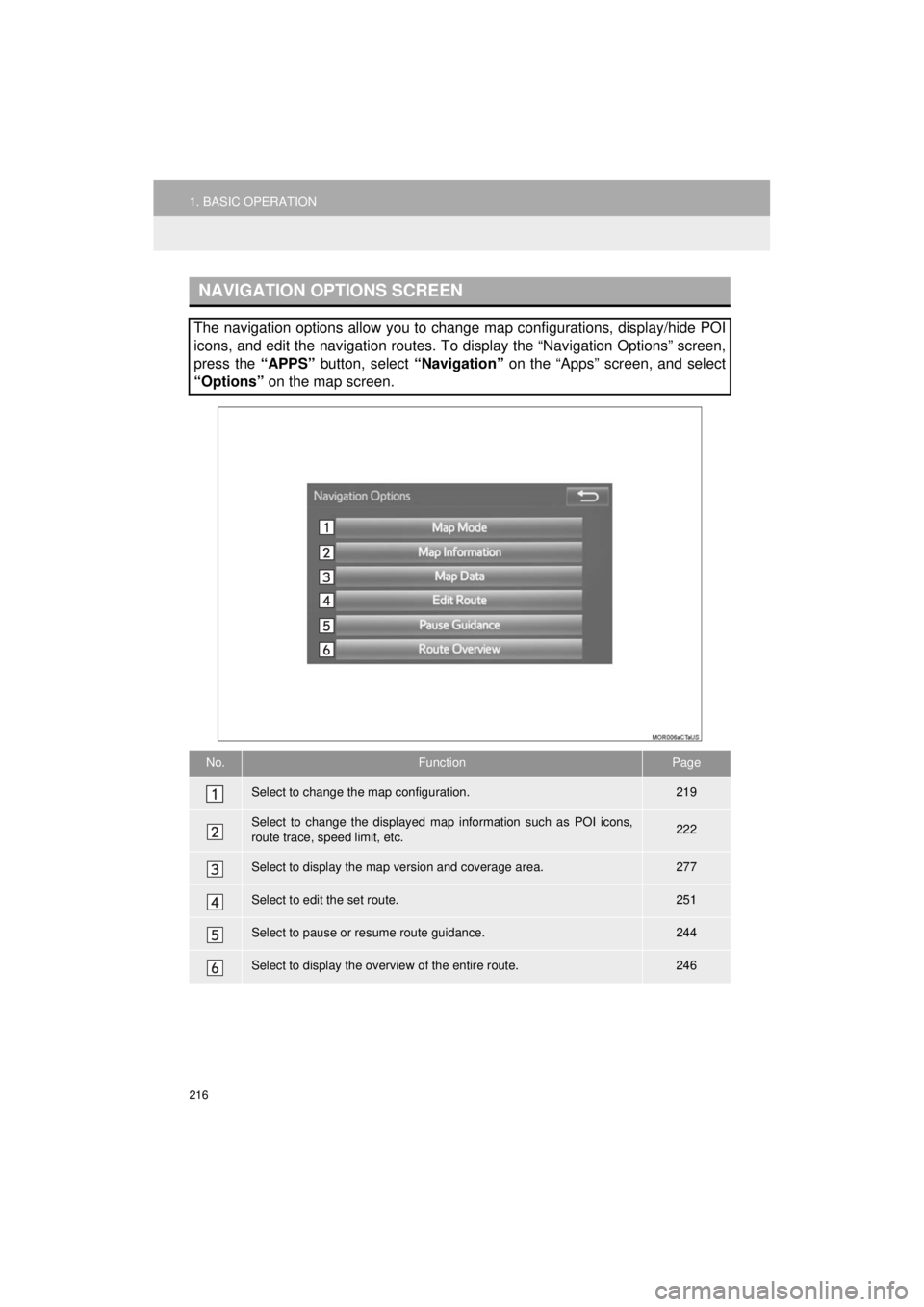

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to change the map configuration.219
Select to change the displayed map information such as POI icons,
route trace, speed limit, etc.222
Select to display the map version and coverage area.277
Select to edit the set route.251
Select to pause or resume route guidance.244
Select to display the overview of the entire route.246

217
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation” .
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
 Select and hold or to con-
tinue changing the scale of the map
screen.
 The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
→P. 2 6 7
INFORMATION
● While driving, the current position mark
is fixed on the screen and the map
moves.
● The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
● After the 12-volt battery disconnection,
or on a new vehicle, the current position
may not be correct. As soon as the sys-
tem receives signals from the GPS, the
correct current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.

219
1. BASIC OPERATION
AVA L O N _ AVA L O N H Y B R I D _ N a v i _ U
NAVIGATION SYSTEM
8
1Select “Options” on the map screen.
2Select “Map Mode” .
3Select the desired configuration but-
ton.
Depending on the conditions, certain
screen configuration buttons cannot be
selected.
■MAP ONLY
■DUAL MAP
The map on the left is the main map.
SWITCHING THE MAP MODE
No.FunctionPage
Select to display the single
map screen. 219
Select to display the dual
map screen.219
Select to display the com-
pass mode screen.220
Select to display the turn list
screen.249
Select to display the free-
way exit list screen.247
Select to display the inter-
section guidance screen or
the guidance screen on the
freeway.
248
Select to display the turn-
by-turn arrow screen.249
