Page 383 of 540

3836-3. Do-it-yourself maintenance
6
Maintenance and care
Engine compartment
Fuse boxes (if equipped)( P. 416)
Engine oil filler cap ( P. 385)
Engine oil level dipstick ( P. 384)
Brake fluid reservoir ( P. 389)
Battery ( P. 390) Radiator (
P. 388)
Electric cooling fan
Condenser ( P. 388)
Engine coolant reservoir ( P. 387)
Washer fluid tank ( P. 392)1
2
3
4
5
6
7
8
9
10
Page 416 of 540

4166-3. Do-it-yourself maintenance
Turn the engine switch off.
Open the fuse box cover.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment (type A)Engine compartment (type B)
(if equipped)
Push the tabs in and lift the lid off. Push the tabs in and lift the lid
off.
Under the driver’s side instru-
ment panel
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Page 417 of 540

4176-3. Do-it-yourself maintenance
6
Maintenance and care

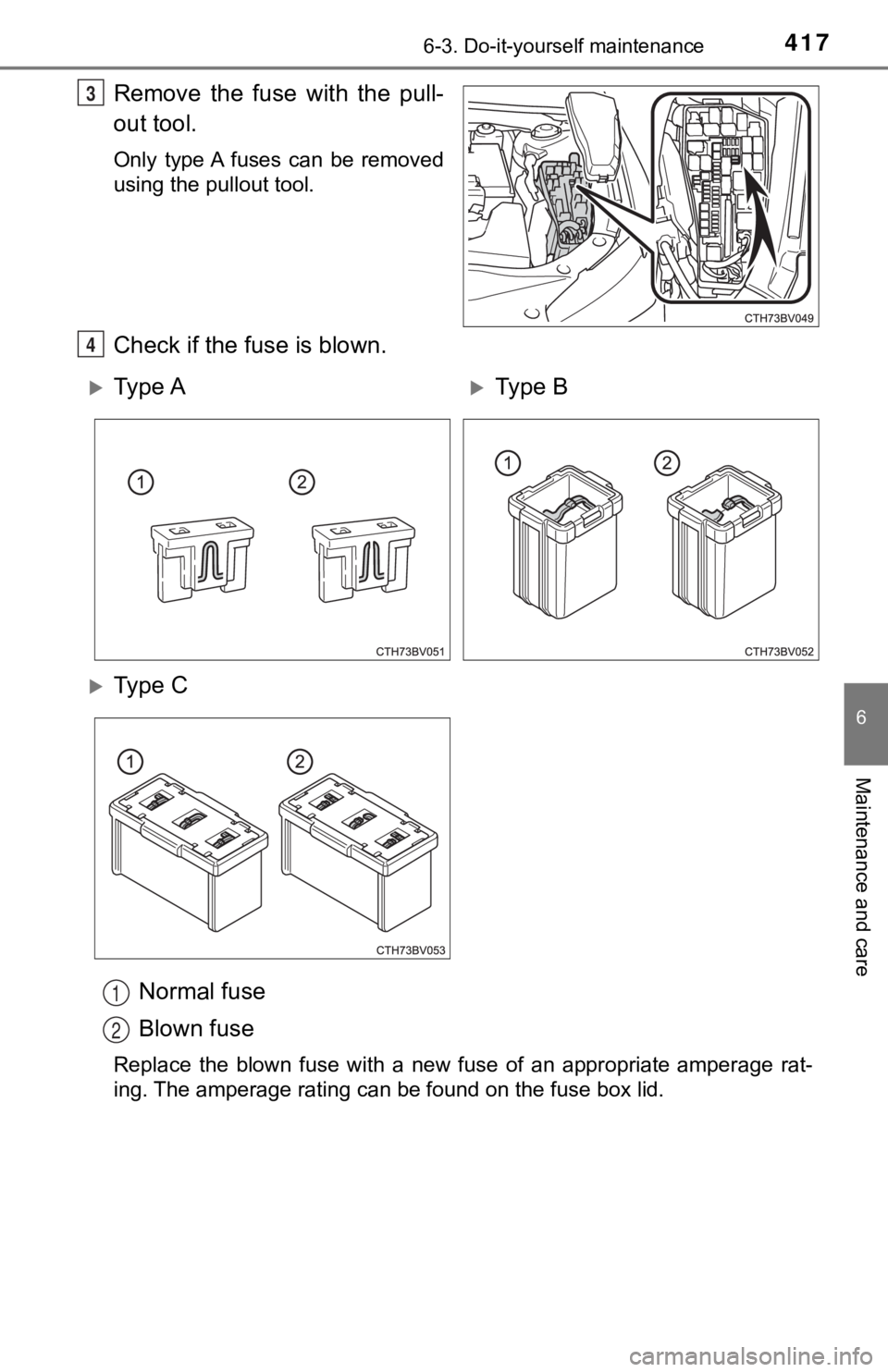

Remove the fuse with the pull-
out tool.
Only type A fuses can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate ampera ge rat-
ing. The amperage rating can be found on the fuse box lid.
3
4
Ty p e AType B
Ty p e C
1
2
Page 418 of 540

4186-3. Do-it-yourself maintenance
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been repla ced, a bulb may
need replacement. ( P. 419)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness f rom damage.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than that indicate d, or use
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired b y your
Toyota dealer as soon as possible.
Page 530 of 540

530Alphabetical index
Front turn signal lightsReplacing light bulbs............. 419
Turn signal lever ................... 195
Fuel Capacity ................................ 474
Fuel gauge .............................. 90
Fuel pump shut off system.... 429
Information ............................ 481
Refueling............................... 214
Type .............................. 474, 481
Warning light ......................... 433
Fuel consumption.................... 116
Fuel filler door.......................... 214 If the fuel filler door cannot be opened............... 217
Refueling............................... 214
Fuel pump shut off system ..... 429
Fuses ........................................ 416
Garage door opener ................ 357
Gauges ....................................... 90
Glove box ................................. 336
Grocery bag hooks .................. 341 Head restraints ........................ 151
Head-up display....................... 109
Headlights ................................ 202
Automatic High Beam ........... 206
Light switch ........................... 202
Replacing light bulbs ............ 419
Windshield wiper linked
headlight illumination.......... 205
Heated steering wheel ............ 329
Heaters Automatic air conditioning system............ 322
Outside rear view mirrors ..... 324
Seat heaters ......................... 329
High mounted stoplight Replacing.............................. 419
Hill-start assist control ........... 309
Hood ......................................... 381
Hooks Coat hooks ........................... 356
Grocery bag hooks ............... 341
Retaining hooks (floor mat) .... 26
Horn .......................................... 154
HUD (Head-up display) ........... 109
G
H
