3496-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
■12-volt battery
P. 358

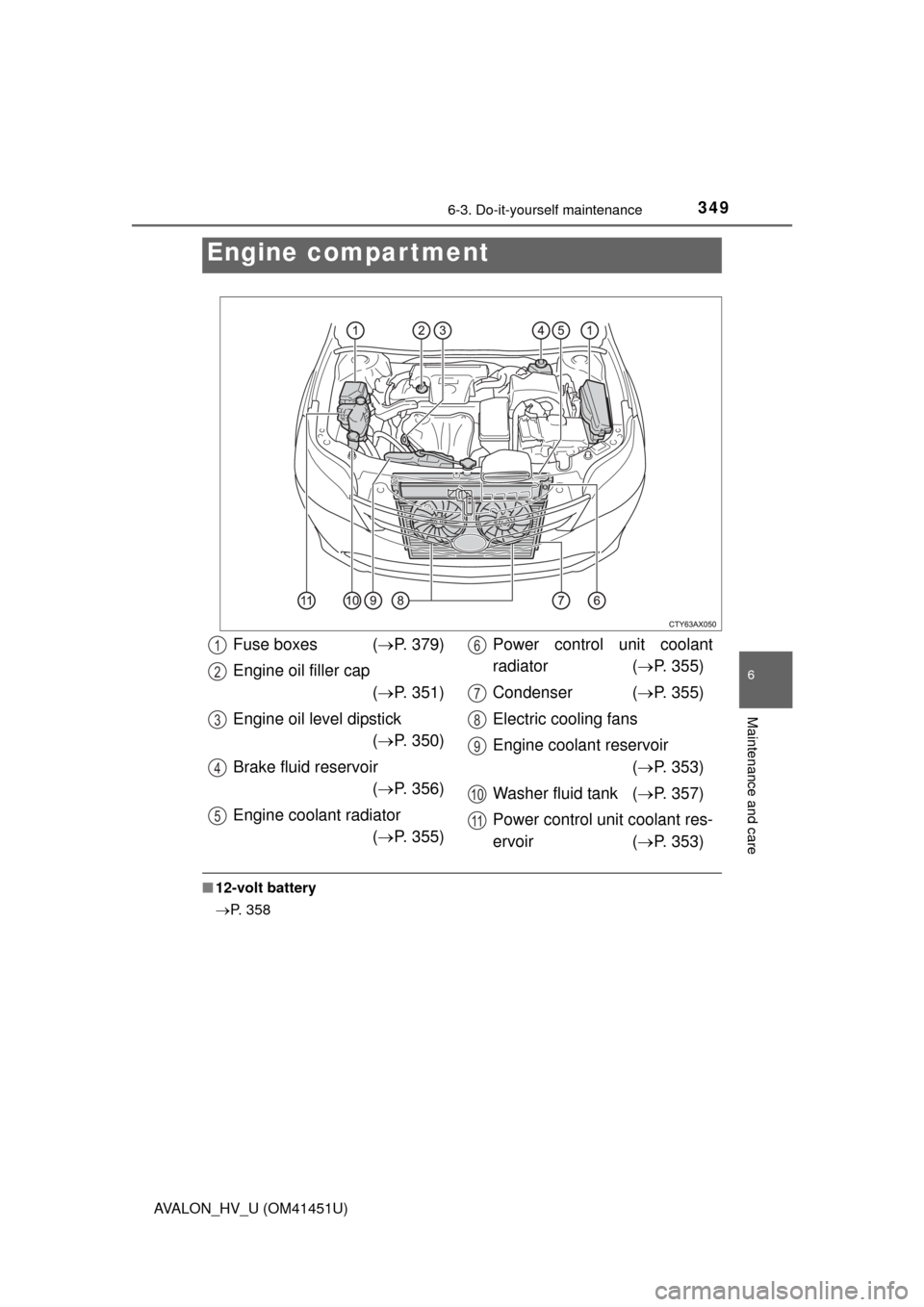

Engine compar tment
Fuse boxes ( P. 379)
Engine oil filler cap ( P. 351)
Engine oil level dipstick ( P. 350)
Brake fluid reservoir ( P. 356)
Engine coolant radiator ( P. 355) Power control unit coolant
radiator (
P. 355)
Condenser ( P. 355)
Electric cooling fans
Engine coolant reservoir ( P. 353)
Washer fluid tank ( P. 357)
Power control unit coolant res-
ervoir ( P. 353)1
2
3
4
5
6
7
8
9
10
11
Page 379 of 512
3796-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
Turn the power switch off.
After a system failure, see “Fuse layout and amperage ratings” for
details about which fuse to check. ( P. 382)
Open the Fuse box cover.

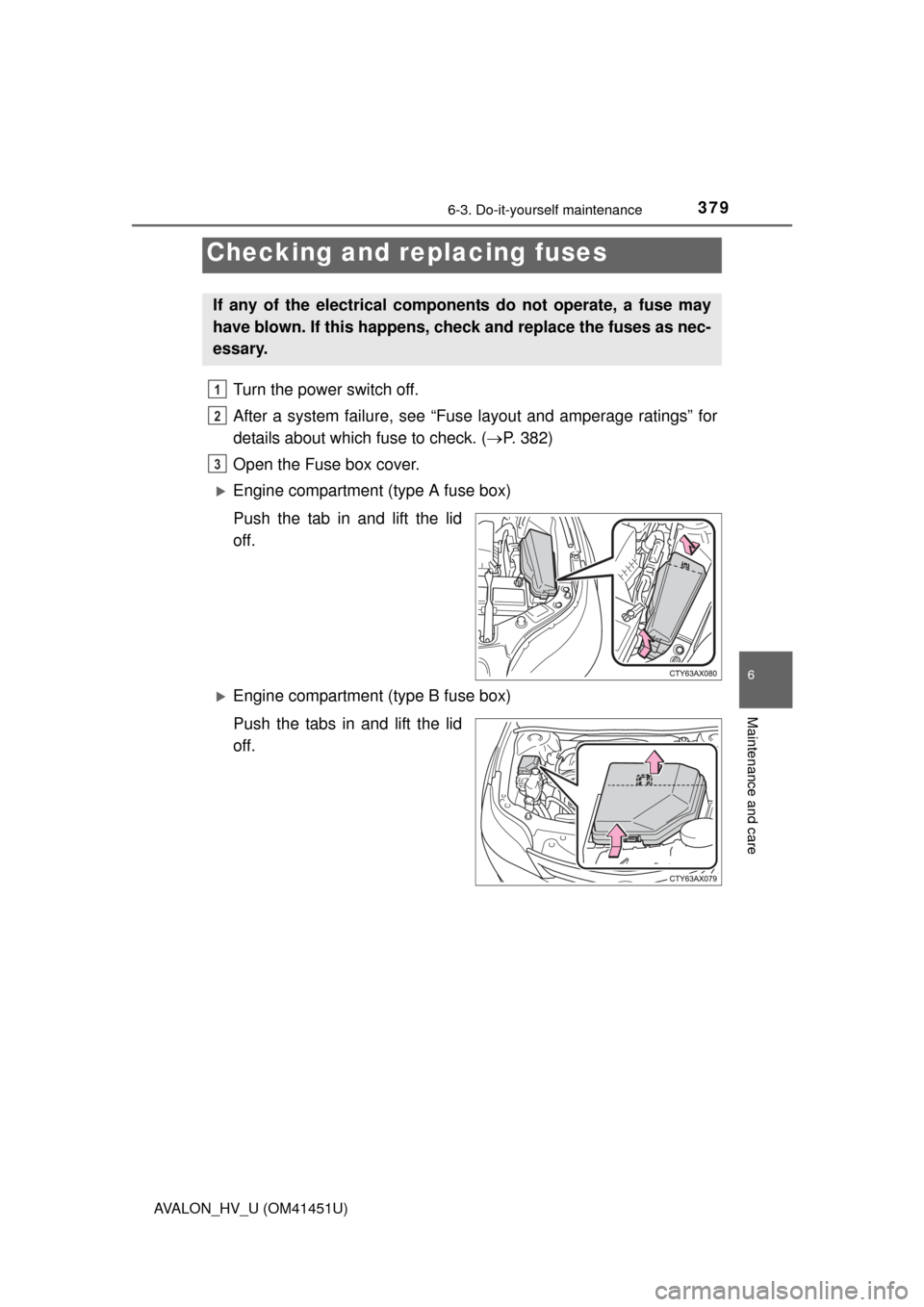

Engine compartment (type A fuse box)
Push the tab in and lift the lid
off.
Engine compartment (type B fuse box)
Push the tabs in and lift the lid
off.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
3
Page 381 of 512
3816-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)

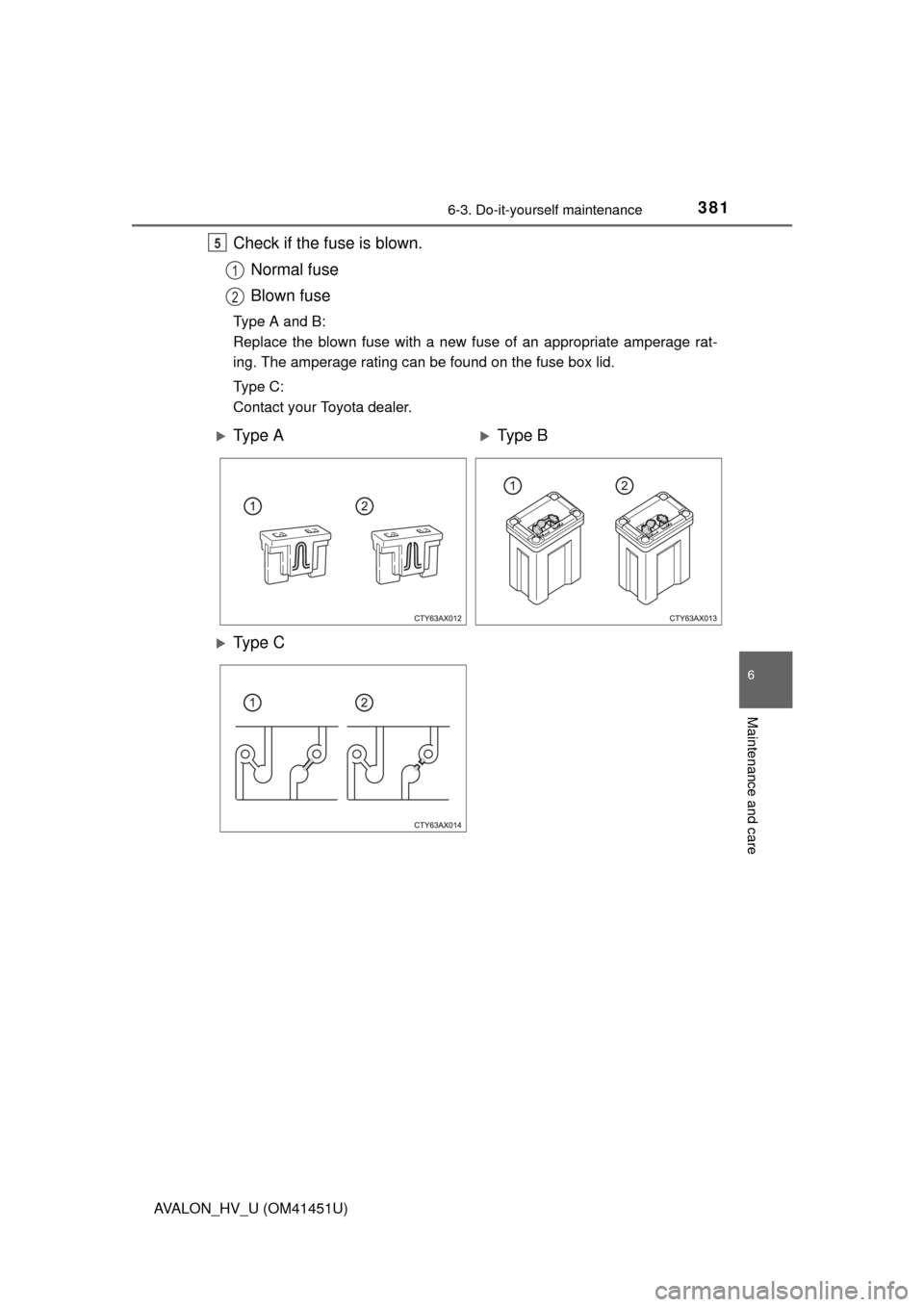

Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
5
1
2
Ty p e AType B
Ty p e C
Page 382 of 512
3826-3. Do-it-yourself maintenance
AVALON_HV_U (OM41451U)■
Engine compartment (type A fuse box)
Fuse block
Fuse block on the back of the cover

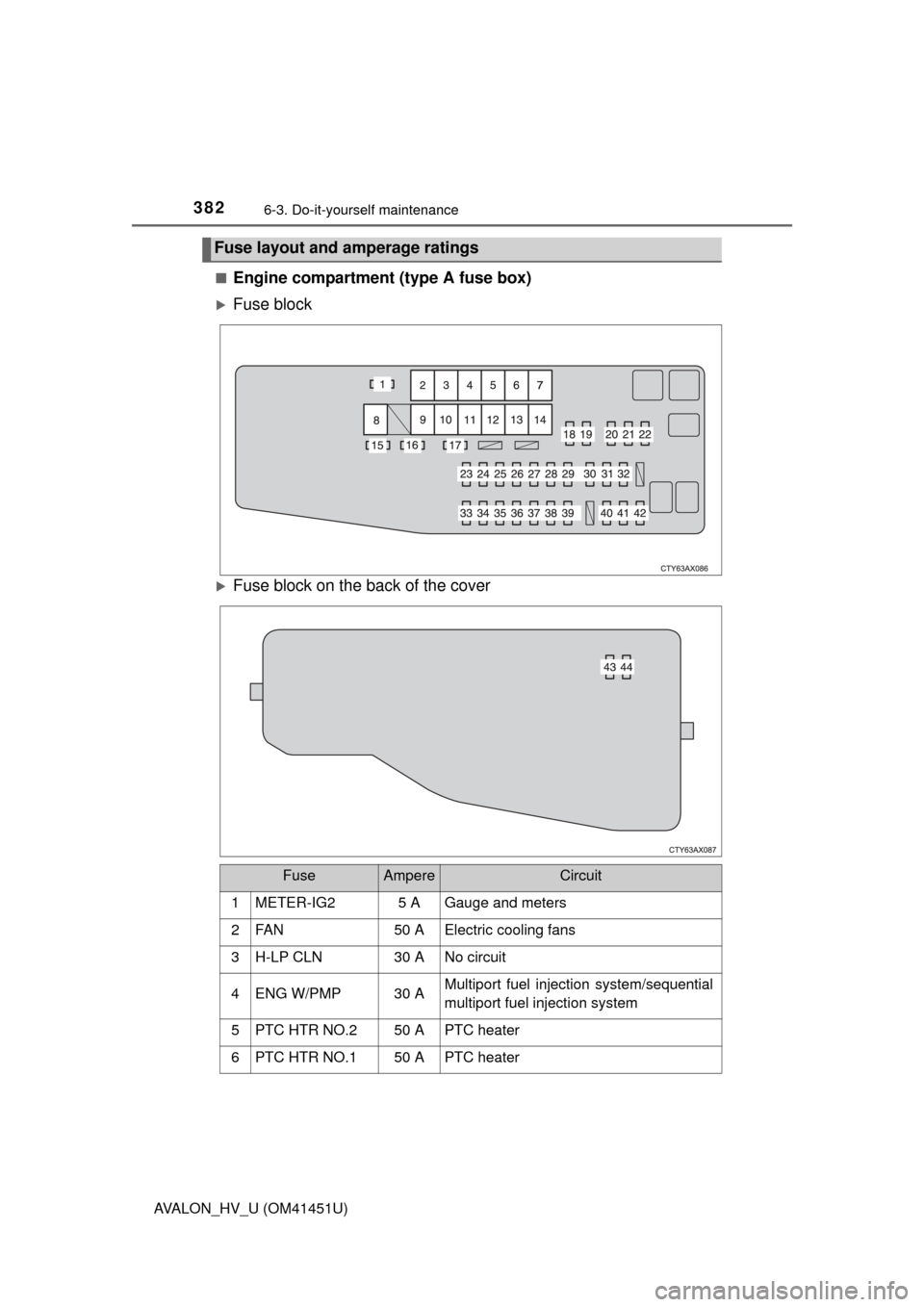

Fuse layout and amperage ratings
FuseAmpereCircuit
1 METER-IG2 5 A Gauge and meters
2 FAN 50 A Electric cooling fans
3 H-LP CLN 30 A No circuit
4 ENG W/PMP 30 A Multiport fuel injection system/sequential
multiport fuel injection system
5 PTC HTR NO.2 50 A PTC heater
6 PTC HTR NO.1 50 A PTC heater
Page 385 of 512
3856-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)■

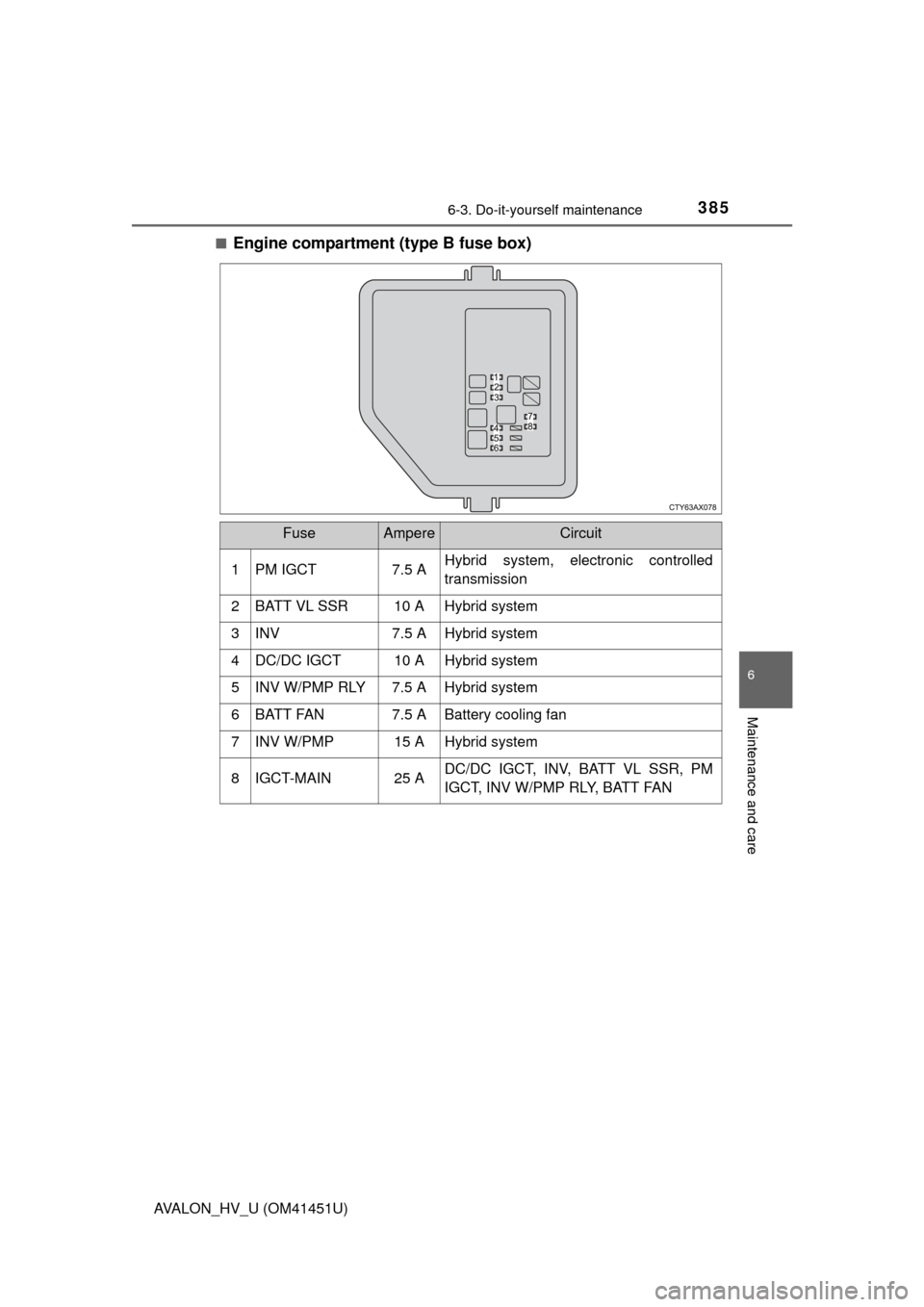

Engine compartment (type B fuse box)
FuseAmpereCircuit
1 PM IGCT 7.5 A Hybrid system, electronic controlled
transmission
2 BATT VL SSR 10 A Hybrid system
3 INV 7.5 A Hybrid system
4 DC/DC IGCT 10 A Hybrid system
5 INV W/PMP RLY 7.5 A Hybrid system
6 BATT FAN 7.5 A Battery cooling fan
7 INV W/PMP 15 A Hybrid system
8 IGCT-MAIN 25 A DC/DC IGCT, INV, BATT VL SSR, PM
IGCT, INV W/PMP RLY, BATT FAN
Page 386 of 512
3866-3. Do-it-yourself maintenance

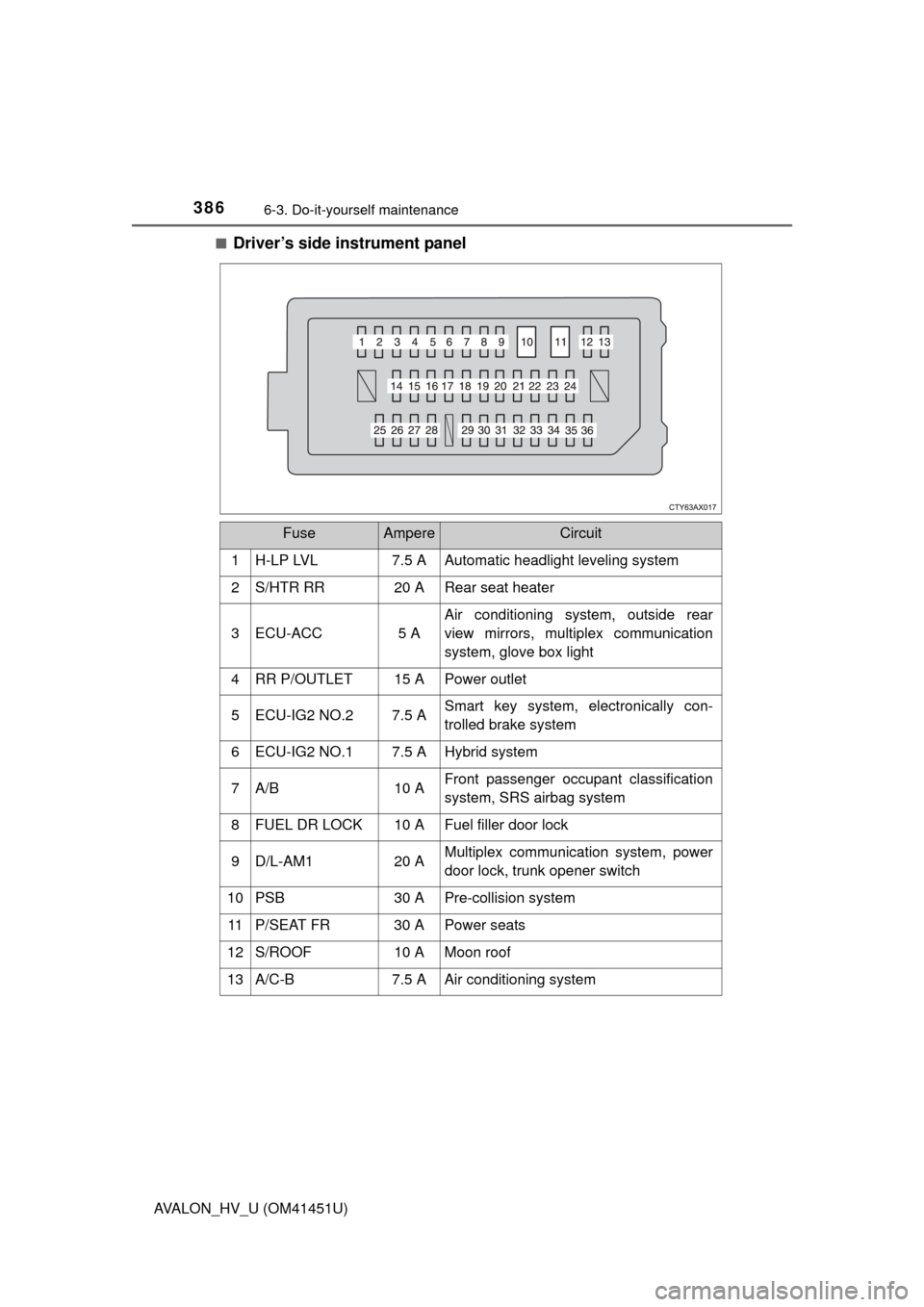

AVALON_HV_U (OM41451U)■
Driver’s side instrument panel
FuseAmpereCircuit
1 H-LP LVL 7.5 A Automatic headlight leveling system
2 S/HTR RR 20 A Rear seat heater
3 ECU-ACC 5 A Air conditioning system, outside rear
view mirrors, multiplex communication
system, glove box light
4 RR P/OUTLET 15 A Power outlet
5 ECU-IG2 NO.2 7.5 A Smart key system, electronically con-
trolled brake system
6 ECU-IG2 NO.1 7.5 A Hybrid system
7 A/B 10 A Front passenger occupant classification
system, SRS airbag system
8 FUEL DR LOCK 10 A Fuel filler door lock
9 D/L-AM1 20 A Multiplex communication system, power
door lock, trunk opener switch
10 PSB 30 A Pre-collision system 11 P/SEAT FR 30 A Power seats
12 S/ROOF 10 A Moon roof
13 A/C-B 7.5 A Air conditioning system
Page 389 of 512
3896-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (OM41451U)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 390)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
