Page 3 of 52
1
INDEX
Engine maintenance 8
Fuel tank door release & cap 7
Hood release 8
Indicator symbols 4-5
Instrument cluster 4
Instrument panel 2-3
Instrument Panel Light Control 8
Keyless entry
1,2 6
Smart Key system1,2 7
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructio\
ns and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
OVERVIEW
FEATURES & OPERATIONS FEATURES & OPERATIONS (continued)
SAFETY & EMERGENCY FEATURES
Air conditioning/heating
18
Audio 20
Auto lock/unlock
2 10
Bird’s Eye View Camera
with Perimeter Scan function 25
Blind Spot Monitor with Rear
Cross Traffic Alert (BSM w/RCTA) 24
Clock 23
Cup holders 25
Door locks 23
Driving mode select 11
Electric parking brake 12
EV drive mode 11
Garage door opener (HomeLink
®)3 15
Head-up display 16
Hybrid Synergy Drive System 9
Hybrid transmission 10
Intelligent Clearance Sonar with Rear
Cross Traffic Braking (ICS w/RCTB) 26-27
Lights
1 & turn signals 17
Moonroof 14
Multi-Information Display (MID)
2 16
Power outlets-12V DC 21
Qi Wireless charger 21
Rear view monitor system 24
Seat adjustments-Front 15
Seat folding-Rear 15
Seat heaters/ventilators 19
Seats-Head restraints 14
Steering lock release 13Steering wheel switches &
telephone controls (Bluetooth
®) 22
Steering wheel-Heater 17
Tilt & telescopic steering wheel 13
Vehicle Stability Control (VSC)/
TRAC OFF Switch 26
USB charge-ports 19
USB media/AUX port 20
Windows-Power 14
Windshield wipers & washers 23
Floor mat installation 44
Rear door child safety locks 39
Safety Connect 39
Seat belts 40
Seat belts-Shoulder belt anchor 40
Spare tire & tools 41
Star Safety System
™ 43-44
Tire Pressure Monitoring
(warning) System (TPMS) 42
Trunk-Internal release 42
BLUETOOTH® DEVICE
PAIRING SECTION 46-48
TOYOTA SAFETY SENSE™ P (TSS-P)
Automatic High Beams (AHB) 38
Full-Speed Range Dynamic Radar
Cruise Control (DRCC) 35-37
Lane Departure Alert with
Steering Assist (LDA w/SA) 31-34
Pre-Collision System with
Pedestrian Detection (PCS w/PD) 29-31
Quick overview-
Toyota Safety Sense
™ P (TSS-P) 28
Sensors 28
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Page 4 of 52
2
OVERVIEWInstrument panel
Steering wheel controls
Audio volume control
switch2
Audio control switches2
Meter control switches
Telephone switch
2
Voice command switch2
Full-Speed Range Dynamic Radar
Cruise Control (DRCC)
Vehicle-to-vehicle distance switch
Lane Departure Alert with Steering
Assist (LDA w/SA) switch Full-Speed Range
Dynamic Radar Cruise
Control (DRCC) switch
Paddle shifters1
Tilt and telescopic
steering lock
release lever
1
Power tilt and
telescopic steering
control switch
1
Bird’s Eye View Camera ON/OFF switch1,2“ODO/TRIP” switch
Instrument panel light control switch
Automatic High Beam (AHB) switch
Heated steering
wheel switch
1
VSC OFF switch
Fuel tank door release switch
Trunk opener
Hood lock
release lever
Meters/Multi-Information Display (MID)
Windshield wiper and washer control
“POWER” switch
Headlights/turn signals control
Page 7 of 52
5
Open door warning
Malfunction/Check Engine indicator1
Master warning1,2
Electric power steering system
warning1 (red/yellow)
“ECO MODE” indicator
EV drive mode indicator
EV indicator
Low engine oil pressure warning
Low Tire Pressure Warning1
Low fuel level warning
Pre-Collision System (PCS)
warning1,2
“READY” indicator
Turn signal indicator
Vehicle Stability Control (VSC)
OFF indicator1
Security indicator
SPORT mode indicator
Slip indicator/Hill-start Assist
Control indicator1,3
Constant speed cruise control
indicator/Constant speed
cruise control SET indicator
Full-Speed Dynamic Radar
Cruise Control (DRCC)
indicator/DRCC SET indicator
Headlight low/high beam
indicators
High coolant temperature warning
Intelligent Clearance Sonar (ICS)
OFF indicator1,2,4
Intuitive parking assist indicator4
Low outside temperature indicator Parking brake indicator
Rear passengers’ seat belt
reminder indicatorDriver’s and front passenger’s seat belt
reminder (alarm will sound if speed is
over 12 mph)
Smart Key system indicator
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1
If the indicator does not turn off within a few seconds of starting the \
Hybrid System, there may be a
malfunction. Have the vehicle inspected by your Toyota dealer.
2 If the indicator flashes, there may be a malfunction. Refer to the Owner\
’s Manual.3 If the indicator flashes, it indicates that the system is operating.4 If equipped.
Lane Departure Alert (LDA) with
steering assist indicator
(white/green/amber
3)

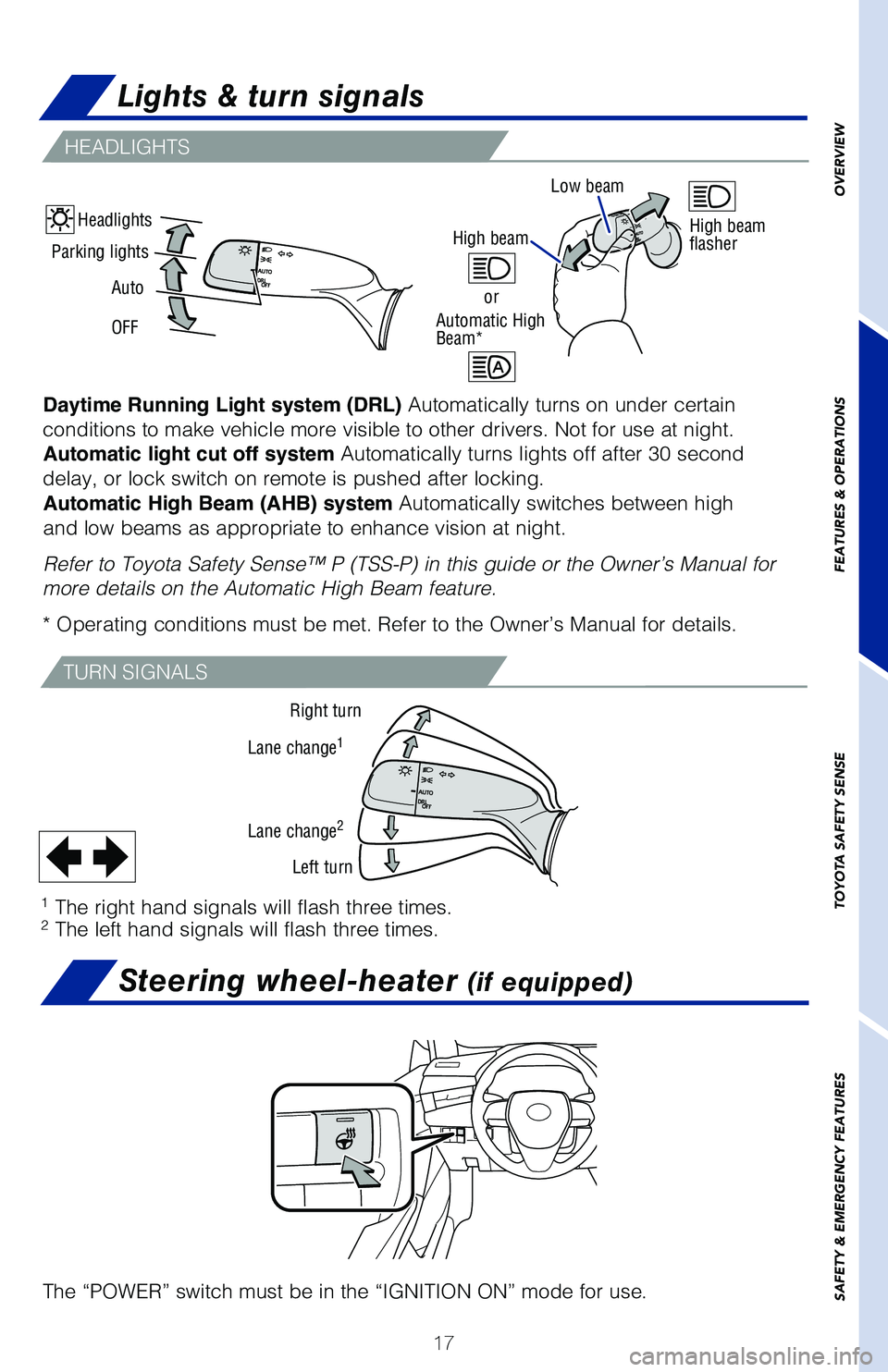

Page 19 of 52
17
High beam
or
Automatic High
Beam*
Headlights
Parking lights High beam
flasher
Auto OFF Low beam
Right turn
Lane change
1
Lane change2
Left turn
1 The right hand signals will flash three times.
2 The left hand signals will flash three times.
Daytime Running Light system (DRL)
Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after 30 second
delay, or lock switch on remote is pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
TURN SIGNALS
The “POWER” switch must be in the “IGNITION ON” mode for use\
.
Steering wheel-heater (if equipped)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Lights & turn signals
HEADLIGHTS
