3274-5. Using the driving support systems
4
Driving
■Automatic reactivation of TRAC and VSC systems
After turning the TRAC and VSC systems off, the systems will be automati-
cally re-enabled in the following situations:
●When the power switch is turned off
●If only the TRAC system is turned off, the TRAC will turn on when vehicle
speed increases
If both the TRAC and VSC systems are turned off, automatic re-enabling will
not occur when vehicle speed increases
■Secondary Collision Brake operating conditions
The system operates when the SRS airbag sensor detects a collision while
the vehicle is in motion.
However, the system does not operate in any of the following situations.
●The vehicle speed is below 6 mph (10 km/h)
●Components are damaged
■Secondary Collision Brake automatic cancellation
The system is automatically canceled in any of the following situations.
●The vehicle speed drops below approximately 6 mph (10 km/h)
●A certain amount of time elapses during operation
●The accelerator pedal is depressed a large amount
■Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel may feel heavy as a result. Should this occur, refrain
from excessive steering input or stop the vehicle and turn the hybrid system
off. The EPS system should return to normal within 10 minutes.

4607-2. Steps to take in an emergency
■SRS warning light
This warning light system monitors the airbag sensor assembly, front impact
sensors, side impact sensors (front door), side impact sensors (front), side
impact sensors (rear), driver’s seat position sensor, driver’s seat belt buckle
switch, front passenger occupant classification system (ECU and sensors),
“AIR BAG ON” indicator light, “AIR BAG OFF” indicator light, seat belt preten-
<0056004c00520051004800550056000f00030044004c005500450044004a0056000f0003004c00510057004800550046005200510051004800460057004c0051004a0003005a004c0055004c0051004a0003004400510047000300530052005a0048005500
03005600520058005500460048005600110003000b[P. 36)
■Front passenger detection sensor, seat belt reminder and warning
buzzer
●If luggage is placed on the front passenger seat, the front passenger detec-
tion sensor may cause the warning light to flash and the warning buzzer to
sound even if a passenger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is the fuel tank empty?
If it is, fill the fuel tank immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after several driving trips.
If the light does not go off even after several trips, contact your Toyota dealer
as soon as possible.
■Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.

5318-2. Customization
8
Vehicle specifications

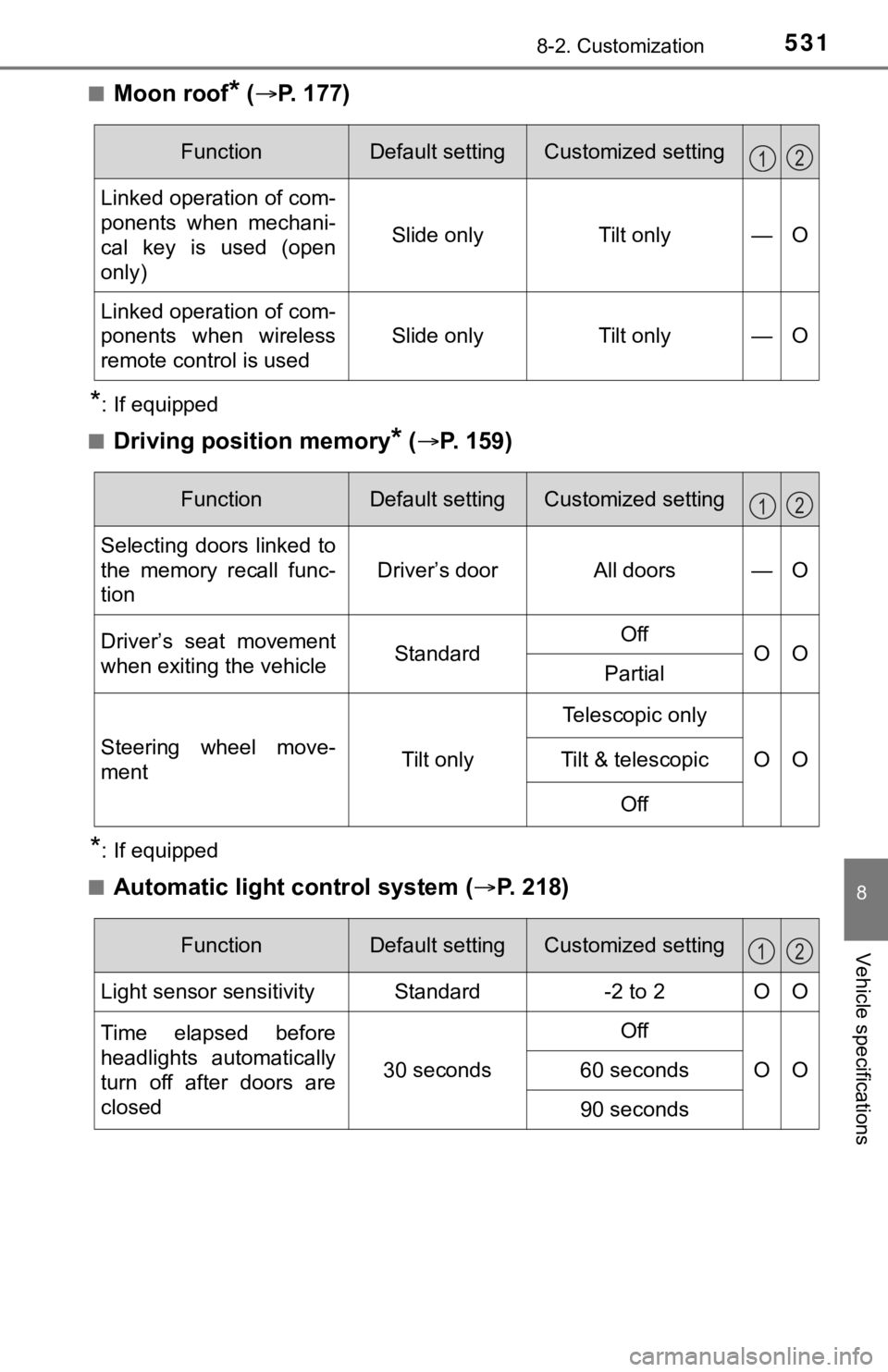

■Moon roof* (P. 177)
*: If equipped
■
Driving position memory* (P. 159)
*: If equipped
■
Automatic light control system (P. 218)
FunctionDefault settingCustomized setting
Linked operation of com-
ponents when mechani-
cal key is used (open
only)
Slide onlyTilt only—O
Linked operation of com-
ponents when wireless
remote control is used
Slide onlyTilt only—O
12
FunctionDefault settingCustomized setting
Selecting doors linked to
the memory recall func-
tion
Driver’s doorAll doors—O
Driver’s seat movement
when exiting the vehicleStandardOffOOPartial
Steering wheel move-
mentTilt onlyTelescopic only
OO
Tilt & telescopic
Off
12
FunctionDefault settingCustomized setting
Light sensor sensitivityStandard-2 to 2OO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OO60 seconds
90 seconds
12

5328-2. Customization

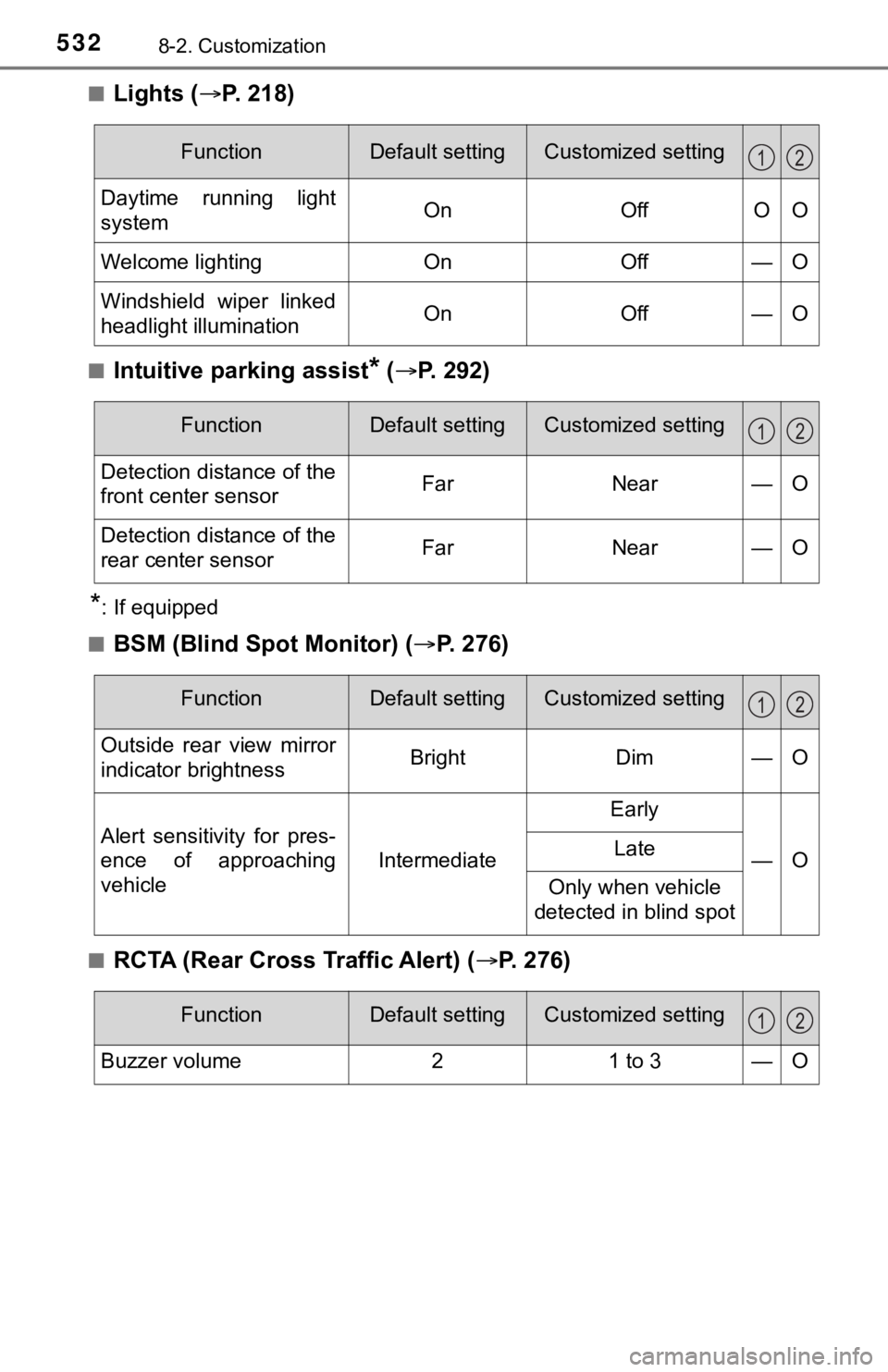

■Lights (P. 2 1 8 )
■Intuitive parking assist* (P. 292)
*: If equipped
■
BSM (Blind Spot Monitor) (P. 2 7 6 )
■RCTA (Rear Cross Traffic Alert) (P. 276)
FunctionDefault settingCustomized setting
Daytime running light
systemOnOffOO
Welcome lightingOnOff—O
Windshield wiper linked
headlight illuminationOnOff—O
12
FunctionDefault settingCustomized setting
Detection distance of the
front center sensorFarNear—O
Detection distance of the
rear center sensorFarNear—O
12
FunctionDefault settingCustomized setting
Outside rear view mirror
indicator brightnessBrightDim—O
Alert sensitivity for pres-
ence of approaching
vehicle
Intermediate
Early
—OLate
Only when vehicle
detected in blind spot
12
FunctionDefault settingCustomized setting
Buzzer volume21 to 3—O
12

542What to do if... (Troubleshooting)
●The seat belt reminder light is flashing
Are the driver and the passenger wearing the seat belts? (P. 458)
●The parking brake indicator is on
Is the parking brake released? (P. 212)
Depending on the situation, other types of warning buzzer may also sound.
(P. 455, 465)

●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (P. 88)
Do one of the following to stop the alarm:
• Unlock the doors.
• Open the trunk using the entry function or wireless remote control.
• Turn the power switch to ACCESSORY or ON mode, or start the hybrid
system.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. (P. 465)
●When a warning light turns on or a warning message is displayed, refer to
P. 455, 465.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

554Alphabetical index
Safety Connect .......................... 69
Seat belt reminder light........... 458
Seat belts.................................... 28
Adjusting the seat belt ............ 29
Automatic Locking
Retractor............................... 30
Child restraint system
installation ............................ 58
Cleaning and maintaining
the seat belt ........................ 390
Emergency Locking
Retractor............................... 30
How to wear your seat belt ..... 28
How your child should wear
the seat belt .......................... 30
Pregnant women, proper
seat belt use ......................... 31
Reminder light and buzzer .... 458
Seat belt extender................... 30
Seat belt pretensioners ........... 29
SRS warning light ................. 456
Seat heaters ............................. 349
Seat ventilators ........................ 349
Seating capacity ...................... 193Seats ................................. 155, 157
Adjustment.................... 155, 157
Adjustment
precautions................. 156, 158
Child seats/child restraint
system installation ................ 58
Cleaning ............................... 389
Driving position memory ....... 159
Folding down the rear
seatbacks ........................... 157
Front seat heaters ................ 349
Head restraints ..................... 164
Power easy access
system ................................ 159
Properly sitting in the seat ...... 26
Rear seat heaters ................. 349
Seat ventilators ..................... 349
Secondary Collision Brake ..... 324
Sensor
Automatic headlight
system ................................ 220
Automatic High Beam
system ................................ 222
Camera sensor ..................... 236
Inside rear view mirror .......... 169
Intuitive parking assist .......... 292
LDA (Lane Departure Alert
with steering control) .......... 252
Radar sensor ........................ 236
