instrument cluster TOYOTA AVALON HYBRID 2021 Owners Manual (in English)

Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3
Operation of
each
componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for
driving
5Interior featuresUsage of the interior features, etc.
6Maintenance
and careCaring for your vehicle and maintenance
procedures
7When trouble
arisesWhat to do in case of malfunction or emergency
8Vehicle
specificationsVehicle specifications, customizable features, etc.
9For ownersReporting safety defects for U.S. owners
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
For your information....................... 6
Reading this manual .................... 12
How to search .............................. 13
Pictorial index .............................. 14
1-1. For safe use
Before driving ...................... 24
For safe driving ................... 26
Seat belts ............................ 28
SRS airbags ........................ 34
Front passenger occupant
classification system ......... 48
Safety information for
children ............................. 53
Child restraint systems ........ 54
Installing child restraints ...... 58
Exhaust gas precautions ..... 68
1-2. Emergency assistance
Safety Connect.................... 69
1-3. Hybrid system
Hybrid system features ....... 75
Hybrid system
precautions ....................... 79
1-4. Theft deterrent system
Immobilizer system ............. 86
Alarm ................................... 882. Instrument cluster
Warning lights and
indicators ........................... 92
Gauges and meters ............. 98
Multi-information
display ............................. 102
Head-up display................. 121
Energy monitor/
consumption screen ........ 128
3-1. Key information
Keys................................... 134
3-2. Opening, closing and
locking the doors
Doors ................................. 138
Trunk ................................. 144
Smart key system .............. 148
3-3. Adjusting the seats
Front seats......................... 155
Rear seats ......................... 157
Driving position
memory ........................... 159
Head restraints .................. 164
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ................... 166
Inside rear view mirror ....... 168
Outside rear view
mirrors ............................. 170
3-5. Opening and closing
the windows
Power windows.................. 173
Moon roof .......................... 177
1For safety and security
2Instrument cluster
3Operation of each
component

91
Instrument cluster2
2. Instrument cluster
Warning lights and
indicators .......................... 92
Gauges and meters ............ 98
Multi-information
display............................. 102
Head-up display ................ 121
Energy monitor/
consumption screen ........ 128

922. Instrument cluster
Warning lights and indicators
The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

932. Instrument cluster
2
Instrument cluster
Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
*1
(Red)
Brake system warning
light (P. 455)Parking brake indicator
(P. 456)
*1
(Yellow)
Brake system warning
light (P. 455)*1, 3
Brake hold operated
indicator (P. 457)
*2High coolant tempera-
ture warning light
(P. 455)*1
(Red/yellow)
Electric power steering
system warning light
(P. 457)
*2Charging system
warning light (P. 455)*1, 4PCS warning light
(P. 457)
*2
Low engine oil pressure
warning light (P. 455)*1, 3
(if equipped)
ICS OFF indicator
(P. 457)
*1
Malfunction indicator
lamp (P. 456)*2
(Amber)
LDA indicator (P. 457)
*1SRS warning light
(P. 456)*1
Slip indicator (P. 458)
*1ABS warning light
(P. 456)Low fuel level warning
light (P. 458)
*2Brake Override System/
Drive-Start Control/Intel-
ligent Clearance Sonar
(if equipped) warning
light (P. 456)Driver’s and front
passenger’s seat belt
reminder light
(P. 458)

942. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light flashes to indicate a malfunction.
*4: This light flashes or illuminates to indicate a malfunction.
*5: This light illuminates on the center panel.
*5Rear passengers’ seat
belt reminder lights
(P. 458)*1Tire pressure warning
light (P. 458)
*1Master warning light
(P. 458)

952. Instrument cluster
2
Instrument cluster

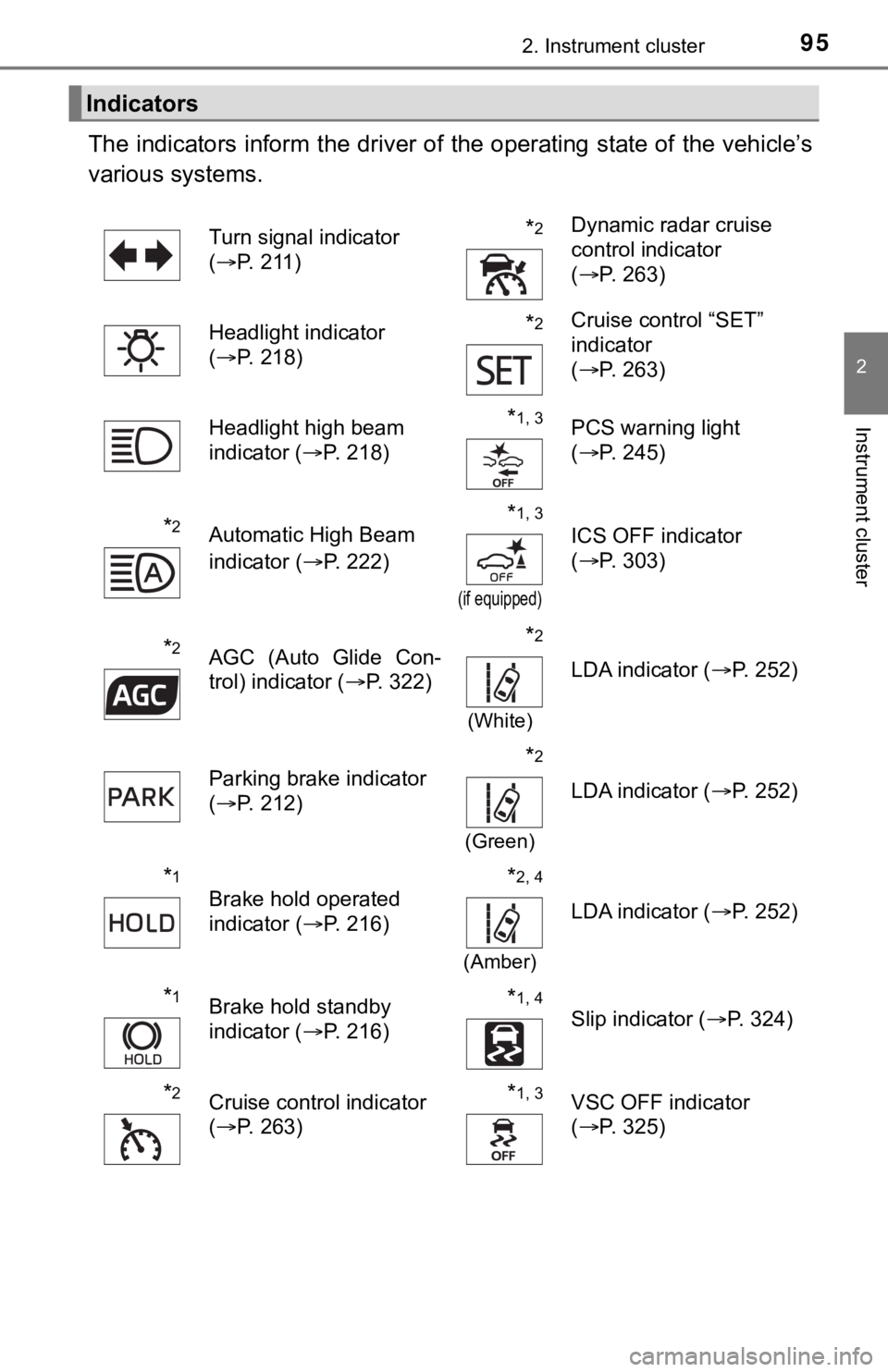

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(P. 211)*2Dynamic radar cruise
control indicator
(P. 263)
Headlight indicator
(P. 218)
*2Cruise control “SET”
indicator
(P. 263)
Headlight high beam
indicator (P. 218)
*1, 3PCS warning light
(P. 245)
*2Automatic High Beam
indicator (P. 222)*1, 3
(if equipped)
ICS OFF indicator
(P. 303)
*2AGC (Auto Glide Con-
trol) indicator (P. 322)*2
(White)
LDA indicator (P. 252)
Parking brake indicator
(P. 212)
*2
(Green)
LDA indicator (P. 252)
*1
Brake hold operated
indicator (P. 216)*2, 4
(Amber)
LDA indicator (P. 252)
*1Brake hold standby
indicator (P. 216)*1, 4
Slip indicator (P. 324)
*2Cruise control indicator
(P. 263)*1, 3VSC OFF indicator
(P. 325)

962. Instrument cluster

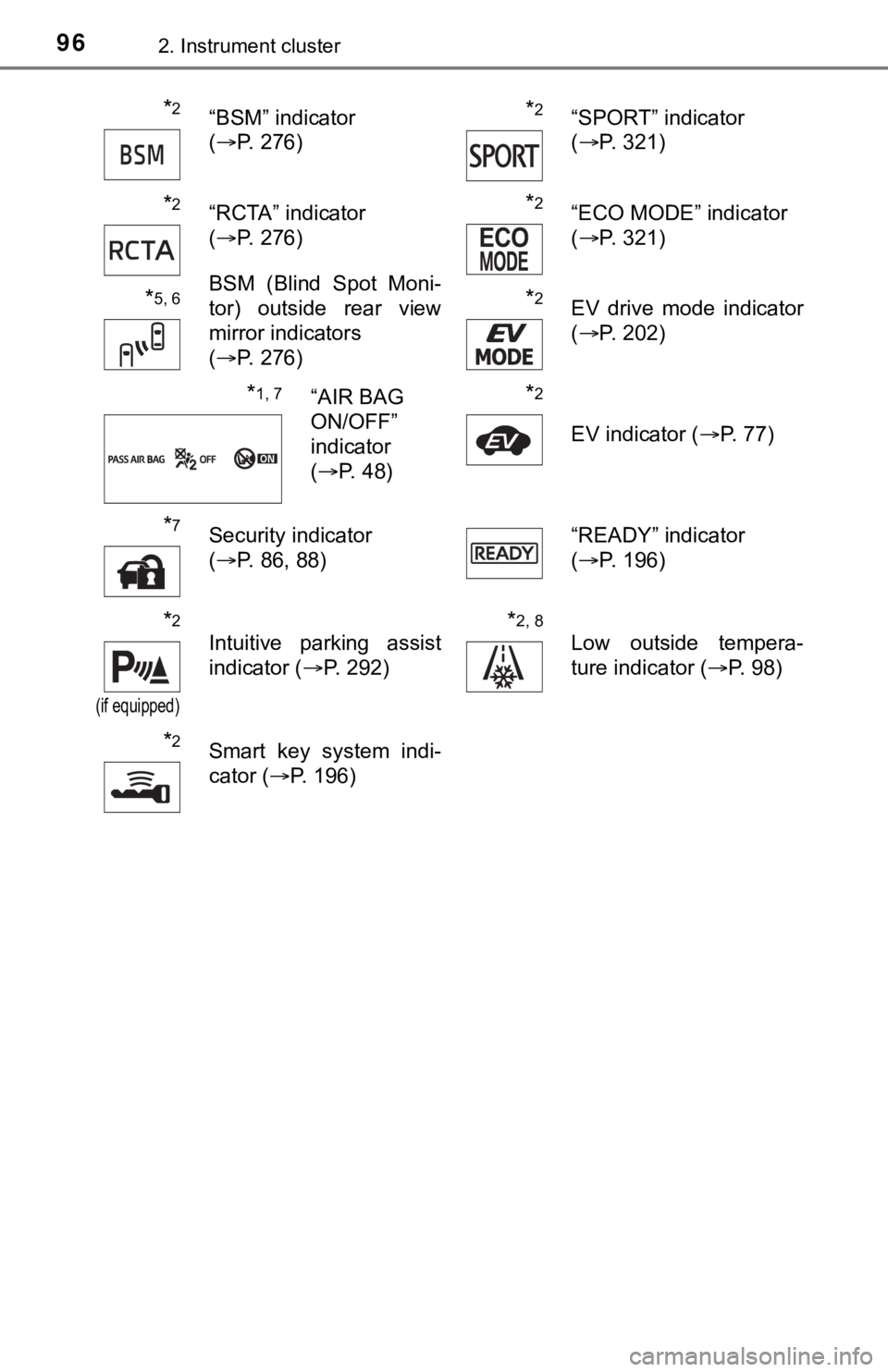

*2“BSM” indicator
(P. 276)*2“SPORT” indicator
(P. 321)
*2“RCTA” indicator
(P. 276)*2“ECO MODE” indicator
(P. 321)
*5, 6BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(P. 276)*2EV drive mode indicator
(P. 202)
*1, 7“AIR BAG
ON/OFF”
indicator
(P. 48)*2
EV indicator (P. 77)
*7Security indicator
(P. 86, 88)“READY” indicator
(P. 196)
*2
(if equipped)
Intuitive parking assist
indicator (P. 292)*2, 8
Low outside tempera-
ture indicator (P. 98)
*2Smart key system indi-
cator (P. 196)

972. Instrument cluster
2
Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-
cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or turn off. Have the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: This light turns on when the system is off.
*4: This light flashes to indicate that the system is operating.
*5: These indicators will illuminate in the following situations to indicate that
the system initial check is being performed:
• When the BSM function or RCTA function is enabled and the power
switch is turned to ON mode.
• When the power switch is ON mode and the BSM function is enabled.
• When the power switch is ON mode and the RCTA function is enabled.
(At this time, a buzzer will also sound).
The indicators will turn off after a few seconds. If the indicators do not
illuminate or turn off, or if a buzzer does not sound when the RCTA func-
tion is enabled, the system may be malfunctioning. Have the vehicle
inspected by your Toyota dealer.
*6: This light illuminates on the outside rear view mirrors.
*7: This light illuminates on the center panel.
*8: When the outside temperature is approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10 seconds, then stay on.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning lights not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

982. Instrument cluster

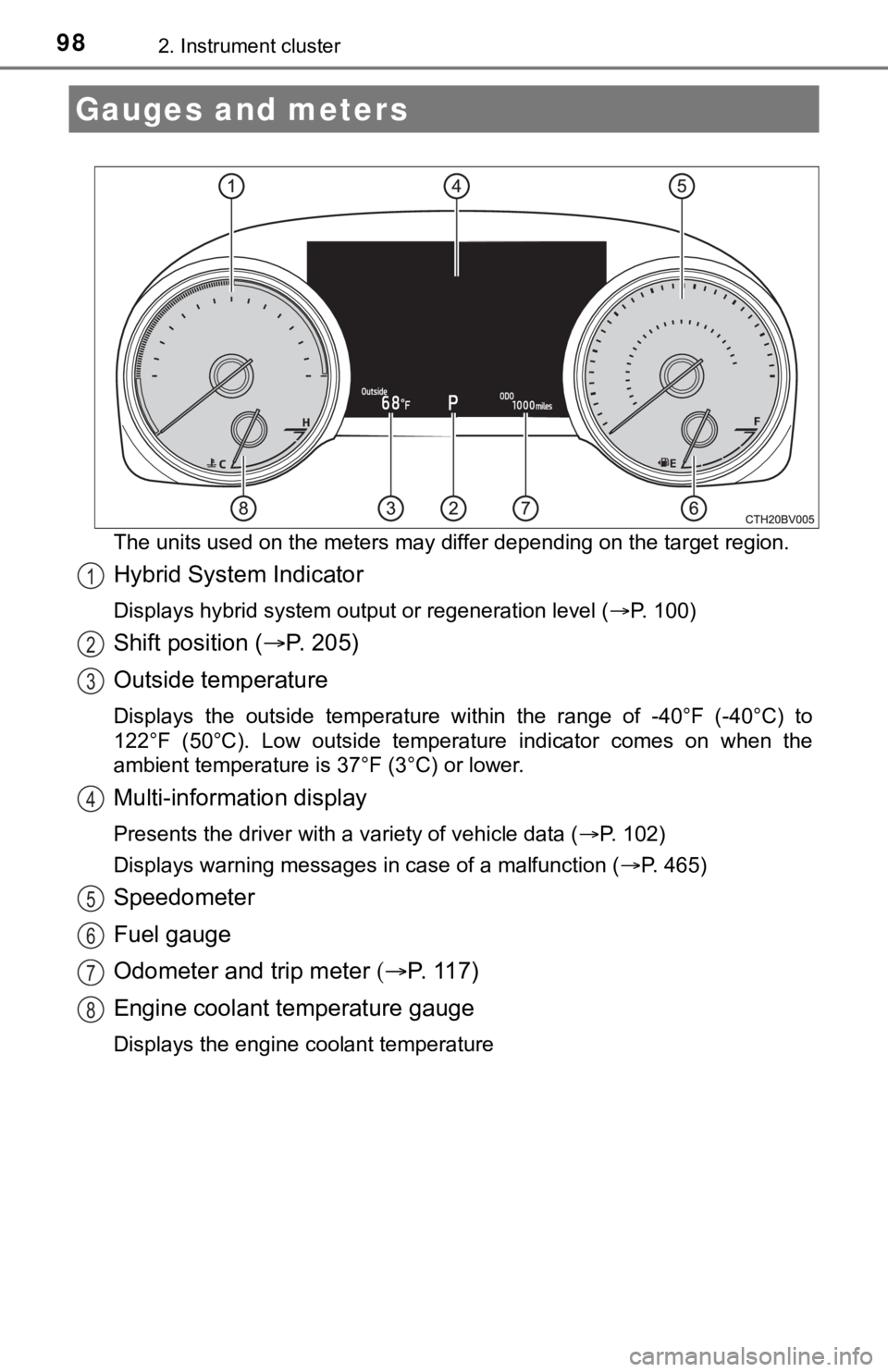

The units used on the meters may differ depending on the target region.
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 100)
Shift position (P. 2 0 5 )
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.
Multi-information display
<0033005500480056004800510057005600030057004b0048000300470055004c0059004800550003005a004c0057004b000300440003005900440055004c00480057005c000300520049000300590048004b004c0046004f00480003004700440057004400
03000b[P. 1 0 2 )
Displays warning messages in case of a malfunction (P. 465)
Speedometer
Fuel gauge
Odometer and trip meter P. 117)
Engine coolant temperature gauge
Displays the engine coolant temperature
Gauges and meters
1
2
3
4
5
6
7
8
