± SERVICE SPECIFICATIONSCOOLING
AVENSIS REPAIR MANUAL (RM1018E)
COOLING

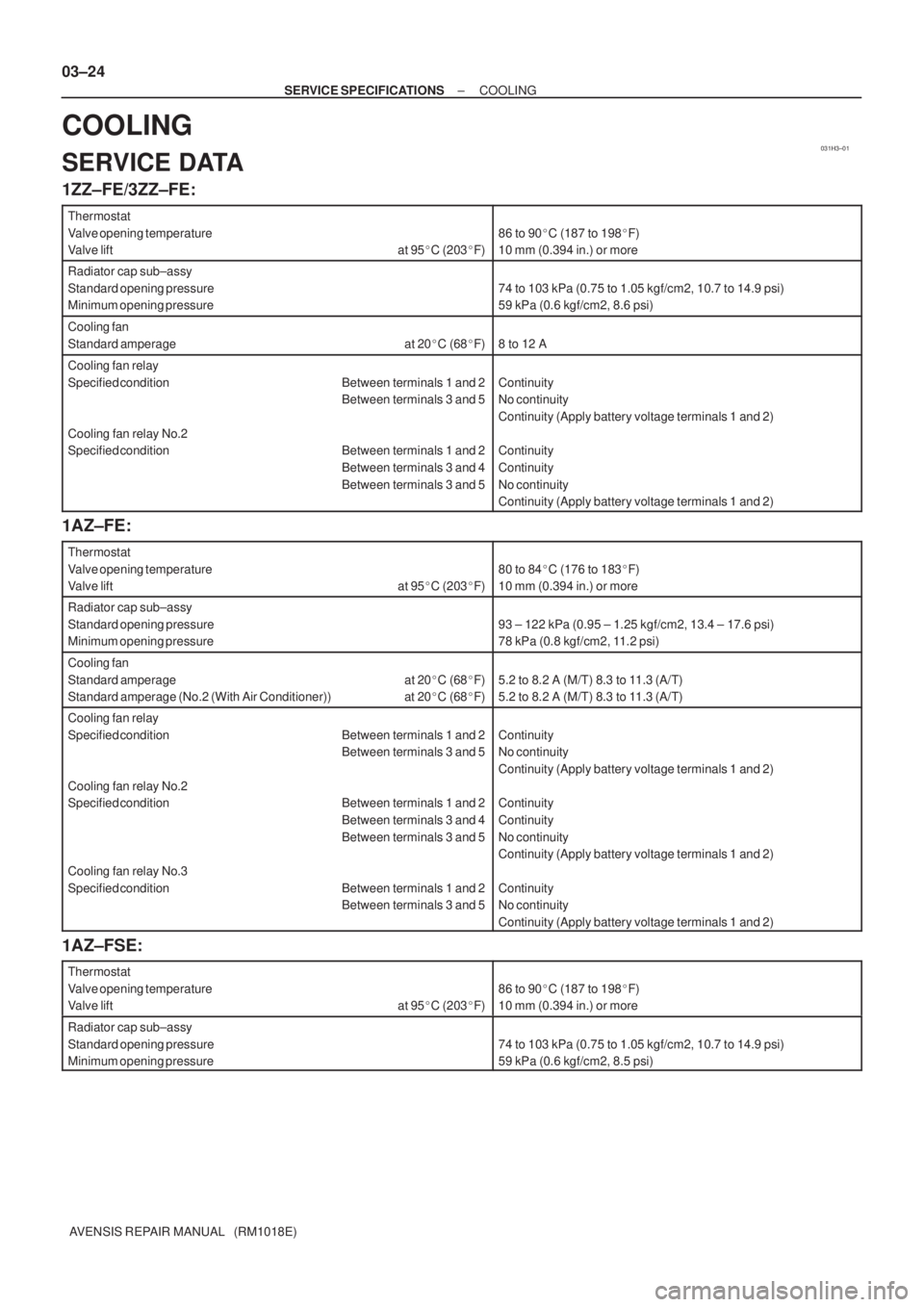

SERVICE DATA
1ZZ±FE/3ZZ±FE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
86 to 90
C (187 to 198
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
74 to 103 kPa (0.75 to 1.05 kgf/cm2, 10.7 to 14.9 psi)
59 kPa (0.6 kgf/cm2, 8.6 psi)
Cooling fan
Standard amperage at 20
C (68
F)
8 to 12 A
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
1AZ±FE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
80 to 84
C (176 to 183
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
93 ± 122 kPa (0.95 ± 1.25 kgf/cm2, 13.4 ± 17.6 psi)
78 kPa (0.8 kgf/cm2, 11.2 psi)
Cooling fan
Standard amperage at 20
C (68
F)
Standard amperage (No.2 (With Air Conditioner)) at 20
C (68
F)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
1AZ±FSE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
86 to 90
C (187 to 198
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
74 to 103 kPa (0.75 to 1.05 kgf/cm2, 10.7 to 14.9 psi)
59 kPa (0.6 kgf/cm2, 8.5 psi)

± SERVICE SPECIFICATIONSCOOLING
03±25
AVENSIS REPAIR MANUAL (RM1018E) Cooling fan
Standard amperage at 20
C (68
F)
Standard amperage (No.2 (With Air Conditioner)) at 20
C (68
F)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)

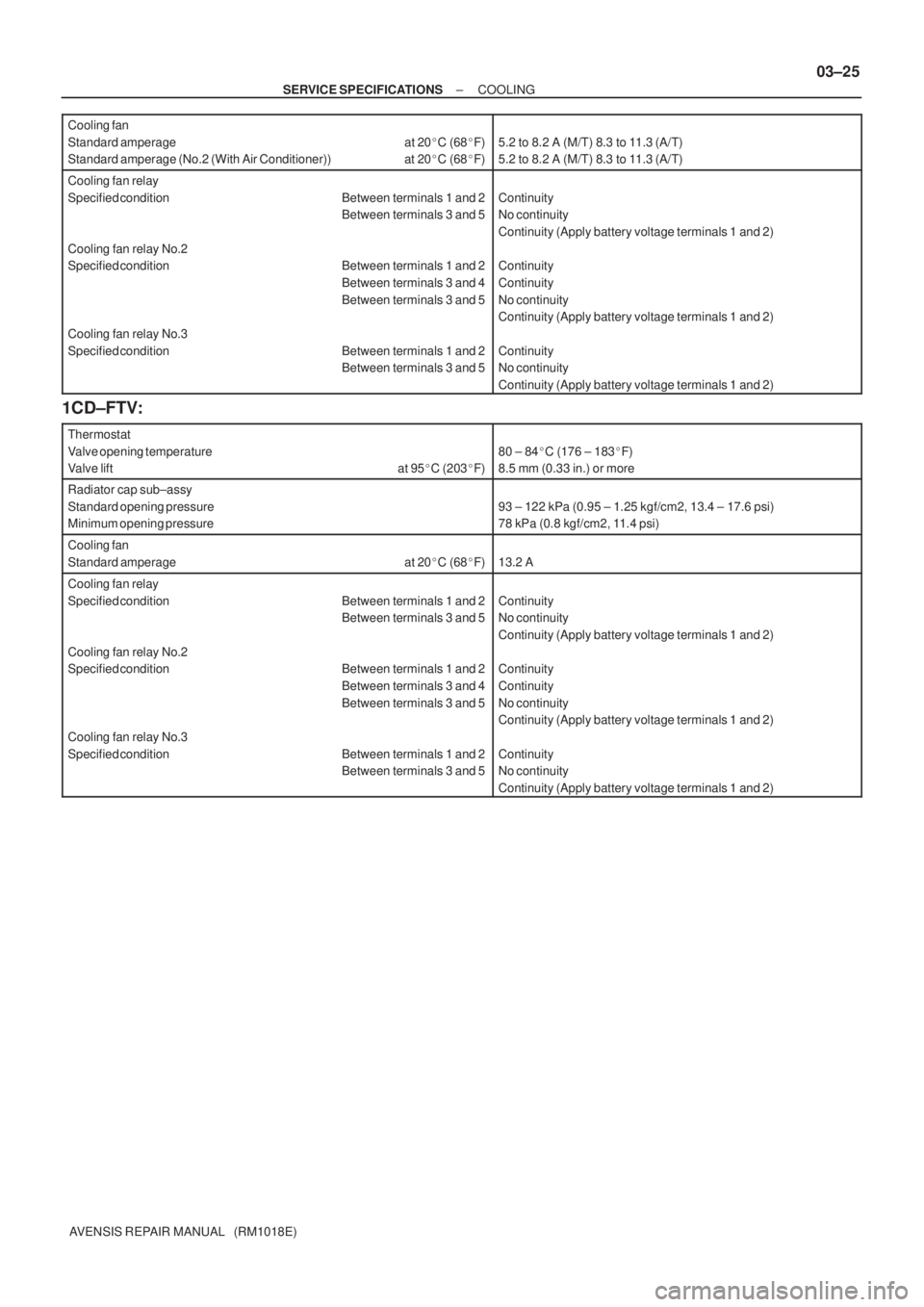

1CD±FTV:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
80 ± 84
C (176 ± 183
F)
8.5 mm (0.33 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
93 ± 122 kPa (0.95 ± 1.25 kgf/cm2, 13.4 ± 17.6 psi)
78 kPa (0.8 kgf/cm2, 11.4 psi)
Cooling fan
Standard amperage at 20
C (68
F)
13.2 A
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)

031H4±01
03±26
± SERVICE SPECIFICATIONSCOOLING
AVENSIS REPAIR MANUAL (RM1018E)

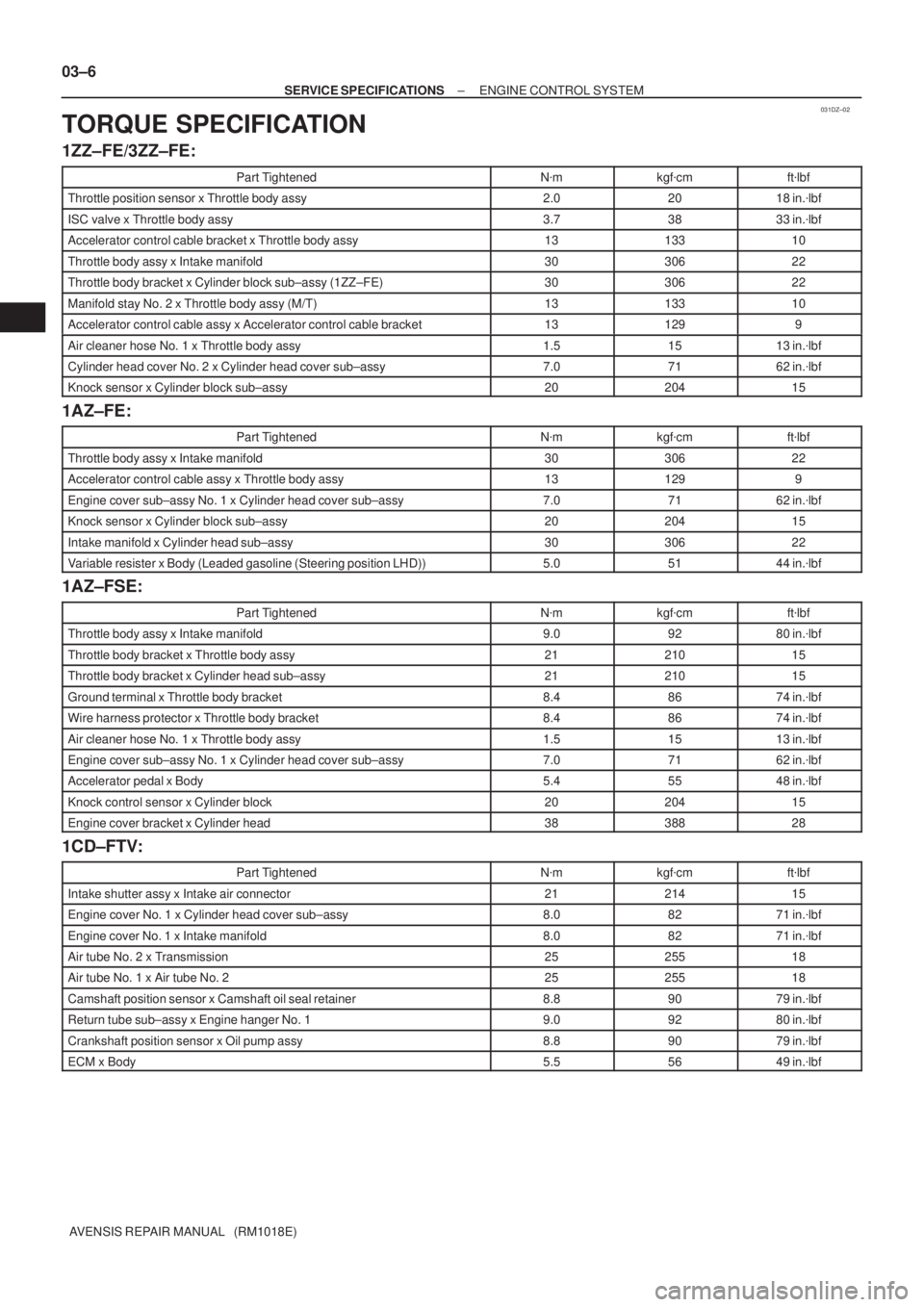

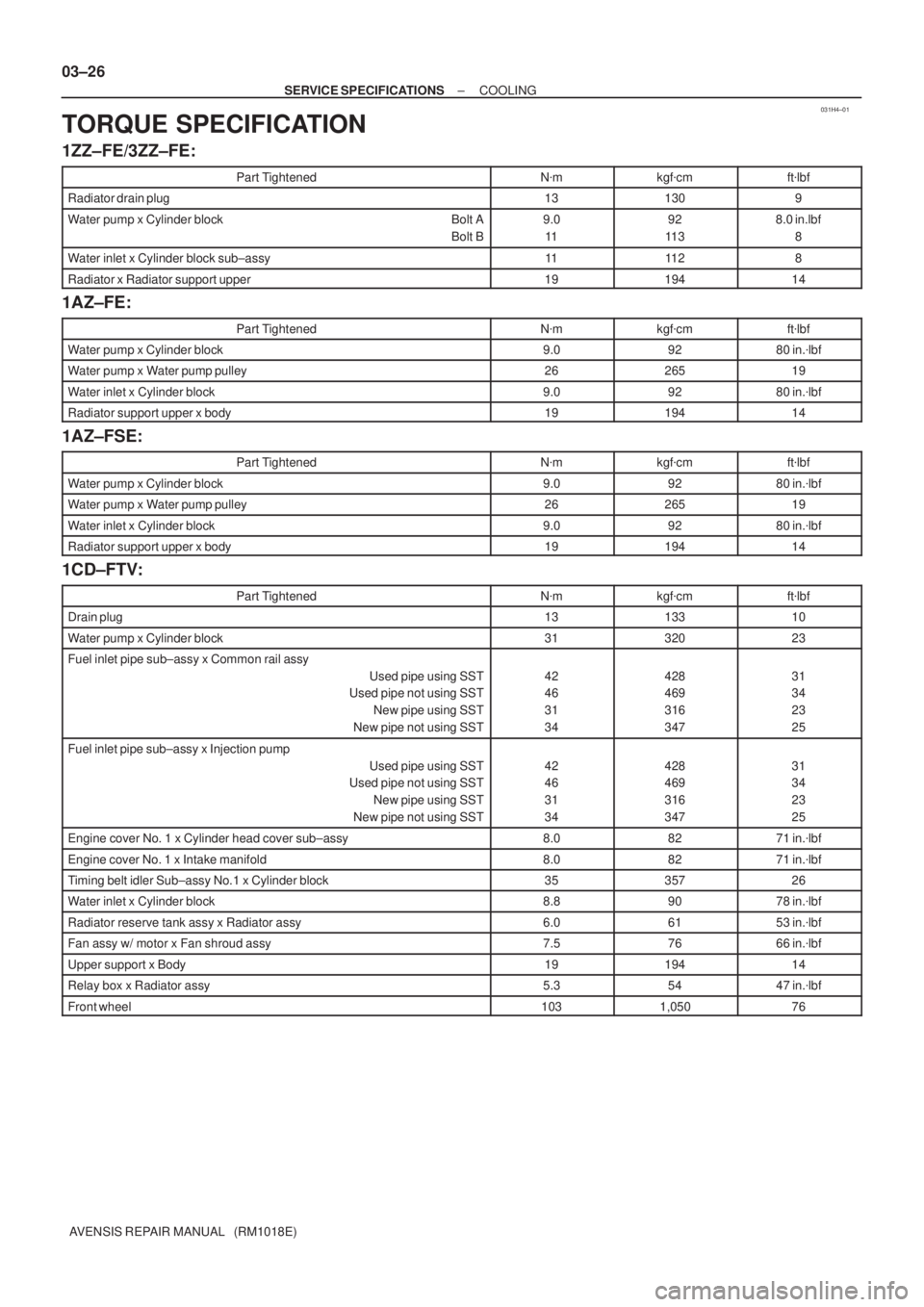

TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedN
mkgf
cmft
lbf
Radiator drain plug131309
Water pump x Cylinder block Bolt A
Bolt B9.0
1192
11 38.0 in.lbf
8
Water inlet x Cylinder block sub±assy1111 28
Radiator x Radiator support upper1919414
1AZ±FE:
Part TightenedN
mkgf
cmft
lbf
Water pump x Cylinder block9.09280 in.
lbf
Water pump x Water pump pulley2626519
Water inlet x Cylinder block9.09280 in.
lbf
Radiator support upper x body1919414
1AZ±FSE:
Part TightenedN
mkgf
cmft
lbf
Water pump x Cylinder block9.09280 in.
lbf
Water pump x Water pump pulley2626519
Water inlet x Cylinder block9.09280 in.
lbf
Radiator support upper x body1919414
1CD±FTV:
Part TightenedN
mkgf
cmft
lbf
Drain plug1313310
Water pump x Cylinder block3132023
Fuel inlet pipe sub±assy x Common rail assy
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Fuel inlet pipe sub±assy x Injection pump
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Timing belt idler Sub±assy No.1 x Cylinder block3535726
Water inlet x Cylinder block8.89078 in.
lbf
Radiator reserve tank assy x Radiator assy6.06153 in.
lbf
Fan assy w/ motor x Fan shroud assy7.57666 in.
lbf
Upper support x Body1919414
Relay box x Radiator assy5.35447 in.
lbf
Front wheel1031,05076

030KB±05

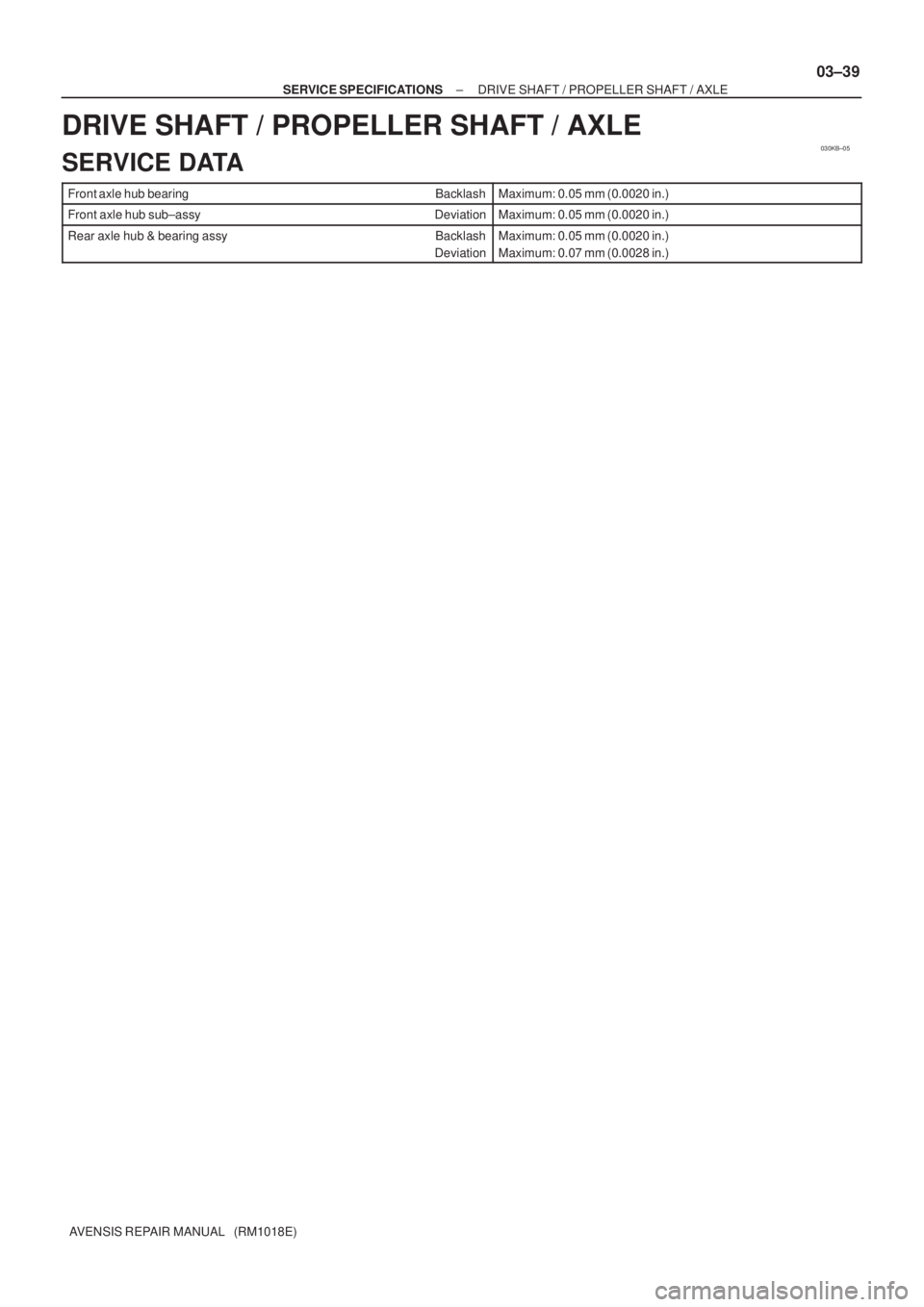

± SERVICE SPECIFICATIONSDRIVE SHAFT / PROPELLER SHAFT / AXLE
03±39
AVENSIS REPAIR MANUAL (RM1018E)
DRIVE SHAFT / PROPELLER SHAFT / AXLE
SERVICE DATA
Front axle hub bearing BacklashMaximum: 0.05 mm (0.0020 in.)
Front axle hub sub±assy DeviationMaximum: 0.05 mm (0.0020 in.)
Rear axle hub & bearing assy Backlash
DeviationMaximum: 0.05 mm (0.0020 in.)
Maximum: 0.07 mm (0.0028 in.)

030KC±06
03±40
± SERVICE SPECIFICATIONSDRIVE SHAFT / PROPELLER SHAFT / AXLE
AVENSIS REPAIR MANUAL (RM1018E)

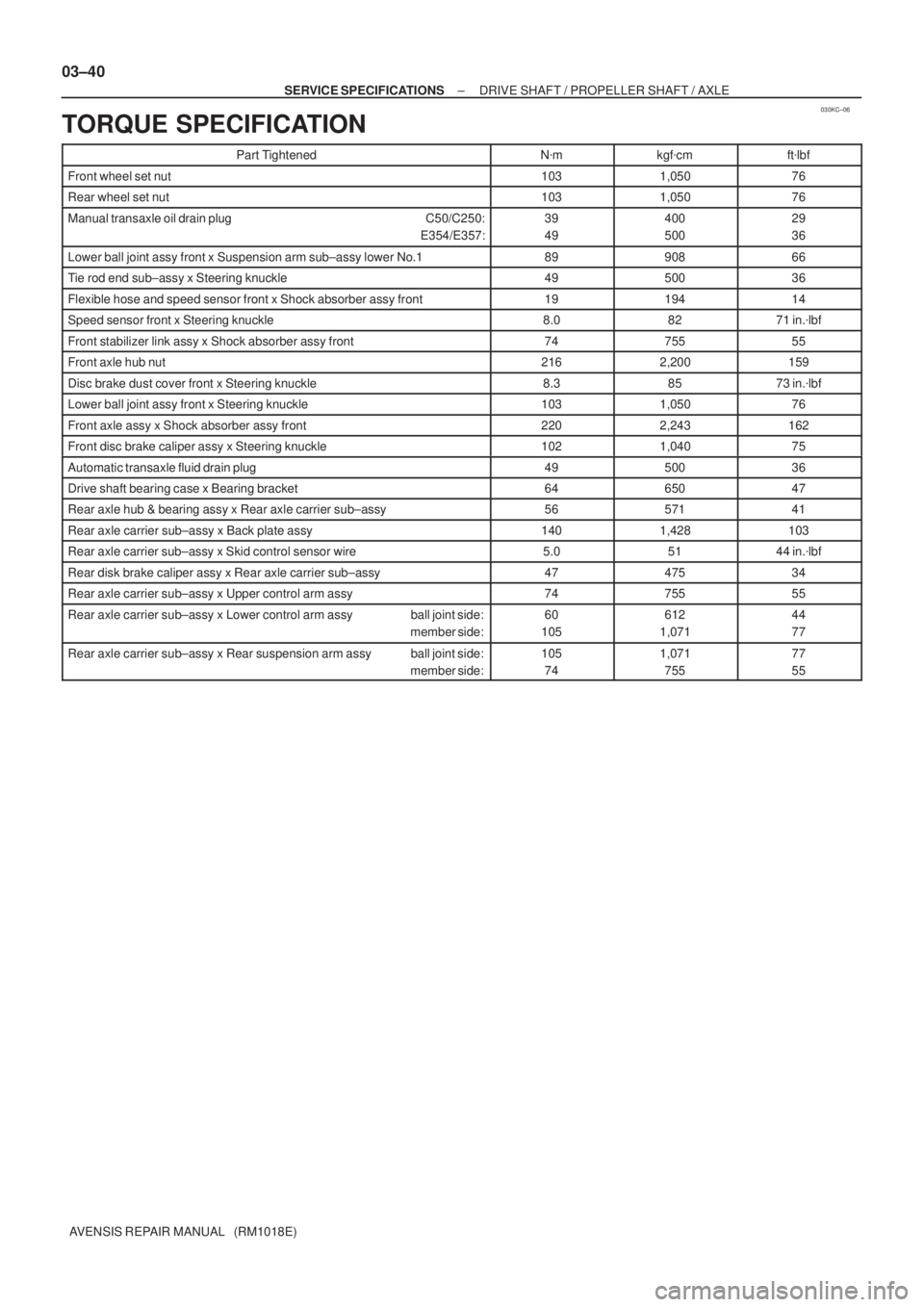

TORQUE SPECIFICATION
Part TightenedN
mkgf
cmft
lbf
Front wheel set nut1031,05076
Rear wheel set nut1031,05076
Manual transaxle oil drain plug C50/C250:
E354/E357:39
49400
50029
36
Lower ball joint assy front x Suspension arm sub±assy lower No.18990866
Tie rod end sub±assy x Steering knuckle4950036
Flexible hose and speed sensor front x Shock absorber assy front1919414
Speed sensor front x Steering knuckle8.08271 in.
lbf
Front stabilizer link assy x Shock absorber assy front7475555
Front axle hub nut2162,200159
Disc brake dust cover front x Steering knuckle8.38573 in.
lbf
Lower ball joint assy front x Steering knuckle1031,05076
Front axle assy x Shock absorber assy front2202,243162
Front disc brake caliper assy x Steering knuckle1021,04075
Automatic transaxle fluid drain plug4950036
Drive shaft bearing case x Bearing bracket6465047
Rear axle hub & bearing assy x Rear axle carrier sub±assy5657141
Rear axle carrier sub±assy x Back plate assy1401,428103
Rear axle carrier sub±assy x Skid control sensor wire5.05144 in.
lbf
Rear disk brake caliper assy x Rear axle carrier sub±assy4747534
Rear axle carrier sub±assy x Upper control arm assy7475555
Rear axle carrier sub±assy x Lower control arm assy ball joint side:
member side:60
105612
1,07144
77
Rear axle carrier sub±assy x Rear suspension arm assy ball joint side:
member side:105
741,071
75577
55

031FP±01
03±10

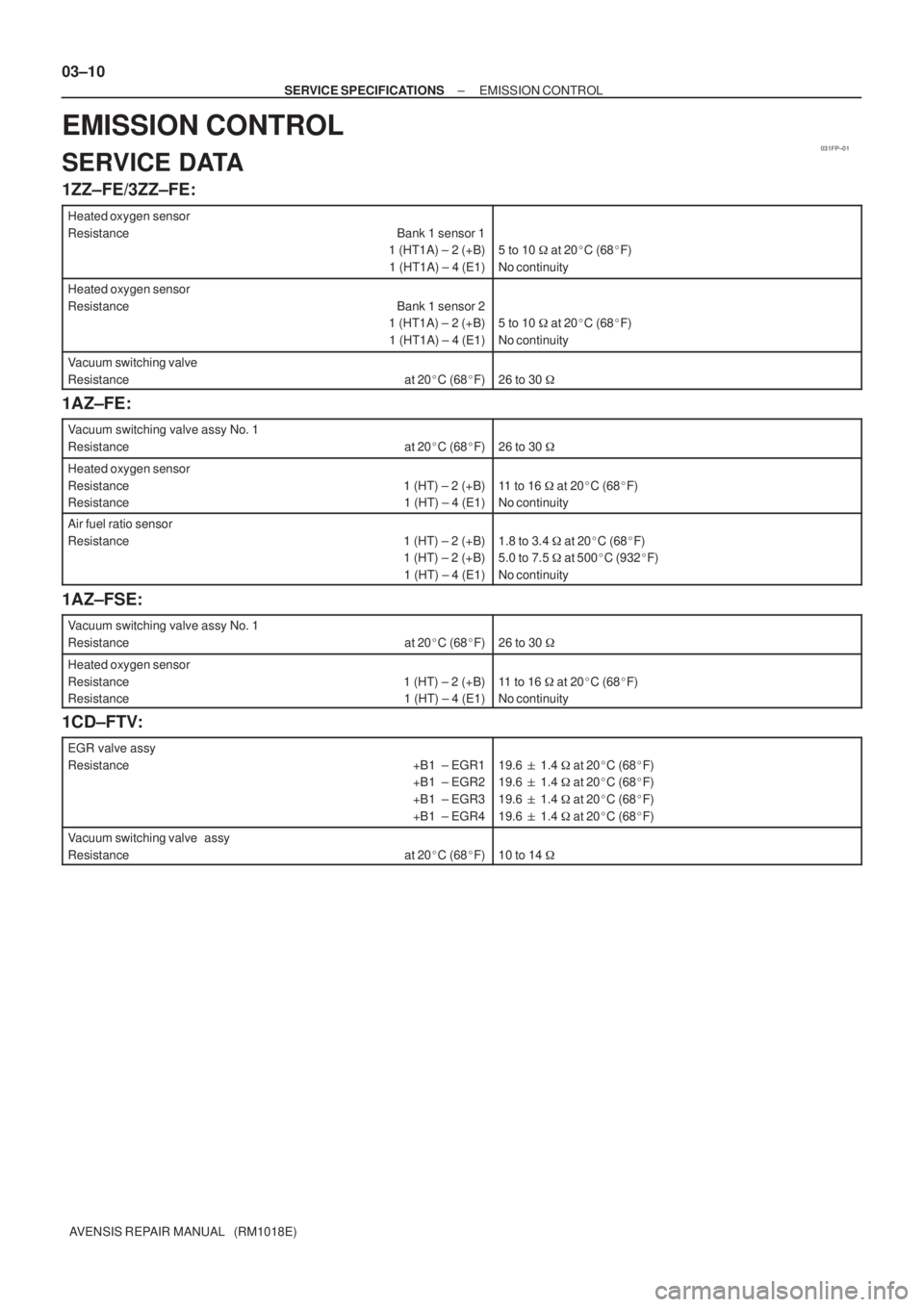

± SERVICE SPECIFICATIONSEMISSION CONTROL
AVENSIS REPAIR MANUAL (RM1018E)
EMISSION CONTROL
SERVICE DATA
1ZZ±FE/3ZZ±FE:
Heated oxygen sensor
Resistance Bank 1 sensor 1
1 (HT1A) ± 2 (+B)
1 (HT1A) ± 4 (E1)
5 to 10 at 20
C (68
F)
No continuity
Heated oxygen sensor
Resistance Bank 1 sensor 2
1 (HT1A) ± 2 (+B)
1 (HT1A) ± 4 (E1)
5 to 10 at 20
C (68
F)
No continuity
Vacuum switching valve
Resistance at 20
C (68
F)
26 to 30
1AZ±FE:
Vacuum switching valve assy No. 1
Resistance at 20
C (68
F)
26 to 30
Heated oxygen sensor
Resistance 1 (HT) ± 2 (+B)
Resistance 1 (HT) ± 4 (E1)
11 to 16  at 20
C (68
F)
No continuity
Air fuel ratio sensor
Resistance 1 (HT) ± 2 (+B)
1 (HT) ± 2 (+B)
1 (HT) ± 4 (E1)
1.8 to 3.4 at 20
C (68
F)
5.0 to 7.5 at 500
C (932
F)
No continuity
1AZ±FSE:
Vacuum switching valve assy No. 1
Resistance at 20
C (68
F)
26 to 30
Heated oxygen sensor
Resistance 1 (HT) ± 2 (+B)
Resistance 1 (HT) ± 4 (E1)
11 to 16  at 20
C (68
F)
No continuity
1CD±FTV:
EGR valve assy
Resistance +B1 ± EGR1
+B1 ± EGR2
+B1 ± EGR3
+B1 ± EGR4
19.6
1.4 at 20
C (68
F)
19.6
1.4 at 20
C (68
F)
19.6
1.4 at 20
C (68
F)
19.6
1.4 at 20
C (68
F)
Vacuum switching valve assy
Resistance at 20
C (68
F)
10 to 14

031DY±01
03±4

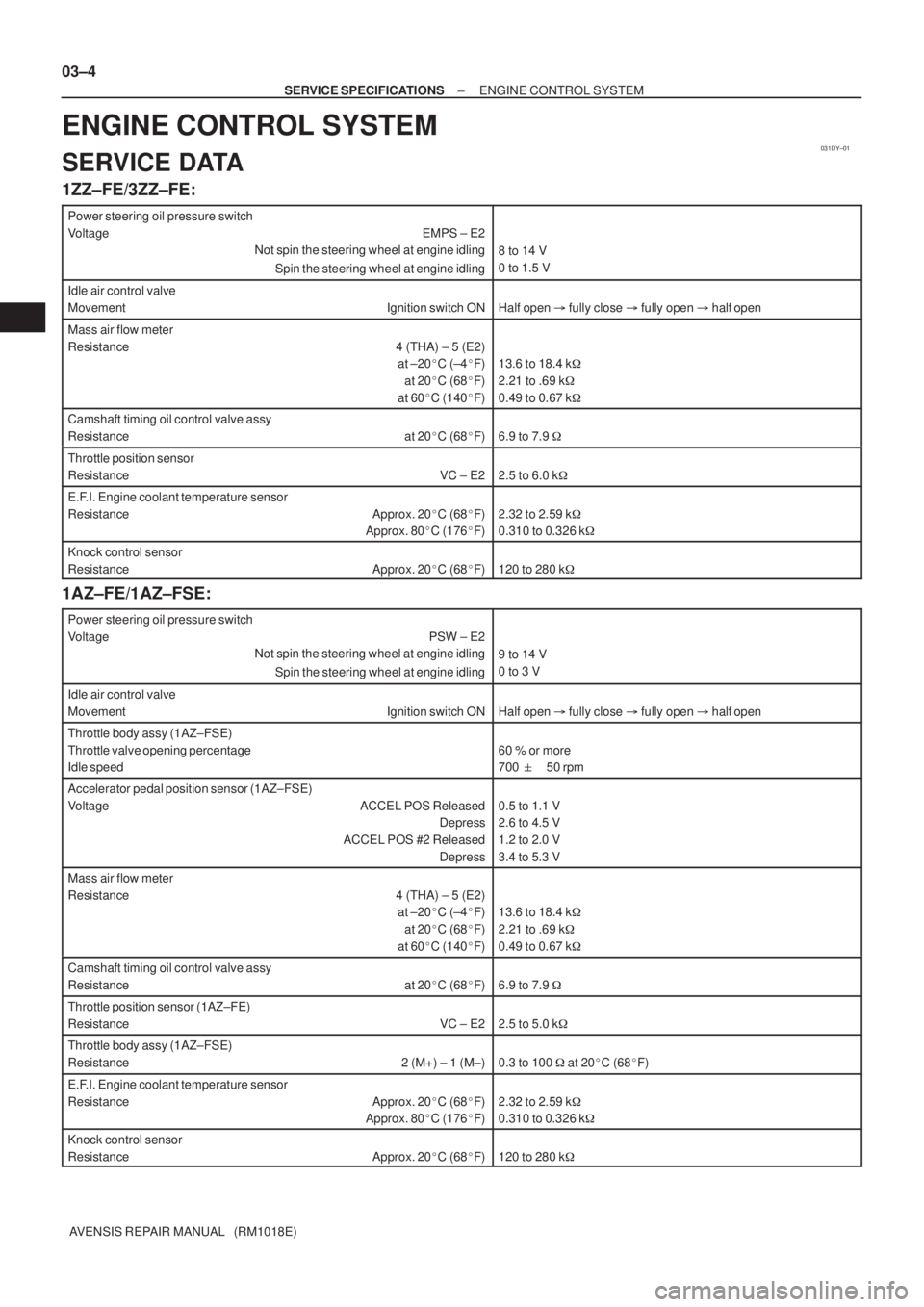

± SERVICE SPECIFICATIONSENGINE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE CONTROL SYSTEM
SERVICE DATA
1ZZ±FE/3ZZ±FE:
Power steering oil pressure switch
Voltage EMPS ± E2
Not spin the steering wheel at engine idling
Spin the steering wheel at engine idling
8 to 14 V
0 to 1.5 V
Idle air control valve
Movement Ignition switch ON
Half open fully close  fully open half open
Mass air flow meter
Resistance 4 (THA) ± 5 (E2)
at ±20
C (±4
F)
at 20
C (68
F)
at 60
C (140
F)
13.6 to 18.4 k

2.21 to .69 k

0.49 to 0.67 k

Camshaft timing oil control valve assy
Resistance at 20
C (68
F)
6.9 to 7.9

Throttle position sensor
Resistance VC ± E2
2.5 to 6.0 k

E.F.I. Engine coolant temperature sensor
Resistance Approx. 20
C (68
F)
Approx. 80
C (176
F)
2.32 to 2.59 k

0.310 to 0.326 k

Knock control sensor
Resistance Approx. 20
C (68
F)
120 to 280 k

1AZ±FE/1AZ±FSE:
Power steering oil pressure switch
Voltage PSW ± E2
Not spin the steering wheel at engine idling
Spin the steering wheel at engine idling
9 to 14 V
0 to 3 V
Idle air control valve
Movement Ignition switch ON
Half open fully close  fully open half open
Throttle body assy (1AZ±FSE)
Throttle valve opening percentage
Idle speed
60 % or more
700 50 rpm
Accelerator pedal position sensor (1AZ±FSE)
Voltage ACCEL POS Released
Depress
ACCEL POS #2 Released
Depress
0.5 to 1.1 V
2.6 to 4.5 V
1.2 to 2.0 V
3.4 to 5.3 V
Mass air flow meter
Resistance 4 (THA) ± 5 (E2)
at ±20
C (±4
F)
at 20
C (68
F)
at 60
C (140
F)
13.6 to 18.4 k

2.21 to .69 k

0.49 to 0.67 k

Camshaft timing oil control valve assy
Resistance at 20
C (68
F)
6.9 to 7.9

Throttle position sensor (1AZ±FE)
Resistance VC ± E2
2.5 to 5.0 k

Throttle body assy (1AZ±FSE)
Resistance 2 (M+) ± 1 (M±)
0.3 to 100
at 20
C (68
F)
E.F.I. Engine coolant temperature sensor
Resistance Approx. 20
C (68
F)
Approx. 80
C (176
F)
2.32 to 2.59 k

0.310 to 0.326 k

Knock control sensor
Resistance Approx. 20
C (68
F)
120 to 280 k

±
SERVICE SPECIFICATIONS ENGINE CONTROL SYSTEM
03±5
AVENSIS REPAIR MANUAL (RM1018E)
1CD±FTV:
Mass air flow meter
Resistance2 (THA) ± 1 (E2)
at ±20
C (±4
F)
at 20
C (68
F)
at 60
C (140
F)
12.5 to 16.9 k
2.19 to 2.67 k
0.50 to 0.68 k
Intake shutter assy
Resistanceat 20
C (68
F)
2 ± 1, 3
5 ± 4, 6
18 to 22
18 to 22
Accelerator pedal assy (See page 10±56)
Resistance VPA1 ± EP1
VPA2 ± EP2
VCP1 ± EP1
VCP2 ± EP2
5.0 k or less
5.0 k or less
1.5 to 6.0 k
1.5 to 6.0 k
Diesel turbo inlet air temperature sensor
Resistance Approx. 20
C (68
F)
2.21 to 2.65 k
Crankshaft position sensor
Resistance at cold
at hot
1630 to 2740
2065 to 3225
Camshaft position sensor
Resistance at cold
at hot
1630 to 2740
2065 to 3225
Diesel engine engine coolant temperature sensor
Resistance Approx. 20
C (68
F)
Approx. 80
C (176
F)
2.32 to 2.59 k
0.310 to 0.326 k
Injection or supply pump assy
Resistance THF ± E2
Approx. 20
C (68
F)
Approx. 80
C (176
F)
2.21 to 2.69 k
0.287 to 0.349 k

031DZ±02
03±6
± SERVICE SPECIFICATIONSENGINE CONTROL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)
TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedN
mkgf
cmft
lbf
Throttle position sensor x Throttle body assy2.02018 in.
lbf
ISC valve x Throttle body assy3.73833 in.
lbf
Accelerator control cable bracket x Throttle body assy1313310
Throttle body assy x Intake manifold3030622
Throttle body bracket x Cylinder block sub±assy (1ZZ±FE)3030622
Manifold stay No. 2 x Throttle body assy (M/T)1313310
Accelerator control cable assy x Accelerator control cable bracket131299
Air cleaner hose No. 1 x Throttle body assy1.51513 in.
lbf
Cylinder head cover No. 2 x Cylinder head cover sub±assy7.07162 in.
lbf
Knock sensor x Cylinder block sub±assy2020415
1AZ±FE:
Part TightenedN
mkgf
cmft
lbf
Throttle body assy x Intake manifold3030622
Accelerator control cable assy x Throttle body assy131299
Engine cover sub±assy No. 1 x Cylinder head cover sub±assy7.07162 in.
lbf
Knock sensor x Cylinder block sub±assy2020415
Intake manifold x Cylinder head sub±assy3030622
Variable resister x Body (Leaded gasoline (Steering position LHD))5.05144 in.
lbf
1AZ±FSE:
Part TightenedN
mkgf
cmft
lbf
Throttle body assy x Intake manifold9.09280 in.
lbf
Throttle body bracket x Throttle body assy2121015
Throttle body bracket x Cylinder head sub±assy2121015
Ground terminal x Throttle body bracket8.48674 in.
lbf
Wire harness protector x Throttle body bracket8.48674 in.
lbf
Air cleaner hose No. 1 x Throttle body assy1.51513 in.
lbf
Engine cover sub±assy No. 1 x Cylinder head cover sub±assy7.07162 in.
lbf
Accelerator pedal x Body5.45548 in.
lbf
Knock control sensor x Cylinder block2020415
Engine cover bracket x Cylinder head3838828
1CD±FTV:
Part TightenedN
mkgf
cmft
lbf
Intake shutter assy x Intake air connector2121415
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Air tube No. 2 x Transmission2525518
Air tube No. 1 x Air tube No. 22525518
Camshaft position sensor x Camshaft oil seal retainer8.89079 in.
lbf
Return tube sub±assy x Engine hanger No. 19.09280 in.
lbf
Crankshaft position sensor x Oil pump assy8.89079 in.
lbf
ECM x Body5.55649 in.
lbf

031GG±01
± SERVICE SPECIFICATIONSENGINE HOOD/DOOR
03±73
AVENSIS REPAIR MANUAL (RM1018E)

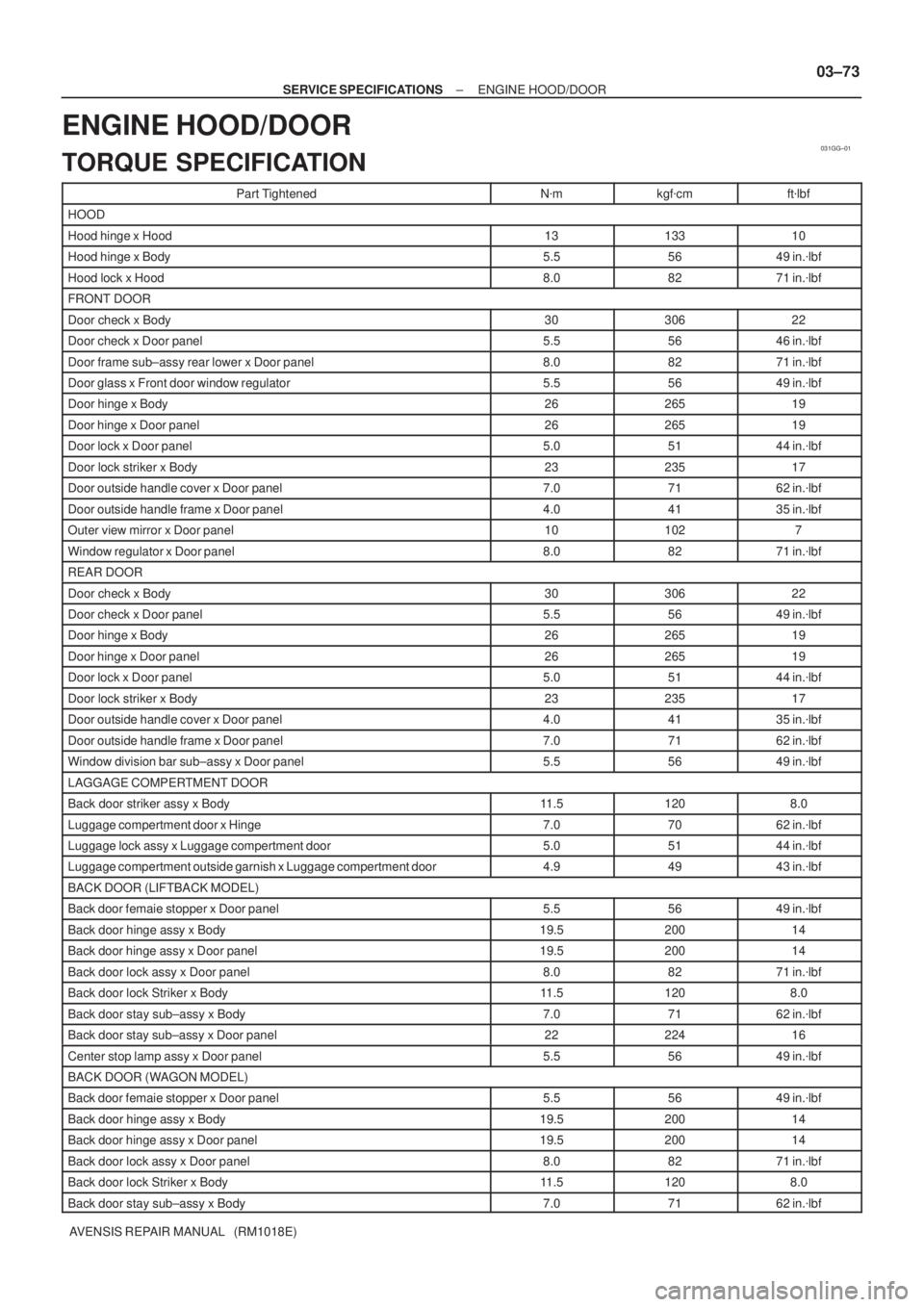

ENGINE HOOD/DOOR
TORQUE SPECIFICATION
Part TightenedNmkgfcmftlbf
HOOD
Hood hinge x Hood1313310
Hood hinge x Body5.55649 in.lbf
Hood lock x Hood8.08271 in.lbf
FRONT DOOR
Door check x Body3030622
Door check x Door panel5.55646 in.lbf
Door frame sub±assy rear lower x Door panel8.08271 in.lbf
Door glass x Front door window regulator5.55649 in.lbf
Door hinge x Body2626519
Door hinge x Door panel2626519
Door lock x Door panel5.05144 in.lbf
Door lock striker x Body2323517
Door outside handle cover x Door panel7.07162 in.lbf
Door outside handle frame x Door panel4.04135 in.lbf
Outer view mirror x Door panel101027
Window regulator x Door panel8.08271 in.lbf
REAR DOOR
Door check x Body3030622
Door check x Door panel5.55649 in.lbf
Door hinge x Body2626519
Door hinge x Door panel2626519
Door lock x Door panel5.05144 in.lbf
Door lock striker x Body2323517
Door outside handle cover x Door panel4.04135 in.lbf
Door outside handle frame x Door panel7.07162 in.lbf
Window division bar sub±assy x Door panel5.55649 in.lbf
LAGGAGE COMPERTMENT DOOR
Back door striker assy x Body11.51208.0
Luggage compertment door x Hinge7.07062 in.lbf
Luggage lock assy x Luggage compertment door5.05144 in.lbf
Luggage compertment outside garnish x Luggage compertment door4.94943 in.lbf
BACK DOOR (LIFTBACK MODEL)
Back door femaie stopper x Door panel5.55649 in.lbf
Back door hinge assy x Body19.520014
Back door hinge assy x Door panel19.520014
Back door lock assy x Door panel8.08271 in.lbf
Back door lock Striker x Body11.51208.0
Back door stay sub±assy x Body7.07162 in.lbf
Back door stay sub±assy x Door panel2222416
Center stop lamp assy x Door panel5.55649 in.lbf
BACK DOOR (WAGON MODEL)
Back door femaie stopper x Door panel5.55649 in.lbf
Back door hinge assy x Body19.520014
Back door hinge assy x Door panel19.520014
Back door lock assy x Door panel8.08271 in.lbf
Back door lock Striker x Body11.51208.0
Back door stay sub±assy x Body7.07162 in.lbf
