670SE±01
I35216: Clamps
67±22
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
AMPLIFIER ANTENNA ASSY(LIFTBACK MODELS)
REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See page 76±45)
2.REMOVE AMPLIFIER ANTENNA ASSY
(a)Disconnect the connectors.
(b)Remove the bolt.
(c)Remove the 3 clamps and the amplifier antenna assy.
3.INSTALL AMPLIFIER ANTENNA ASSY
(a)Install the bolt. Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(b)Install the 3 clamps and the amplifier antenna assy.
(c)Disconnect the connectors.
4.INSTALL ROOF HEADLINING ASSY (See page 76±45)
Page 2 of 1690
670SC±03
67±16
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

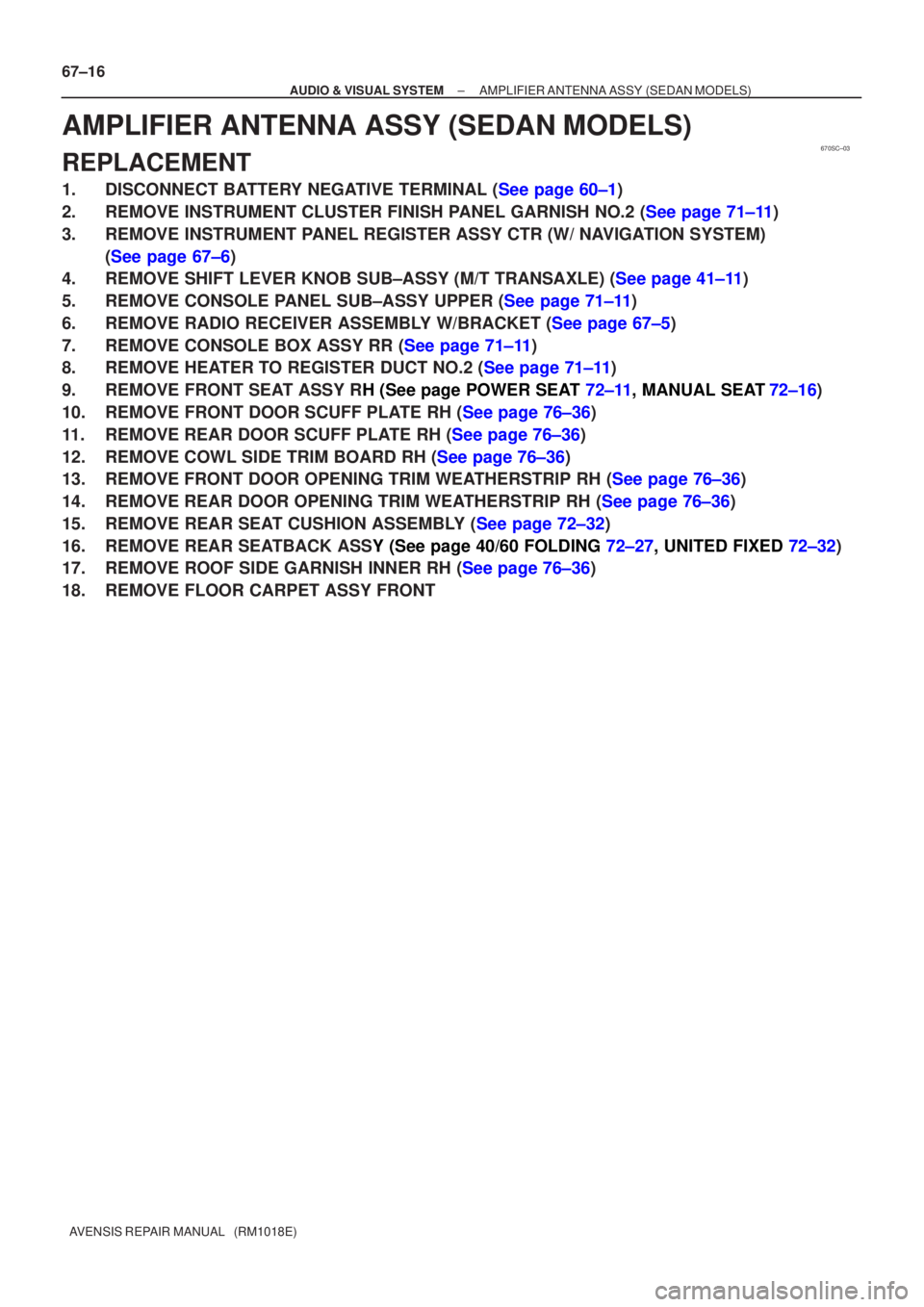

AMPLIFIER ANTENNA ASSY (SEDAN MODELS)
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOV E FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15 . REMOVE REAR SE AT CUSHION ASSEMB LY ( See page 72±32 )
16 . REMOVE REAR SE ATBACK ASSY ( See page 40/60 FOLDING 72±27 , UNITED FIXED 72±32 )
17 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±36)
18. REMOVE FLOOR CARPET ASSY FRONT
Page 3 of 1690
I35246Clamps
w/ Navigation:
w/ Navigation:
± AUDIO & VISUAL SYSTEMAMPLIFIER ANTENNA ASSY (SEDAN MODELS)
67±17
AVENSIS REPAIR MANUAL (RM1018E)

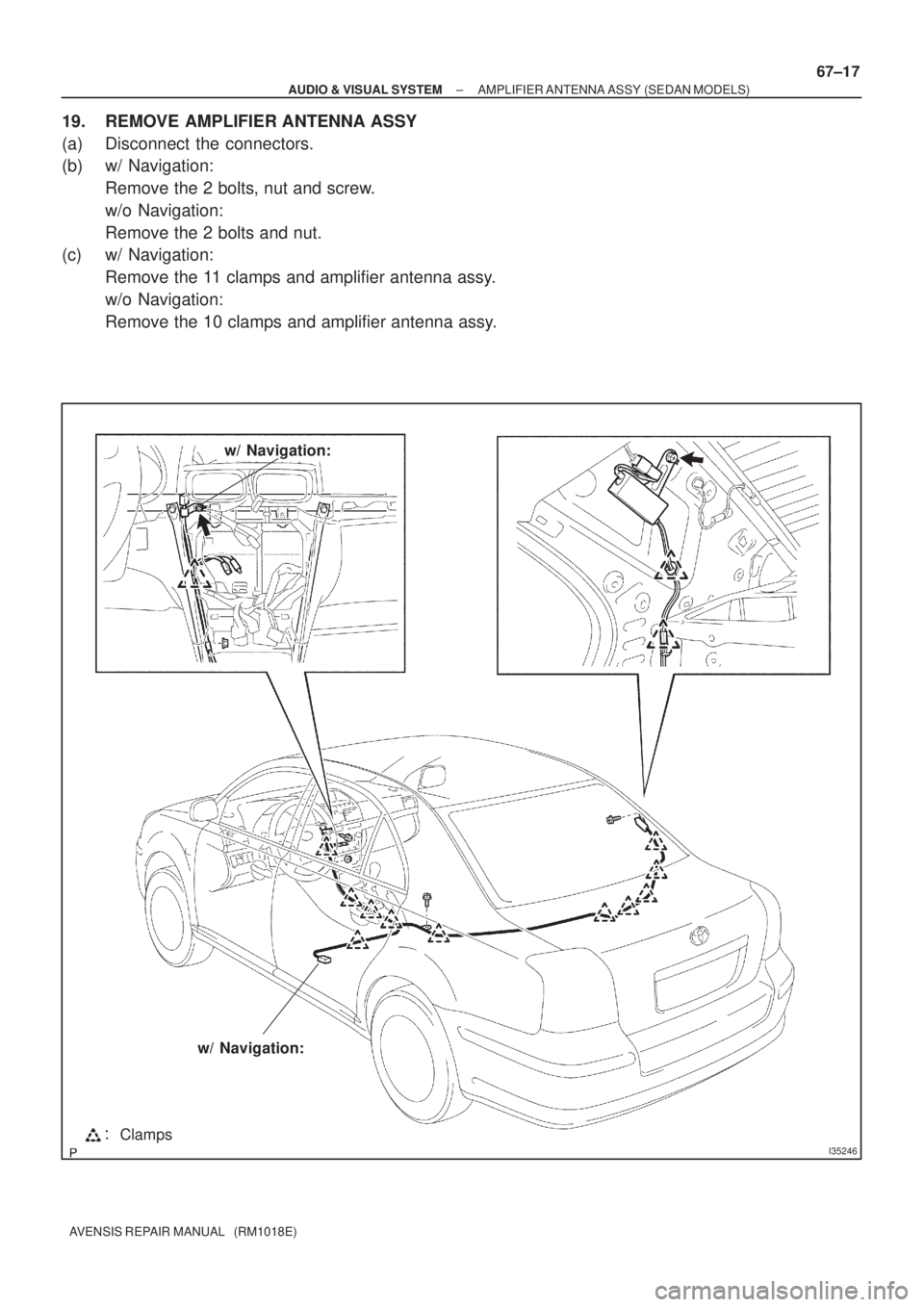

19. REMOVE AMPLIFIER ANTENNA ASSY
(a) Disconnect the connectors.
(b) w/ Navigation:
Remove the 2 bolts, nut and screw.
w/o Navigation:
Remove the 2 bolts and nut.
(c) w/ Navigation:
Remove the 11 clamps and amplifier antenna assy.
w/o Navigation:
Remove the 10 clamps and amplifier antenna assy.
Page 4 of 1690
67±18
±
AUDI O & VISUAL SYSTE MAMPLIFIER ANTENNA ASS Y(SEDAN MODELS)
A VENSIS RE PAIR MANUAL (RM1018E)

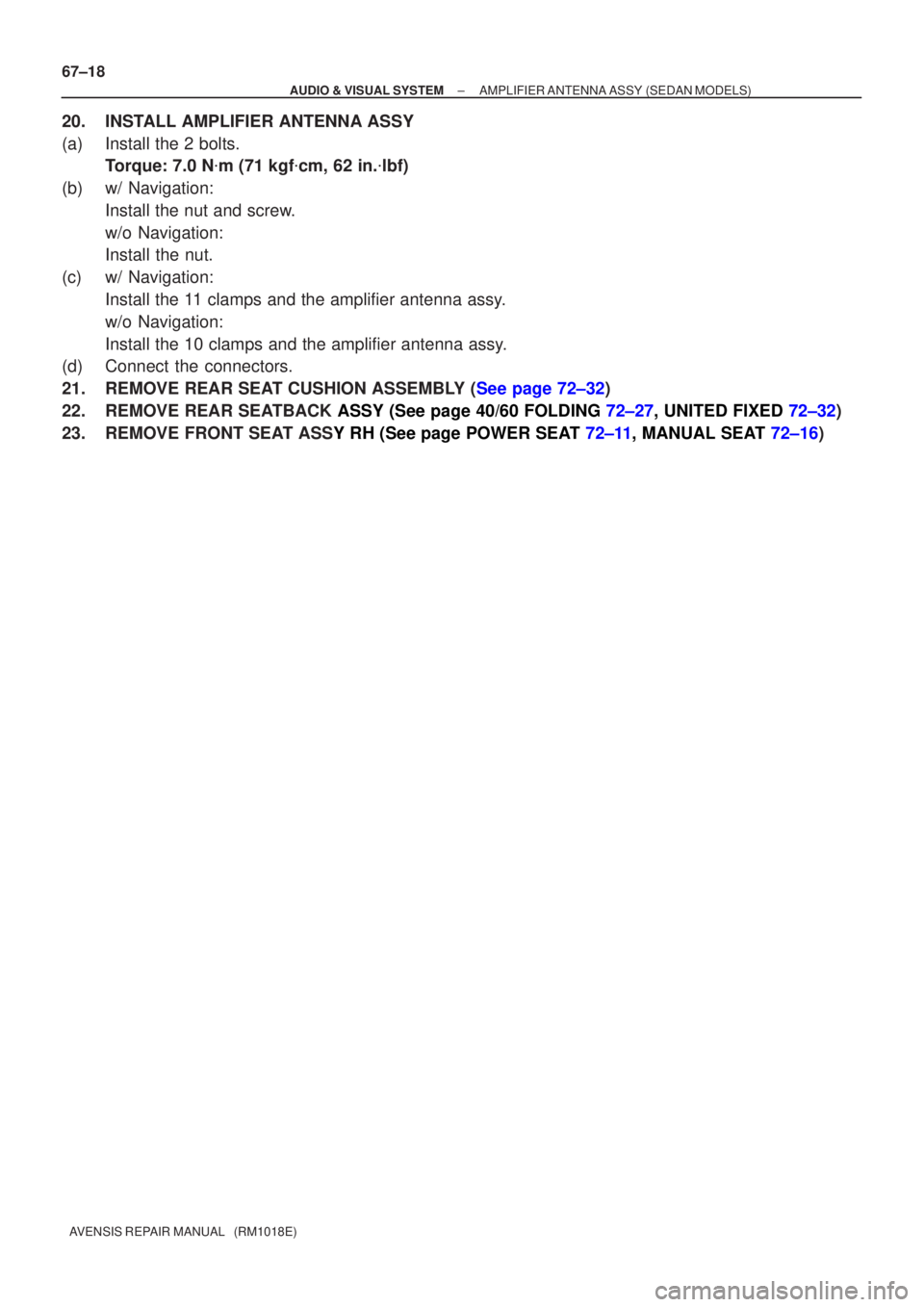

20 . INS TALL AMPLIFIER ANTENNA ASSY
(a ) Install the 2 bolts.
T orque: 7.0 N m (71 kgf cm, 62 in. lbf)
(b ) w/ Navigation:
Install the nut and scre w.
w/o Navigation:
Install the nut.
(c ) w/ Navigation:
Install the 11 clamps and the amplifier antenna ass y.
w/o Navigation:
Install the 10 clamps and the amplifier antenna ass y.
(d ) Connect the connectors.
21 . REMOVE REAR SE AT CUSHION ASSEMB LY ( See page 72±32 )
22 . REMOVE REAR SE ATBACK ASSY ( See page 40/60 FOLDING 72±27 , UNITED FIXED 72±32 )
23 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
Page 5 of 1690
670SD±02
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±19
AVENSIS REPAIR MANUAL (RM1018E)

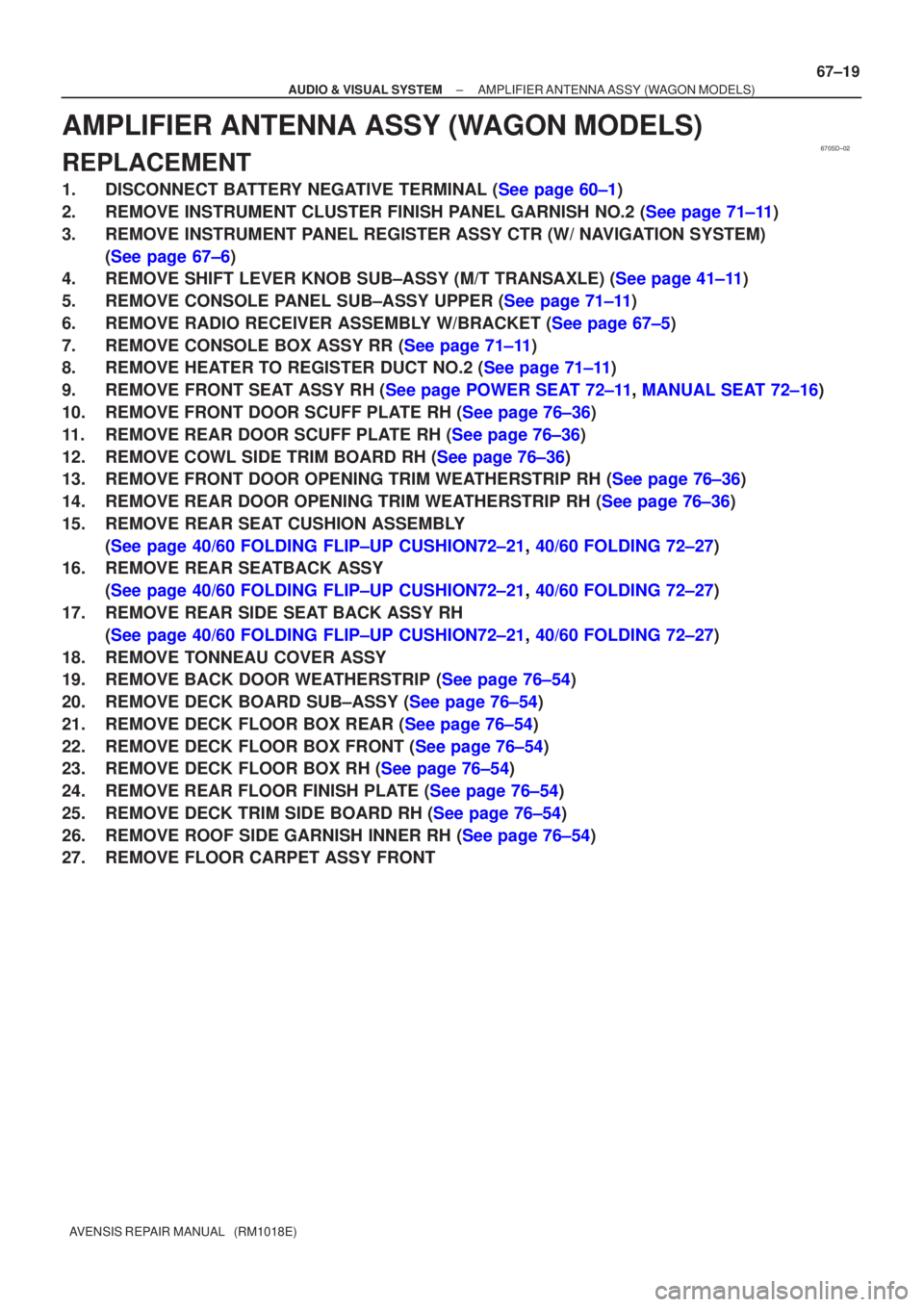

AMPLIFIER ANTENNA ASSY (WAGON MODELS)
REPLACEMENT
1. DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
10 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
12 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
13 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
15. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
17. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
18. REMOVE TONNEAU COVER ASSY
19 . REMOVE BACK DOOR WE ATHERSTRIP ( See page 76±54 )
20 . REMOVE DECK BOARD SUB±ASSY ( See page 76±54)
21 . REMOVE DECK FLOOR BOX REAR ( See page 76±54)
22 . REMOVE DECK FLOOR BOX FRONT ( See page 76±54)
23 . REMOVE DECK FLOOR BOX RH ( See page 76±54)
24 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±54 )
25 . REMOVE DECK TRIM SIDE BOARD RH ( See page 76±54)
26 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±54)
27. REMOVE FLOOR CARPET ASSY FRONT
Page 6 of 1690
I35215Clamps
w/ Navigation:
67±20
± AUDIO & VISUAL SYSTEMAMPLIFIER ANTENNA ASSY (WAGON MODELS)
AVENSIS REPAIR MANUAL (RM1018E)

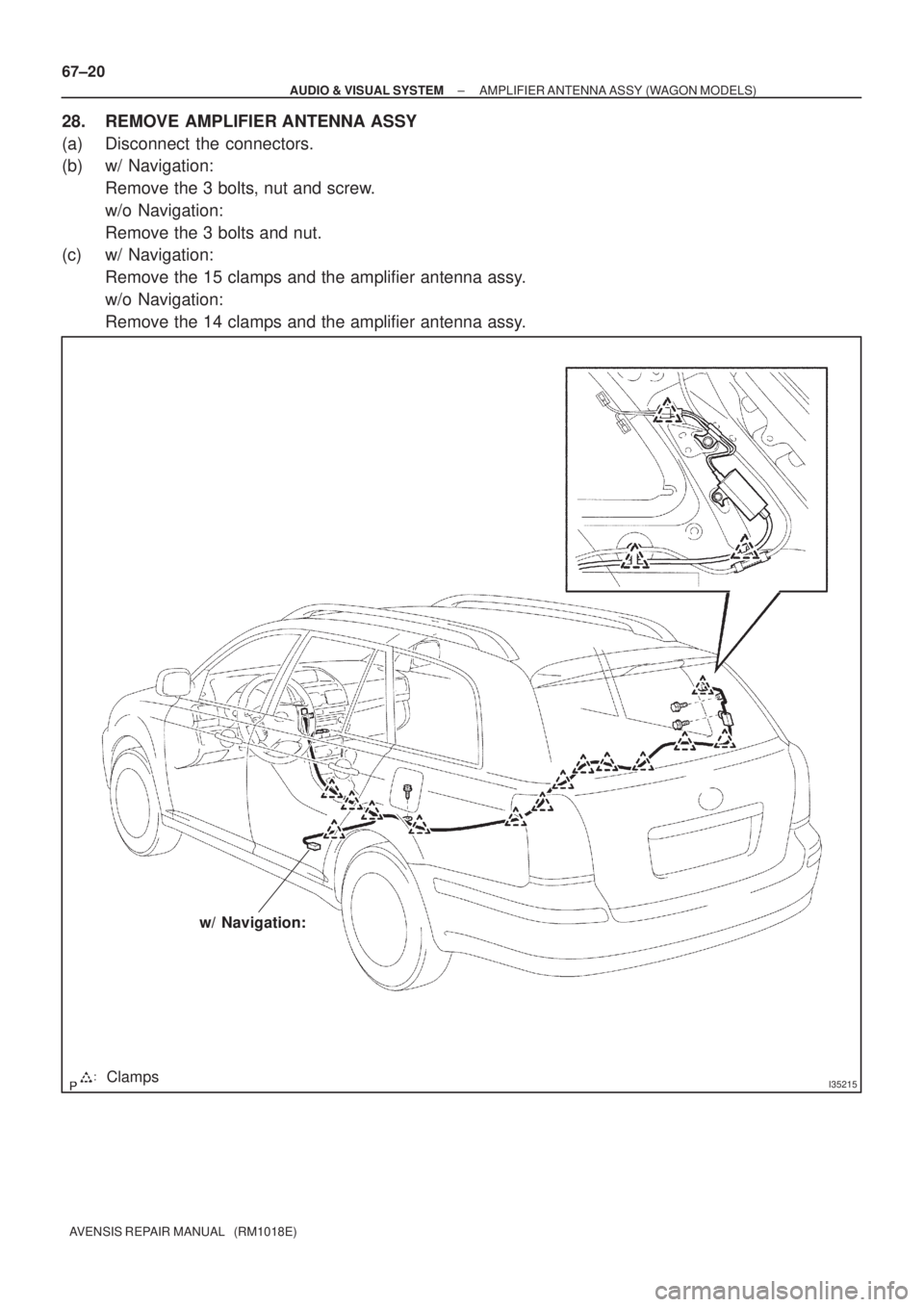

28. REMOVE AMPLIFIER ANTENNA ASSY
(a) Disconnect the connectors.
(b) w/ Navigation:
Remove the 3 bolts, nut and screw.
w/o Navigation:
Remove the 3 bolts and nut.
(c) w/ Navigation:
Remove the 15 clamps and the amplifier antenna assy.
w/o Navigation:
Remove the 14 clamps and the amplifier antenna assy.

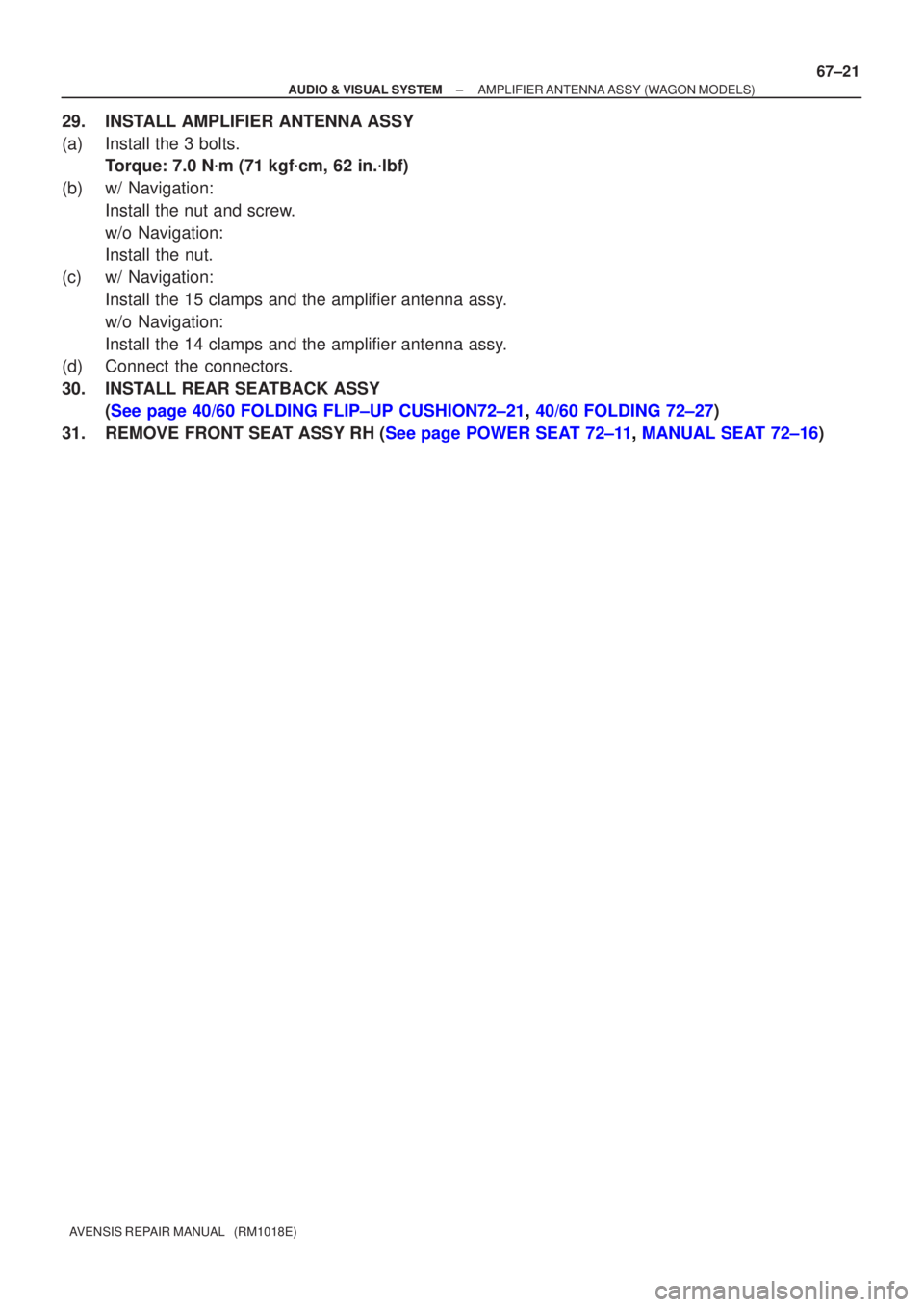

Page 7 of 1690
±
AUDIO & VISUAL SYSTEM AMPLIFIER ANTENNA ASSY (WAGON MODELS)
67±21
AVENSIS REPAIR MANUAL (RM1018E)
29. INSTALL AMPLIFIER ANTENNA ASSY
(a) Install the 3 bolts.
Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(b) w/ Navigation: Install the nut and screw.
w/o Navigation:
Install the nut.
(c) w/ Navigation: Install the 15 clamps and the amplifier antenna assy.
w/o Navigation:
Install the 14 clamps and the amplifier antenna assy.
(d) Connect the connectors.
30. INSTALL REAR SEATBACK ASSY
(See page 40/60 FOLDING FLIP±UP CUSHION72±21 , 40/60 FOLDING 72±27 )
31 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
Page 8 of 1690
670SF±01
I35218: Clamp
I36708
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY
67±23
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY
REPLACEMENT
1.REMOVE ROOF HEADLINING ASSY (See page 76±45)
2.REMOVE BACK DOOR TRIM PANEL ASSY UPPER (See page 75±40)
3.REMOVE ANTENNA CORD SUB±ASSY
(a)Disconnect the connectors.
(b)Remove the bolt.
(c)Remove the clamp and draw out the antenna cord sub±assy from the inte\
rior and the back door.
4.INSTALL ANTENNA CORD SUB±ASSY
(a)Press the 4 points of the grommet shown in the illustra-tion, and install the antenna cord sub±assy.
(b)Install the bolt. Torque: 7.0 N m (71 kgf cm, 62 in. lbf)
(c)Connect the connectors.
5.INSTALL ROOF HEADLINING ASSY (See page 76±45)

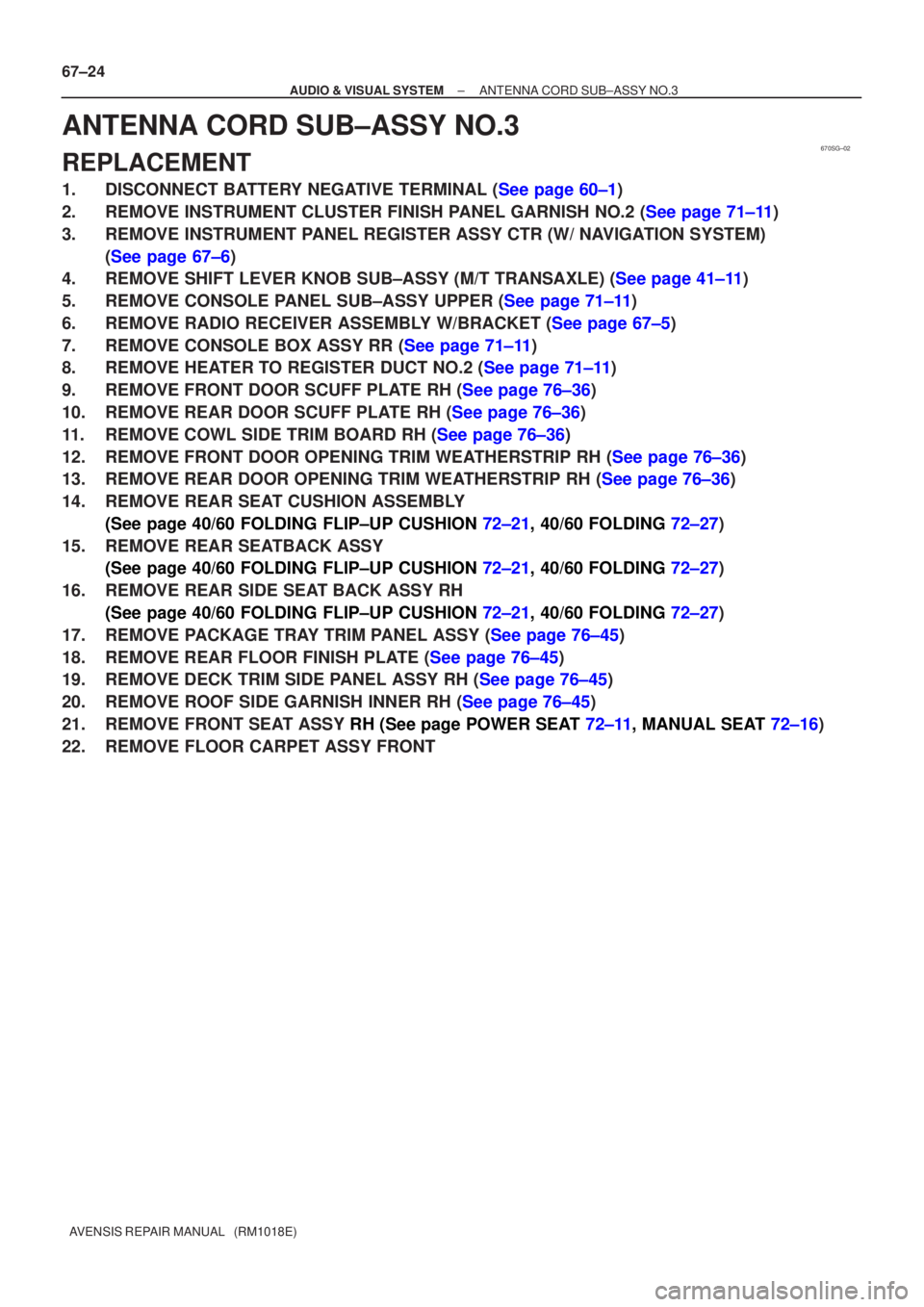

Page 9 of 1690
670SG±02
67±24
±
AUDIO & VISUAL SYSTEM ANTENNA CORD SUB±ASSY NO.3
AVENSIS REPAIR MANUAL (RM1018E)
ANTENNA CORD SUB±ASSY NO.3
REPLACEMENT
1 . DISCONNEC T B ATTE RY NEG ATIVE TERMINAL ( See page 60±1)
2 . REMOVE INSTRUMENT CLUSTER FINISH P ANEL GARNISH NO.2 ( See page 71±11 )
3. REMOVE INSTRUMENT PANEL REGISTER ASSY CTR (W/ NAVIGATION SYSTEM) (See page 67±6 )
4 . REMOVE SHIFT LEVER KNOB SUB±ASSY (M/T TRANSAXLE) ( See page 41±11 )
5 . REMOVE CONSOLE PANEL SUB±ASSY UPPER ( See page 71±11 )
6 . REMOVE RADIO RECEIVER ASSEMB LY W/BRACKET ( See page 67±5)
7 . REMOVE CONSOLE BOX ASSY RR ( See page 71±11 )
8 . REMOVE HE ATER T O REGISTER DUCT NO.2 ( See page 71±11 )
9 . REMOVE FRONT DOOR SCUFF PL ATE RH ( See page 76±36 )
10 . REMOVE REAR DOOR SCUFF PL ATE RH ( See page 76±36 )
1 1 . REMOVE COWL SIDE TRIM BOARD RH ( See page 76±36)
12 . REMOVE FRONT DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
13 . REMOVE REAR DOOR OPENING TRIM WE ATHERSTRIP RH ( See page 76±36 )
14. REMOVE REAR SEAT CUSHION ASSEMBLY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
15. REMOVE REAR SEATBACK ASSY (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
16. REMOVE REAR SIDE SEAT BACK ASSY RH (See page 40/60 FOLDING FLIP±UP CUSHION 72±21 , 40/60 FOLDING 72±27 )
17 . REMOVE P ACKAGE TR AY TRIM P ANEL ASSY ( See page 76±45 )
18 . REMOVE REAR FLOOR FINISH PL ATE ( See page 76±45 )
19 . REMOVE DECK TRIM SIDE P ANEL ASSY RH ( See page 76±45)
20 . REMOVE ROOF SIDE GARNISH INNER RH ( See page 76±45)
21 . REMOVE FRONT SE AT ASSY RH ( See page POWER SE AT 72± 11 , MANUAL SE AT 72±16 )
22. REMOVE FLOOR CARPET ASSY FRONT
Page 10 of 1690
I35217Clamps
w/ Navigation:
w/ Navigation:
± AUDIO & VISUAL SYSTEMANTENNA CORD SUB±ASSY NO.3
67±25
AVENSIS REPAIR MANUAL (RM1018E)

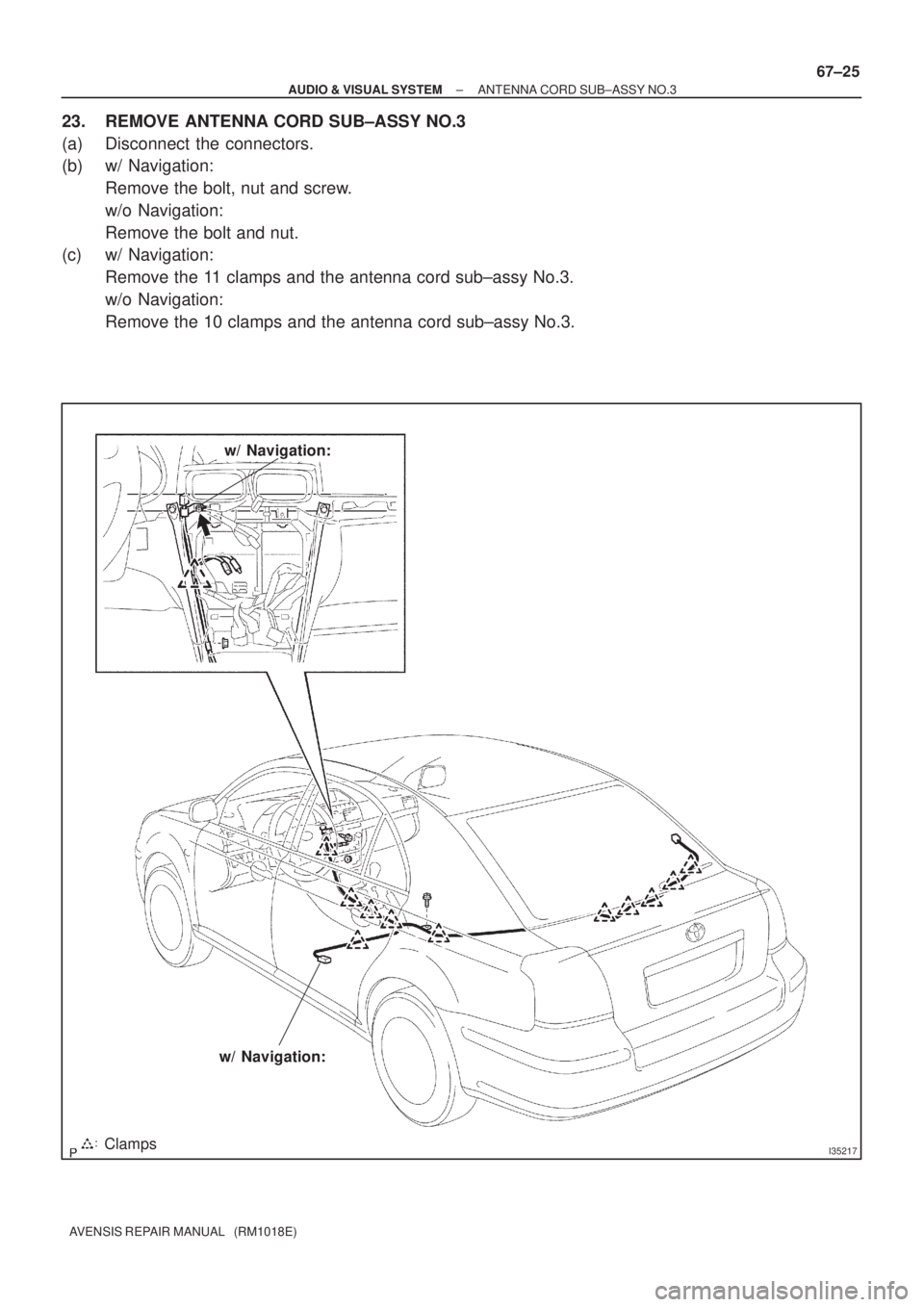

23. REMOVE ANTENNA CORD SUB±ASSY NO.3
(a) Disconnect the connectors.
(b) w/ Navigation:
Remove the bolt, nut and screw.
w/o Navigation:
Remove the bolt and nut.
(c) w/ Navigation:
Remove the 11 clamps and the antenna cord sub±assy No.3.
w/o Navigation:
Remove the 10 clamps and the antenna cord sub±assy No.3.
