Page 1521 of 1690
H40008
Wire Harness
Diameter
Stripped Wire Harness Section
H42664
Inner Diam.
WidthTire
60±58
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)

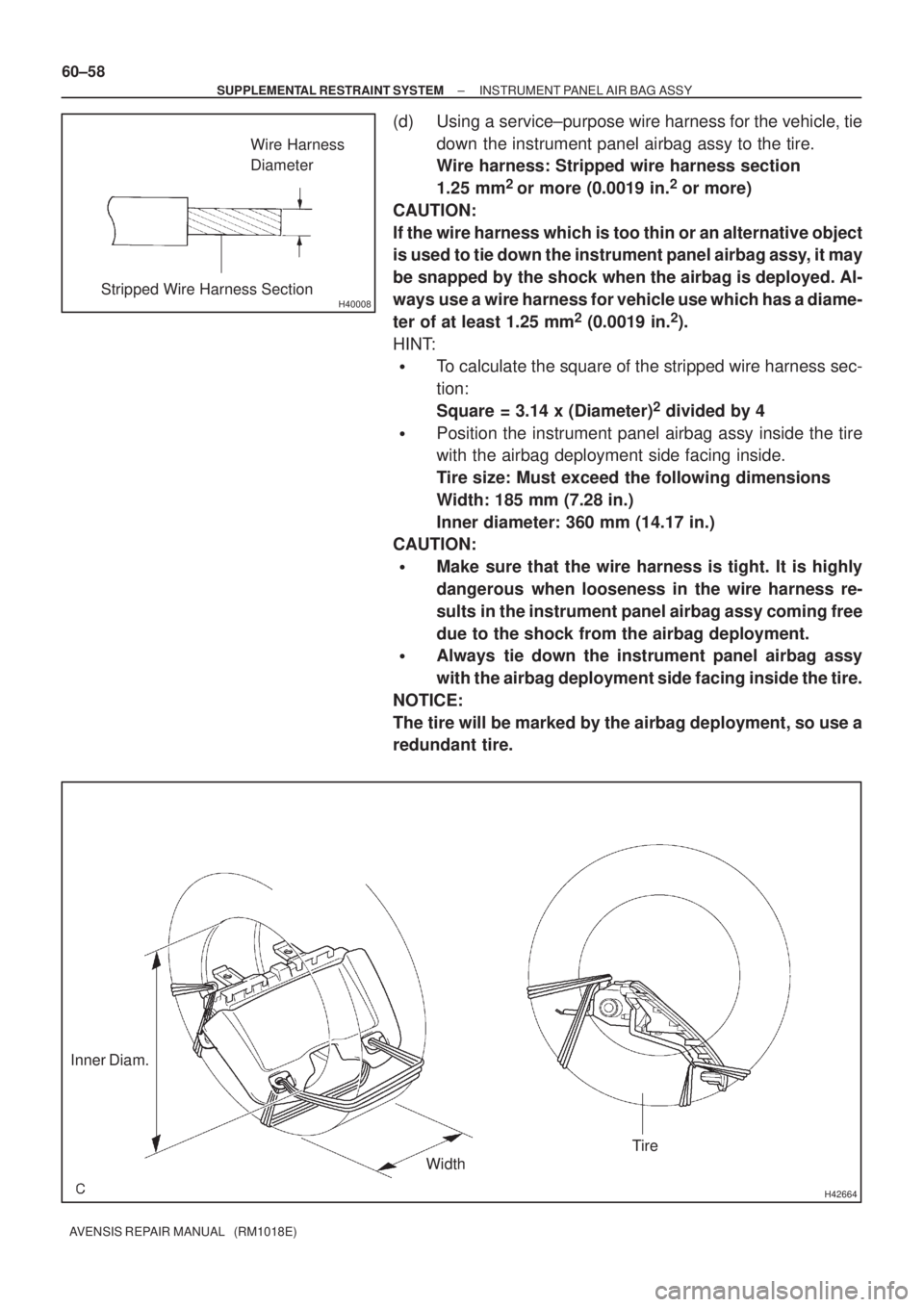

(d) Using a service±purpose wire harness for the vehicle, tie
down the instrument panel airbag assy to the tire.
Wire harness: Stripped wire harness section
1.25 mm
2
or more (0.0019 in.2 or more)
CAUTION:
If the wire harness which is too thin or an alternative object
is used to tie down the instrument panel airbag assy, it may
be snapped by the shock when the airbag is deployed. Al-
ways use a wire harness for vehicle use which has a diame-
ter of at least 1.25 mm
2 (0.0019 in.2).
HINT:
To calculate the square of the stripped wire harness sec-
tion:
Square = 3.14 x (Diameter)
2 divided by 4
Position the instrument panel airbag assy inside the tire
with the airbag deployment side facing inside.
Tire size: Must exceed the following dimensions
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION:
Make sure that the wire harness is tight. It is highly
dangerous when looseness in the wire harness re-
sults in the instrument panel airbag assy coming free
due to the shock from the airbag deployment.
Always tie down the instrument panel airbag assy
with the airbag deployment side facing inside the tire.
NOTICE:
The tire will be marked by the airbag deployment, so use a
redundant tire.
Page 1522 of 1690
H43258
SST(s)
H42668
Tires
(5 or more)
SST(s)
H42763
SST(s)
H4266910 m (33 ft) or more SST(s)Battery Instrument Panel
Airbag Assy
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL AIR BAG ASSY
60±59
AVENSIS REPAIR MANUAL (RM1018E)

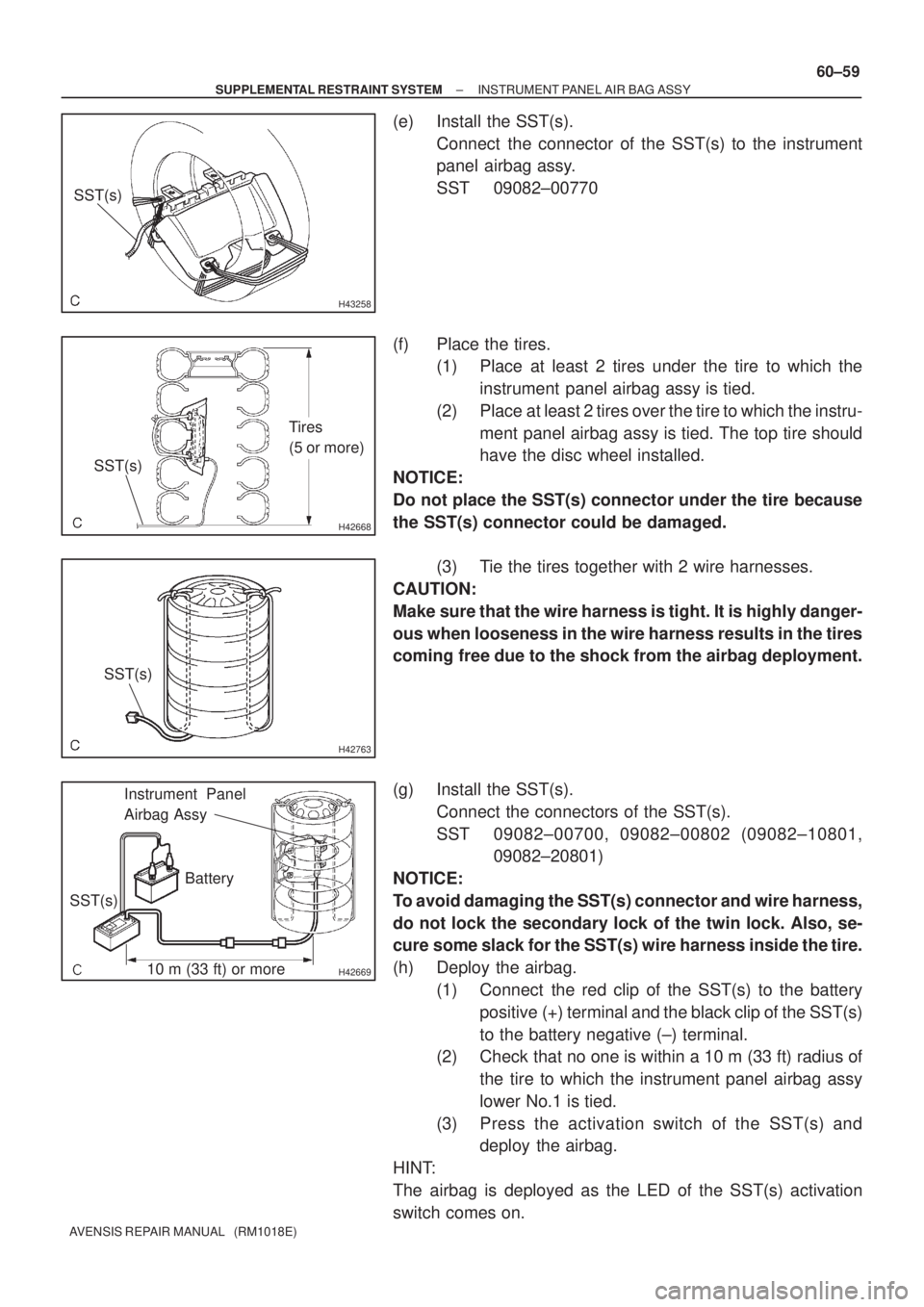

(e) Install the SST(s).
Connect the connector of the SST(s) to the instrument
panel airbag assy.
SST 09082±00770
(f) Place the tires.
(1) Place at least 2 tires under the tire to which the
instrument panel airbag assy is tied.
(2) Place at least 2 tires over the tire to which the instru-
ment panel airbag assy is tied. The top tire should
have the disc wheel installed.
NOTICE:
Do not place the SST(s) connector under the tire because
the SST(s) connector could be damaged.
(3) Tie the tires together with 2 wire harnesses.
CAUTION:
Make sure that the wire harness is tight. It is highly danger-
ous when looseness in the wire harness results in the tires
coming free due to the shock from the airbag deployment.
(g) Install the SST(s).
Connect the connectors of the SST(s).
SST 09082±00700, 09082±00802 (09082±10801,
09082±20801)
NOTICE:
To avoid damaging the SST(s) connector and wire harness,
do not lock the secondary lock of the twin lock. Also, se-
cure some slack for the SST(s) wire harness inside the tire.
(h) Deploy the airbag.
(1) Connect the red clip of the SST(s) to the battery
positive (+) terminal and the black clip of the SST(s)
to the battery negative (±) terminal.
(2) Check that no one is within a 10 m (33 ft) radius of
the tire to which the instrument panel airbag assy
lower No.1 is tied.
(3) Press the activation switch of the SST(s) and
deploy the airbag.
HINT:
The airbag is deployed as the LED of the SST(s) activation
switch comes on.
Page 1523 of 1690
H42670
60±60
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)

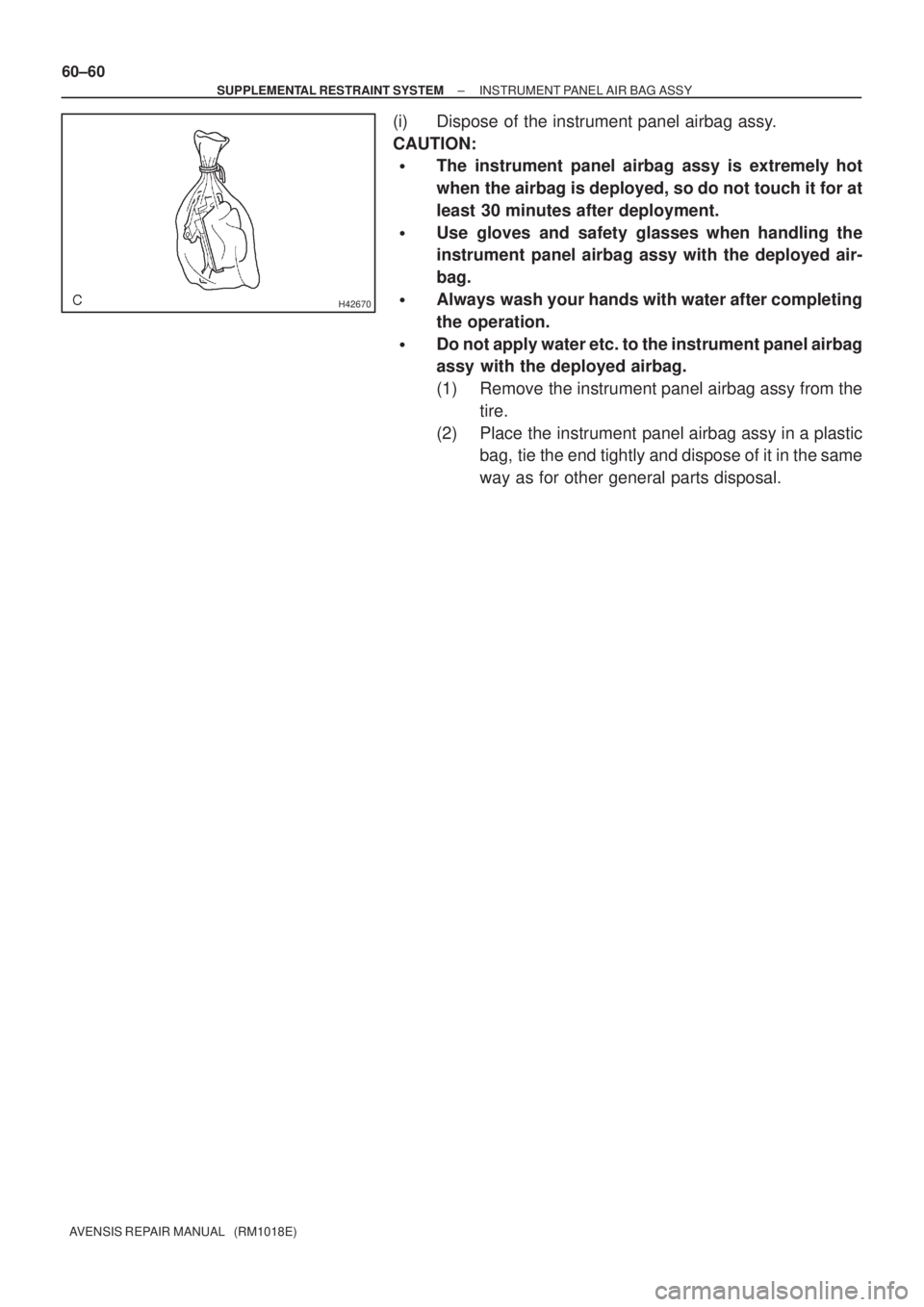

(i) Dispose of the instrument panel airbag assy.
CAUTION:
The instrument panel airbag assy is extremely hot
when the airbag is deployed, so do not touch it for at
least 30 minutes after deployment.
Use gloves and safety glasses when handling the
instrument panel airbag assy with the deployed air-
bag.
Always wash your hands with water after completing
the operation.
Do not apply water etc. to the instrument panel airbag
assy with the deployed airbag.
(1) Remove the instrument panel airbag assy from the
tire.
(2) Place the instrument panel airbag assy in a plastic
bag, tie the end tightly and dispose of it in the same
way as for other general parts disposal.
Page 1524 of 1690
600JX±01
H42775
Instrument Panel Passenger Airbag Assy
Instrument Panel Sub±Assy Upper
Glove Compartment Door Assy
20 (200, 14)
Nm (kgfcm, ftlbf): Specified torque 60±28
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)
INSTRUMENT PANEL PASSENGER AIR BAG ASSY
COMPONENTS
Page 1525 of 1690
600JY±01
H42642
H42643
H42644
Hook
Airbag DoorHook
Front
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±29
AVENSIS REPAIR MANUAL (RM1018E)

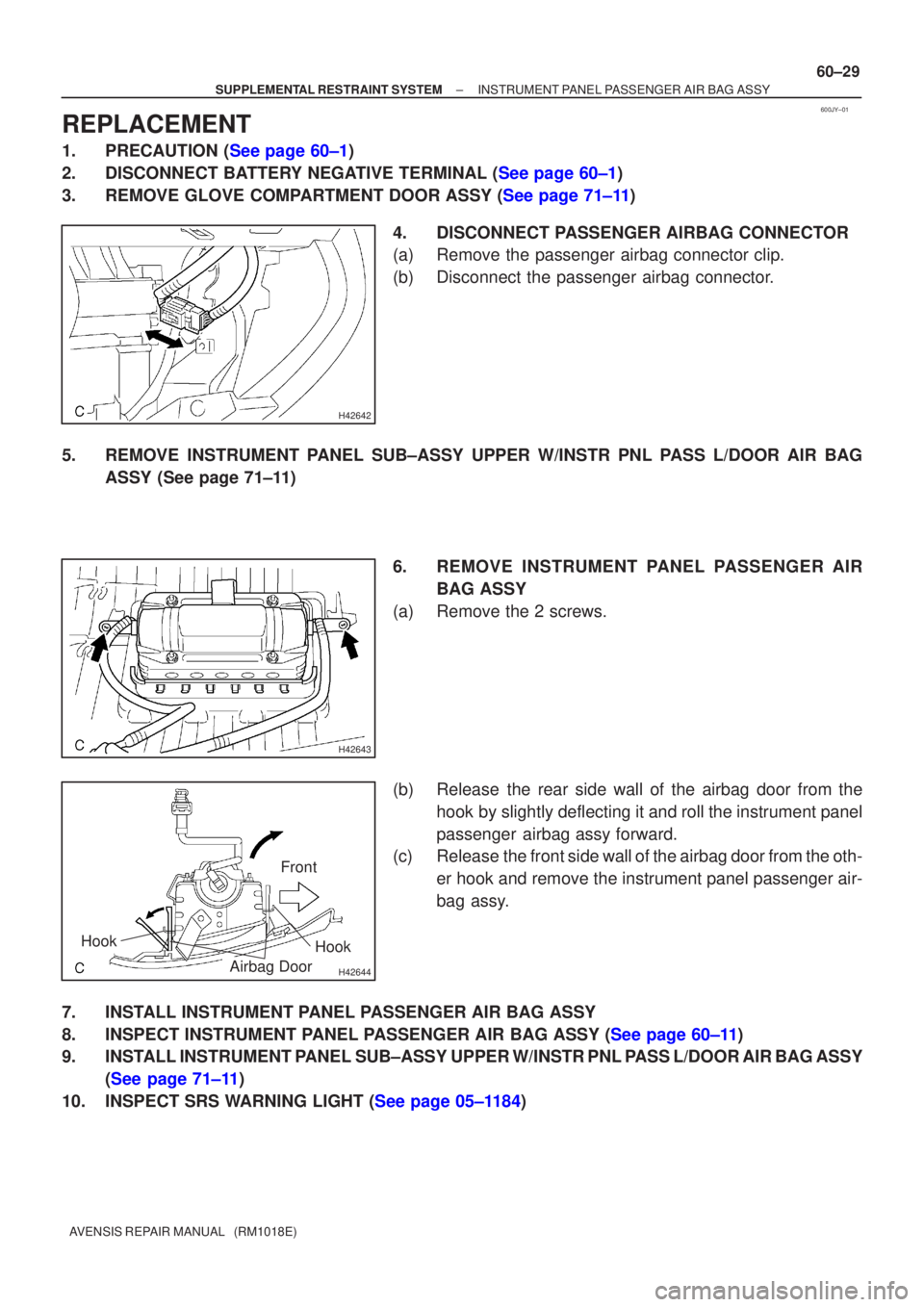

REPLACEMENT
1.PRECAUTION (See page 60±1)
2.DISCONNECT BATTERY NEGATIVE TERMINAL (See page 60±1)
3.REMOVE GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
4. DISCONNECT PASSENGER AIRBAG CONNECTOR
(a) Remove the passenger airbag connector clip.
(b) Disconnect the passenger airbag connector.
5. REMOVE INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY (See page 71±11)
6. REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSY
(a) Remove the 2 screws.
(b) Release the rear side wall of the airbag door from the hook by slightly deflecting it and roll the instrument panel
passenger airbag assy forward.
(c) Release the front side wall of the airbag door from the oth-
er hook and remove the instrument panel passenger air-
bag assy.
7. INSTALL INSTRUMENT PANEL PASSENGER AIR BAG ASSY
8.INSPECT INSTRUMENT PANEL PASSENGER AIR BAG ASSY (See page 60±11)
9. INSTALL INSTRUMENT PANEL SUB±ASSY UPPER W/INSTR PNL PASS L/DOOR AIR BAG ASSY (See page 71±11)
10.INSPECT SRS WARNING LIGHT (See page 05±1184)
Page 1526 of 1690
600JZ±01
H40004
SST(s)
H40005
Battery
SST(s)
60±30
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)

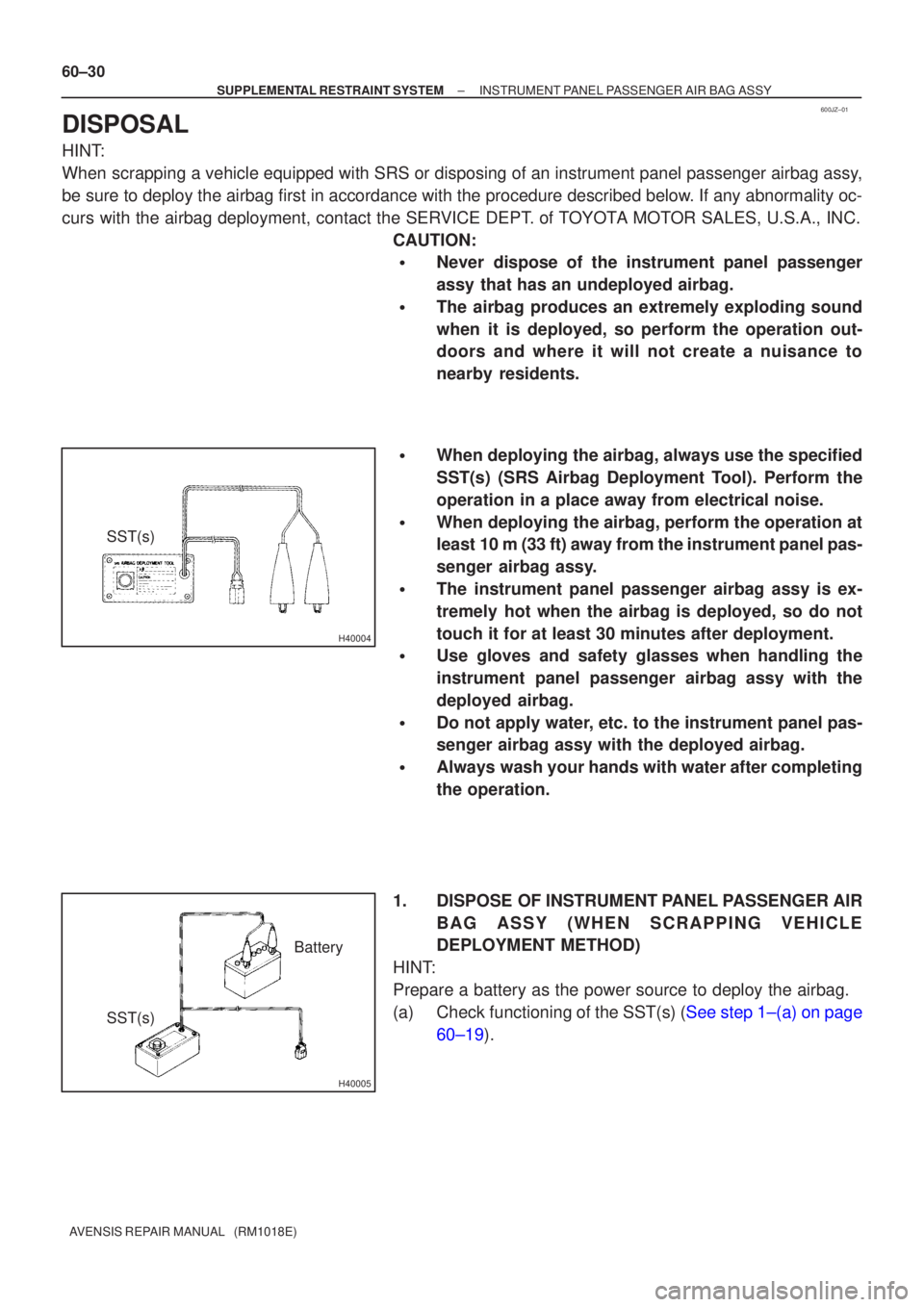

DISPOSAL
HINT:
When scrapping a vehicle equipped with SRS or disposing of an instrument pan\
el passenger airbag assy,
be sure to deploy the airbag first in accordance with the procedure desc\
ribed below. If any abnormality oc-
curs with the airbag deployment, contact the SERVICE DEPT. of TOYOTA MOTOR SALES, U.S.A., INC. CAUTION:
Never dispose of the instrument panel passenger
assy that has an undeployed airbag.
The airbag produces an extremely exploding sound
when it is deployed, so perform the operation out-
doors and where it will not create a nuisance to
nearby residents.
When deploying the airbag, always use the specified
SST(s) (SRS Airbag Deployment Tool). Perform the
operation in a place away from electrical noise.
When deploying the airbag, perform the operation at
least 10 m (33 ft) away from the instrument panel pas-
senger airbag assy.
The instrument panel passenger airbag assy is ex-
tremely hot when the airbag is deployed, so do not
touch it for at least 30 minutes after deployment.
Use gloves and safety glasses when handling the
instrument panel passenger airbag assy with the
deployed airbag.
Do not apply water, etc. to the instrument panel pas-
senger airbag assy with the deployed airbag.
Always wash your hands with water after completing
the operation.
1. DISPOSE OF INSTRUMENT PANEL PASSENGER AIR BAG ASSY (WHEN SCRAPPING VEHICLE
DEPLOYMENT METHOD)
HINT:
Prepare a battery as the power source to deploy the airbag.
(a)Check functioning of the SST(s) (See step 1±(a) on page 60±19).
Page 1527 of 1690
H42642
H42645
SST(s)
H40007
10 m (33 ft) or more
Battery
SST(s)
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±31
AVENSIS REPAIR MANUAL (RM1018E)

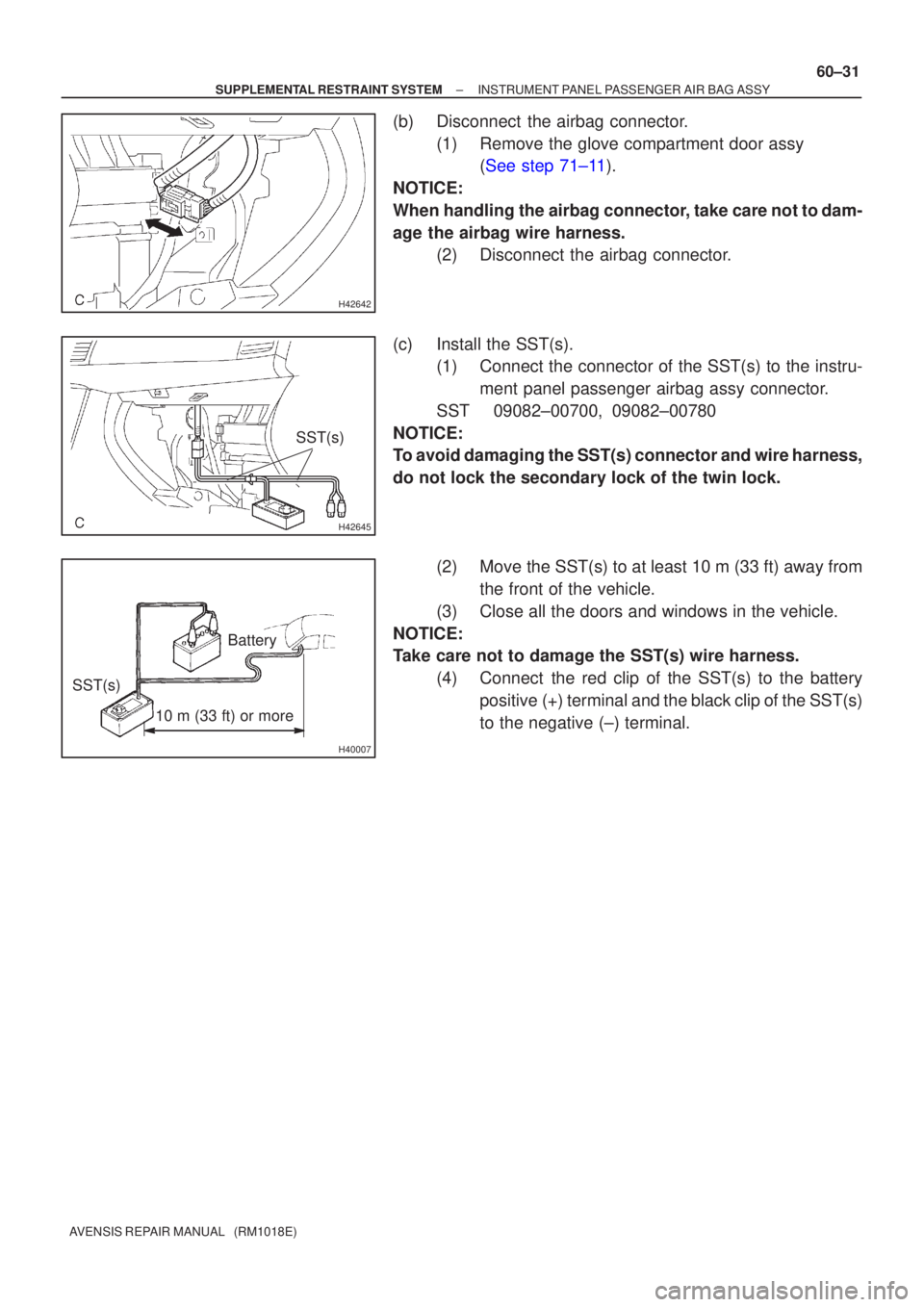

(b) Disconnect the airbag connector.
(1) Remove the glove compartment door assy (See step 71±11).
NOTICE:
When handling the airbag connector, take care not to dam-
age the airbag wire harness. (2) Disconnect the airbag connector.
(c) Install the SST(s). (1) Connect the connector of the SST(s) to the instru-
ment panel passenger airbag assy connector.
SST 09082±00700, 09082±00780
NOTICE:
To avoid damaging the SST(s) connector and wire harness,
do not lock the secondary lock of the twin lock.
(2) Move the SST(s) to at least 10 m (33 ft) away fromthe front of the vehicle.
(3) Close all the doors and windows in the vehicle.
NOTICE:
Take care not to damage the SST(s) wire harness. (4) Connect the red clip of the SST(s) to the batterypositive (+) terminal and the black clip of the SST(s)
to the negative (±) terminal.
Page 1528 of 1690
H40005
Battery
SST(s)
60±32
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)

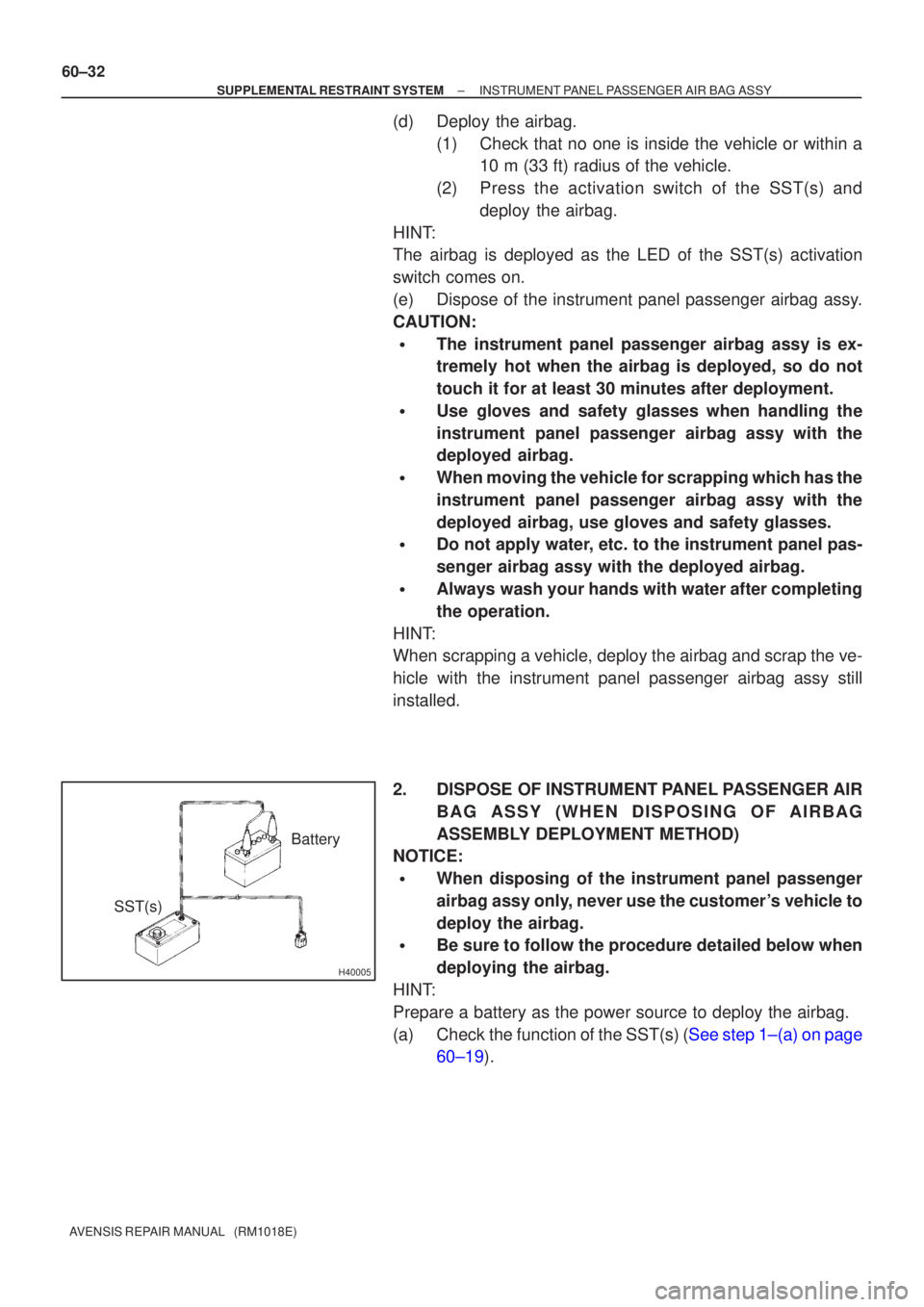

(d) Deploy the airbag. (1) Check that no one is inside the vehicle or within a10 m (33 ft) radius of the vehicle.
(2) Press the activation switch of the SST(s) and deploy the airbag.
HINT:
The airbag is deployed as the LED of the SST(s) activation
switch comes on.
(e) Dispose of the instrument panel passenger airbag assy.
CAUTION:
The instrument panel passenger airbag assy is ex-
tremely hot when the airbag is deployed, so do not
touch it for at least 30 minutes after deployment.
Use gloves and safety glasses when handling the
instrument panel passenger airbag assy with the
deployed airbag.
When moving the vehicle for scrapping which has the
instrument panel passenger airbag assy with the
deployed airbag, use gloves and safety glasses.
Do not apply water, etc. to the instrument panel pas-
senger airbag assy with the deployed airbag.
Always wash your hands with water after completing
the operation.
HINT:
When scrapping a vehicle, deploy the airbag and scrap the ve-
hicle with the instrument panel passenger airbag assy still
installed.
2. DISPOSE OF INSTRUMENT PANEL PASSENGER AIR BAG ASSY (WHEN DISPOSING OF AIRBAG
ASSEMBLY DEPLOYMENT METHOD)
NOTICE:
When disposing of the instrument panel passenger
airbag assy only, never use the customer's vehicle to
deploy the airbag.
Be sure to follow the procedure detailed below when
deploying the airbag.
HINT:
Prepare a battery as the power source to deploy the airbag.
(a)Check the function of the SST(s) (See step 1±(a) on page 60±19).
Page 1529 of 1690
H42620
H40008
Wire Harness
Diameter
Stripped Wire Harness Section
±
SUPPLEMENTAL RESTRAINT SYSTEM INSTRUMENT PANEL PASSENGER AIR BAG ASSY
60±33
AVENSIS REPAIR MANUAL (RM1018E)

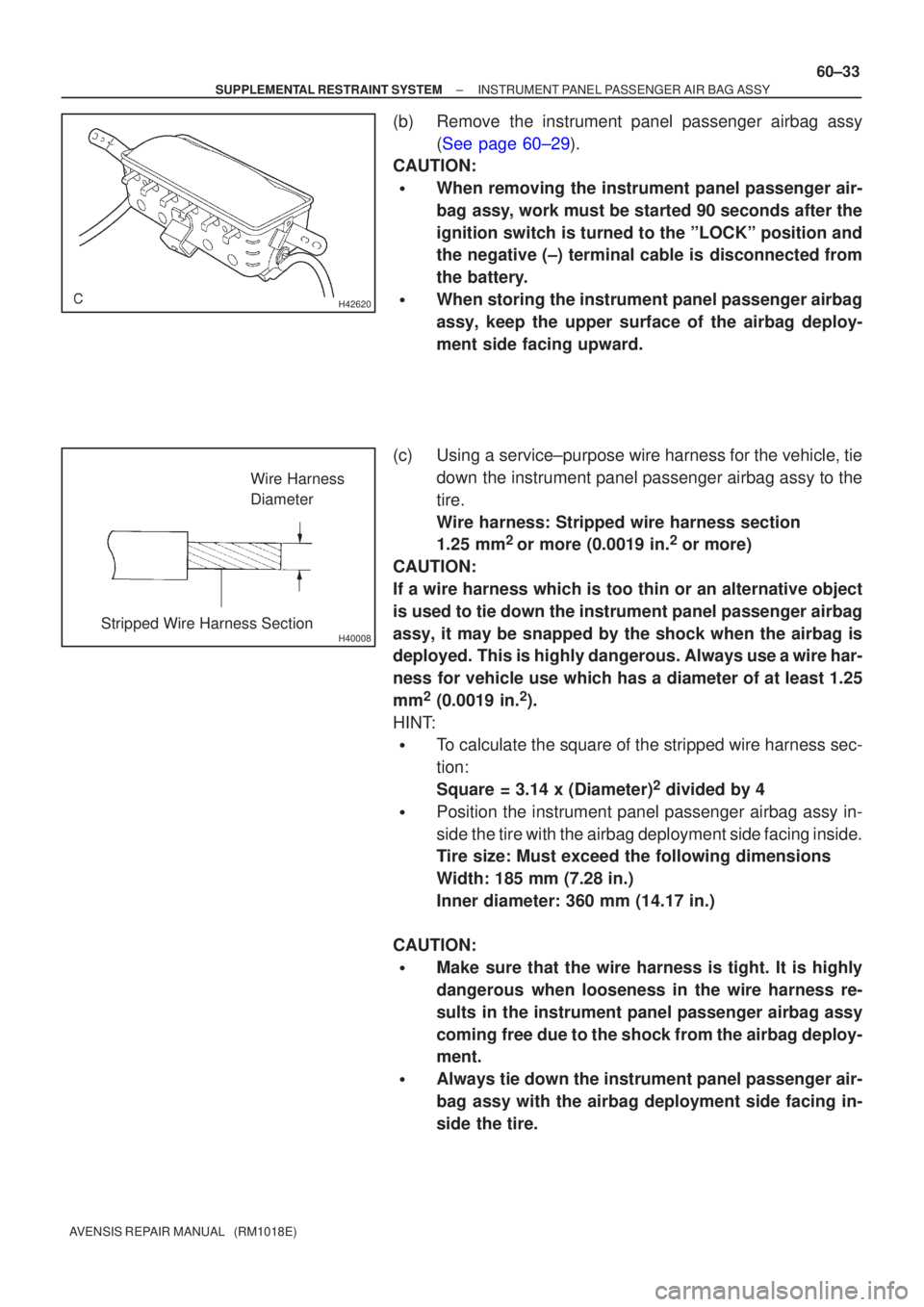

(b) Remove the instrument panel passenger airbag assy
(See page 60±29).
CAUTION:
When removing the instrument panel passenger air-
bag assy, work must be started 90 seconds after the
ignition switch is turned to the ºLOCKº position and
the negative (±) terminal cable is disconnected from
the battery.
When storing the instrument panel passenger airbag
assy, keep the upper surface of the airbag deploy-
ment side facing upward.
(c) Using a service±purpose wire harness for the vehicle, tie down the instrument panel passenger airbag assy to the
tire.
Wire harness: Stripped wire harness section
1.25 mm
2 or more (0.0019 in.2 or more)
CAUTION:
If a wire harness which is too thin or an alternative object
is used to tie down the instrument panel passenger airbag
assy, it may be snapped by the shock when the airbag is
deployed. This is highly dangerous. Always use a wire har-
ness for vehicle use which has a diameter of at least 1.25
mm
2 (0.0019 in.2).
HINT:
To calculate the square of the stripped wire harness sec-
tion:
Square = 3.14 x (Diameter)
2 divided by 4
Position the instrument panel passenger airbag assy in-
side the tire with the airbag deployment side facing inside.
Tire size: Must exceed the following dimensions
Width: 185 mm (7.28 in.)
Inner diameter: 360 mm (14.17 in.)
CAUTION:
Make sure that the wire harness is tight. It is highly
dangerous when looseness in the wire harness re-
sults in the instrument panel passenger airbag assy
coming free due to the shock from the airbag deploy-
ment.
Always tie down the instrument panel passenger air-
bag assy with the airbag deployment side facing in-
side the tire.
Page 1530 of 1690
H42646
Inner
Diam.
Width
Tire
H43004
SST(s)
H42647
Tires
(5 or more) 60±34
± SUPPLEMENTAL RESTRAINT SYSTEMINSTRUMENT PANEL PASSENGER AIR BAG ASSY
AVENSIS REPAIR MANUAL (RM1018E)

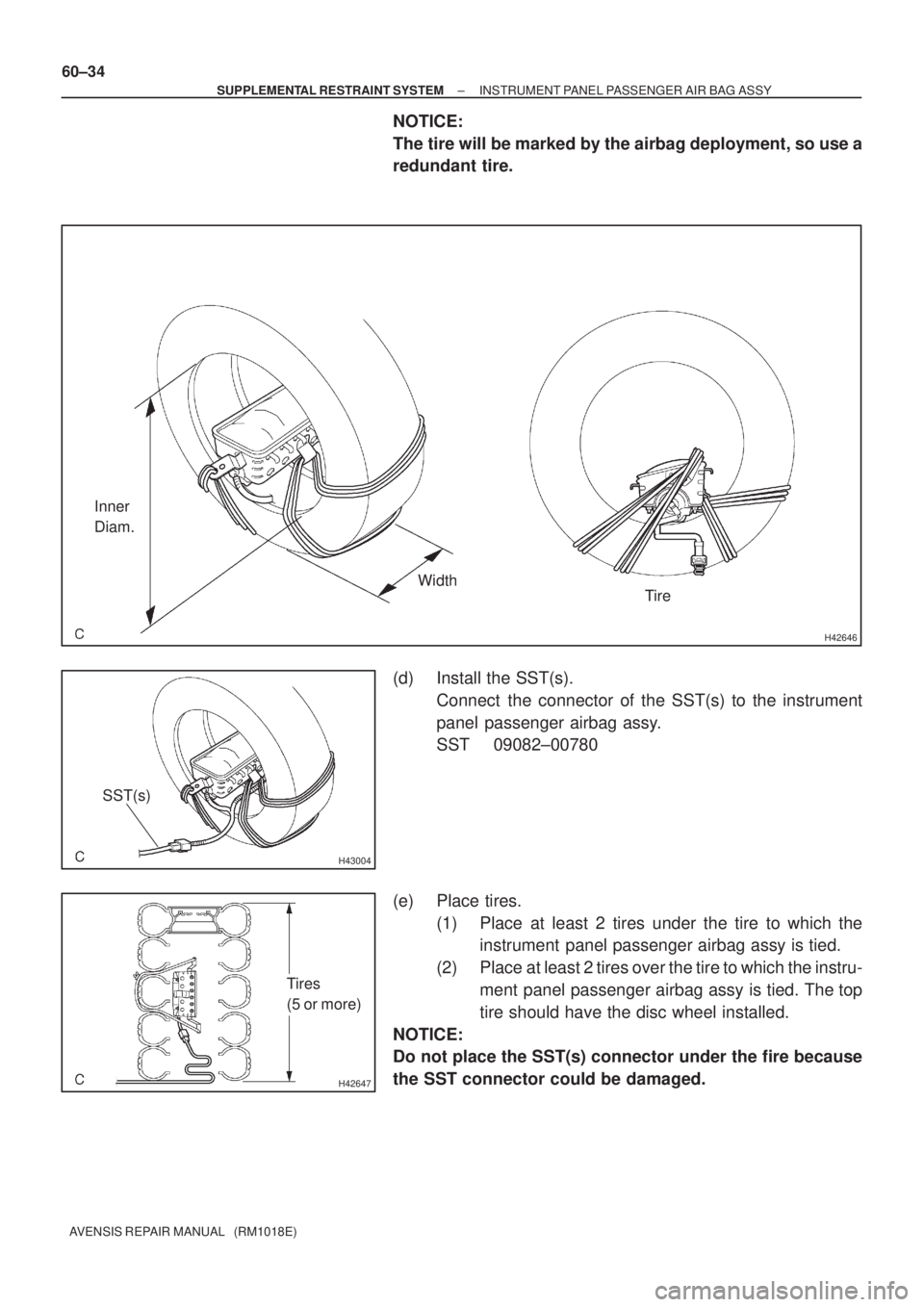

NOTICE:
The tire will be marked by the airbag deployment, so use a
redundant tire.
(d) Install the SST(s).
Connect the connector of the SST(s) to the instrument
panel passenger airbag assy.
SST 09082±00780
(e) Place tires.
(1) Place at least 2 tires under the tire to which the
instrument panel passenger airbag assy is tied.
(2) Place at least 2 tires over the tire to which the instru-
ment panel passenger airbag assy is tied. The top
tire should have the disc wheel installed.
NOTICE:
Do not place the SST(s) connector under the fire because
the SST connector could be damaged.
