TOYOTA AVENSIS 2002 Repair Manual

A12816
A11858
A62837SST
A62180
DisconnectHook
PinTurn
A62181
Plunger
Turn
Push
14±92
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
62.INSTALL TRANSVERSE ENGINE ENGINE MOUNTING BRACKET
(a)Install the transverse engine engine mounting bracket
with the 3 bolts.
Torque: 47 N
m (479 kgf
cm, 35 ft
lbf)
63.INSTALL WATER PUMP ASSY (See page 16±9)
64. INSTALL V±RIBBED BELT TENSIONER ASSY
(a) Install the V±ribbed belt tensioner with the nut and bolt. Torque:
29 N
m (296 kgf
cm, 21 ft
lbf) for Nut
69 N
m (704 kgf
cm, 51 ft
lbf) for Bolt
65. INSTALL CRANKSHAFT PULLEY
(a) Align the keyway of the pulley with the key located on the crankshaft and slide the pulley into place.
(b) Using SST, install the crankshaft pulley bolt. SST 09960±10010 (09962±01000, 09963±01000)
Torque: 138 N
m (1,407 kgf
cm, 102 ft
lbf)
(c) Turn the crankshaft counterclockwise and take the hook off the knock pin to release the plunger.
(d) Turn the crankshaft clockwise, and check that the plunger is extended.
HINT:
If the plunger does not be extended, press the slipper into the
chain tensioner using a screwdriver so that the hook is took off
from the knock pin and let the plunger can be extended.

A62182
Seal Packing
A65687
A
A
A
A A A
A A
B
B A
A64005
± ENGINE MECHANICALCYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE)
14±93
AVENSIS REPAIR MANUAL (RM1018E)

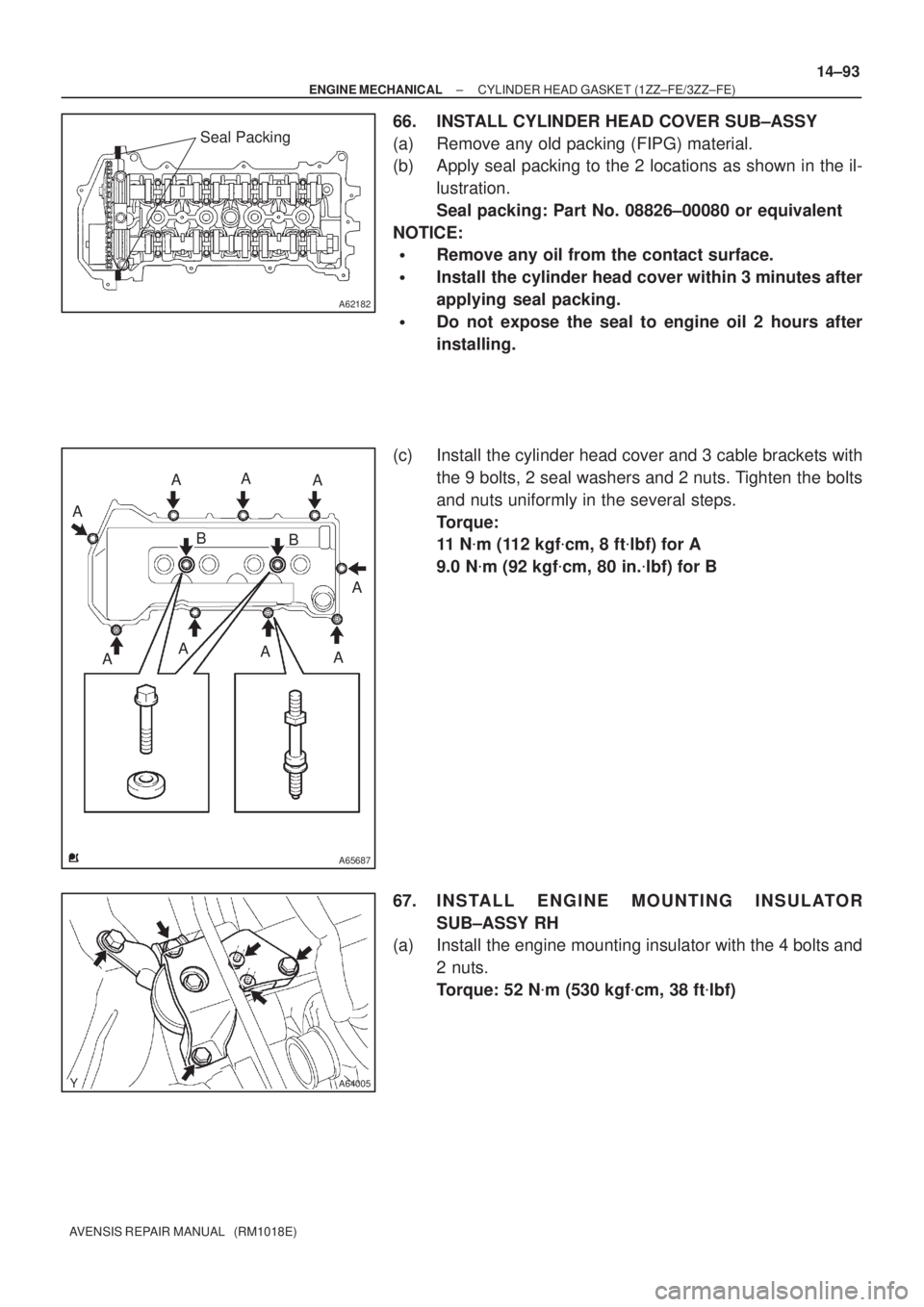

66. INSTALL CYLINDER HEAD COVER SUB±ASSY
(a) Remove any old packing (FIPG) material.
(b) Apply seal packing to the 2 locations as shown in the il-
lustration.
Seal packing: Part No. 08826±00080 or equivalent
NOTICE:

Remove any oil from the contact surface.

Install the cylinder head cover within 3 minutes after
applying seal packing.

Do not expose the seal to engine oil 2 hours after
installing.
(c) Install the cylinder head cover and 3 cable brackets with
the 9 bolts, 2 seal washers and 2 nuts. Tighten the bolts
and nuts uniformly in the several steps.
Torque:
11 N
m (112 kgf
cm, 8 ft
lbf) for A
9.0 N
m (92 kgf
cm, 80 in.
lbf) for B
67. INSTALL ENGINE MOUNTING INSULATOR
SUB±ASSY RH
(a) Install the engine mounting insulator with the 4 bolts and
2 nuts.
Torque: 52 N
m (530 kgf
cm, 38 ft
lbf)

A76720
AAB
A76721
B06777
A64026
A79363
14±94
±
ENGINE MECHANICAL CYLINDER HEAD GASKET(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

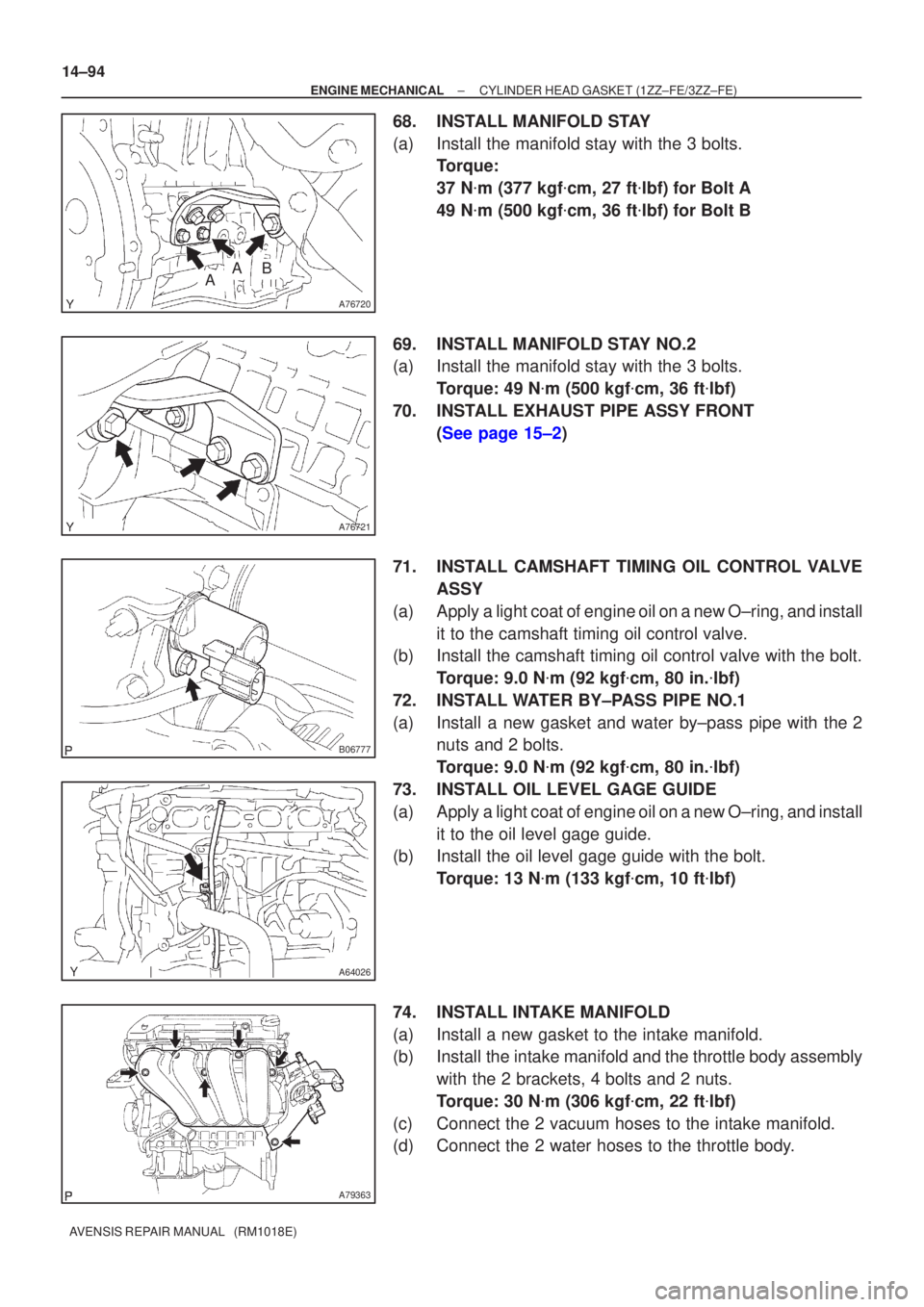

68.INSTALL MANIFOLD STAY
(a)Install the manifold stay with the 3 bolts. Torque:
37 N
m (377 kgf
cm, 27 ft
lbf) for Bolt A
49 N
m (500 kgf
cm, 36 ft
lbf) for Bolt B
69.INSTALL MANIFOLD STAY NO.2
(a)Install the manifold stay with the 3 bolts. Torque: 49 N
m (500 kgf
cm, 36 ft
lbf)
70.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±2)
71. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSY
(a) Apply a light coat of engine oil on a new O±ring, and install it to the camshaft timing oil control valve.
(b) Install the camshaft timing oil control valve with the bolt.
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
72. INSTALL WATER BY±PASS PIPE NO.1
(a) Install a new gasket and water by±pass pipe with the 2 nuts and 2 bolts.
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
73. INSTALL OIL LEVEL GAGE GUIDE
(a) Apply a light coat of engine oil on a new O±ring, and install it to the oil level gage guide.
(b) Install the oil level gage guide with the bolt.
Torque: 13 N
m (133 kgf
cm, 10 ft
lbf)
74. INSTALL INTAKE MANIFOLD
(a) Install a new gasket to the intake manifold.
(b) Install the intake manifold and the throttle body assembly with the 2 brackets, 4 bolts and 2 nuts.
Torque: 30 N
m (306 kgf
cm, 22 ft
lbf)
(c) Connect the 2 vacuum hoses to the intake manifold.
(d) Connect the 2 water hoses to the throttle body.

A64023
A76713
A79324
A78459
±
ENGINE MECHANICAL CYLINDER HEAD GASKET (1ZZ±FE/3ZZ±FE)
14±95
AVENSIS REPAIR MANUAL (RM1018E)

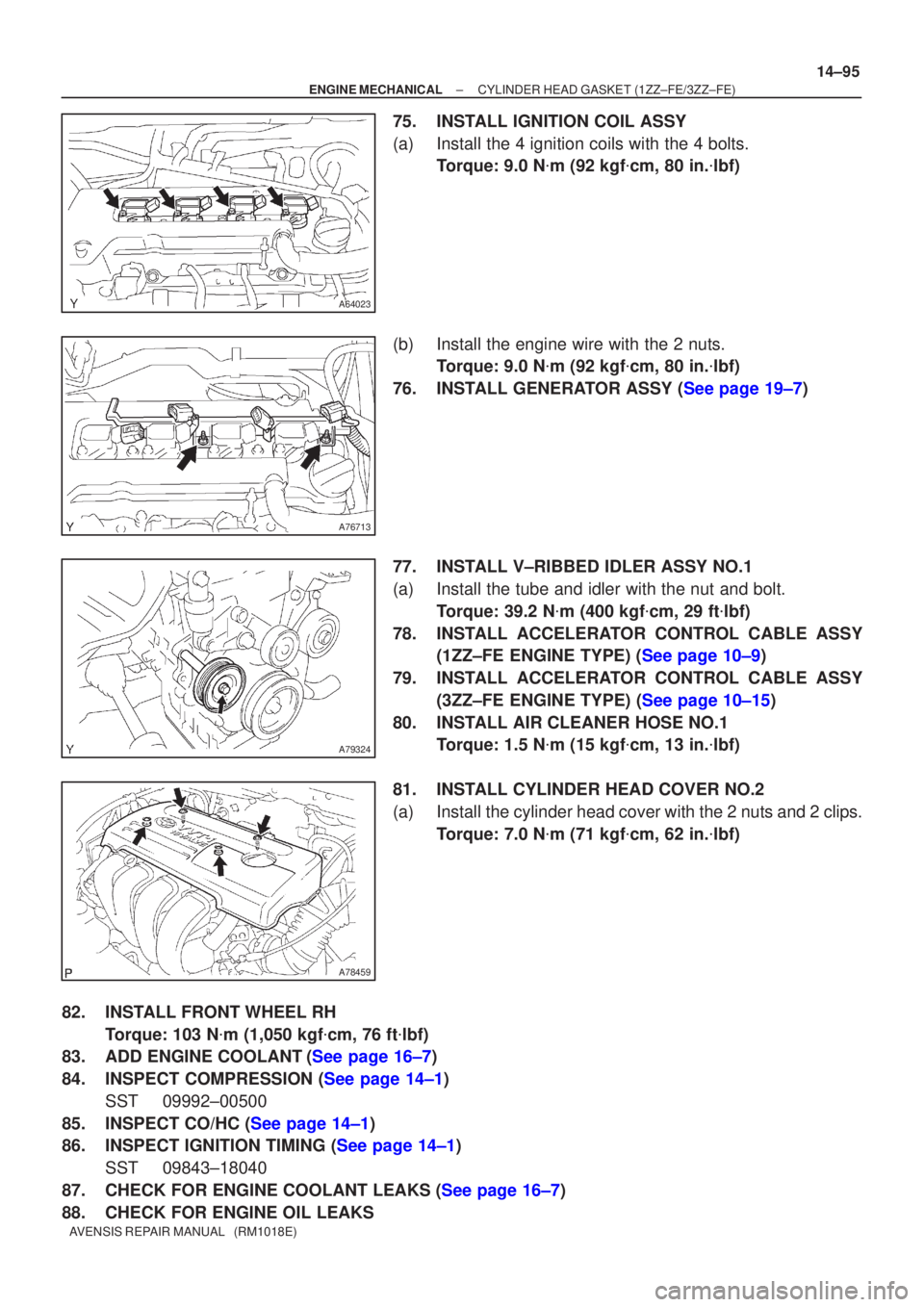

75. INSTALL IGNITION COIL ASSY
(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
(b) Install the engine wire with the 2 nuts. Torque: 9.0 N
m (92 kgf
cm, 80 in.
lbf)
76.INSTALL GENERATOR ASSY (See page 19±7)
77. INSTALL V±RIBBED IDLER ASSY NO.1
(a) Install the tube and idler with the nut and bolt. Torque: 39.2 N
m (400 kgf
cm, 29 ft
lbf)
78. INSTALL ACCELERATOR CONTROL CABLE ASSY (1ZZ±FE ENGINE TYPE) (See page 10±9)
79. INSTALL ACCELERATOR CONTROL CABLE ASSY (3ZZ±FE ENGINE TYPE) (See page 10±15)
80. INSTALL AIR CLEANER HOSE NO.1 Torque: 1.5 N
m (15 kgf
cm, 13 in.
lbf)
81. INSTALL CYLINDER HEAD COVER NO.2
(a) Install the cylinder head cover with the 2 nuts and 2 clips. Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
82. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
83.ADD ENGINE COOLANT(See page 16±7)
84.INSPECT COMPRESSION (See page 14±1)
SST 09992±00500
85.INSPECT CO/HC (See page 14±1)
86.INSPECT IGNITION TIMING (See page 14±1) SST 09843±18040
87.CHECK FOR ENGINE COOLANT LEAKS (See page 16±7)
88. CHECK FOR ENGINE OIL LEAKS

141C1±01
A56434
AB
A56462
A56434
AB
±
ENGINE MECHANICAL DRIVE BELT(1CD±FTV)
14±269
AVENSIS REPAIR MANUAL (RM1018E)
DRIVE BELT(1CD±FTV)
REPLACEMENT
1.REMOVE RADIATOR SUPPORT OPENING COVER
2.REMOVE ENGINE ROOM COVER SIDE
3.REMOVE ENGINE UNDER COVER RH
4.REMOVE V (COOLER CO MPRESSOR TO
CRANKSHAFT PULLEY) BELT NO.1
(a)Loosen nut A and bolt B.
(b)Remove the V±ribbed belt.
5.REMOVE GENERATOR V BELT
(a)Turn the V±ribbed belt tensioner assy clockwise slowly, and remove the V±ribbed belt.
6.ADJUS T V (COOLER CO MPRESSOR TO
CRANKSHAFT PULLEY) BELT NO.1
(a)Install the V±ribbed belt.
(b)Tighten bolt B and adjust the drive belt tension. (See page 14±266)
(c) Tighten nut A. Torque: 38 N
m (390 kgf
cm, 28 ft
lbf)

140D1±02
CG
TCA51075
A52004
±
ENGINE MECHANICAL ENGINE(1AZ±FE)
14±101
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE(1AZ±FE)
INSPECTION
1.INSPECT COOLANT (See page 16±13)
2.INSPECT ENGINE OIL (See page 17±6)
3. INSPECT BATTERY
Standard specific gravity: 1.25 to 1.29 at 20 C (68 F)
4. INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY
5.INSPECT SPARK PLUG (See page 18±9)
6. INSPECT V±RIBBED BELT
7. INSPECT IGNITION TIMING
(a) Warm up engine.
(b) When using hand±held tester:(1) Connect the hand±held tester to the DLC3.
(2) Enter DATA LIST MODE on the hand±held tester.
Ignition timing: 8 to 12  BTDC
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect terminals 13 (TC) and 4 (CG)of DLC3.
SST 09843±18040
NOTICE:

Make sure of the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.

Turn OFF all electrical systems before connecting the
terminals.

Operate the inspection after the cooling fan motor is
turned OFF.
(2) Remove the cylinder head cover No.2.
(3) Pull out the wire harness as shown in the illustration.
Connect the clip of the timing light to the engine.
NOTICE:

Use a timing light which detects the first signal.

After checking, be sure to wrap the wire harness with
tape.
(4) Inspect ignition timing at idle.
Ignition timing: 8 to 12  BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed.

TA C
A52006
A13304
14±102
± ENGINE MECHANICALENGINE (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(5) Disconnect terminals 13 (TC) and 4 (CG) of DLC3.
(6) Inspect ignition timing at idle.
Ignition timing: 5 to 15 BTDC
(7) Confirm that ignition timing to go advanced angle
side when the engine rpm is increased.
(8) Remove the timing light.

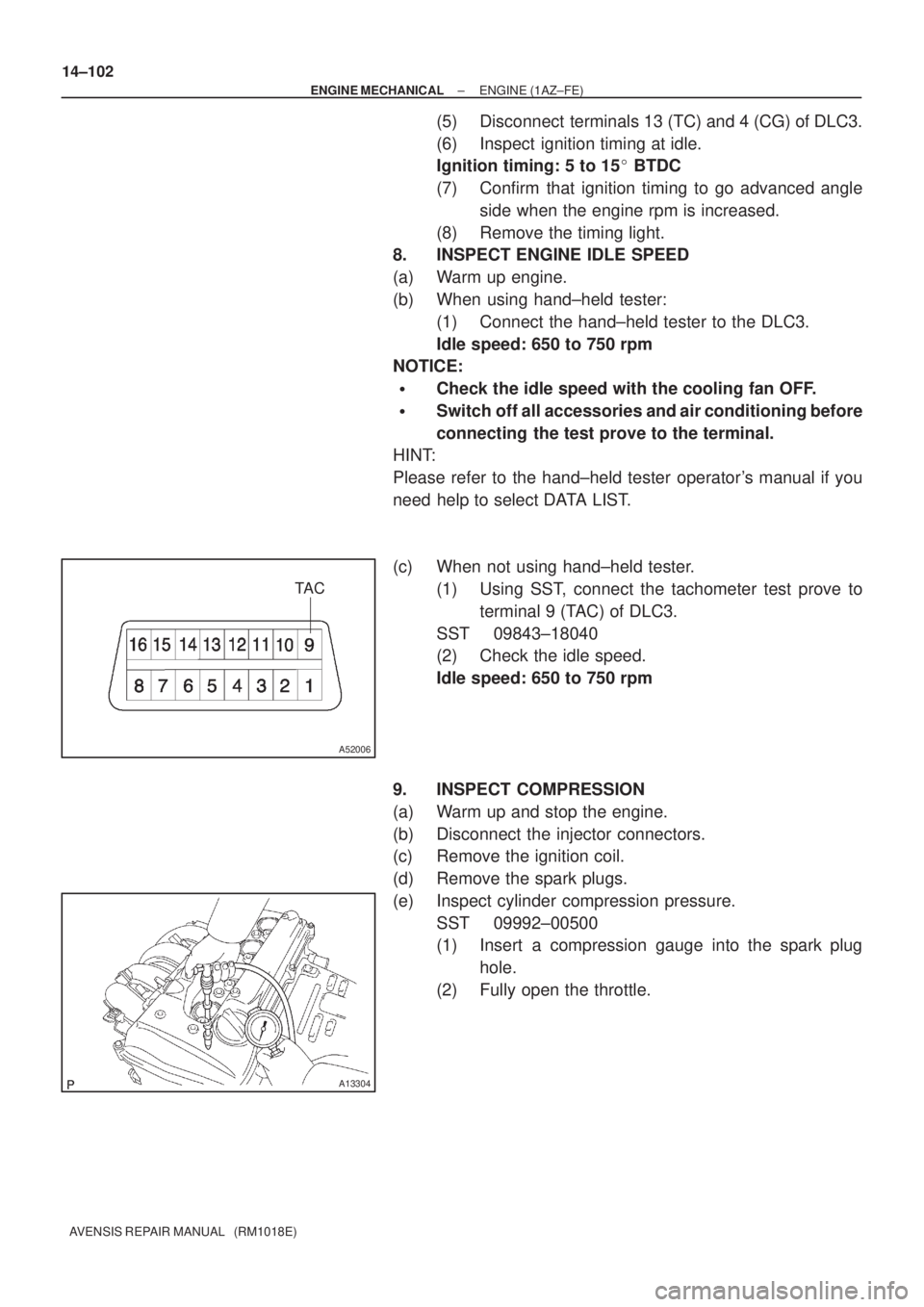

8. INSPECT ENGINE IDLE SPEED
(a) Warm up engine.
(b) When using hand±held tester:
(1) Connect the hand±held tester to the DLC3.
Idle speed: 650 to 750 rpm
NOTICE:

Check the idle speed with the cooling fan OFF.

Switch off all accessories and air conditioning before
connecting the test prove to the terminal.
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester.
(1) Using SST, connect the tachometer test prove to
terminal 9 (TAC) of DLC3.
SST 09843±18040
(2) Check the idle speed.
Idle speed: 650 to 750 rpm
9. INSPECT COMPRESSION
(a) Warm up and stop the engine.
(b) Disconnect the injector connectors.
(c) Remove the ignition coil.
(d) Remove the spark plugs.
(e) Inspect cylinder compression pressure.
SST 09992±00500
(1) Insert a compression gauge into the spark plug
hole.
(2) Fully open the throttle.

±
ENGINE MECHANICAL ENGINE(1AZ±FE)
14±103
AVENSIS REPAIR MANUAL (RM1018E)

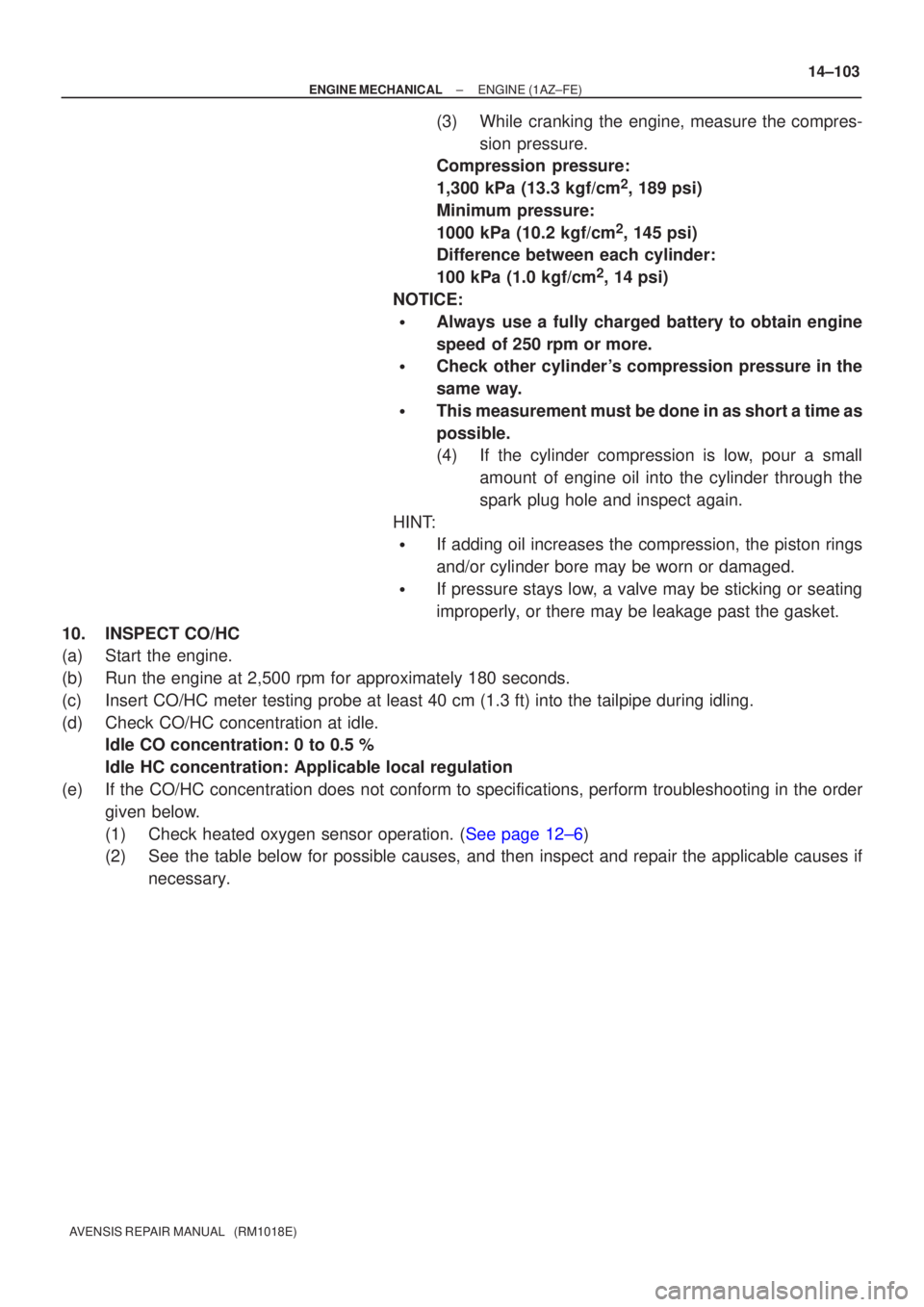

(3)While cranking the engine, measure the compres-
sion pressure.
Compression pressure:
1,300 kPa (13.3 kgf/cm
2, 189 psi)
Minimum pressure:
1000 kPa (10.2 kgf/cm
2, 145 psi)
Difference between each cylinder:
100 kPa (1.0 kgf/cm
2, 14 psi)
NOTICE:

Always use a fully charged battery to obtain engine
speed of 250 rpm or more.

Check other cylinder's compression pressure in the
same way.

This measurement must be done in as short a time as
possible.
(4)If the cylinder compression is low, pour a small amount of engine oil into the cylinder through the
spark plug hole and inspect again.
HINT:

If adding oil increases the compression, the piston rings
and/or cylinder bore may be worn or damaged.

If pressure stays low, a valve may be sticking or seating
improperly, or there may be leakage past the gasket.
10.INSPECT CO/HC
(a)Start the engine.
(b)Run the engine at 2,500 rpm for approximately 180 seconds.
(c)Insert CO/HC meter testing probe at least 40 cm (1.3 ft) into the tail\
pipe during idling.
(d)Check CO/HC concentration at idle. Idle CO concentration: 0 to 0.5 %
Idle HC concentration: Applicable local regulation
(e)If the CO/HC concentration does not conform to specifications, perform troubleshooting in the order given below.
(1)Check heated oxygen sensor operation. (See page 12±6)
(2) See the table below for possible causes, and then inspect and repair the applicable causes ifnecessary.

14±104
± ENGINE MECHANICALENGINE (1AZ±FE)

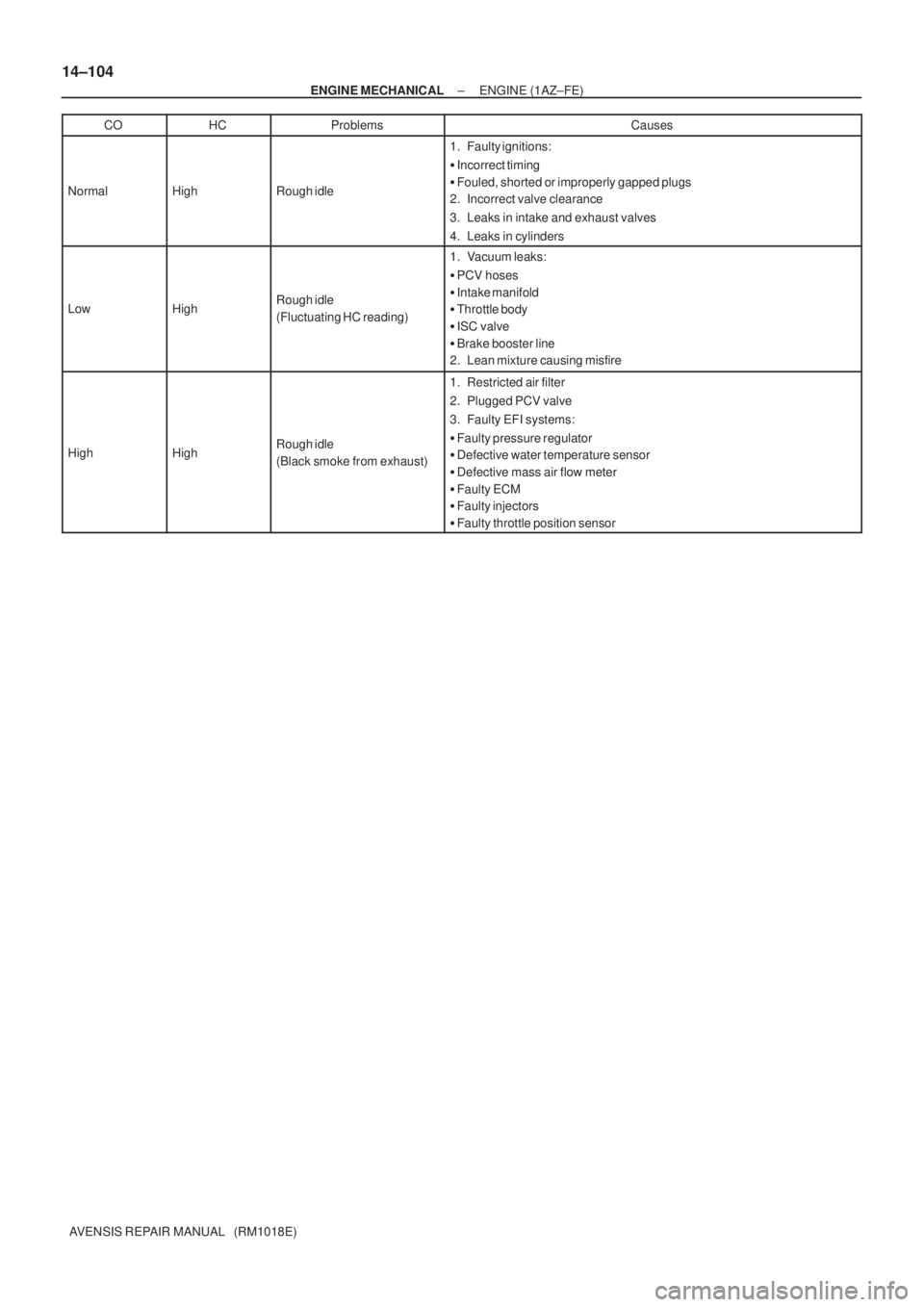

AVENSIS REPAIR MANUAL (RM1018E)CO
HCProblemsCauses
NormalHighRough idle
1. Faulty ignitions:

Incorrect timing

Fouled, shorted or improperly gapped plugs
2. Incorrect valve clearance
3. Leaks in intake and exhaust valves
4. Leaks in cylinders
LowHighRough idle
(Fluctuating HC reading)
1. Vacuum leaks:

PCV hoses

Intake manifold

Throttle body

ISC valve

Brake booster line
2. Lean mixture causing misfire
HighHighRough idle
(Black smoke from exhaust)
1. Restricted air filter
2. Plugged PCV valve
3. Faulty EFI systems:

Faulty pressure regulator

Defective water temperature sensor

Defective mass air flow meter

Faulty ECM

Faulty injectors

Faulty throttle position sensor

141CP±01
CG
TCA51075
A79034
±
ENGINE MECHANICAL ENGINE(1AZ±FSE)
14±181
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE(1AZ±FSE)
INSPECTION
1.INSPECT COOLANT (See page 16±25)
2.INSPECT ENGINE OIL(See page 17±13)
3.INSPECT BATTERY
Standard specific gravity: 1.25 to 1.29 at 20 C (68 F)
4.INSPECT AIR CLEANER FILTER ELEMENT SUB±ASSY
5.INSPECT SPARK PLUG (See page 18±14)
6.INSPECT V±RIBBED BELT
7.INSPECT IGNITION TIMING
(a)Warm up engine.
(b)When using hand±held tester:(1)Connect the hand±held tester to the DLC3.
(2)Enter DATA LIST MODE on the hand±held tester.
Ignition timing: 8 to 12  BTDC
HINT:
Please refer to the hand±held tester operator's manual if you
need help to select DATA LIST.
(c) When not using hand±held tester:
(1) Using SST, connect terminals 13 (TC) and 4 (CG)of DLC3.
SST 09843±18040, 09843±18020
NOTICE:

Make sure of the terminal numbers before connecting
them. Connection with a wrong terminal can damage
the engine.

Turn OFF all electrical systems before connecting the
terminals.

Operate the inspection after the cooling fan motor is
turned OFF
(2) Remove the cylinder head cover No.2.
(3) Pull out the wire harness as shown in the illustration.
Connect the clip of the timing light to the engine.
NOTICE:

Use a timing light which detects the first signal.

After checking, be sure to wrap the wire harness with
tape.
(4) Inspect ignition timing at idle.
Ignition timing: 8 to 12  BTDC
NOTICE:
When checking the ignition timing, shift the transmission
to the neutral position.
HINT:
Run the engine at 1,000 to 1,300 rpm for 5 seconds, check that
the engine rpm returns to the idle speed. (5) Disconnect terminals 13 (TC) and 4 (CG) of DLC3.
