child restraint TOYOTA AVENSIS 2003 Service Repair Manual

MO
NEW MODEL OUTLINE

\b

\b
\b
Fixed Seat60:40 Separate Seat Back 60:40 Separate Seat

\b

\b
Sedan Model Liftback and Wagon Model
CRS Tether Anchor Bracket
CRS ISO-FIX Bar CRS Tether Anchor Bracket
CRS ISO-FIX Bar

\b

\b
Sedan Model Liftback ModelGrocery Bag
Hook (Both Side)
Tie-down
Hook
Auxiliary Box
Tie-down
HookTool Box
Tie-down Hook Auxiliary Box Grocery Bag Hook (Both Side)
Tie-down
Hook
Tool Box Tie-down
HookAuxiliary
Box
MO-15
Rear Seat


ENTRY grade sedans feature a fixed seat; other models feature seats with a 6\
0:40 separate
seat back.

Liftback and wagon models feature a 60:40 separate seat.

CRS (Child Restraint System) ISO-FIX bar and CRS tether anchor bracket\
for securing child
seats have been provided on all the vehicle.
Luggage
4-Door Sedan and 5-Door Liftback
The luggage room features an auxiliary box, grocery bag hook, and tie-do\
wn hook for ease of
use.
http://vnx.su

MO
NEW MODEL OUTLINE

\b

\b
\b
Fixed Seat60:40 Separate Seat Back 60:40 Separate Seat

\b

\b
Sedan Model Liftback and Wagon Model
CRS Tether Anchor Bracket
CRS ISO-FIX Bar CRS Tether Anchor Bracket
CRS ISO-FIX Bar

\b

\b
Sedan Model Liftback ModelGrocery Bag
Hook (Both Side)
Tie-down
Hook
Auxiliary Box
Tie-down
HookTool Box
Tie-down Hook Auxiliary Box Grocery Bag Hook (Both Side)
Tie-down
Hook
Tool Box Tie-down
HookAuxiliary
Box
MO-15
Rear Seat


ENTRY grade sedans feature a fixed seat; other models feature seats with a 6\
0:40 separate
seat back.

Liftback and wagon models feature a 60:40 separate seat.

CRS (Child Restraint System) ISO-FIX bar and CRS tether anchor bracket\
for securing child
seats have been provided on all the vehicle.
Luggage
4-Door Sedan and 5-Door Liftback
The luggage room features an auxiliary box, grocery bag hook, and tie-do\
wn hook for ease of
use.
http://vnx.su

NEW MODEL OUTLINEMO-28
EQUIPMENT LIST

: Standard OP: Option
EuropeGeneral
ENTRYMID
TECHNICALMID
ELEGANTGeneral
Countries
Exterior
Rear SpoilerWagon


Ð
Side Protection MouldingOPOPOPOP
WindshieldGreen


Ð
Front SideGreen




GlassRear Side & BackGreen



GlassRear Side & BackWagonPrivacyOPOPOPÐ
Rear QuarterWagonGreen


ÐRear QuarterWagonPrivacyOPOPOPÐ
Chassis
195/65 R153ZZ-FE & 1ZZ-FE & 1AZ-FE




205/55 R161AZ-FSE & 1CD-FTV


Ð
Tire205/55 R163ZZ-FE & 1ZZ-FE & 1AZ-FEOPOPOPOP
215/45 R171AZ-FEÐOPOPÐ215/45 R171AZ-FSEÐOPOPÐ
15 x 6J Steel3ZZ-FE & 1ZZ-FE & 1AZ-FE




16x61/2J Steel1AZ-FSE & 1CD-FTV


Ð16 x 6 1/2 J Steel3ZZ-FE & 1ZZ-FE & 1AZ-FEOPOPOPOP
Disc Wheel16 x 6 1 / 2 JJ AluminumOPOPOPOP
16 x 6 1 / 2 JJ Light Weight AluminumOPOPOPOP
17 x 7JJ Aluminum1AZ-FEÐOPOPÐ17 x 7JJ Aluminum1AZ-FSEÐOPOPÐ
ABS (Anti-lock Brake System) with EBD (Electronic Brake force Distrib\
ution)




VSC (Vehicle Stability Control) & Brake1AZ-FSEÐ

(y)Assist & TRC (Traction Control)1CD-FTVOPOPOPÐ
Wheel4-Spoke Urethane
ÐÐ
Wheel4-Spoke LeatherÐ

Ð
SteeringColumnManual Tilt & Telescopic



SteeringEPS*13ZZ-FE & 1ZZ-FE


Ð
Hydraulic Type Power
Steering1AZ-FSE & 1CD-FTV & 1AZ-FE




Body
CoverFabric



CoverLeather1AZ-FSE & 1CD-FTVÐOPOPÐ
FrontManual




SeatFrontPower1AZ-FSE & 1CD-FTVÐOPOPÐ
FixSedan
ÐÐÐ
Rear60:40 FoldingSedanÐ



60:40 Double FoldingLiftback & Wagon


Ð
SeatBelt
Front3-Point ELR*2 Electrical Sensing Type Pretensioner
& Force Limiter




BeltRear3-Point ELR*2 & ALR*3




CRS (Child Restraint System) Anchor System (Rear Outside Seat Only)




*1: Electoronic Power Steering
*2: Emergency Locking Retractor
*3: Automatic Locking Retractor
http://vnx.su

010B9±11
±
INTRODUCTION TERMS
01±37
AVENSIS REPAIR MANUAL (RM1018E)
TERMS
ABBREVIATIONS USED IN THIS MANUAL
AbbreviationsMeaning
ABSAnti±Lock Brake System
A/CAir Conditioner
ACAlternating Current
ACCAccessory
ACISAcoustic Control Induction System
ACSDAutomatic Cold Start Device
A.D.D.Automatic Disconnecting Differential
A/FAir±Fuel Ratio
AHCActive Height Control Suspension
ALRAutomatic Locking Retractor
ALTAlternator
AMPAmplifier
ANTAntenna
Approx.Approximately
ASSYAssembly
A/T, ATMAutomatic Transmission (Transaxle)
AT FAutomatic Transmission Fluid
AUTOAutomatic
AUXAuxiliary
AV GAverage
AV SAdaptive Variable Suspension
B+Battery Voltage
BABrake Assist
BACSBoost Altitude Compensation System
BATBattery
BDCBottom Dead Center
B/LBi±Level
B/SBore±Stroke Ratio
BTDCBefore Top Dead Center
BVSVBimetallic Vacuum Switching Valve
CANController Area Network
CBCircuit Breaker
CCoCatalytic Converter For Oxidation
CDCompact Disc
CFCornering Force
CGCenter Of Gravity
CHChannel
CKDComplete Knock Down
COMB.Combination
CPECoupe
CPSCombustion Pressure Sensor
CPUCentral Processing Unit
CRSChild Restraint System
CTRCenter
C/VCheck Valve
CVControl Valve
CWCurb Weight
DCDirect Current
http://vnx.su

010BJ±01
±

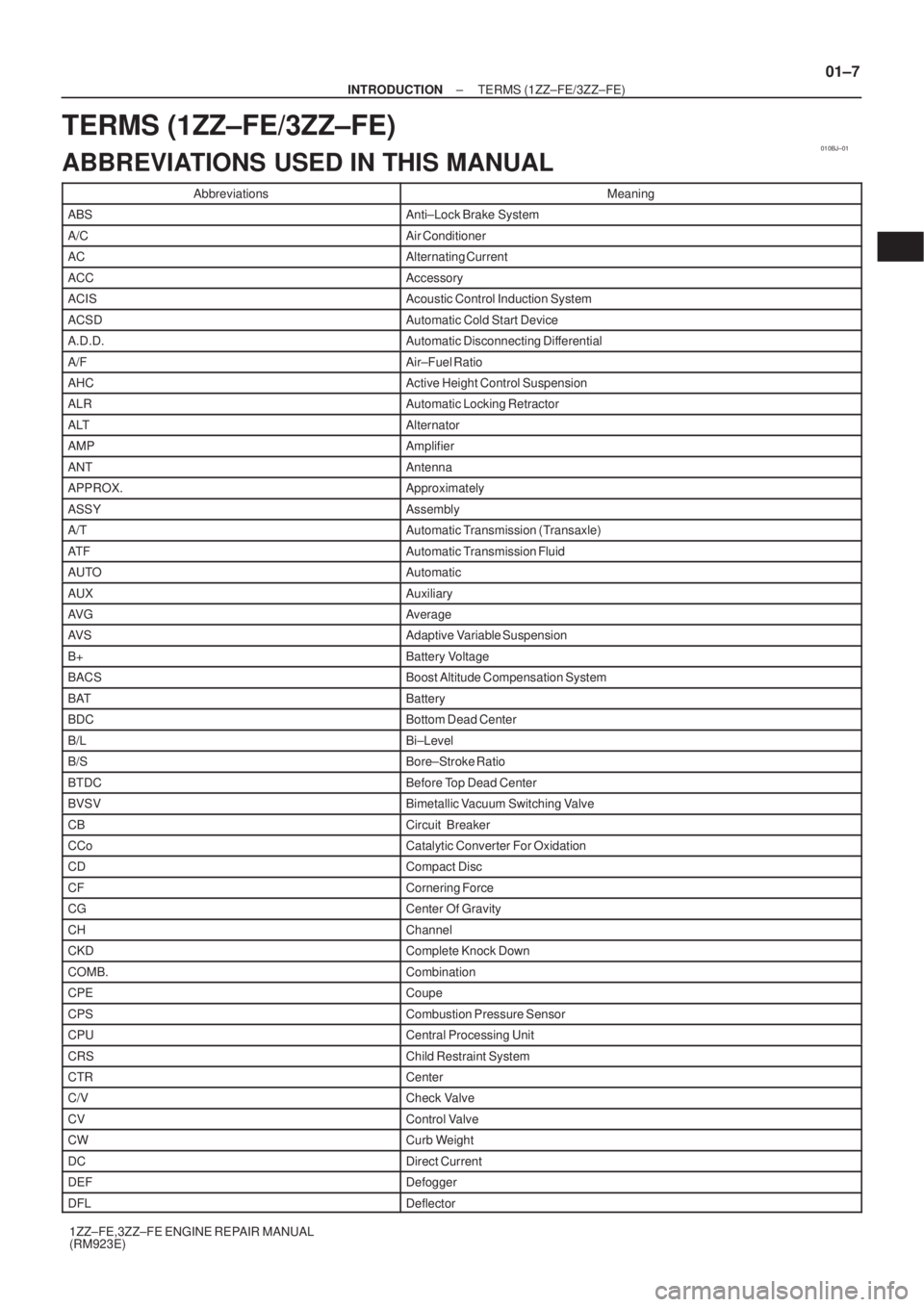

INTRODUCTION TERMS (1ZZ±FE/3ZZ±FE)
01±7
1ZZ±FE,3ZZ±FE ENGINE REPAIR MANUAL
(RM923E)
TERMS (1ZZ±FE/3ZZ±FE)
ABBREVIATIONS USED IN THIS MANUAL
AbbreviationsMeaning
ABSAnti±Lock Brake System
A/CAir Conditioner
ACAlternating Current
ACCAccessory
ACISAcoustic Control Induction System
ACSDAutomatic Cold Start Device
A.D.D.Automatic Disconnecting Differential
A/FAir±Fuel Ratio
AHCActive Height Control Suspension
ALRAutomatic Locking Retractor
ALTAlternator
AMPAmplifier
ANTAntenna
APPROX.Approximately
ASSYAssembly
A/TAutomatic Transmission (Transaxle)
AT FAutomatic Transmission Fluid
AUTOAutomatic
AUXAuxiliary
AV GAverage
AV SAdaptive Variable Suspension
B+Battery Voltage
BACSBoost Altitude Compensation System
BATBattery
BDCBottom Dead Center
B/LBi±Level
B/SBore±Stroke Ratio
BTDCBefore Top Dead Center
BVSVBimetallic Vacuum Switching Valve
CBCircuit Breaker
CCoCatalytic Converter For Oxidation
CDCompact Disc
CFCornering Force
CGCenter Of Gravity
CHChannel
CKDComplete Knock Down
COMB.Combination
CPECoupe
CPSCombustion Pressure Sensor
CPUCentral Processing Unit
CRSChild Restraint System
CTRCenter
C/VCheck Valve
CVControl Valve
CWCurb Weight
DCDirect Current
DEFDefogger
DFLDeflector
http://vnx.su

B65022
Lock
Unlock
Retractor
45

B66462

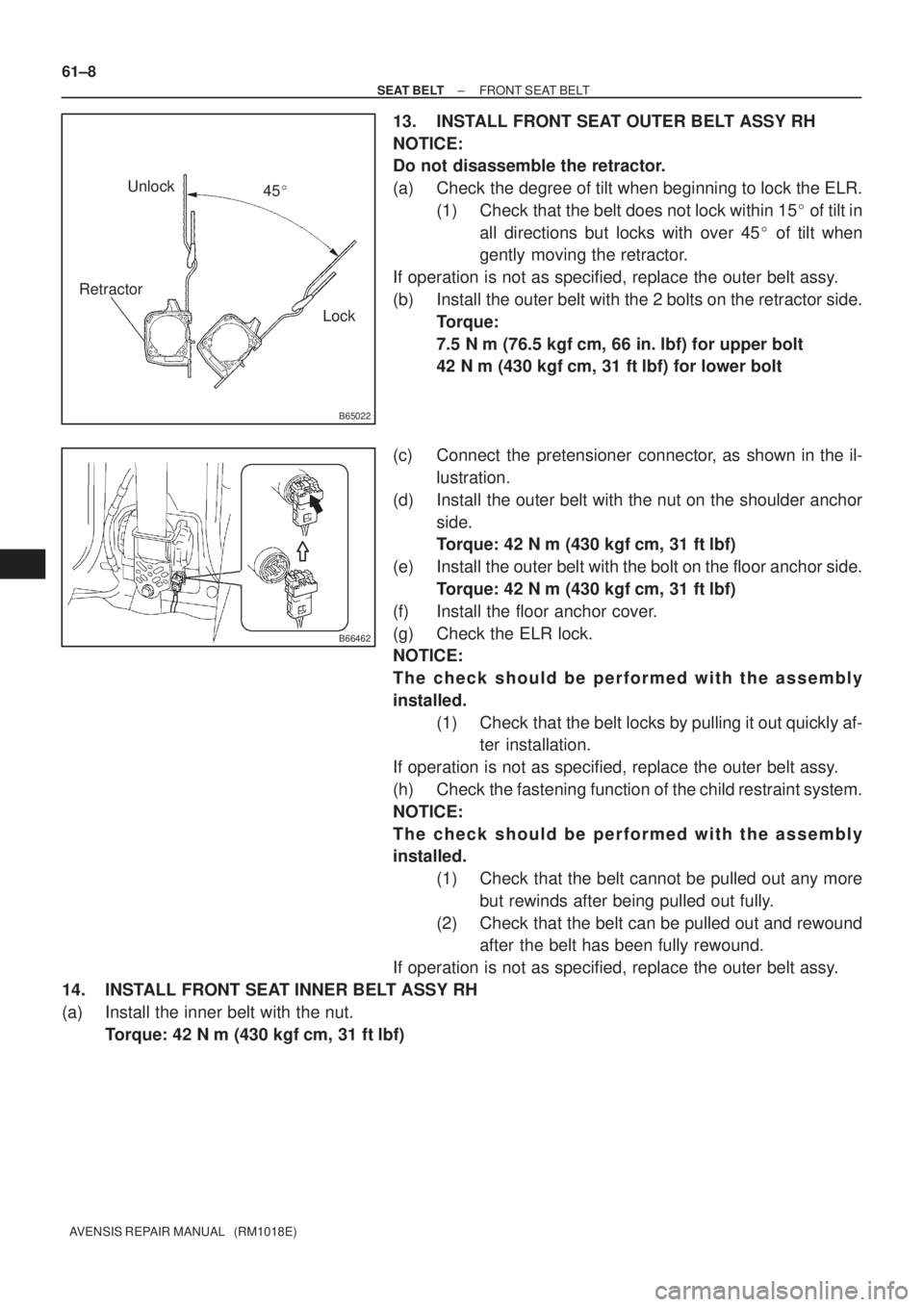

61±8
±
SEAT BELT FRONT SEAT BELT
AVENSIS REPAIR MANUAL (RM1018E)
13. INSTALL FRONT SEAT OUTER BELT ASSY RH
NOTICE:
Do not disassemble the retractor.
(a) Check the degree of tilt when beginning to lock the ELR. (1) Check that the belt does not lock within 15
of tilt in
all directions but locks with over 45
of tilt when
gently moving the retractor.
If operation is not as specified, replace the outer belt assy.
(b) Install the outer belt with the 2 bolts on the retractor side. Torque:
7.5 N
m (76.5 kgf
cm, 66 in.
lbf) for upper bolt
42 N
m (430 kgf
cm, 31 ft
lbf) for lower bolt
(c) Connect the pretensioner connector, as shown in the il- lustration.
(d) Install the outer belt with the nut on the shoulder anchor side.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
(e) Install the outer belt with the bolt on the floor anchor side. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
(f) Install the floor anchor cover.
(g) Check the ELR lock.
NOTICE:
The check should be performed with the a ssembly
installed. (1) Check that the belt locks by pulling it out quickly af-ter installation.
If operation is not as specified, replace the outer belt assy.
(h) Check the fastening function of the child restraint system.
NOTICE:
The check should be performed with the a ssembly
installed.
(1) Check that the belt cannot be pulled out any morebut rewinds after being pulled out fully.
(2) Check that the belt can be pulled out and rewound after the belt has been fully rewound.
If operation is not as specified, replace the outer belt assy.
14. INSTALL FRONT SEAT INNER BELT ASSY RH
(a) Install the inner belt with the nut. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
http://vnx.su

610EA±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
61±20
±

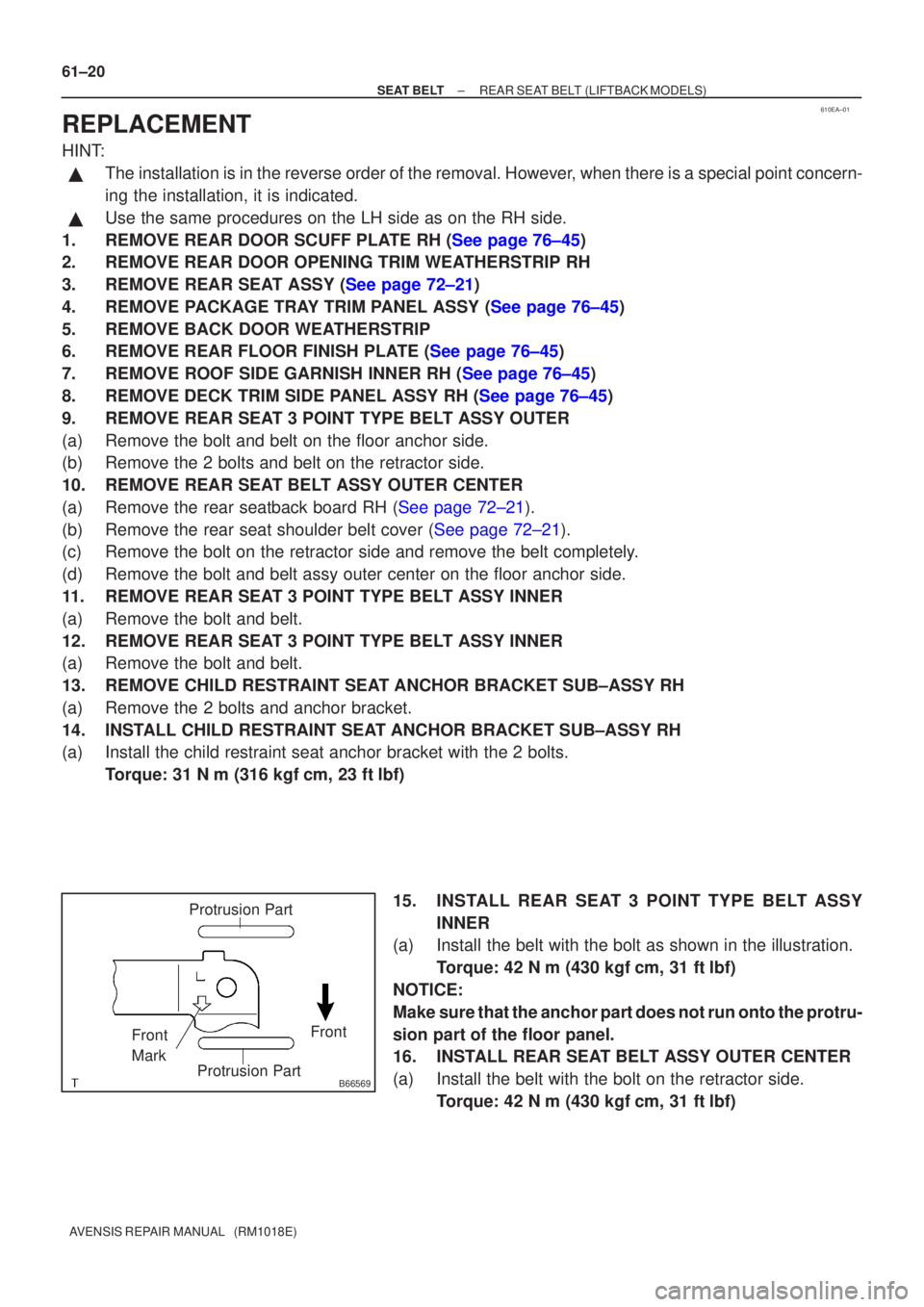

SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:

The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.

Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±45)
2. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
3.REMOVE REAR SEAT ASSY (See page 72±21)
4.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±45)
5. REMOVE BACK DOOR WEATHERSTRIP
6.REMOVE REAR FLOOR FINISH PLATE (See page 76±45)
7.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±45)
8.REMOVE DECK TRIM SIDE PANEL ASSY RH (See page 76±45)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a)Remove the rear seatback board RH (See page 72±21).
(b)Remove the rear seat shoulder belt cover (See page 72±21).
(c) Remove the bolt on the retractor side and remove the belt completely.
(d) Remove the bolt and belt assy outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt with the bolt as shown in the illustration.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER
(a) Install the belt with the bolt on the retractor side. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
http://vnx.su

B70206
LockUnlock
45

B66570
Protrusion Part
Front
Front
Mark
Protrusion Part
B66568Lock
Unlock
45

±

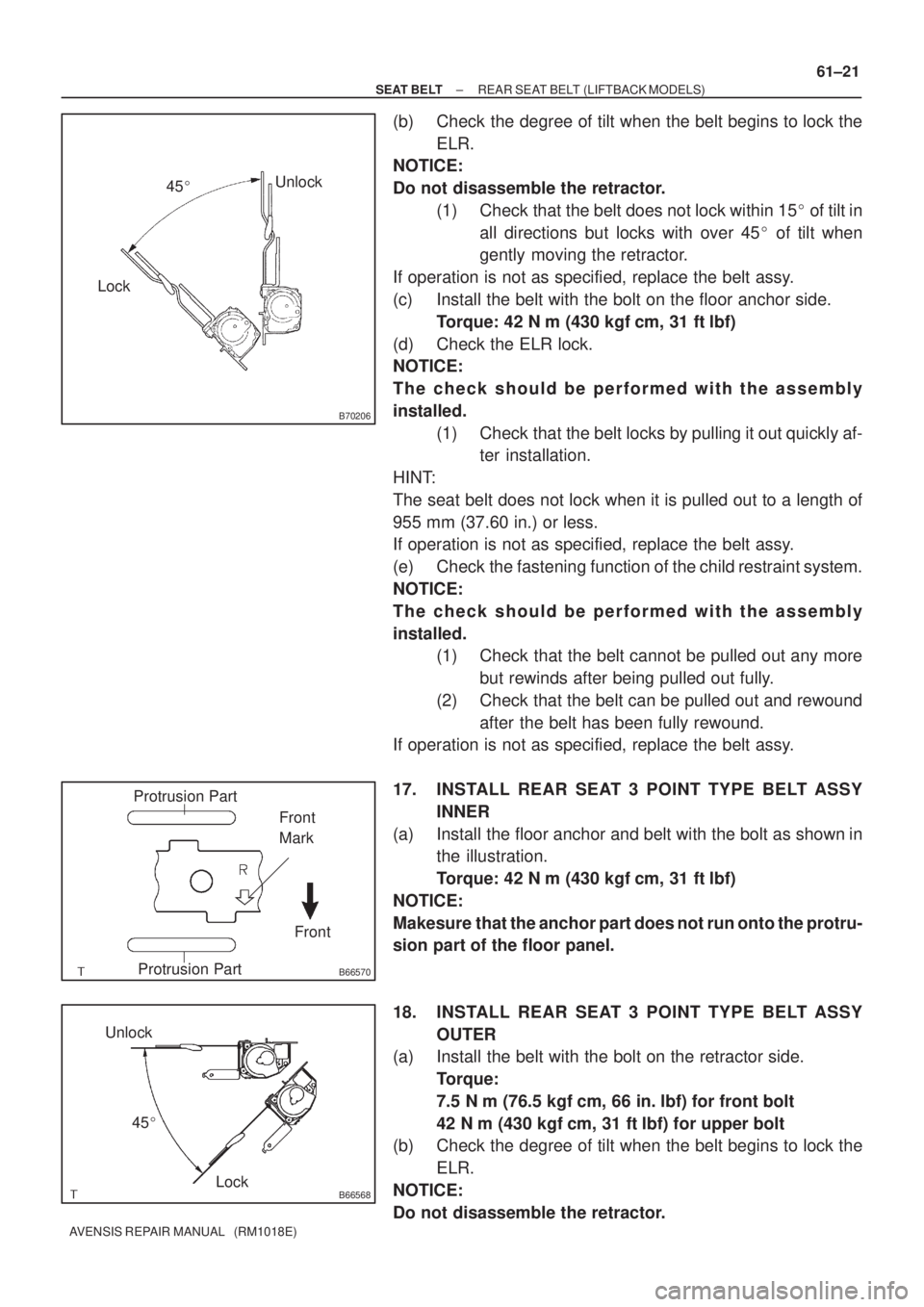

SEAT BELT REAR SEAT BELT (LIFTBACK MODELS)
61±21
AVENSIS REPAIR MANUAL (RM1018E)
(b) Check the degree of tilt when the belt begins to lock the
ELR.
NOTICE:
Do not disassemble the retractor.
(1) Check that the belt does not lock within 15
of tilt in
all directions but locks with over 45
of tilt when
gently moving the retractor.
If operation is not as specified, replace the belt assy.
(c) Install the belt with the bolt on the floor anchor side. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
(d) Check the ELR lock.
NOTICE:
The check should be performed with the a ssembly
installed. (1) Check that the belt locks by pulling it out quickly af-ter installation.
HINT:
The seat belt does not lock when it is pulled out to a length of
955 mm (37.60 in.) or less.
If operation is not as specified, replace the belt assy.
(e) Check the fastening function of the child restraint system.
NOTICE:
The check should be performed with the a ssembly
installed. (1) Check that the belt cannot be pulled out any more
but rewinds after being pulled out fully.
(2) Check that the belt can be pulled out and rewound after the belt has been fully rewound.
If operation is not as specified, replace the belt assy.
17. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY
INNER
(a) Install the floor anchor and belt with the bolt as shown in the illustration.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Makesure that the anchor part does not run onto the protru-
sion part of the floor panel.
18. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Install the belt with the bolt on the retractor side.
Torque:
7.5 N
m (76.5 kgf
cm, 66 in.
lbf) for front bolt
42 N
m (430 kgf
cm, 31 ft
lbf) for upper bolt
(b) Check the degree of tilt when the belt begins to lock the
ELR.
NOTICE:
Do not disassemble the retractor.
http://vnx.su

61±22
±

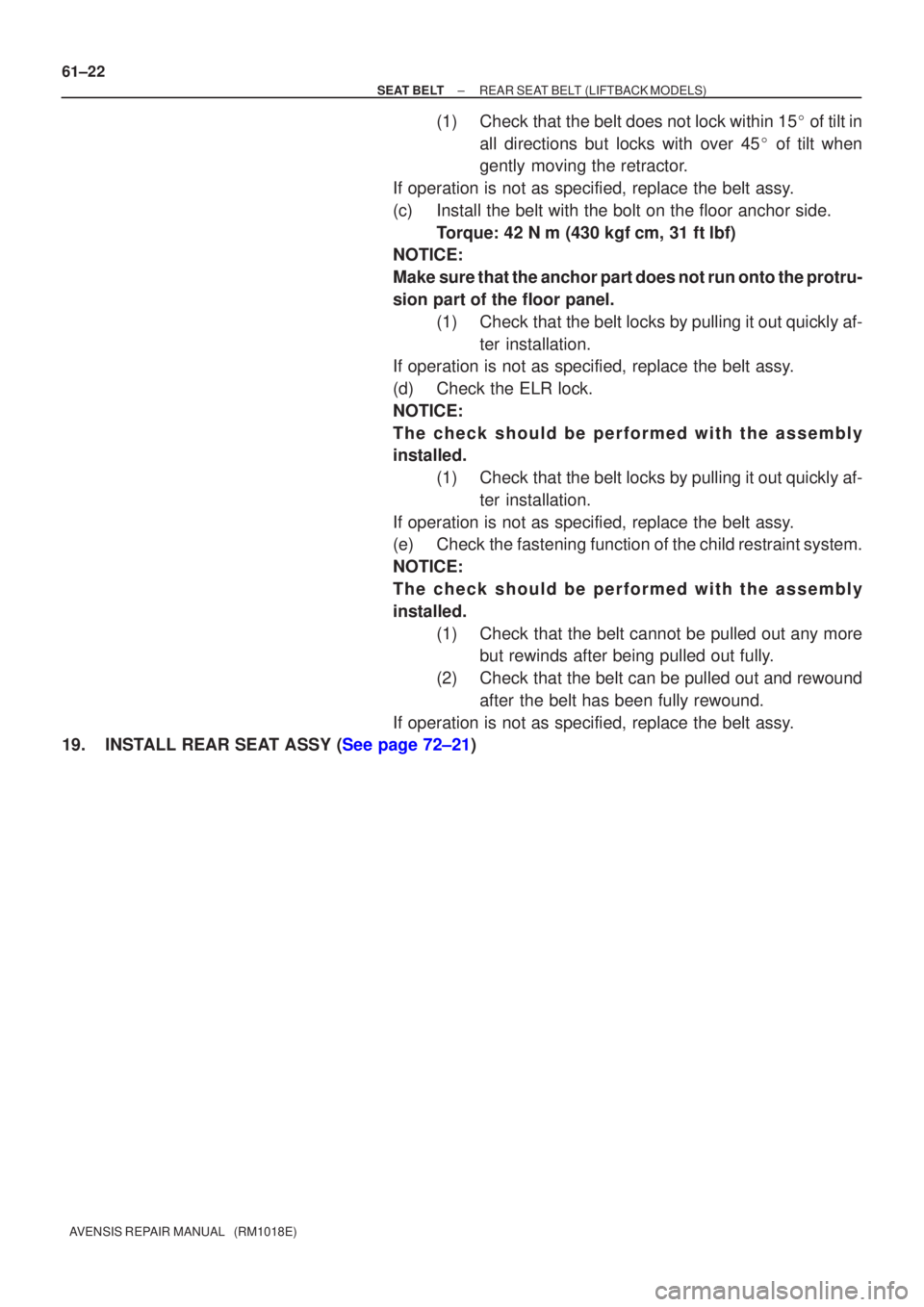

SEAT BELTREAR SEAT BELT(LIFTBACK MODELS)
AVENSIS REPAIR MANUAL (RM1018E)
(1)Check that the belt does not lock within 15
of tilt in all directions but locks with over 45
of tilt when
gently moving the retractor.
If operation is not as specified, replace the belt assy.
(c)Install the belt with the bolt on the floor anchor side. Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
(1)Check that the belt locks by pulling it out quickly af-ter installation.
If operation is not as specified, replace the belt assy.
(d)Check the ELR lock.
NOTICE:
The check should be performed with the assembly
installed.
(1)Check that the belt locks by pulling it out quickly af-ter installation.
If operation is not as specified, replace the belt assy.
(e)Check the fastening function of the child restraint system.
NOTICE:
The check should be performed with the assembly
installed. (1)Check that the belt cannot be pulled out any morebut rewinds after being pulled out fully.
(2)Check that the belt can be pulled out and rewound after the belt has been fully rewound.
If operation is not as specified, replace the belt assy.
19.INSTALL REAR SEAT ASSY (See page 72±21)
http://vnx.su

610ED±01
B66569
Protrusion Part
Front
Front
Mark
Protrusion Part
±

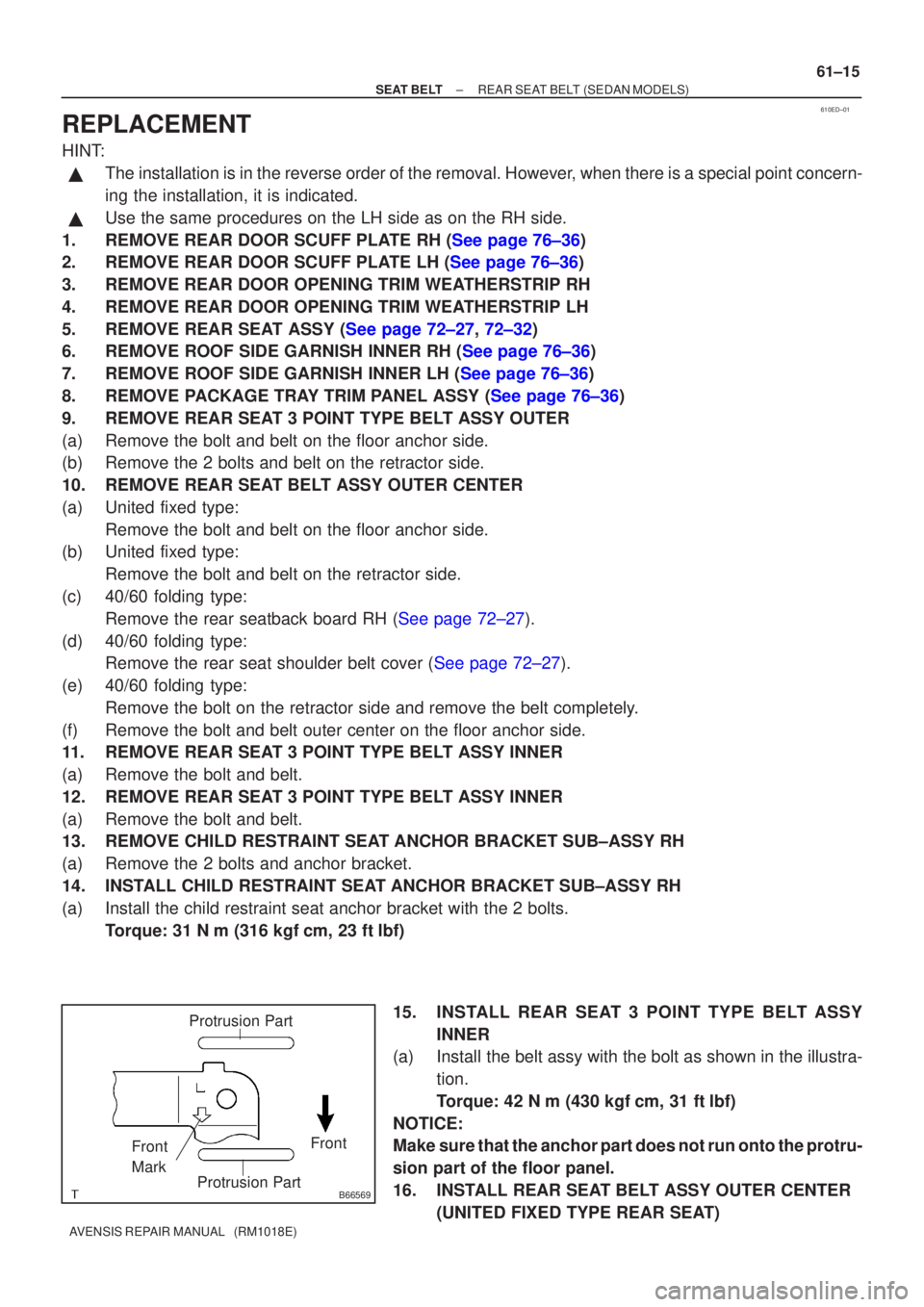

SEAT BELT REAR SEAT BELT (SEDAN MODELS)
61±15
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
HINT:

The installation is in the reverse order of the removal. However, when there is a special point concern-
ing the installation, it is indicated.

Use the same procedures on the LH side as on the RH side.
1.REMOVE REAR DOOR SCUFF PLATE RH (See page 76±36)
2.REMOVE REAR DOOR SCUFF PLATE LH (See page 76±36)
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
4. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
5.REMOVE REAR SEAT ASSY (See page 72±27, 72±32)
6.REMOVE ROOF SIDE GARNISH INNER RH (See page 76±36)
7.REMOVE ROOF SIDE GARNISH INNER LH (See page 76±36)
8.REMOVE PACKAGE TRAY TRIM PANEL ASSY (See page 76±36)
9. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY OUTER
(a) Remove the bolt and belt on the floor anchor side.
(b) Remove the 2 bolts and belt on the retractor side.
10. REMOVE REAR SEAT BELT ASSY OUTER CENTER
(a) United fixed type: Remove the bolt and belt on the floor anchor side.
(b) United fixed type:
Remove the bolt and belt on the retractor side.
(c) 40/60 folding type: Remove the rear seatback board RH (See page 72±27).
(d) 40/60 folding type: Remove the rear seat shoulder belt cover (See page 72±27).
(e) 40/60 folding type: Remove the bolt on the retractor side and remove the belt completely.
(f) Remove the bolt and belt outer center on the floor anchor side.
11. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
12. REMOVE REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Remove the bolt and belt.
13. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Remove the 2 bolts and anchor bracket.
14. INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB±ASSY RH
(a) Install the child restraint seat anchor bracket with the 2 bolts. Torque: 31 N
m (316 kgf
cm, 23 ft
lbf)
15. INSTALL REAR SEAT 3 POINT TYPE BELT ASSY INNER
(a) Install the belt assy with the bolt as shown in the illustra-
tion.
Torque: 42 N
m (430 kgf
cm, 31 ft
lbf)
NOTICE:
Make sure that the anchor part does not run onto the protru-
sion part of the floor panel.
16. INSTALL REAR SEAT BELT ASSY OUTER CENTER (UNITED FIXED TYPE REAR SEAT)
http://vnx.su
