FRONT SUSPENSION FRONT WHEEL ALIGNMENT
AVENSIS REPAIR MANUAL (RM1018E)
7. ADJUST CAMBER
NOTICE:
After the camber has been adjusted, inspect the toe±in.
(a) Remove the front wheel.
(b) Remove the 2 bolts and nuts on the lower side of the shock absorber.
If reusing the bolts and/or nuts, coat the threads of nuts with en-
gine oil.
(c) Clean the installation surfaces of the shock absorber and the steering knuckle.
(d) Temporarily install the 2 bolts and nuts.
http://vnx.su

F44962
+
±
F13685
1
2
F12938
Bolt
Adjusting
Value Set Bolt
Adjusting Bolt90105±17008 90105±17009
90105±17010 90105±17011
121212121 Dot
2 Dots3 Dots
±1
30' ± ±1 15'
±1 15' ± ±1 00'
±1 00' ± ±45'
±45' ± ±30'
±30' ± ±15'
0' ± 15'
15' ± 30'
30' ± 45'
45' ± 1

1 00' ± 1 15'
±15' ± 0'
1 15' ± 1 30'
±
FRONT SUSPENSION FRONT WHEEL ALIGNMENT
26±9
AVENSIS REPAIR MANUAL (RM1018E)
(e) Adjust the camber by pushing or pulling the lower side of
the shock absorber in the direction in which the camber
adjustment is required.
(f) Tighten the nuts. Torque: 220 N
m (2,240 kgf
cm, 162 ft
lbf)
(g) Install the front wheel. Torque: 103 N´m (1,050 kgf´cm, 76 ft´lbf)
(h) Check the camber.
HINT:

Adjust the camber to the center of the specified value as
much as possible.

Adjusting value for the set bolts is 6' ± 30' (0.1  ± 0.5 ).
If the camber is not within the specified value, using the follow-
ing table, estimate how much additional camber adjustment will
be required, and select the camber adjusting bolt.
NOTICE:
Tighten the adjusting bolt with a washer and a new nut.
(i) Perform the procedure mentioned above again. At step (b), replace 1 or 2 selected bolts.
HINT:
When replacing the 2 bolts, replace 1 bolt for each time.
http://vnx.su

260DS±01
G22708
F40228
SST
ZX1712
26±24
±
FRONT SUSPENSION LOWER BALL JOINT ASSY FRONT LH
AVENSIS REPAIR MANUAL (RM1018E)
LOWER BALL JOINT ASSY FRONT LH
REPLACEMENT
HINT:

COMPONENTS: See page 26±2

Replace the RH side by the same procedures as the LH side. 1. INSPECT LOWER BALL JOINT ASSY FRONT LH
(a) Jack up front side of the vehicle.
(b) Check that there is no looseness on the ball joint by shak-ing the lower arm up and down with a force of 294 N (30
kgf, 66 lbf).
2. REMOVE FRONT WHEEL
3.SEPARATE FRONT AXLE HUB LH NUT (See page 30±6) SST 09930±00010
4.DISCONNECT SPEED SENSOR FRONT LH (See page 30±6)
5.SEPARATE FRONT DISC BRAKE CALIPER ASSY LH (See page 30±22)
6. REMOVE FRONT DISC
7.SEPARATE TIE ROD END SUB±ASSY LH (See page 30±22) SST 09628±62011
8.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±22)
9.REMOVE FRONT AXLE ASSY LH (See page 30±22)
10. REMOVE LOWER BALL JOINT ASSY FRONT LH
(a) Remove the cotter pin and nut.
(b) Using SST, remove the lower ball joint assy front LH.
11. INSPECT LOWER BALL JOINT ASSY FRONT LH
(a) As shown in the illustration, flip the ball joint stud back andforth 5 times, before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate of 3 ± 5 seconds per 1 turn and take the torque reading
on the 5th turn.
Turning torque:
0.98 ± 4.9 N´m (10 ± 50 kgf´cm, 9 ± 43 in.´lbf)
http://vnx.su

±
FRONT SUSPENSION LOWER BALL JOINT ASSY FRONT LH
26±25
AVENSIS REPAIR MANUAL (RM1018E)
12. INSTALL LOWER BALL JOINT ASSY FRONT LH
(a) Install the lower ball joint assy front LH, and torque the nut.
Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
(b) Install a new cotter pin.
NOTICE:
If the holes for the cotter pin are not aligned, tighten the nut further\
up to 60
.
13.INSTALL FRONT AXLE ASSY LH (See page 30±22)
14.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±22)
15.INSTALL TIE ROD END SUB±ASSY LH (See page 30±22)
16. INSTALL FRONT DISC
17.INSTALL FRONT DISC BRAKE CALIPER ASSY LH (See page 30±22)
18.CONNECT SPEED SENSOR FRONT LH (See page 30±6)
19.INSTALL FRONT AXLE HUB LH NUT (See page 30±6)
20. INSTALL FRONT WHEEL
Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
21.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
22. CHECK ABS SPEED SENSOR SIGNAL
(a)w/o VSC: See page 05±699
(b)w/ VSC: See page 05±756
http://vnx.su

2600P±03
F44620
G21679
26±26
±
FRONT SUSPENSION STABILIZER BAR FRONT
AVENSIS REPAIR MANUAL (RM1018E)
STABILIZER BAR FRONT
REPLACEMENT
HINT:
COMPONENTS: See page 26±2
1. REMOVE FRONT WHEEL 2. REMOVE FRONT STABILIZER LINK ASSY LH
(a) Remove the 2 nuts and front stabilizer link assy LH.
HINT:
If the ball joint turns together with the nut,use a hexagon wrench
(6 mm) to hold the stud.
3. REMOVE FRONT STABILIZER LINK ASSY RH
HINT:
Remove the RH side by the same procedures as the LH side. 4. INSPECT FRONT STABILIZER LINK ASSY LH
(a) As shown in the illustration, flip the ball joint stud back andforth 5 times, before installing the nut.
(b) Using a torque wrench, turn the nut continuously at a rate
of 3 ± 5 seconds per 1 turn and take the torque reading
on the 5th turn.
Turning torque:
0.05 ± 1.96 N´m (0.5 ± 20 kgf´cm, 0.4 ± 17 in.´lbf)
5.SEPARATE TIE ROD END SUB±ASSY LH (See page 30±6) SST 09628±62011
6. SEPARATE TIE ROD END SUB±ASSY RH
SST 09628±62011
HINT:
Separate the RH side by the same procedures as the LH side.
7.SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±6)
8. SEPARATE FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH
HINT:
Separate the RH side by the same procedures as the LH side.
9. SEPARATE RACK & PINION POWER STEERING GEAR ASSY
(a)Electric power steering model: See page 51±28
(b)Oil pressure power steering model: See page 51±36
http://vnx.su

F45155

F40197
Inner SideRear
Side
±
FRONT SUSPENSION STABILIZER BAR FRONT
26±27
AVENSIS REPAIR MANUAL (RM1018E)

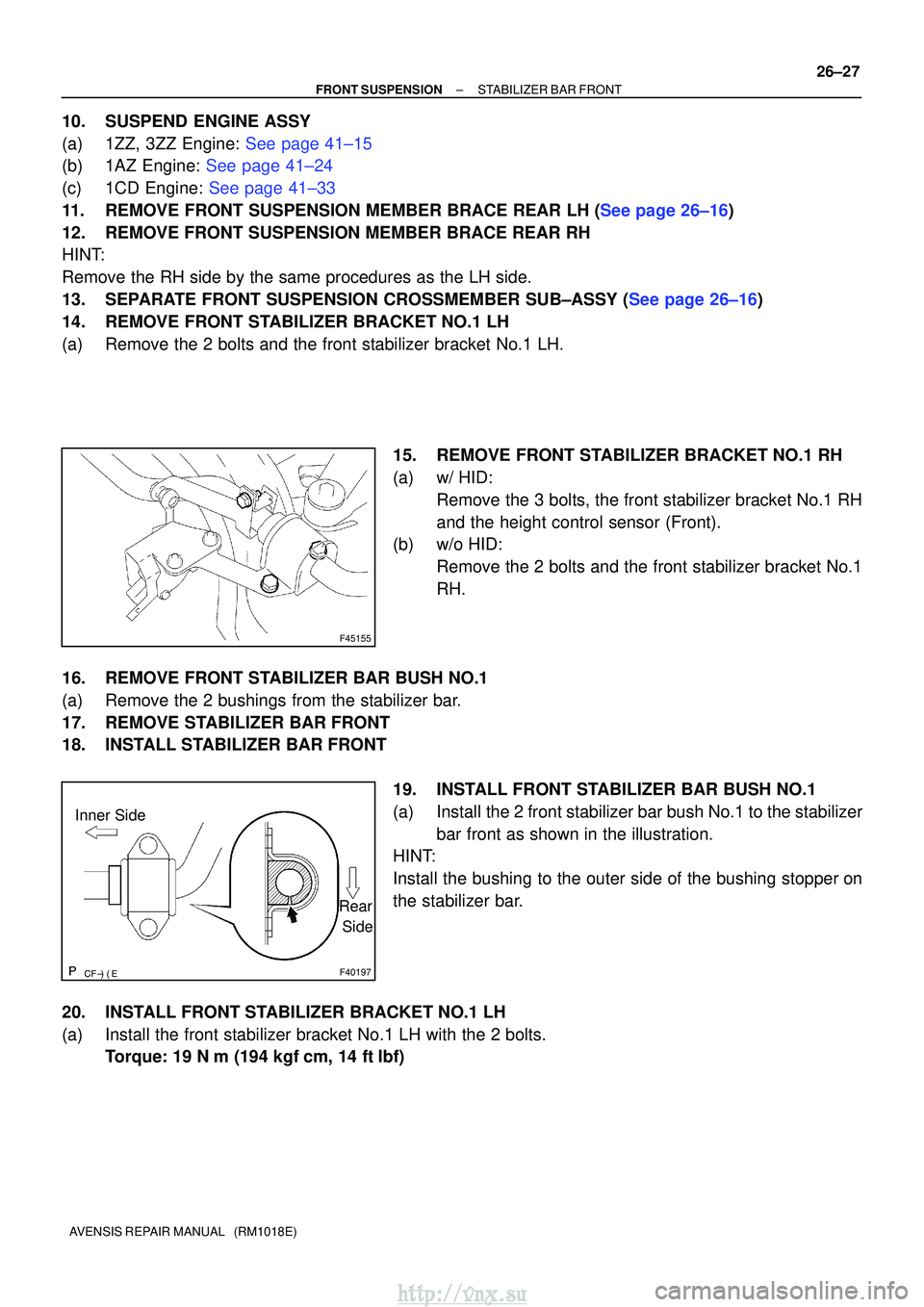

10. SUSPEND ENGINE ASSY
(a)1ZZ, 3ZZ Engine: See page 41±15
(b)1AZ Engine: See page 41±24
(c)1CD Engine: See page 41±33
11.REMOVE FRONT SUSPENSION MEMBER BRACE REAR LH (See page 26±16)
12. REMOVE FRONT SUSPENSION MEMBER BRACE REAR RH
HINT:
Remove the RH side by the same procedures as the LH side.
13.SEPARATE FRONT SUSPENSION CROSSMEMBER SUB±ASSY (See page 26±16)
14. REMOVE FRONT STABILIZER BRACKET NO.1 LH
(a) Remove the 2 bolts and the front stabilizer bracket No.1 LH.
15. REMOVE FRONT STABILIZER BRACKET NO.1 RH
(a) w/ HID:Remove the 3 bolts, the front stabilizer bracket No.1 RH
and the height control sensor (Front).
(b) w/o HID:
Remove the 2 bolts and the front stabilizer bracket No.1
RH.
16. REMOVE FRONT STABILIZER BAR BUSH NO.1
(a) Remove the 2 bushings from the stabilizer bar.
17. REMOVE STABILIZER BAR FRONT
18. INSTALL STABILIZER BAR FRONT 19. INSTALL FRONT STABILIZER BAR BUSH NO.1
(a) Install the 2 front stabilizer bar bush No.1 to the stabilizerbar front as shown in the illustration.
HINT:
Install the bushing to the outer side of the bushing stopper on
the stabilizer bar.
20. INSTALL FRONT STABILIZER BRACKET NO.1 LH
(a) Install the front stabilizer bracket No.1 LH with the 2 bolts. Torque: 19 N
m (194 kgf
cm, 14 ft
lbf)
http://vnx.su

F45155
A
B
F44620
26±28
±
FRONT SUSPENSION STABILIZER BAR FRONT
AVENSIS REPAIR MANUAL (RM1018E)
21. INSTALL FRONT STABILIZER BRACKET NO.1 RH
(a) w/ HID: Install the front stabilizer bracket No.1 RH and the height
control sensor (Front) with the 3 bolts.
Torque:
Bolt A: 5.4 N
m (55 kgf
cm, 48 in.
lbf)
Bolt B: 19 N
m (194 kgf
cm, 14 ft
lbf)
(b) w/o HID: Install the front stabilizer bracket No.1 RH with the 2 bolts.
Torque: 19 N
m (194 kgf
cm, 14 ft
lbf)
22.INSTALL FRONT SUSPENSION CROSSMEMBER SUB±ASSY (See page 26±16)
23.INSTALL FRONT SUSPENSION MEMBER BRACE REAR LH (See page 26±16)
24. INSTALL FRONT SUSPENSION MEMBER BRACE REAR RH
HINT:
Install the RH side by the same procedures as the LH side.
25. INSTALL RACK & PINION POWER STEERING GEAR ASSY
(a)Electric power steering model: See page 51±28
(b)Oil pressure power steering model: See page 51±36
26.INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 LH (See page 30±6)
27. INSTALL FRONT SUSPENSION ARM SUB±ASSY LOWER NO.1 RH
HINT:
Connect the RH side by the same procedures as the LH side.
28.INSTALL TIE ROD END SUB±ASSY LH (See page 30±6)
29. INSTALL TIE ROD END SUB±ASSY RH
HINT:
Connect the RH side by the same procedures as the LH side.
30. INSTALL FRONT STABILIZER LINK ASSY LH
(a) Install the front stabilizer link assy LH with the 2 nuts.Torque: 74 N
m (755 kgf
cm, 55 ft
lbf)
HINT:
If the ball joint turns together with the nut, use a hexagon
wrench (6 mm) to hold the stud.
31. INSTALL FRONT STABILIZER LINK ASSY RH
HINT:
Install the RH side by the same procedures as the LH side.
32. INSTALL FRONT WHEEL Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
33.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See page 26±6)
34.HEADLIGHT AIM ONLY (W/ DISCHARGE HEAD LAMP) (See page 65±19)
