TOYOTA AVENSIS 2003 Service User Guide
Manufacturer: TOYOTA, Model Year: 2003, Model line: AVENSIS, Model: TOYOTA AVENSIS 2003Pages: 2234, PDF Size: 56.95 MB
Page 11 of 2234

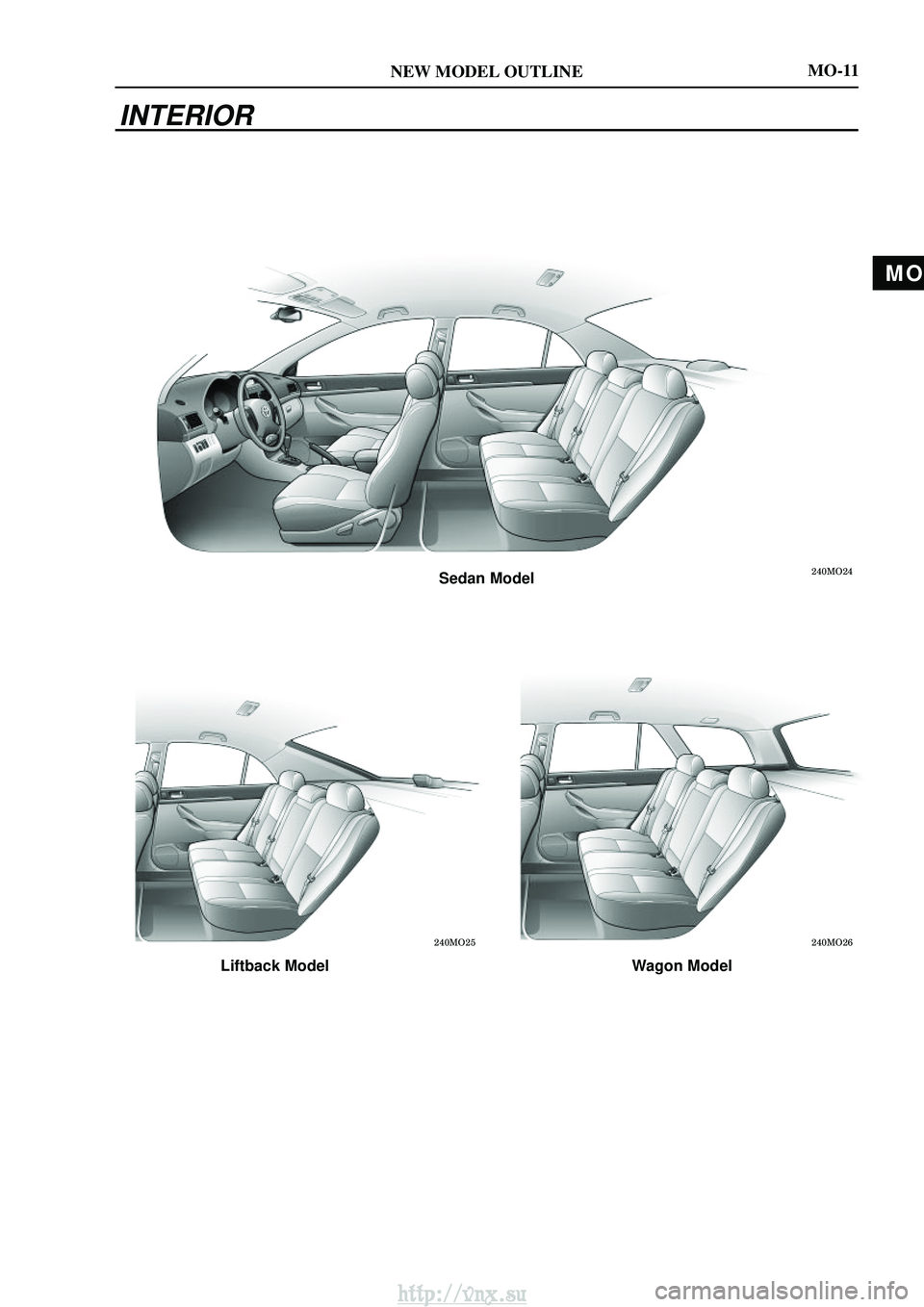

MO
NEW MODEL OUTLINE
Sedan Model
Liftback Model Wagon Model
MO-11
INTERIOR
http://vnx.su
Page 12 of 2234
NEW MODEL OUTLINE
Chrome plated parts
Painted parts and
surface-treated parts
PushAuxiliary Box
Push Cup Holder
Push
Ashtray
MO-12

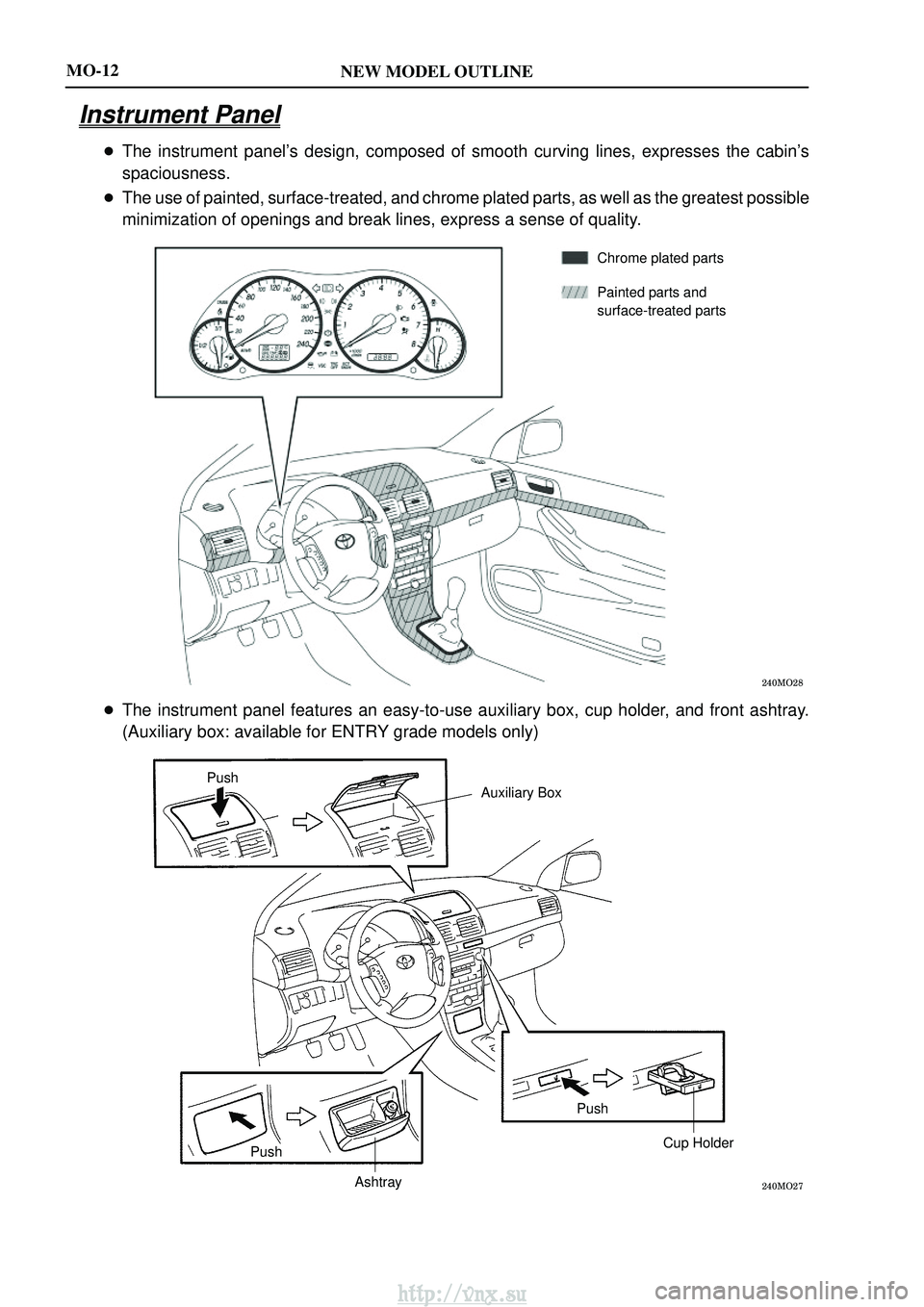

Instrument Panel
The instrument panel's design, composed of smooth curving lines, expresses the cabin's
spaciousness.
The use of painted, surface-treated, and chrome plated parts, as well as\
the greatest possible
minimization of openings and break lines, express a sense of quality.
The instrument panel features an easy-to-use auxiliary box, cup holder, and front ashtray.
(Auxiliary box: available for ENTRY grade models only)
http://vnx.su
Page 13 of 2234
![TOYOTA AVENSIS 2003 Service User Guide MO
NEW MODEL OUTLINE
Steering Pad SwitchSteering Pad Switch
1 3 2 4
MO-13
Steering Wheel
ENTRY grade models feature a urethane 4-spoke type steering wheel, and MID T\
ECHNICAL
and MID ELEGAN](/img/14/57444/w960_57444-12.png "TOYOTA AVENSIS 2003 Service User Guide MO
NEW MODEL OUTLINE
Steering Pad SwitchSteering Pad Switch
1 3 2 4
MO-13
Steering Wheel
ENTRY grade models feature a urethane 4-spoke type steering wheel, and MID T\
ECHNICAL
and MID ELEGAN")
MO
NEW MODEL OUTLINE
Steering Pad SwitchSteering Pad Switch
1 3 2 4
MO-13

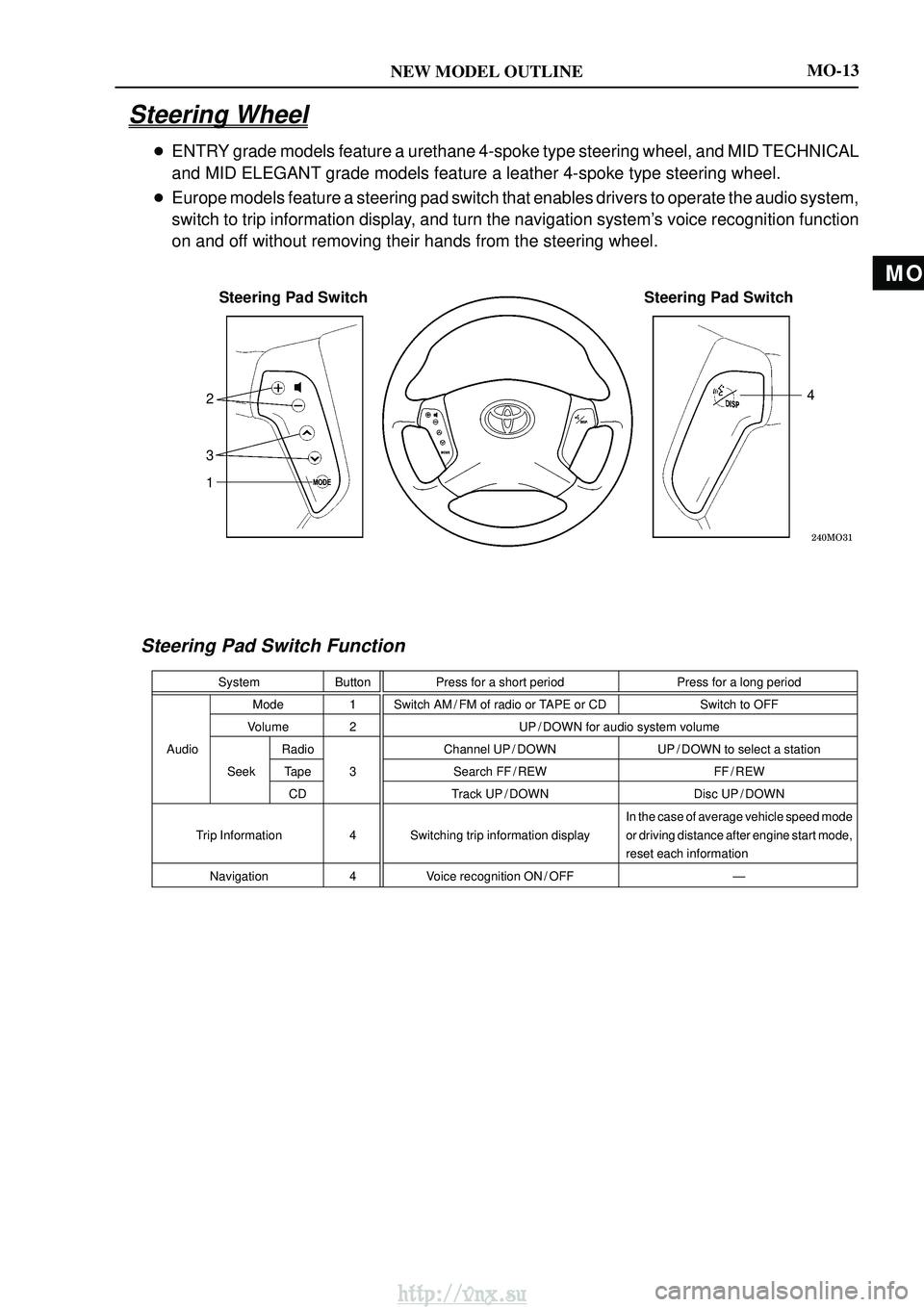

Steering Wheel
ENTRY grade models feature a urethane 4-spoke type steering wheel, and MID T\
ECHNICAL
and MID ELEGANT grade models feature a leather 4-spoke type steering whe\
el.
Europe models feature a steering pad switch that enables drivers to oper\
ate the audio system,
switch to trip information display, and turn the navigation system's voice recognition function
on and off without removing their hands from the steering wheel.
Steering Pad Switch Function
System ButtonPress for a short period Press for a long period
Mode 1 Switch AM / FM of radio or TAPE or CD Switch to OFF
Volume 2 UP / DOWN for audio system volume
Audio Radio Channel UP / DOWN UP / DOWN to select a station
Seek Tape 3
Search FF / REW FF / REW
CD Track UP / DOWN Disc UP / DOWN
Trip Information 4 Switching trip information display In the case of average vehicle speed mode
or driving distance after engine start mode,
reset each information
Navigation 4Voice recognition ON / OFF Ð
http://vnx.su
Page 14 of 2234
NEW MODEL OUTLINE
\b
\b
\b
Power Lumber Support
Power Seat
Cushion Front Tilt
Power Seat
Seat Slide
Power Seat Manual Seat
Seat Reclining
Power SeatVertical Lifter
Power Seat Manual Seat
Manual Seat
MO-14

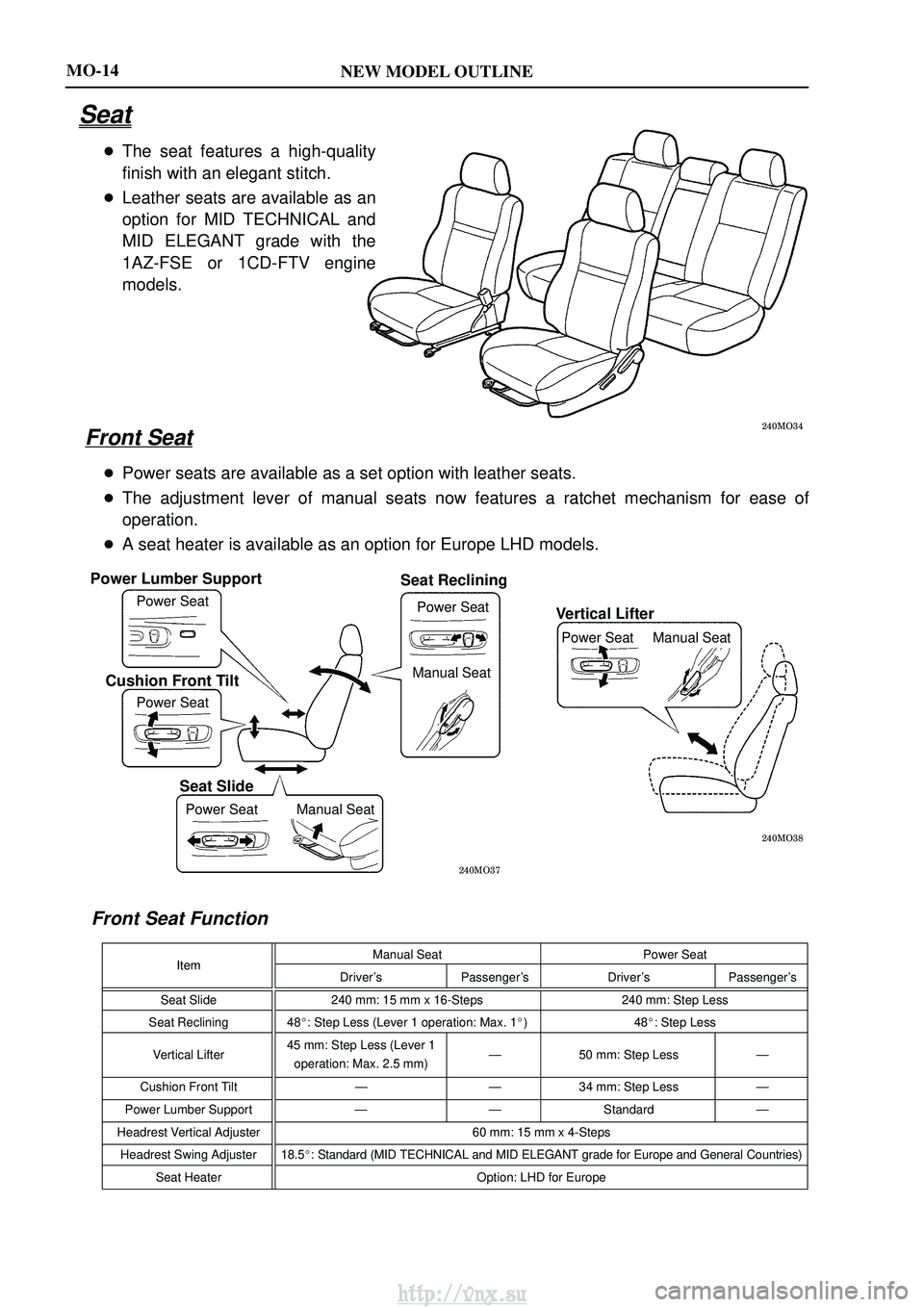

Seat
The seat features a high-quality
finish with an elegant stitch.
Leather seats are available as an
option for MID TECHNICAL and
MID ELEGANT grade with the
1AZ-FSE or 1CD-FTV engine
models.
Front Seat
Power seats are available as a set option with leather seats.
The adjustment lever of manual seats now features a ratchet mechanism fo\
r ease of
operation.
A seat heater is available as an option for Europe LHD models.
Front Seat Function
ItemManual Seat Power SeatItemDriver'sPassenger's Driver'sPassenger's
Seat Slide 240 mm: 15 mm x 16-Steps 240 mm: Step Less
Seat Reclining 48 : Step Less (Lever 1 operation: Max. 1 )4 8: Step Less
Vertical Lifter 45 mm: Step Less (Lever 1
operation: Max. 2.5 mm) Ð
50 mm: Step Less Ð
Cushion Front Tilt ÐÐ34 mm: Step Less Ð
Power Lumber Support ÐÐStandard Ð
Headrest Vertical Adjuster 60 mm: 15 mm x 4-Steps
Headrest Swing Adjuster 18.5 : Standard (MID TECHNICAL and MID ELEGANT grade for Europe and General Countries)
Seat Heater Option: LHD for Europe
http://vnx.su
Page 15 of 2234
MO
NEW MODEL OUTLINE
\b\b\b
Fixed Seat60:40 Separate Seat Back 60:40 Separate Seat
\b
\b
Sedan Model Liftback and Wagon Model
CRS Tether Anchor Bracket
CRS ISO-FIX Bar CRS Tether Anchor Bracket
CRS ISO-FIX Bar
\b
\b
Sedan Model Liftback ModelGrocery Bag
Hook (Both Side)
Tie-down
Hook
Auxiliary Box
Tie-down
HookTool Box
Tie-down Hook Auxiliary Box Grocery Bag Hook (Both Side)
Tie-down
Hook
Tool Box Tie-down
HookAuxiliary
Box
MO-15

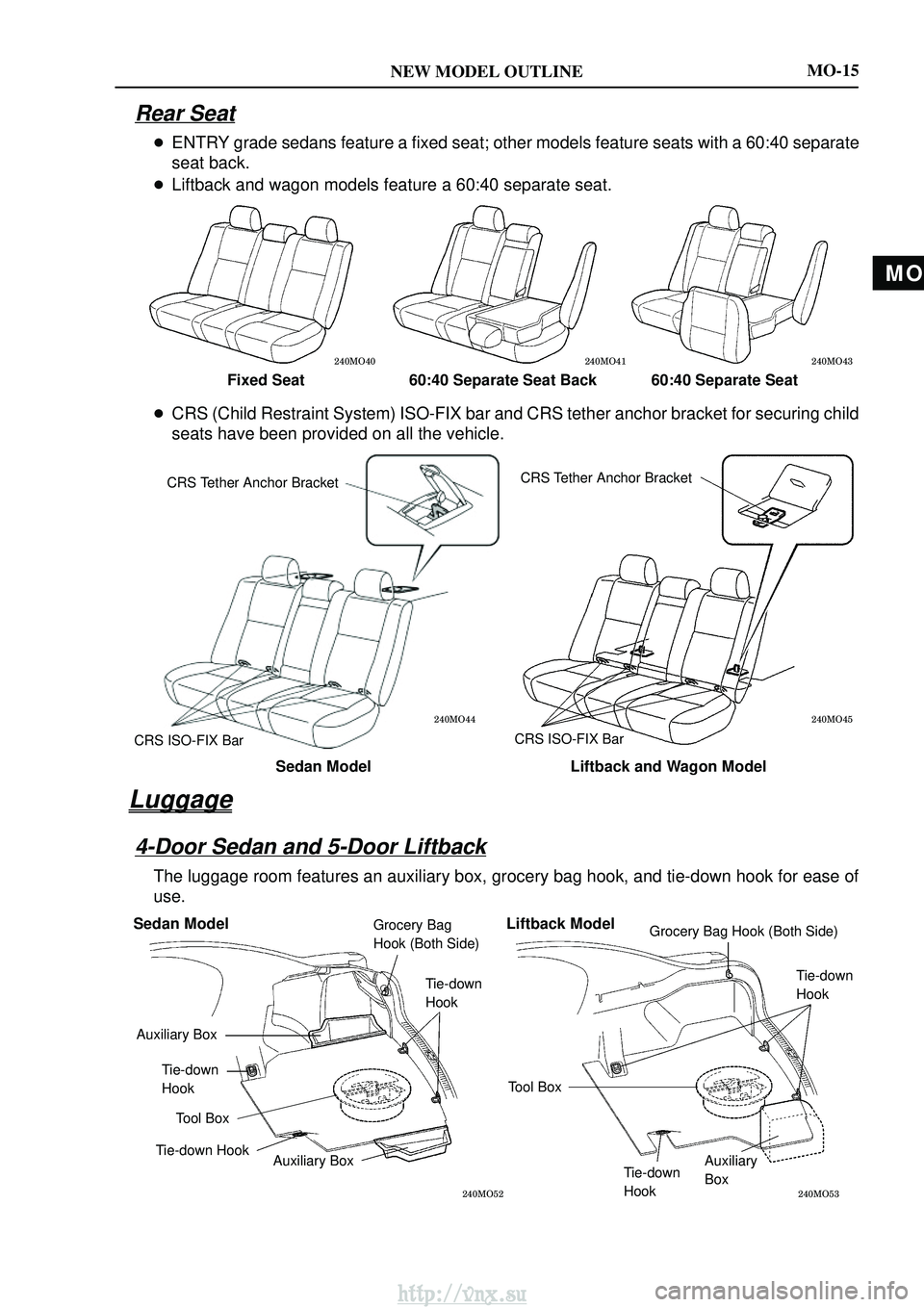

Rear Seat
ENTRY grade sedans feature a fixed seat; other models feature seats with a 6\
0:40 separate
seat back.
Liftback and wagon models feature a 60:40 separate seat.
CRS (Child Restraint System) ISO-FIX bar and CRS tether anchor bracket\
for securing child
seats have been provided on all the vehicle.
Luggage
4-Door Sedan and 5-Door Liftback
The luggage room features an auxiliary box, grocery bag hook, and tie-do\
wn hook for ease of
use.
http://vnx.su
Page 16 of 2234
MO
NEW MODEL OUTLINE
\b\b\b
Fixed Seat60:40 Separate Seat Back 60:40 Separate Seat
\b
\b
Sedan Model Liftback and Wagon Model
CRS Tether Anchor Bracket
CRS ISO-FIX Bar CRS Tether Anchor Bracket
CRS ISO-FIX Bar
\b
\b
Sedan Model Liftback ModelGrocery Bag
Hook (Both Side)
Tie-down
Hook
Auxiliary Box
Tie-down
HookTool Box
Tie-down Hook Auxiliary Box Grocery Bag Hook (Both Side)
Tie-down
Hook
Tool Box Tie-down
HookAuxiliary
Box
MO-15
Rear Seat
ENTRY grade sedans feature a fixed seat; other models feature seats with a 6\
0:40 separate
seat back.
Liftback and wagon models feature a 60:40 separate seat.
CRS (Child Restraint System) ISO-FIX bar and CRS tether anchor bracket\
for securing child
seats have been provided on all the vehicle.
Luggage
4-Door Sedan and 5-Door Liftback
The luggage room features an auxiliary box, grocery bag hook, and tie-do\
wn hook for ease of
use.
http://vnx.su
Page 17 of 2234
NEW MODEL OUTLINE
\b
Auxiliary BoxGrocery Bag Hook (Both Side)
Tie-down Hook Auxiliary Box Tie-down Hook Auxiliary Box
Tool Box
Deck Under Tray
Tie-down Hook (Right / Left)
CRS Tether
Anchor Bracket CRS Tether
Anchor Bracket
\b
\b
Deck board folded once Deck board folded twice
\b
\b
Luggage Cover
Separation Net When Stored
MO-16

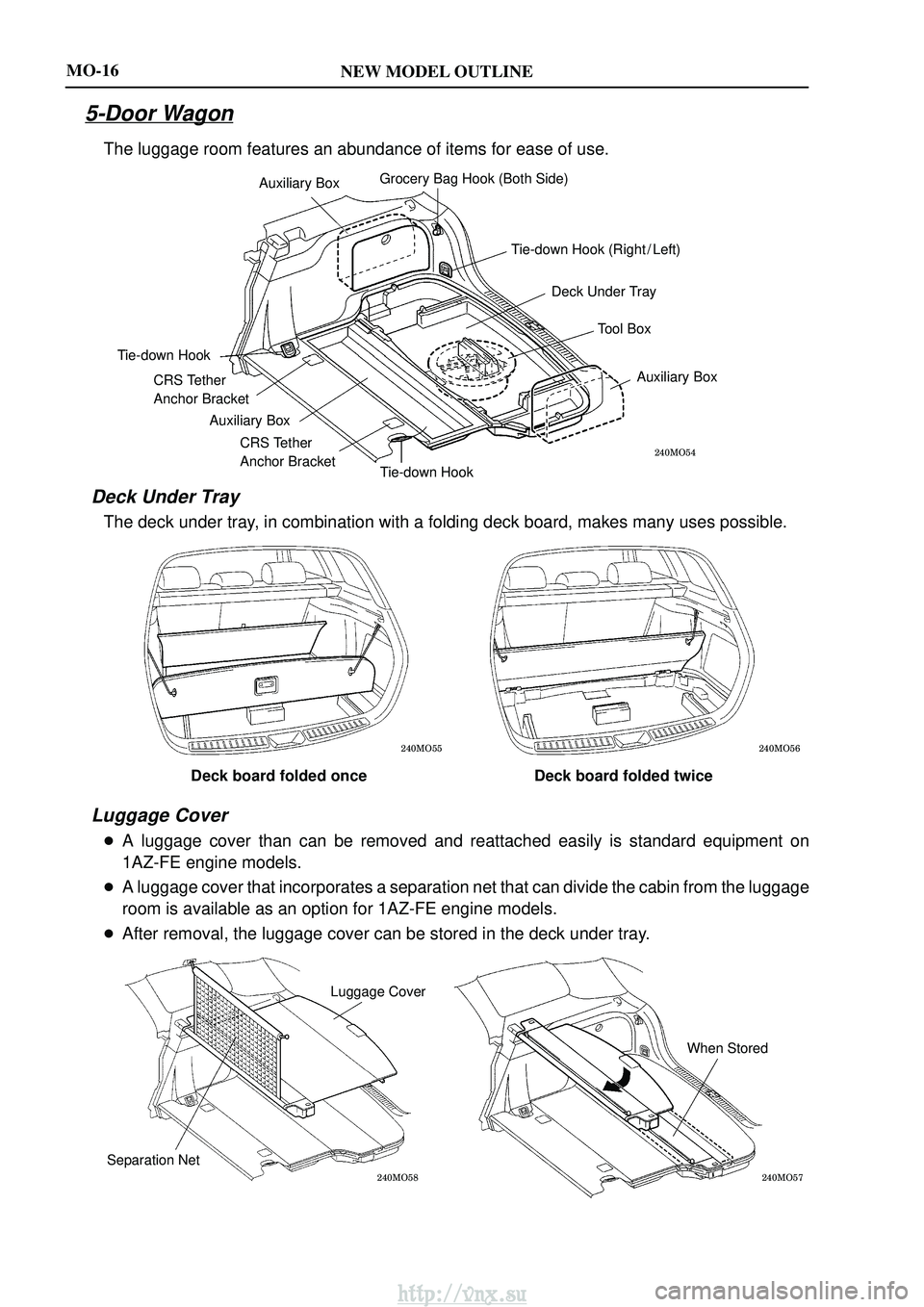

5-Door Wagon
The luggage room features an abundance of items for ease of use.
Deck Under Tray
The deck under tray, in combination with a folding deck board, makes many uses possible.
Luggage Cover
A luggage cover than can be removed and reattached easily is standard eq\
uipment on
1AZ-FE engine models.
A luggage cover that incorporates a separation net that can divide the c\
abin from the luggage
room is available as an option for 1AZ-FE engine models.
After removal, the luggage cover can be stored in the deck under tray.
http://vnx.su
Page 18 of 2234

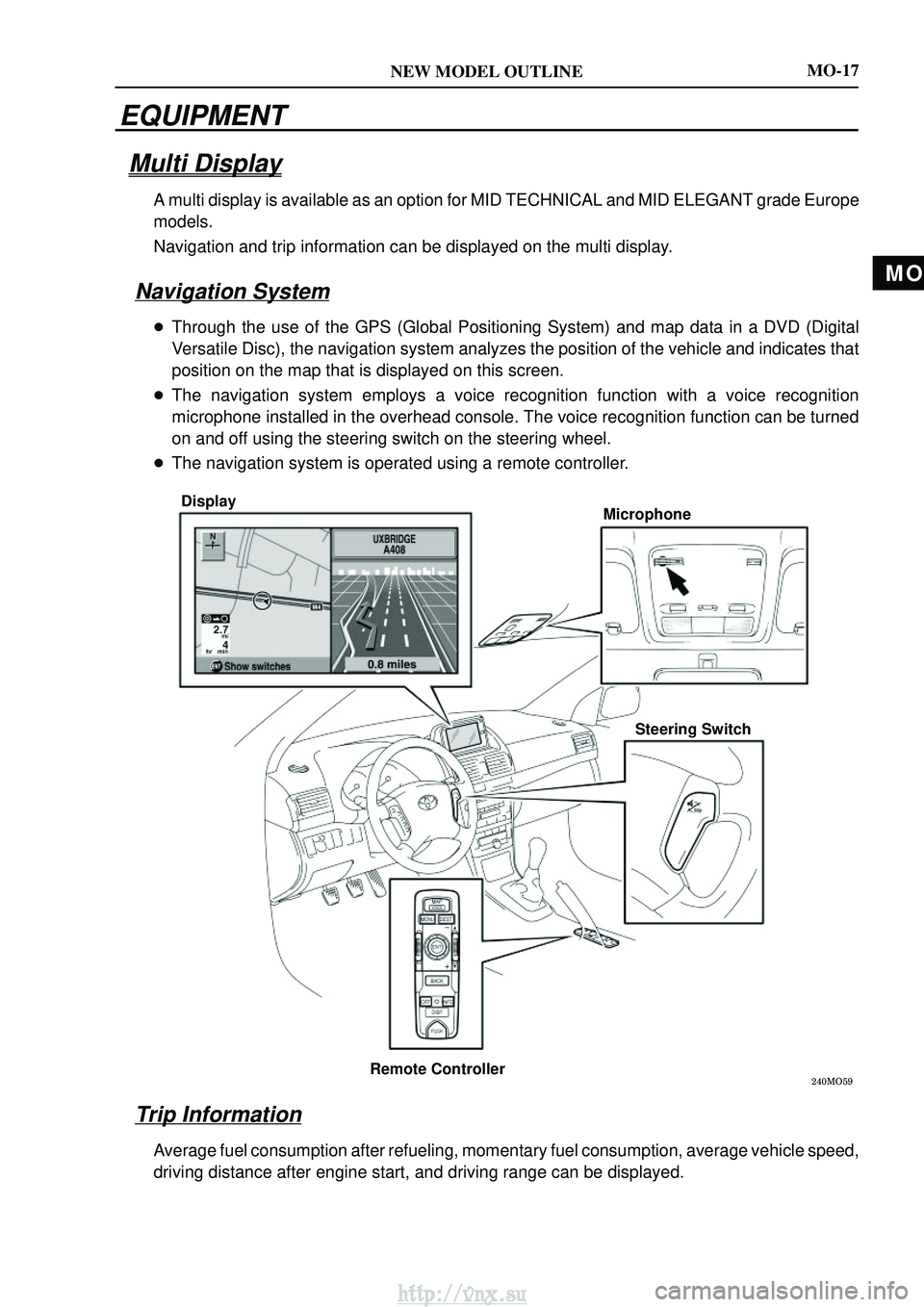

![TOYOTA AVENSIS 2003 Service User Guide MO
NEW MODEL OUTLINE
DisplayMicrophone
Steering Switch
Remote Controller
MO-17
EQUIPMENT
Multi Display
A multi display is available as an option for MID TECHNICAL and MID ELEG\
ANT grade Europ](/img/14/57444/w960_57444-17.png "TOYOTA AVENSIS 2003 Service User Guide MO
NEW MODEL OUTLINE
DisplayMicrophone
Steering Switch
Remote Controller
MO-17
EQUIPMENT
Multi Display
A multi display is available as an option for MID TECHNICAL and MID ELEG\
ANT grade Europ")
MO
NEW MODEL OUTLINE
DisplayMicrophone
Steering Switch
Remote Controller
MO-17
EQUIPMENT
Multi Display
A multi display is available as an option for MID TECHNICAL and MID ELEG\
ANT grade Europe
models.
Navigation and trip information can be displayed on the multi display.
Navigation System
Through the use of the GPS (Global Positioning System) and map data in a DVD \
(Digital
Versatile Disc), the navigation system analyzes the position of the vehi\
cle and indicates that
position on the map that is displayed on this screen.
The navigation system employs a voice recognition function with a voice \
recognition
microphone installed in the overhead console. The voice recognition function can b\
e turned
on and off using the steering switch on the steering wheel.
The navigation system is operated using a remote controller.
Trip Information
Average fuel consumption after refueling, momentary fuel consumption, ave\
rage vehicle speed,
driving distance after engine start, and driving range can be displayed.\
http://vnx.su
Page 19 of 2234
NEW MODEL OUTLINE
\b
Original WaveEmphasized Wave
By old technology No distortion
Original
Wave
Emphasized Wave
By new technology
MO-18

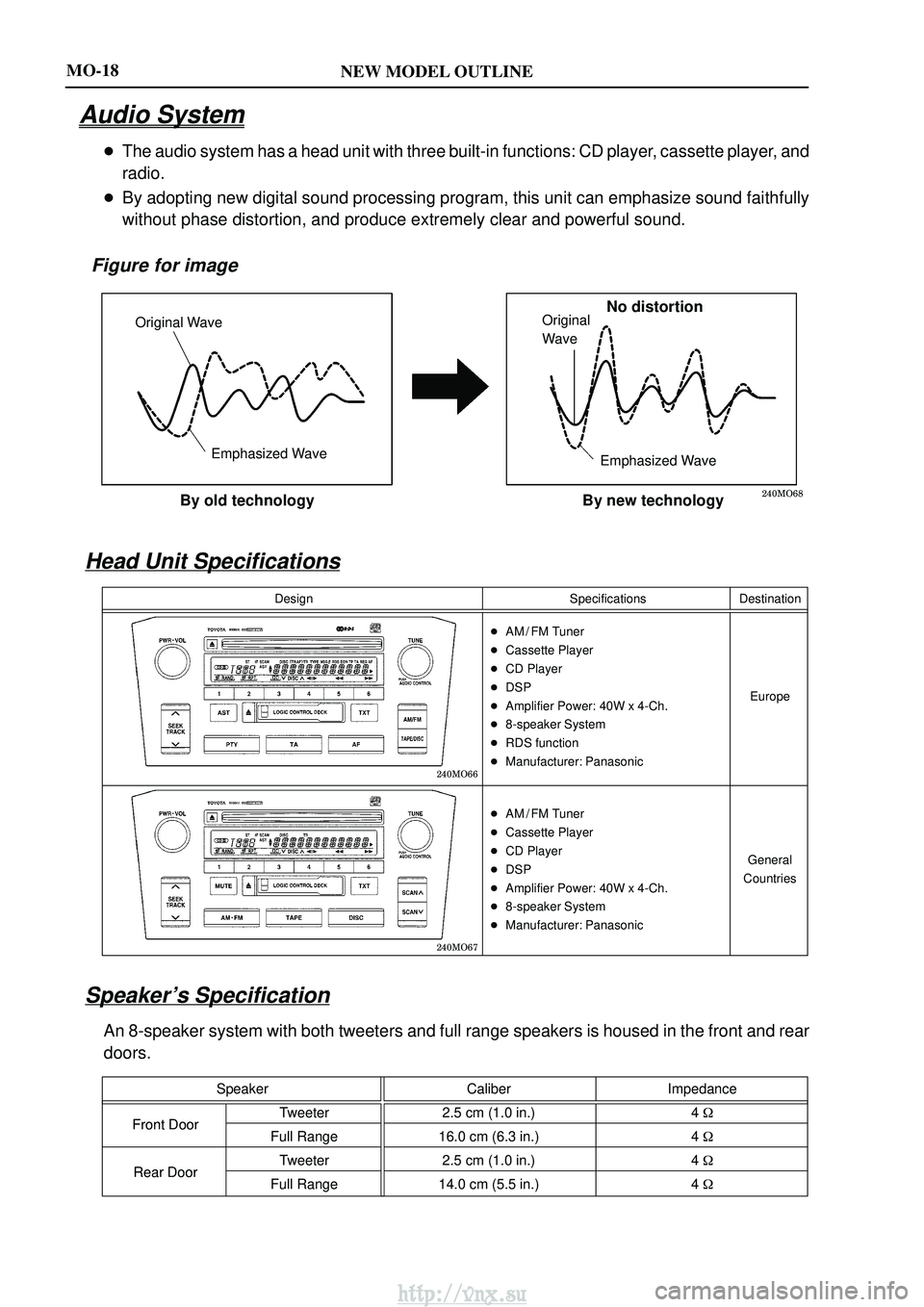

Audio System
The audio system has a head unit with three built-in functions: CD playe\
r, cassette player, and
radio.
By adopting new digital sound processing program, this unit can emphasiz\
e sound faithfully
without phase distortion, and produce extremely clear and powerful sound\
.
Figure for image
Head Unit Specifications
Design SpecificationsDestination
\b
AM / FM Tuner
Cassette Player
CD Player
DSP
Amplifier Power: 40W x 4-Ch.
8-speaker System
RDS function
Manufacturer: Panasonic Europe
\b
AM / FM Tuner
Cassette Player
CD Player
DSP
Amplifier Power: 40W x 4-Ch.
8-speaker System
Manufacturer: Panasonic General
Countries
Speaker's Specification
An 8-speaker system with both tweeters and full range speakers is housed\
in the front and rear
doors.
Speaker CaliberImpedance
Front DoorTweeter2.5 cm (1.0 in.) 4 Front DoorFull Range 16.0 cm (6.3 in.) 4
Rear DoorTweeter 2.5 cm (1.0 in.) 4 Rear DoorFull Range 14.0 cm (5.5 in.) 4
http://vnx.su
Page 20 of 2234
MO
NEW MODEL OUTLINE
\b
\b \b
Front TweeterFront Door Speaker
Glass Antenna
Rear TweeterRear Door Speaker
Front Door Speaker
Rear Tweeter
Rear Door Speaker
Sedan Model
Glass Antenna
Liftback Model
Wagon Model
Glass Antenna
\b
MO-19

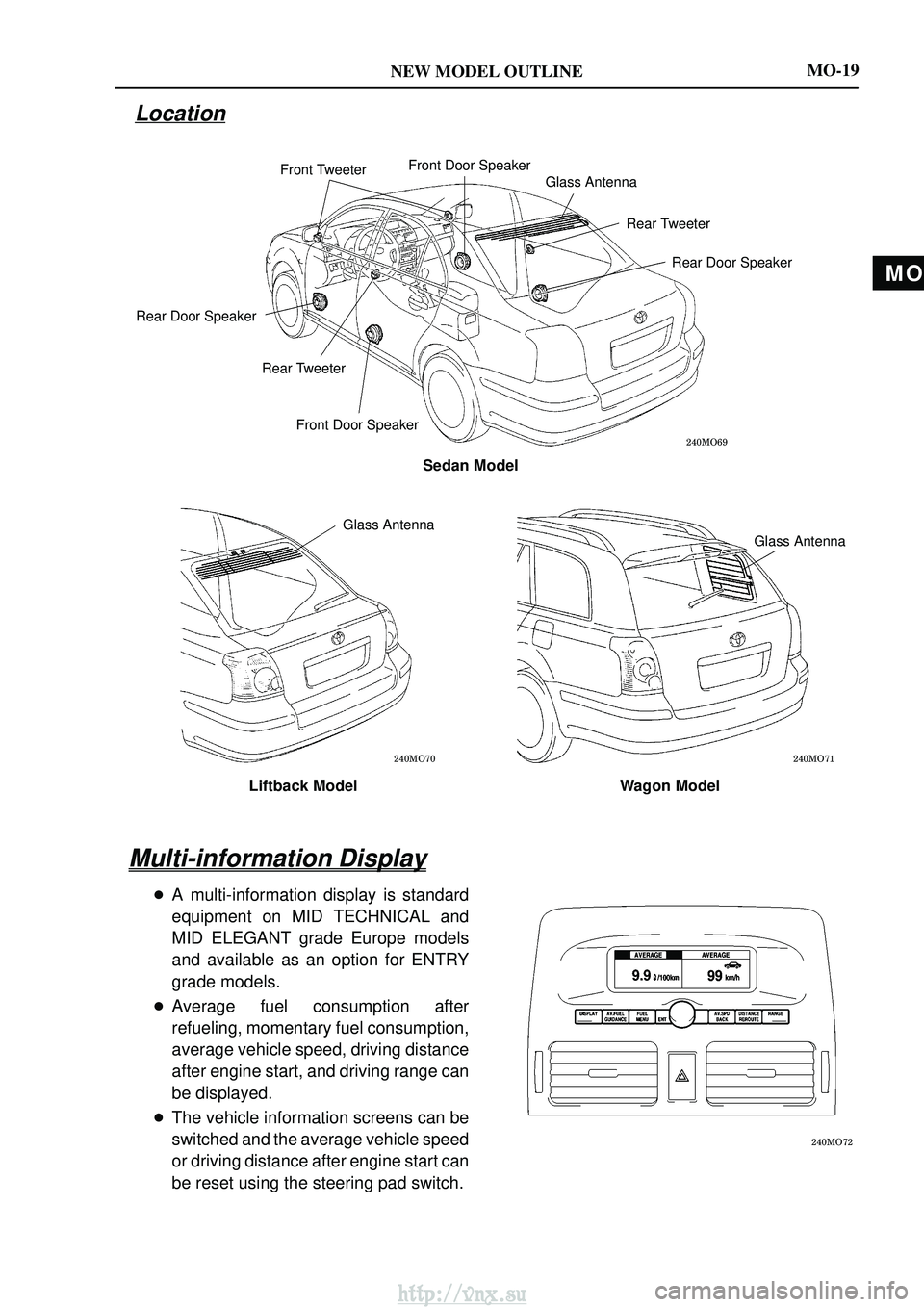

Location
Multi-information Display
A multi-information display is standard
equipment on MID TECHNICAL and
MID ELEGANT grade Europe models
and available as an option for ENTRY
grade models.
Average fuel consumption after
refueling, momentary fuel consumption,
average vehicle speed, driving distance
after engine start, and driving range can
be displayed.
The vehicle information screens can be
switched and the average vehicle speed
or driving distance after engine start can
be reset using the steering pad switch.
