Page 21 of 2234
MO
NEW MODEL OUTLINE
\b
\b \b
Front TweeterFront Door Speaker
Glass Antenna
Rear TweeterRear Door Speaker
Front Door Speaker
Rear Tweeter
Rear Door Speaker
Sedan Model
Glass Antenna
Liftback Model
Wagon Model
Glass Antenna
\b
MO-19

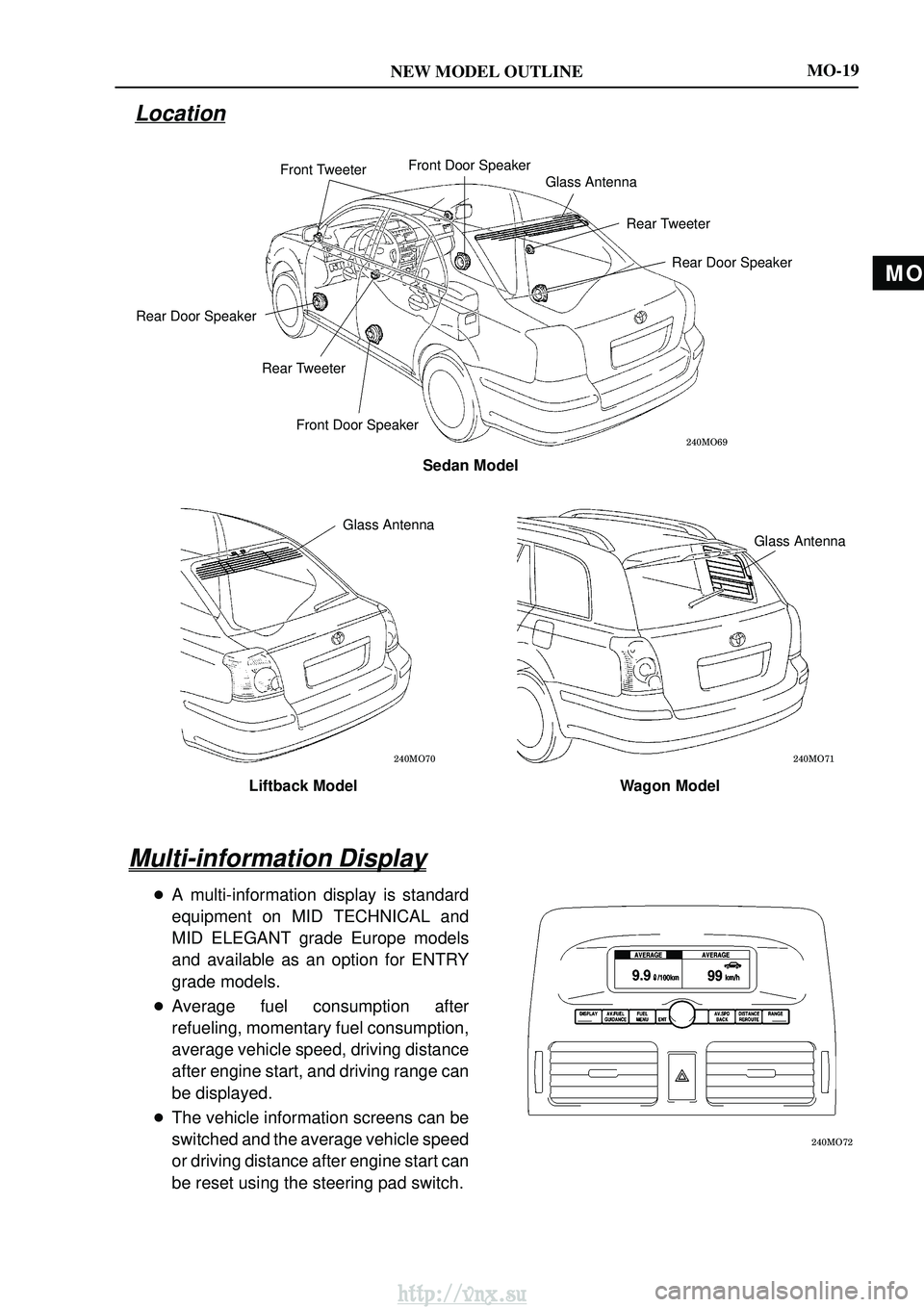

Location
Multi-information Display
A multi-information display is standard
equipment on MID TECHNICAL and
MID ELEGANT grade Europe models
and available as an option for ENTRY
grade models.
Average fuel consumption after
refueling, momentary fuel consumption,
average vehicle speed, driving distance
after engine start, and driving range can
be displayed.
The vehicle information screens can be
switched and the average vehicle speed
or driving distance after engine start can
be reset using the steering pad switch.
http://vnx.su
Page 22 of 2234
NEW MODEL OUTLINE
\b
\b
Manual Air Conditioner Control Panel
for LHD model Automatic Air Conditioner Control Panel
for LHD model
\b
Automatic Air Conditioner Control Panel
Driver Side
Temperature Front Passenger
Side Temperature
When BI-level Mode
Warm Air
Cold Air
\b
Air warmed by the evaporator
Heat released by the evaporator
Blower Air Heater Core
Compressor
Hot Gas Tank
Magnet Valve Refrigerant
Aaccumulator Tank
Condenserr Expansion Valve
MO-20

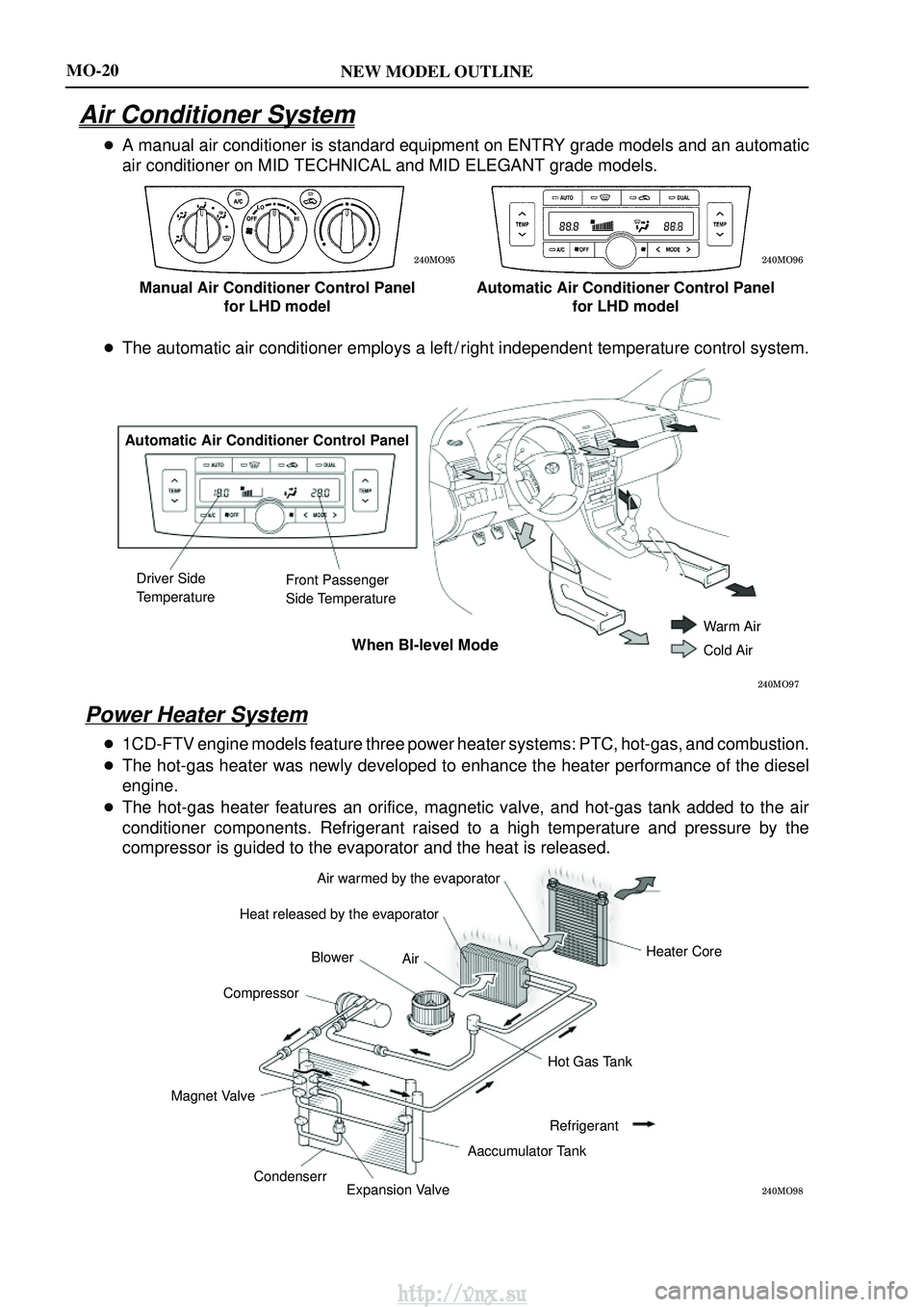

Air Conditioner System
A manual air conditioner is standard equipment on ENTRY grade models and an automatic
air conditioner on MID TECHNICAL and MID ELEGANT grade models.
The automatic air conditioner employs a left / right independent temperature control system.
Power Heater System
1CD-FTV engine models feature three power heater systems: PTC, hot-gas, \
and combustion.
The hot-gas heater was newly developed to enhance the heater performance\
of the diesel
engine.
The hot-gas heater features an orifice, magnetic valve, and hot-gas tank\
added to the air
conditioner components. Refrigerant raised to a high temperature and pressure by th\
e
compressor is guided to the evaporator and the heat is released.
http://vnx.su
Page 23 of 2234
MO
NEW MODEL OUTLINE
\b
\b
\b
\b
Windshield
Glass Front Door
Glass Back Window
Glass
Rear Door
Glass
Sedan Model
Rear Door
Glass
Back Door
Glass
Liftback Model
Rear Quarter Glass
(OPT: Privacy Glass) Back Door Glass
(OPT: Privacy Glass)
Rear Door Glass
(OPT: Privacy Glass)
Wagon Model
MO-21

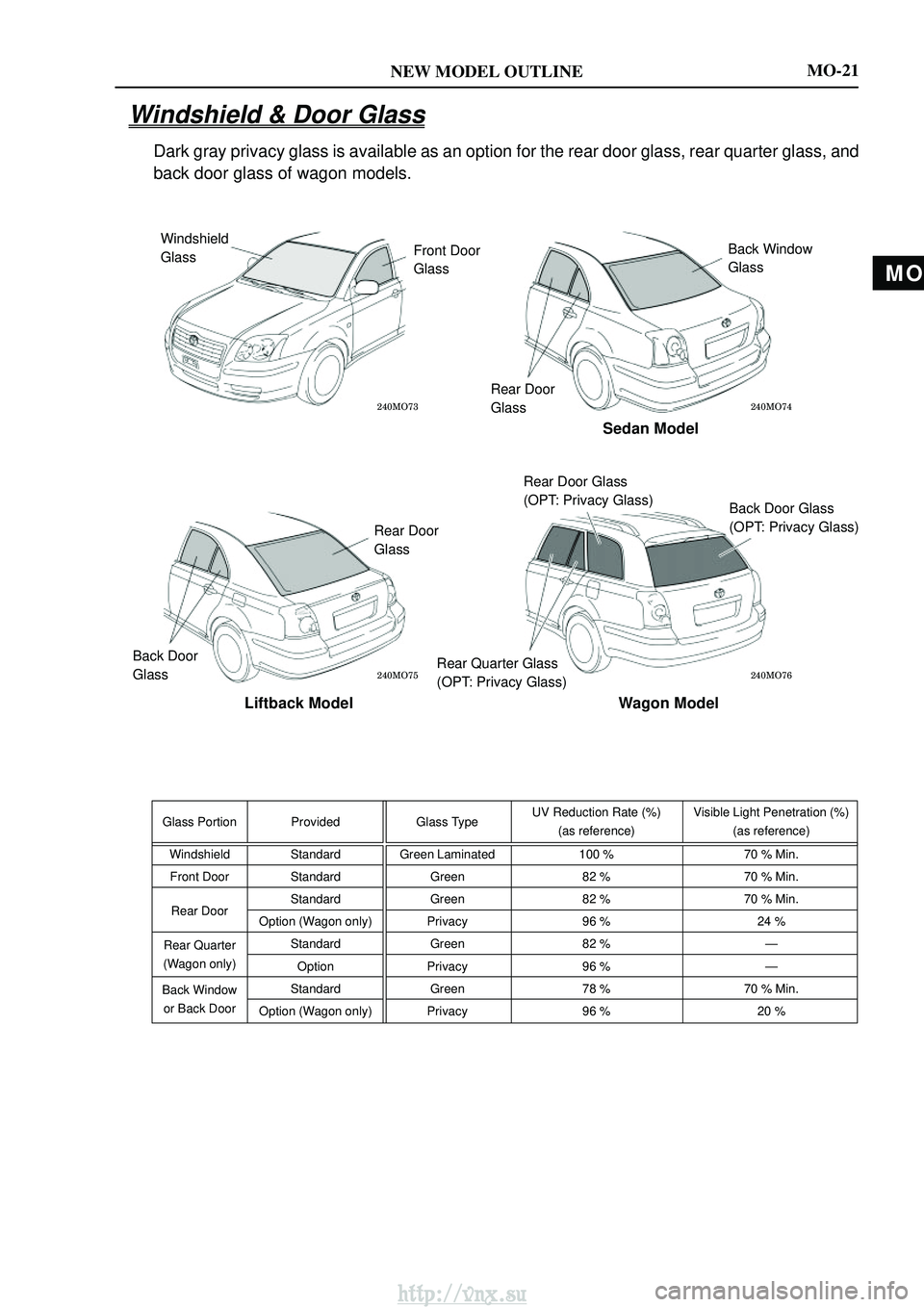

Windshield & Door Glass
Dark gray privacy glass is available as an option for the rear door glas\
s, rear quarter glass, and
back door glass of wagon models.
Glass Portion Provided
Glass TypeUV Reduction Rate (%)
(as reference) Visible Light Penetration (%)
(as reference)
Windshield Standard Green Laminated 100 %70 % Min.
Front Door Standard Green82 % 70 % Min.
Rear DoorStandardGreen 82 % 70 % Min.Rear DoorOption (Wagon only) Privacy 96 %24 %
Rear Quarter Standard
Green 82 % Ð
(Wagon only) OptionPrivacy 96 % Ð
Back Window Standard
Green 78 % 70 % Min.
or Back Door Option (Wagon only) Privacy 96 %20 %
http://vnx.su
Page 24 of 2234
![TOYOTA AVENSIS 2003 Service Owners Manual NEW MODEL OUTLINE
\b
\b
Sedan Model Liftback Model
\b
MO-22
Rear Sunshade
A hand-operated rear sun shade is available as an option for Europe sedans and liftback \
models
and is stan](/img/14/57444/w960_57444-23.png "TOYOTA AVENSIS 2003 Service Owners Manual NEW MODEL OUTLINE
\b
\b
Sedan Model Liftback Model
\b
MO-22
Rear Sunshade
A hand-operated rear sun shade is available as an option for Europe sedans and liftback \
models
and is stan")
NEW MODEL OUTLINE
\b
\b
Sedan Model Liftback Model
\b
MO-22

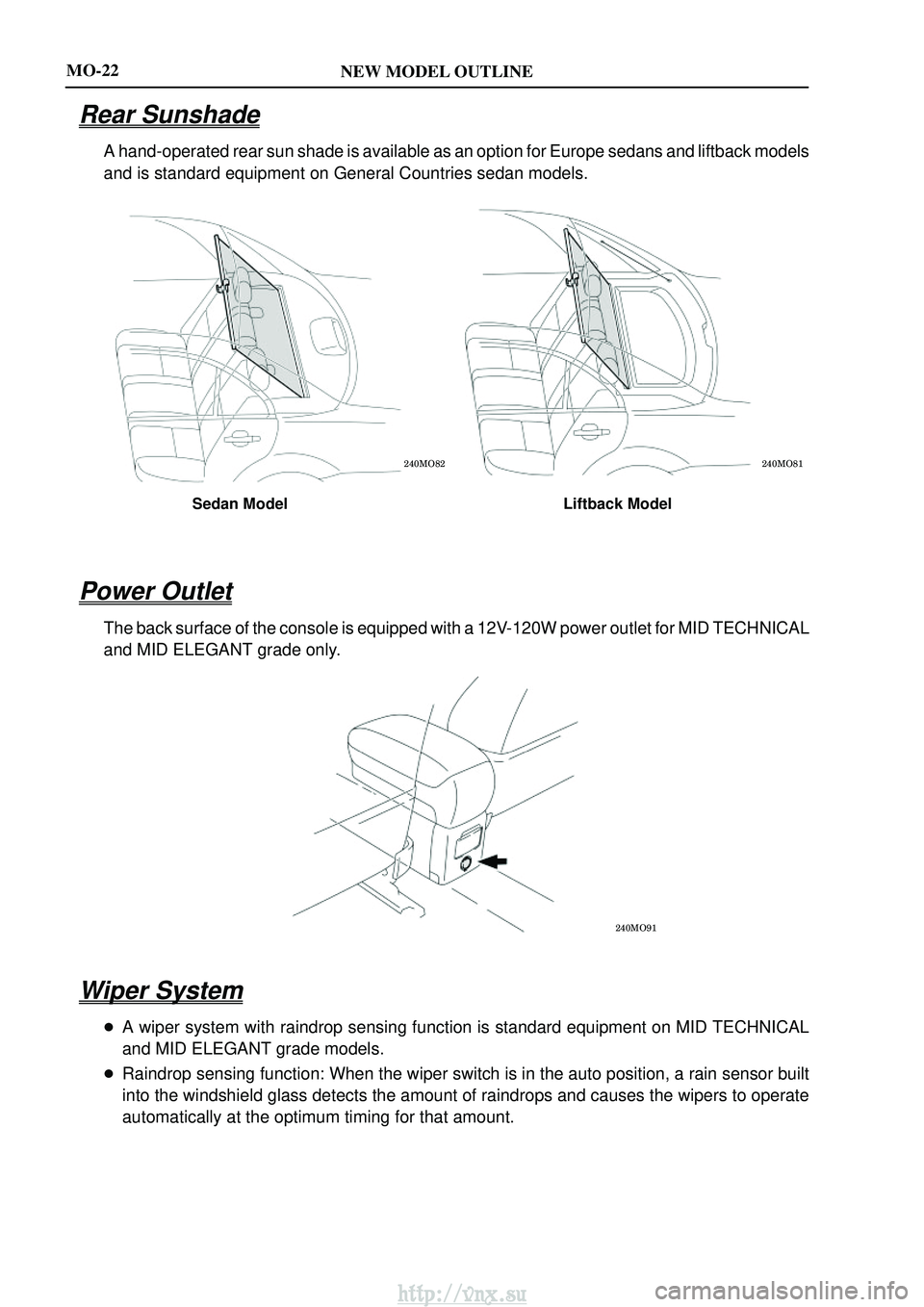

Rear Sunshade
A hand-operated rear sun shade is available as an option for Europe sedans and liftback \
models
and is standard equipment on General Countries sedan models.
Power Outlet
The back surface of the console is equipped with a 12V-120W power outlet for MID TECHNICAL
and MID ELEGANT grade only.
Wiper System
A wiper system with raindrop sensing function is standard equipment on MID TECHNICAL
and MID ELEGANT grade models.
Raindrop sensing function: When the wiper switch is in the auto position, a rain sensor b\
uilt
into the windshield glass detects the amount of raindrops and causes the\
wipers to operate
automatically at the optimum timing for that amount.
http://vnx.su
Page 25 of 2234
MO
NEW MODEL OUTLINE

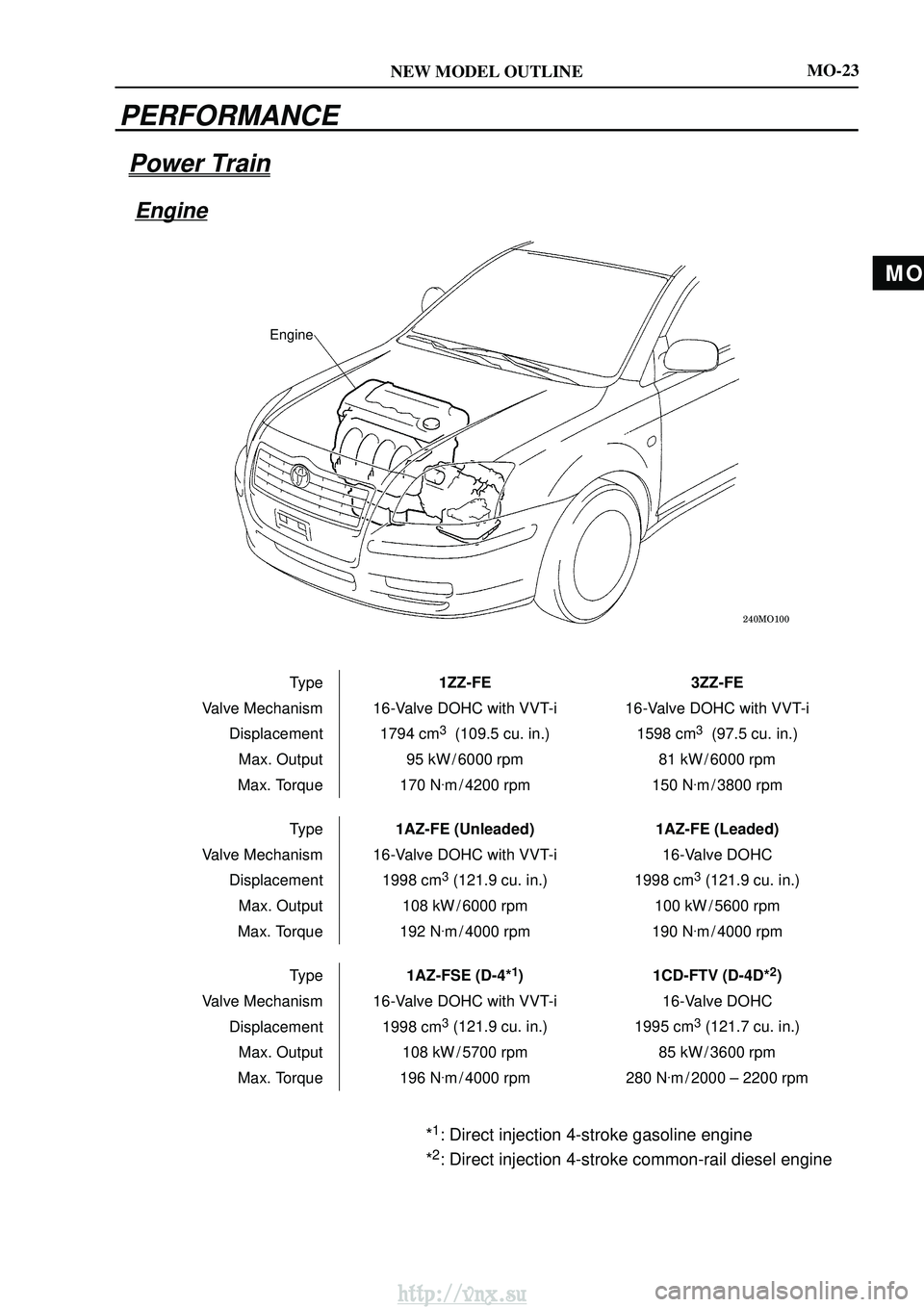

Engine
MO-23
PERFORMANCE
Power Train
Engine
Type1ZZ-FE3ZZ-FE
Valve Mechanism 16-Valve DOHC with VVT-i
16-Valve DOHC with VVT-i
Displacement 1794 cm
3 (109.5 cu. in.)1598 cm3 (97.5 cu. in.)
Max. Output 95 kW / 6000 rpm
81 kW / 6000 rpm
Max. Torque 170 N
.m / 4200 rpm150 N.m / 3800 rpm
Type 1AZ-FE (Unleaded)
1AZ-FE (Leaded)
Valve Mechanism 16-Valve DOHC with VVT-i
16-Valve DOHC
Displacement 1998 cm
3 (121.9 cu. in.)1998 cm3 (121.9 cu. in.)
Max. Output 108 kW / 6000 rpm
100 kW / 5600 rpm
Max. Torque 192 N
.m / 4000 rpm190 N.m / 4000 rpm
Type 1AZ-FSE (D-4*
1)1CD-FTV (D-4D*2)
Valve Mechanism 16-Valve DOHC with VVT-i
16-Valve DOHC
Displacement 1998 cm
3 (121.9 cu. in.)1995 cm3 (121.7 cu. in.)
Max. Output 108 kW / 5700 rpm
85 kW / 3600 rpm
Max. Torque 196 N
.m / 4000 rpm280 N.m / 2000 ± 2200 rpm
*1: Direct injection 4-stroke gasoline engine
*
2: Direct injection 4-stroke common-rail diesel engine
http://vnx.su
Page 26 of 2234
NEW MODEL OUTLINE

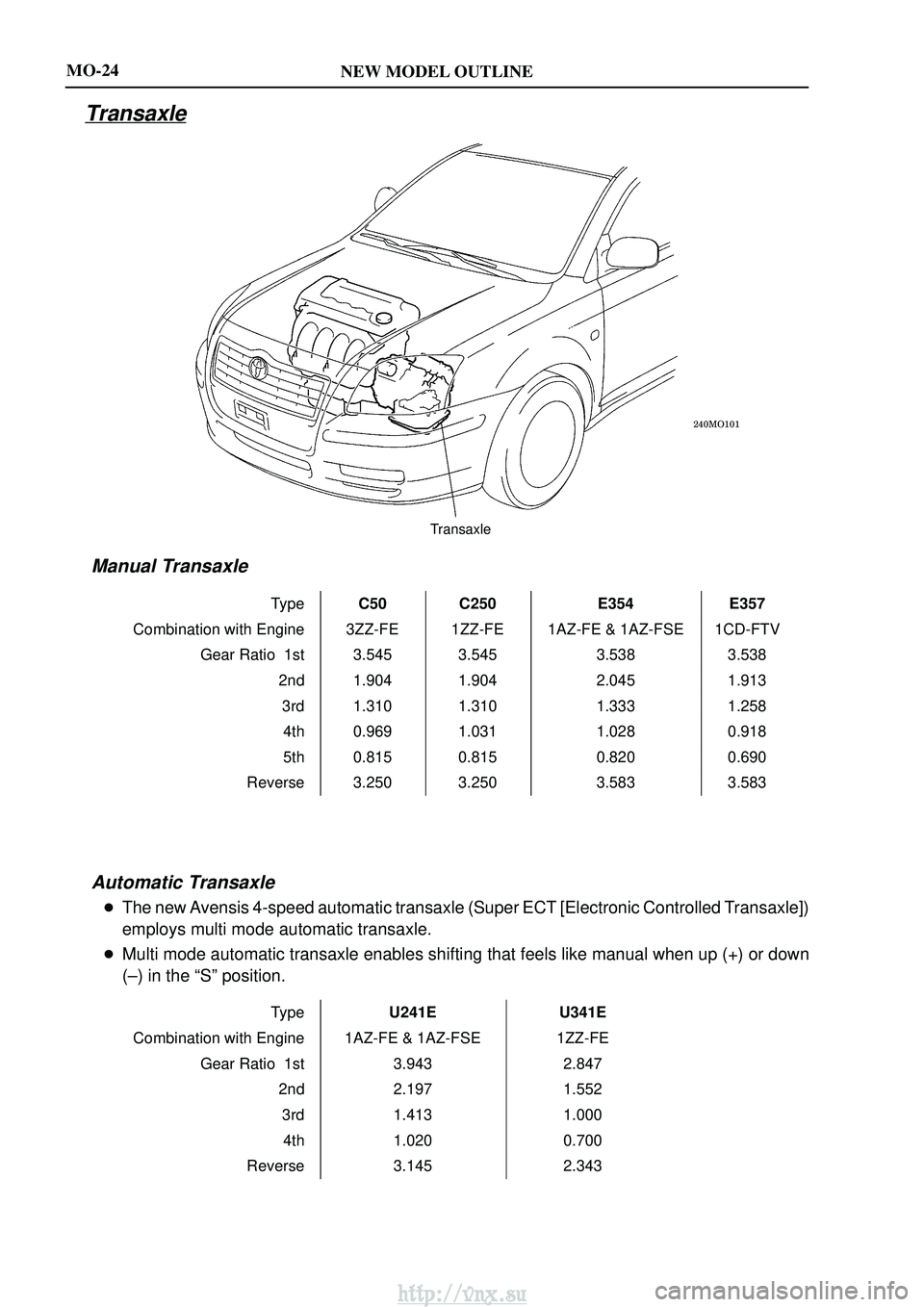

Transaxle
MO-24
Transaxle
Manual Transaxle
TypeC50C250E354E357
Combination with Engine 3ZZ-FE1ZZ-FE1AZ-FE & 1AZ-FSE1CD-FTV
Gear Ratio 1st 3.5453.5453.5383.538
2nd 1.9041.9042.0451.913
3rd 1.3101.3101.3331.258
4th 0.9691.0311.0280.918
5th 0.8150.8150.8200.690
Reverse 3.2503.2503.5833.583
Automatic Transaxle
The new Avensis 4-speed automatic transaxle (Super ECT [Electronic Controlled Transaxle])
employs multi mode automatic transaxle.
Multi mode automatic transaxle enables shifting that feels like manual w\
hen up (+) or down
(±) in the ªSº position.
Type U241EU341E
Combination with Engine 1AZ-FE & 1AZ-FSE1ZZ-FE
Gear Ratio 1st 3.9432.847
2nd2.1971.552
3rd1.4131.000
4th1.0200.700
Reverse 3.1452.343
http://vnx.su
Page 27 of 2234
MO
NEW MODEL OUTLINE
EPS Model
MO-25

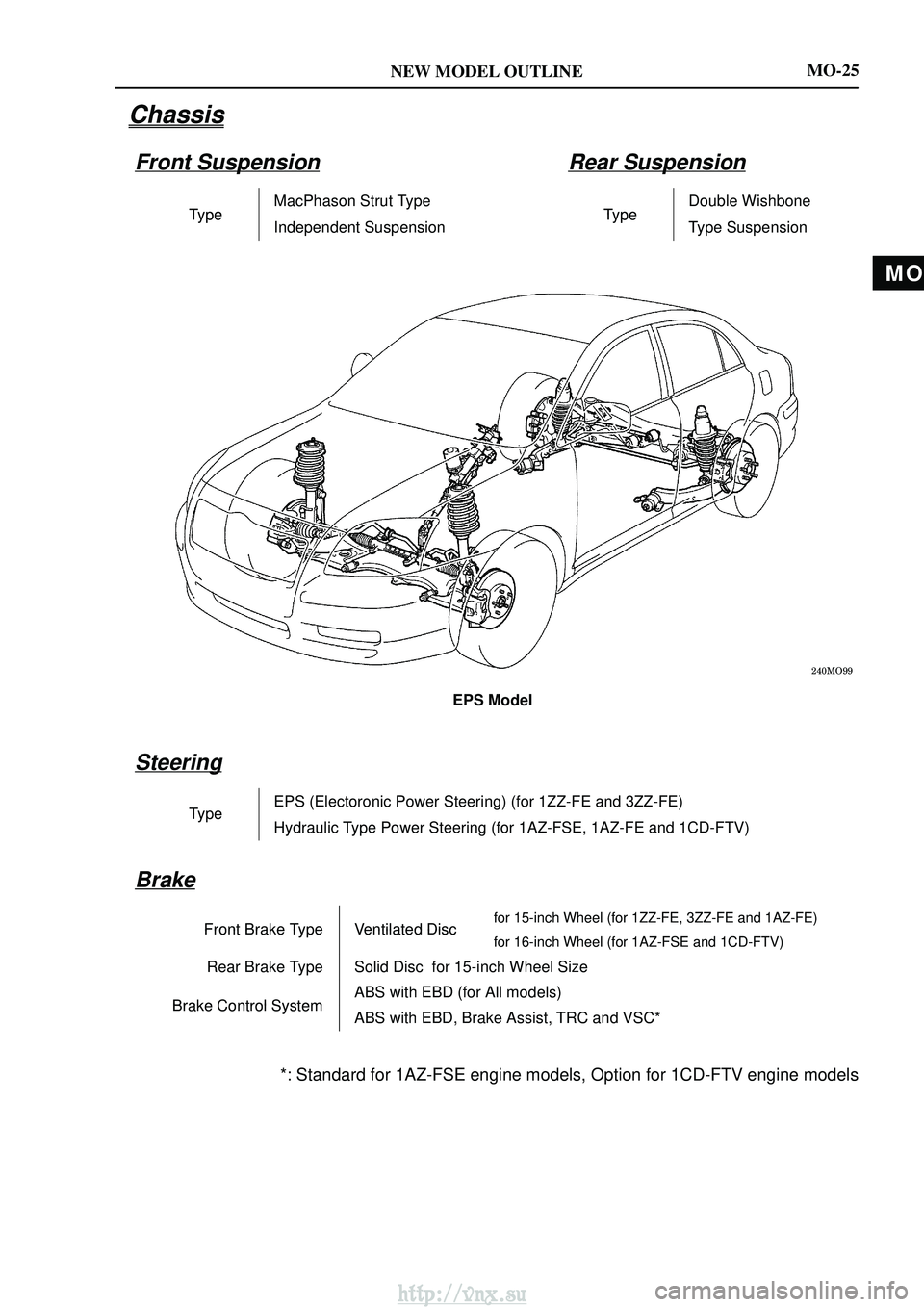

Chassis
Front SuspensionRear Suspension
TypeMacPhason Strut TypeTypeDouble WishboneTypeIndependent SuspensionTypeType Suspension
Steering
TypeEPS (Electoronic Power Steering) (for 1ZZ-FE and 3ZZ-FE)Ty eHydraulic Type Power Steering (for 1AZ-FSE, 1AZ-FE and 1CD-FTV)
Brake
Front Brake TypeVentilated Discfor 15-inch Wheel (for 1ZZ-FE, 3ZZ-FE and 1AZ-FE)Front Brake Ty eVentilated Discfor 16-inch Wheel (for 1AZ-FSE and 1CD-FTV)
Rear Brake Type Solid Disc for 15-inch Wheel Size
Brake Control SystemABS with EBD (for All models)Brake Control SystemABS with EBD, Brake Assist, TRC and VSC*
*: Standard for 1AZ-FSE engine models, Option for 1CD-FTV engine models
http://vnx.su
Page 28 of 2234
NEW MODEL OUTLINE
SRS Airbag
SRS Knee Airbag
SRS Curtain Shield Airbag SRS Side Airbag
MO-26
SAFETY

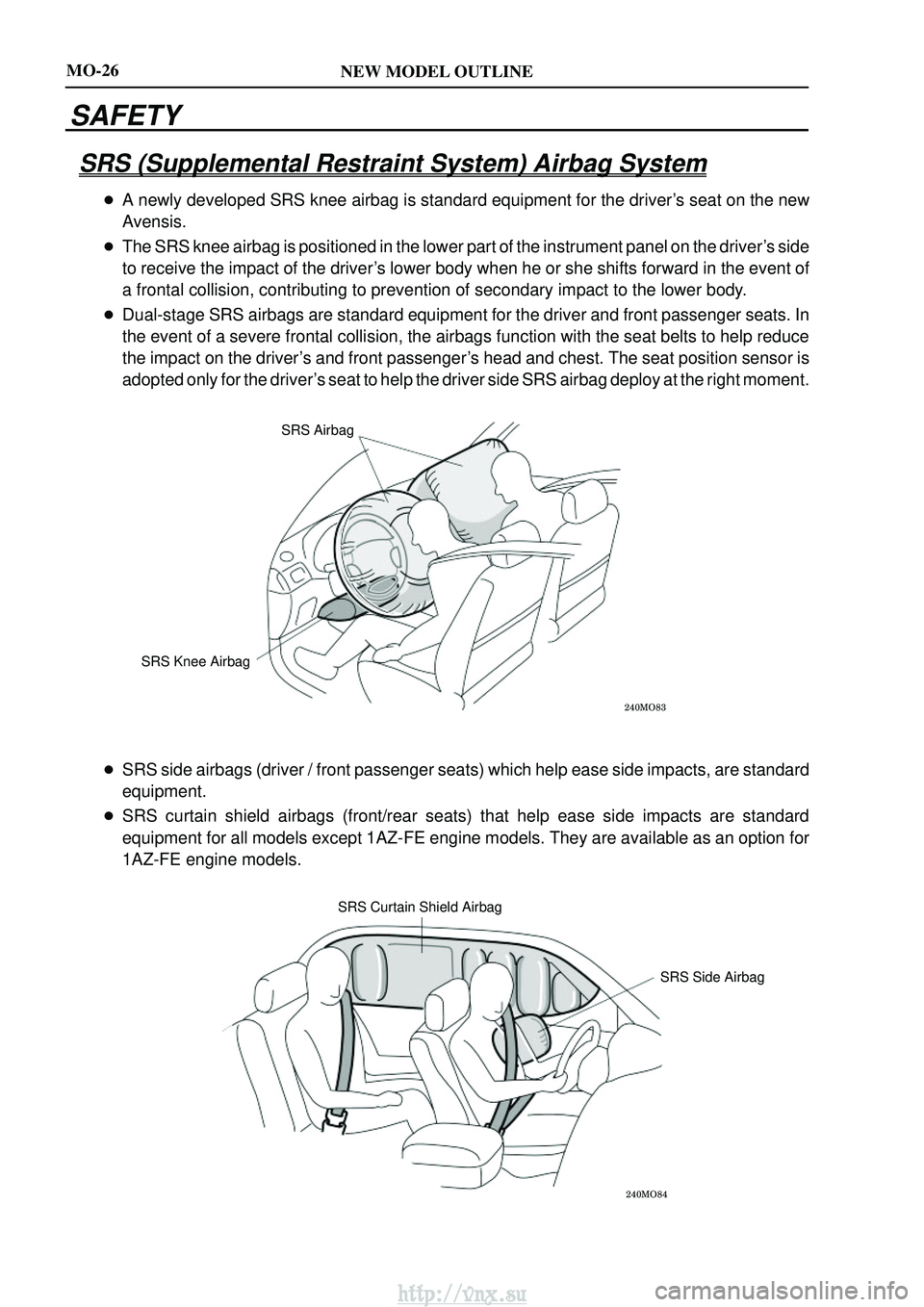

SRS (Supplemental Restraint System) Airbag System
A newly developed SRS knee airbag is standard equipment for the driver's seat on the new
Avensis.
The SRS knee airbag is positioned in the lower part of the instrument pa\
nel on the driver's side
to receive the impact of the driver's lower body when he or she shifts forward in the event of
a frontal collision, contributing to prevention of secondary impact to t\
he lower body.
Dual-stage SRS airbags are standard equipment for the driver and front p\
assenger seats. In
the event of a severe frontal collision, the airbags function with the s\
eat belts to help reduce
the impact on the driver's and front passenger's head and chest. The seat position sensor is
adopted only for the driver's seat to help the driver side SRS airbag deploy at the right moment.
SRS side airbags (driver / front passenger seats) which help ease side\
impacts, are standard
equipment.
SRS curtain shield airbags (front/rear seats) that help ease side impa\
cts are standard
equipment for all models except 1AZ-FE engine models. They are available as an op\
tion for
1AZ-FE engine models.
http://vnx.su
Page 29 of 2234
MO
NEW MODEL OUTLINE
mm (in.)
2700 14801760
Front: 1505*
1, 1515*2
Rear: 1500*1, 1515*2
910 1025
270014801760
910 1025 Front: 1505*1, 1515*2
Rear: 1500*1, 1515*2
270015251760
910 1095 Front: 1505*1, 1515*2
Rear: 1500*1, 1515*2
*1: 16 in. or 17 in.Tire
*2: 15 in. Tire
MO-27

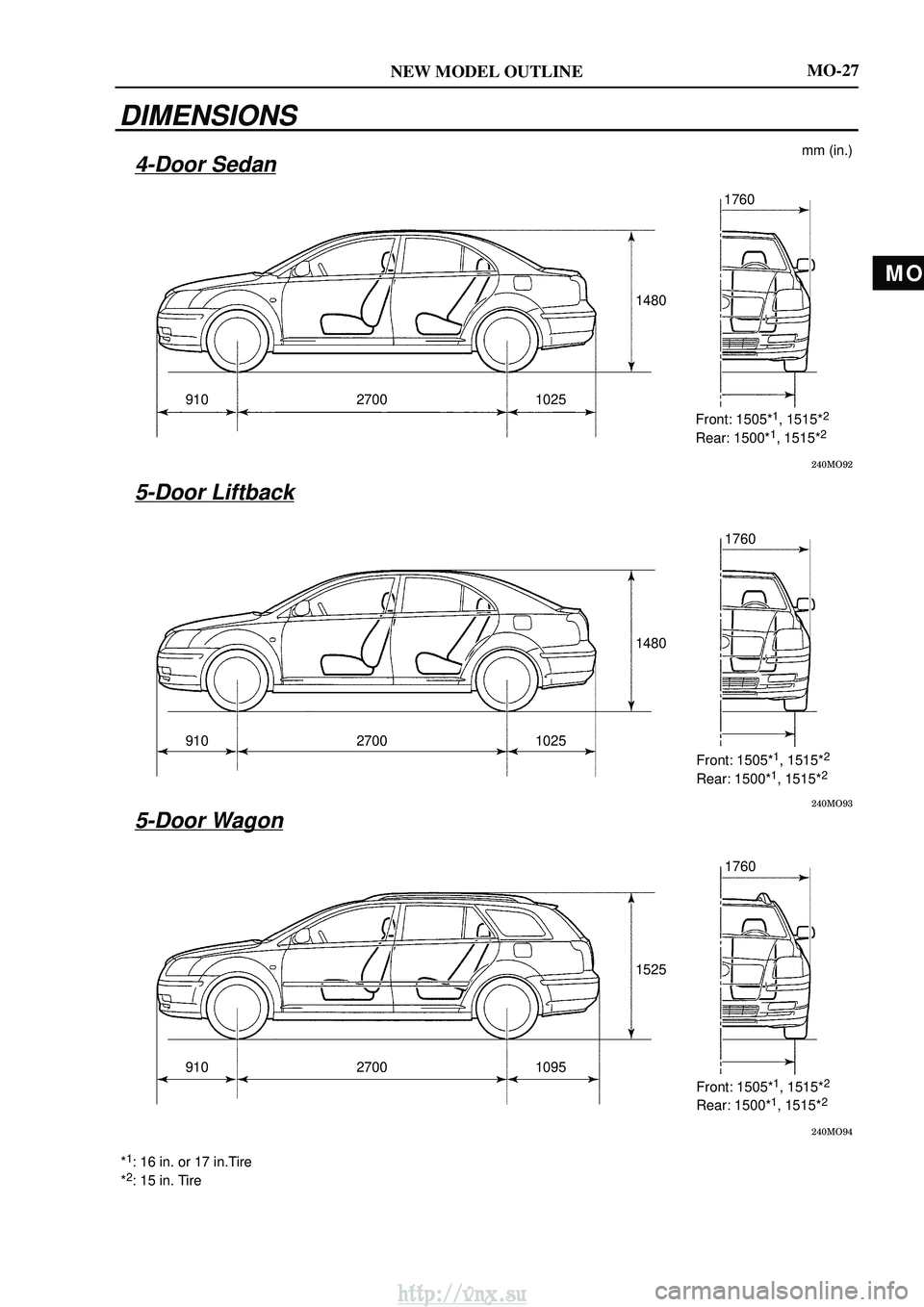

DIMENSIONS
4-Door Sedan
5-Door Liftback
5-Door Wagon
http://vnx.su
Page 30 of 2234
NEW MODEL OUTLINEMO-28

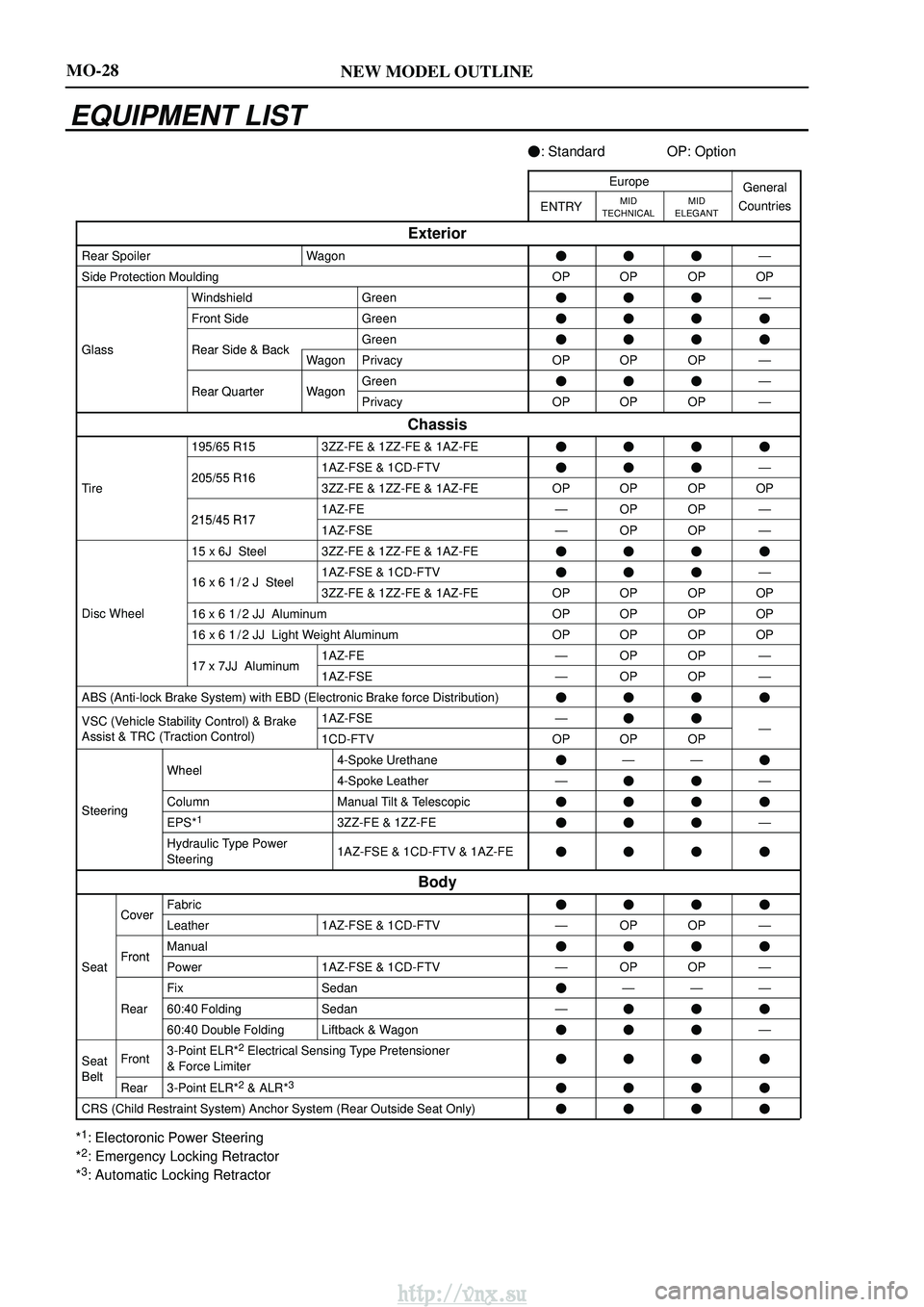

EQUIPMENT LIST
: Standard OP: Option
EuropeGeneral
ENTRYMID
TECHNICALMID
ELEGANTGeneral
Countries
Exterior
Rear SpoilerWagonÐ
Side Protection MouldingOPOPOPOP
WindshieldGreenÐ
Front SideGreen
GlassRear Side & BackGreenGlassRear Side & BackWagonPrivacyOPOPOPÐ
Rear QuarterWagonGreenÐRear QuarterWagonPrivacyOPOPOPÐ
Chassis
195/65 R153ZZ-FE & 1ZZ-FE & 1AZ-FE
205/55 R161AZ-FSE & 1CD-FTVÐ
Tire205/55 R163ZZ-FE & 1ZZ-FE & 1AZ-FEOPOPOPOP
215/45 R171AZ-FEÐOPOPÐ215/45 R171AZ-FSEÐOPOPÐ
15 x 6J Steel3ZZ-FE & 1ZZ-FE & 1AZ-FE
16x61/2J Steel1AZ-FSE & 1CD-FTVÐ16 x 6 1/2 J Steel3ZZ-FE & 1ZZ-FE & 1AZ-FEOPOPOPOP
Disc Wheel16 x 6 1 / 2 JJ AluminumOPOPOPOP
16 x 6 1 / 2 JJ Light Weight AluminumOPOPOPOP
17 x 7JJ Aluminum1AZ-FEÐOPOPÐ17 x 7JJ Aluminum1AZ-FSEÐOPOPÐ
ABS (Anti-lock Brake System) with EBD (Electronic Brake force Distrib\
ution)
VSC (Vehicle Stability Control) & Brake1AZ-FSEÐ(y)Assist & TRC (Traction Control)1CD-FTVOPOPOPÐ
Wheel4-Spoke UrethaneÐÐWheel4-Spoke LeatherÐÐ
SteeringColumnManual Tilt & TelescopicSteeringEPS*13ZZ-FE & 1ZZ-FEÐ
Hydraulic Type Power
Steering1AZ-FSE & 1CD-FTV & 1AZ-FE
Body
CoverFabricCoverLeather1AZ-FSE & 1CD-FTVÐOPOPÐ
FrontManual
SeatFrontPower1AZ-FSE & 1CD-FTVÐOPOPÐ
FixSedanÐÐÐ
Rear60:40 FoldingSedanÐ
60:40 Double FoldingLiftback & WagonÐ
SeatBelt
Front3-Point ELR*2 Electrical Sensing Type Pretensioner
& Force Limiter
BeltRear3-Point ELR*2 & ALR*3
CRS (Child Restraint System) Anchor System (Rear Outside Seat Only)
*1: Electoronic Power Steering
*2: Emergency Locking Retractor
*3: Automatic Locking Retractor
