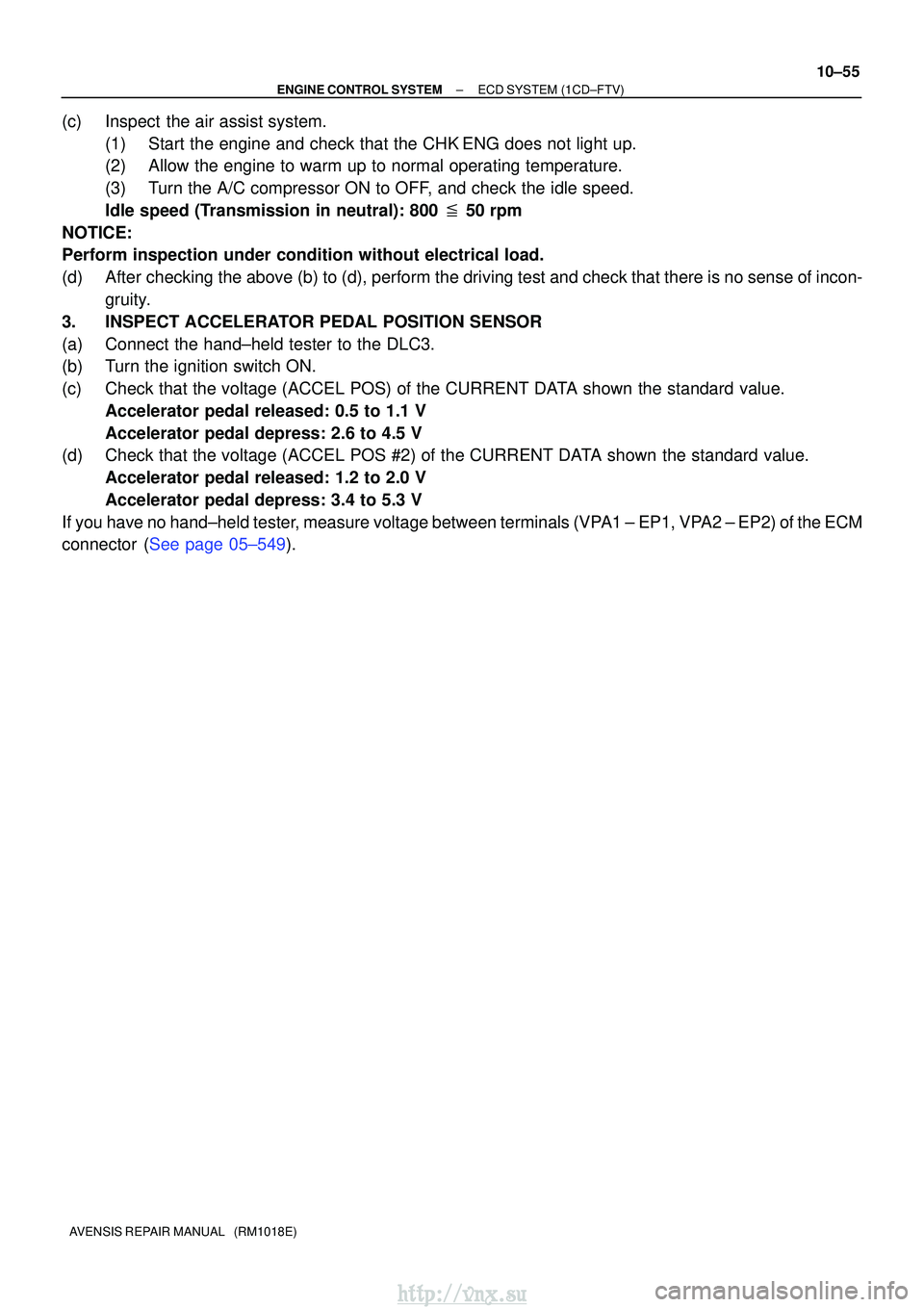

(c)Inspect the air assist system.
(1)Start the engine and check that the CHKENG does not light up.
(2)Allow the engine to warm up to normal operating temperature.
(3)Turn the A/C compressor ON to OFF, and check the idle speed.
Idle speed (Transmission in neutral): 800
50 rpm
NOTICE:
Perform inspection under condition without electrical load.
(d)After checking the above (b) to (d), perform the driving test and check that there is no sense of incon- gruity.
3.INSPECT ACCELERATOR PEDAL POSITION SENSOR
(a)Connect the hand±held tester to the DLC3.
(b)Turn the ignition switch ON.
(c)Check that the voltage (ACCEL POS) of the CURRENT DATA shown the standard value. Accelerator pedal released: 0.5 to 1.1 V
Accelerator pedal depress: 2.6 to 4.5 V
(d)Check that the voltage (ACCEL POS #2) of the CURRENT DATA shown the standard value.
Accelerator pedal released: 1.2 to 2.0 V
Accelerator pedal depress: 3.4 to 5.3 V
If you have no hand±held tester, measure voltage between terminals (VPA1 ± EP1, VPA2 ± EP2) of the ECM
connector (See page 05±549).
http://vnx.su

100FR±01
A79186
±
ENGINE CONTROL SYSTEMECM
10±65
AVENSIS REPAIR MANUAL (RM1018E)

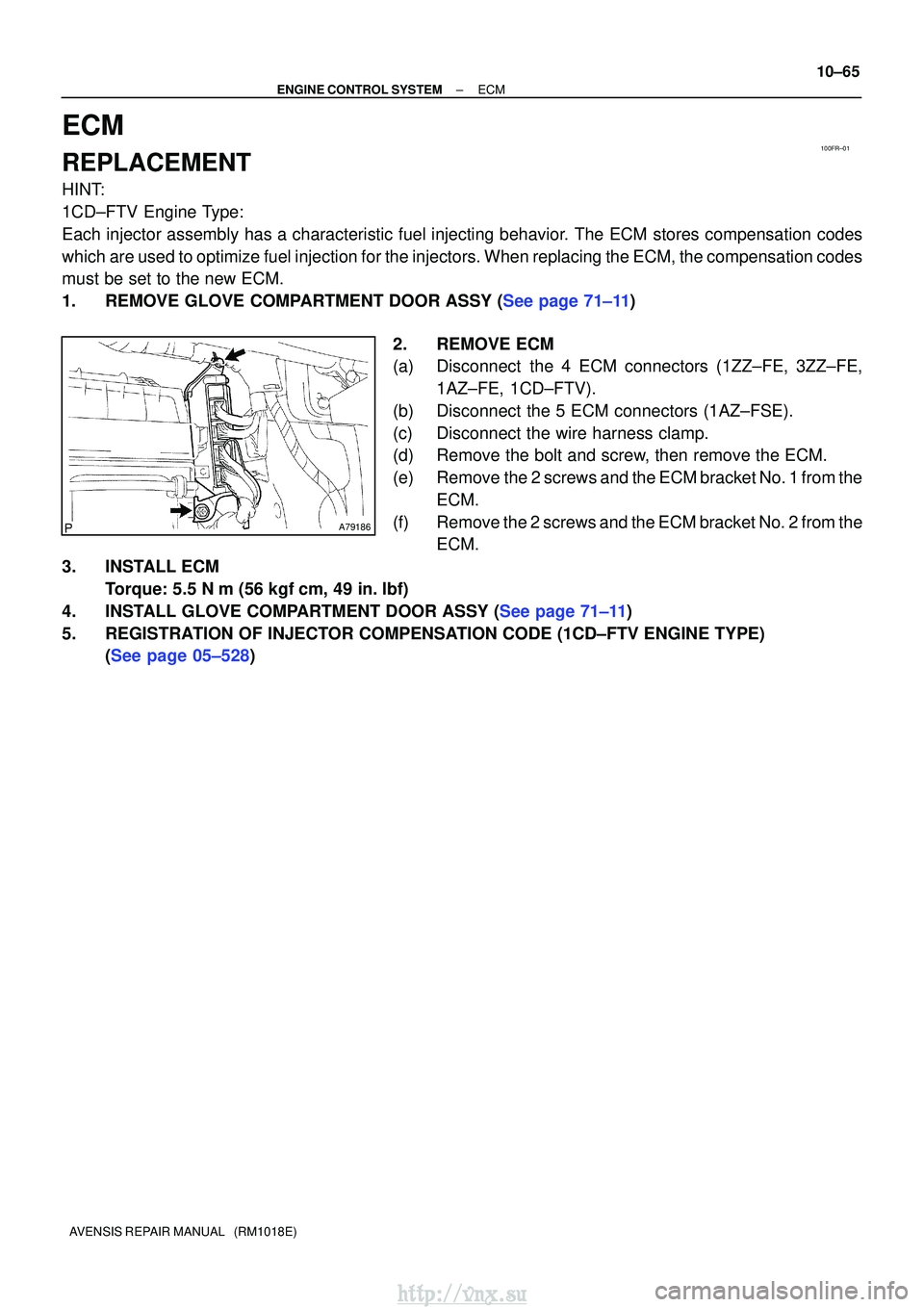

ECM
REPLACEMENT
HINT:
1CD±FTV Engine Type:
Each injector assembly has a characteristic fuel injecting behavior. The ECM stores compensation codes
which are used to optimize fuel injection for the injectors. When replacing t\
he ECM, the compensation codes
must be set to the new ECM.
1.REMOVE GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
2.REMOVE ECM
(a)Disconnect the 4 ECM connectors (1ZZ±FE, 3ZZ±FE,1AZ±FE, 1CD±FTV).
(b)Disconnect the 5 ECM connectors (1AZ±FSE).
(c)Disconnect the wire harness clamp.
(d)Remove the bolt and screw, then remove the ECM.
(e)Remove the 2 screws and the ECM bracket No. 1 from the ECM.
(f)Remove the 2 screws and the ECM bracket No. 2 from the ECM.
3.INSTALL ECM Torque: 5.5 N
m (56 kgf
cm, 49 in.
lbf)
4.INSTALL GLOVE COMPARTMENT DOOR ASSY (See page 71±11)
5.REGISTRATION OF INJECTOR COMPENSATION CODE (1CD±FTV ENGINE TYPE) (See page 05±528)
http://vnx.su

100FN±01
A79433N´m (kgf´cm, ft´lbf): Specified torque
Non±reusable part


Gasket
25 (255, 18)
25 (255,18 )
21 (214, 15)
30 to 40 (31 to 41 , 27 to 35 in.
lbf)
5.0 (51, 44 in.
lbf)
8.0 (82, 71 in.
lbf)
Radiator Support Opening Cover
Engine Cover No. 1
Battery
Battery Tray Intake Shutter Assy
Air Hose No. 4
Clip
Retainer
Air Tube No. 2
10±60
±
ENGINE CONTROL SYSTEM INTAKE SHUTTER ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

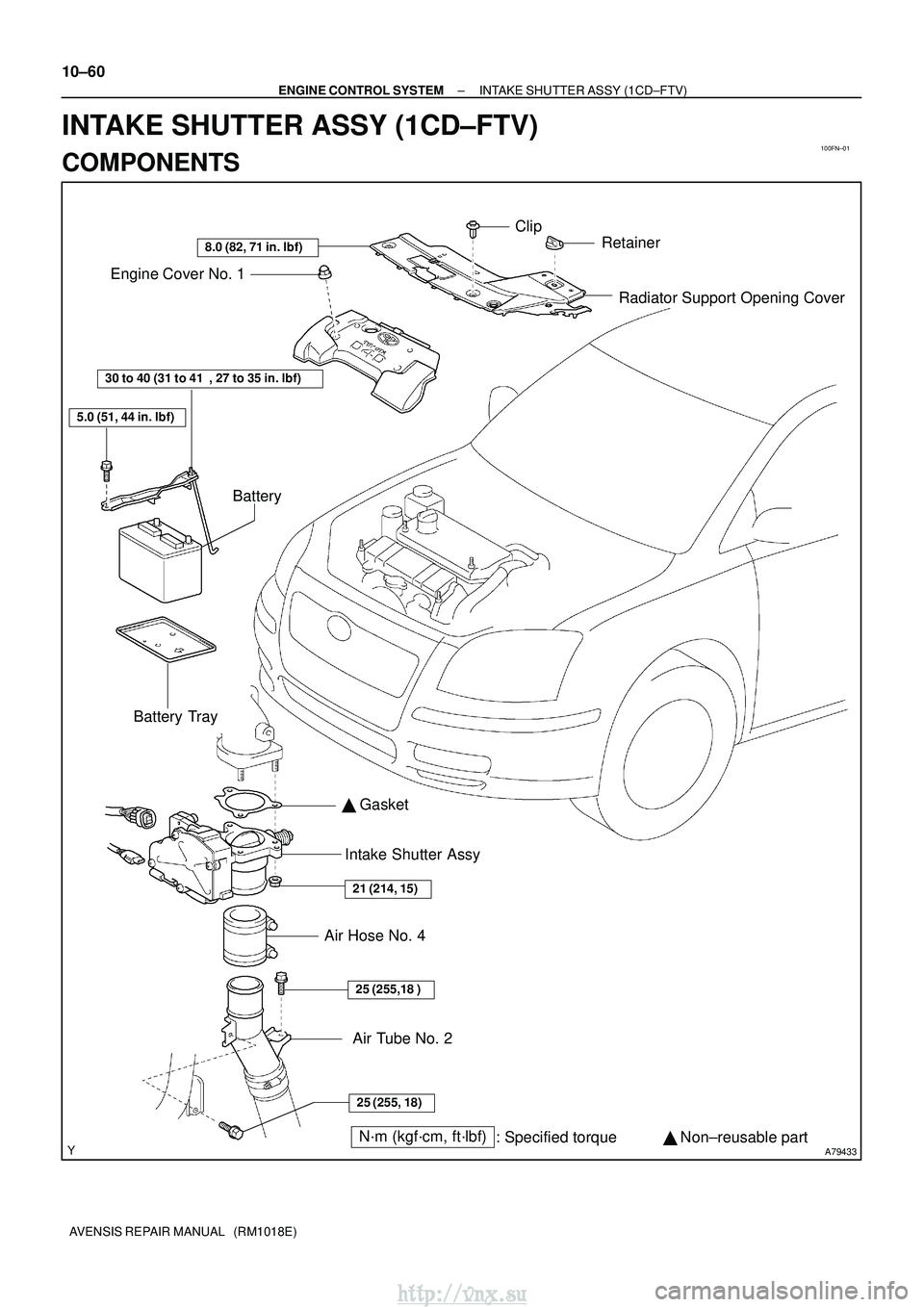

INTAKE SHUTTER ASSY (1CD±FTV)
COMPONENTS
http://vnx.su

100FO±01
A80092
B08171
A64328
2 to 7 mm0 to 4 mm
±
ENGINE CONTROL SYSTEM INTAKE SHUTTER ASSY (1CD±FTV)
10±61
AVENSIS REPAIR MANUAL (RM1018E)
Removal & Installation and Disassembly & Reassembly

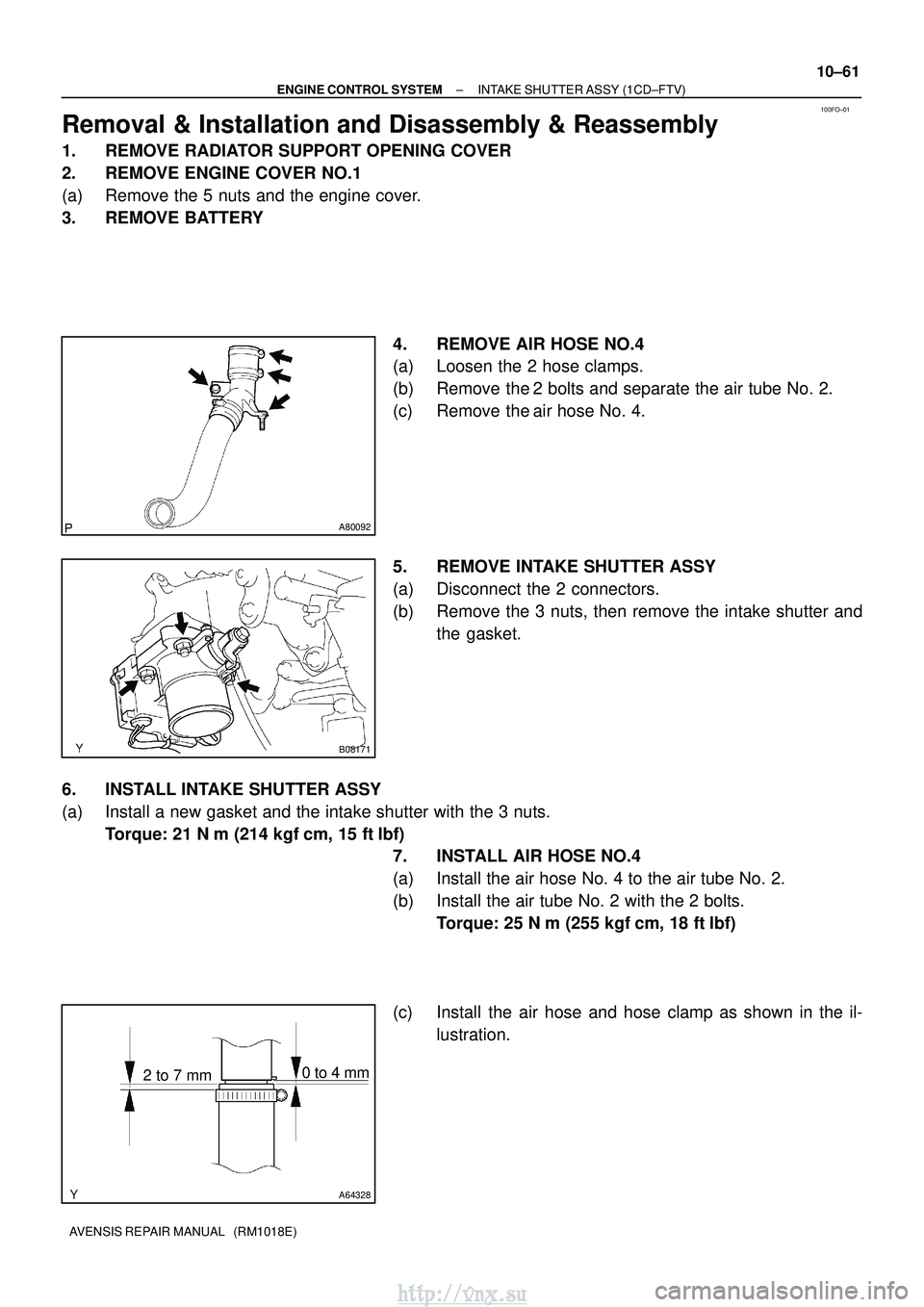

1. REMOVE RADIATOR SUPPORT OPENING COVER
2. REMOVE ENGINE COVER NO.1
(a) Remove the 5 nuts and the engine cover.
3. REMOVE BATTERY
4. REMOVE AIR HOSE NO.4
(a) Loosen the 2 hose clamps.
(b) Remove the 2 bolts and separate the air tube No. 2.
(c) Remove the air hose No. 4.
5. REMOVE INTAKE SHUTTER ASSY
(a) Disconnect the 2 connectors.
(b) Remove the 3 nuts, then remove the intake shutter andthe gasket.
6. INSTALL INTAKE SHUTTER ASSY
(a) Install a new gasket and the intake shutter with the 3 nuts. Torque: 21 N
m (214 kgf
cm, 15 ft
lbf)
7. INSTALL AIR HOSE NO.4
(a) Install the air hose No. 4 to the air tube No. 2.
(b) Install the air tube No. 2 with the 2 bolts.
Torque: 25 N
m (255 kgf
cm, 18 ft
lbf)
(c) Install the air hose and hose clamp as shown in the il- lustration.
http://vnx.su

A64007
Front90

Clamp
Bolt
10±62
±
ENGINE CONTROL SYSTEM INTAKE SHUTTER ASSY (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

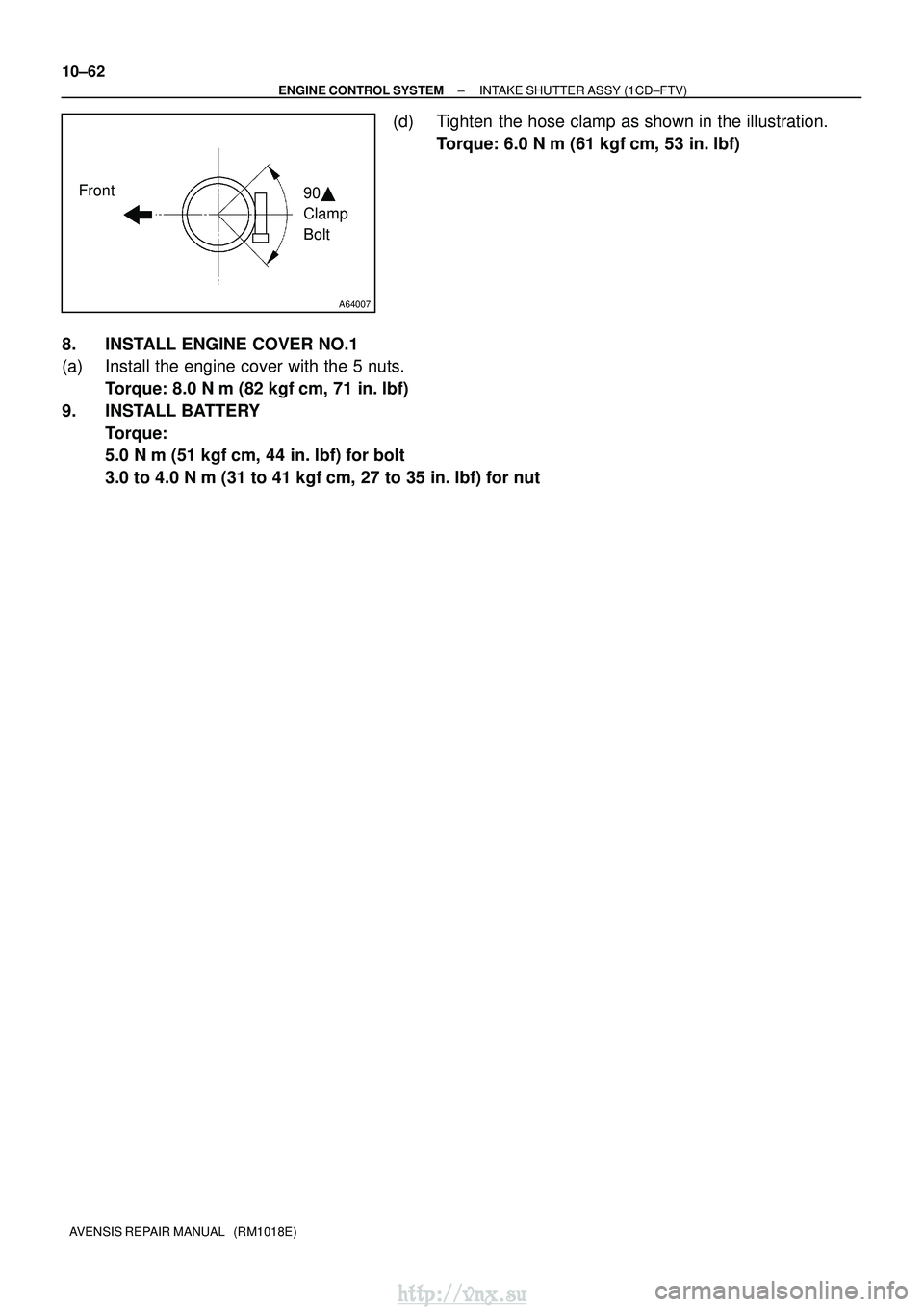

(d) Tighten the hose clamp as shown in the illustration. Torque: 6.0 N
m (61 kgf
cm, 53 in.
lbf)
8. INSTALL ENGINE COVER NO.1
(a) Install the engine cover with the 5 nuts. Torque: 8.0 N
m (82 kgf
cm, 71 in.
lbf)
9. INSTALL BATTERY Torque:
5.0 N
m (51 kgf
cm, 44 in.
lbf) for bolt
3.0 to 4.0 N
m (31 to 41 kgf
cm, 27 to 35 in.
lbf) for nut
http://vnx.su

100FK±01
A77870
Mass Air Flow
Meter Connector
N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy
No. 1
7.0 (71, 62 in.

lbf)
Fuel Vapor Feed Hose
No. 2
Air Cleaner Cap
Sub±assy VSV
Connector
Fuel Vapor Feed Hose
Clip
Engine Room Cover Side
Radiator Support Opening Cover
Clip Retainer
x2
x4
10±30
±
ENGINE CONTROL SYSTEM KNOCK SENSOR (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

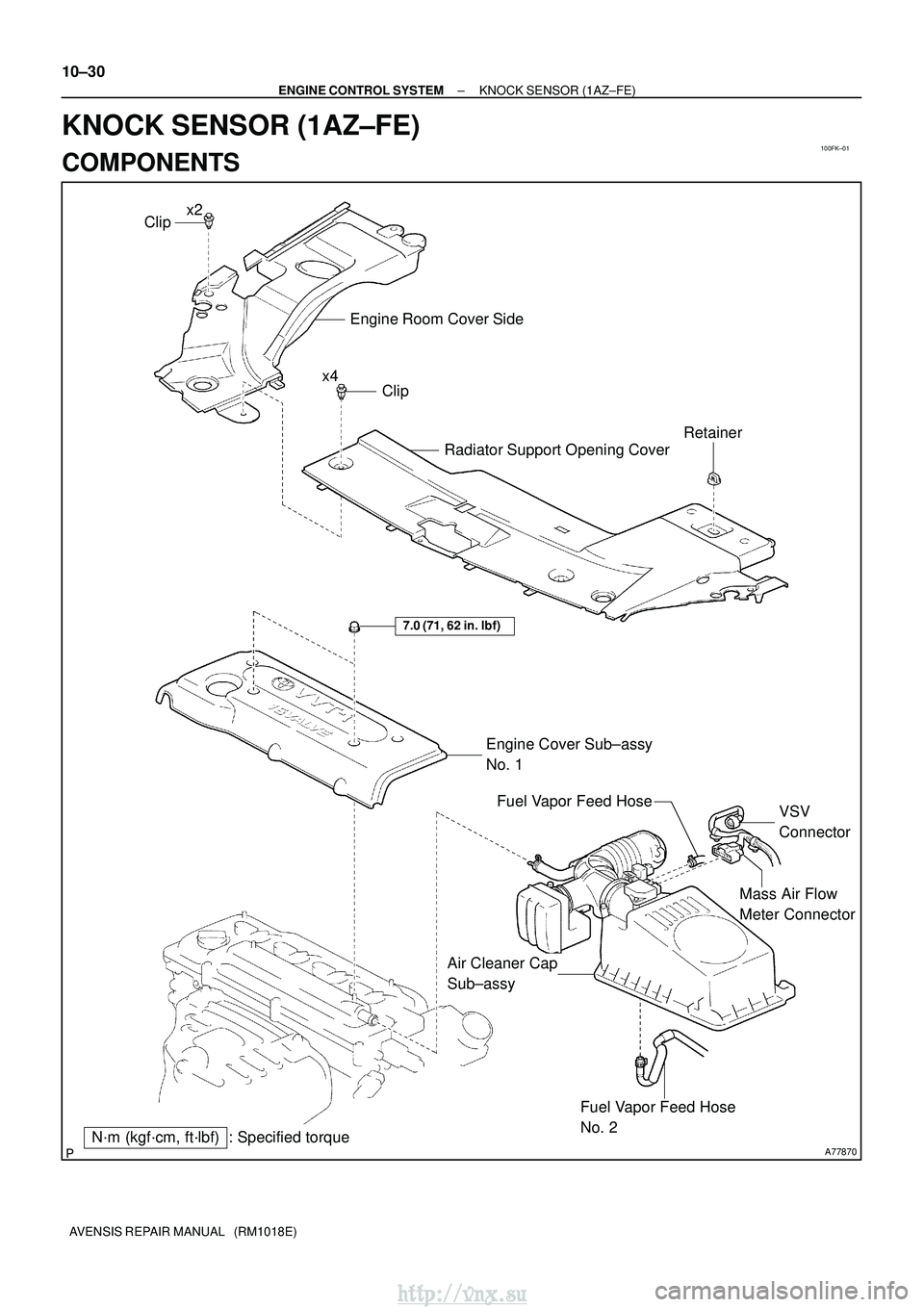

KNOCK SENSOR (1AZ±FE)
COMPONENTS
http://vnx.su

A78452
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque Accelerator
Control Cable Assy

Throttle Body
Gasket
Water By±pass Hose No. 2 Water By±pass Hose Fuel Tube Sub±assy
Fuel Pipe Support
Throttle Position Sensor
Connector
ISC Valve Connector
13 (129, 9)
30 (306, 22)

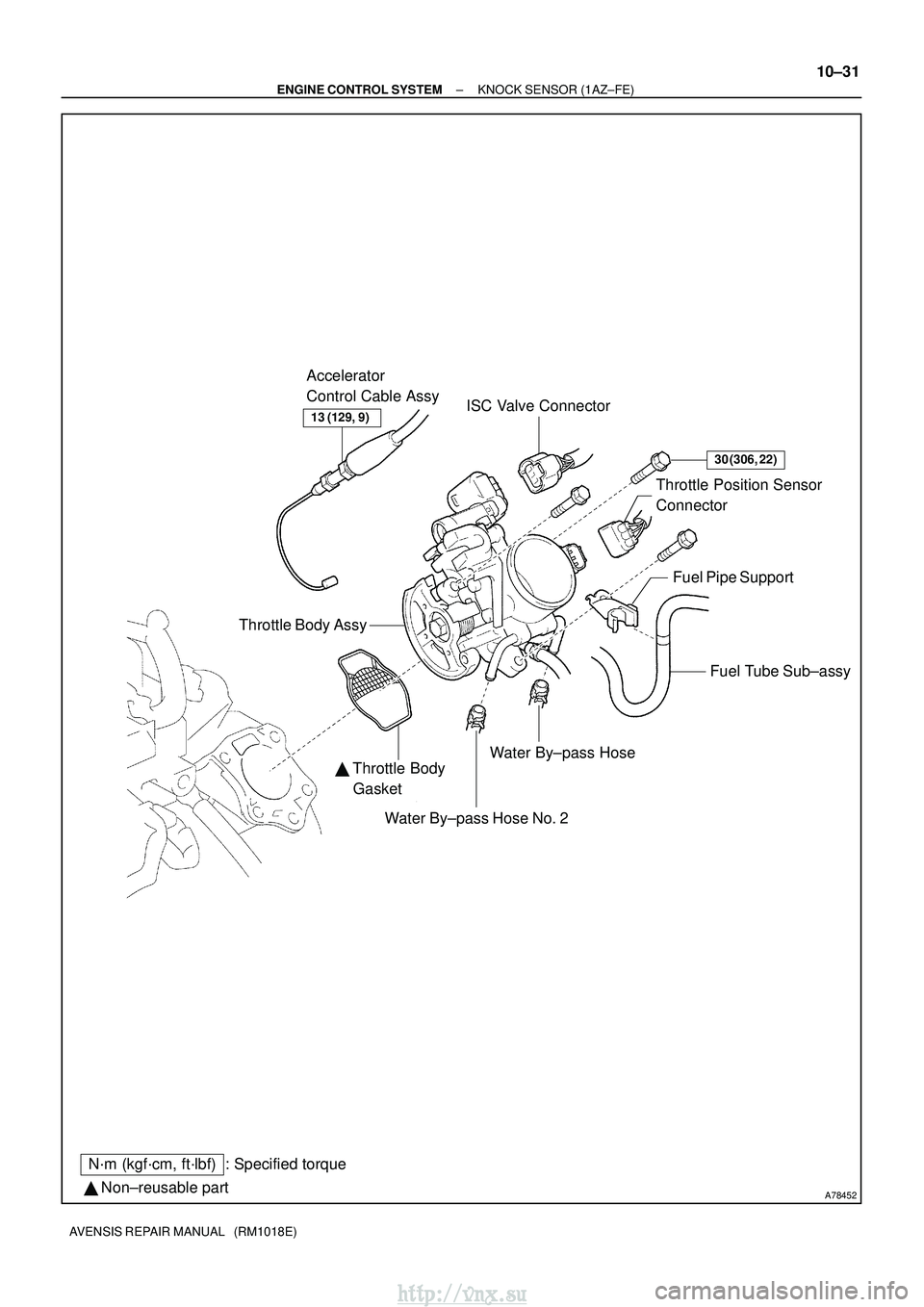

Throttle Body Assy
±
ENGINE CONTROL SYSTEM KNOCK SENSOR (1AZ±FE)
10±31
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

A78453
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
20 (204, 15)
Fuel Injector
Connector
EFI Fuel Pipe Clamp
Fuel Tube Sub±assy
Injector Vibration Insulator Delivery Pipe No. 1
Spacer

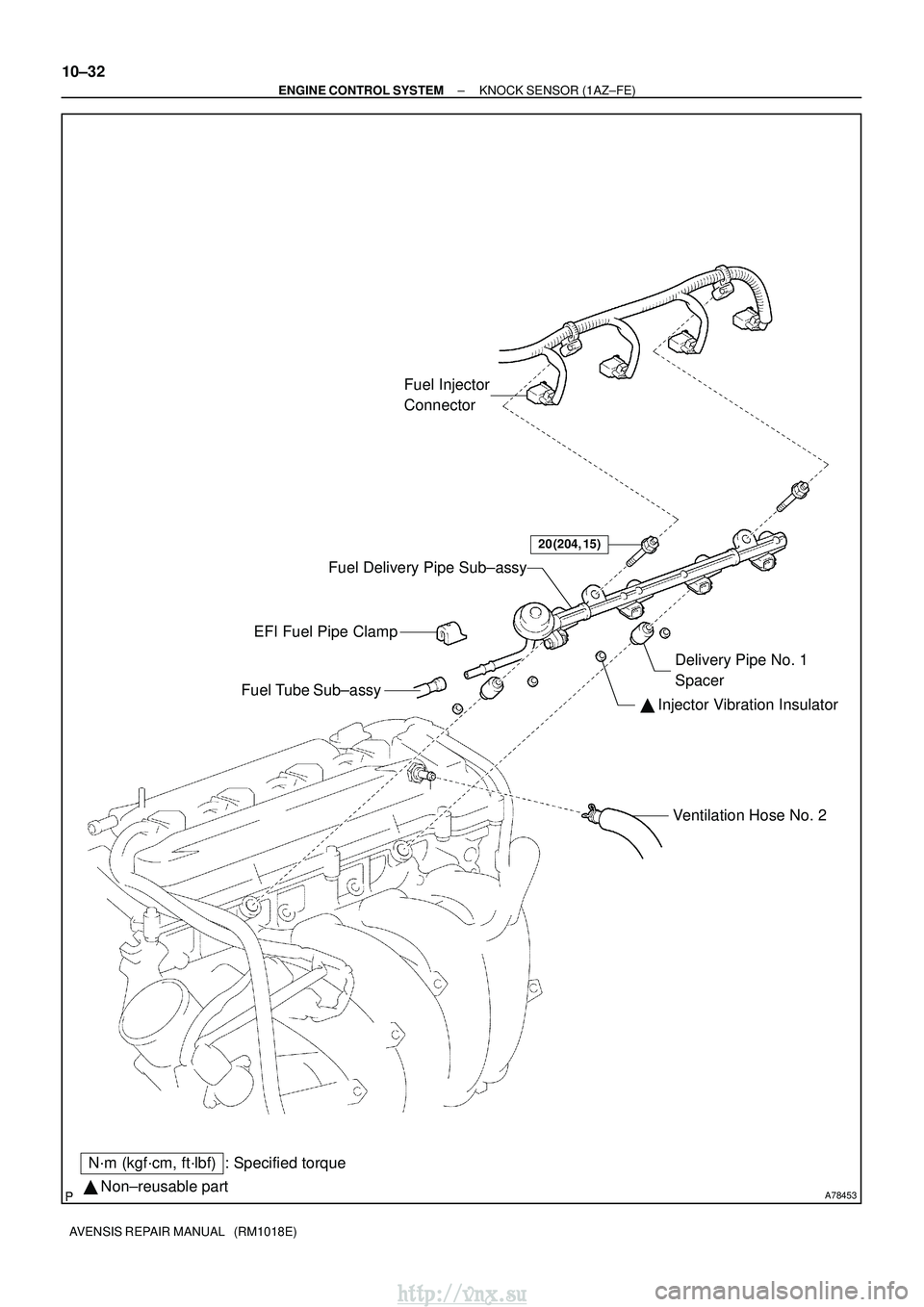

Fuel Delivery Pipe Sub±assy
Ventilation Hose No. 2
10±32
±
ENGINE CONTROL SYSTEM KNOCK SENSOR (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

A77916
Non±reusable part
N´m (kgf´cm, ft´lbf) : Specified torque
30 (306, 22)
Heater Inlet Water Hose
Knock Sensor
ConnectorKnock Sensor
20 (204, 15)
Intake Manifold Insulator No. 1


Intake Manifold
to Head Gasket No. 1
Intake Manifold
LHD Steering Position Type,
Leaded Gasoline:
Variable Resister
5.0 (51, 44 in.
lbf)
Charcoal Canister Assy
Variable Resister Connector
Charcoal Canister
Outlet Hose No. 1
Fuel Hose
x5
±
ENGINE CONTROL SYSTEM KNOCK SENSOR (1AZ±FE)
10±33
AVENSIS REPAIR MANUAL (RM1018E)
http://vnx.su

100FL±01
A77917
A77918

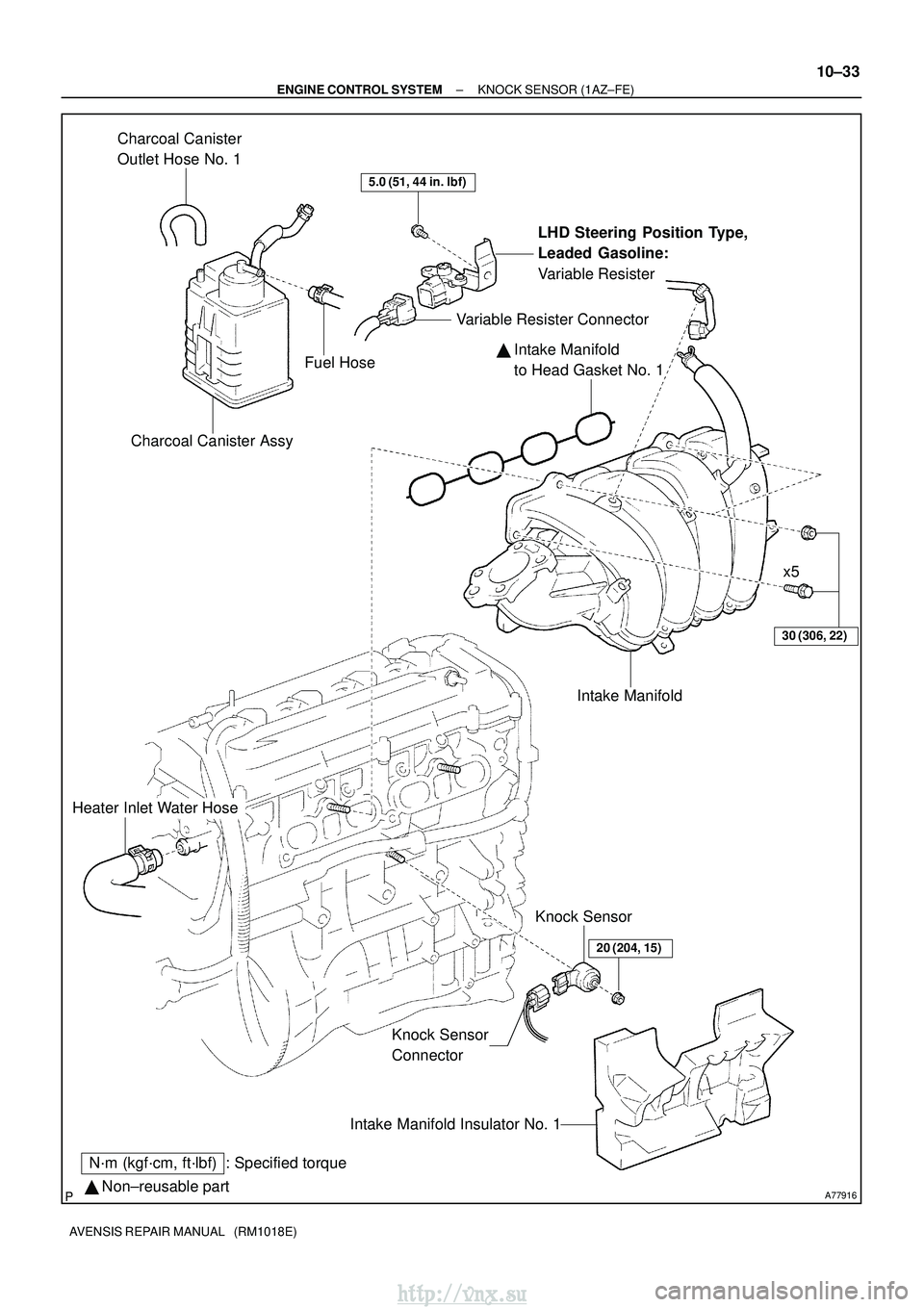

(a)
(b)
A77919
10±34
±
ENGINE CONTROL SYSTEMKNOCK SENSOR(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±15)
2.REMOVE ENGINE ROOM COVER SIDE (See page 10±26)
3.REMOVE RADIATOR SUPPORT OPENING COVER (See page 10±26)
4.ENGINE COOLANT (See page 16±19)
5.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 10±26)
6.REMOVE AIR CLEANER CAP SUB±ASSY (See page 10±26)
7.SEPARATE ACCELERATOR CONTROL CABLE ASSY (See page 10±26)
8.REMOVE THROTTLE BODY ASSY (See page 10±26)
9.DISCONNECT FUEL TUBE SUB±ASSY (See page 11±26) SST 09268±21010
10.REMOVE FUEL DELIVERY PIPE SUB±ASSY (See page 11±26)
11. REMOVE VARIABLE RESISTOR (LHD STEERINGPOSITION TYPE, LEADED GASOLINE)
(a) Disconnect the variable resistor connector.
(b) Remove the bolt, and then remove the variable resistor.
12. REMOVE CHARCOAL CANISTER ASSY
(a) Disconnect the charcoal canister outlet hose No. 1.
(b) Disconnect the fuel hose.
(c) Pull up and remove the charcoal canister.
13. DISCONNECT HEATER INLET WATER HOSE
