TOYOTA AVENSIS 2003 Service Repair Manual

A77399
Seal Packing
A77400NutNut
A
BC
A A
AAB
14±152
±
ENGINE MECHANICALCHAIN SUB±ASSY(1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(b)Apply seal packing to the 2 locations as shown in the il- lustration.
Seal Packing: Part No. 08826±00080 or equivalent
NOTICE:

Remove any oil from the contact surface.

Install the cylinder head cover within 5 minutes after
applying seal packing.

Do not expose the seal to engine oil 2 hours after
installing.
(c)install the cylinder head cover with the 8 bolts and 2 nuts. Torque:
Bolt A 11 N
m (112 kgf
cm, 8 ft
lbf)
Bolt B 14 N
m (143 kgf
cm, 10 ft
lbf)
Bolt C 21 N
m (214 kgf
cm, 15 ft
lbf)
Nut 11 N
m (112 kgf
cm, 8 ft
lbf)
55.INSTALL ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
56.INSTALL COOLER BRACKET (LHD(W/ AIR CONDITIONER) STEERING POSITION TYPE) Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
57.INSTALL ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
58.INSTALL ENGINE WIRE Torque: 7.0 N
m (71 kgf
cm,62 in.
lbf)
59.INSTALL OIL RESERVOIR BRACKET NO.1 Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
60.IN STALL COOL ER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITION ER)
STEERING POSITION TYPE)
61.INSTALL RETURN TUBE SUB±ASSY
Torque: 8.0 N
m (82 kgf
cm,71 in.
lbf)
62.INSTALL IGNITION COIL ASSY Torque: 9.0 N
m (92 kgf
cm,80 in.
lbf)
63.INSTALL VANE PUMP ASSY
Torque: 37 N
m (377 kgf
cm,27 ft
lbf)
64.INSTALL EXHAUST PIPE ASSY FRONT (See page 15±7)
65.INSTALL GENERATOR ASSY (See page 19±20)
66.INSTALL FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
67. ADD ENGINE OIL
68. CHECK FOR ENGINE OIL LEAKS
69. INSTALL ENGINE COVER SUB±ASSY NO.1 Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)
70. INSTALL FRONT WHEEL RH Torque: 103 N
m (1,050 kgf
cm, 76 ft
lbf)
http://vnx.su

141B8±01
A77281
A77292
A77299
±
ENGINE MECHANICALCHAIN SUB±ASSY(1AZ±FE)
14±139
AVENSIS REPAIR MANUAL (RM1018E)

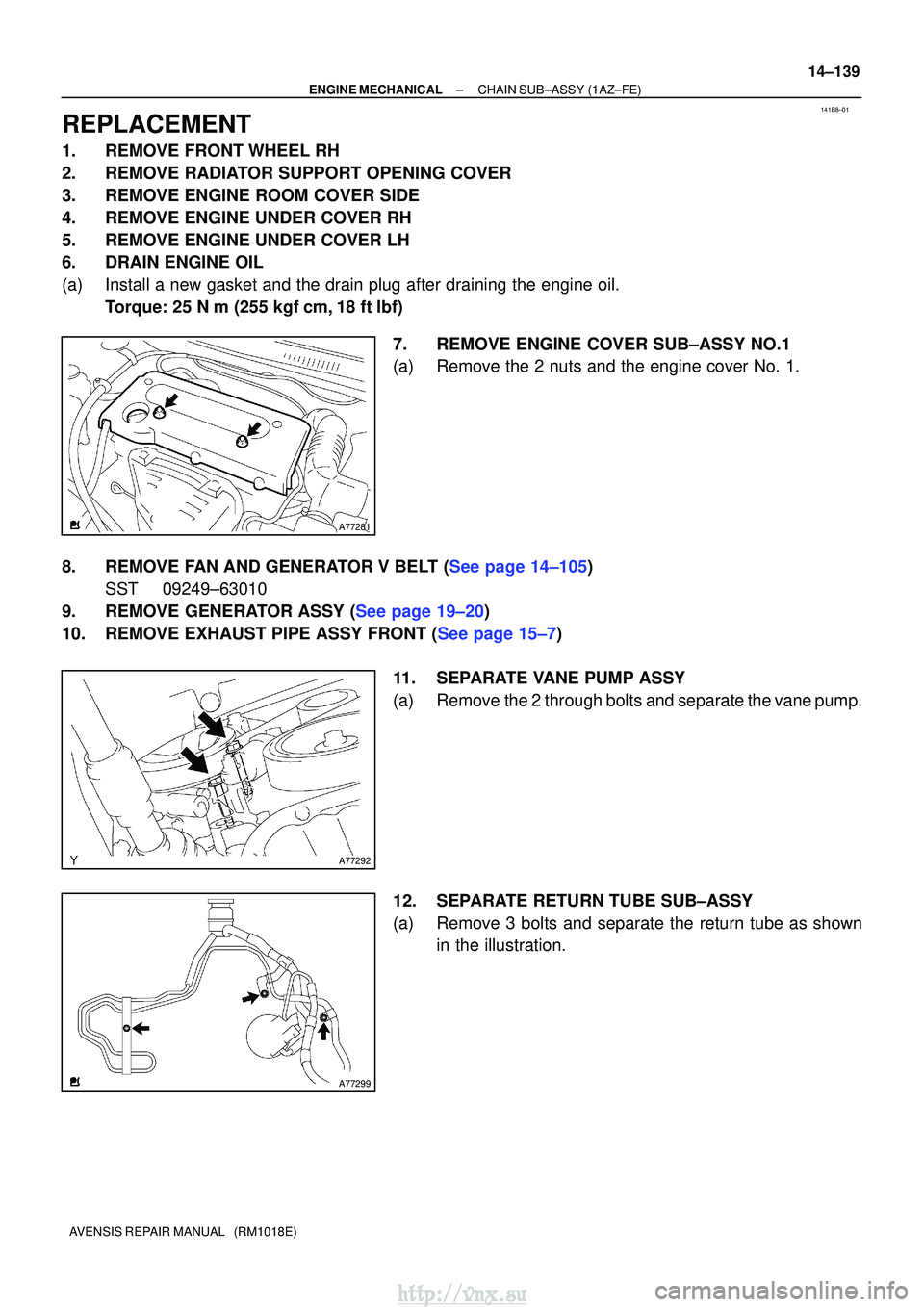

REPLACEMENT
1.REMOVE FRONT WHEEL RH
2.REMOVE RADIATOR SUPPORT OPENING COVER
3.REMOVE ENGINE ROOM COVER SIDE
4.REMOVE ENGINE UNDER COVER RH
5.REMOVE ENGINE UNDER COVER LH
6.DRAIN ENGINE OIL
(a)Install a new gasket and the drain plug after draining the engine oil.
Torque: 25 N
m (255 kgf
cm,18 ft
lbf)
7.REMOVE ENGINE COVER SUB±ASSY NO.1
(a)Remove the 2 nuts and the engine cover No. 1.
8.REMOVE FAN AND GENERATOR V BELT (See page 14±105) SST 09249±63010
9.REMOVE GENERATOR ASSY (See page 19±20)
10.REMOVE EXHAUST PIPE ASSY FRONT (See page 15±7)
11. SEPARATE VANE PUMP ASSY
(a) Remove the 2 through bolts and separate the vane pump.
12. SEPARATE RETURN TUBE SUB±ASSY
(a) Remove 3 bolts and separate the return tube as shownin the illustration.
http://vnx.su

A77303
A77308
A77306
A77307
14±140
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
13. SEPARATE COOLER REFRIGERANT SUCTION HOSE NO.1 (LHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
(a) Remove the 2 nuts and separate the suction hose.
14. SEPARATE VANE PUMP OIL RESERVOIR ASSY
NOTICE:
Do not disconnect the 2 hoses. 15. REMOVE OIL RESERVOIR BRACKET NO.1
(a) Remove the 2 bolts and the oil pump reservoir bracket No.1.
16. SEPARATE ENGINE WIRE
(a) Remove the bolt and separate the clamp and engine wire.
17. REMOVE ENGINE SERVICE COVER BRACKET RH (W/O AIR CONDITIONING)
(a) Remove the bolt and the engine service cover bracket RH. 18. REMOVE COOLER BRACKET (LHD(W/ AIRCONDITIONER) STEERING POSITION TYPE)
(a) Remove the bolt and cooler bracket.
http://vnx.su

A77283
A77284
A77285
Unleaded Gasoline
Timing
Marks

eaded Gasoline
Timing
Marks
Timing
Marks
Timing
Marks
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
14±141
AVENSIS REPAIR MANUAL (RM1018E)
19. REMOVE ENGINE SERVICE COVER BRACKET RH (RHD(W/ AIR CONDITIONER) STEERING
POSITION TYPE)
(a) Remove the bolt and the engine service cover bracket RH.
20. REMOVE IGNITION COIL ASSY
(a) Remove the 4 bolts and 4 ignition coils.
21. REMOVE CYLINDER HEAD COVER SUB±ASSY
(a) Disconnect the 2 PCV hoses from the cylinder head cov-er.
(b) Remove the 8 bolts and 2 nuts, and then remove the cylin- der head cover and gasket.
22. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Turn the crankshaft pulley, and align its timing notch with timing mark 0 of the timing chain cover.
(b) Check that the timing marks of the camshaft timing gear are aligned with the timing marks located on the No. 1 and
No. 2 bearing caps as shown in the illustration.
If not, turn the crankshaft 1 revolution (360
) and align the
marks as above.
http://vnx.su

A61184
A66202
A77305
A77380
SST
A77381
SST
14±142
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
23. REMOVE ENGINE MOUNTING BRACKET NO.2 RH
(a) Place the jack underneath the engine, and put a wooden block on the jack.
(b) Remove the 2 bolts and 2 nuts, and then detach the mounting bracket No. 2 RH.
24. REMOVE TRANSVERSE ENGINE ENGINE MOUNTING INSULATOR
(a) Remove the 3 bolts and the engine mounting insulator.
25. REMOVE CRANKSHAFT PULLEY
(a) Using SST, fix the crankshaft pulley and loosen a crank- shaft pulley bolt.
SST 09213±54015 (91651±60855), 09330±00021
(b) Using a crankshaft pulley bolt and SST, remove the crank- shaft pulley.
SST 09950±50013 (09951±05010, 09952±05010, 09953±05020, 09954±05021)
http://vnx.su

A77286
Push
A64641
A00019
A77288
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
14±143
AVENSIS REPAIR MANUAL (RM1018E)
26. REMOVE CHAIN TENSIONER ASSY NO.1
(a) Remove the 2 nuts, the chain tensioner No. 1 and gasket.
NOTICE:
Do not turn the crankshaft.
27. REMOVE CRANKSHAFT POSITION SENSOR 28. REMOVE OIL PAN SUB±ASSY
(a) Remove the 12 bolts and 2 nuts.
(b) Insert the blade of SST between the crank case, timingchain cover and oil pan, cut off applied sealer and remove
the oil pan.
SST 09032±00100
NOTICE:
Be careful not to damage the contact surface of the timing
chain cover, crank case and oil pan.
29. REMOVE V±RIBBED BELT TENSIONER ASSY
http://vnx.su

A77289
Pry
A77243
14±144
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
30. REMOVE TIMING CHAIN OR BELT COVER SUB±ASSY
(a) Remove the 14 bolts and 2 nuts.
(b) Using a screwdriver, pry between the timing chain cover
and cylinder head or cylinder block.
(c) Remove the timing chain cover.
NOTICE:
Be careful not to damage the contact surface of the timing
chain cover, cylinder head and cylinder block.
31. REMOVE CRANKSHAFT POSITION SENSOR PLATE NO.1
32. REMOVE CHAIN TENSIONER SLIPPER
(a) Remove the 2 bolts and the chain tensioner slipper.
33. REMOVE CHAIN VIBRATION DAMPER NO.1
(a) Remove the bolt and the chain vibration damper No. 1 34. REMOVE TIMING CHAIN GUIDE
(a) Remove the bolt and the timing chain guide.
35. REMOVE CHAIN SUB±ASSY
36. REMOVE CRANKSHAFT TIMING GEAR OR SPROCKET
http://vnx.su

A77382
Groove90


A77383
Groove
A66833
B11424
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
14±145
AVENSIS REPAIR MANUAL (RM1018E)
37. REMOVE NO.2 CHAIN SUB±ASSY
(a) Turn the crankshaft counterclockwise 90
, and align an
adjusting hole of the oil pump drive shaft gear with the
groove of the oil pump.
(b) Put a 4 mm diameter bar in the adjusting hole of the oil pump drive shaft gear to lock in position, and remove the
nut.
(c) Remove the bolt, and then remove the chain tensioner and spring.
(d) Remove the oil pump drive shaft gear and chain No. 2.
38. INSTALL NO.2 CHAIN SUB±ASSY
(a) Set the crankshaft key to the left side position.
(b) Orient the flat portion of the drive shaft upward.
http://vnx.su

A77384
Mark Link
Timing Mark
Timing Mark
Mark Link
A77385
Groove
A77386
Groove
A77387
90

14±146
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)
(c) Align the mark links (yellow colored links) with the timing marks of each gear as shown in the illustration.
(d) Install the gears to the crankshaft and oil pump shaft with
the chain wrapped.
(e) Temporarily tighten the oil pump drive shaft gear with the nut.
(f) Insert the damper spring into the adjusting hole, and install the chain tensioner plate with the bolt.
Torque: 12 N
m (122 kgf
cm, 9.0 ft
lbf)
(g) Align an adjusting hole of the sprocket with the groove of the oil pump.
(h) Insert a 4 mm diameter bar into the adjusting hole of the sprocket to lock in position, and tighten the nut.
Torque: 30 N
m (301 kgf
cm, 22 ft
lbf)
(i) Rotate the crankshaft clockwise 90
, and position the
crankshaft key upward.
http://vnx.su

A77285
Unleaded Gasoline
Timing
Marks
Leaded Gasoline
Timing
Marks
Timing
Marks
Timing
Marks
A52505
A77388
SST
±
ENGINE MECHANICAL CHAIN SUB±ASSY (1AZ±FE)
14±147
AVENSIS REPAIR MANUAL (RM1018E)
39. INSTALL CRANKSHAFT TIMING GEAR OR SPROCKET
40. SET NO. 1 CYLINDER TO TDC/COMPRESSION
(a) Turn the camshafts with a wrench on the hexagonal lobe,and align the timing marks of the camshaft timing gear
with each timing mark located on the No. 1 and No. 2
bearing caps as shown in the illustration.
(b) Using the crankshaft pulley bolt, turn the crankshaft and position the key on the crankshaft upward.
41. INSTALL CHAIN VIBRATION DAMPER NO.1 42. INSTALL CHAIN SUB±ASSY
http://vnx.su
