A56277
NE± NE+
A57060
NE± NE+
B16200
10±58
± ENGINE CONTROL SYSTEMECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

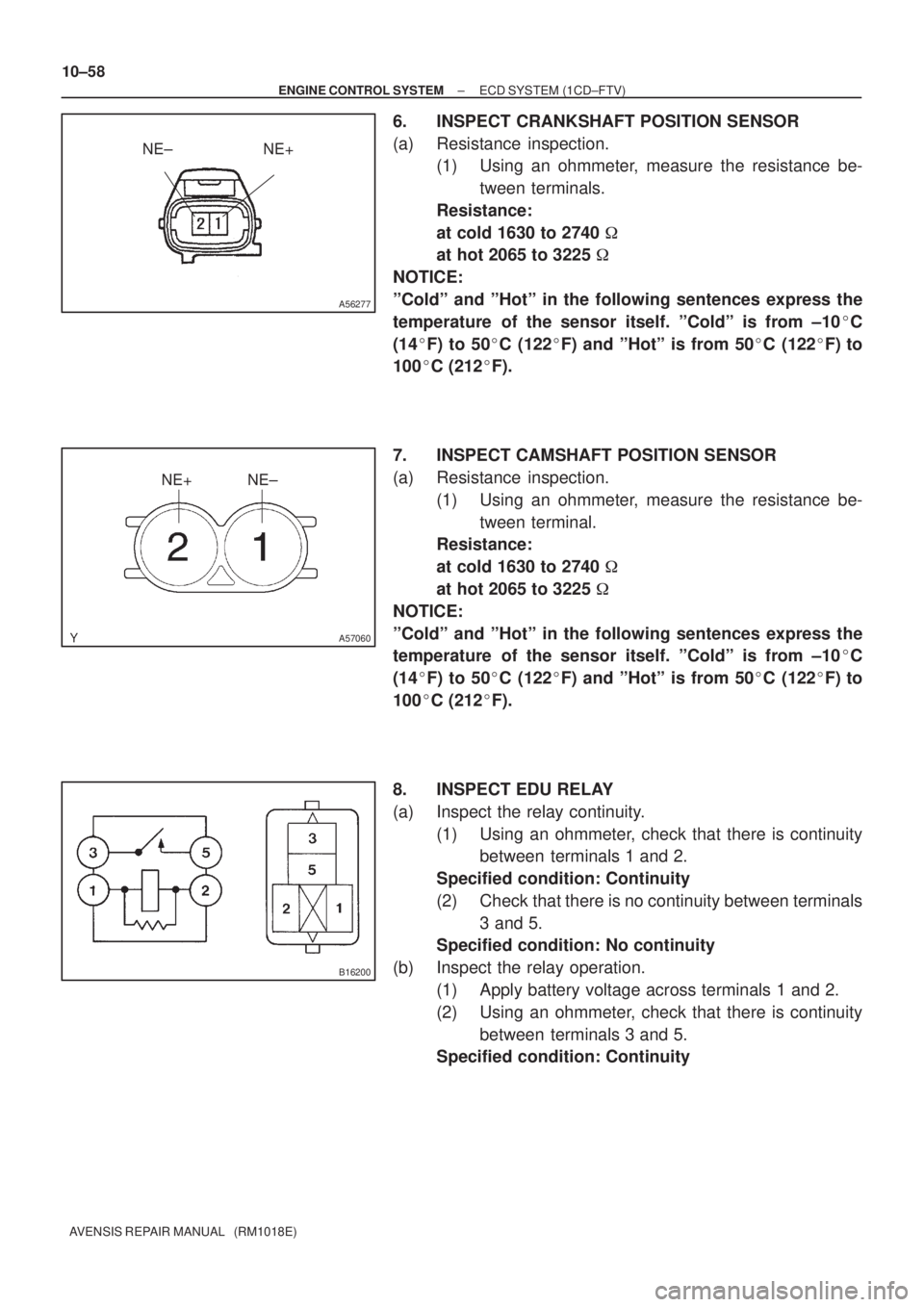

6. INSPECT CRANKSHAFT POSITION SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween terminals.
Resistance:
at cold 1630 to 2740

at hot 2065 to 3225

NOTICE:
ºColdº and ºHotº in the following sentences express the
temperature of the sensor itself. ºColdº is from ±10
C
(14
F) to 50
C (122
F) and ºHotº is from 50
C (122
F) to
100
C (212
F).
7. INSPECT CAMSHAFT POSITION SENSOR
(a) Resistance inspection.
(1) Using an ohmmeter, measure the resistance be-
tween terminal.
Resistance:
at cold 1630 to 2740

at hot 2065 to 3225

NOTICE:
ºColdº and ºHotº in the following sentences express the
temperature of the sensor itself. ºColdº is from ±10
C
(14
F) to 50
C (122
F) and ºHotº is from 50
C (122
F) to
100
C (212
F).
8. INSPECT EDU RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Specified condition: Continuity
(2) Check that there is no continuity between terminals
3 and 5.
Specified condition: No continuity
(b) Inspect the relay operation.
(1) Apply battery voltage across terminals 1 and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
Specified condition: Continuity

B16200
A31135
± ENGINE CONTROL SYSTEMECD SYSTEM (1CD±FTV)
10±59
AVENSIS REPAIR MANUAL (RM1018E)

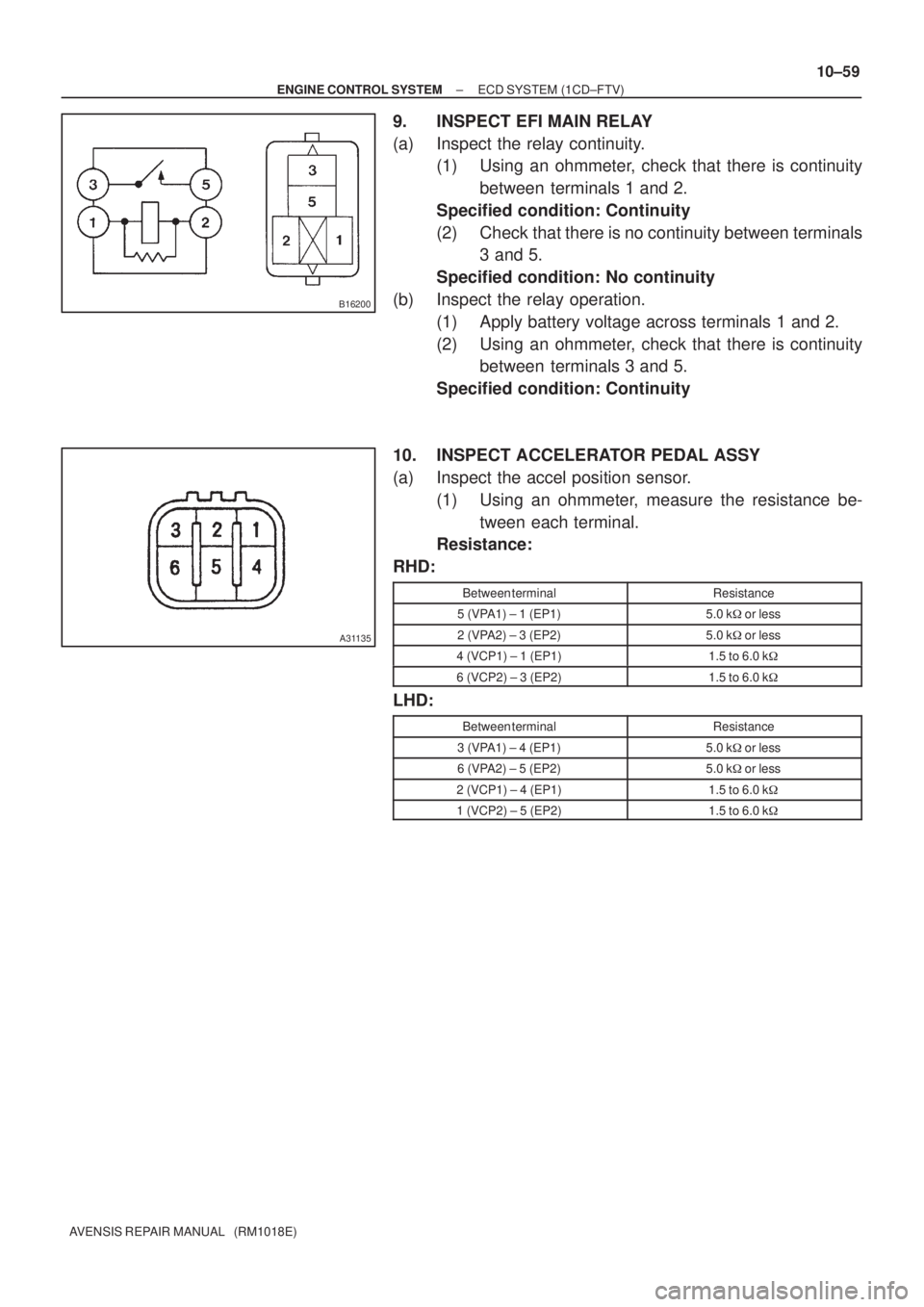

9. INSPECT EFI MAIN RELAY
(a) Inspect the relay continuity.
(1) Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Specified condition: Continuity
(2) Check that there is no continuity between terminals
3 and 5.
Specified condition: No continuity
(b) Inspect the relay operation.
(1) Apply battery voltage across terminals 1 and 2.
(2) Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
Specified condition: Continuity
10. INSPECT ACCELERATOR PEDAL ASSY
(a) Inspect the accel position sensor.
(1) Using an ohmmeter, measure the resistance be-
tween each terminal.
Resistance:
RHD:
Between terminalResistance
5 (VPA1) ± 1 (EP1)5.0 kor less
2 (VPA2) ± 3 (EP2)5.0 kor less
4 (VCP1) ± 1 (EP1)1.5 to 6.0 k
6 (VCP2) ± 3 (EP2)1.5 to 6.0 k
LHD:
Between terminalResistance
3 (VPA1) ± 4 (EP1)5.0 kor less
6 (VPA2) ± 5 (EP2)5.0 kor less
2 (VCP1) ± 4 (EP1)1.5 to 6.0 k
1 (VCP2) ± 5 (EP2)1.5 to 6.0 k

100EZ±02
A75903
Air
A53763
VG
EVG
10±54
±
ENGINE CONTROL SYSTEM ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

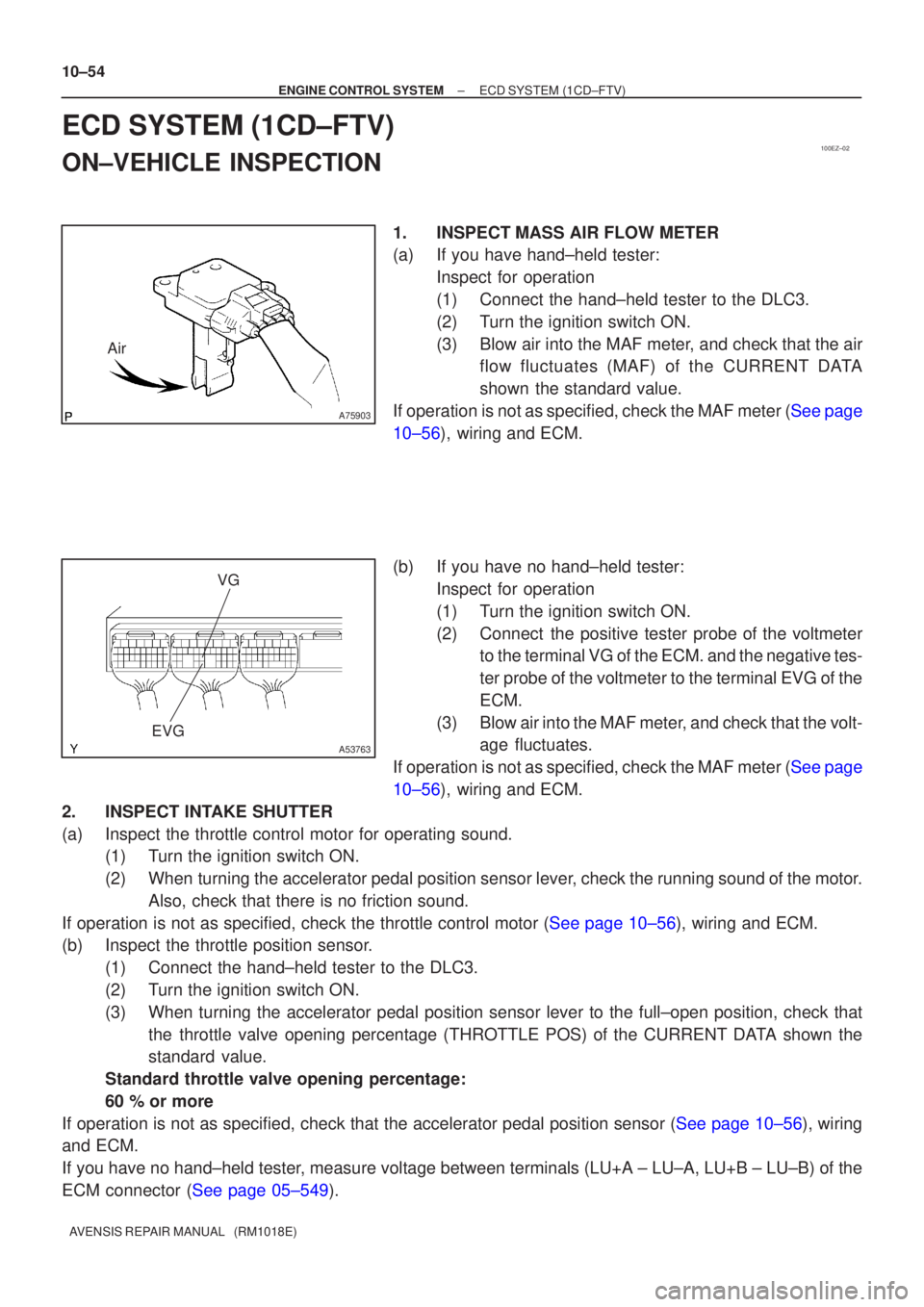

ECD SYSTEM(1CD±FTV)
ON±VEHICLE INSPECTION
1.INSPECTMASS AIR FLOW METER
(a)If you have hand±held tester: Inspect for operation
(1)Connect the hand±held tester to the DLC3.
(2)Turn the ignition switch ON.
(3)Blow air into the MAF meter, and check that the airflow fluctuates (MAF ) of the CURRENT DATA
shown the standard value.
If operation is not as specified, check the MAF meter (See page
10±56), wiring and ECM.
(b)If you have no hand±held tester: Inspect for operation
(1)Turn the ignition switch ON.
(2)Connect the positive tester probe of the voltmeterto the terminal VG of the ECM. and the negative tes-
ter probe of the voltmeter to the terminal EVG of the
ECM.
(3)Blow air into the MAF meter, and check that the volt- age fluctuates.
If operation is not as specified, check the MAF meter (See page
10±56), wiring and ECM.
2.INSPECT INTAKE SHUTTER
(a)Inspect the throttle control motor for operating sound. (1)Turn the ignition switch ON.
(2)When turning the accelerator pedal position sensor lever, check the running sound of the motor.
Also, check that there is no friction sound.
If operation is not as specified, check the throttle control motor (See page 10±56), wiring and ECM.
(b)Inspect the throttle position sensor. (1)Connect the hand±held tester to the DLC3.
(2)Turn the ignition switch ON.
(3)When turning the accelerator pedal position sensor lever to the full±\
open position, check thatthe throttle valve opening percentage (THROTTLE POS) of the CURRENT DATA shown the
standard value.
Standard throttle valve opening percentage:
60 % or more
If operation is not as specified, check that the accelerator pedal positio\
n sensor (See page 10±56), wiring
and ECM.
If you have no hand±held tester, measure voltage between terminals (LU+A ± LU±A, LU+B ± LU±\
B) of the
ECM connector (See page 05±549).

±
ENGINE CONTROL SYSTEM ECD SYSTEM(1CD±FTV)
10±55
AVENSIS REPAIR MANUAL (RM1018E)

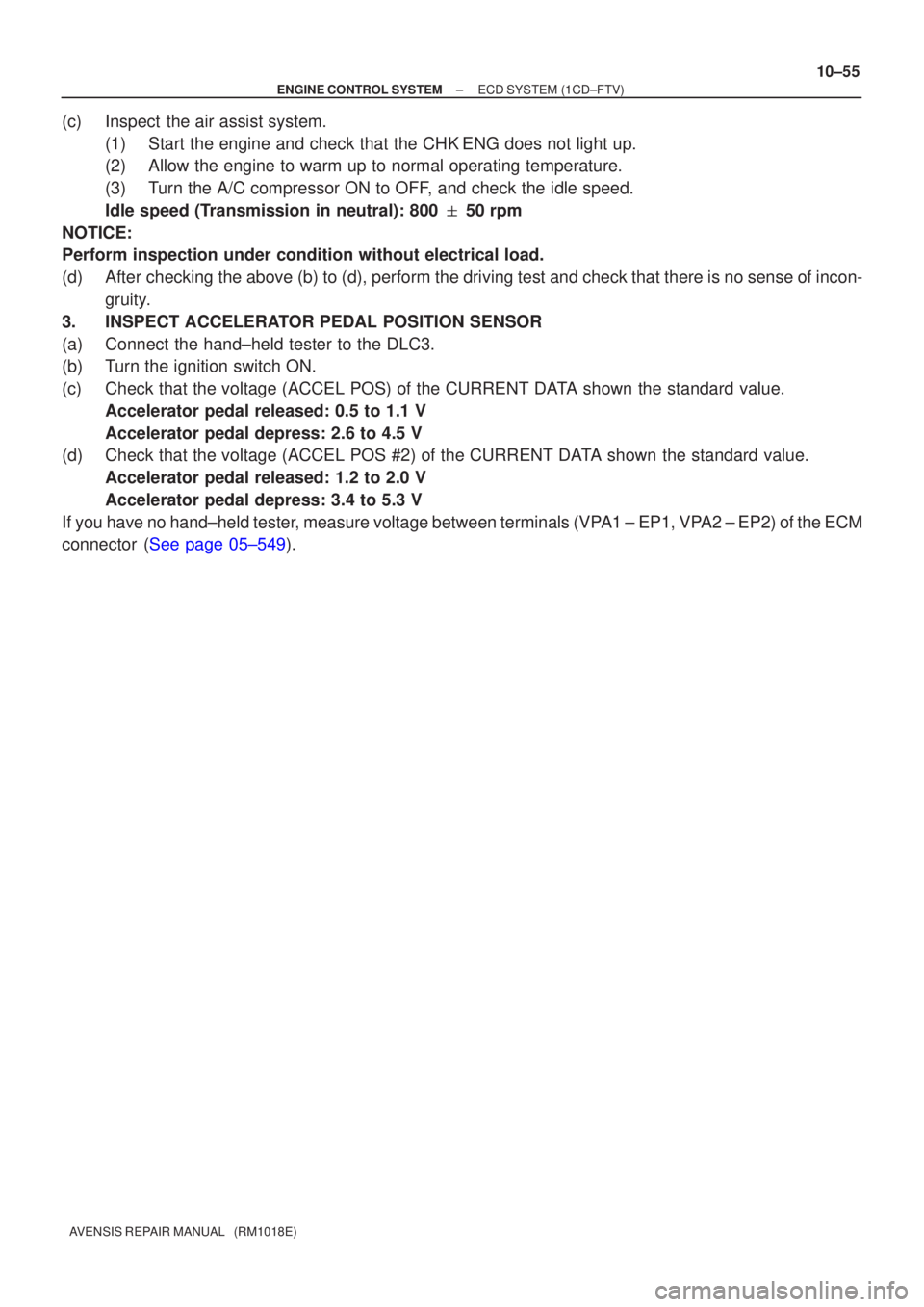

(c)Inspect the air assist system.
(1)Start the engine and check that the CHKENG does not light up.
(2)Allow the engine to warm up to normal operating temperature.
(3)Turn the A/C compressor ON to OFF, and check the idle speed.
Idle speed (Transmission in neutral): 800
50 rpm
NOTICE:
Perform inspection under condition without electrical load.
(d)After checking the above (b) to (d), perform the driving test and check that there is no sense of incon- gruity.
3.INSPECT ACCELERATOR PEDAL POSITION SENSOR
(a)Connect the hand±held tester to the DLC3.
(b)Turn the ignition switch ON.
(c)Check that the voltage (ACCEL POS) of the CURRENT DATA shown the standard value. Accelerator pedal released: 0.5 to 1.1 V
Accelerator pedal depress: 2.6 to 4.5 V
(d)Check that the voltage (ACCEL POS #2) of the CURRENT DATA shown the standard value.
Accelerator pedal released: 1.2 to 2.0 V
Accelerator pedal depress: 3.4 to 5.3 V
If you have no hand±held tester, measure voltage between terminals (VPA1 ± EP1, VPA2 ± EP2) of the ECM
connector (See page 05±549).

100FA±01
A79596
A78436
10

10
Upper
Engine
Front
10±52
±
ENGINE CONTROL SYSTEM KNOCK SENSOR(1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

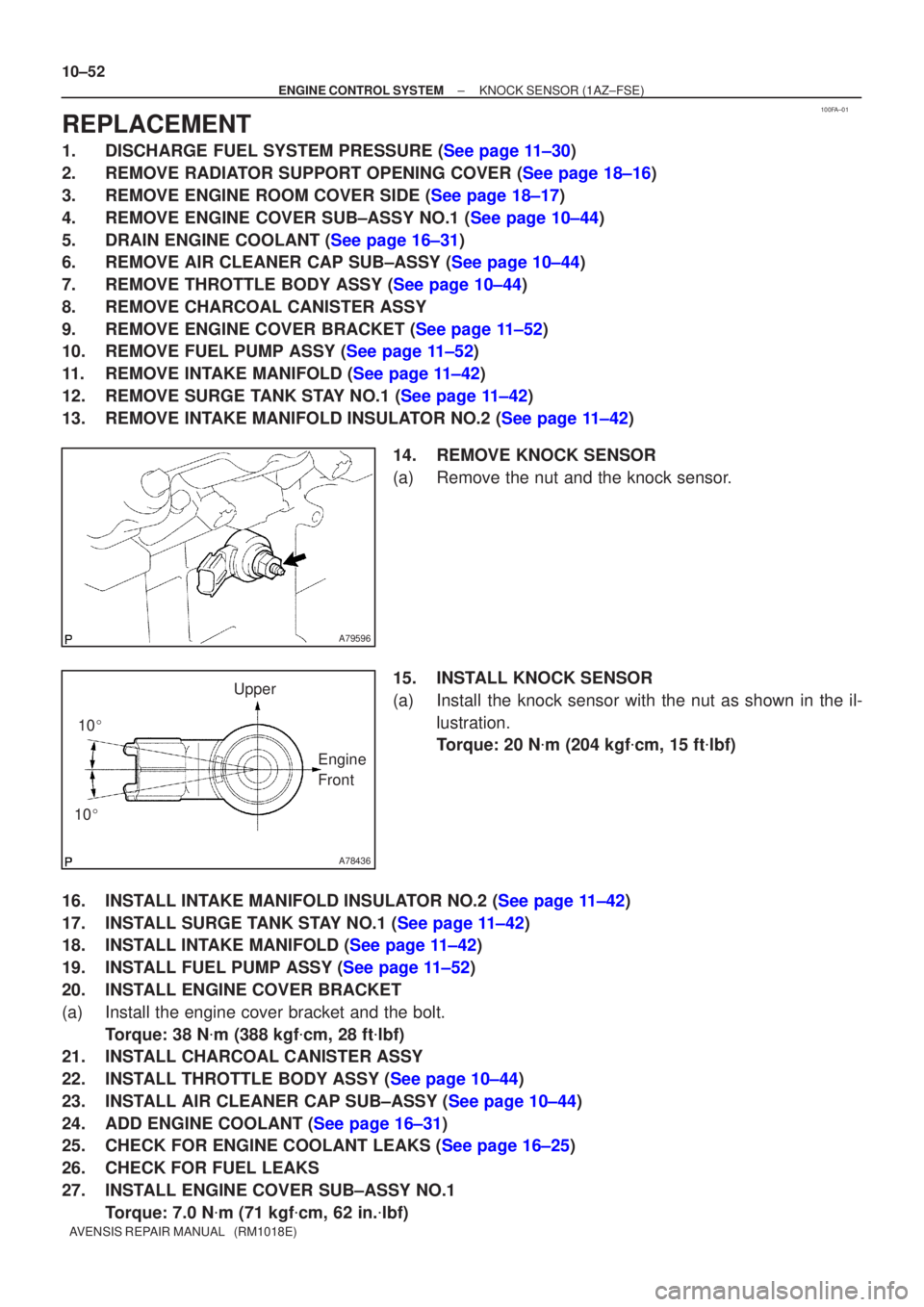

REPLACEMENT
1.DISCHARGE FUEL SYSTEM PRESSURE (See page 11±30)
2.REMOVE RADIATOR SUPPORT OPENING COVER (See page 18±16)
3.REMOVE ENGINE ROOM COVER SIDE (See page 18±17)
4.REMOVE ENGINE COVER SUB±ASSY NO.1 (See page 10±44)
5.DRAIN ENGINE COOLANT (See page 16±31)
6.REMOVE AIR CLEANER CAP SUB±ASSY (See page 10±44)
7.REMOVE THROTTLE BODY ASSY (See page 10±44)
8.REMOVE CHARCOAL CANISTER ASSY
9.REMOVE ENGINE COVER BRACKET (See page 11±52)
10.REMOVE FUEL PUMP ASSY (See page 11±52)
11.REMOVE INTAKE MANIFOLD (See page 11±42)
12.REMOVE SURGE TANK STAY NO.1 (See page 11±42)
13.REMOVE INTAKE MANIFOLD INSULATOR NO.2 (See page 11±42) 14.REMOVE KNOCK SENSOR
(a)Remove the nut and the knock sensor.
15.INSTALL KNOCK SENSOR
(a)Install the knock sensor with the nut as shown in the il-lustration.
Torque: 20 N
m (204 kgf
cm, 15 ft
lbf)
16.INSTALL INTAKE MANIFOLD INSULATOR NO.2 (See page 11±42)
17.INSTALL SURGE TANK STAY NO.1 (See page 11±42)
18.INSTALL INTAKE MANIFOLD (See page 11±42)
19.INSTALL FUEL PUMP ASSY (See page 11±52)
20. INSTALL ENGINE COVER BRACKET
(a) Install the engine cover bracket and the bolt. Torque: 38 N
m (388 kgf
cm, 28 ft
lbf)
21. INSTALL CHARCOAL CANISTER ASSY
22.INSTALL THROTTLE BODY ASSY (See page 10±44)
23.INSTALL AIR CLEANER CAP SUB±ASSY (See page 10±44)
24.ADD ENGINE COOLANT (See page 16±31)
25.CHECK FOR ENGINE COOLANT LEAKS (See page 16±25)
26. CHECK FOR FUEL LEAKS
27. INSTALL ENGINE COVER SUB±ASSY NO.1
Torque: 7.0 N
m (71 kgf
cm, 62 in.
lbf)

± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
10±53
AVENSIS REPAIR MANUAL (RM1018E)

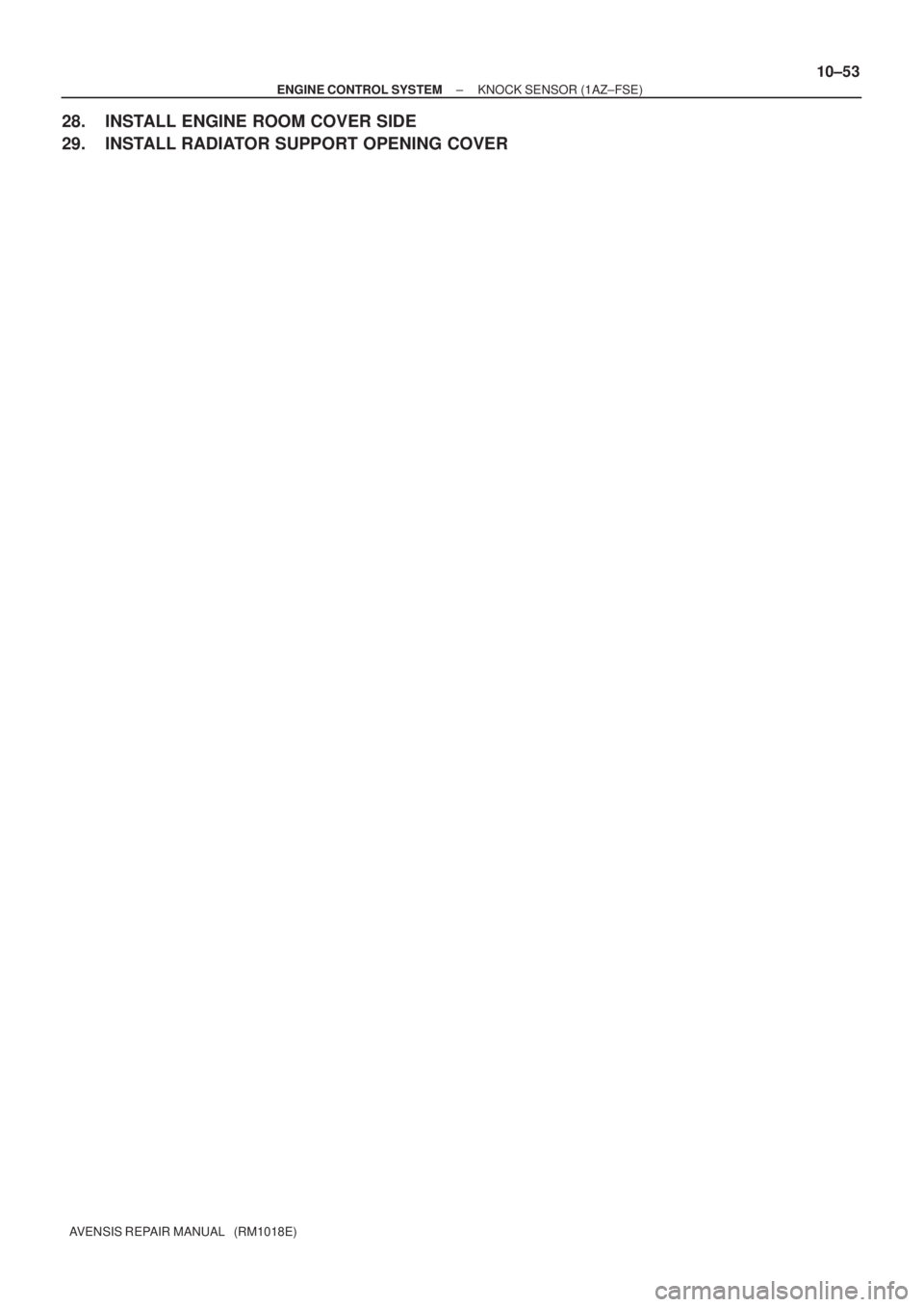

28. INSTALL ENGINE ROOM COVER SIDE
29. INSTALL RADIATOR SUPPORT OPENING COVER

100F9±01
A78507
Mass Air Flow
Meter Connector
N´m (kgf´cm, ft´lbf) : Specified torqueEngine Cover Sub±assy
No. 1
7.0 (71, 62 in.
lbf)
Air Cleaner Cap
Sub±assyVSV
Connector Fuel Vapor Feed Hose
Clip
Engine Room Cover Side
Radiator Support Opening Cover
Clip
Retainer
x2
x4
1.5 (15, 13 in.
lbf)
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
10±47
AVENSIS REPAIR MANUAL (RM1018E)

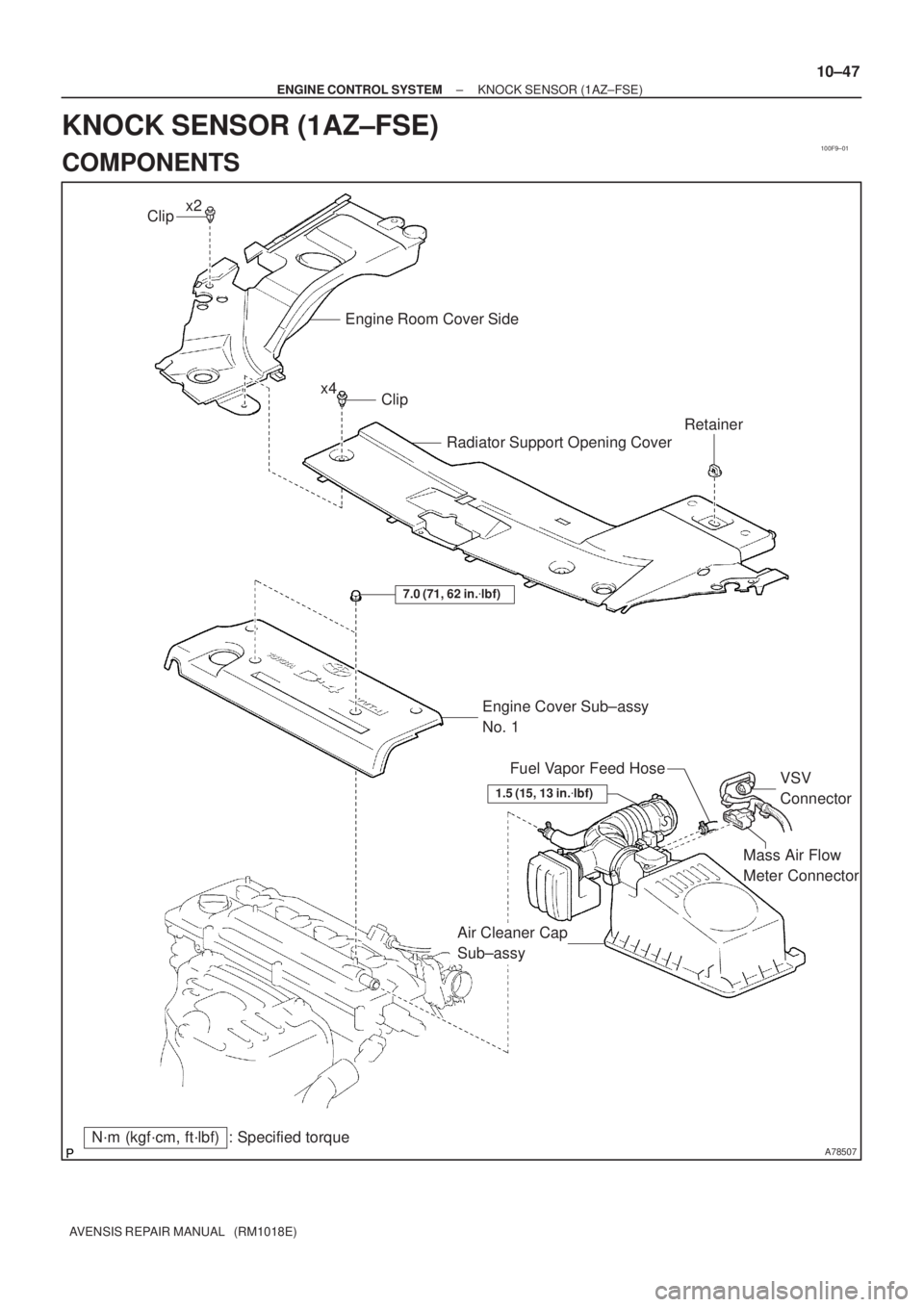

KNOCK SENSOR (1AZ±FSE)
COMPONENTS

A78508
Non±reusable part

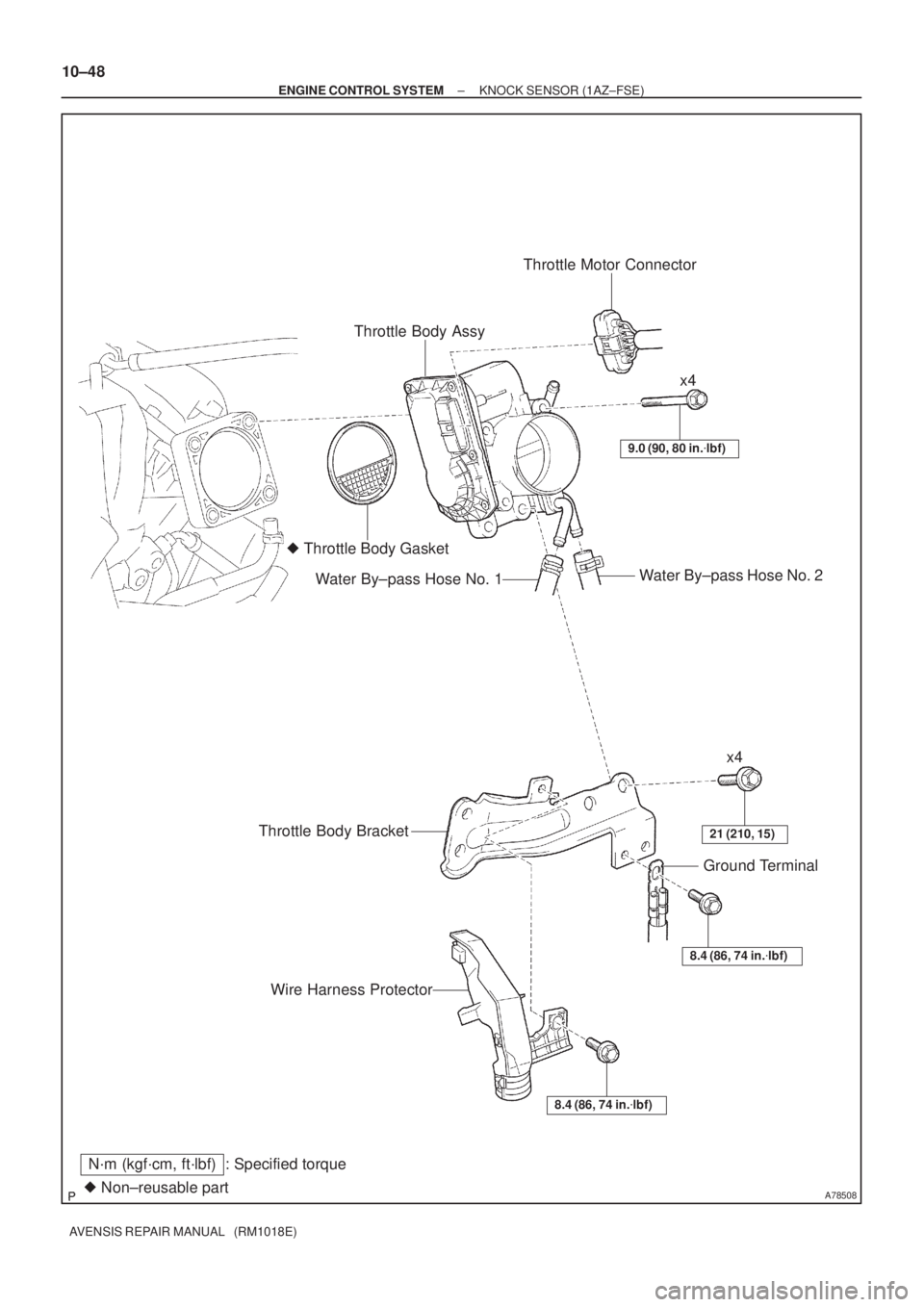

N´m (kgf´cm, ft´lbf) : Specified torqueThrottle Body AssyThrottle Motor Connector

Throttle Body Gasket
Water By±pass Hose No. 2
Water By±pass Hose No. 1
9.0 (90, 80 in.
lbf)
x4
x4
21 (210, 15)Throttle Body Bracket
8.4 (86, 74 in.
lbf)
Ground Terminal
Wire Harness Protector
8.4 (86, 74 in.
lbf)
10±48
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)

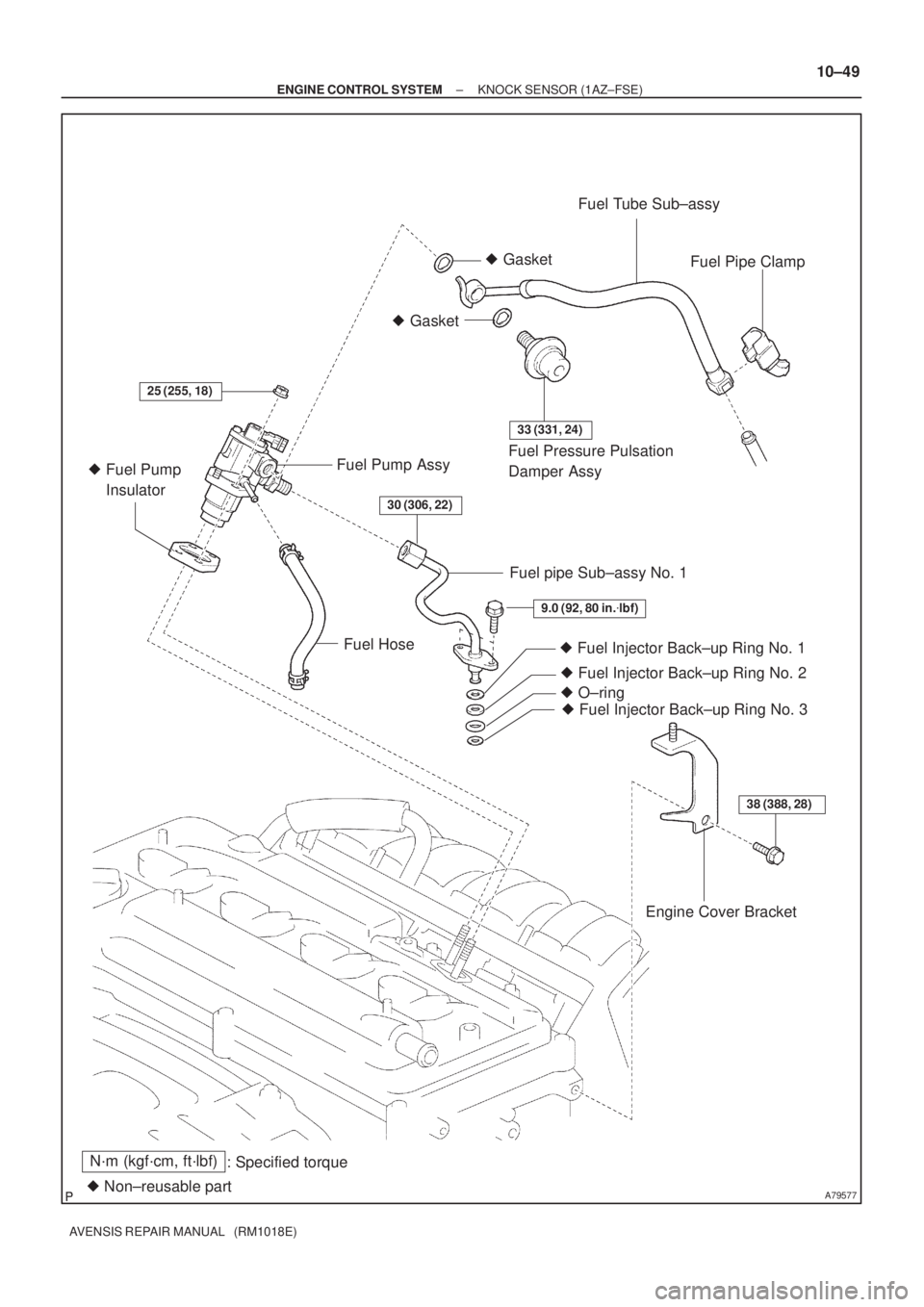

A79577
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
GasketFuel Tube Sub±assy
Fuel Pipe Clamp
Fuel Pressure Pulsation
Damper Assy Fuel Pump Assy

Fuel Pump
Insulator
Fuel HoseFuel pipe Sub±assy No. 1

Fuel Injector Back±up Ring No. 1
25 (255, 18)
33 (331, 24)
9.0 (92, 80 in.
lbf)
38 (388, 28)
30 (306, 22)

Fuel Injector Back±up Ring No. 2

Fuel Injector Back±up Ring No. 3
O±ring
Engine Cover Bracket
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
10±49
AVENSIS REPAIR MANUAL (RM1018E)

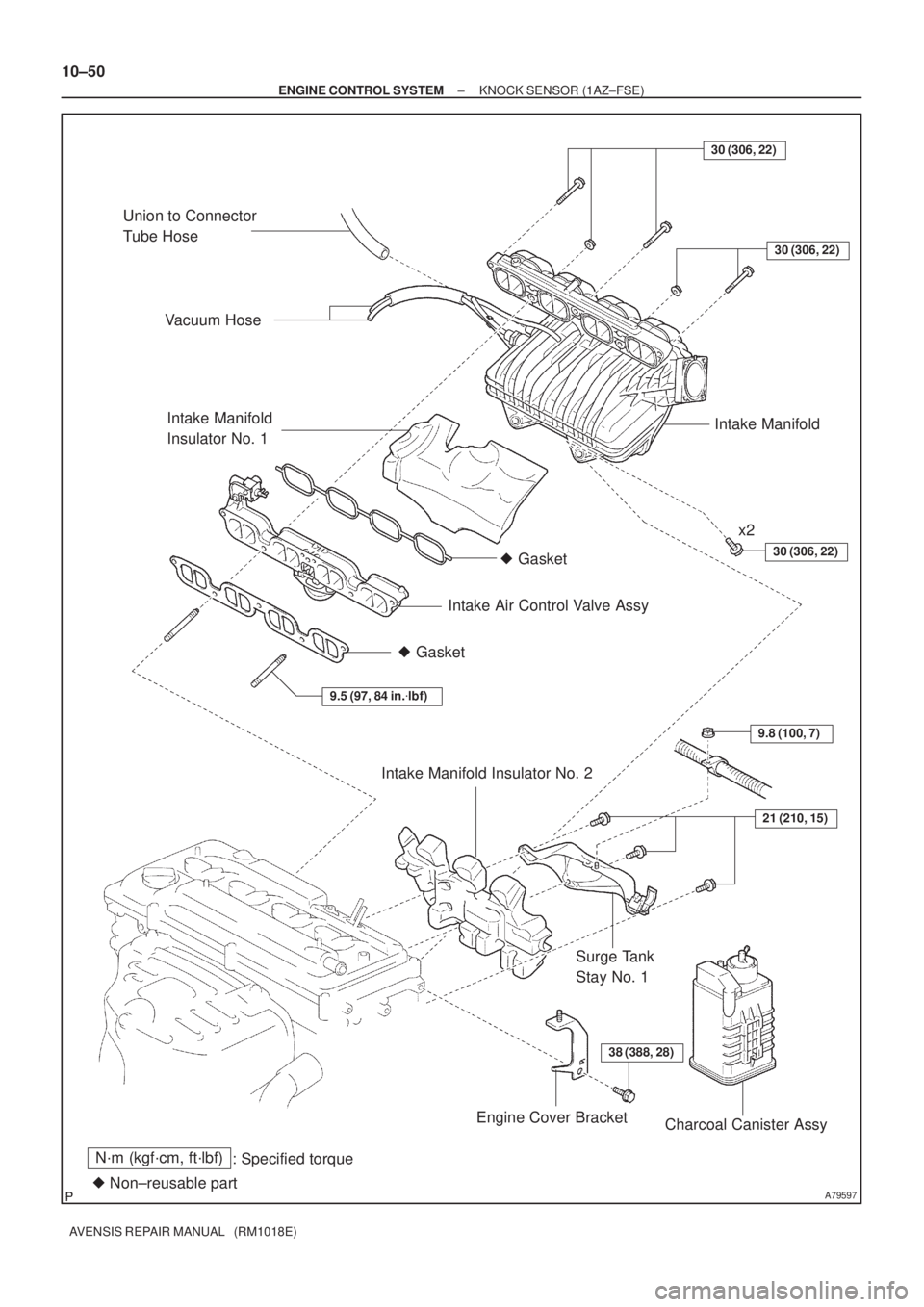

A79597
N´m (kgf´cm, ft´lbf)
: Specified torque

Non±reusable part
Gasket
Gasket
38 (388, 28)
21 (210, 15)
9.5 (97, 84 in.
lbf)
30 (306, 22)
9.8 (100, 7)
30 (306, 22)
30 (306, 22)
Union to Connector
Tube Hose
Vacuum Hose
Intake Manifold
Insulator No. 1
Intake Air Control Valve Assy
Intake Manifold Insulator No. 2
Surge Tank
Stay No. 1
Engine Cover Bracket
Charcoal Canister Assy
Intake Manifold
x2 10±50
± ENGINE CONTROL SYSTEMKNOCK SENSOR (1AZ±FSE)
AVENSIS REPAIR MANUAL (RM1018E)
