TOYOTA AVENSIS 2005 Service Repair Manual

010LE±01
D30402
D30403
A
BC D
E
FG H
01±4
± INTRODUCTIONIDENTIFICATION INFORMATION
AVENSIS REPAIR MANUAL (RM1018E)
IDENTIFICATION INFORMATION
VEHICLE IDENTIFICATION AND SERIAL NUMBERS
1. VEHICLE IDENTIFICATION NUMBER
(a) The vehicle identification number is stamped in the en-
gine compartment, as shown in the illustration. This num-
ber has also been stamped on the manufacturer's plate.
2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL
NUMBER
(a) The engine serial number is stamped on the cylinder
block of the engine and the transmission serial number is
stamped on the housing as shown in the illustration.
A: 1CD±FTV
B: 1AZ±FE, 1AZ±FSE
C: 1ZZ±FE, 3ZZ±FE
D: C50, C250
E: U241E
F: E354, E357, U241E
G: U241E
H: U341E

010B2±13
N17080
Filler Cap
Float
Reservoir Tank

Grommet
Clip
Slotted Spring Pin
: Specified torque

Non±reusable partCylinder
Piston
Push Rod
Washer
Snap Ring
Boot

Gasket
Lock Nut
Clevis Pin
Clevis
N´m (kgf´cm, ft´lbf)
12 (120, 9)
15 (155, 11)
± INTRODUCTIONHOW TO USE THIS MANUAL
01±1
AVENSIS REPAIR MANUAL (RM1018E)

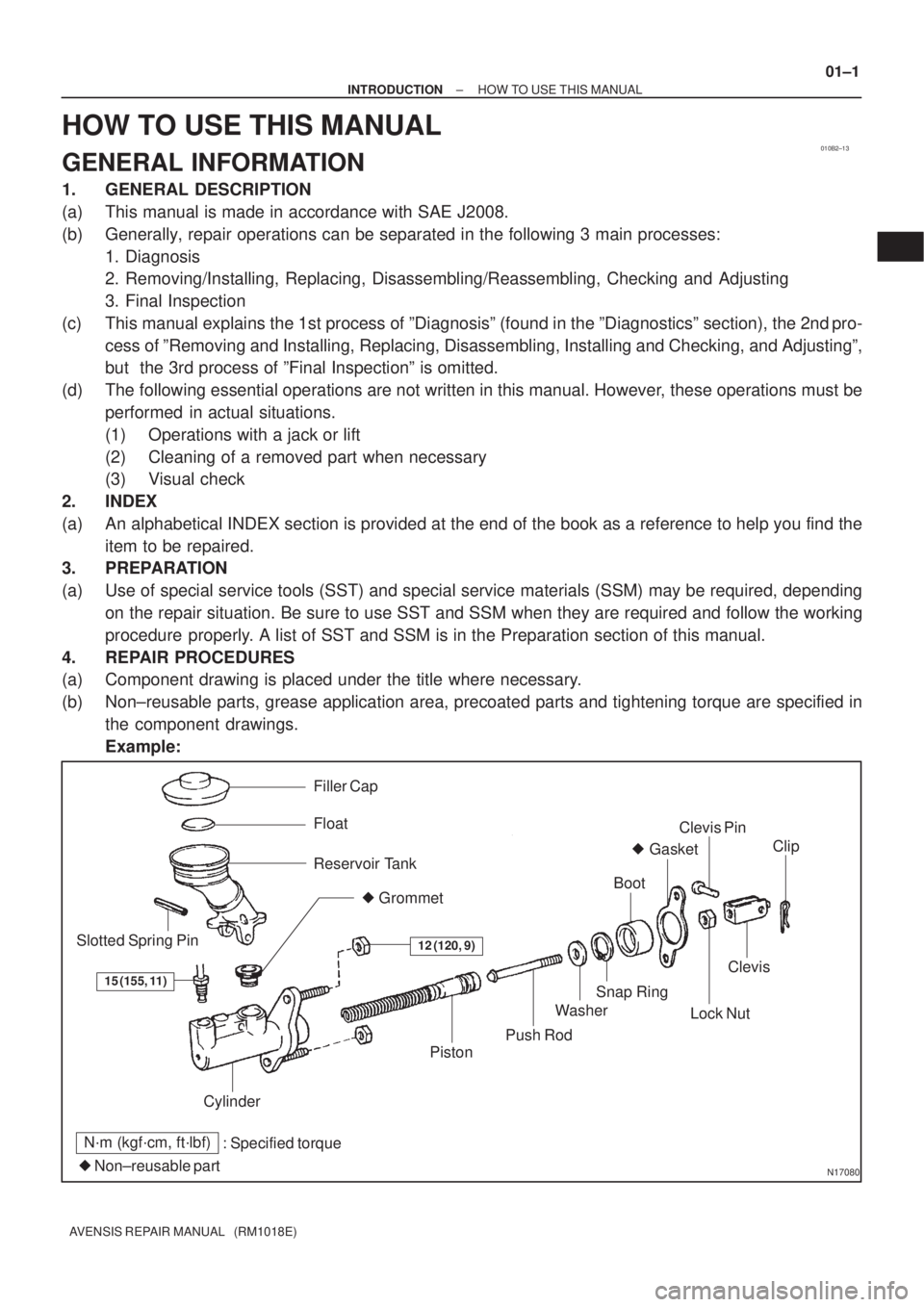

HOW TO USE THIS MANUAL
GENERAL INFORMATION
1. GENERAL DESCRIPTION
(a) This manual is made in accordance with SAE J2008.
(b) Generally, repair operations can be separated in the following 3 main processes:
1. Diagnosis
2. Removing/Installing, Replacing, Disassembling/Reassembling, Checking and Adjusting
3. Final Inspection
(c) This manual explains the 1st process of ºDiagnosisº (found in the ºDiagnosticsº section), the 2nd
pro-
cess of ºRemoving and Installing, Replacing, Disassembling, Installing and Checking, and Adjustingº,
but the 3rd process of ºFinal Inspectionº is omitted.
(d) The following essential operations are not written in this manual. However, these operations must be
performed in actual situations.
(1) Operations with a jack or lift
(2) Cleaning of a removed part when necessary
(3) Visual check
2. INDEX
(a) An alphabetical INDEX section is provided at the end of the book as a reference to help you find the
item to be repaired.
3. PREPARATION
(a) Use of special service tools (SST) and special service materials (SSM) may be required, depending
on the repair situation. Be sure to use SST and SSM when they are required and follow the working
procedure properly. A list of SST and SSM is in the Preparation section of this manual.
4. REPAIR PROCEDURES
(a) Component drawing is placed under the title where necessary.
(b) Non±reusable parts, grease application area, precoated parts and tightening torque are specified in
the component drawings.
Example:

Illustration:
what to do and where
Component part No. Detailed text: how to perform task
Task heading: what to do
Set part No
D31009
01±2
± INTRODUCTIONHOW TO USE THIS MANUAL
AVENSIS REPAIR MANUAL (RM1018E)
(c) Tightening torque, grease application area, and non±reusable parts are described as important points
in the procedures.
NOTICE:
There are cases where such information can only be explained by using an illustration. In these
cases, all the information such as torque, oil, etc. are described in the illustration.
(d) Installing procedures are performed in the reverse order of the removal and only the important points
are described.
(e) Only items with points are described in the procedure, and the operational portion and content are
placed using an illustration. In the explanations, details of the operational method, standard value and
notices are placed.
(f) There may be a case where the illustrations of similar models are used. In that case, specific details
may be different from the actual vehicle.
(g) The procedures are presented in a step±by±step format:
(1) The illustration shows what to do and where to do it.
(2) The task heading tells what to do.
(3) The explanation text tells how to perform the task and gives other information such as specifica-
tions and warnings.
Example:
HINT:
This format provides an experienced technician with a FAST TRACK to the necessary information. The task
heading can be read at a glance when necessary and the text below provides detailed information. Important
specifications and warnings always are written in bold type to stand out from the rest of the text.
5. SERVICE SPECIFICATIONS
(a) Specifications are presented in bold type throughout the manual. You never have to leave the proce-
dure to look up your specifications. The specifications are also found in the Service Specifications sec-
tion for quick reference.
6. TERMS DEFINITION
CAUTIONIndicates the possibility of injury to you or other people.
NOTICEIndicates the possibility of damage to the components being repaired.
HINTProvides additional information to help you to perform the repair efficiently.

± INTRODUCTIONHOW TO USE THIS MANUAL
01±3
AVENSIS REPAIR MANUAL (RM1018E)

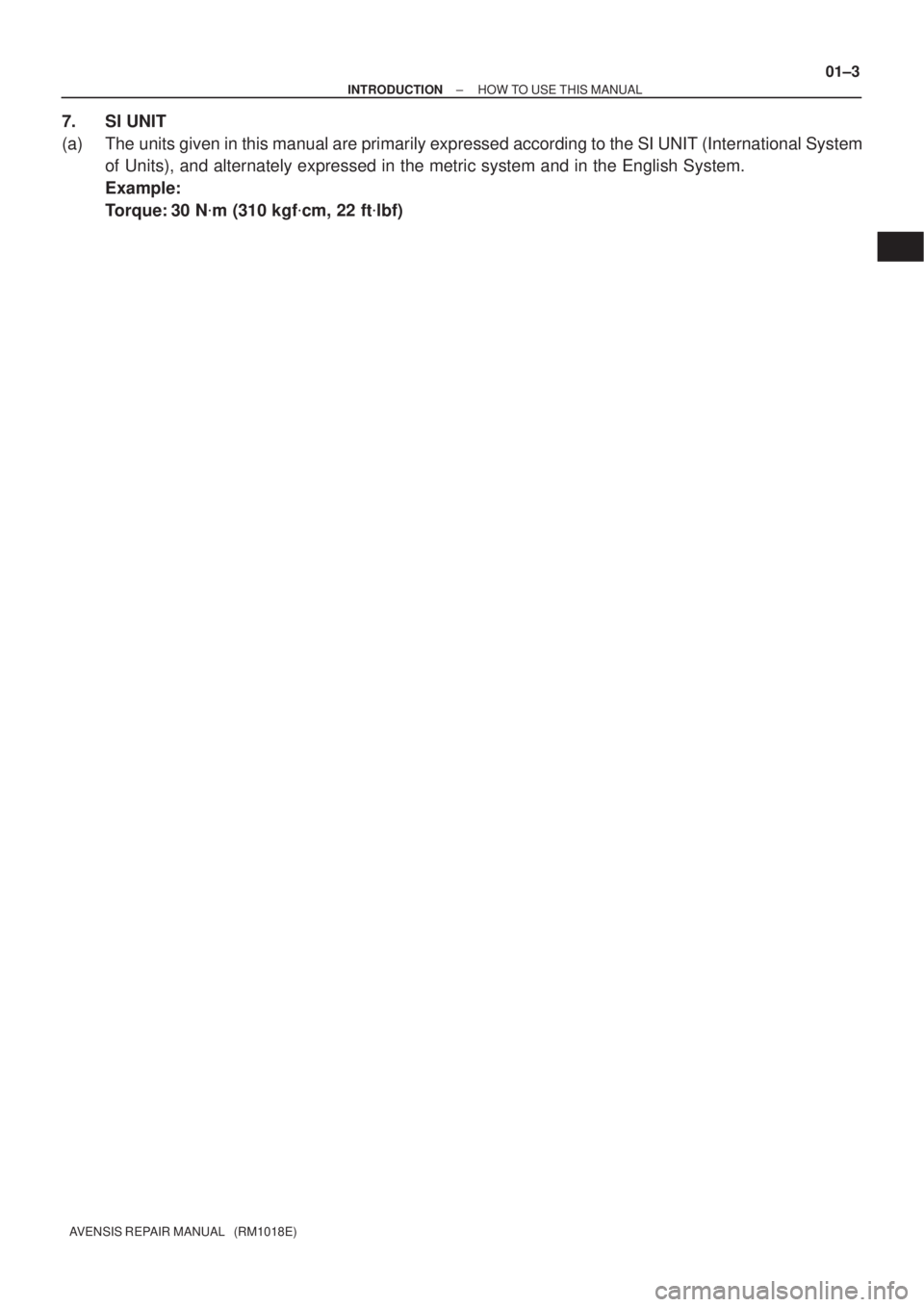

7. SI UNIT
(a) The units given in this manual are primarily expressed according to the SI UNIT (International System
of Units), and alternately expressed in the metric system and in the English System.
Example:
Torque: 30 N
m (310 kgf
cm, 22 ft
lbf)

022J5±01
± PREPARATIONENGINE CONTROL SYSTEM
02±3
AVENSIS REPAIR MANUAL (RM1018E)
ENGINE CONTROL SYSTEM
PREPARATION
SST
09268±21010Fuel Hose PullerKNOCK SENSOR(1AZ±FE)
Recomended Tools
09082±00040TOYOTA Electrical TesterSFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
(09083±00150)Test Lead SetSFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
Equipment
Ohmmeter
Radiator cap tester
Service Wire Harness
Torque wrench
Vernier calipers
Voltmeter

022LX±01
± PREPARATIONDIAGNOSTICS
02±1
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTICS
PREPARATION
SST
09243±00020Idle Adjusting Screw WrenchSFI SYSTEM(1AZ±FE)
09843±18040Diagnosis Check Wire No.2AIR CONDITIONING SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
SUPPLEMENTAL RESTRAINT
SYSTEM
SFI SYSTEM(1AZ±FE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
09992±00242Turbocharger Pressure GaugeECD SYSTEM(1CD±FTV)
Recomended Tools
09082±00040TOYOTA Electrical TesterCOMBINATION METER
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)

02±2
± PREPARATIONDIAGNOSTICS
AVENSIS REPAIR MANUAL (RM1018E)
(09083±00150)Test Lead SetAIR CONDITIONING SYSTEM
ABS WITH EBD SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
MULTIPLEX COMMUNICATION
SYSTEM
ENGINE IMMOBILISER SYSTEM
ABS WITH EBD & BA & TRC & VSC
SYSTEM
WIRELESS DOOR LOCK CONTROL
SYSTEM
COMBINATION METER
KEY REMINDER WARNING SYSTEM
POWER DOOR LOCK CONTROL
SYSTEM
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)
09082±00050TOYOTA Electrical Tester SetPOWER DOOR LOCK CONTROL
SYSTEM
(09083±00150)Test Lead SetAIR CONDITIONING SYSTEM
ABS WITH EBD SYSTEM
ELECTRONIC MOTOR POWER
STEERING SYSTEM
MULTIPLEX COMMUNICATION
SYSTEM
ENGINE IMMOBILISER SYSTEM
ABS WITH EBD & BA & TRC & VSC
SYSTEM
WIRELESS DOOR LOCK CONTROL
SYSTEM
COMBINATION METER
KEY REMINDER WARNING SYSTEM
POWER DOOR LOCK CONTROL
SYSTEM
SFI SYSTEM(1AZ±FE)
SFI SYSTEM(1AZ±FSE)
ECD SYSTEM(1CD±FTV)
SFI SYSTEM(1ZZ±FE/3ZZ±FE)
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U241E(1AZ±FSE))
ELECTRONIC CONTROLLED
AUTOMATIC TRANSAXLE
[ECT](U341E)

010BA±14
01±42
± INTRODUCTIONTERMS
AVENSIS REPAIR MANUAL (RM1018E)
GLOSSARY OF SAE AND TOYOTA TERMS
This glossary lists all SAE±J1930 terms and abbreviations used in this manual in compliance with SAE rec-
ommendations, as well as their TOYOTA equivalents.
SAE
ABBREVIATIONSSAE TERMSTOYOTA TERMS
( )±±ABBREVIATIONS
A/CAir ConditioningAir Conditioner
ACLAir CleanerAir Cleaner, A/CL
AIRSecondary Air InjectionAir Injection (AI)
APAccelerator Pedal±
B+Battery Positive Voltage+B, Battery Voltage
BAROBarometric PressureHAC
CACCharge Air CoolerIntercooler
CARBCarburetorCarburetor
CFIContinuous Fuel Injection±
CKPCrankshaft PositionCrank Angle
CLClosed LoopClosed Loop
CMPCamshaft PositionCam Angle
CPPClutch Pedal Position±
CTOXContinuous Trap Oxidizer±
CTPClosed Throttle PositionLL ON, Idle ON
DFIDirect Fuel Injection (Diesel)Direct Injection (DI/INJ)
DIDistributor Ignition±
DLC1
DLC2
DLC3Data Link Connector 1
Data Link Connector 2
Data Link Connector 31: Check Connector
2: Total Diagnosis Communication Link (TDCL)
3: OBD II Diagnostic Connector
DTCDiagnostic Trouble CodeDiagnostic Trouble Code
DTMDiagnostic Test Mode±
ECLEngine Control Level±
ECMEngine Control ModuleEngine ECU (Electronic Control Unit)
ECTEngine Coolant TemperatureCoolant Temperature, Water Temperature (THW)
EEPROMElectrically Erasable Programmable Read Only Memory
Electrically Erasable Programmable Read Only Memory
(EEPROM),
Erasable Programmable Read Only Memory (EPROM)
EFEEarly Fuel EvaporationCold Mixture Heater (CMH), Heat Control Valve (HCV)
EGRExhaust Gas RecirculationExhaust Gas Recirculation (EGR)
EIElectronic IgnitionDistributorless Ignition (DLI)
EMEngine ModificationEngine Modification (EM)
EPROMErasable Programmable Read Only MemoryProgrammable Read Only Memory (PROM)
EVAPEvaporative EmissionEvaporative Emission Control (EVAP)
FCFan Control±
FEEPROMFlash Electrically Erasable Programmable
Read Only Memory±
FEPROMFlash Erasable Programmable Read Only Memory±
FFFlexible Fuel±
FPFuel PumpFuel Pump
GENGeneratorAlternator
GNDGroundGround (GND)

± INTRODUCTIONTERMS
01±43
AVENSIS REPAIR MANUAL (RM1018E) HO2S
Heated Oxygen SensorHeated Oxygen Sensor (HO2S)
IACIdle Air ControlIdle Speed Control (ISC)
IATIntake Air TemperatureIntake or Inlet Air Temperature
ICMIgnition Control Module±
IFIIndirect Fuel InjectionIndirect Injection (IDL)
IFSInertia Fuel±Shutoff±
ISCIdle Speed Control±
KSKnock SensorKnock Sensor
MAFMass Air FlowAir Flow Meter
MAPManifold Absolute PressureManifold Pressure Intake Vacuum
MCMixture Control
Electric Bleed Air Control Valve (EBCV)
Mixture Control Valve (MCV)
Electric Air Control Valve (EACV)
MDPManifold Differential Pressure±
MFIMultiport Fuel InjectionElectronic Fuel Injection (EFI)
MILMalfunction Indicator LampCheck Engine Lamp
MSTManifold Surface Temperature±
MVZManifold Vacuum Zone±
NVRAMNon±Volatile Random Access Memory±
O2SOxygen SensorOxygen Sensor, O2 Sensor (O2S)
OBDOn±Board DiagnosticOn±Board Diagnostic System (OBD)
OCOxidation Catalytic ConverterOxidation Catalyst Convert (OC), CCo
OPOpen LoopOpen Loop
PAIRPulsed Secondary Air InjectionAir Suction (AS)
PCMPowertrain Control Module±
PNPPark/Neutral Position±
PROMProgrammable Read Only Memory±
PSPPower Steering Pressure±
PTOXPeriodic Trap OxidizerDiesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
RAMRandom Access MemoryRandom Access Memory (RAM)
RMRelay Module±
ROMRead Only MemoryRead Only Memory (ROM)
RPMEngine SpeedEngine Speed
SCSuperchargerSupercharger
SCBSupercharger BypassE±ABV
SFISequential Multiport Fuel InjectionElectronic Fuel Injection (EFI), Sequential Injection
SPLSmoke Puff Limiter±
SRIService Reminder Indicator±
SRTSystem Readiness Test±
STScan Tool±
TBThrottle BodyThrottle Body
TBIThrottle Body Fuel InjectionSingle Point Injection
Central Fuel Injection (Ci)
TCTurbochargerTurbocharger
TCCTorque Converter ClutchTorque Converter

01±44
± INTRODUCTIONTERMS
AVENSIS REPAIR MANUAL (RM1018E) TCM
Transmission Control ModuleTransmission ECU, ECT ECU
TPThrottle PositionThrottle Position
TRTransmission Range±
TVVThermal Vacuum ValveBimetallic Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve (TVSV)
TWCThree±Way Catalytic Converter
Three±Way Catalytic (TWC)
Manifold Converter
CC
RO
TWC+OCThree±Way + Oxidation Catalytic ConverterCCR + CCo
VA FVolume Air FlowAir Flow Meter
VRVoltage RegulatorVoltage Regulator
VSSVehicle Speed SensorVehicle Speed Sensor
WOTWide Open ThrottleFull Throttle
WU±OCWarm Up Oxidation Catalytic Converter±
WU±TWCWarm Up Three±Way Catalytic Converter±
3GRThird Gear±
4GRFourth Gear±
