± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±883
AVENSIS REPAIR MANUAL (RM1018E)

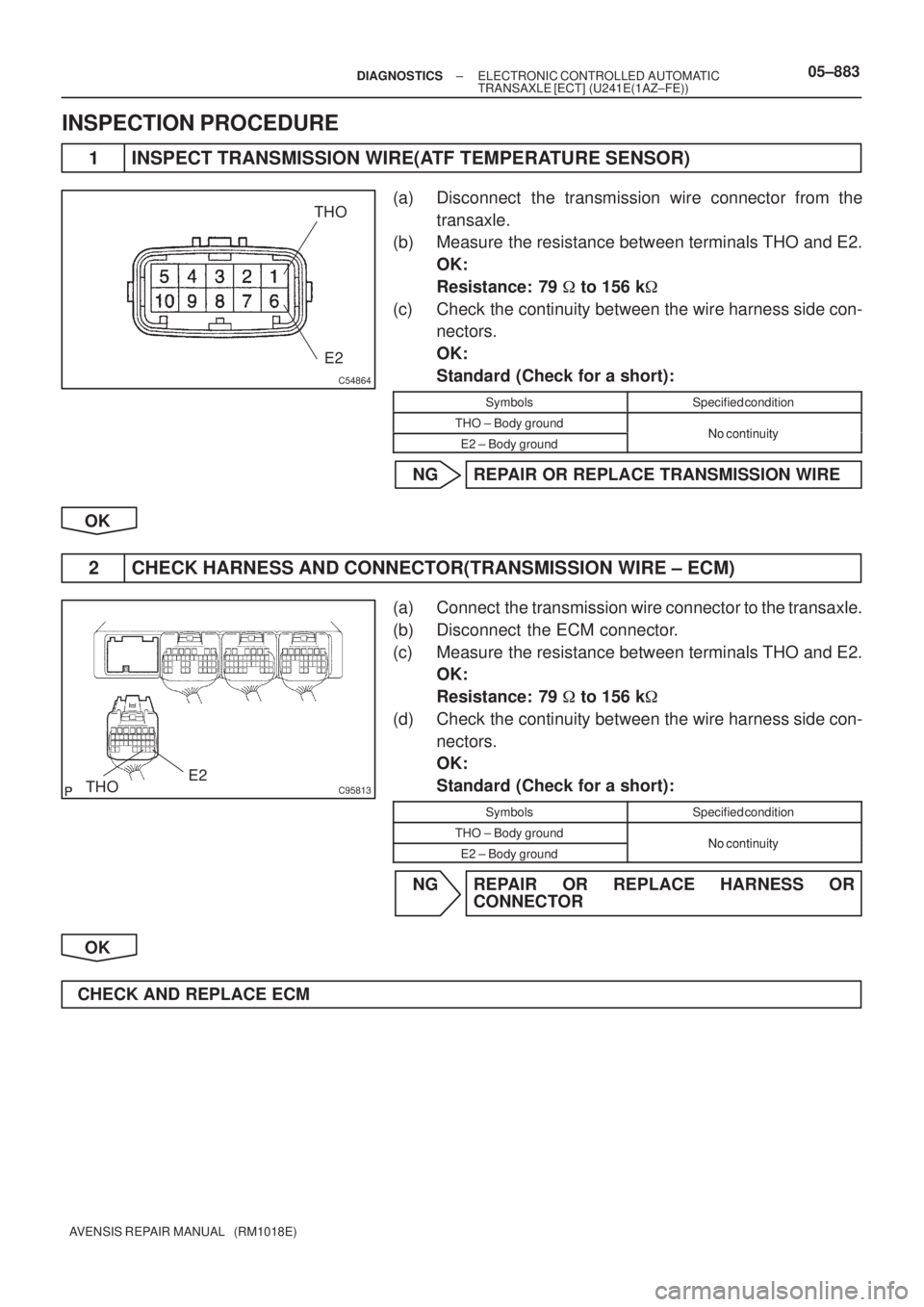

INSPECTION PROCEDURE
1 INSPECT TRANSMISSION WIRE(ATF TEMPERATURE SENSOR)
(a) Disconnect the transmission wire connector from the
transaxle.
(b) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(c) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE TRANSMISSION WIRE
OK
2 CHECK HARNESS AND CONNECTOR(TRANSMISSION WIRE ± ECM)
(a) Connect the transmission wire connector to the transaxle.
(b) Disconnect the ECM connector.
(c) Measure the resistance between terminals THO and E2.
OK:
Resistance: 79
to 156 k

(d) Check the continuity between the wire harness side con-
nectors.
OK:
Standard (Check for a short):
SymbolsSpecified condition
THO ± Body groundNo continuityE2 ± Body groundNo continuity
NG REPAIR OR REPLACE HARNESS OR
CONNECTOR
OK
CHECK AND REPLACE ECM

0567W±11
±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))05±879
AVENSIS REPAIR MANUAL (RM1018E)

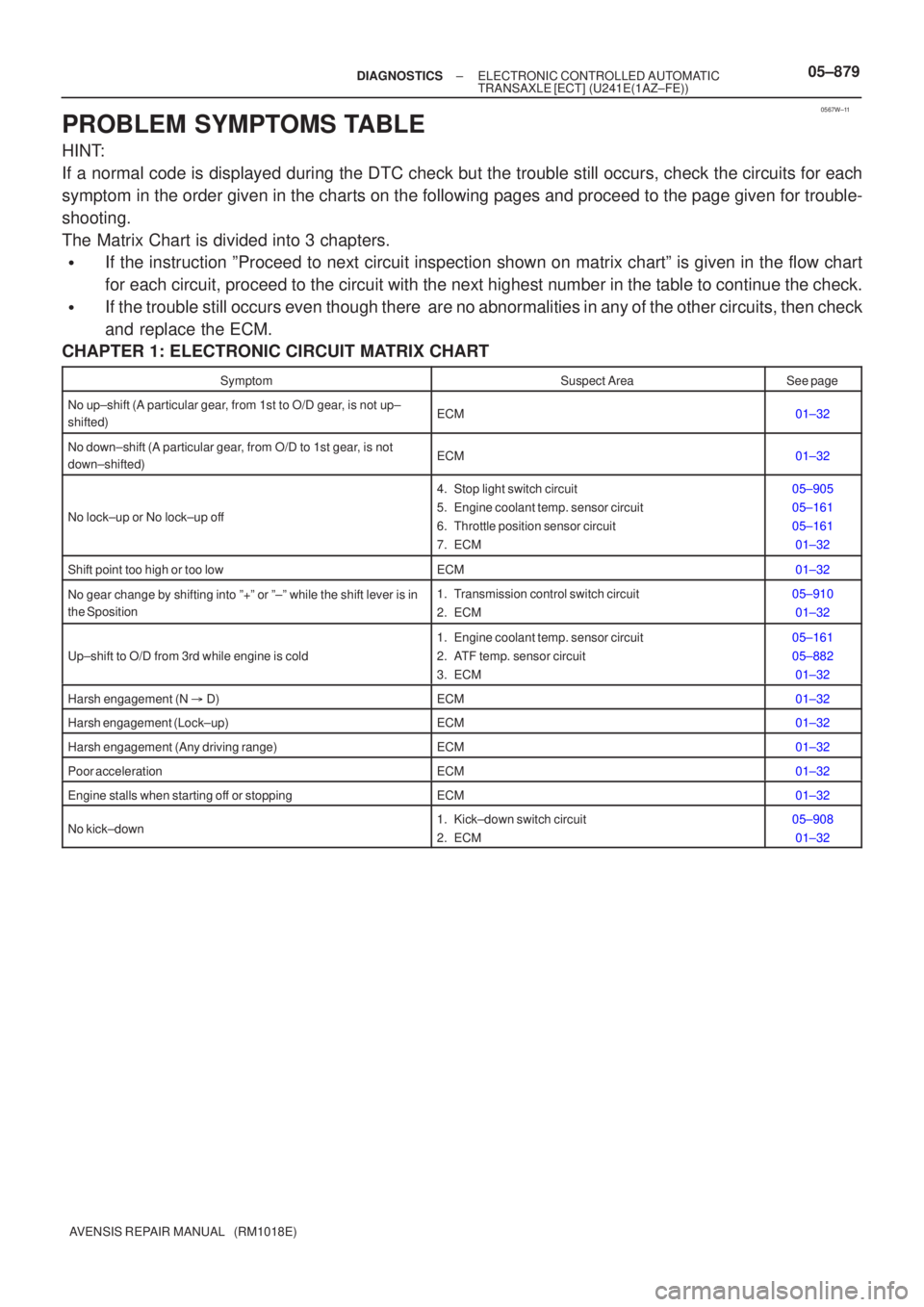

PROBLEM SYMPTOMS TABLE
HINT:
If a normal code is displayed during the DTC check but the trouble still o\
ccurs, check the circuits for each
symptom in the order given in the charts on the following pages and proceed to \
the page given for trouble-
shooting.
The Matrix Chart is divided into 3 chapters.

If the instruction ºProceed to next circuit inspection shown on matri\
x chartº is given in the flow chart
for each circuit, proceed to the circuit with the next highest number in the table to continue the check.

If the trouble still occurs even though there are no abnormalities in any of the other circuits, then ch\
eck
and replace the ECM.
CHAPTER 1: ELECTRONIC CIRCUIT MATRIX CHART
SymptomSuspect AreaSee page
No up±shift (A particular gear, from 1st to O/D gear, is not up±
shifted)ECM01±32
No down±shift (A particular gear, from O/D to 1st gear, is not
down±shifted)ECM01±32
No lock±up or No lock±up off
4. Stop light switch circuit
5. Engine coolant temp. sensor circuit
6. Throttle position sensor circuit
7. ECM05±905
05±161
05±161
01±32
Shift point too high or too lowECM01±32
No gear change by shifting into º+º or º±º while the shif\
t lever is in
the Sposition1. Transmission control switch circuit
2. ECM05±91001±32
Up±shift to O/D from 3rd while engine is cold
1. Engine coolant temp. sensor circuit
2. ATF temp. sensor circuit
3. ECM05±161
05±88201±32
Harsh engagement (N
D)ECM01±32
Harsh engagement (Lock±up)ECM01±32
Harsh engagement (Any driving range)ECM01±32
Poor accelerationECM01±32
Engine stalls when starting off or stoppingECM01±32
No kick±down1. Kick±down switch circuit
2. ECM05±908
01±32

0567R±11
D30682
Combination Meter
(MIL)
Europe spec: Stop Lamp
Switch Assy
Shift Lock Control Unit
(Transmission Control Switch)
Shift Solenoid Valve SLT
Shift Solenoid Valve SL1ECM
DLC3
Park/neutral Position
Switch Assy
Shift Solenoid Valve SL2
Shift Solenoid Valve DSLShift Solenoid
Valve S4
Transmission Wire
(ATF Temperature Sensor) Speed Sensor (NT)
Speed Sensor (NC)
Kick±down Switch
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±877
AVENSIS REPAIR MANUAL (RM1018E)

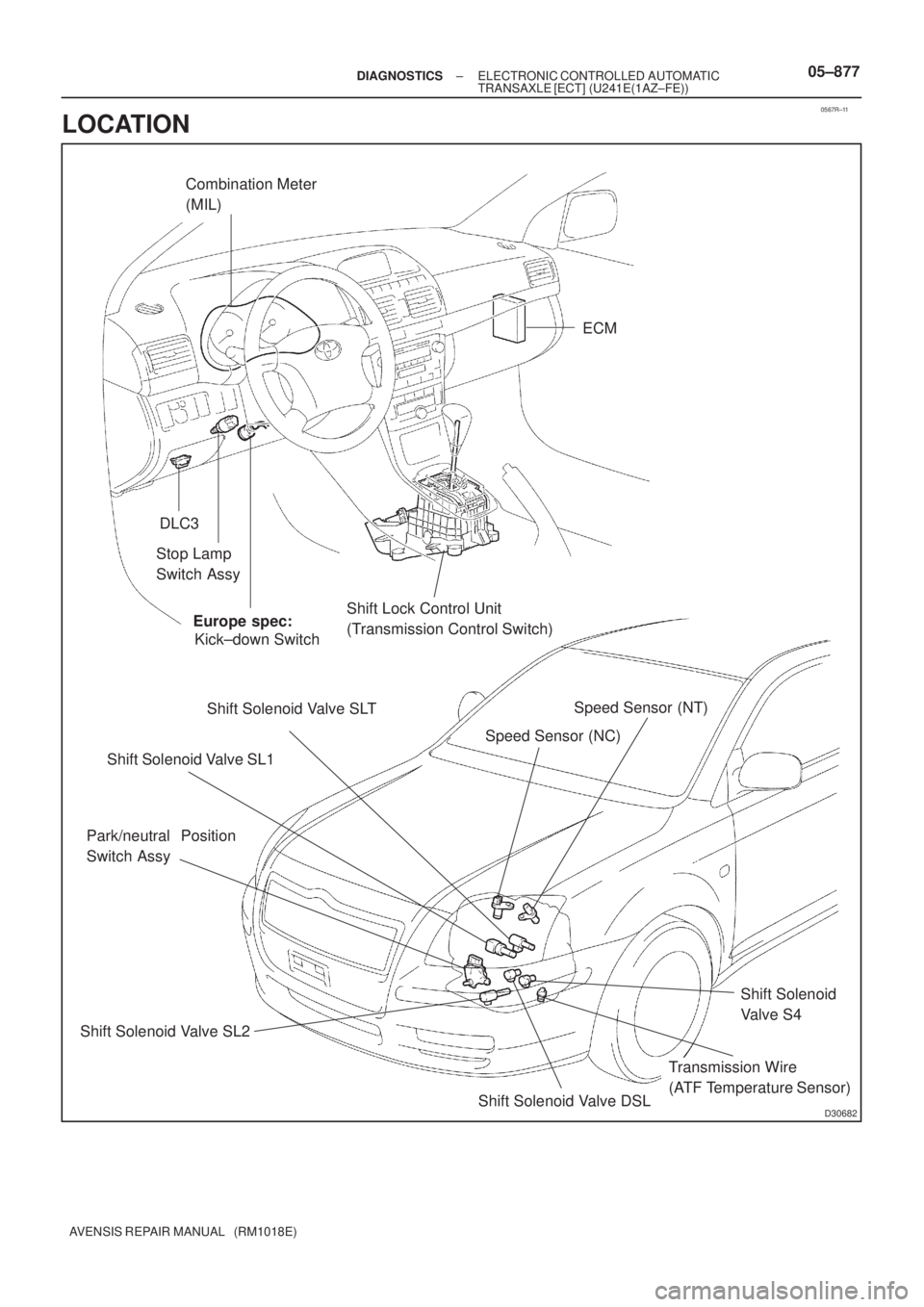

LOCATION

0567Q±08
05±876±
DIAGNOSTICS ELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT](U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)

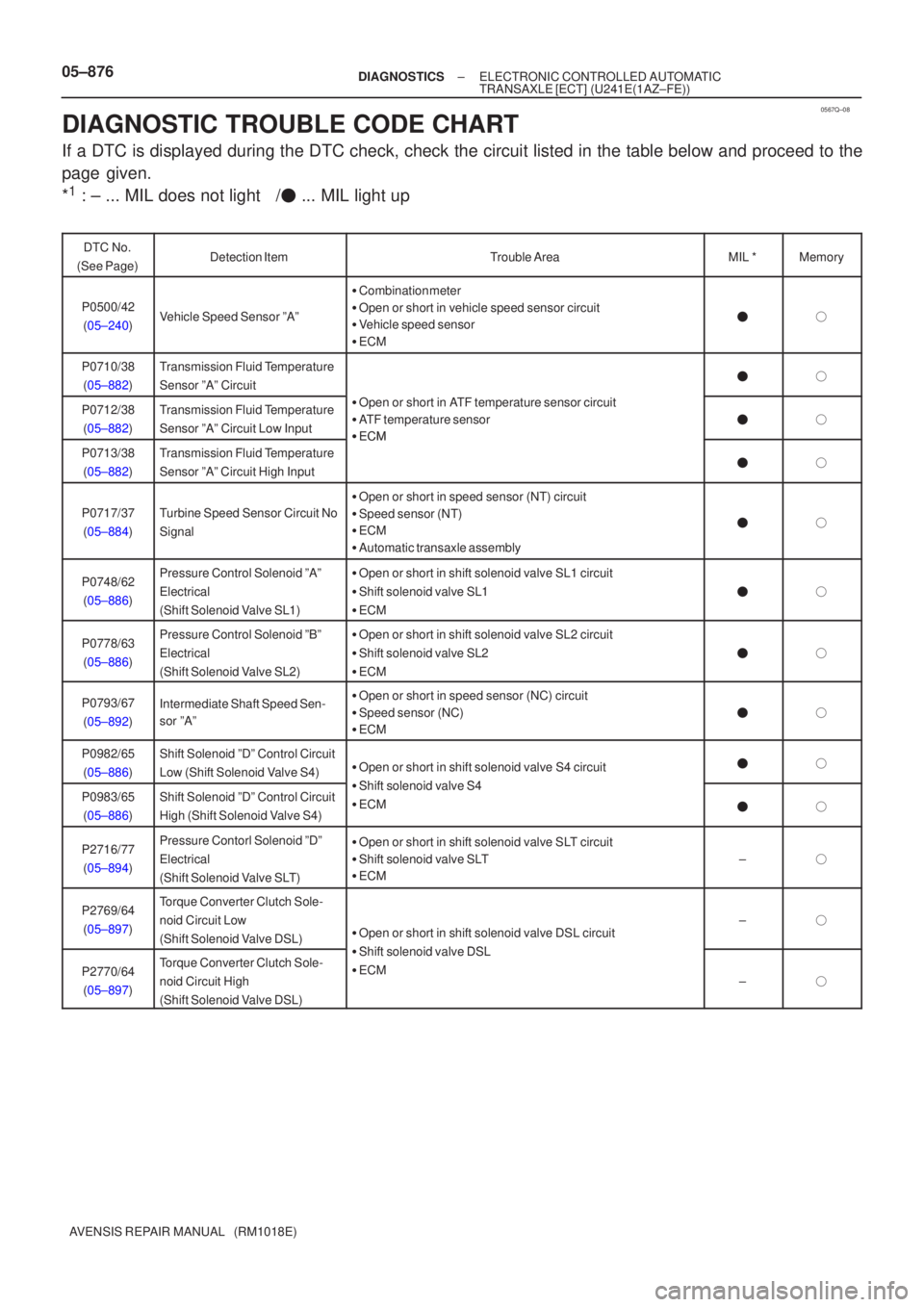

DIAGNOSTIC TROUBLE CODE CHART
If a DTC is displayed during the DTC check, check the circuit listed in th\
e table below and proceed to the
page given.
*
1 : ± ... MIL does not light /
... MIL light up
DTC No.
(See Page)Detection ItemTrouble AreaMIL *Memory
P0500/42 (05±240)Vehicle Speed Sensor ºAº
 Combination meter
 Open or short in vehicle speed sensor circuit
 Vehicle speed sensor
 ECM


P0710/38
(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit

P0712/38(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit Low Input Open or short in ATF temperature sensor circuit
 ATF temperature sensor

ECM


P0713/38
(05±882)Transmission Fluid Temperature
Sensor ºAº Circuit High Input
ECM


P0717/37(05±884)Turbine Speed Sensor Circuit No
Signal
 Open or short in speed sensor (NT) circuit
 Speed sensor (NT)
 ECM
 Automatic transaxle assembly


P0748/62
(05±886)Pressure Control Solenoid ºAº
Electrical
(Shift Solenoid Valve SL1) Open or short in shift solenoid valve SL1 circuit
 Shift solenoid valve SL1
 ECM


P0778/63
(05±886)Pressure Control Solenoid ºBº
Electrical
(Shift Solenoid Valve SL2) Open or short in shift solenoid valve SL2 circuit
 Shift solenoid valve SL2
 ECM


P0793/67
(05±892)Intermediate Shaft Speed Sen-
sor ºAº Open or short in speed sensor (NC) circuit
 Speed sensor (NC)
 ECM


P0982/65
(05±886)Shift Solenoid ºDº Control Circuit
Low (Shift Solenoid Valve S4) Open or short in shift solenoid valve S4 circuit
Shift l id l S4


P0983/65
(05±886)Shift Solenoid ºDº Control Circuit
High (Shift Solenoid Valve S4) Shift solenoid valve S4
 ECM


P2716/77
(05±894)Pressure Contorl Solenoid ºDº
Electrical
(Shift Solenoid Valve SLT) Open or short in shift solenoid valve SLT circuit
 Shift solenoid valve SLT
 ECM
±
P2769/64
(05±897)Torque Converter Clutch Sole-
noid Circuit Low
(Shift Solenoid Valve DSL)
 Open or short in shift solenoid valve DSL circuit
Shift l id l DSL
±
P2770/64
(05±897)Torque Converter Clutch Sole-
noid Circuit High
(Shift Solenoid Valve DSL) Shift solenoid valve DSL
 ECM
±

0567O±10

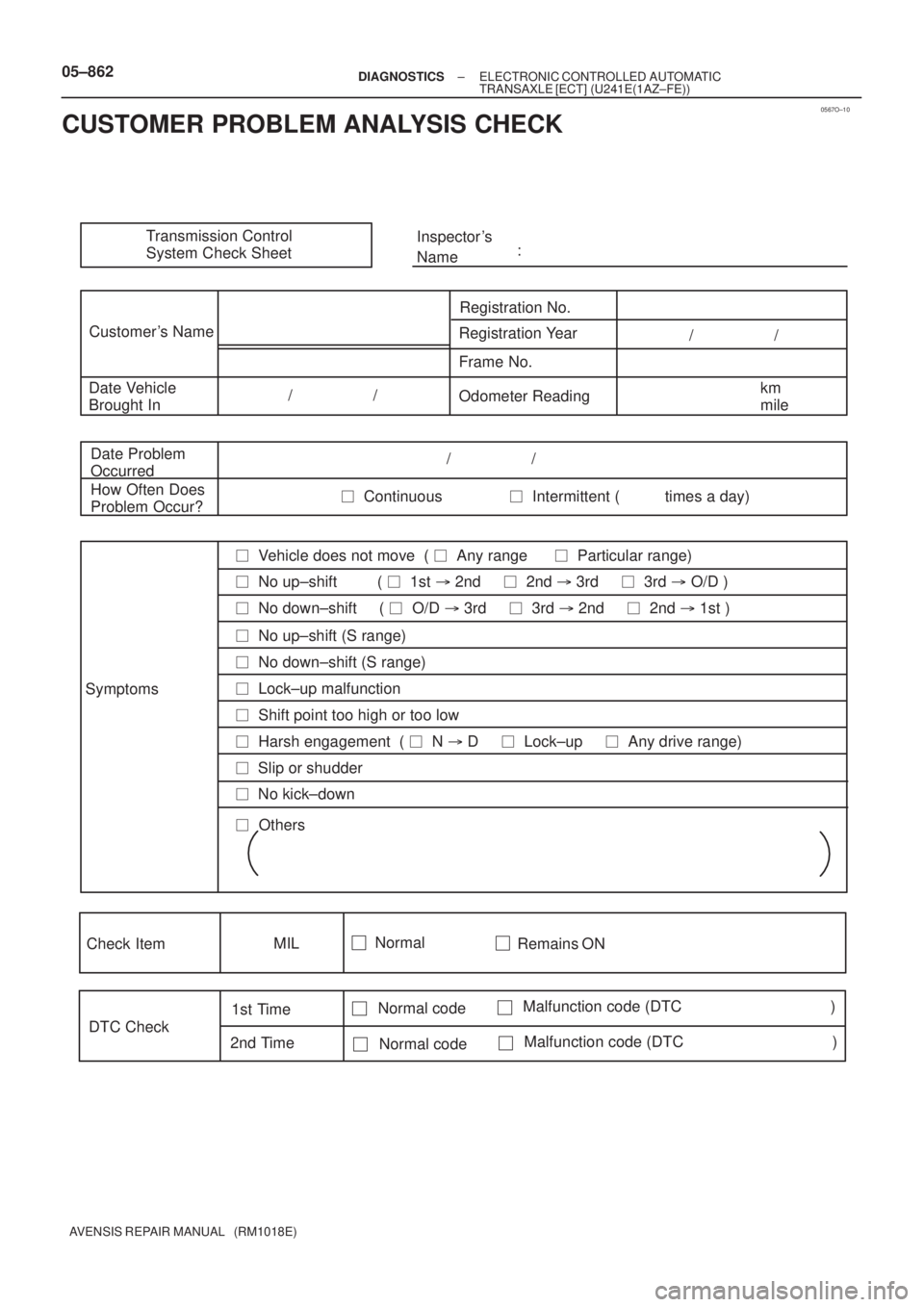

Transmission Control
System Check SheetInspector 's
Name:
Customer 's Name
Registration No.
Registration Year
Frame No.
Date Vehicle
Brought InOdometer Readingkm
mile / /
/ /
Date Problem
Occurred
How Often Does
Problem Occur?/ /

Continuous
Intermittent ( times a day)
Symptoms

Vehicle does not move (
Any range
Particular range)

No up±shift (
1st
2nd
2nd
3rd
3rd
O/D )

No down±shift (
O/D
3rd
3rd
2nd
2nd
1st )

Lock±up malfunction

Shift point too high or too low

Harsh engagement (
N
D
Lock±up
Any drive range)

Slip or shudder

No kick±down

Others
DTC Check1st Time
2nd Time Check Item
Normal codeMalfunction code (DTC )
Normal codeMalfunction code (DTC )
MILNormal
Remains ON

No up±shift (S range)

No down±shift (S range) 05±862
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK

D09299
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))05±929
AVENSIS REPAIR MANUAL (RM1018E)

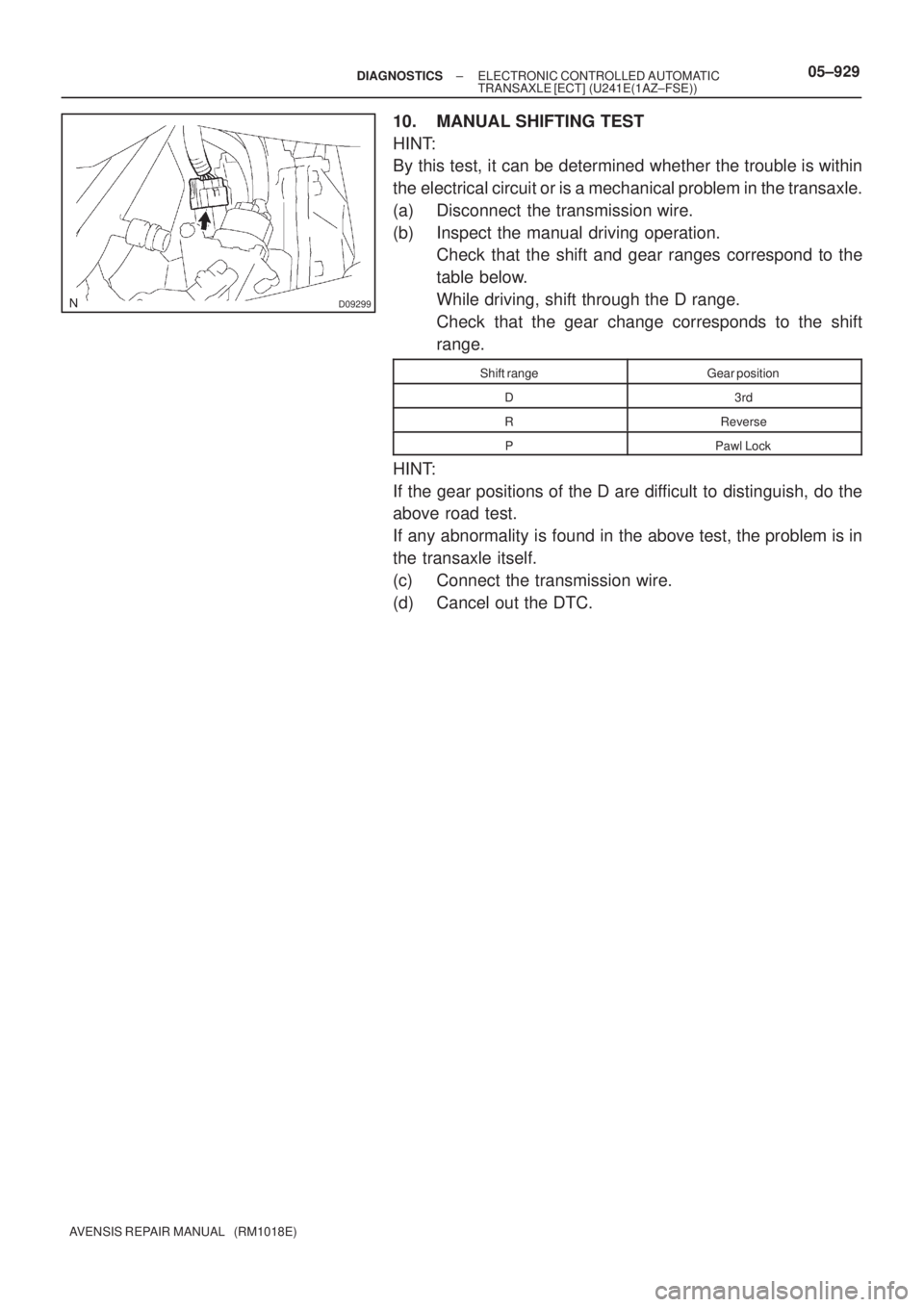

10. MANUAL SHIFTING TEST
HINT:
By this test, it can be determined whether the trouble is within
the electrical circuit or is a mechanical problem in the transaxle.
(a) Disconnect the transmission wire.
(b) Inspect the manual driving operation.
Check that the shift and gear ranges correspond to the
table below.
While driving, shift through the D range.
Check that the gear change corresponds to the shift
range.
Shift rangeGear position
D3rd
RReverse
PPawl Lock
HINT:
If the gear positions of the D are difficult to distinguish, do the
above road test.
If any abnormality is found in the above test, the problem is in
the transaxle itself.
(c) Connect the transmission wire.
(d) Cancel out the DTC.

0567O±11
Transmission Control
System Check SheetInspector 's
Name:
Customer 's Name
Registration No.
Registration Year
Frame No.
Date Vehicle
Brought InOdometer Readingkm
mile / /
/ /
Date Problem
Occurred
How Often Does
Problem Occur?/ /

Continuous
Intermittent ( times a day)
Symptoms

Vehicle does not move (
Any range
Particular range)

No up±shift (
1st
2nd
2nd
3rd
3rd
O/D )

No down±shift (
O/D
3rd
3rd
2nd
2nd
1st )

Lock±up malfunction

Shift point too high or too low

Harsh engagement (
N
D
Lock±up
Any drive range)

Slip or shudder

No kick±down

Others
DTC Check1st Time
2nd Time Check Item
Normal codeMalfunction code (DTC )
Normal codeMalfunction code (DTC )
MILNormal
Remains ON

No up±shift (S range)

No down±shift (S range)
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FSE))05±919
AVENSIS REPAIR MANUAL (RM1018E)
CUSTOMER PROBLEM ANALYSIS CHECK

05±910± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)
TRANSMISSION CONTROL SWITCH CIRCUIT
CIRCUIT DESCRIPTION
When shifting the shift lever into S range using the transmission control switch, it is possible to shift in 1 to
4 positions.
Shifting º+º once changes up 1 shift range position, º±º once changes down 1 shift range position respective-
ly.
05C93±01

D30750
ECM
SPT1
SFTD
SFTU L
B
R20
21
22 E10
7
1
2
5J17
J/C
W±B(*1)
(*2) A
A S
SFTD
SFTU
E SCT 3 R±WT7
Transmission Control SW
Center J/B
Driver Side J/B
I13
Ignition SW
Engine Room J/B No.4
FL MAIN
Battery
*1: LHD
*2 RHDIJIK IPJ15
J/C A AM1 IG1R±W
W±B B±G
G±Y7
1
CA
7
DB
9
DA
1
DH AM1 GAUGE1 IG1 Relay
5
13
2 DN
31
1
4D1
4B ALT
21E9
E9
W±B
W±B
CG
R±W 1
5
DH
G±R
G±Y
W±B
B±G R±W
B±G
± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))05±911
AVENSIS REPAIR MANUAL (RM1018E)

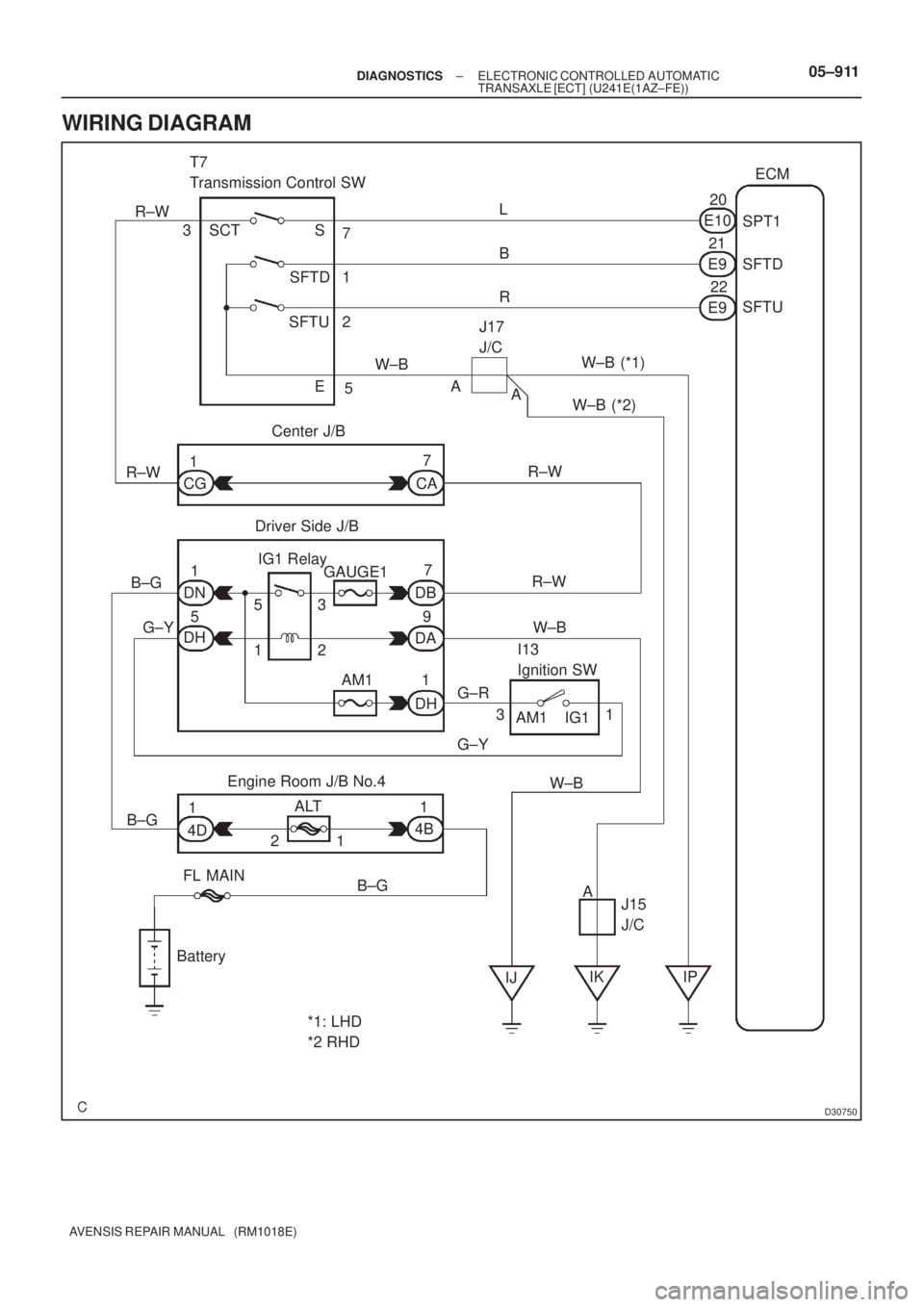

WIRING DIAGRAM

H42584SPT1 E1
H42584
SFTU
SFTD E1
H42585
SFTD (+)
E (±) SFTU (+)
05±912± DIAGNOSTICSELECTRONIC CONTROLLED AUTOMATIC
TRANSAXLE [ECT] (U241E(1AZ±FE))
AVENSIS REPAIR MANUAL (RM1018E)

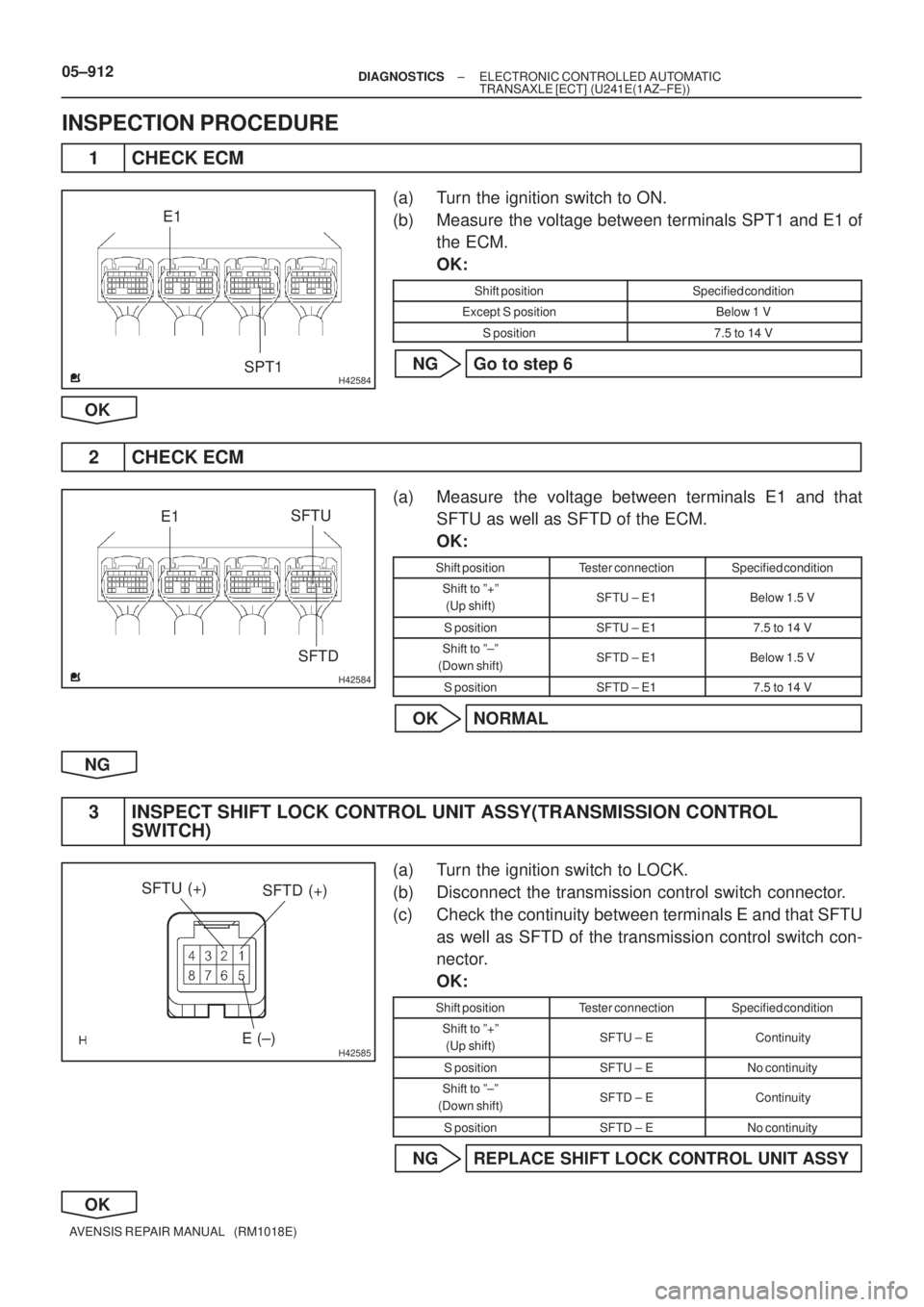

INSPECTION PROCEDURE
1 CHECK ECM
(a) Turn the ignition switch to ON.
(b) Measure the voltage between terminals SPT1 and E1 of
the ECM.
OK:
Shift positionSpecified condition
Except S positionBelow 1 V
S position7.5 to 14 V
NG Go to step 6
OK
2 CHECK ECM
(a) Measure the voltage between terminals E1 and that
SFTU as well as SFTD of the ECM.
OK:
Shift positionTester connectionSpecified condition
Shift to º+º
(Up shift)SFTU ± E1Below 1.5 V
S positionSFTU ± E17.5 to 14 V
Shift to º±º
(Down shift)SFTD ± E1Below 1.5 V
S positionSFTD ± E17.5 to 14 V
OK NORMAL
NG
3 INSPECT SHIFT LOCK CONTROL UNIT ASSY(TRANSMISSION CONTROL
SWITCH)
(a) Turn the ignition switch to LOCK.
(b) Disconnect the transmission control switch connector.
(c) Check the continuity between terminals E and that SFTU
as well as SFTD of the transmission control switch con-
nector.
OK:
Shift positionTester connectionSpecified condition
Shift to º+º
(Up shift)SFTU ± EContinuity
S positionSFTU ± ENo continuity
Shift to º±º
(Down shift)SFTD ± EContinuity
S positionSFTD ± ENo continuity
NG REPLACE SHIFT LOCK CONTROL UNIT ASSY
OK
