TOYOTA AVENSIS 2005 Service Repair Manual

I35225

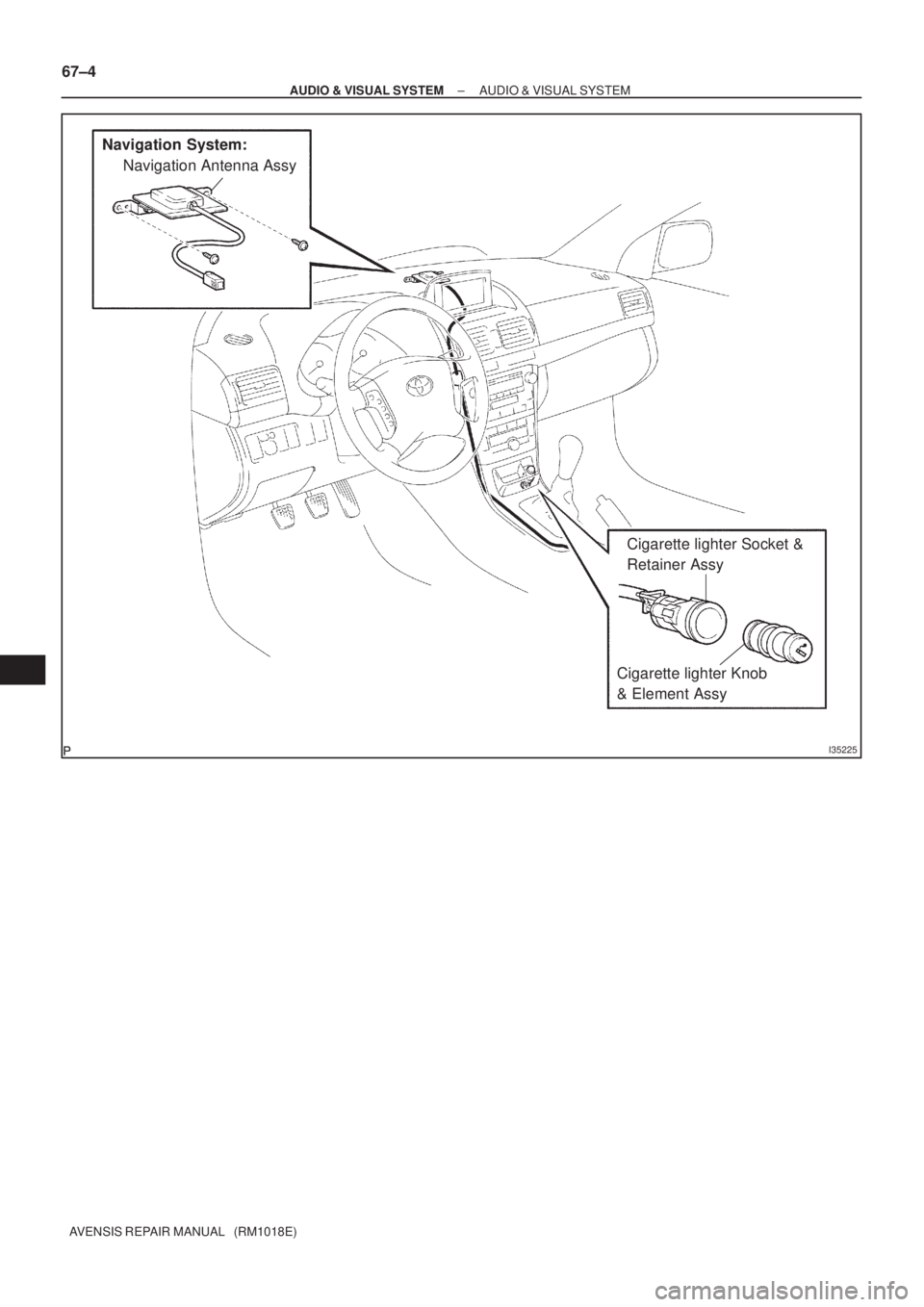

Navigation System:
Navigation Antenna Assy
Cigarette lighter Socket &
Retainer Assy
Cigarette lighter Knob
& Element Assy 67±4
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
AVENSIS REPAIR MANUAL (RM1018E)

670S4±01
± AUDIO & VISUAL SYSTEMAUDIO & VISUAL SYSTEM
67±1
AVENSIS REPAIR MANUAL (RM1018E)

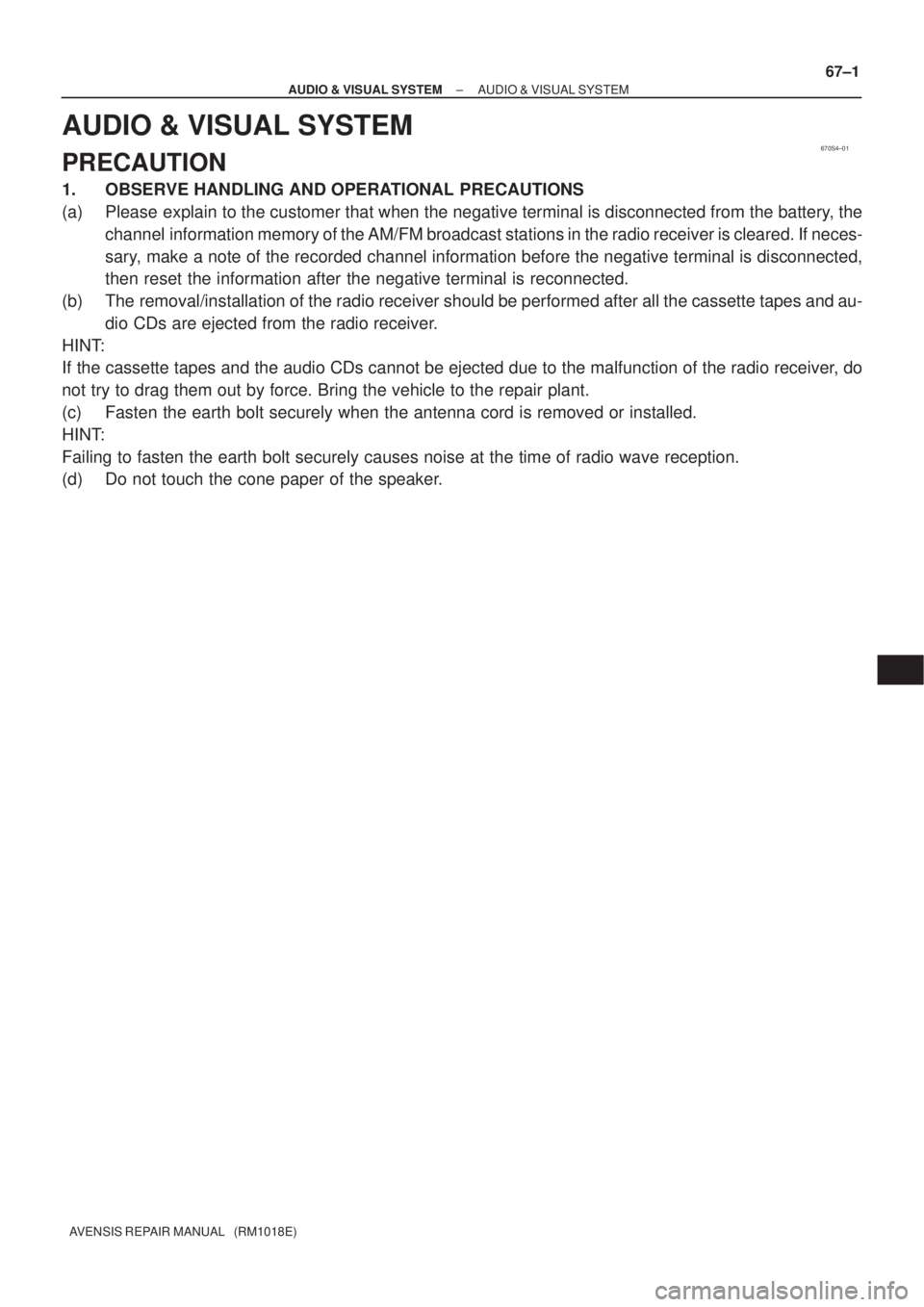

AUDIO & VISUAL SYSTEM
PRECAUTION
1. OBSERVE HANDLING AND OPERATIONAL PRECAUTIONS
(a) Please explain to the customer that when the negative terminal is disconnected from the battery, the
channel information memory of the AM/FM broadcast stations in the radio receiver is cleared. If neces-
sary, make a note of the recorded channel information before the negative terminal is disconnected,
then reset the information after the negative terminal is reconnected.
(b) The removal/installation of the radio receiver should be performed after all the cassette tapes and au-
dio CDs are ejected from the radio receiver.
HINT:
If the cassette tapes and the audio CDs cannot be ejected due to the malfunction of the radio receiver, do
not try to drag them out by force. Bring the vehicle to the repair plant.
(c) Fasten the earth bolt securely when the antenna cord is removed or installed.
HINT:
Failing to fasten the earth bolt securely causes noise at the time of radio wave reception.
(d) Do not touch the cone paper of the speaker.

660CT±02
I357963 Claws
I357972 Claws
I357982 Claws
I35799
66±26
± WIPER & WASHERRAIN SENSOR
AVENSIS REPAIR MANUAL (RM1018E)
RAIN SENSOR
REPLACEMENT
1. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
2. REMOVE RAIN SENSOR
(a) Disengage the 3 claws and remove the mirror stay holder
cover.
(b) Disengage the 2 claws and remove the rain sensor cover.
(c) Disconnect the connector.
(d) Disengage the 2 claws and remove the rain sensor spring
cover.
(e) Remove the rain sensor.
3. INSTALL RAIN SENSOR
(a) Install the rain sensor and rain sensor spring cover.
(b) Connect the connector and install the rain sensor cover and the mirror stay holder cover.

± WIPER & WASHERRAIN SENSOR
66±27
AVENSIS REPAIR MANUAL (RM1018E)

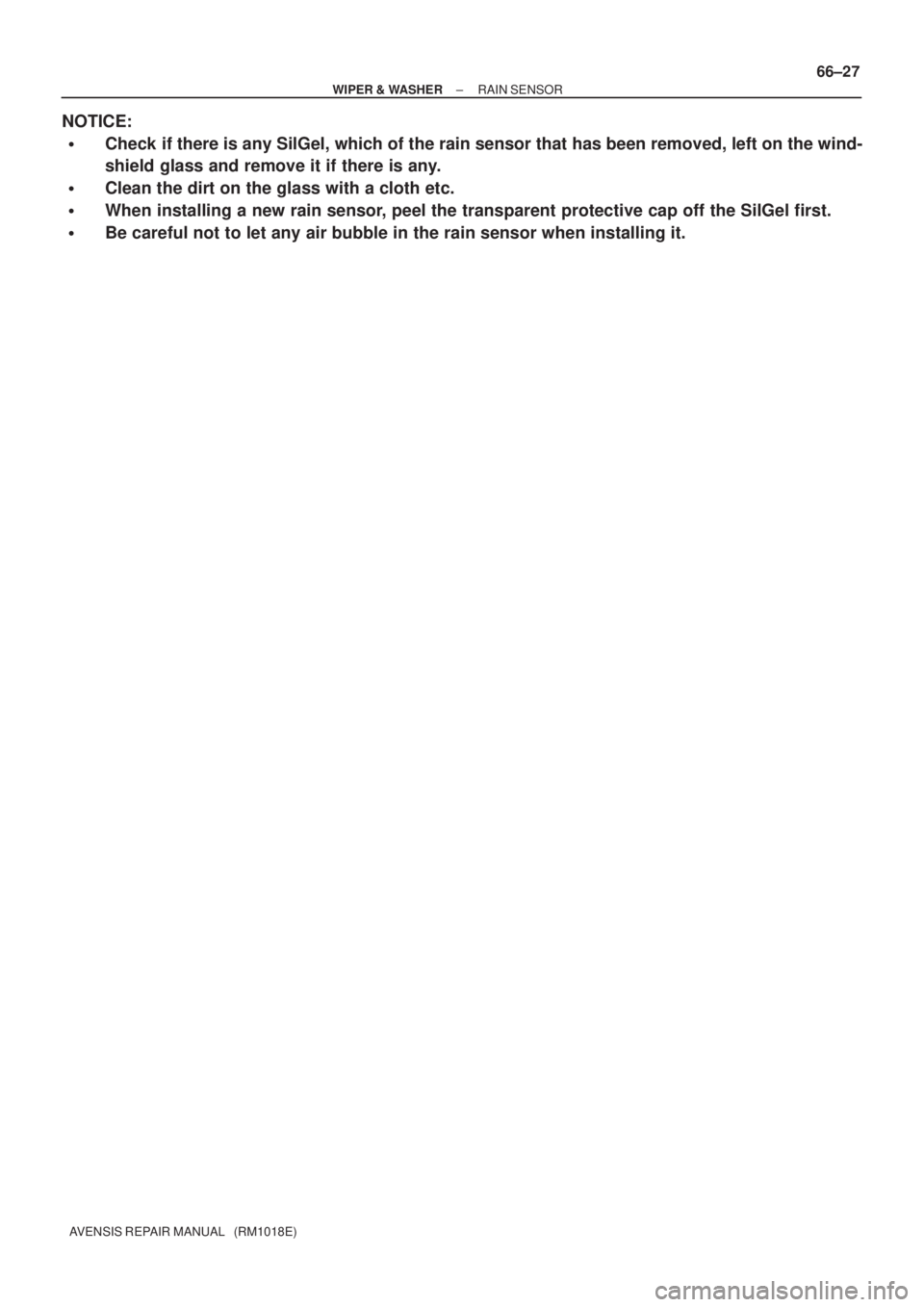

NOTICE:

Check if there is any SilGel, which of the rain sensor that has been removed, left on the wind-
shield glass and remove it if there is any.

Clean the dirt on the glass with a cloth etc.

When installing a new rain sensor, peel the transparent protective cap off the SilGel first.

Be careful not to let any air bubble in the rain sensor when installing it.

660CS±01
E68351
I35261


E68352
±
WIPER & WASHER HEADLAMP WASHER ACTUATOR SUB±ASSY LH
66±25
AVENSIS REPAIR MANUAL (RM1018E)
HEADLAMP WASHER ACTUATOR SUB±ASSY LH
REPLACEMENT
1.REMOVE FRONT BUMPER COVER (See page 76±3)
2. R E M O V E H E A D L A M P WA S H E R A C T U ATO RSUB±ASSY LH
(a) Separate the headlamp cleaner hose from the headlamp washer actuator sub±assy.
(b) Pull out the headlamp cleaner washer nozzle.
(c) Disengage the 2 claws, remove the headlamp cleaner washer nozzle.
(d) Remove the 2 bolts.
(e) Deform the upper part of the headlamp washer actuator sub±assy LH, to remove it.

660CR±01
I35801:Claw
66±24
±
WIPER & WASHER WINDSHIELD WIPER SWITCH ASSY
AVENSIS REPAIR MANUAL (RM1018E)
WINDSHIELD WIPER SWITCH ASSY
REPLACEMENT
1.REMOVE STEERING COLUMN COVER LWR (See page 65±27) 2. REMOVE WINDSHIELD WIPER SWITCH ASSY
(a) Disconnect the connector.
(b) Using a screwdriver, disengage the claw and pull out thewindshield wiper switch assy.
NOTICE:
The claw will be broken if pressed hard.
HINT:
Tape up the screwdriver tip before use.

660CU±01
I35778
A: 150 mm (5.91 in.)
B: 50 mm (1.97 in.)
C: 480 mm (18.90 in.)
D: 295 mm (11.61 in.)
E: 310 mm (12.21 in.)F: 275 mm (10.83 in.)
G: 130 mm (5.12 in.)
H: 420 mm (16.54 in.)
I: 280 mm (11.02 in.) Front:
AB
C
DE
FG
HI
A
A
A
B
B
B
C 66±22
± WIPER & WASHERWASHER NOZZLE SUB±ASSY
AVENSIS REPAIR MANUAL (RM1018E)
WASHER NOZZLE SUB±ASSY
ADJUSTMENT
1. REMOVE WASHER NOZZLE SUB±ASSY
(a) With the engine running, check that the point where the washer fluid hits the windshield and the rear
window is within the range indicated by the hatched line.

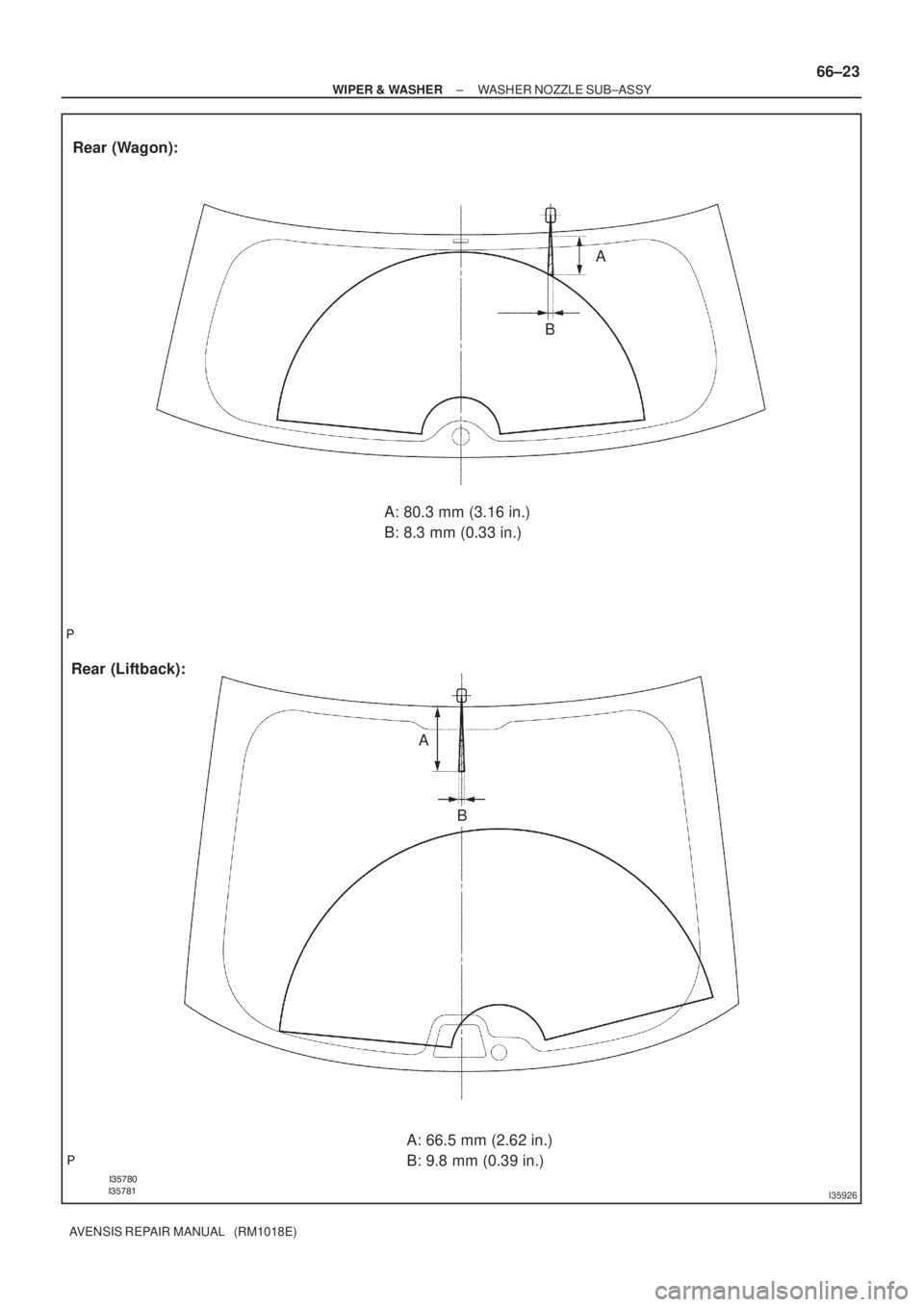

I35926
A: 80.3 mm (3.16 in.)
B: 8.3 mm (0.33 in.)
Rear (Liftback):Rear (Wagon):
A: 66.5 mm (2.62 in.)
B: 9.8 mm (0.39 in.)
A
B
A
B
± WIPER & WASHERWASHER NOZZLE SUB±ASSY
66±23
AVENSIS REPAIR MANUAL (RM1018E)

660CQ±01
E60751
60

E60704
Push
Pull
Stopper
E59361
Curve 66±20
± WIPER & WASHERREAR WIPER RUBBER
AVENSIS REPAIR MANUAL (RM1018E)
REAR WIPER RUBBER
REPLACEMENT
1. REMOVE REAR WIPER BLADE ASSY
(a) Remove the rear wiper arm head cap.
(b) Raise the rear wiper blade to the position as shown in the
illustration where the meshing of the claw is disengaged
with the click sound.
NOTICE:
Be careful not to break the claw.
(c) Pull the rear wiper blade straight from the wiper arm to-
ward the left side of the vehicle.
NOTICE:
Do not fold the rear wiper arm with the rear wiper blade be-
ing removed from it.
2. REMOVE REAR WIPER RUBBER
(a) Pull the end of the rubber protruded from the blade stop-
per as shown in the illustration.
NOTICE:
Do not pull out the wiper rubber forcibly. Otherwise, the
backing plates are deformed or blade claw is damaged.
HINT:
Pushing the position close to the middle of the blade raises the
rubber, making easier to pull the rubber out.
3. INSTALL REAR WIPER RUBBER
(a) Install the 2 wiper rubber backing plates to the rear wiper
rubber.
NOTICE:
Be sure to install the wiper rubber backing plates in the
right direction.

E61233
E60706
± WIPER & WASHERREAR WIPER RUBBER
66±21
AVENSIS REPAIR MANUAL (RM1018E)

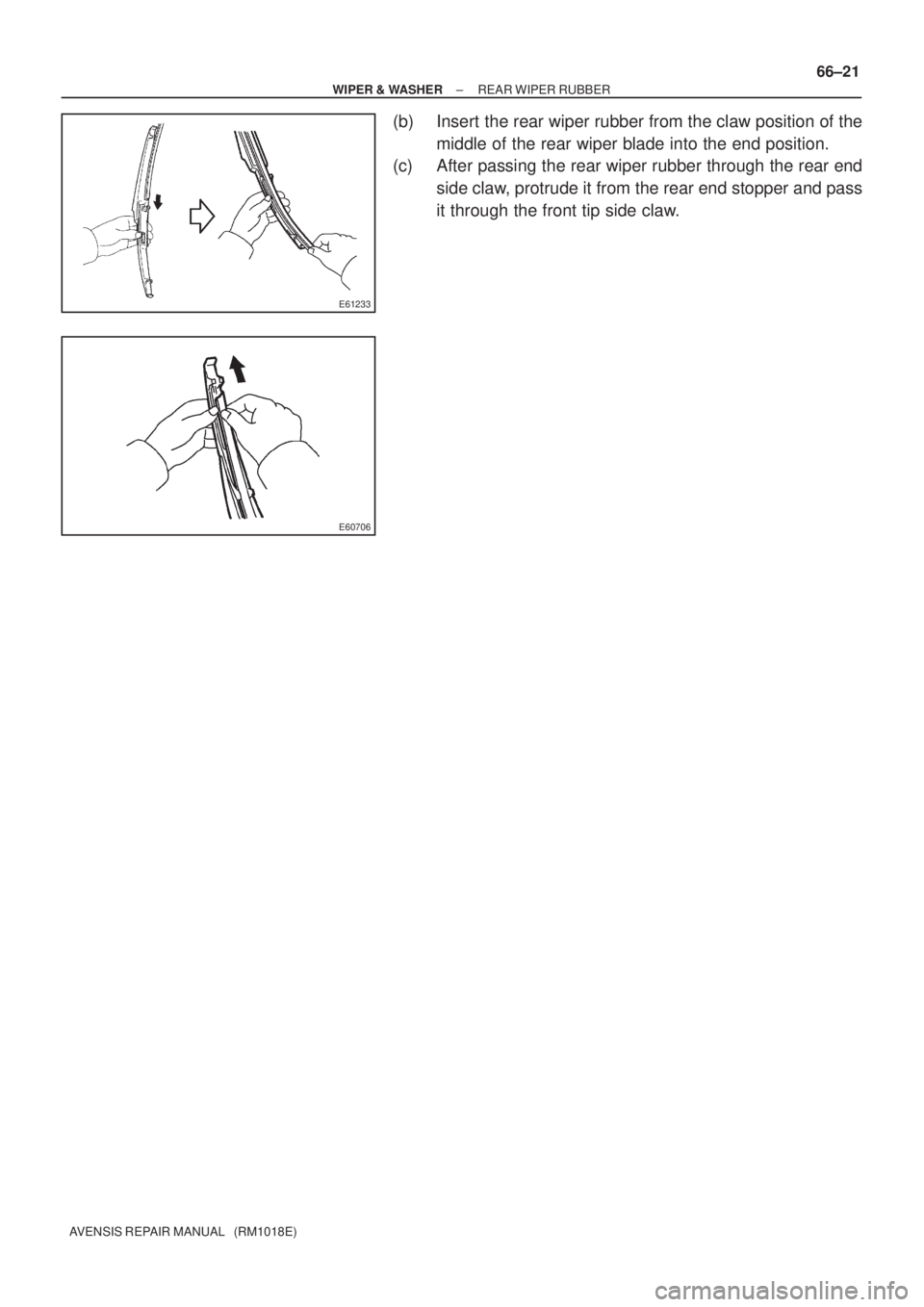

(b) Insert the rear wiper rubber from the claw position of the
middle of the rear wiper blade into the end position.
(c) After passing the rear wiper rubber through the rear end
side claw, protrude it from the rear end stopper and pass
it through the front tip side claw.
