TOYOTA AVENSIS 2005 Service Repair Manual

±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±553
AVENSIS REPAIR MANUAL (RM1018E)

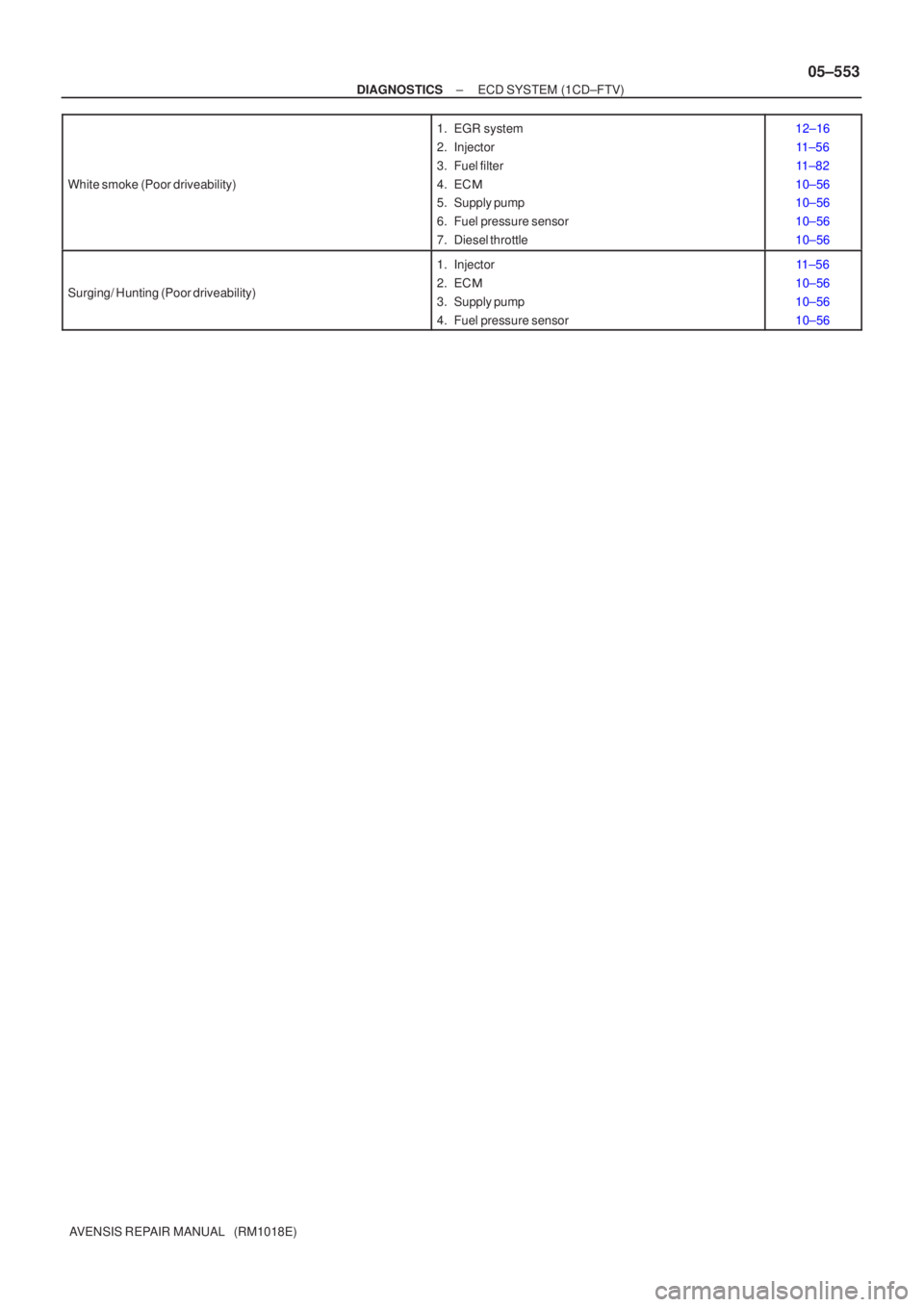

White smoke (Poor driveability)
1. EGR system
2. Injector
3. Fuel filter
4. EC


5. Supply pump
6. Fuel pressure sensor
7. Diesel throttle12±16
11±56
11±82
10±56
10±56
10±56
10±56
Surging/ Hunting (Poor driveability)
1. Injector
2. EC

3. Supply pump
4. Fuel pressure sensor11±56
10±56
10±56
10±56

054KK±04
A66714
E13E12E10
E9
±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±549
AVENSIS REPAIR MANUAL (RM1018E)
TERMINALS OF ECM
Symbols (Terminal No.)Wiring ColorConditionSTD Voltage (V)
BATT (E10±2) ± E1 (E12±7)B±Y ± BRAlways9 to 14
IGSW (E9±9) ± E1 (E12±7)B±W ± BRIG switch ON9 to 14
+B (E9±1) ± E1 (E12±7)B±W ± BRIG switch ON9 to 14
MREL (E9 8) E1 (E12 7)GR BRIG switch ON9 to 14MREL (E9±8) ± E1 (E12±7)GR ± BRIG switch OFF0 to 1.5
VC (E13±18) ± E1 (E12±7)R±W ± BRIG switch ON4.5 to 5.5
VPA (E9 22) EPA (E9 28)GYIG switch ON, accelerator pedal fully released0.5 to 1.1VPA (E9±22) ± EPA (E9±28)G ± YIG switch ON, accelerator pedal fully depressed3.0 to 4.6
VPA2 (E9 23) EPA2 (E9 29)WYIG switch ON, accelerator pedal fully released0.9 to 2.3VPA2 (E9±23) ± EPA2 (E9±29)W ± YIG switch ON, accelerator pedal fully depressed3.4 to 5.0
VCPA (E9±26) ± EPA (E9±28)B ± YIG switch ON4.5 to 5.5
VCP2 (E9±27) ± EPA2 (E9±29)B ± YIG switch ON4.5 to 5.5
VG (E12±24) ± EVG (E12±32)G ± L±YIdling0.5 to 3.4
THA (E13±31) ± E2 (E13±28)G±R ± BRIdling, intake air temp. at 20
C (68
F)0.5 to 3.4
THW (E13±19) ± E2 (E13±28)B±W ± BRIdling, engine coolant temp. at 80
C (176
F)0.2 to 1.0
STA (E9±7) ± E1 (E12±7)B±Y ± BRCranking6.0 or more
#1 (E13±24) ± E1 (E12±7)
#2 (E13±23) ± E1 (E12±7)G±W ± BR
W±R ± BR
IdlingPulse generation#2 (E13 23) E1 (E12 7)
#3 (E13±22) ± E1 (E12±7)
#4 (E13±21) ± E1 (E12±7)
WR BR
R±W ± BR W±L ± BRIdlingPulse generation
(See page 05±604)
G1 (E12±23) ± G± (E12±31)P ± LIdlingPulse generation
(See page 05±616)
NE+ (E13±27) ± NE± (E13±34)G ± RIdlingPulse generation
(See page 05±616)
STP (E10 19) E1 (E12 7)GW BRIG switch on, brake pedal is depressed7.5 to 14STP (E10±19) ± E1 (E12±7)G±W ± BRIG switch on, brake pedal is released0 to 1.5
ST1 (E10 12) E1 (E12 7)GW BRBrake pedal is depressed0 to 1.5ST1± (E10±12) ± E1 (E12±7)G±W ± BRBrake pedal is released7.5 to 14
TC (E9 11) E1 (E12 7)WL BRIG switch ON9to14TC (E9±11) ± E1 (E12±7)W±L ± BRIG switch ON9 to 14
W (E9 12) E1 (E12 7)WBRIdling9 to 14W (E9±12) ± E1 (E12±7)W ± BRIG switch ON0 to 3
SP1 (E10±17) ± E1 (E12±7)V±W ± BRIG switch ON, rotate driving wheel slowlyPulse generation
(See page 05±640)
SIL (E9±18) ± E1 (E12±7)W±G ± BRConnect the hand±held tester to the DLC3Pulse generation

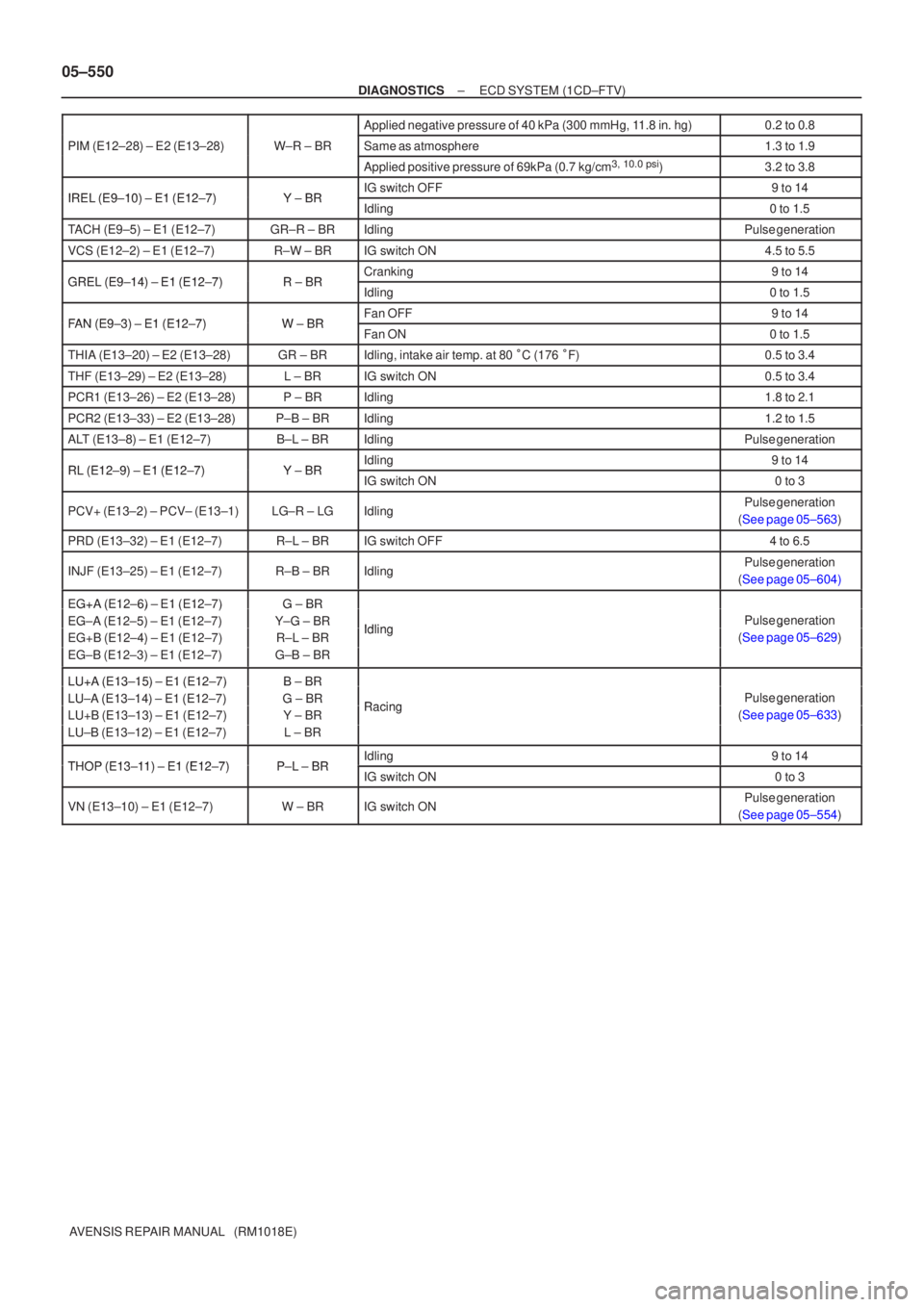

05±550
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
Applied negative pressure of 40 kPa (300 mmHg, 11.8 in. hg)0.2 to 0.8
PIM (E12±28) ± E2 (E13±28)W±R ± BRSame as atmosphere1.3 to 1.9()()
Applied positive pressure of 69kPa (0.7 kg/cm3, 10.0
psi)3.2 to 3.8
IREL(E910)E1(E127)YBRIG switch OFF9 to 14IREL (E9±10) ± E1 (E12±7)Y ± BRIdling0 to 1.5
TACH (E9±5) ± E1 (E12±7)GR±R ± BRIdlingPulse generation
VCS (E12±2) ± E1 (E12±7)R±W ± BRIG switch ON4.5 to 5.5
GREL(E914)E1(E127)RBRCranking9 to 14GREL (E9±14) ± E1 (E12±7)R ± BRIdling0 to 1.5
FAN(E93)E1(E127)WBRFanOFF9 to 14FAN (E9±3) ± E1 (E12±7)W ± BRFanON0 to 1.5
THIA (E13±20) ± E2 (E13±28)GR ± BRIdling, intake air temp. at 80

C (176
F)0.5 to 3.4
THF (E13±29) ± E2 (E13±28)L ± BRIG switch ON0.5 to 3.4
PCR1 (E13±26) ± E2 (E13±28)P ± BRIdling1.8 to 2.1
PCR2 (E13±33) ± E2 (E13±28)P±B ± BRIdling1.2 to 1.5
ALT (E13±8) ± E1 (E12±7)B±L ± BRIdlingPulse generation
RL(E129)E1(E127)YBRIdling9 to 14RL (E12±9) ± E1 (E12±7)Y ± BRIG switch ON0 to 3
PCV+ (E13±2) ± PCV± (E13±1)LG±R ± LGIdlingPulse generation
(See page 05±563)
PRD (E13±32) ± E1 (E12±7)R±L ± BRIG switch OFF4 to 6.5
INJF (E13±25) ± E1 (E12±7)R±B ± BRIdlingPulse generation
(See page 05±604)
EG+A (E12±6) ± E1 (E12±7)G ± BREG+A (E12±6) ± E1 (E12±7)
EG±A (E12±5) ± E1 (E12±7)
G ± BR
Y±G ± BRIdlingPulse generationEG A (E12 5) E1 (E12 7)
EG+B (E12±4) ± E1 (E12±7)
YG BR
R±L ± BRIdlingPulse generation
(See page 05±629)()()
EG±B (E12±3) ± E1 (E12±7)G±B ± BR
(g )
LU+A (E13±15) ± E1 (E12±7)B ± BRLU+A (E13±15) ± E1 (E12±7)
LU±A (E13±14) ± E1 (E12±7)
B ± BR
G ± BRRacingPulse generationLU A (E13 14) E1 (E12 7)
LU+B (E13±13) ± E1 (E12±7)
G BR
Y ± BRRacingPulse generation
(See page 05±633)()()
LU±B (E13±12) ± E1 (E12±7)L ± BR
(g )
THOP (E13 11) E1 (E12 7)PL BRIdling9 to 14THOP (E13±11) ± E1 (E12±7)P±L ± BRIG switch ON0 to 3
VN (E13±10) ± E1 (E12±7)W ± BRIG switch ONPulse generation
(See page 05±554)

054JE±04
A80993
Mass Air Flow
Meter
DLC3
Accelerator Pedal Assy
(Accel Position Sensor) Injector
Diesel Turbo Inlet
Air Temperature Sensor
EGR Valve Assy
Engine Room R/B
No.3
Suction Control
Valve
Fuel Temperature
Sensor Common Rail Assy
(Fuel Pressure
Sensor Assy)Glow Plug Assy Camshaft Position
Sensor
Manifold Absolute
Pressure Sensor
EDU
ECM
Common Rail Assy
(Pressure Discharge Valve Assy)
Supply
Pump
Engine Room J/B
Engine Coolant Temperature Sensor
VRV
Crankshaft Position Sensor
Intake Shutter Assy
05±548
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
LOCATION

054JD±04

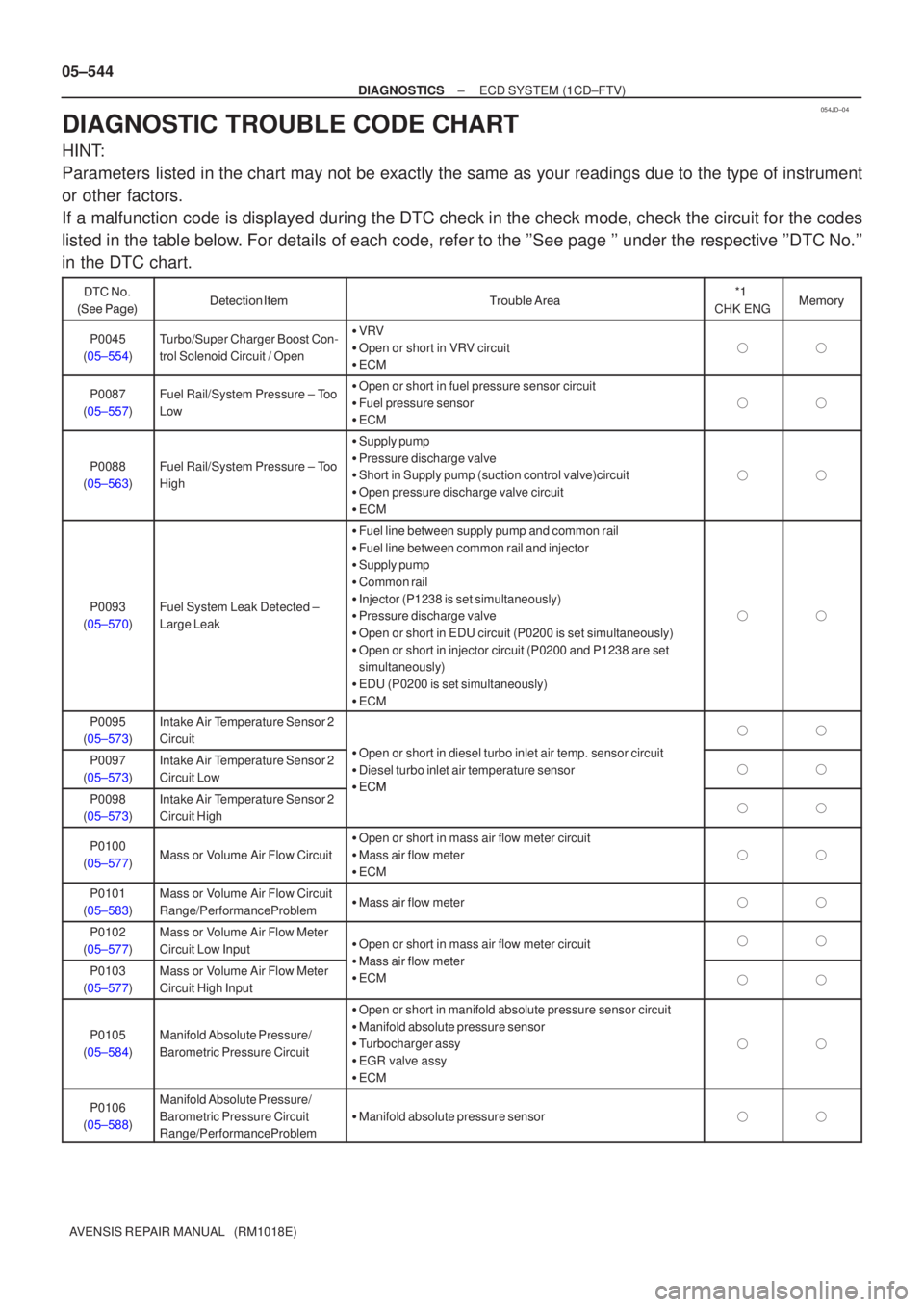

05±544
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
HINT:
Parameters listed in the chart may not be exactly the same as your readings due to\
the type of instrument
or other factors.

If a malfunction code is displayed during the DTC check in the check mode, check the circuit f\
or the codes
listed in the table below. For details of each code, refer to the ''See page '' under the respective ''DTC No.''
in the DTC chart.



\f  \b
 *1
CHK ENG
P0045
(05±554)Turbo/Super Charger Boost Con-
trol Solenoid Circuit / Open
VRV

Open or short in VRV circuit

ECM

P0087
(05±557)Fuel Rail/System Pressure ± Too
Low
Open or short in fuel pressure sensor circuit

Fuel pressure sensor

ECM

P0088
(05±563)Fuel Rail/System Pressure ± Too
High

Supply pump

Pressure discharge valve

Short in Supply pump (suction control valve)circuit

Open pressure discharge valve circuit

ECM

P0093
(05±570)Fuel System Leak Detected ±
Large Leak

Fuel line between supply pump and common rail

Fuel line between common rail and injector

Supply pump

Common rail

Injector (P1238 is set simultaneously)

Pressure discharge valve

Open or short in EDU circuit (P0200 is set simultaneously)

Open or short in injector circuit (P0200 and P1238 are set
simultaneously)

EDU (P0200 is set simultaneously)

ECM

P0095
(05±573)Intake Air Temperature Sensor 2
Circuit
O h ti di lt b ilt it i it

P0097
(05±573)Intake Air Temperature Sensor 2
Circuit Low
Open or short in diesel turbo inlet air temp. sensor circuit

Diesel turbo inlet air temperature sensor

ECM

P0098
(05±573)Intake Air Temperature Sensor 2
Circuit High
ECM

P0100
(05±577)Mass or Volume Air Flow Circuit

Open or short in mass air flow meter circuit

Mass air flow meter

ECM

P0101
(05±583)Mass or Volume Air Flow Circuit
Range/Performance Problem
Mass air flow meter
P0102
(05±577)Mass or Volume Air Flow Meter
Circuit Low Input
Open or short in mass air flow meter circuit

Mass air flow meter

P0103
(05±577)Mass or Volume Air Flow Meter
Circuit High Input
Mass air flow meter

ECM

P0105
(05±584)Manifold Absolute Pressure/
Barometric Pressure Circuit

Open or short in manifold absolute pressure sensor circuit

Manifold absolute pressure sensor

Turbocharger assy

EGR valve assy

ECM

P0106
(05±588)Manifold Absolute Pressure/
Barometric Pressure Circuit
Range/Performance Problem

Manifold absolute pressure sensor

±

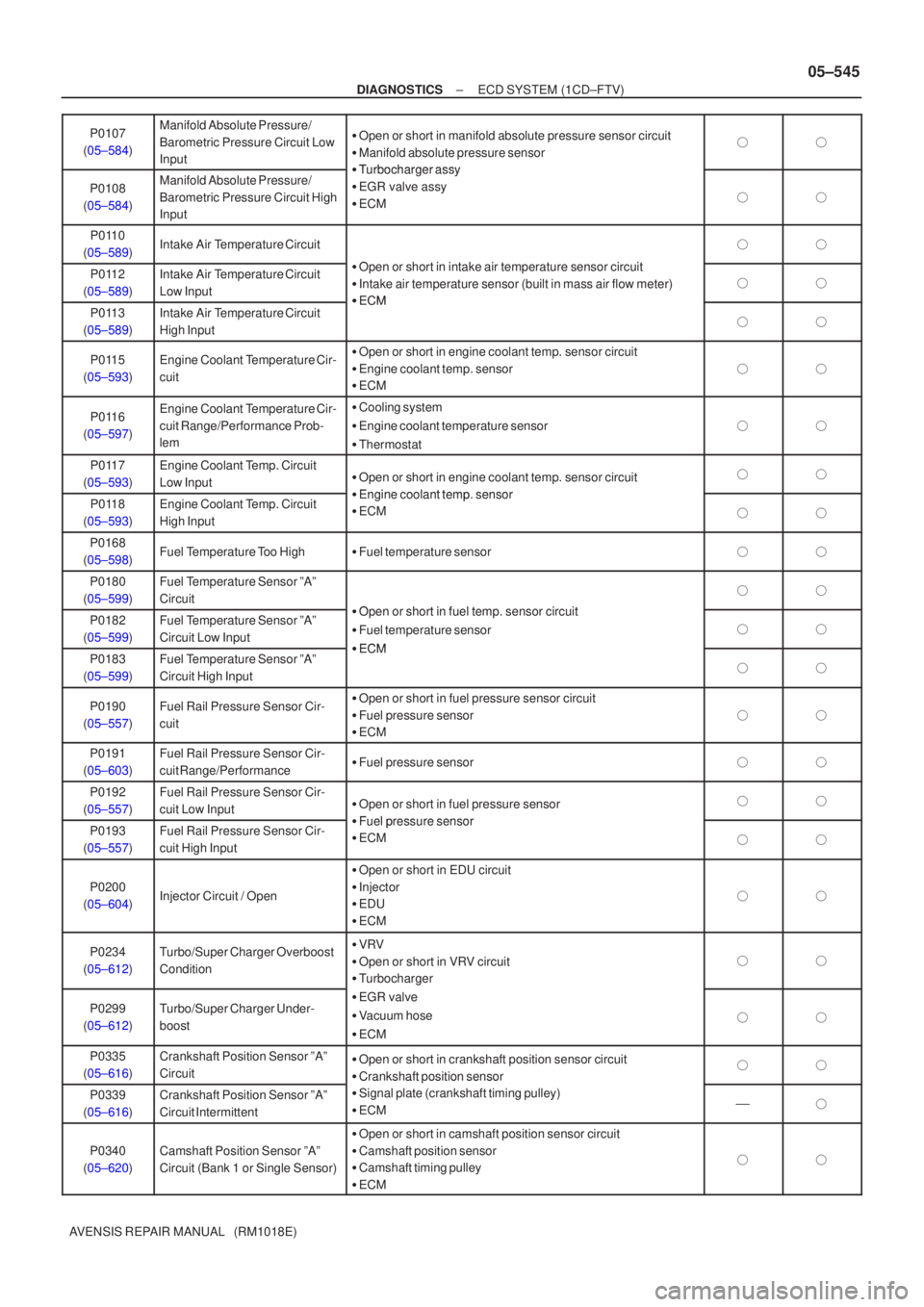

DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±545
AVENSIS REPAIR MANUAL (RM1018E)P0107
(05±584)
Manifold Absolute Pressure/
Barometric Pressure Circuit Low
Input
Open or short in manifold absolute pressure sensor circuit

Manifold absolute pressure sensor

Turbocharger assy

P0108
(05±584)Manifold Absolute Pressure/
Barometric Pressure Circuit High
Input
Turbocharger assy

EGR valve assy

ECM

P0110
(05±589)Intake Air Temperature Circuit
O h ti itk it t i it

P0112
(05±589)Intake Air Temperature Circuit
Low Input
Open or short in intake air temperature sensor circuit

Intake air temperature sensor (built in mass air flow meter)

ECM

P0113
(05±589)Intake Air Temperature Circuit
High Input
ECM

P0115
(05±593)Engine Coolant Temperature Cir-
cuit
Open or short in engine coolant temp. sensor circuit

Engine coolant temp. sensor

ECM

P0116
(05±597)Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Cooling system

Engine coolant temperature sensor

Thermostat

P0117
(05±593)Engine Coolant Temp. Circuit
Low Input
Open or short in engine coolant temp. sensor circuit

Engine coolant tempsensor

P0118
(05±593)Engine Coolant Temp. Circuit
High Input
Engine coolant temp. sensor

ECM

P0168
(05±598)Fuel Temperature Too High
Fuel temperature sensor
P0180
(05±599)Fuel Temperature Sensor ºAº
Circuit
Open or short in fuel temp sensor circuit

P0182
(05±599)Fuel Temperature Sensor ºAº
Circuit Low Input
Open or short in fuel temp. sensor circuit

Fuel temperature sensor

ECM

P0183
(05±599)Fuel Temperature Sensor ºAº
Circuit High Input
ECM

P0190
(05±557)Fuel Rail Pressure Sensor Cir-
cuit
Open or short in fuel pressure sensor circuit

Fuel pressure sensor

ECM

P0191
(05±603)Fuel Rail Pressure Sensor Cir-
cuit Range/Performance
Fuel pressure sensor
P0192
(05±557)Fuel Rail Pressure Sensor Cir-
cuit Low Input
Open or short in fuel pressure sensor

Fuelpressure sensor

P0193
(05±557)Fuel Rail Pressure Sensor Cir-
cuit High Input
Fuel pressure sensor

ECM

P0200
(05±604)Injector Circuit / Open

Open or short in EDU circuit

Injector

EDU

ECM

P0234
(05±612)Turbo/Super Charger Overboost
Condition
VRV

Open or short in VRV circuit

Turbocharger

P0299
(05±612)Turbo/Super Charger Under-
boost
g

EGR valve

Vacuum hose

ECM

P0335
(05±616)Crankshaft Position Sensor ºAº
Circuit
Open or short in crankshaft position sensor circuit

Crankshaft position sensor
P0339
(05±616)Crankshaft Position Sensor ºAº
Circuit Intermittent
Crankshaft osition sensor

Signal plate (crankshaft timing pulley)

ECM

P0340
(05±620)Camshaft Position Sensor ºAº
Circuit (Bank 1 or Single Sensor)

Open or short in camshaft position sensor circuit

Camshaft position sensor

Camshaft timing pulley

ECM

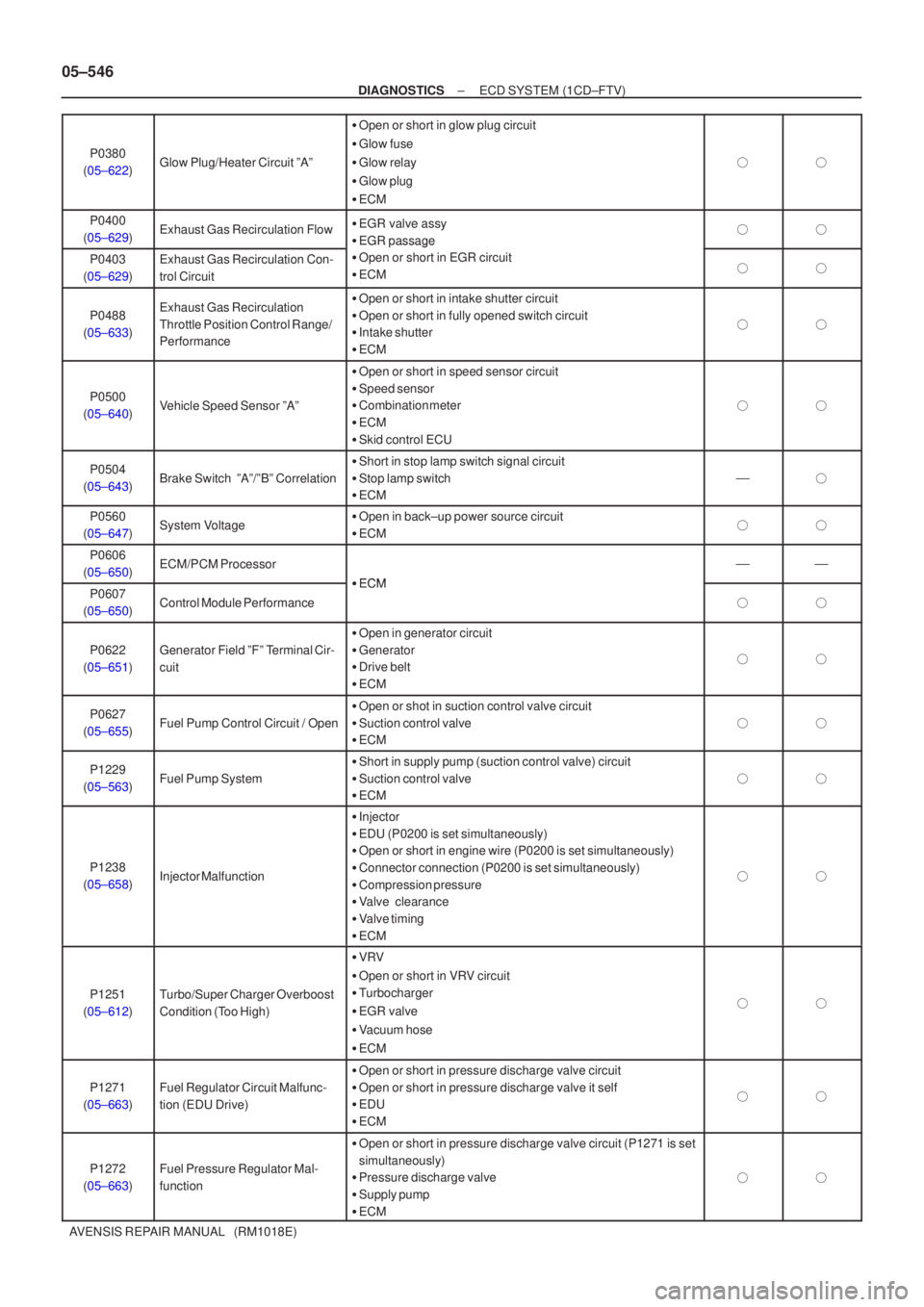

05±546
±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E) P0380
(05±622)
Glow Plug/Heater Circuit ºAº

Open or short in glow plug circuit

Glow fuse

Glow relay

Glow plug

ECM

P0400
(05±629)Exhaust Gas Recirculation Flow
EGR valve assy

EGR passage
P0403
(05±629)Exhaust Gas Recirculation Con-
trol Circuit
EGR assage

Open or short in EGR circuit

ECM
P0488
(05±633)Exhaust Gas Recirculation
Throttle Position Control Range/
Performance
Open or short in intake shutter circuit

Open or short in fully opened switch circuit

Intake shutter

ECM

P0500
(05±640)Vehicle Speed Sensor ºAº

Open or short in speed sensor circuit

Speed sensor

Combination meter

ECM

Skid control ECU

P0504
(05±643)Brake Switch ºAº/ºBº Correlation

Short in stop lamp switch signal circuit

Stop lamp switch

ECM


P0560
(05±647)System Voltage
Open in back±up power source circuit

ECM
P0606
(05±650)ECM/PCM Processor

ECM



P0607
(05±650)Control Module Performance

ECM

P0622
(05±651)Generator Field ºFº Terminal Cir-
cuit

Open in generator circuit

Generator

Drive belt

ECM

P0627
(05±655)Fuel Pump Control Circuit / Open

Open or shot in suction control valve circuit

Suction control valve

ECM

P1229
(05±563)Fuel Pump System

Short in supply pump (suction control valve) circuit

Suction control valve

ECM

P1238
(05±658)Injector Malfunction

Injector

EDU (P0200 is set simultaneously)

Open or short in engine wire (P0200 is set simultaneously)

Connector connection (P0200 is set simultaneously)

Compression pressure

Valve clearance

Valve timing

ECM

P1251
(05±612)Turbo/Super Charger Overboost
Condition (Too High)

VRV

Open or short in VRV circuit

Turbocharger

EGR valve

Vacuum hose

ECM

P1271
(05±663)Fuel Regulator Circuit Malfunc-
tion (EDU Drive)

Open or short in pressure discharge valve circuit

Open or short in pressure discharge valve it self

EDU

ECM

P1272
(05±663)Fuel Pressure Regulator Mal-
function

Open or short in pressure discharge valve circuit (P1271 is set
simultaneously)

Pressure discharge valve

Supply pump

ECM


±
DIAGNOSTICS ECD SYSTEM (1CD±FTV)
05±547

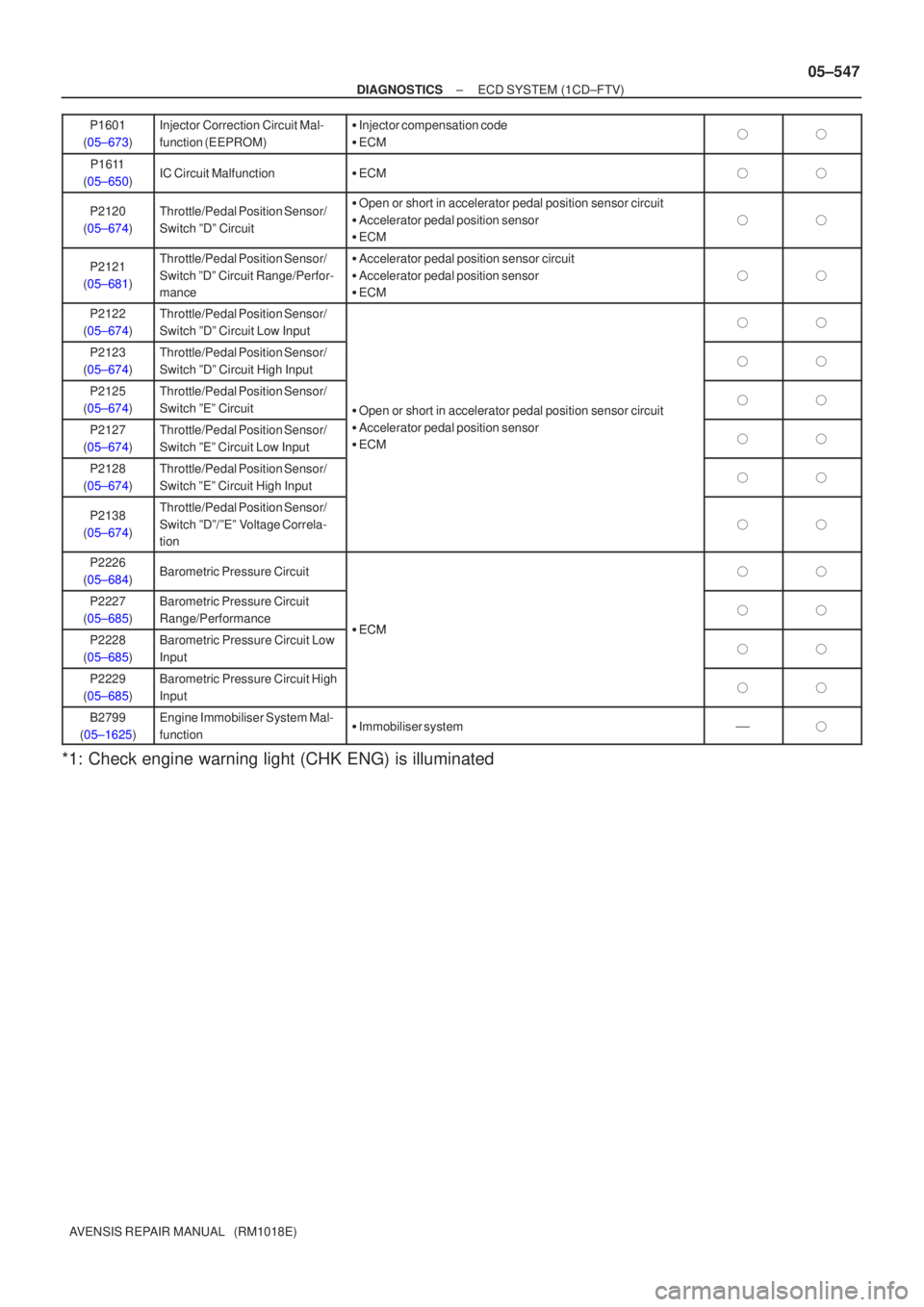

AVENSIS REPAIR MANUAL (RM1018E)P1601
(05±673)
Injector Correction Circuit Mal-
function (EEPROM)
Injector compensation code

ECM
P1611
(05±650)IC Circuit Malfunction
ECM
P2120
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit
Open or short in accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM

P2121
(05±681)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Range/Perfor-
mance
Accelerator pedal position sensor circuit

Accelerator pedal position sensor

ECM

P2122
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit Low Input
P2123
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº Circuit High Input
P2125
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit

Open or short in accelerator pedal position sensor circuit
P2127
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit Low Input
Oen or short in accelerator edal osition sensor circuit

Accelerator pedal position sensor

ECM
P2128
(05±674)Throttle/Pedal Position Sensor/
Switch ºEº Circuit High Input
P2138
(05±674)Throttle/Pedal Position Sensor/
Switch ºDº/ºEº Voltage Correla-
tion

P2226
(05±684)Barometric Pressure Circuit
P2227
(05±685)Barometric Pressure Circuit
Range/Performance

ECM

P2228
(05±685)Barometric Pressure Circuit Low
Input
ECM

P2229
(05±685)Barometric Pressure Circuit High
Input
B2799
(05±1625)Engine Immobiliser System Mal-
function
Immobiliser system

*1: Check engine warning light (CHK ENG) is illuminated

05CPB±01
FI2547
A76859
Hand±held
Tester
DLC3
05±528
±
DIAGNOSTICS ECD SYSTEM(1CD±FTV)
AVENSIS REPAIR MANUAL (RM1018E)

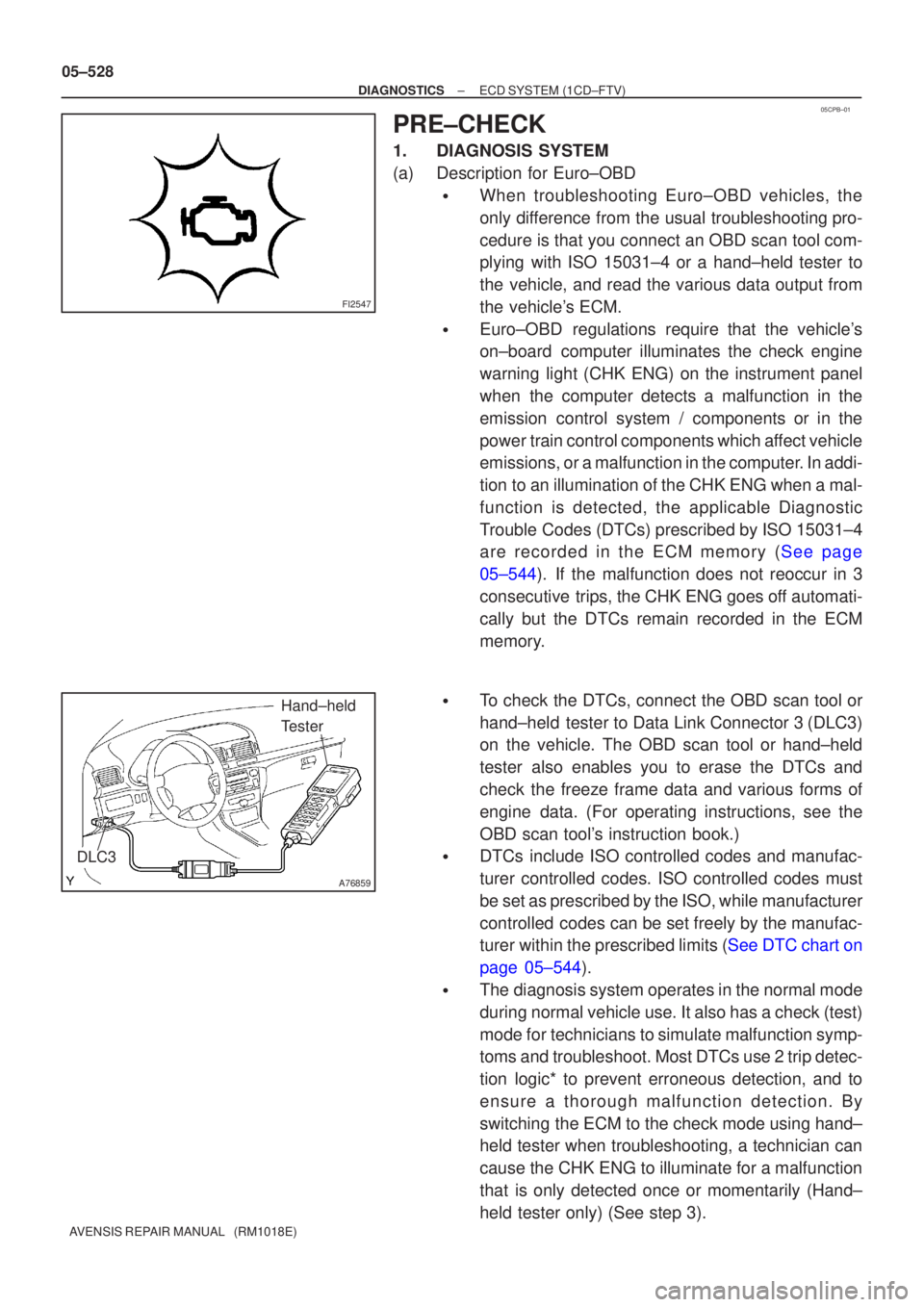

PRE±CHECK
1.DIAGNOSIS SYSTEM
(a)Description for Euro±OBD

When troubleshooting Euro±OBD vehicles, the
only difference from the usual troubleshooting pro-
cedure is that you connect an OBD scan tool com-
plying with ISO 15031±4 or a hand±held tester to
the vehicle, and read the various data output from
the vehicle's ECM.

Euro±OBD regulations require that the vehicle's
on±board computer illuminates the check engine
warning light (CHK ENG) on the instrument panel
when the computer detects a malfunction in the
emission control system / components or in the
power train control components which affect vehicle
emissions, or a malfunction in the computer. In addi-
tion to an illumination of the CHK ENG when a mal-
function is detected, the applicable Diagnostic
Trouble Codes (DTCs) prescribed by ISO 15031±4
are recorded in the ECM memory (See page
05±544). If the malfunction does not reoccur in 3
consecutive trips, the CHK ENG goes off automati-
cally but the DTCs remain recorded in the ECM
memory.

To check the DTCs, connect the OBD scan tool or
hand±held tester to Data Link Connector 3 (DLC3)
on the vehicle. The OBD scan tool or hand±held
tester also enables you to erase the DTCs and
check the freeze frame data and various forms of
engine data. (For operating instructions, see the
OBD scan tool's instruction book.)

DTCs include ISO controlled codes and manufac-
turer controlled codes. ISO controlled codes must
be set as prescribed by the ISO, while manufacturer
controlled codes can be set freely by the manufac-
turer within the prescribed limits (See DTC chart on
page 05±544).

The diagnosis system operates in the normal mode
during normal vehicle use. It also has a check (test)
mode for technicians to simulate malfunction symp-
toms and troubleshoot. Most DTCs use 2 trip detec-
tion logic* to prevent erroneous detection, and to
ensure a thorough malfunction detection. By
switching the ECM to the check mode using hand±
held tester when troubleshooting, a technician can
cause the CHK ENG to illuminate for a malfunction
that is only detected once or momentarily (Hand±
held tester only) (See step 3).

3 2 1 45678
9 1 0 111 21 31 41 51 6
DLC3
A04550
± DIAGNOSTICSECD SYSTEM (1CD±FTV)
05±529
AVENSIS REPAIR MANUAL (RM1018E)

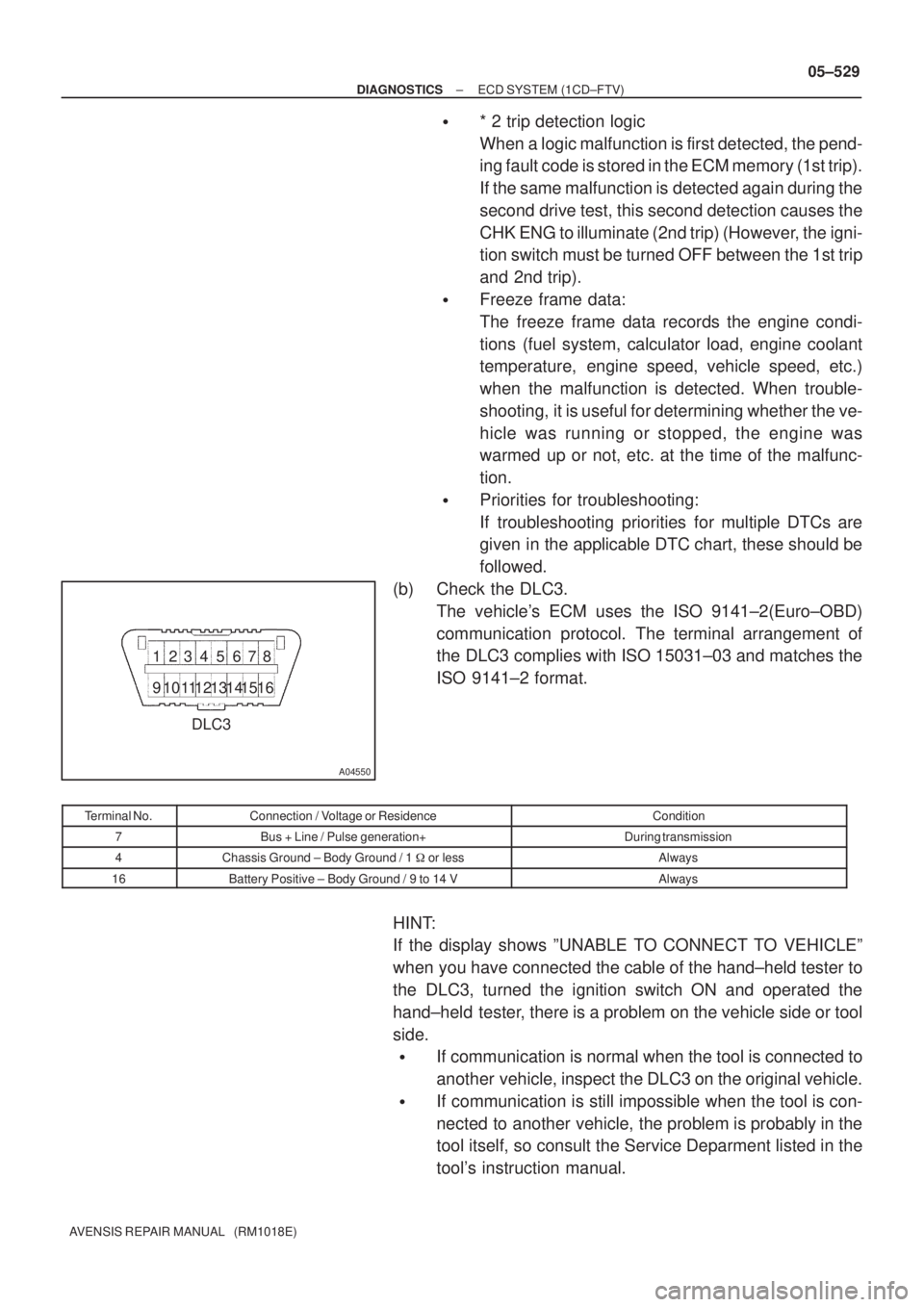

* 2 trip detection logic
When a logic malfunction is first detected, the pend-
ing fault code is stored in the ECM memory (1st trip).
If the same malfunction is detected again during the
second drive test, this second detection causes the
CHK ENG to illuminate (2nd trip) (However, the igni-
tion switch must be turned OFF between the 1st trip
and 2nd trip).

Freeze frame data:
The freeze frame data records the engine condi-
tions (fuel system, calculator load, engine coolant
temperature, engine speed, vehicle speed, etc.)
when the malfunction is detected. When trouble-
shooting, it is useful for determining whether the ve-
hicle was running or stopped, the engine was
warmed up or not, etc. at the time of the malfunc-
tion.

Priorities for troubleshooting:
If troubleshooting priorities for multiple DTCs are
given in the applicable DTC chart, these should be
followed.
(b) Check the DLC3.
The vehicle's ECM uses the ISO 9141±2(Euro±OBD)
communication protocol. The terminal arrangement of
the DLC3 complies with ISO 15031±03 and matches the
ISO 9141±2 format.
Terminal No.Connection / Voltage or ResidenceCondition
7Bus + Line / Pulse generation+During transmission
4Chassis Ground ± Body Ground / 1
or lessAlways
16Battery Positive ± Body Ground / 9 to 14 VAlways
HINT:
If the display shows ºUNABLE TO CONNECT TO VEHICLEº
when you have connected the cable of the hand±held tester to
the DLC3, turned the ignition switch ON and operated the
hand±held tester, there is a problem on the vehicle side or tool
side.

If communication is normal when the tool is connected to
another vehicle, inspect the DLC3 on the original vehicle.

If communication is still impossible when the tool is con-
nected to another vehicle, the problem is probably in the
tool itself, so consult the Service Deparment listed in the
tool's instruction manual.
