Oil TOYOTA AVENSIS 2005 Service Repair Manual

Illustration:
what to do and where
Component part No. Detailed text: how to perform task
Task heading: what to do
Set part No
D31009
01±2

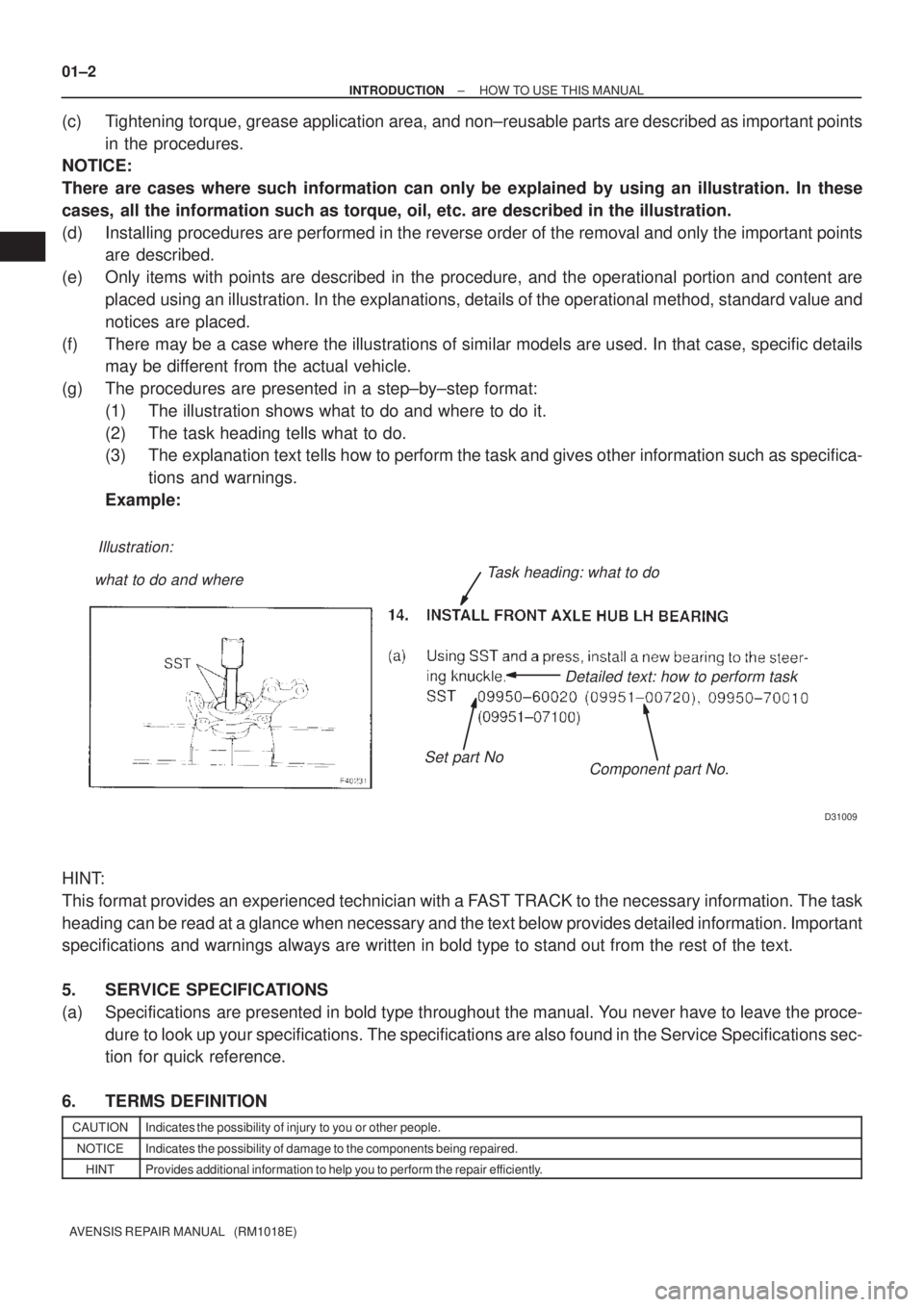

± INTRODUCTIONHOW TO USE THIS MANUAL
AVENSIS REPAIR MANUAL (RM1018E)
(c) Tightening torque, grease application area, and non±reusable parts are described as important points
in the procedures.
NOTICE:
There are cases where such information can only be explained by using an illustration. In these
cases, all the information such as torque, oil, etc. are described in the illustration.
(d) Installing procedures are performed in the reverse order of the removal and only the important points
are described.
(e) Only items with points are described in the procedure, and the operational portion and content are
placed using an illustration. In the explanations, details of the operational method, standard value and
notices are placed.
(f) There may be a case where the illustrations of similar models are used. In that case, specific details
may be different from the actual vehicle.
(g) The procedures are presented in a step±by±step format:
(1) The illustration shows what to do and where to do it.
(2) The task heading tells what to do.
(3) The explanation text tells how to perform the task and gives other information such as specifica-
tions and warnings.
Example:
HINT:
This format provides an experienced technician with a FAST TRACK to the necessary information. The task
heading can be read at a glance when necessary and the text below provides detailed information. Important
specifications and warnings always are written in bold type to stand out from the rest of the text.
5. SERVICE SPECIFICATIONS
(a) Specifications are presented in bold type throughout the manual. You never have to leave the proce-
dure to look up your specifications. The specifications are also found in the Service Specifications sec-
tion for quick reference.
6. TERMS DEFINITION
CAUTIONIndicates the possibility of injury to you or other people.
NOTICEIndicates the possibility of damage to the components being repaired.
HINTProvides additional information to help you to perform the repair efficiently.

010LF±01





D25016

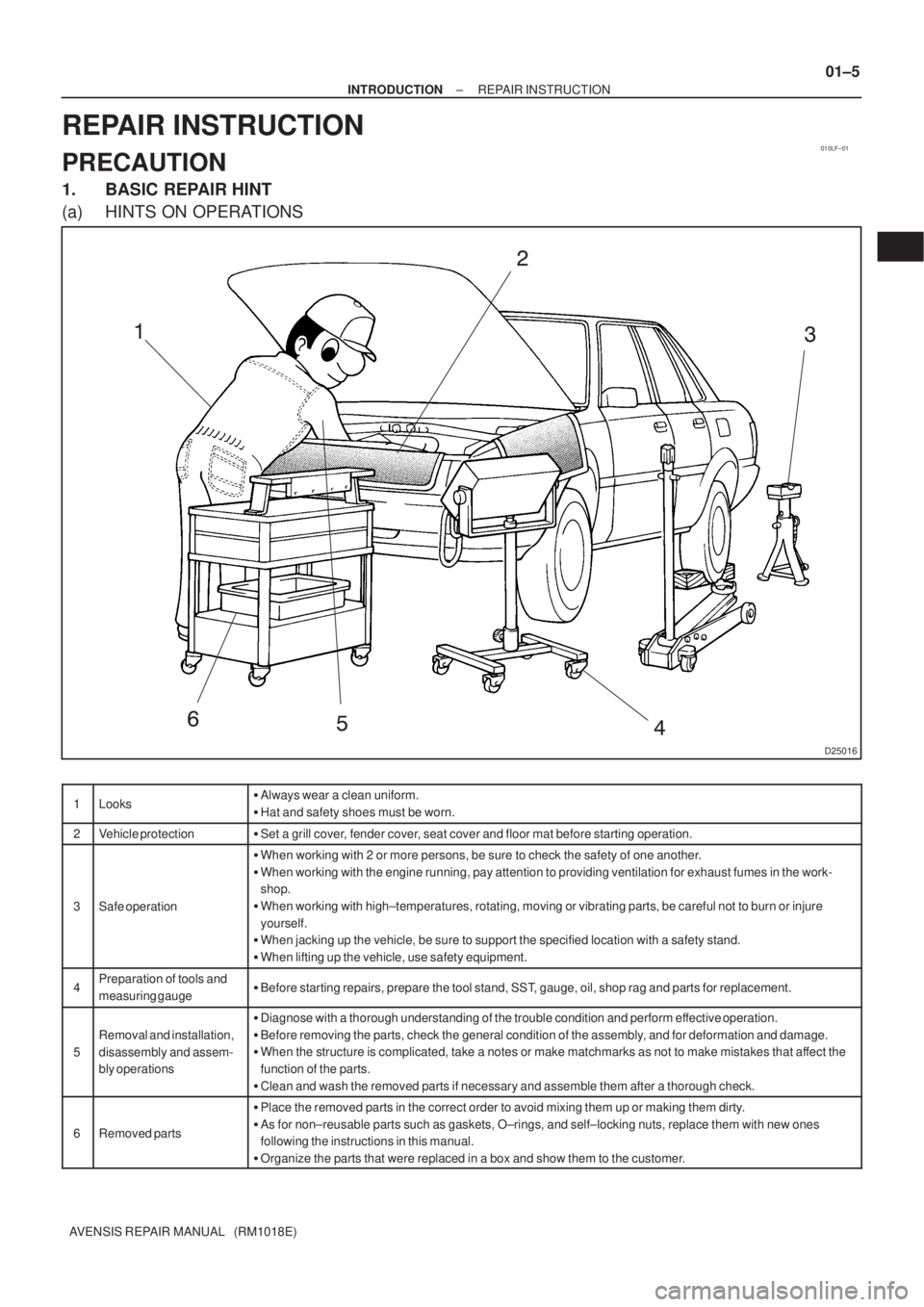

± INTRODUCTIONREPAIR INSTRUCTION
01±5
AVENSIS REPAIR MANUAL (RM1018E)
REPAIR INSTRUCTION
PRECAUTION
1. BASIC REPAIR HINT
(a) HINTS ON OPERATIONS
1Looks
Always wear a clean uniform.

Hat and safety shoes must be worn.
2Vehicle protection
Set a grill cover, fender cover, seat cover and floor mat before starting operation.
3Safe operation

When working with 2 or more persons, be sure to check the safety of one another.

When working with the engine running, pay attention to providing ventilation for exhaust fumes in the work-
shop.

When working with high±temperatures, rotating, moving or vibrating parts, be careful not to burn or injure
yourself.

When jacking up the vehicle, be sure to support the specified location with a safety stand.

When lifting up the vehicle, use safety equipment.
4Preparation of tools and
measuring gauge
Before starting repairs, prepare the tool stand, SST, gauge, oil, shop rag and parts for replacement.
5
Removal and installation,
disassembly and assem-
bly operations

Diagnose with a thorough understanding of the trouble condition and perform effective operation.

Before removing the parts, check the general condition of the assembly, and for deformation and damage.

When the structure is complicated, take a notes or make matchmarks as not to make mistakes that affect the
function of the parts.

Clean and wash the removed parts if necessary and assemble them after a thorough check.
6Removed parts

Place the removed parts in the correct order to avoid mixing them up or making them dirty.

As for non±reusable parts such as gaskets, O±rings, and self±locking nuts, replace them with new ones
following the instructions in this manual.

Organize the parts that were replaced in a box and show them to the customer.

D26613
Example:
D25080
Negative (±)
Terminal

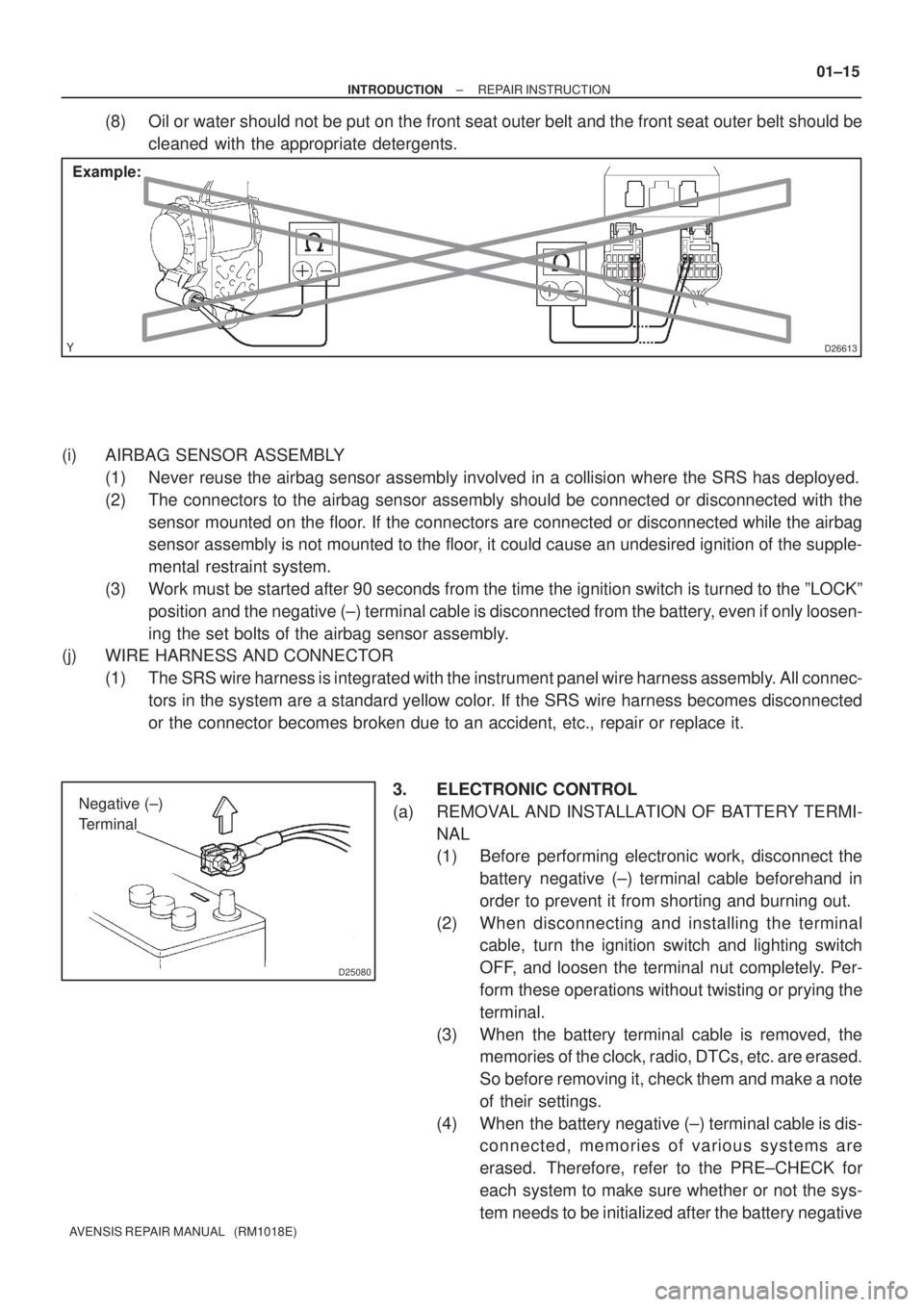

± INTRODUCTIONREPAIR INSTRUCTION
01±15
AVENSIS REPAIR MANUAL (RM1018E)
(8) Oil or water should not be put on the front seat outer belt and the front seat outer belt should be
cleaned with the appropriate detergents.
(i) AIRBAG SENSOR ASSEMBLY
(1) Never reuse the airbag sensor assembly involved in a collision where the SRS has deployed.
(2) The connectors to the airbag sensor assembly should be connected or disconnected with the
sensor mounted on the floor. If the connectors are connected or disconnected while the airbag
sensor assembly is not mounted to the floor, it could cause an undesired ignition of the supple-
mental restraint system.
(3) Work must be started after 90 seconds from the time the ignition switch is turned to the ºLOCKº
position and the negative (±) terminal cable is disconnected from the battery, even if only loosen-
ing the set bolts of the airbag sensor assembly.
(j) WIRE HARNESS AND CONNECTOR
(1) The SRS wire harness is integrated with the instrument panel wire harness assembly. All connec-
tors in the system are a standard yellow color. If the SRS wire harness becomes disconnected
or the connector becomes broken due to an accident, etc., repair or replace it.
3. ELECTRONIC CONTROL
(a) REMOVAL AND INSTALLATION OF BATTERY TERMI-
NAL
(1) Before performing electronic work, disconnect the
battery negative (±) terminal cable beforehand in
order to prevent it from shorting and burning out.
(2) When disconnecting and installing the terminal
cable, turn the ignition switch and lighting switch
OFF, and loosen the terminal nut completely. Per-
form these operations without twisting or prying the
terminal.
(3) When the battery terminal cable is removed, the
memories of the clock, radio, DTCs, etc. are erased.
So before removing it, check them and make a note
of their settings.
(4) When the battery negative (±) terminal cable is dis-
connected, memories of various systems are
erased. Therefore, refer to the PRE±CHECK for
each system to make sure whether or not the sys-
tem needs to be initialized after the battery negative

022KL±01
± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
02±29
AVENSIS REPAIR MANUAL (RM1018E)
DRIVE SHAFT / PROPELLER SHAFT
PREPARATION
SST
09240±00020Wire Gauge SetFRONT DRIVE SHAFT
09520±00031Rear Axle Shaft PullerFRONT AXLE HUB SUB±ASSY LH
09520±01010Drive Shaft Remover AttachmentFRONT DRIVE SHAFT
09520±24010Differential Side Gear Shaft
PullerFRONT DRIVE SHAFT
(09520±32040)Shocker SetFRONT DRIVE SHAFT
09521±24010Rear Axle Shaft PullerFRONT DRIVE SHAFT
09527±10011Rear Axle Shaft Bearing RemoverFRONT DRIVE SHAFT
09527±17011Rear Axle Shaft Bearing RemoverFRONT AXLE HUB SUB±ASSY LH
09608±16042Front Hub Bearing Adjusting ToolFRONT DRIVE SHAFT
(09608±02021)Bolt & NutFRONT DRIVE SHAFT
(09608±02041)RetainerFRONT DRIVE SHAFT
09608±32010Steering Knuckle Oil Seal
ReplacerFRONT AXLE HUB SUB±ASSY LH

022L8±01
02±26

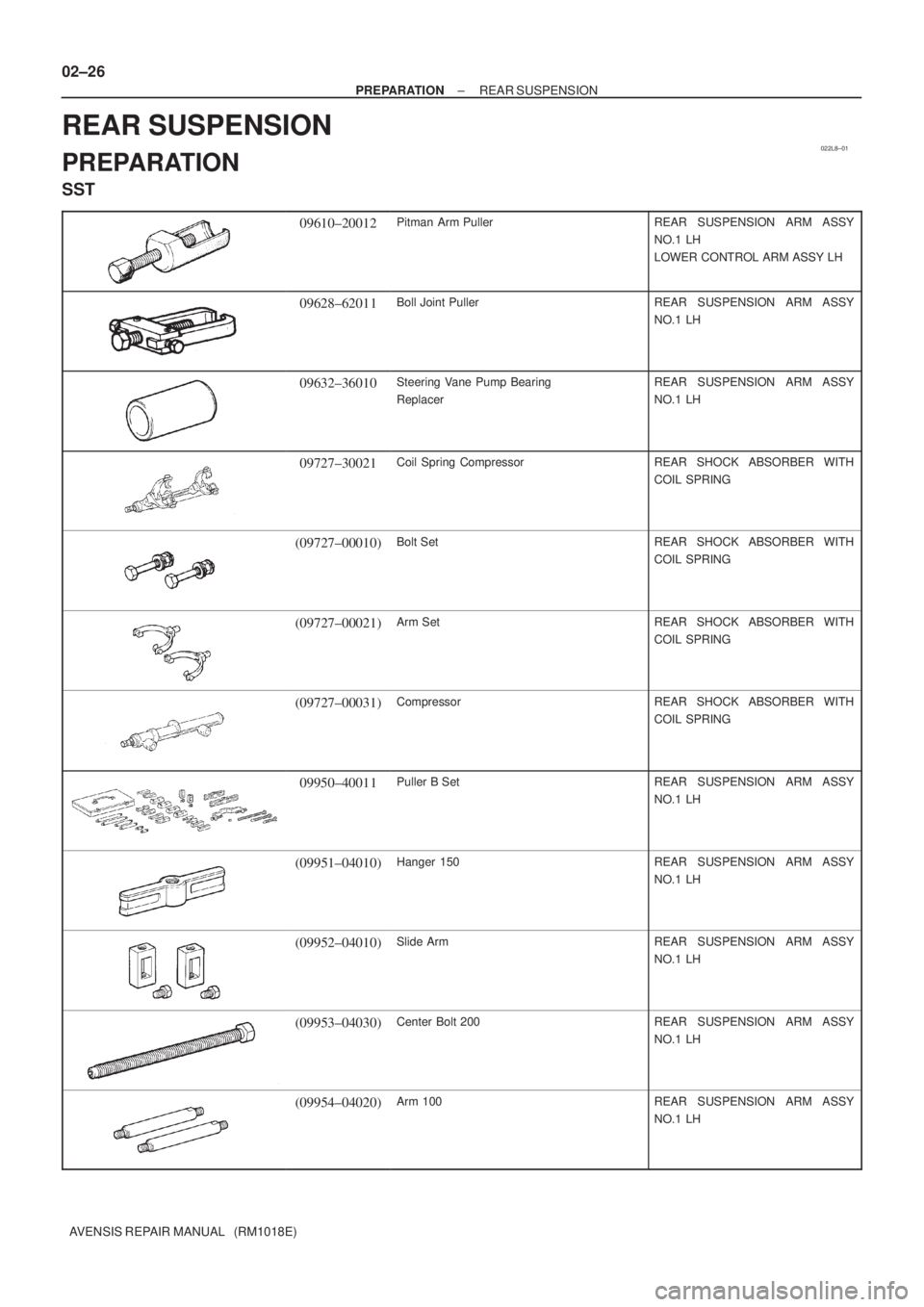

± PREPARATIONREAR SUSPENSION
AVENSIS REPAIR MANUAL (RM1018E)
REAR SUSPENSION
PREPARATION
SST
09610±20012Pitman Arm PullerREAR SUSPENSION ARM ASSY
NO.1 LH
LOWER CONTROL ARM ASSY LH
09628±62011Boll Joint PullerREAR SUSPENSION ARM ASSY
NO.1 LH
09632±36010Steering Vane Pump Bearing
ReplacerREAR SUSPENSION ARM ASSY
NO.1 LH
09727±30021Coil Spring CompressorREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00010)Bolt SetREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00021)Arm SetREAR SHOCK ABSORBER WITH
COIL SPRING
(09727±00031)CompressorREAR SHOCK ABSORBER WITH
COIL SPRING
09950±40011Puller B SetREAR SUSPENSION ARM ASSY
NO.1 LH
(09951±04010)Hanger 150REAR SUSPENSION ARM ASSY
NO.1 LH
(09952±04010)Slide ArmREAR SUSPENSION ARM ASSY
NO.1 LH
(09953±04030)Center Bolt 200REAR SUSPENSION ARM ASSY
NO.1 LH
(09954±04020)Arm 100REAR SUSPENSION ARM ASSY
NO.1 LH

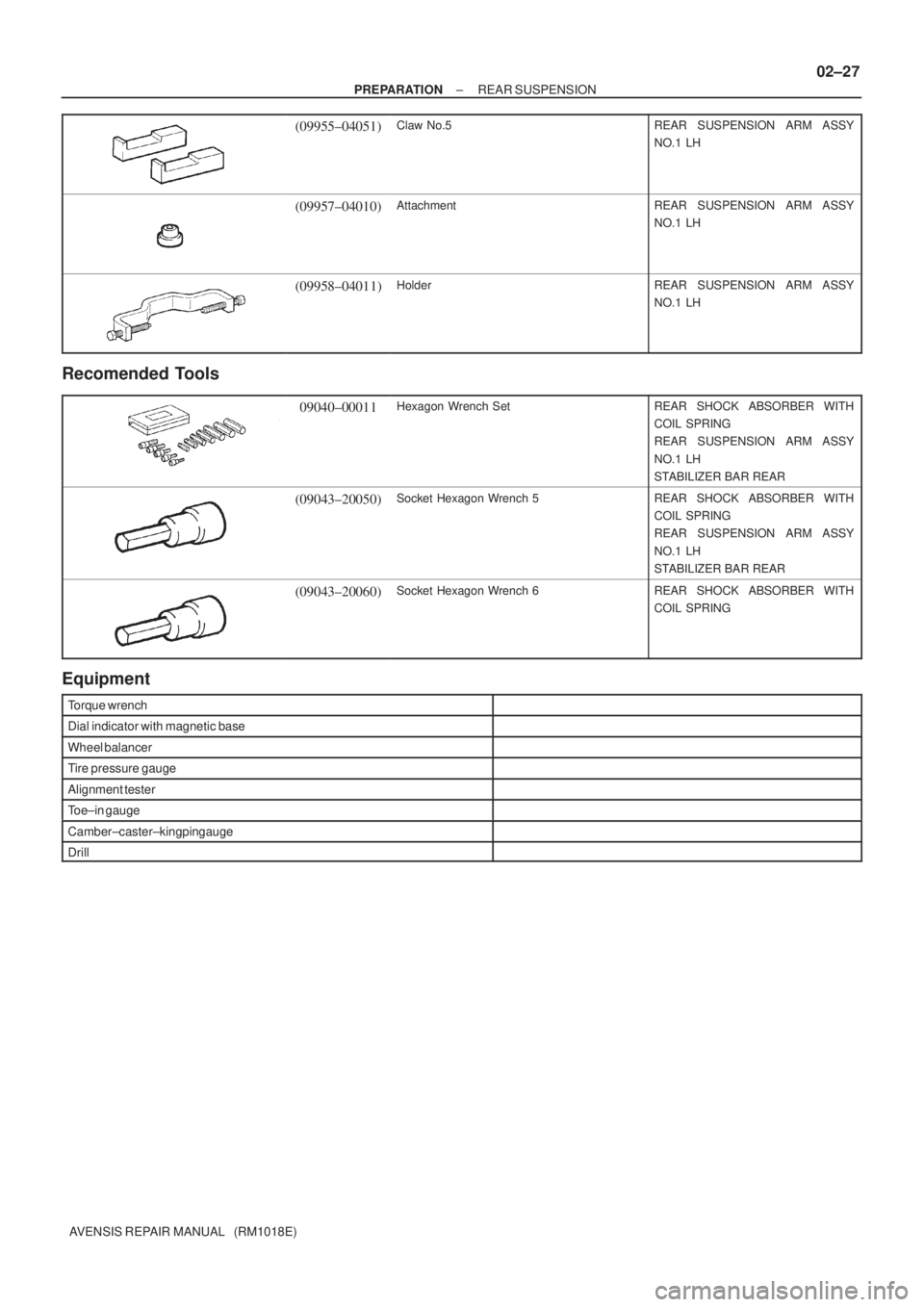

± PREPARATIONREAR SUSPENSION
02±27
AVENSIS REPAIR MANUAL (RM1018E)
(09955±04051)Claw No.5REAR SUSPENSION ARM ASSY
NO.1 LH
(09957±04010)AttachmentREAR SUSPENSION ARM ASSY
NO.1 LH
(09958±04011)HolderREAR SUSPENSION ARM ASSY
NO.1 LH
Recomended Tools
09040±00011Hexagon Wrench SetREAR SHOCK ABSORBER WITH
COIL SPRING
REAR SUSPENSION ARM ASSY
NO.1 LH
STABILIZER BAR REAR
(09043±20050)Socket Hexagon Wrench 5REAR SHOCK ABSORBER WITH
COIL SPRING
REAR SUSPENSION ARM ASSY
NO.1 LH
STABILIZER BAR REAR
(09043±20060)Socket Hexagon Wrench 6REAR SHOCK ABSORBER WITH
COIL SPRING
Equipment
Torque wrench
Dial indicator with magnetic base
Wheel balancer
Tire pressure gauge
Alignment tester
Toe±in gauge
Camber±caster±kingpin gauge
Drill

022KF±01

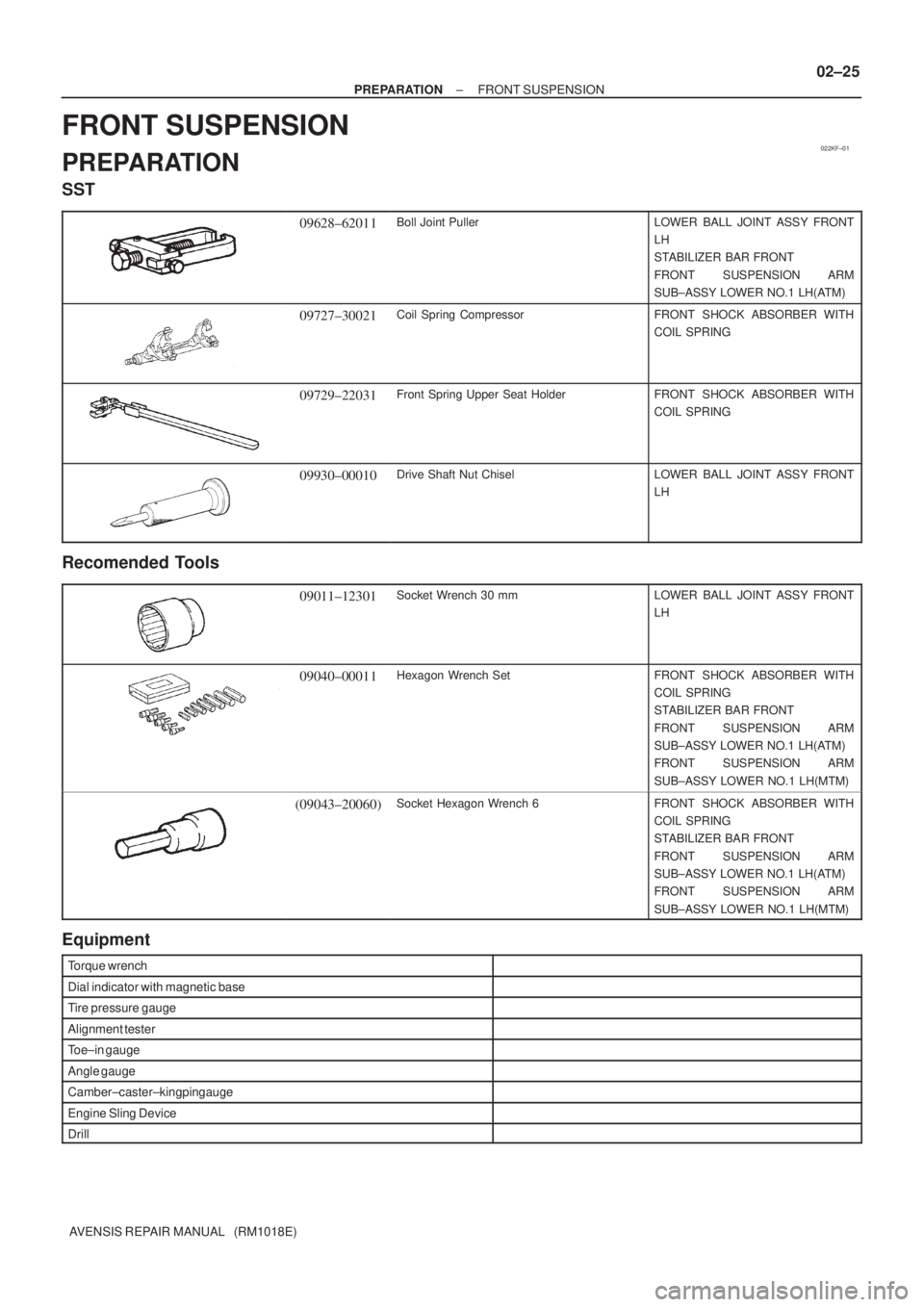

± PREPARATIONFRONT SUSPENSION
02±25
AVENSIS REPAIR MANUAL (RM1018E)
FRONT SUSPENSION
PREPARATION
SST
09628±62011Boll Joint PullerLOWER BALL JOINT ASSY FRONT
LH
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
09727±30021Coil Spring CompressorFRONT SHOCK ABSORBER WITH
COIL SPRING
09729±22031Front Spring Upper Seat HolderFRONT SHOCK ABSORBER WITH
COIL SPRING
09930±00010Drive Shaft Nut ChiselLOWER BALL JOINT ASSY FRONT
LH
Recomended Tools
09011±12301Socket Wrench 30 mmLOWER BALL JOINT ASSY FRONT
LH
09040±00011Hexagon Wrench SetFRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
(09043±20060)Socket Hexagon Wrench 6FRONT SHOCK ABSORBER WITH
COIL SPRING
STABILIZER BAR FRONT
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(ATM)
FRONT SUSPENSION ARM
SUB±ASSY LOWER NO.1 LH(MTM)
Equipment
Torque wrench
Dial indicator with magnetic base
Tire pressure gauge
Alignment tester
Toe±in gauge
Angle gauge
Camber±caster±kingpin gauge
Engine Sling Device
Drill

022K9±01
02±20
± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
LUBRICATION
PREPARATION
SST
09023±12900Union Nut Wrench 19mmOIL PUMP ASSY(1AZ±FSE)
09032±00100Oil Pan Seal CutterOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09213±54015Crankshaft Pulley Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(90105±08076)BoltOIL PUMP ASSY(1CD±FTV)
(91651±60855)BoltOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09223±46011Crankshaft Front Oil Seal
ReplacerOIL PUMP ASSY(1CD±FTV)
09228±06501Oil Filter WrenchOIL FILTER SUB±ASSY(1AZ±FE)
OIL FILTER SUB±ASSY(1AZ±FSE)
OIL FILTER
SUB±ASSY(1ZZ±FE/3ZZ±FE)
09228±10002Oil Filter WrenchOIL FILTER SUB±ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
09316±60011Transmission & Transfer Bearing
ReplacerOIL PUMP ASSY(1CD±FTV)
(09316±00011)Replacer PipeOIL PUMP ASSY(1CD±FTV)
(09316±00021)Replacer ºAºOIL PUMP ASSY(1CD±FTV)

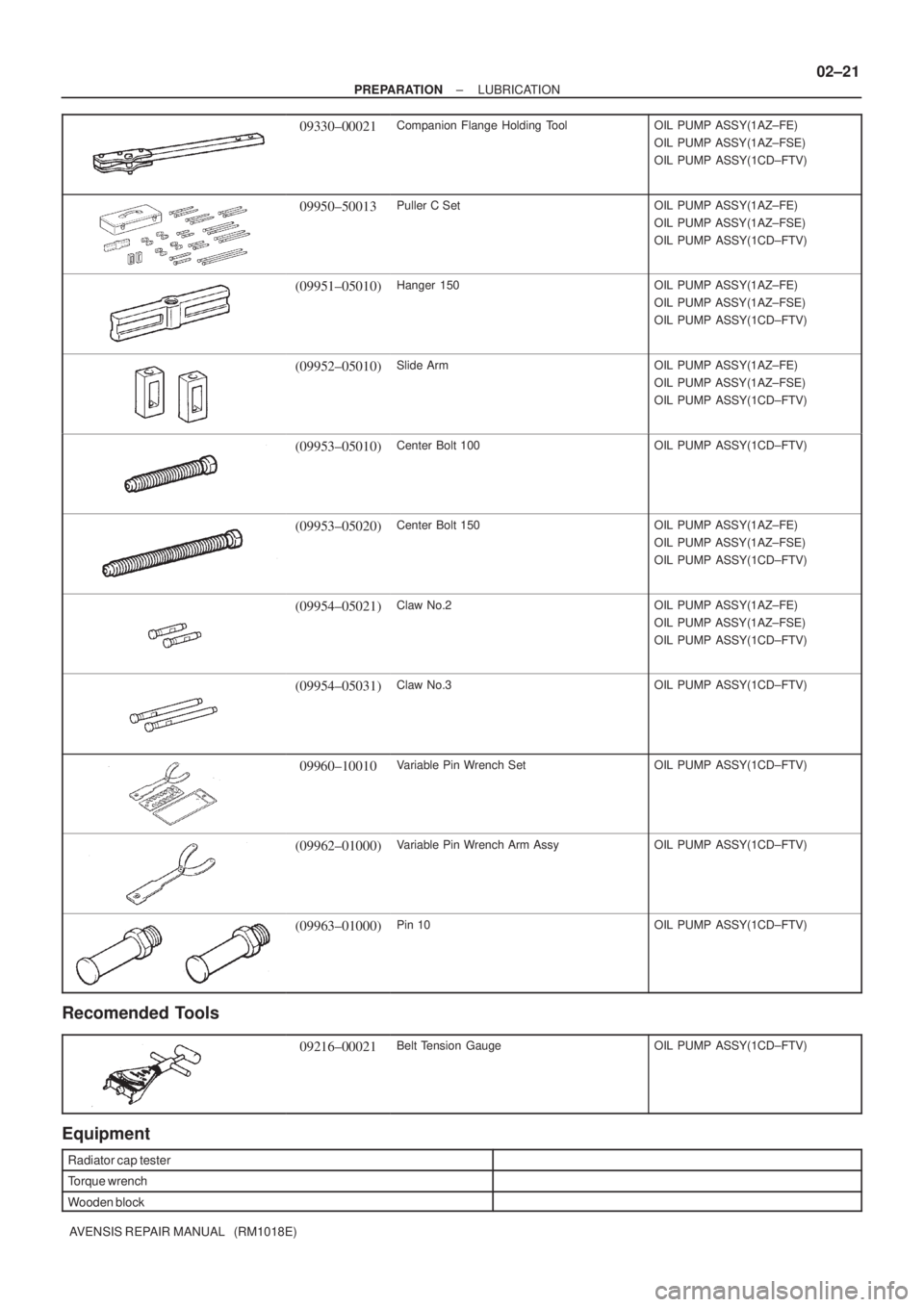

± PREPARATIONLUBRICATION
02±21
AVENSIS REPAIR MANUAL (RM1018E)
09330±00021Companion Flange Holding ToolOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
09950±50013Puller C SetOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09951±05010)Hanger 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09952±05010)Slide ArmOIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09953±05010)Center Bolt 100OIL PUMP ASSY(1CD±FTV)
(09953±05020)Center Bolt 150OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05021)Claw No.2OIL PUMP ASSY(1AZ±FE)
OIL PUMP ASSY(1AZ±FSE)
OIL PUMP ASSY(1CD±FTV)
(09954±05031)Claw No.3OIL PUMP ASSY(1CD±FTV)
09960±10010Variable Pin Wrench SetOIL PUMP ASSY(1CD±FTV)
(09962±01000)Variable Pin Wrench Arm AssyOIL PUMP ASSY(1CD±FTV)
(09963±01000)Pin 10OIL PUMP ASSY(1CD±FTV)
Recomended Tools
09216±00021Belt Tension GaugeOIL PUMP ASSY(1CD±FTV)
Equipment
Radiator cap tester
Torque wrench
Wooden block

02±22

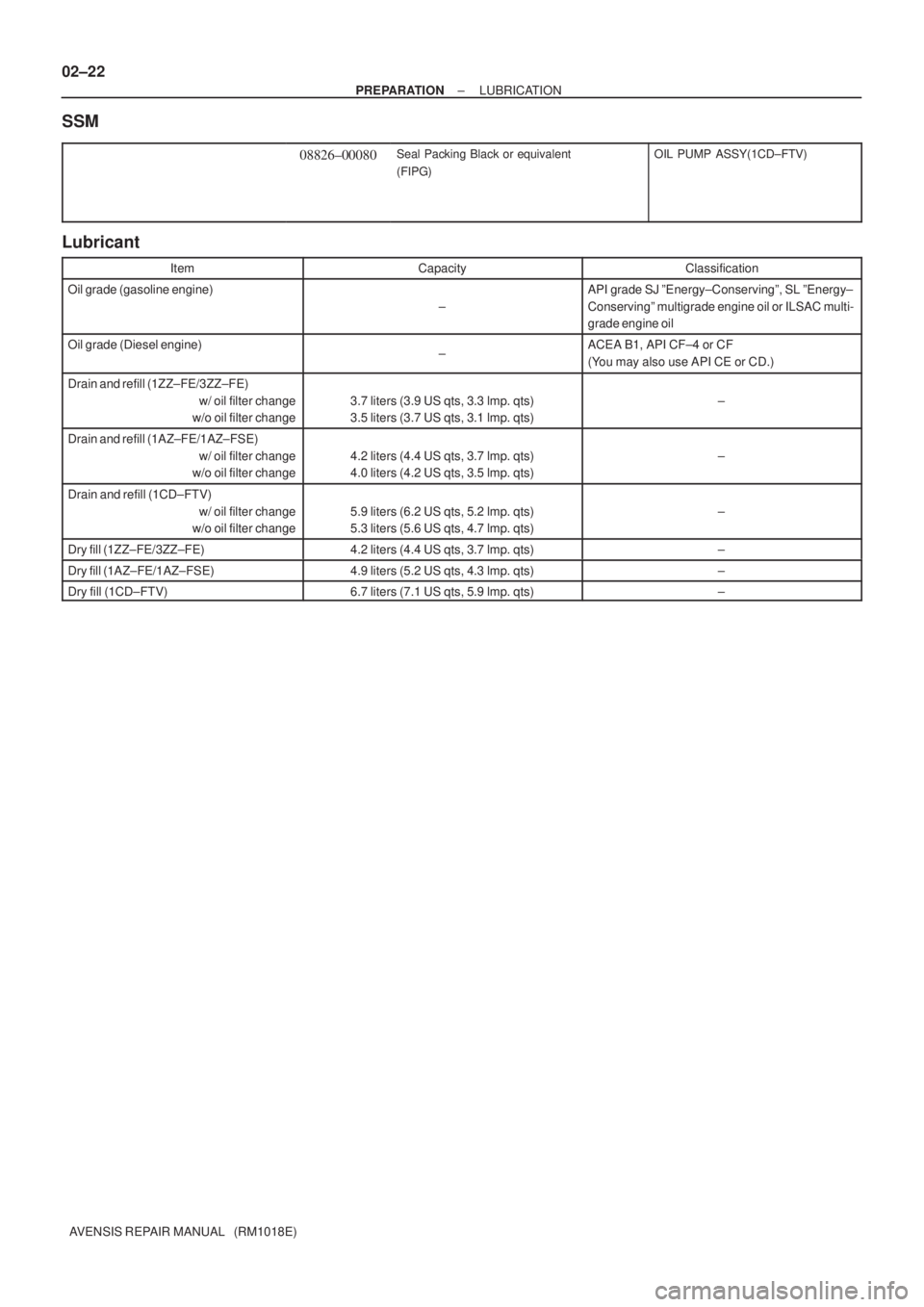

± PREPARATIONLUBRICATION
AVENSIS REPAIR MANUAL (RM1018E)
SSM
08826±00080Seal Packing Black or equivalent
(FIPG)OIL PUMP ASSY(1CD±FTV)
Lubricant
ItemCapacityClassification
Oil grade (gasoline engine)
±
API grade SJ ºEnergy±Conservingº, SL ºEnergy±
Conservingº multigrade engine oil or ILSAC multi-
grade engine oil
Oil grade (Diesel engine)±ACEA B1, API CF±4 or CF
(You may also use API CE or CD.)
Drain and refill (1ZZ±FE/3ZZ±FE)
w/ oil filter change
w/o oil filter change
3.7 liters (3.9 US qts, 3.3 lmp. qts)
3.5 liters (3.7 US qts, 3.1 lmp. qts)±
Drain and refill (1AZ±FE/1AZ±FSE)
w/ oil filter change
w/o oil filter change
4.2 liters (4.4 US qts, 3.7 lmp. qts)
4.0 liters (4.2 US qts, 3.5 lmp. qts)±
Drain and refill (1CD±FTV)
w/ oil filter change
w/o oil filter change
5.9 liters (6.2 US qts, 5.2 lmp. qts)
5.3 liters (5.6 US qts, 4.7 lmp. qts)±
Dry fill (1ZZ±FE/3ZZ±FE)4.2 liters (4.4 US qts, 3.7 lmp. qts)±
Dry fill (1AZ±FE/1AZ±FSE)4.9 liters (5.2 US qts, 4.3 lmp. qts)±
Dry fill (1CD±FTV)6.7 liters (7.1 US qts, 5.9 lmp. qts)±
