codes TOYOTA AVENSIS 2005 Service Repair Manual

Detection Item
Indicates the system or details of the
problem. Trouble Area
Indicates the suspect areas of
the problem.
Detection Item
DTC No.
(See page)
Trouble Area
SRS


Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness
B0103/12
(05±132) B0102/11
(05±128)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the DTC check, check the circuit for that code liste\
d in the table
below (Proceed to the page given for that circuit).

Short in D squib circuit

Open in D squib circuit
B0101/14
(05±124)

Short in D squib circuit (to ground)

Short in D squib circuit (to B+)
Warning Light
ON
ON
ON
ON


Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness

Steering wheel pad (squib)

Spiral cable

Airbag sensor assembly

Wire harness
B0105/53
(05±136) ON

Airbag sensor assembly

Wire harness
B0106/54

Open in P squib circuit

Airbag sensor assembly

Wire harness


Short in P squib circuit (to Ground) ON
ON
B0100/13
(05±119)

Short in P squib circuit

Front passenger airbag assembly (squib)

Airbag sensor assembly

Wire harness

Front passenger airbag assembly (squib)

Front passenger airbag assembly (squib)
Page or Instructions
Indicates the page where the inspection proce-
dures for each circuit is to be found, or gives
instructions for checking and repairs.


DTC No.
Indicates the diagnostic trouble code.



±
INTRODUCTION HOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±29
AVENSIS REPAIR MANUAL (RM1018E)
DIAGNOSTIC TROUBLE CODE CHART
The inspection procedures are shown in the table below. This table allows efficient and accurate trouble-
shooting using the diagnostic trouble codes displayed in the diagnostic trouble code chart. Proceed with
troubleshooting in accordance with the inspection procedures listed in the diagnostic c\
hart corresponding
to the diagnostic trouble codes displayed. The diagnostic trouble code chart for the Supplemental Restraint
System is shown below as an example.

SFI
SFISFI
SFISFI
SFI
D25842

Circuit Description
The major role and, operation of the circuit
and its component parts are explained.

Diagnostic Trouble Code No. and Detection Item

Indicates the diagnostic trouble codes, diagnostic
trouble code settings and suspect areas for a
problem.
Wiring Diagram
This shows a wiring diagram of the circuit.
Use this diagram together with ELECTRICAL
WIRING DIAGRAM to thoroughly understand the
circuit.
Wire colors are indicated by an alphabetical code.
B = Black, L = Blue, R = Red, BR = Brown,
LG = Light Green, V = Violet, G = Green,
O = Orange, W = White, GR = Gray, P = Pink,
Y = Yellow, SB = Sky Blue
The first letter indicates the basic wire color and
the second letter indicates the color of the stripe.
Inspection Procedures
Use the inspection procedures to determine
if the circuit is normal or abnormal. If it is ab-
normal, use it to determine whether the prob-
lem is located in the sensors, actuators, wire
harness or ECU.

Indicates the condition of the connector of the ECU
during the check.


Connections of tester are
indicated by (+), (±) after
terminals name.
Connector being checked
is connected.Connector being checked
is disconnected.
For inspection of connector
with body ground, there is
nothing about the body
ground written down.
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±31
AVENSIS REPAIR MANUAL (RM1018E)

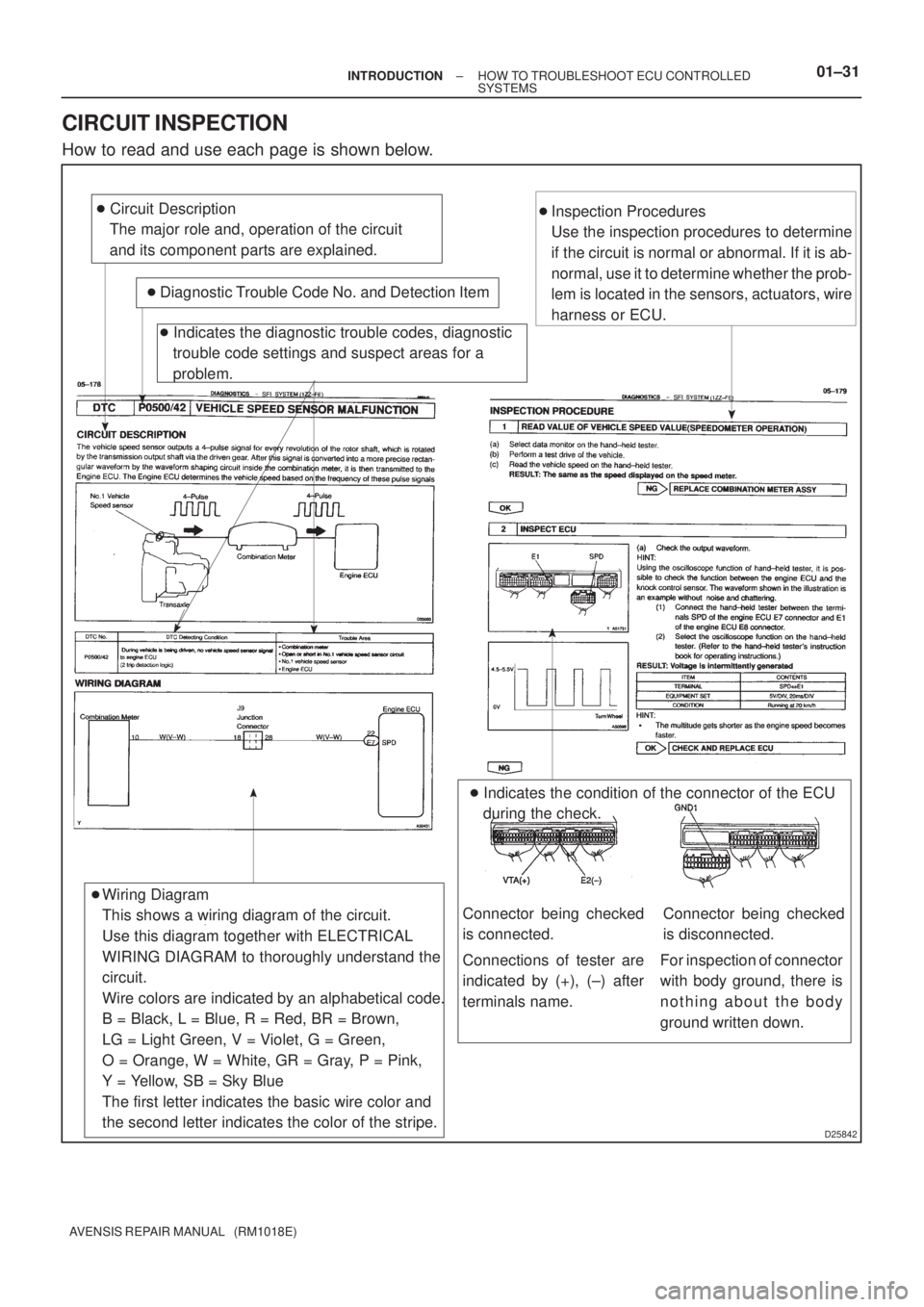

CIRCUIT INSPECTION
How to read and use each page is shown below.

L1L2L1L2L1L2
D02612
L2
L1L2
L1L2
L1
D01201
±
INTRODUCTION REPAIR INSTRUCTION
01±9
AVENSIS REPAIR MANUAL (RM1018E)

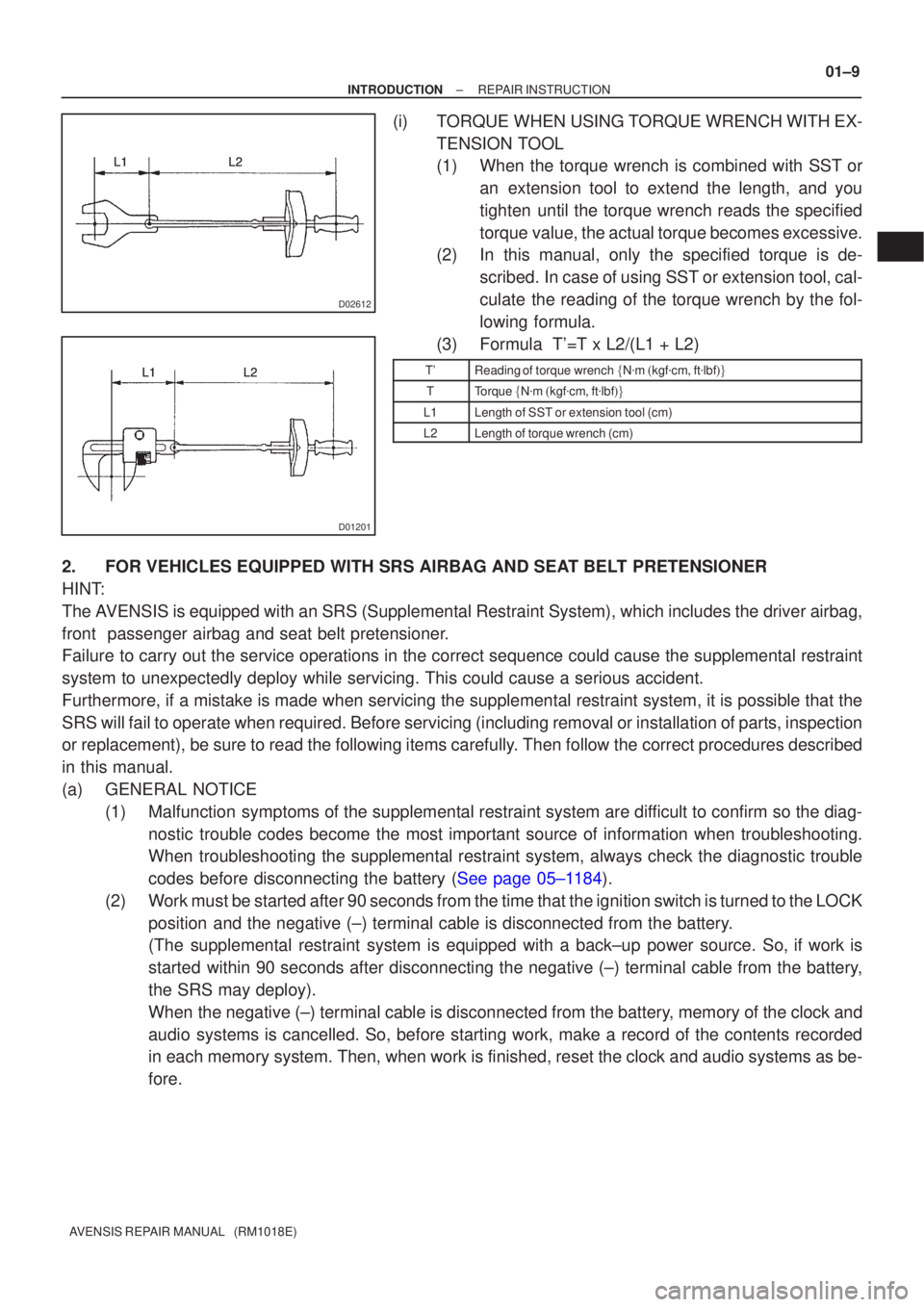

(i)TORQUE WHEN USING TORQUE WRENCH WITH EX-
TENSION TOOL
(1)When the torque wrench is combined with SST oran extension tool to extend the length, and you
tighten until the torque wrench reads the specified
torque value, the actual torque becomes excessive.
(2)In this manual, only the specified torque is de-
scribed. In case of using SST or extension tool, cal-
culate the reading of the torque wrench by the fol-
lowing formula.
(3)Formula T'=T x L2/(L1 + L2)
T'Reading of torque wrench N
m kgf
cm ft
lbf
TTorque N
m kgf
cm ft
lbf
L1Length of SST or extension tool (cm)
L2Length of torque wrench (cm)
2.FOR VEHICLES EQUIPPED WITH SRS AIRBAG AND SEAT BELT PRETENSIONER
HINT:
The AVENSIS is equipped with an SRS (Supplemental Restraint System), which \
includes the driver airbag,
front passenger airbag and seat belt pretensioner.
Failure to carry out the service operations in the correct sequence could cause\
the supplemental restraint
system to unexpectedly deploy while servicing. This could cause a seriou\
s accident.
Furthermore, if a mistake is made when servicing the supplemental restra\
int system, it is possible that the
SRS will fail to operate when required. Before servicing (including remova\
l or installation of parts, inspection
or replacement), be sure to read the following items carefully. Then follow the correct procedures described
in this manual.
(a)GENERAL NOTICE
(1)Malfunction symptoms of the supplemental restraint system are difficult to confirm so the diag-nostic trouble codes become the most important source of information when trou\
bleshooting.
When troubleshooting the supplemental restraint system, always check the dia\
gnostic trouble
codes before disconnecting the battery (See page 05±1184).
(2) Work must be started after 90 seconds from the time that the ignition switch\
is turned to the LOCK position and the negative (±) terminal cable is disconnected from the batte\
ry.
(The supplemental restraint system is equipped with a back±up power sourc\
e. So, if work is
started within 90 seconds after disconnecting the negative (±) terminal ca\
ble from the battery,
the SRS may deploy).
When the negative (±) terminal cable is disconnected from the battery, memory of the clock and
audio systems is cancelled. So, before starting work, make a record of the contents recorded
in each memory system. Then, when work is finished, reset the clock and audio systems as be-
fore.

0505J±04
05±16
±
DIAGNOSTICS SFI SYSTEM (1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

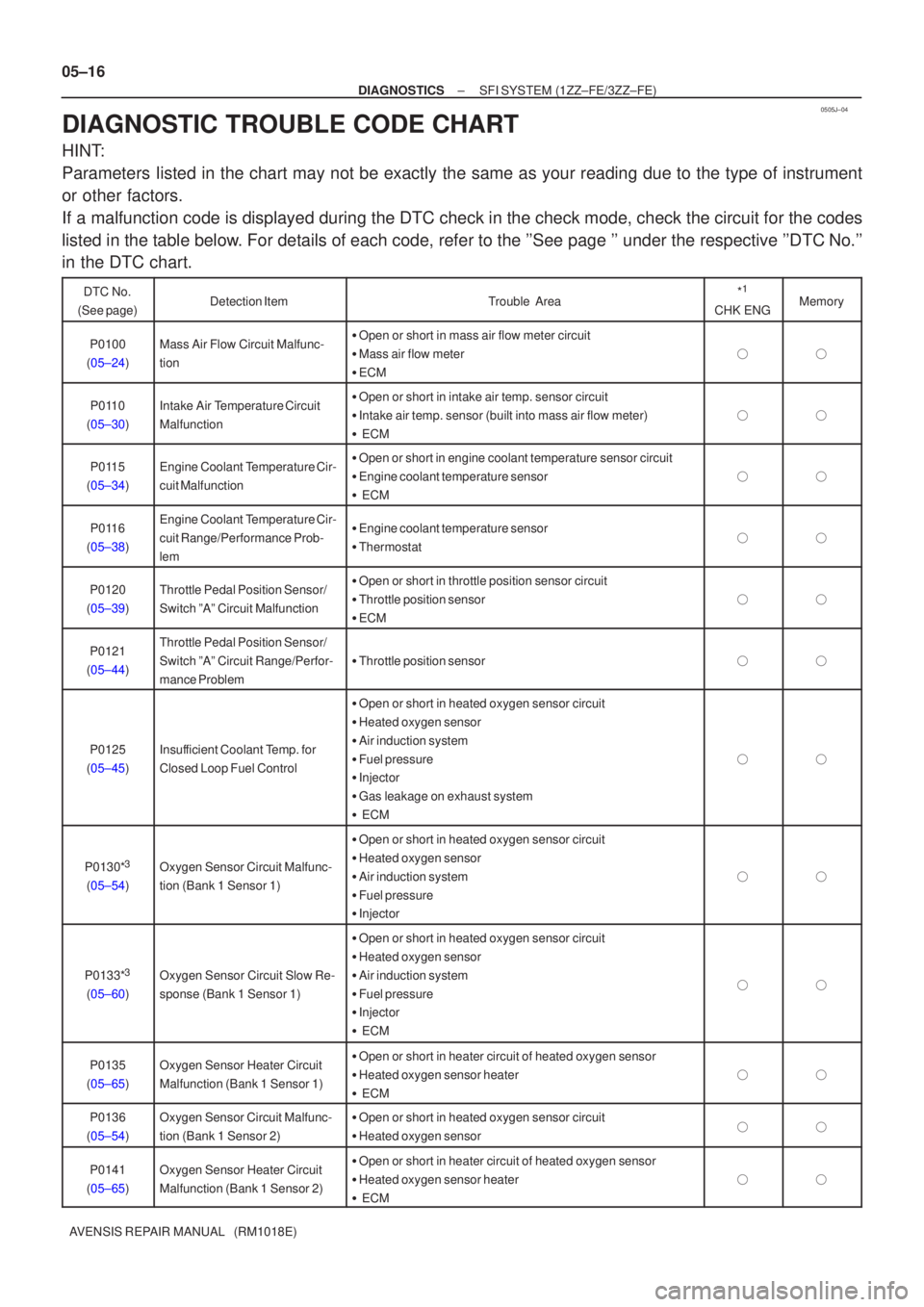

DIAGNOSTIC TROUBLE CODE CHART
HINT:
Parameters listed in the chart may not be exactly the same as your reading due to \
the type of instrument
or other factors.
If a malfunction code is displayed during the DTC check in the check mode, check the circuit f\
or the codes
listed in the table below. For details of each code, refer to the ''See page '' under the respective ''DTC No.''
in the DTC chart.
DTC No.
(See page)Detection ItemTrouble Area*1
CHK ENGMemory
P0100
(05±24)Mass Air Flow Circuit Malfunc-
tion
Open or short in mass air flow meter circuit

Mass air flow meter

ECM

P0110
(05±30)Intake Air Temperature Circuit
Malfunction
Open or short in intake air temp. sensor circuit

Intake air temp. sensor (built into mass air flow meter)

ECM

P0115
(05±34)Engine Coolant Temperature Cir-
cuit Malfunction
Open or short in engine coolant temperature sensor circuit

Engine coolant temperature sensor

ECM

P0116
(05±38)Engine Coolant Temperature Cir-
cuit Range/Performance Prob-
lem
Engine coolant temperature sensor

Thermostat
P0120
(05±39)Throttle Pedal Position Sensor/
Switch ºAº Circuit Malfunction
Open or short in throttle position sensor circuit

Throttle position sensor

ECM

P0121
(05±44)Throttle Pedal Position Sensor/
Switch ºAº Circuit Range/Perfor-
mance Problem

Throttle position sensor
P0125
(05±45)Insufficient Coolant Temp. for
Closed Loop Fuel Control

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Air induction system

Fuel pressure

Injector

Gas leakage on exhaust system

ECM

P0130*3
(05±54)
Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Air induction system

Fuel pressure

Injector

P0133*3
(05±60)
Oxygen Sensor Circuit Slow Re-
sponse (Bank 1 Sensor 1)

Open or short in heated oxygen sensor circuit

Heated oxygen sensor

Air induction system

Fuel pressure

Injector

ECM

P0135
(05±65)Oxygen Sensor Heater Circuit
Malfunction (Bank 1 Sensor 1)
Open or short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

ECM

P0136
(05±54)Oxygen Sensor Circuit Malfunc-
tion (Bank 1 Sensor 2)
Open or short in heated oxygen sensor circuit

Heated oxygen sensor
P0141
(05±65)Oxygen Sensor Heater Circuit
Malfunction (Bank 1 Sensor 2)
Open or short in heater circuit of heated oxygen sensor

Heated oxygen sensor heater

ECM


± DIAGNOSTICSSFI SYSTEM (1ZZ±FE/3ZZ±FE)
05±73
AVENSIS REPAIR MANUAL (RM1018E)

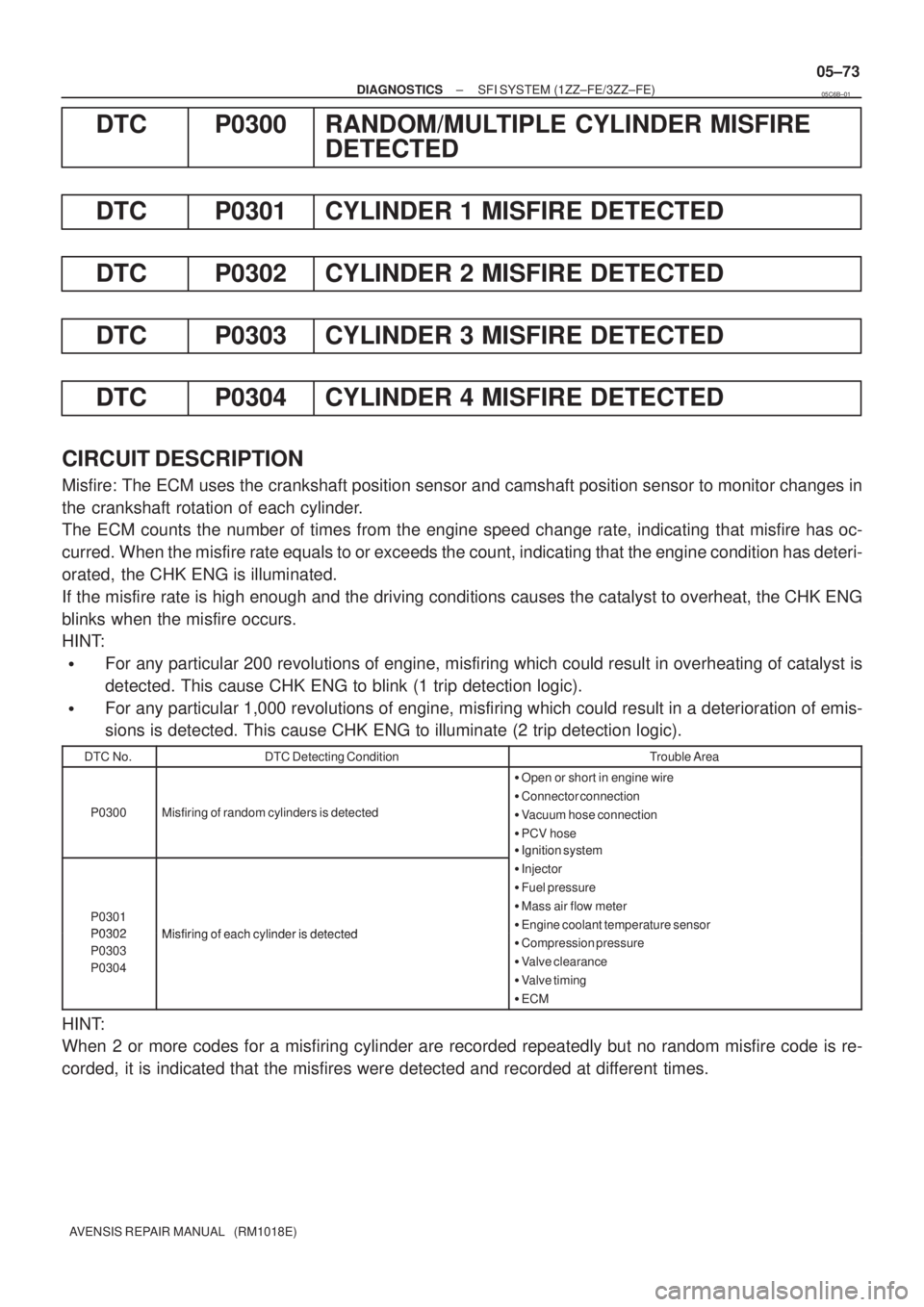

DTC P0300 RANDOM/MULTIPLE CYLINDER MISFIRE
DETECTED
DTC P0301 CYLINDER 1 MISFIRE DETECTED
DTC P0302 CYLINDER 2 MISFIRE DETECTED
DTC P0303 CYLINDER 3 MISFIRE DETECTED
DTC P0304 CYLINDER 4 MISFIRE DETECTED
CIRCUIT DESCRIPTION
Misfire: The ECM uses the crankshaft position sensor and camshaft position sensor to monitor changes in
the crankshaft rotation of each cylinder.
The ECM counts the number of times from the engine speed change rate, indicating that misfire has oc-
curred. When the misfire rate equals to or exceeds the count, indicating that the engine condition has deteri-
orated, the CHK ENG is illuminated.
If the misfire rate is high enough and the driving conditions causes the catalyst to overheat, the CHK ENG
blinks when the misfire occurs.
HINT:

For any particular 200 revolutions of engine, misfiring which could result in overheating of catalyst is
detected. This cause CHK ENG to blink (1 trip detection logic).

For any particular 1,000 revolutions of engine, misfiring which could result in a deterioration of emis-
sions is detected. This cause CHK ENG to illuminate (2 trip detection logic).
DTC No.DTC Detecting ConditionTrouble Area
P0300Misfiring of random cylinders is detected

Open or short in engine wire

Connector connection

Vacuum hose connection

PCV hose

Ignition system
P0301
P0302Misfiring of each cylinder is detected
Ignition system

Injector

Fuel pressure

Mass air flow meter

Engine coolant temperature sensor
P0302
P0303
P0304Misfiring of each cylinder is detectedEngine coolant tem erature sensor

Compression pressure

Valve clearance

Valve timing

ECM
HINT:
When 2 or more codes for a misfiring cylinder are recorded repeatedly but no random misfire code is re-
corded, it is indicated that the misfires were detected and recorded at different times.
05C6B±01

05±76
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

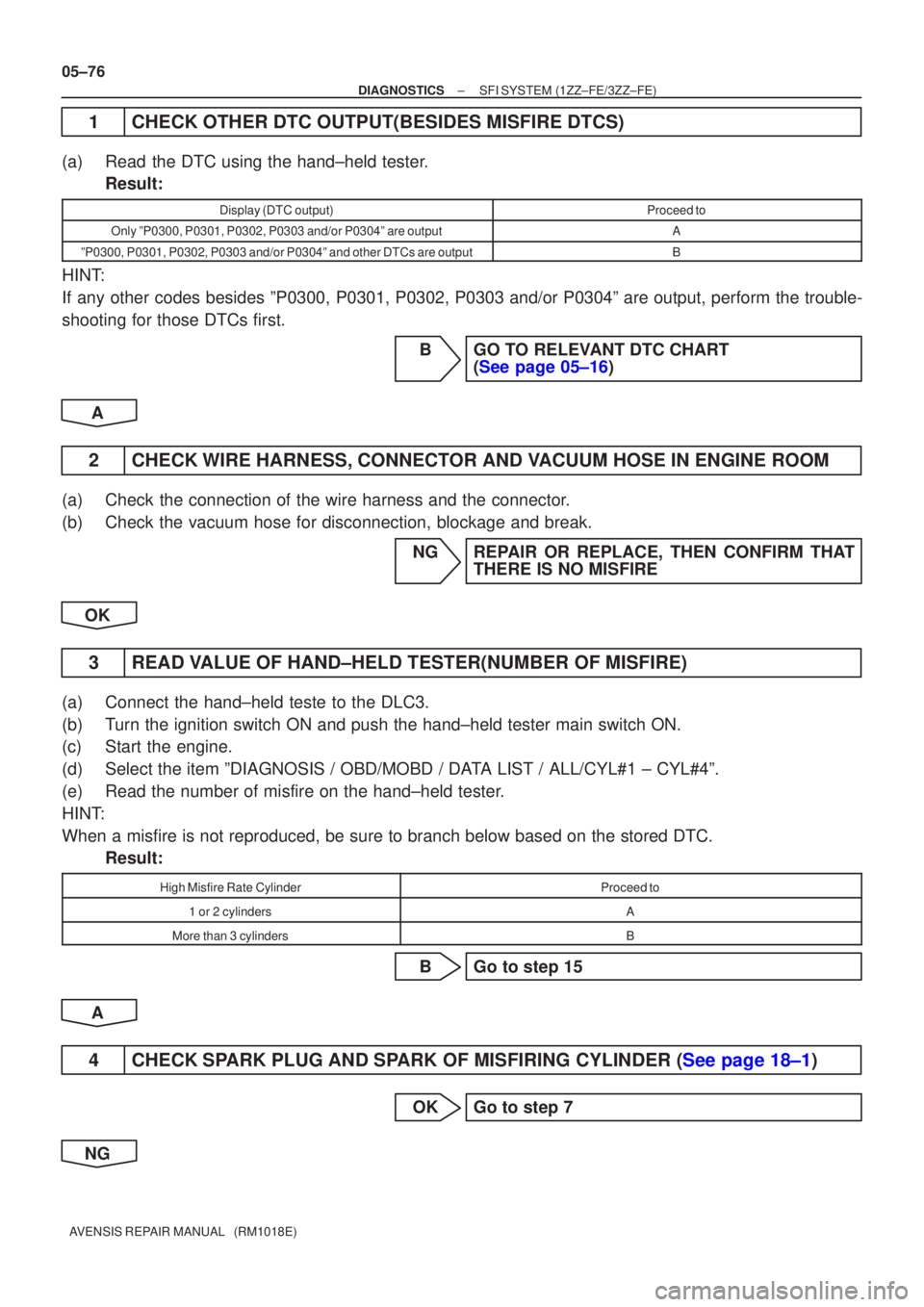

1CHECK OTHER DTC OUTPUT(BESIDES MISFIRE DTCS)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
Only ºP0300, P0301, P0302, P0303 and/or P0304º are outputA
ºP0300, P0301, P0302, P0303 and/or P0304º and other DTCs are outpu\
tB
HINT:
If any other codes besides ºP0300, P0301, P0302, P0303 and/or P0304º are output, perform the trouble-
shooting for those DTCs first.
BGO TO RELEVANT DTC CHART(See page 05±16)
A
2CHECK WIRE HARNESS, CONNECTOR AND VACUUM HOSE IN ENGINE ROOM
(a)Check the connection of the wire harness and the connector.
(b)Check the vacuum hose for disconnection, blockage and break. NGREPAIR OR REPLACE, THEN CONFIRM THATTHERE IS NO MISFIRE
OK
3READ VALUE OF HAND±HELD TESTER(NUMBER OF MISFIRE)
(a)Connect the hand±held teste to the DLC3.
(b)Turn the ignition switch ON and push the hand±held tester main switch \
ON.
(c)Start the engine.
(d)Select the item ºDIAGNOSIS / OBD/MOBD / DATA LIST / ALL/CYL#1 ± CYL#4º.
(e)Read the number of misfire on the hand±held tester.
HINT:
When a misfire is not reproduced, be sure to branch below based on the s\
tored DTC. Result:
High Misfire Rate CylinderProceed to
1 or 2 cylindersA
More than 3 cylindersB
BGo to step 15
A
4CHECK SPARK PLUG AND SPARK OF MISFIRING CYLINDER (See page 18±1)
OK Go to step 7
NG

A73686
05±62
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

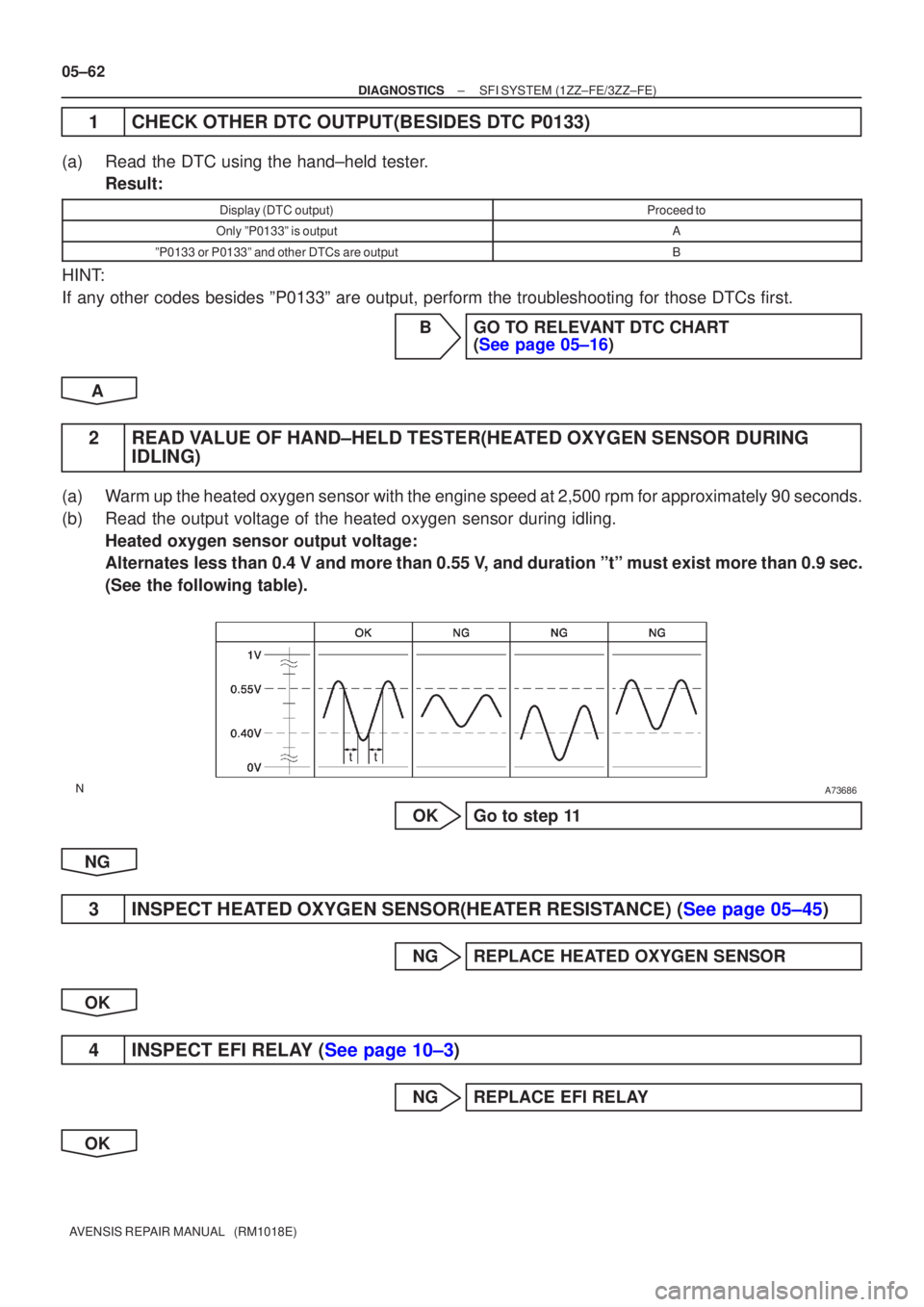

1CHECK OTHER DTC OUTPUT(BESIDES DTC P0133)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
Only ºP0133º is outputA
ºP0133 or P0133º and other DTCs are outputB
HINT:
If any other codes besides ºP0133º are output, perform the troublesh\
ooting for those DTCs first.
BGO TO RELEVANT DTC CHART (See page 05±16)
A
2READ VALUE OF HAND±HELD TESTER(HEATED OXYGEN SENSOR DURING IDLING)
(a)Warm up the heated oxygen sensor with the engine speed at 2,500 rpm for a\
pproximately 90 seconds.
(b)Read the output voltage of the heated oxygen sensor during idling.
Heated oxygen sensor output voltage:
Alternates less than 0.4 V and more than 0.55 V, and duration ºtº must exist more than 0.9 sec.
(See the following table).
OKGo to step 11
NG
3INSPECT HEATED OXYGEN SENSOR(HEATER RESISTANCE) (See page 05±45)
NGREPLACE HEATED OXYGEN SENSOR
OK
4INSPECT EFI RELAY (See page 10±3)
NG REPLACE EFI RELAY
OK

P18349
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
05±57
AVENSIS REPAIR MANUAL (RM1018E)

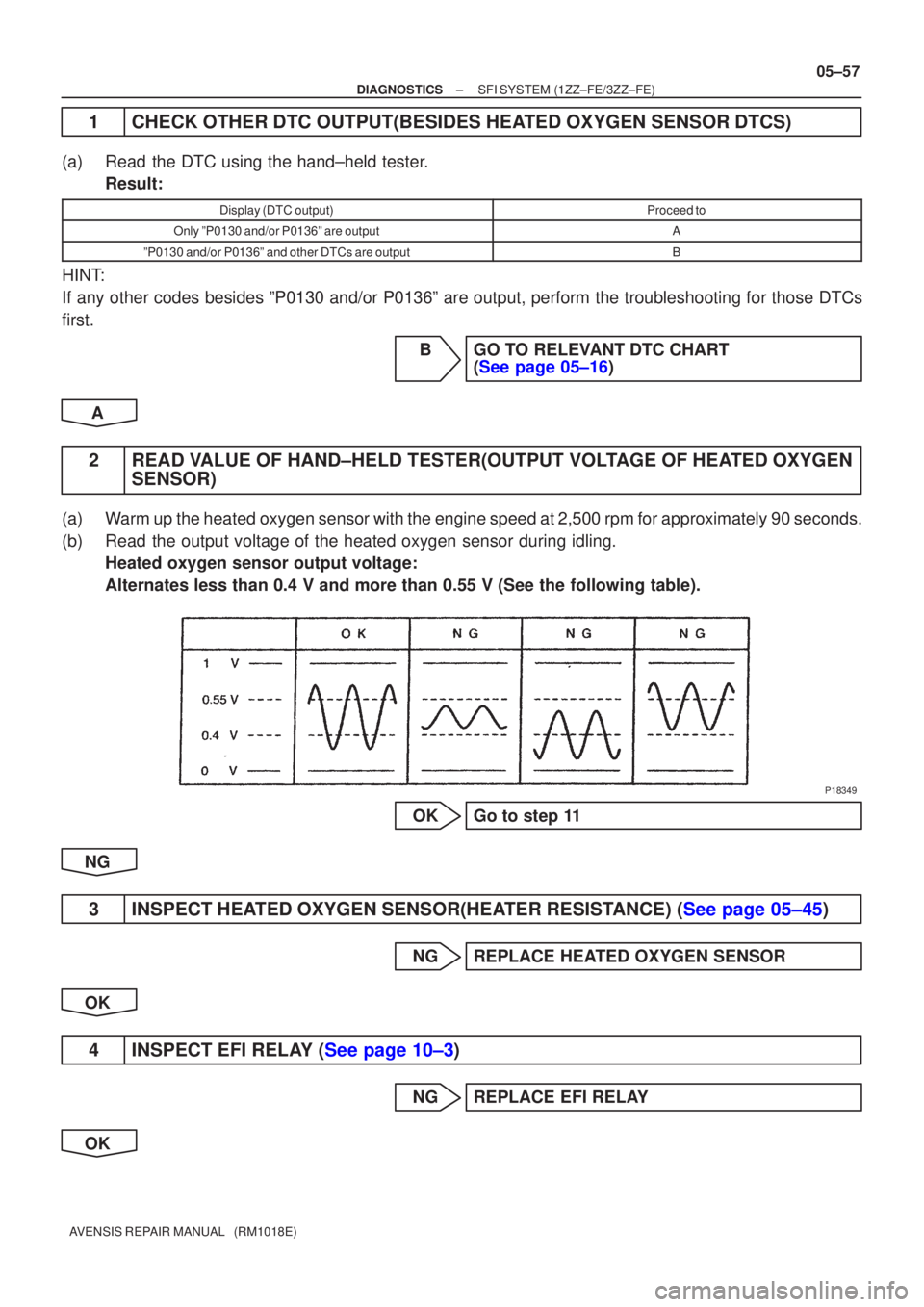

1CHECK OTHER DTC OUTPUT(BESIDES HEATED OXYGEN SENSOR DTCS)
(a)Read the DTC using the hand±held tester.
Result:
Display (DTC output)Proceed to
Only ºP0130 and/or P0136º are outputA
ºP0130 and/or P0136º and other DTCs are outputB
HINT:
If any other codes besides ºP0130 and/or P0136º are output, perform \
the troubleshooting for those DTCs
first.
BGO TO RELEVANT DTC CHART (See page 05±16)
A
2READ VALUE OF HAND±HELD TESTER(OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR)
(a)Warm up the heated oxygen sensor with the engine speed at 2,500 rpm for a\
pproximately 90 seconds.
(b)Read the output voltage of the heated oxygen sensor during idling.
Heated oxygen sensor output voltage:
Alternates less than 0.4 V and more than 0.55 V (See the following tabl\
e).
OKGo to step 11
NG
3INSPECT HEATED OXYGEN SENSOR(HEATER RESISTANCE) (See page 05±45)
NGREPLACE HEATED OXYGEN SENSOR
OK
4INSPECT EFI RELAY (See page 10±3)
NG REPLACE EFI RELAY
OK

05±48
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

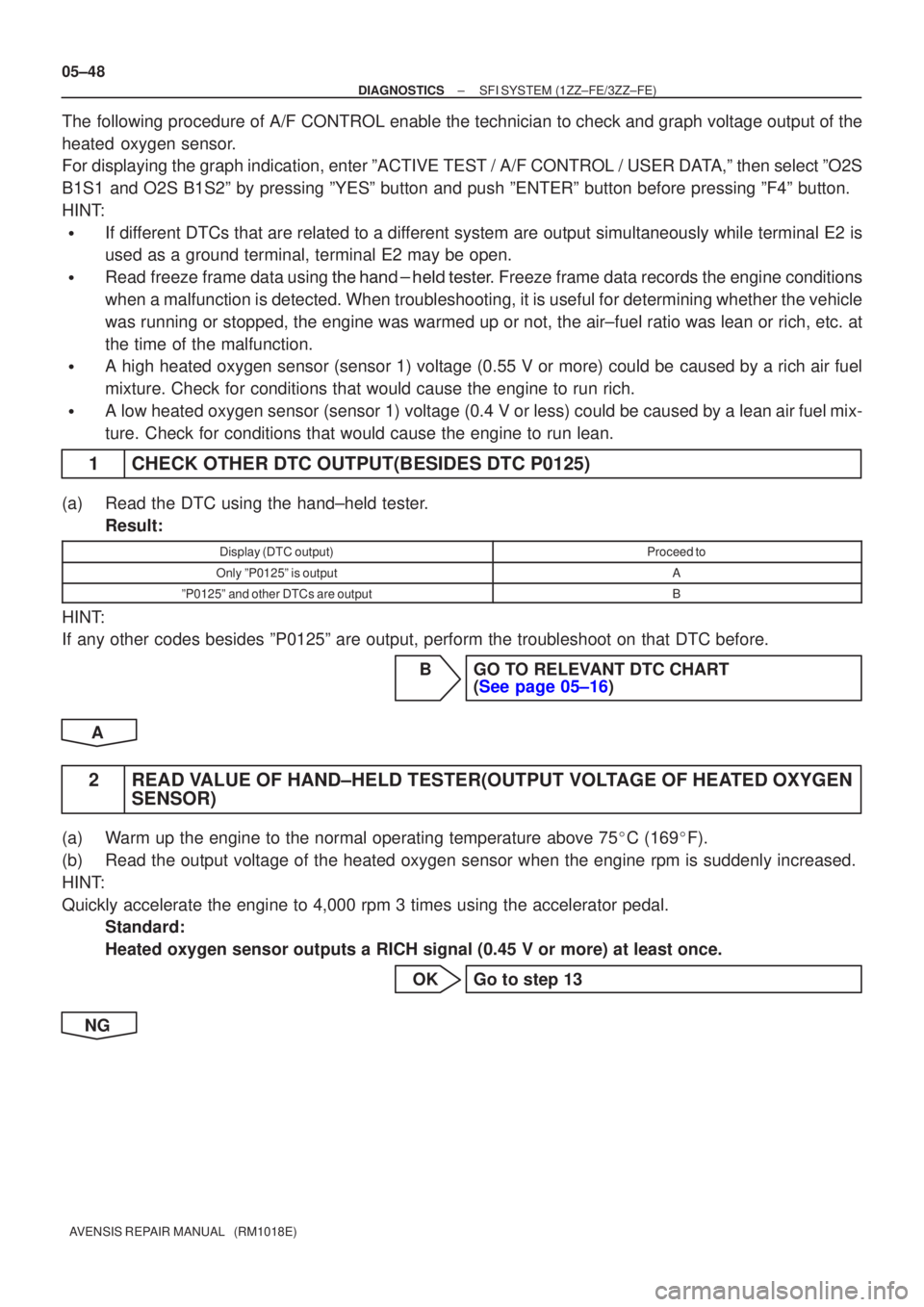

The following procedure of A/F CONTROL enable the technician to check and graph voltage output of the
heated oxygen sensor.
For displaying the graph indication, enter ºACTIVE TEST / A/F CONTROL / \
USER DATA,º then select ºO2S
B1S1 and O2S B1S2º by pressing ºYESº button and push ºENTERº \
button before pressing ºF4º button.
HINT:

If different DTCs that are related to a different system are output simultaneously while terminal E2 is
used as a ground terminal, terminal E2 may be open.

Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for d\
etermining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ra\
tio was lean or rich, etc. at
the time of the malfunction.

A high heated oxygen sensor (sensor 1) voltage (0.55 V or more) coul\
d be caused by a rich air fuel
mixture. Check for conditions that would cause the engine to run rich.

A low heated oxygen sensor (sensor 1) voltage (0.4 V or less) could b\
e caused by a lean air fuel mix-
ture. Check for conditions that would cause the engine to run lean.
1CHECK OTHER DTC OUTPUT(BESIDES DTC P0125)
(a)Read the DTC using the hand±held tester. Result:
Display (DTC output)Proceed to
Only ºP0125º is outputA
ºP0125º and other DTCs are outputB
HINT:
If any other codes besides ºP0125º are output, perform the troublesh\
oot on that DTC before.
BGO TO RELEVANT DTC CHART (See page 05±16)
A
2 READ VALUE OF HAND±HELD TESTER(OUTPUT VOLTAGE OF HEATED OXYGEN SENSOR)
(a) Warm up the engine to the normal operating temperature above 75 C (169 F).
(b) Read the output voltage of the heated oxygen sensor when the engine rpm \
is suddenly increased.
HINT:
Quickly accelerate the engine to 4,000 rpm 3 times using the accelerator\
pedal. Standard:
Heated oxygen sensor outputs a RICH signal (0.45 V or more) at least o\
nce.
OK Go to step 13
NG

05±38
±
DIAGNOSTICS SFI SYSTEM(1ZZ±FE/3ZZ±FE)
AVENSIS REPAIR MANUAL (RM1018E)

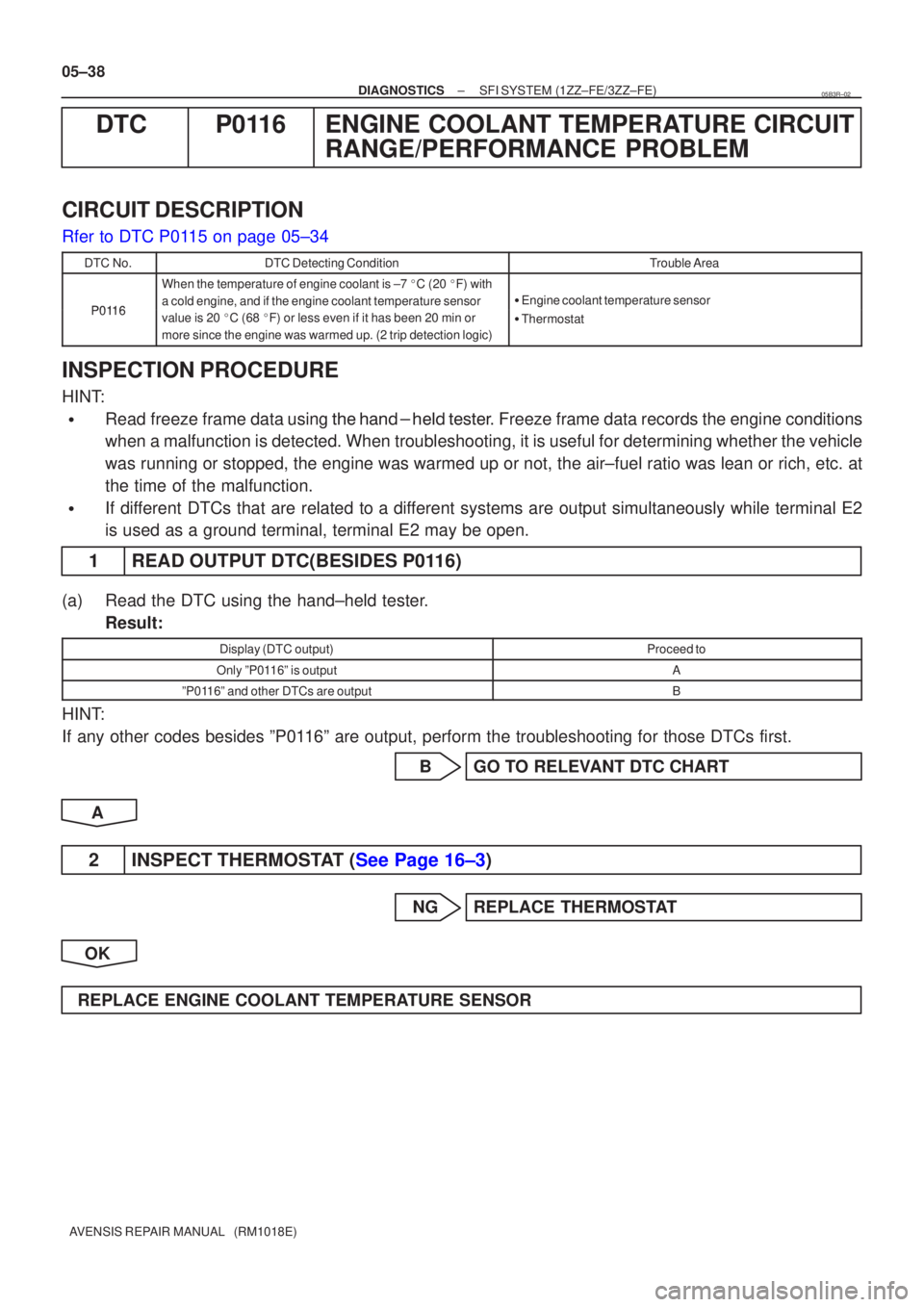

DTCP0116ENGINE COOLANT TEMPERATURE CIRCUIT RANGE/PERFORMANCE PROBLEM
CIRCUIT DESCRIPTION
Rfer to DTC P0115 on page 05±34
DTC No.DTC Detecting ConditionTrouble Area
P0116
When the temperature of engine coolant is ±7 C (20 F) with
a cold engine, and if the engine coolant temperature sensor

Engine coolant temperature sensorP0116g,g
value is 20 C (68 F) or less even if it has been 20 min or
more since the engine was warmed up. (2 trip detection logic)
g

Thermostat
INSPECTION PROCEDURE
HINT:

Read freeze frame data using \f \b\f\f
 Freeze frame data records the engine conditions
when a malfunction is detected. When troubleshooting, it is useful for d\
etermining whether the vehicle
was running or stopped, the engine was warmed up or not, the air±fuel ra\
tio was lean or rich, etc. at
the time of the malfunction.

If different DTCs that are related to a different systems are output simultaneously while terminal E2
is used as a ground terminal, terminal E2 may be open.
1READ OUTPUT DTC(BESIDES P0116)
(a)Read the DTC using the hand±held tester.
Result:
Display (DTC output)Proceed to
Only ºP0116º is outputA
ºP0116º and other DTCs are outputB
HINT:
If any other codes besides ºP0116º are output, perform the troubleshooting for those DTCs first.
BGO TO RELEVANT DTC CHART
A
2INSPECT THERMOSTAT (See Page 16±3)
NG REPLACE THERMOSTAT
OK
REPLACE ENGINE COOLANT TEMPERATURE SENSOR
05B3R±02
