01±44

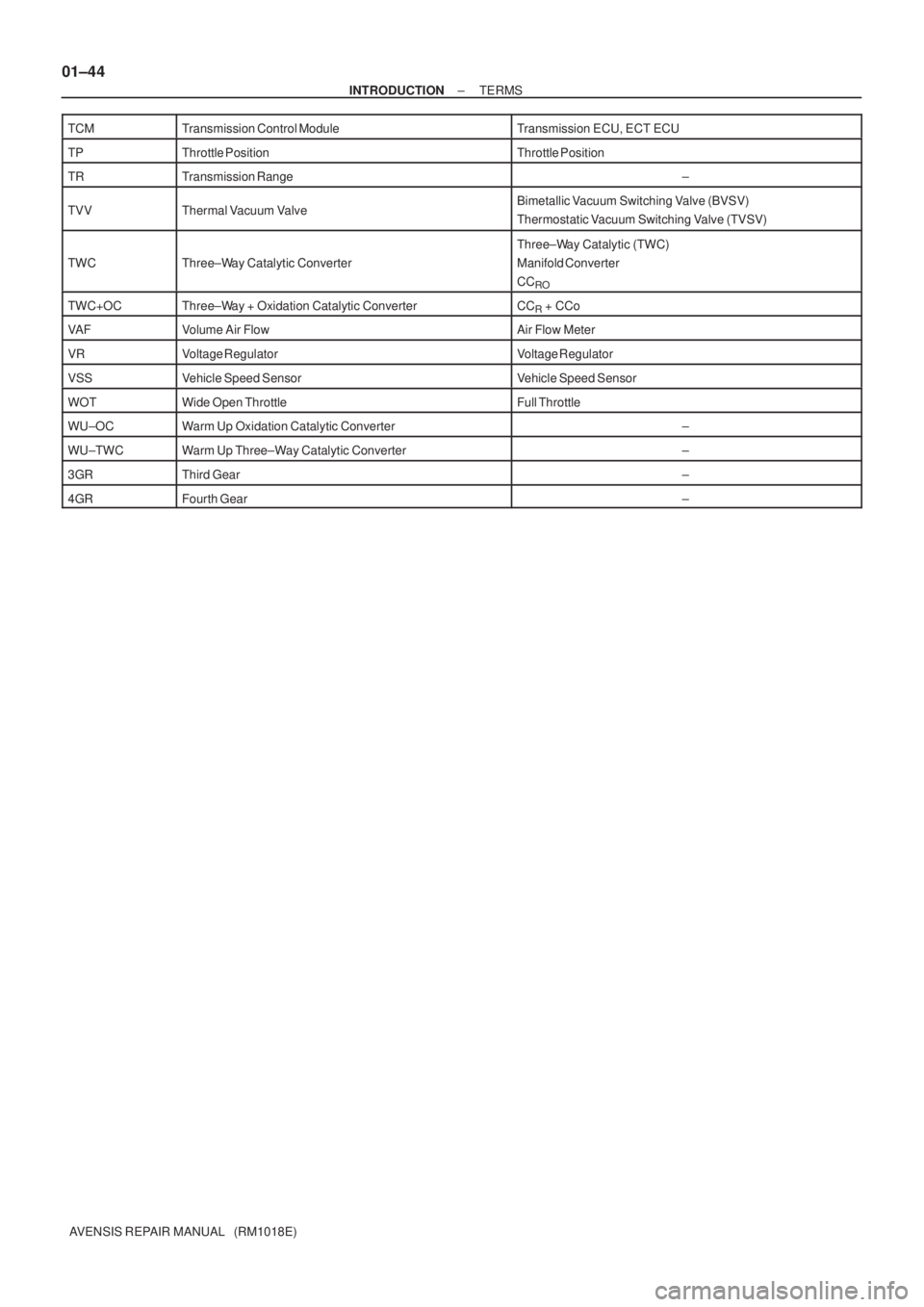

± INTRODUCTIONTERMS
AVENSIS REPAIR MANUAL (RM1018E) TCM
Transmission Control ModuleTransmission ECU, ECT ECU
TPThrottle PositionThrottle Position
TRTransmission Range±
TVVThermal Vacuum ValveBimetallic Vacuum Switching Valve (BVSV)
Thermostatic Vacuum Switching Valve (TVSV)
TWCThree±Way Catalytic Converter
Three±Way Catalytic (TWC)
Manifold Converter
CC
RO
TWC+OCThree±Way + Oxidation Catalytic ConverterCCR + CCo
VA FVolume Air FlowAir Flow Meter
VRVoltage RegulatorVoltage Regulator
VSSVehicle Speed SensorVehicle Speed Sensor
WOTWide Open ThrottleFull Throttle
WU±OCWarm Up Oxidation Catalytic Converter±
WU±TWCWarm Up Three±Way Catalytic Converter±
3GRThird Gear±
4GRFourth Gear±

022KL±01
± PREPARATIONDRIVE SHAFT / PROPELLER SHAFT
02±29
AVENSIS REPAIR MANUAL (RM1018E)

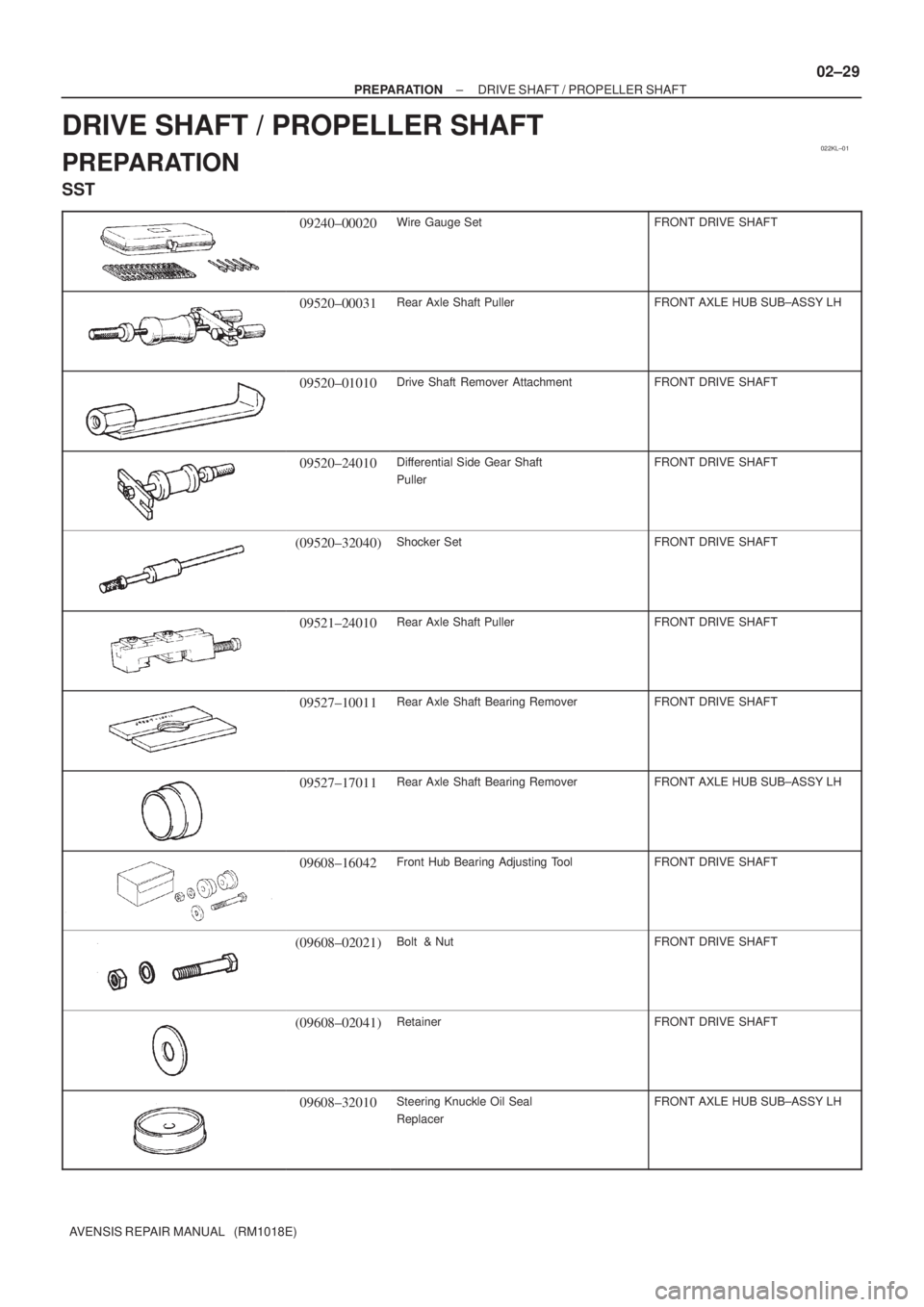

DRIVE SHAFT / PROPELLER SHAFT
PREPARATION
SST
09240±00020Wire Gauge SetFRONT DRIVE SHAFT
09520±00031Rear Axle Shaft PullerFRONT AXLE HUB SUB±ASSY LH
09520±01010Drive Shaft Remover AttachmentFRONT DRIVE SHAFT
09520±24010Differential Side Gear Shaft
PullerFRONT DRIVE SHAFT
(09520±32040)Shocker SetFRONT DRIVE SHAFT
09521±24010Rear Axle Shaft PullerFRONT DRIVE SHAFT
09527±10011Rear Axle Shaft Bearing RemoverFRONT DRIVE SHAFT
09527±17011Rear Axle Shaft Bearing RemoverFRONT AXLE HUB SUB±ASSY LH
09608±16042Front Hub Bearing Adjusting ToolFRONT DRIVE SHAFT
(09608±02021)Bolt & NutFRONT DRIVE SHAFT
(09608±02041)RetainerFRONT DRIVE SHAFT
09608±32010Steering Knuckle Oil Seal
ReplacerFRONT AXLE HUB SUB±ASSY LH

022KB±01
02±8
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)

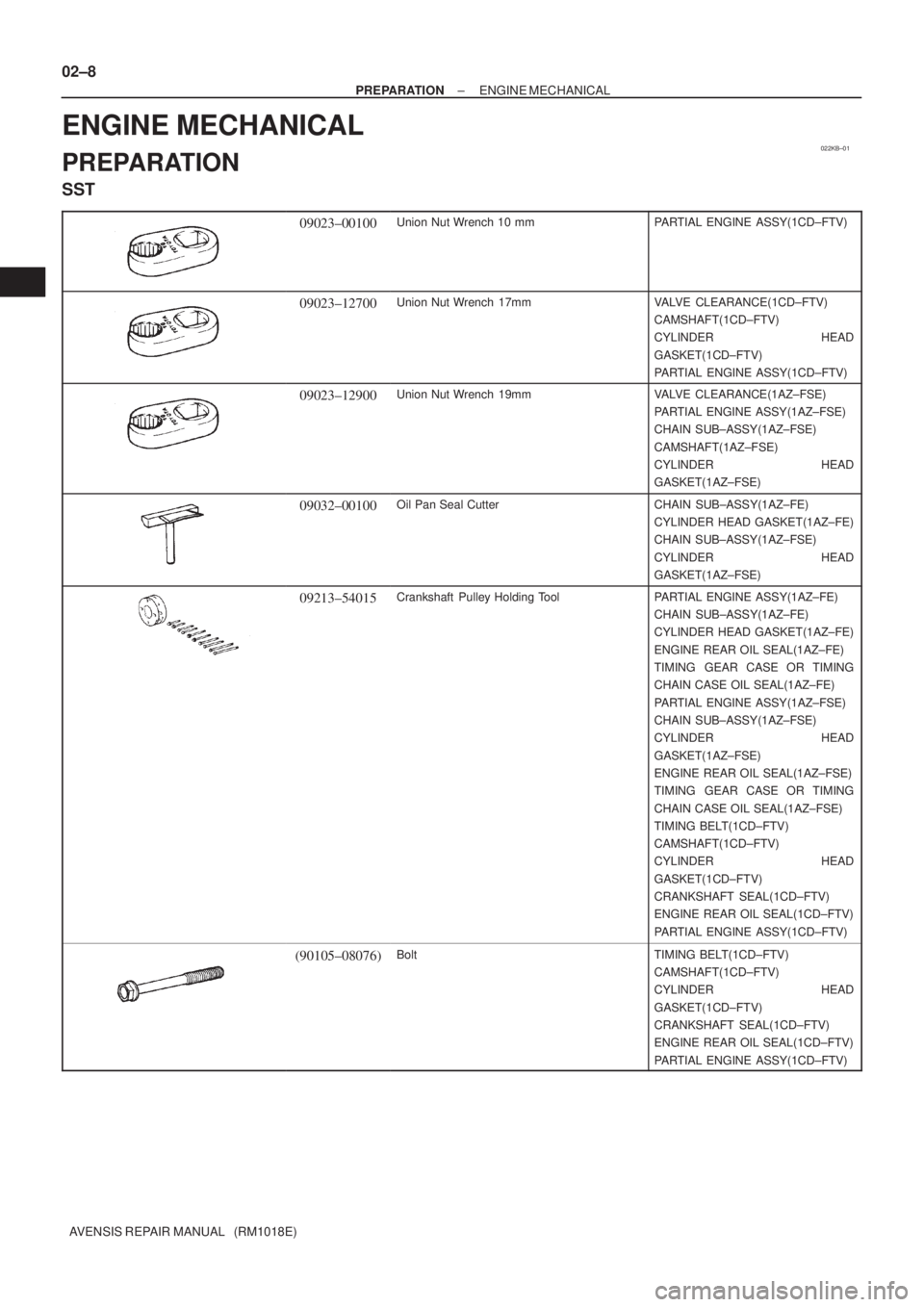

ENGINE MECHANICAL
PREPARATION
SST
09023±00100Union Nut Wrench 10 mmPARTIAL ENGINE ASSY(1CD±FTV)
09023±12700Union Nut Wrench 17mmVALVE CLEARANCE(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
09023±12900Union Nut Wrench 19mmVALVE CLEARANCE(1AZ±FSE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CAMSHAFT(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
09032±00100Oil Pan Seal CutterCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
09213±54015Crankshaft Pulley Holding ToolPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(90105±08076)BoltTIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)

± PREPARATIONENGINE MECHANICAL
02±9
AVENSIS REPAIR MANUAL (RM1018E)

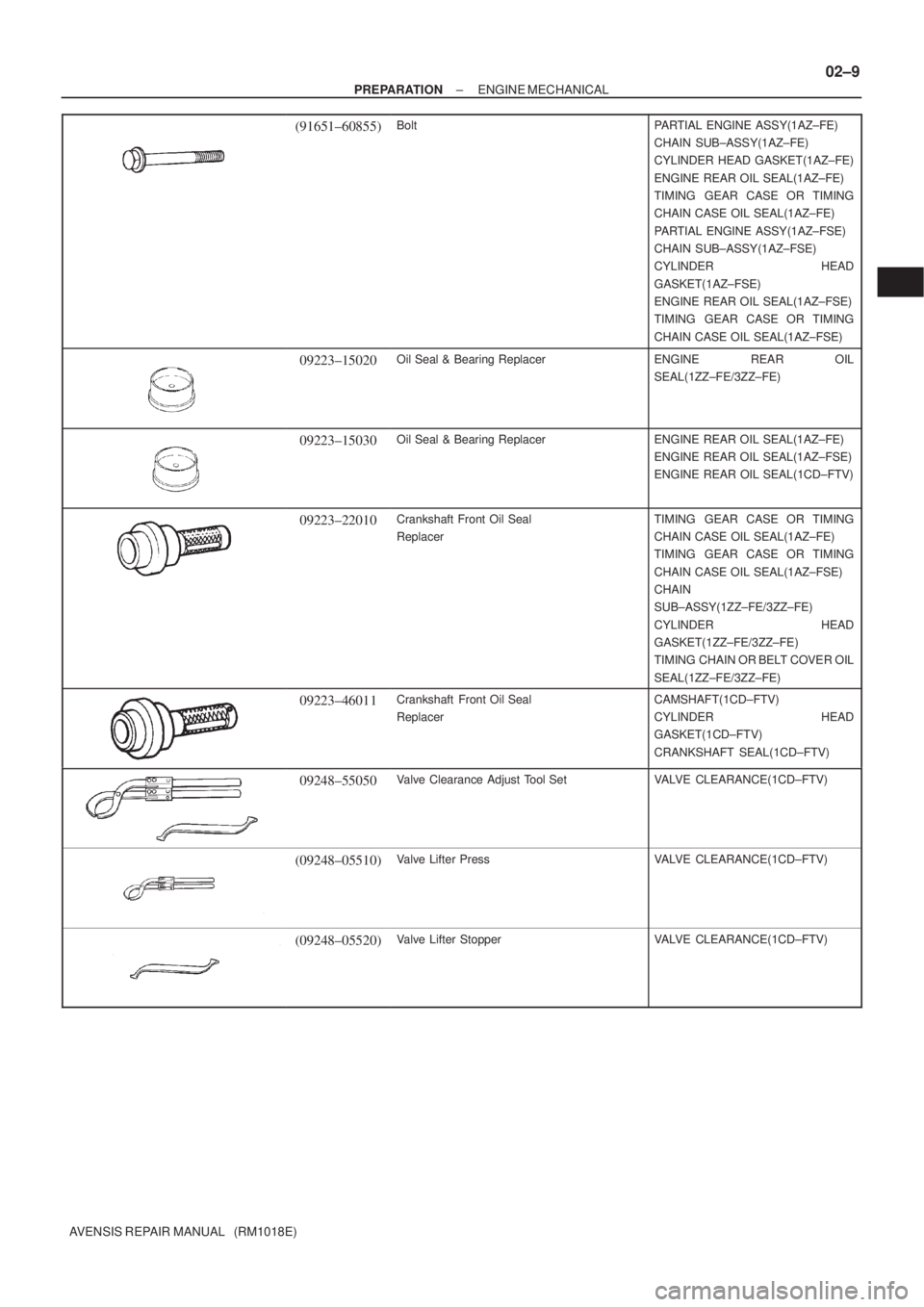

(91651±60855)BoltPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
09223±15020Oil Seal & Bearing ReplacerENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09223±15030Oil Seal & Bearing ReplacerENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
09223±22010Crankshaft Front Oil Seal
ReplacerTIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
09223±46011Crankshaft Front Oil Seal
ReplacerCAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
09248±55050Valve Clearance Adjust Tool SetVALVE CLEARANCE(1CD±FTV)
(09248±05510)Valve Lifter PressVALVE CLEARANCE(1CD±FTV)
(09248±05520)Valve Lifter StopperVALVE CLEARANCE(1CD±FTV)

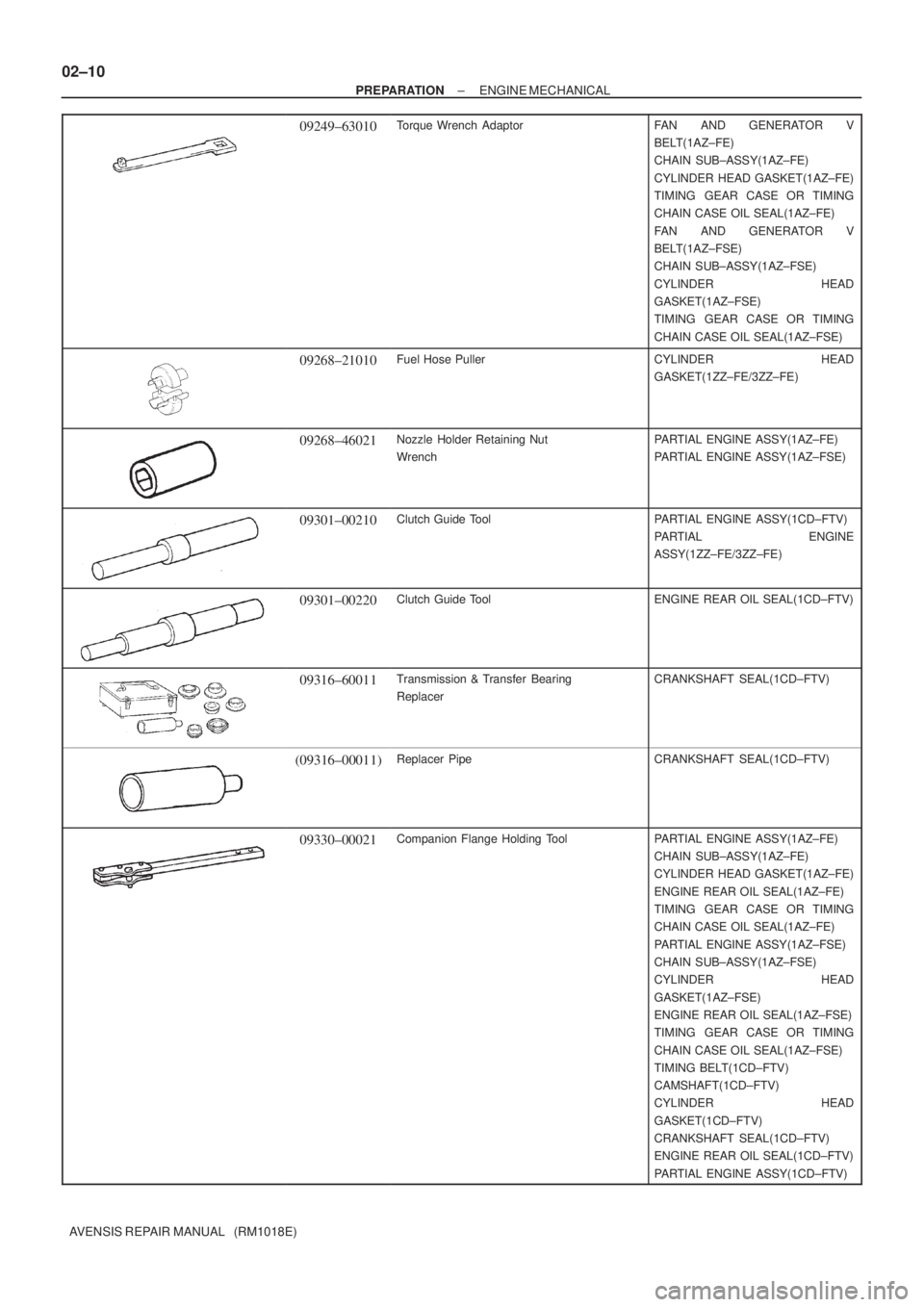

02±10
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)
09249±63010Torque Wrench AdaptorFAN AND GENERATOR V
BELT(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
FAN AND GENERATOR V
BELT(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
09268±21010Fuel Hose PullerCYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
09268±46021Nozzle Holder Retaining Nut
WrenchPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
09301±00210Clutch Guide ToolPARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09301±00220Clutch Guide ToolENGINE REAR OIL SEAL(1CD±FTV)
09316±60011Transmission & Transfer Bearing
ReplacerCRANKSHAFT SEAL(1CD±FTV)
(09316±00011)Replacer PipeCRANKSHAFT SEAL(1CD±FTV)
09330±00021Companion Flange Holding ToolPARTIAL ENGINE ASSY(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
ENGINE REAR OIL SEAL(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
ENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)

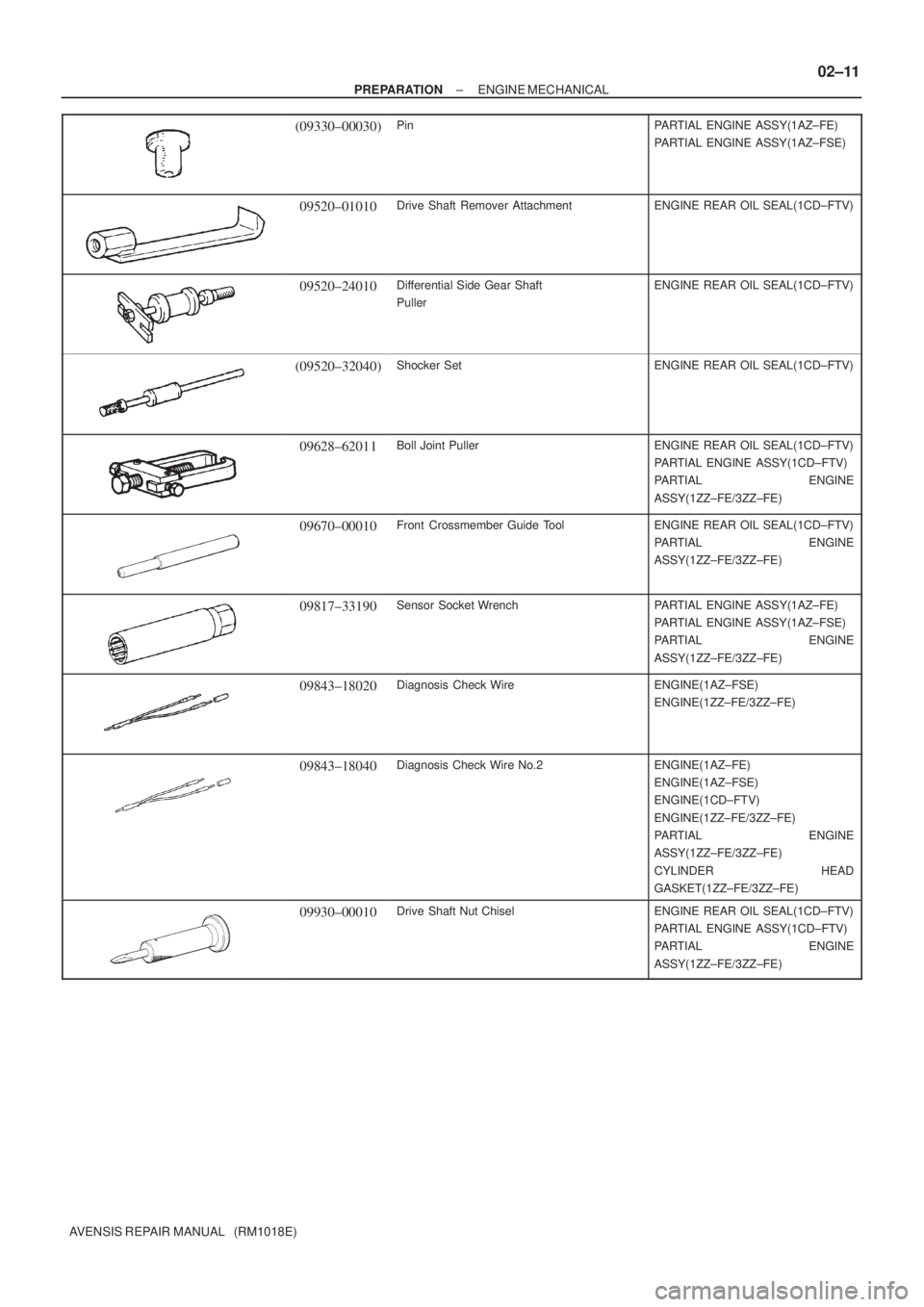

± PREPARATIONENGINE MECHANICAL
02±11
AVENSIS REPAIR MANUAL (RM1018E)
(09330±00030)PinPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
09520±01010Drive Shaft Remover AttachmentENGINE REAR OIL SEAL(1CD±FTV)
09520±24010Differential Side Gear Shaft
PullerENGINE REAR OIL SEAL(1CD±FTV)
(09520±32040)Shocker SetENGINE REAR OIL SEAL(1CD±FTV)
09628±62011Boll Joint PullerENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09670±00010Front Crossmember Guide ToolENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09817±33190Sensor Socket WrenchPARTIAL ENGINE ASSY(1AZ±FE)
PARTIAL ENGINE ASSY(1AZ±FSE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
09843±18020Diagnosis Check WireENGINE(1AZ±FSE)
ENGINE(1ZZ±FE/3ZZ±FE)
09843±18040Diagnosis Check Wire No.2ENGINE(1AZ±FE)
ENGINE(1AZ±FSE)
ENGINE(1CD±FTV)
ENGINE(1ZZ±FE/3ZZ±FE)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
09930±00010Drive Shaft Nut ChiselENGINE REAR OIL SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)

02±12
± PREPARATIONENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)

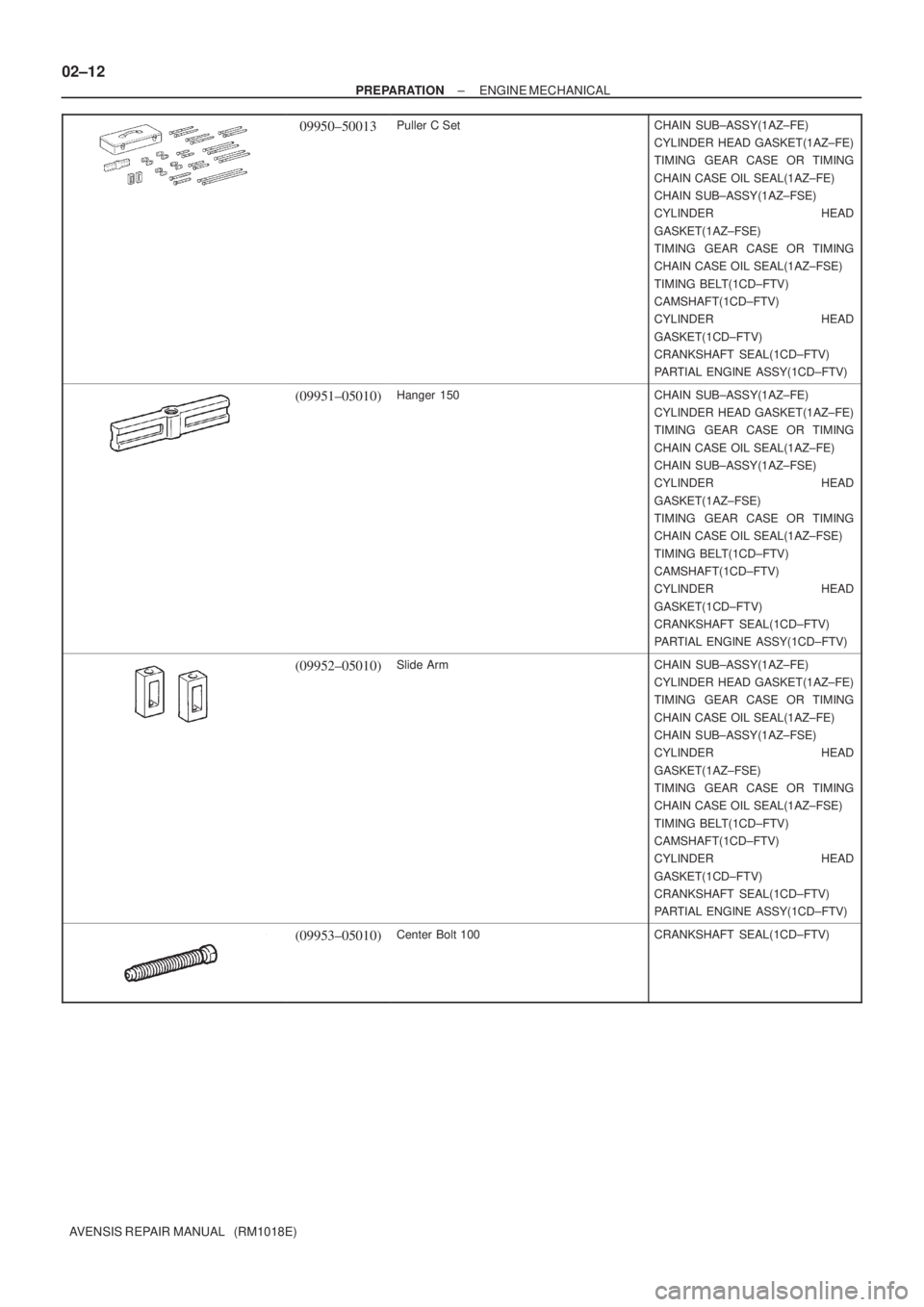

09950±50013Puller C SetCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09951±05010)Hanger 150CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09952±05010)Slide ArmCHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09953±05010)Center Bolt 100CRANKSHAFT SEAL(1CD±FTV)

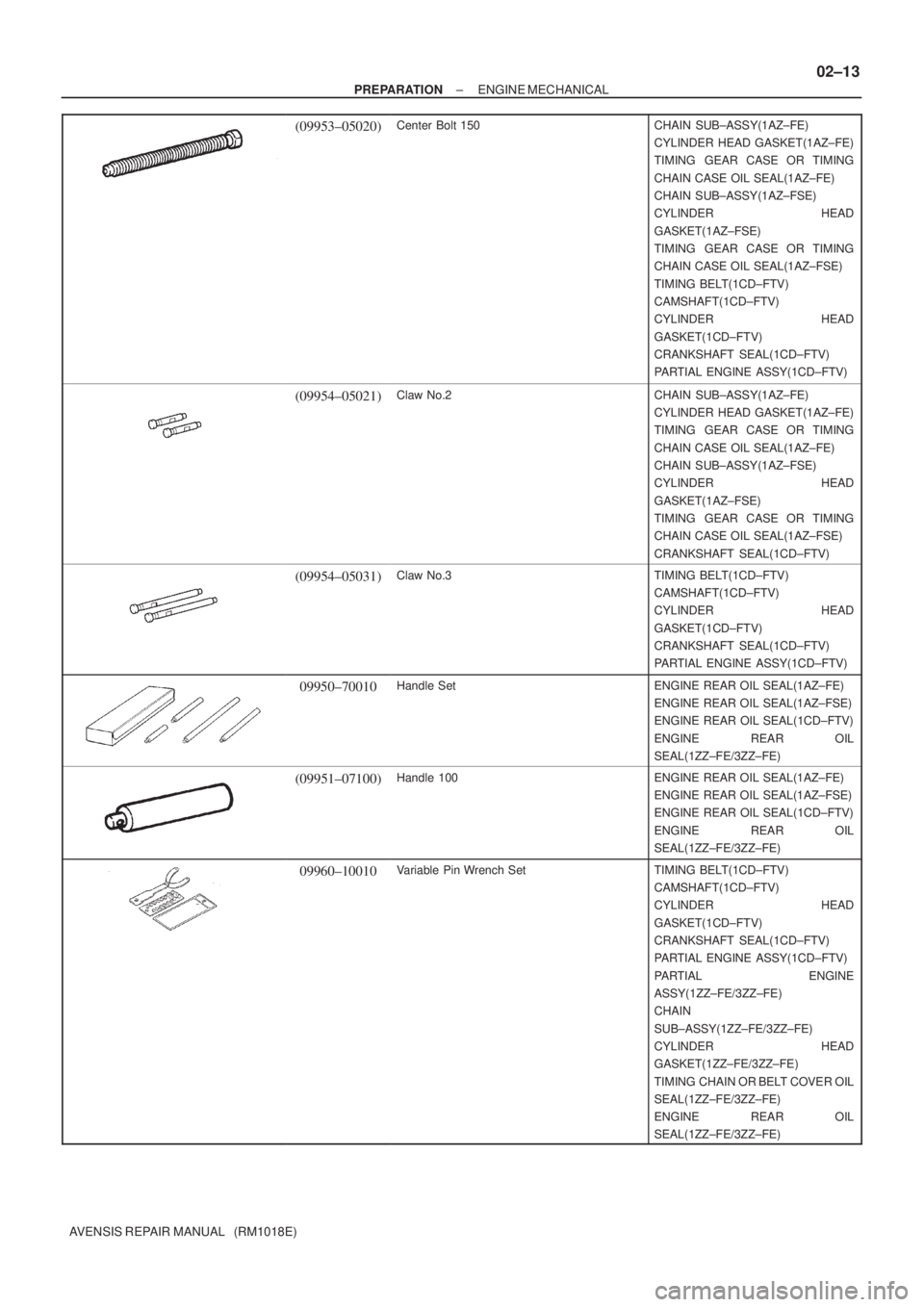

± PREPARATIONENGINE MECHANICAL
02±13
AVENSIS REPAIR MANUAL (RM1018E)
(09953±05020)Center Bolt 150CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
(09954±05021)Claw No.2CHAIN SUB±ASSY(1AZ±FE)
CYLINDER HEAD GASKET(1AZ±FE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FE)
CHAIN SUB±ASSY(1AZ±FSE)
CYLINDER HEAD
GASKET(1AZ±FSE)
TIMING GEAR CASE OR TIMING
CHAIN CASE OIL SEAL(1AZ±FSE)
CRANKSHAFT SEAL(1CD±FTV)
(09954±05031)Claw No.3TIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
09950±70010Handle SetENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
(09951±07100)Handle 100ENGINE REAR OIL SEAL(1AZ±FE)
ENGINE REAR OIL SEAL(1AZ±FSE)
ENGINE REAR OIL SEAL(1CD±FTV)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)
09960±10010Variable Pin Wrench SetTIMING BELT(1CD±FTV)
CAMSHAFT(1CD±FTV)
CYLINDER HEAD
GASKET(1CD±FTV)
CRANKSHAFT SEAL(1CD±FTV)
PARTIAL ENGINE ASSY(1CD±FTV)
PARTIAL ENGINE
ASSY(1ZZ±FE/3ZZ±FE)
CHAIN
SUB±ASSY(1ZZ±FE/3ZZ±FE)
CYLINDER HEAD
GASKET(1ZZ±FE/3ZZ±FE)
TIMING CHAIN OR BELT COVER OIL
SEAL(1ZZ±FE/3ZZ±FE)
ENGINE REAR OIL
SEAL(1ZZ±FE/3ZZ±FE)

022KE±01
± PREPARATIONPOWER STEERING
02±45
AVENSIS REPAIR MANUAL (RM1018E)

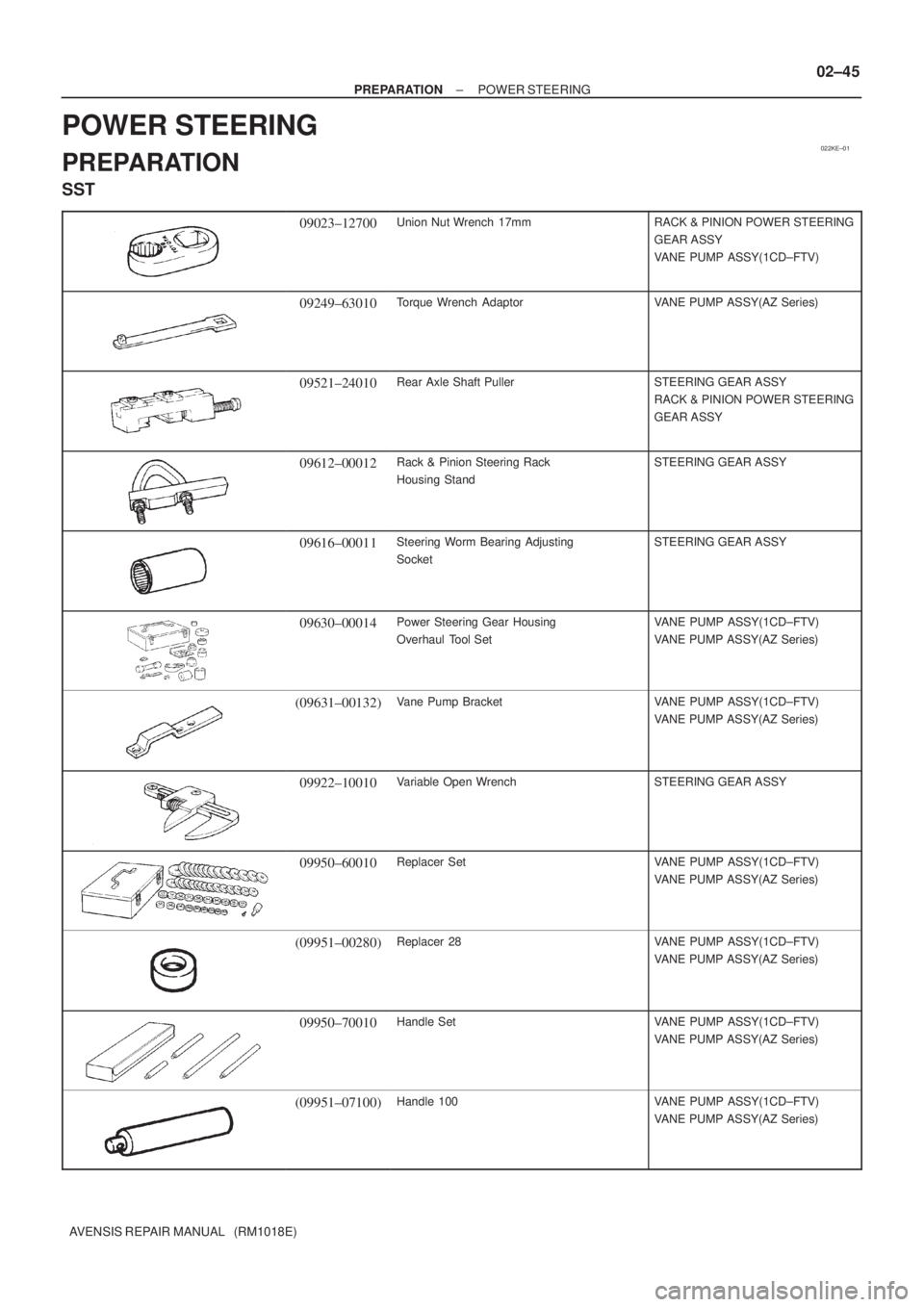

POWER STEERING
PREPARATION
SST
09023±12700Union Nut Wrench 17mmRACK & PINION POWER STEERING
GEAR ASSY
VANE PUMP ASSY(1CD±FTV)
09249±63010Torque Wrench AdaptorVANE PUMP ASSY(AZ Series)
09521±24010Rear Axle Shaft PullerSTEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
09612±00012Rack & Pinion Steering Rack
Housing StandSTEERING GEAR ASSY
09616±00011Steering Worm Bearing Adjusting
SocketSTEERING GEAR ASSY
09630±00014Power Steering Gear Housing
Overhaul Tool SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09631±00132)Vane Pump BracketVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09922±10010Variable Open WrenchSTEERING GEAR ASSY
09950±60010Replacer SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09951±00280)Replacer 28VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09950±70010Handle SetVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
(09951±07100)Handle 100VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)

02±46
± PREPARATIONPOWER STEERING
AVENSIS REPAIR MANUAL (RM1018E)

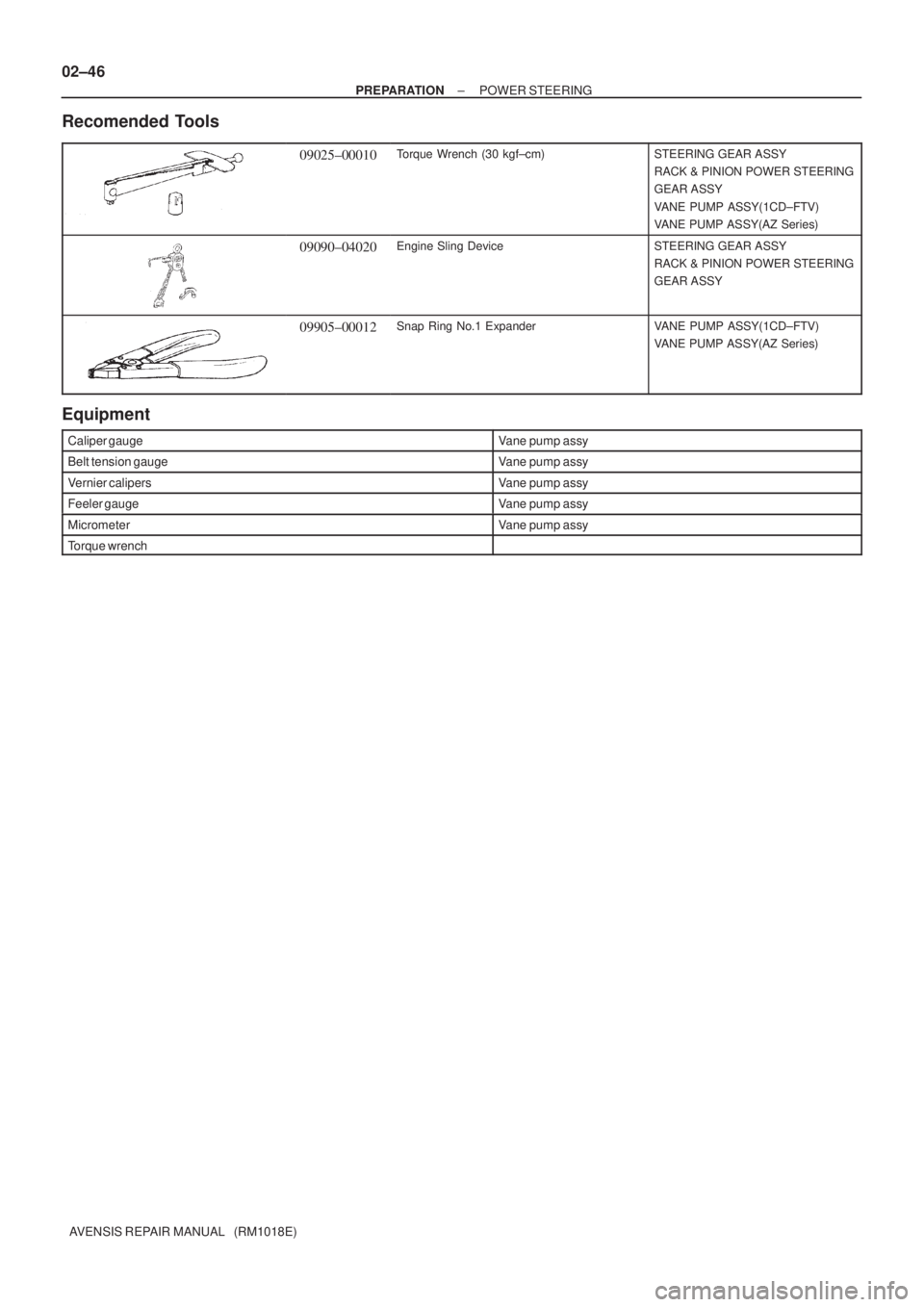

Recomended Tools
09025±00010Torque Wrench (30 kgf±cm)STEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
VANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
09090±04020Engine Sling DeviceSTEERING GEAR ASSY
RACK & PINION POWER STEERING
GEAR ASSY
09905±00012Snap Ring No.1 ExpanderVANE PUMP ASSY(1CD±FTV)
VANE PUMP ASSY(AZ Series)
Equipment
Caliper gaugeVane pump assy
Belt tension gaugeVane pump assy
Vernier calipersVane pump assy
Feeler gaugeVane pump assy
MicrometerVane pump assy
Torque wrench
