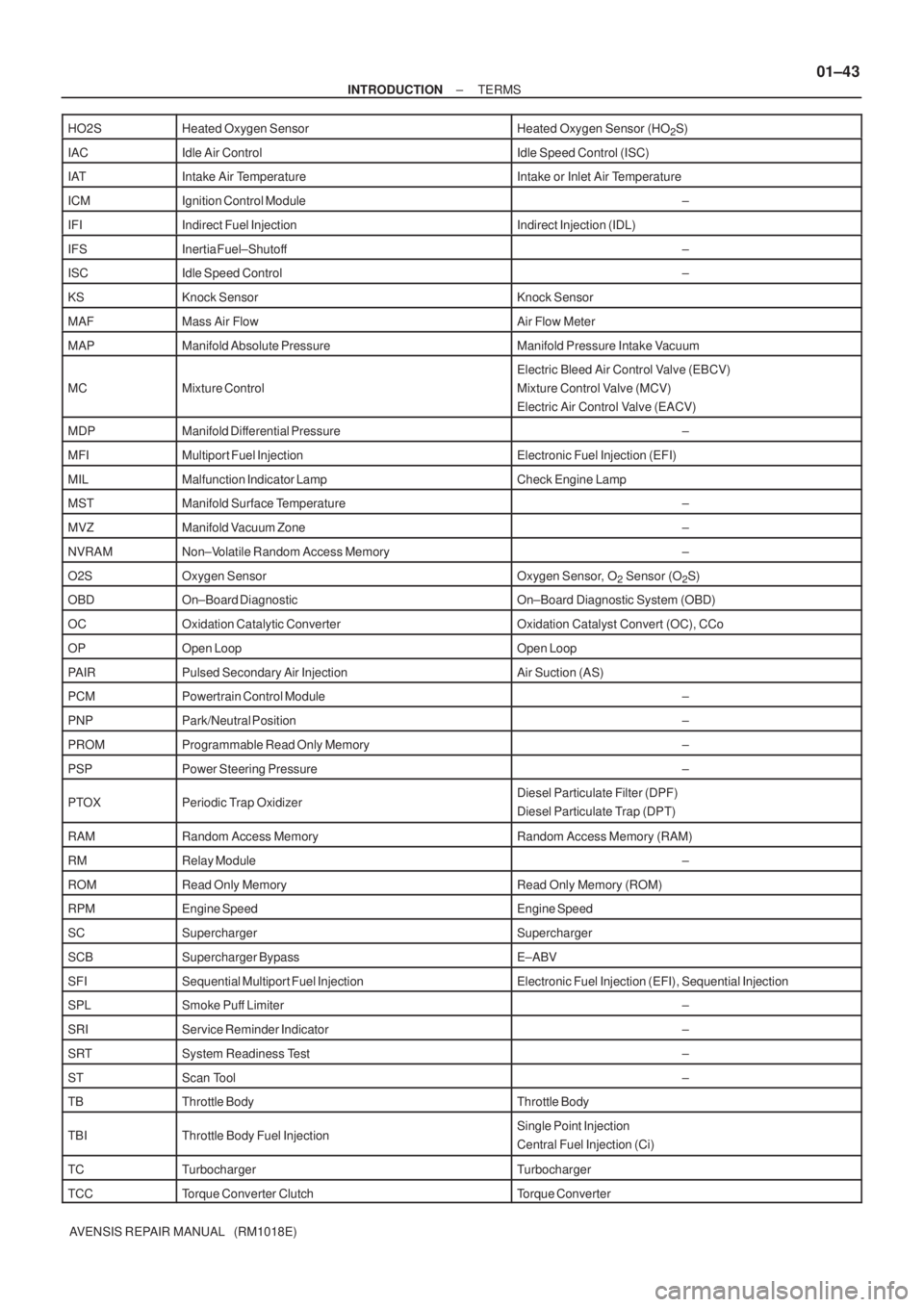

± INTRODUCTIONTERMS
01±43
AVENSIS REPAIR MANUAL (RM1018E) HO2S
Heated Oxygen SensorHeated Oxygen Sensor (HO2S)
IACIdle Air ControlIdle Speed Control (ISC)
IATIntake Air TemperatureIntake or Inlet Air Temperature
ICMIgnition Control Module±
IFIIndirect Fuel InjectionIndirect Injection (IDL)
IFSInertia Fuel±Shutoff±
ISCIdle Speed Control±
KSKnock SensorKnock Sensor
MAFMass Air FlowAir Flow Meter
MAPManifold Absolute PressureManifold Pressure Intake Vacuum
MCMixture Control
Electric Bleed Air Control Valve (EBCV)
Mixture Control Valve (MCV)
Electric Air Control Valve (EACV)
MDPManifold Differential Pressure±
MFIMultiport Fuel InjectionElectronic Fuel Injection (EFI)
MILMalfunction Indicator LampCheck Engine Lamp
MSTManifold Surface Temperature±
MVZManifold Vacuum Zone±
NVRAMNon±Volatile Random Access Memory±
O2SOxygen SensorOxygen Sensor, O2 Sensor (O2S)
OBDOn±Board DiagnosticOn±Board Diagnostic System (OBD)
OCOxidation Catalytic ConverterOxidation Catalyst Convert (OC), CCo
OPOpen LoopOpen Loop
PAIRPulsed Secondary Air InjectionAir Suction (AS)
PCMPowertrain Control Module±
PNPPark/Neutral Position±
PROMProgrammable Read Only Memory±
PSPPower Steering Pressure±
PTOXPeriodic Trap OxidizerDiesel Particulate Filter (DPF)
Diesel Particulate Trap (DPT)
RAMRandom Access MemoryRandom Access Memory (RAM)
RMRelay Module±
ROMRead Only MemoryRead Only Memory (ROM)
RPMEngine SpeedEngine Speed
SCSuperchargerSupercharger
SCBSupercharger BypassE±ABV
SFISequential Multiport Fuel InjectionElectronic Fuel Injection (EFI), Sequential Injection
SPLSmoke Puff Limiter±
SRIService Reminder Indicator±
SRTSystem Readiness Test±
STScan Tool±
TBThrottle BodyThrottle Body
TBIThrottle Body Fuel InjectionSingle Point Injection
Central Fuel Injection (Ci)
TCTurbochargerTurbocharger
TCCTorque Converter ClutchTorque Converter

01±40
± INTRODUCTIONTERMS

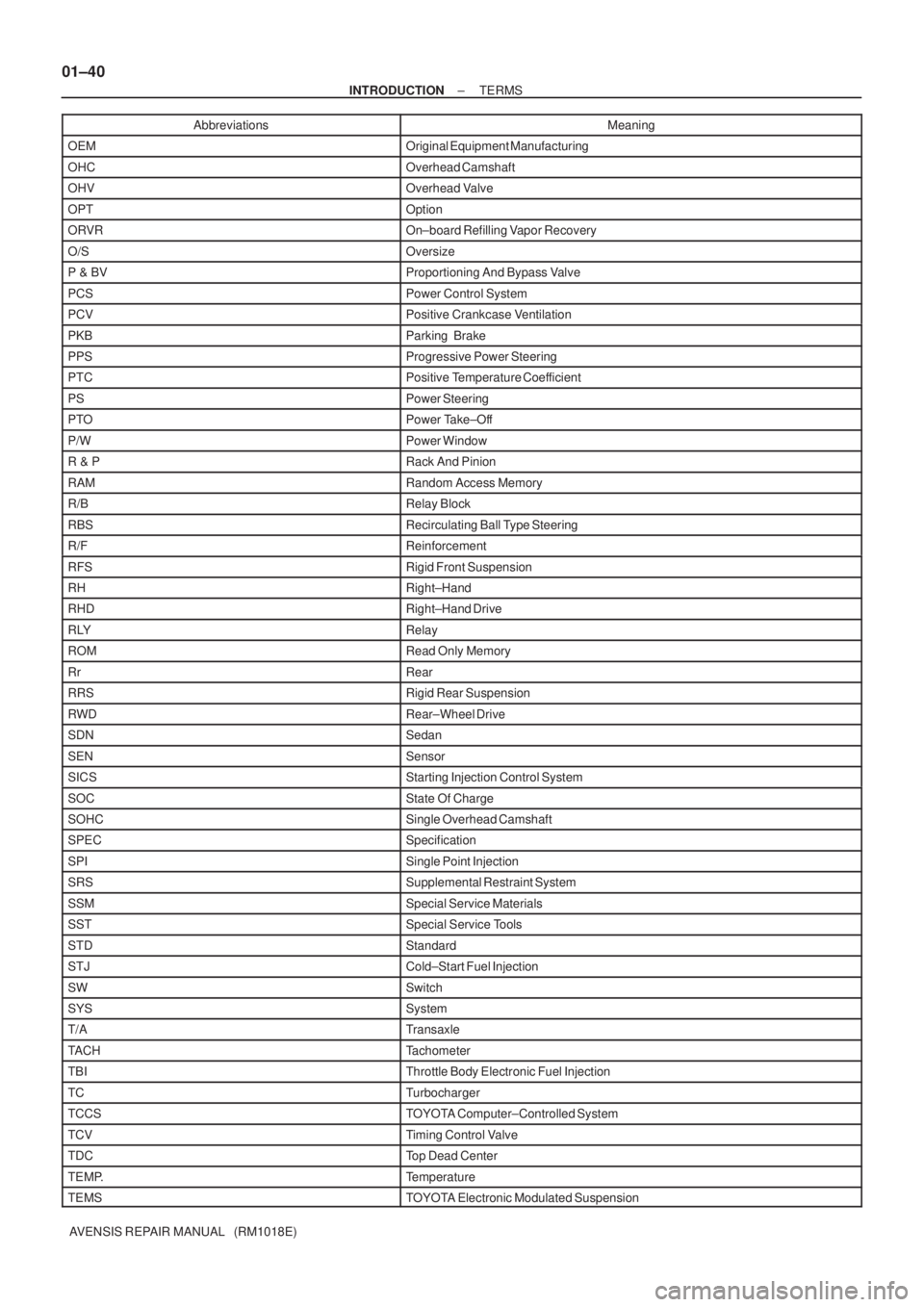

AVENSIS REPAIR MANUAL (RM1018E)Abbreviations Meaning
OEMOriginal Equipment Manufacturing
OHCOverhead Camshaft
OHVOverhead Valve
OPTOption
ORVROn±board Refilling Vapor Recovery
O/SOversize
P & BVProportioning And Bypass Valve
PCSPower Control System
PCVPositive Crankcase Ventilation
PKBParking Brake
PPSProgressive Power Steering
PTCPositive Temperature Coefficient
PSPower Steering
PTOPower Take±Off
P/WPower Window
R & PRack And Pinion
RAMRandom Access Memory
R/BRelay Block
RBSRecirculating Ball Type Steering
R/FReinforcement
RFSRigid Front Suspension
RHRight±Hand
RHDRight±Hand Drive
RLYRelay
ROMRead Only Memory
RrRear
RRSRigid Rear Suspension
RWDRear±Wheel Drive
SDNSedan
SENSensor
SICSStarting Injection Control System
SOCState Of Charge
SOHCSingle Overhead Camshaft
SPECSpecification
SPISingle Point Injection
SRSSupplemental Restraint System
SSMSpecial Service Materials
SSTSpecial Service Tools
STDStandard
STJCold±Start Fuel Injection
SWSwitch
SYSSystem
T/ATransaxle
TACHTachometer
TBIThrottle Body Electronic Fuel Injection
TCTurbocharger
TCCSTOYOTA Computer±Controlled System
TCVTiming Control Valve
TDCTop Dead Center
TEMP.Temperature
TEMSTOYOTA Electronic Modulated Suspension

D25083
Vibrate Slightly
Shake Slightly
Vibrate
Slightly
D25084
Malfunction
± INTRODUCTIONHOW TO TROUBLESHOOT ECU CONTROLLED
SYSTEMS01±27
AVENSIS REPAIR MANUAL (RM1018E)

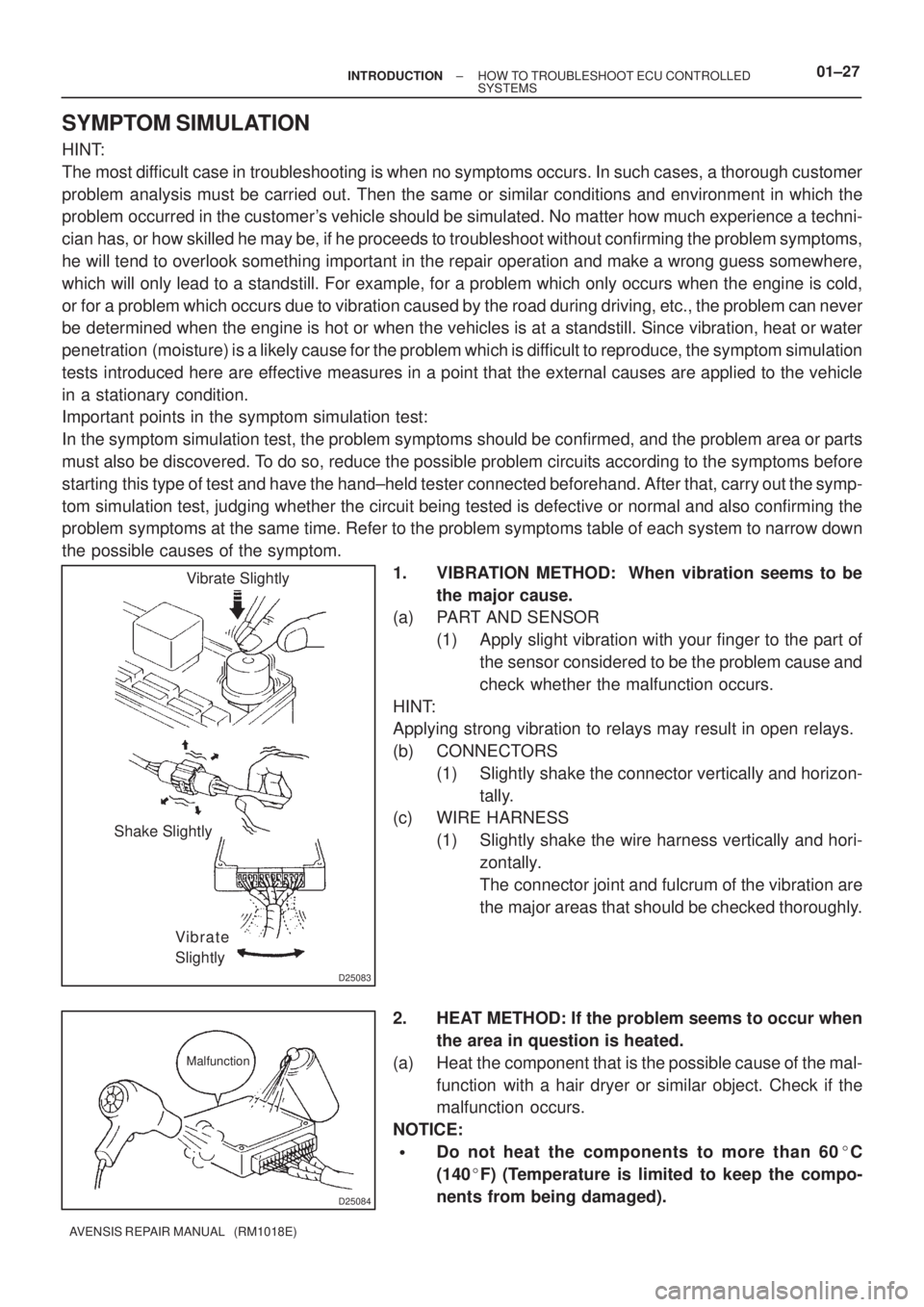

SYMPTOM SIMULATION
HINT:
The most difficult case in troubleshooting is when no symptoms occurs. In such cases, a thorough customer
problem analysis must be carried out. Then the same or similar conditions and environment in which the
problem occurred in the customer's vehicle should be simulated. No matter how much experience a techni-
cian has, or how skilled he may be, if he proceeds to troubleshoot without confirming the problem symptoms,
he will tend to overlook something important in the repair operation and make a wrong guess somewhere,
which will only lead to a standstill. For example, for a problem which only occurs when the engine is cold,
or for a problem which occurs due to vibration caused by the road during driving, etc., the problem can never
be determined when the engine is hot or when the vehicles is at a standstill. Since vibration, heat or water
penetration (moisture) is a likely cause for the problem which is difficult to reproduce, the symptom simulation
tests introduced here are effective measures in a point that the external causes are applied to the vehicle
in a stationary condition.
Important points in the symptom simulation test:
In the symptom simulation test, the problem symptoms should be confirmed, and the problem area or parts
must also be discovered. To do so, reduce the possible problem circuits according to the symptoms before
starting this type of test and have the hand±held tester connected beforehand. After that, carry out the symp-
tom simulation test, judging whether the circuit being tested is defective or normal and also confirming the
problem symptoms at the same time. Refer to the problem symptoms table of each system to narrow down
the possible causes of the symptom.
1. VIBRATION METHOD: When vibration seems to be
the major cause.
(a) PART AND SENSOR
(1) Apply slight vibration with your finger to the part of
the sensor considered to be the problem cause and
check whether the malfunction occurs.
HINT:
Applying strong vibration to relays may result in open relays.
(b) CONNECTORS
(1) Slightly shake the connector vertically and horizon-
tally.
(c) WIRE HARNESS
(1) Slightly shake the wire harness vertically and hori-
zontally.
The connector joint and fulcrum of the vibration are
the major areas that should be checked thoroughly.
2. HEAT METHOD: If the problem seems to occur when
the area in question is heated.
(a) Heat the component that is the possible cause of the mal-
function with a hair dryer or similar object. Check if the
malfunction occurs.
NOTICE:

Do not heat the components to more than 60C
(140F) (Temperature is limited to keep the compo-
nents from being damaged).

D01556
WRONG
D01563
01±16

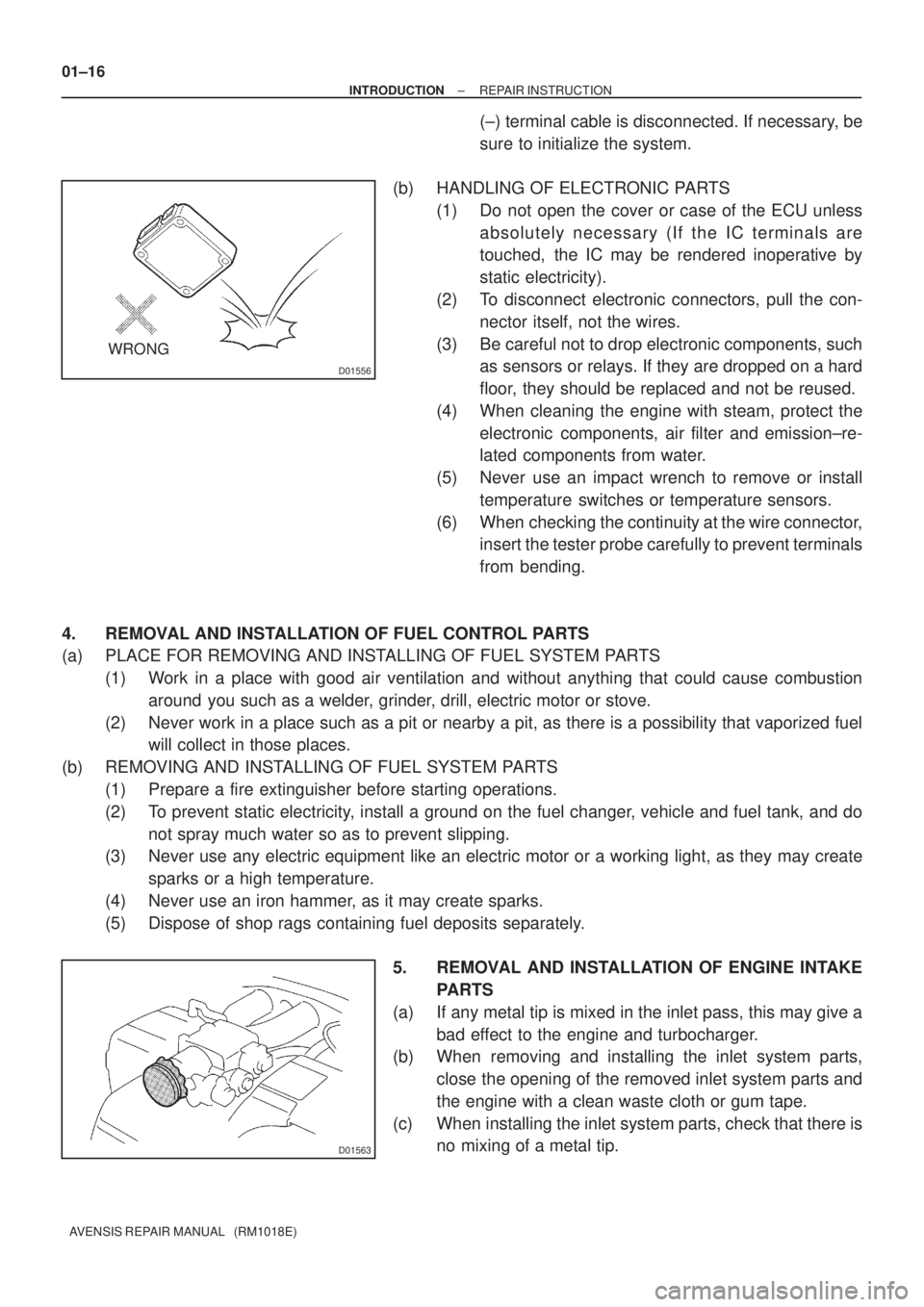

± INTRODUCTIONREPAIR INSTRUCTION
AVENSIS REPAIR MANUAL (RM1018E)
(±) terminal cable is disconnected. If necessary, be
sure to initialize the system.
(b) HANDLING OF ELECTRONIC PARTS
(1) Do not open the cover or case of the ECU unless
absolutely necessary (If the IC terminals are
touched, the IC may be rendered inoperative by
static electricity).
(2) To disconnect electronic connectors, pull the con-
nector itself, not the wires.
(3) Be careful not to drop electronic components, such
as sensors or relays. If they are dropped on a hard
floor, they should be replaced and not be reused.
(4) When cleaning the engine with steam, protect the
electronic components, air filter and emission±re-
lated components from water.
(5) Never use an impact wrench to remove or install
temperature switches or temperature sensors.
(6) When checking the continuity at the wire connector,
insert the tester probe carefully to prevent terminals
from bending.
4. REMOVAL AND INSTALLATION OF FUEL CONTROL PARTS
(a) PLACE FOR REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Work in a place with good air ventilation and without anything that could cause combustion
around you such as a welder, grinder, drill, electric motor or stove.
(2) Never work in a place such as a pit or nearby a pit, as there is a possibility that vaporized fuel
will collect in those places.
(b) REMOVING AND INSTALLING OF FUEL SYSTEM PARTS
(1) Prepare a fire extinguisher before starting operations.
(2) To prevent static electricity, install a ground on the fuel changer, vehicle and fuel tank, and do
not spray much water so as to prevent slipping.
(3) Never use any electric equipment like an electric motor or a working light, as they may create
sparks or a high temperature.
(4) Never use an iron hammer, as it may create sparks.
(5) Dispose of shop rags containing fuel deposits separately.
5. REMOVAL AND INSTALLATION OF ENGINE INTAKE
PARTS
(a) If any metal tip is mixed in the inlet pass, this may give a
bad effect to the engine and turbocharger.
(b) When removing and installing the inlet system parts,
close the opening of the removed inlet system parts and
the engine with a clean waste cloth or gum tape.
(c) When installing the inlet system parts, check that there is
no mixing of a metal tip.

031H4±01
03±26
± SERVICE SPECIFICATIONSCOOLING
AVENSIS REPAIR MANUAL (RM1018E)

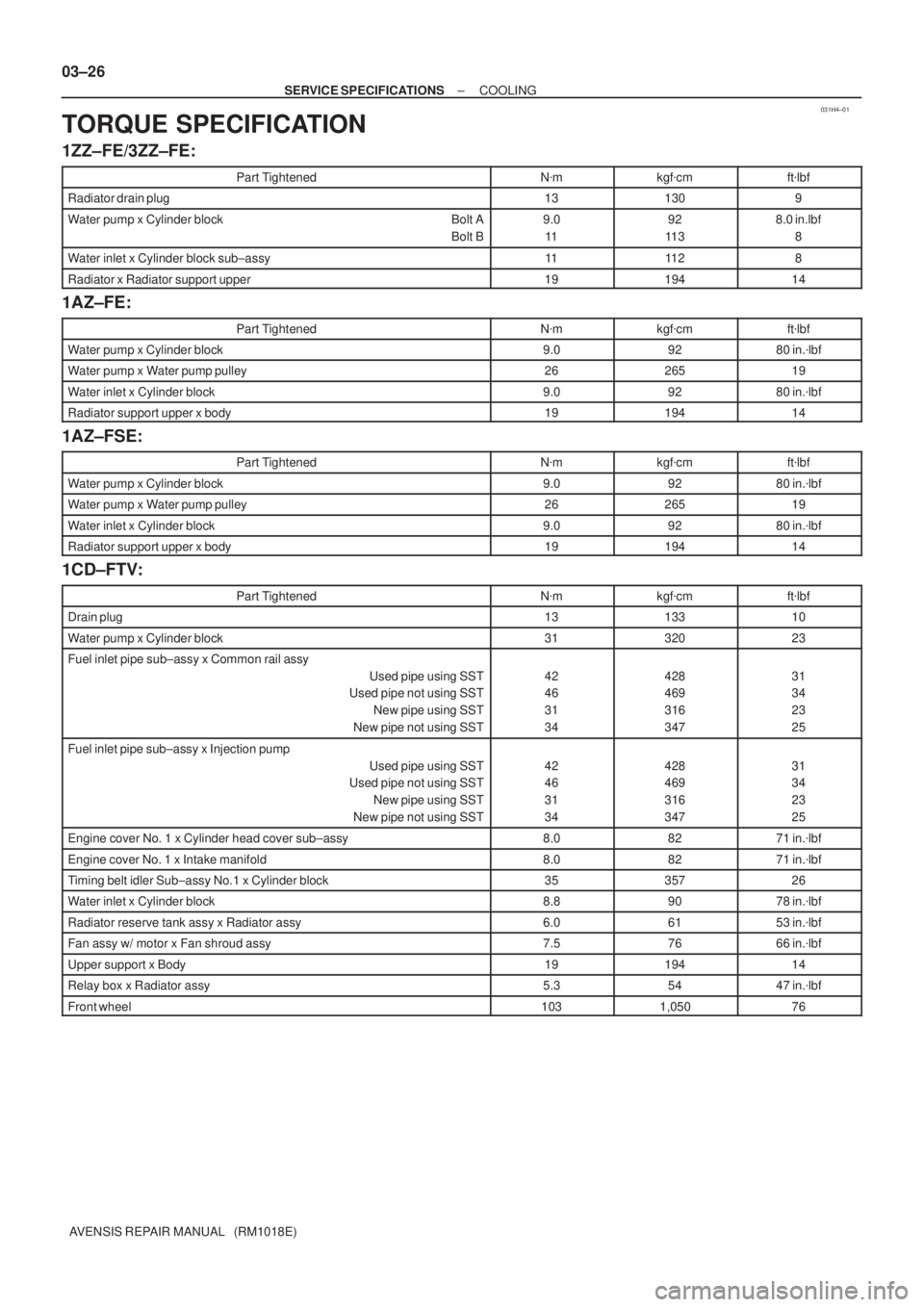

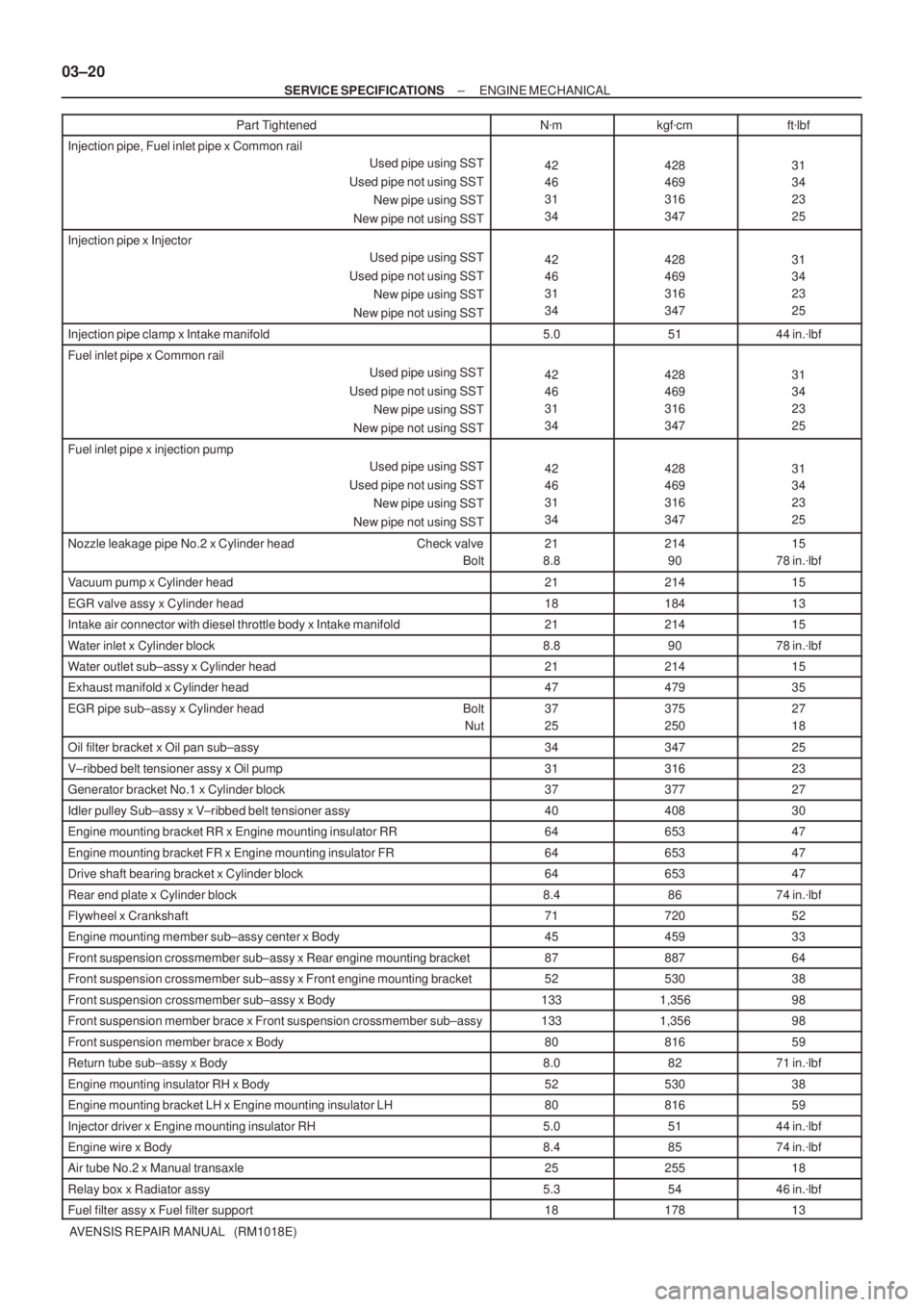

TORQUE SPECIFICATION
1ZZ±FE/3ZZ±FE:
Part TightenedN
mkgf
cmft
lbf
Radiator drain plug131309
Water pump x Cylinder block Bolt A
Bolt B9.0
1192
11 38.0 in.lbf
8
Water inlet x Cylinder block sub±assy1111 28
Radiator x Radiator support upper1919414
1AZ±FE:
Part TightenedN
mkgf
cmft
lbf
Water pump x Cylinder block9.09280 in.
lbf
Water pump x Water pump pulley2626519
Water inlet x Cylinder block9.09280 in.
lbf
Radiator support upper x body1919414
1AZ±FSE:
Part TightenedN
mkgf
cmft
lbf
Water pump x Cylinder block9.09280 in.
lbf
Water pump x Water pump pulley2626519
Water inlet x Cylinder block9.09280 in.
lbf
Radiator support upper x body1919414
1CD±FTV:
Part TightenedN
mkgf
cmft
lbf
Drain plug1313310
Water pump x Cylinder block3132023
Fuel inlet pipe sub±assy x Common rail assy
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Fuel inlet pipe sub±assy x Injection pump
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Engine cover No. 1 x Cylinder head cover sub±assy8.08271 in.
lbf
Engine cover No. 1 x Intake manifold8.08271 in.
lbf
Timing belt idler Sub±assy No.1 x Cylinder block3535726
Water inlet x Cylinder block8.89078 in.
lbf
Radiator reserve tank assy x Radiator assy6.06153 in.
lbf
Fan assy w/ motor x Fan shroud assy7.57666 in.
lbf
Upper support x Body1919414
Relay box x Radiator assy5.35447 in.
lbf
Front wheel1031,05076

031H3±01
03±24
± SERVICE SPECIFICATIONSCOOLING
AVENSIS REPAIR MANUAL (RM1018E)

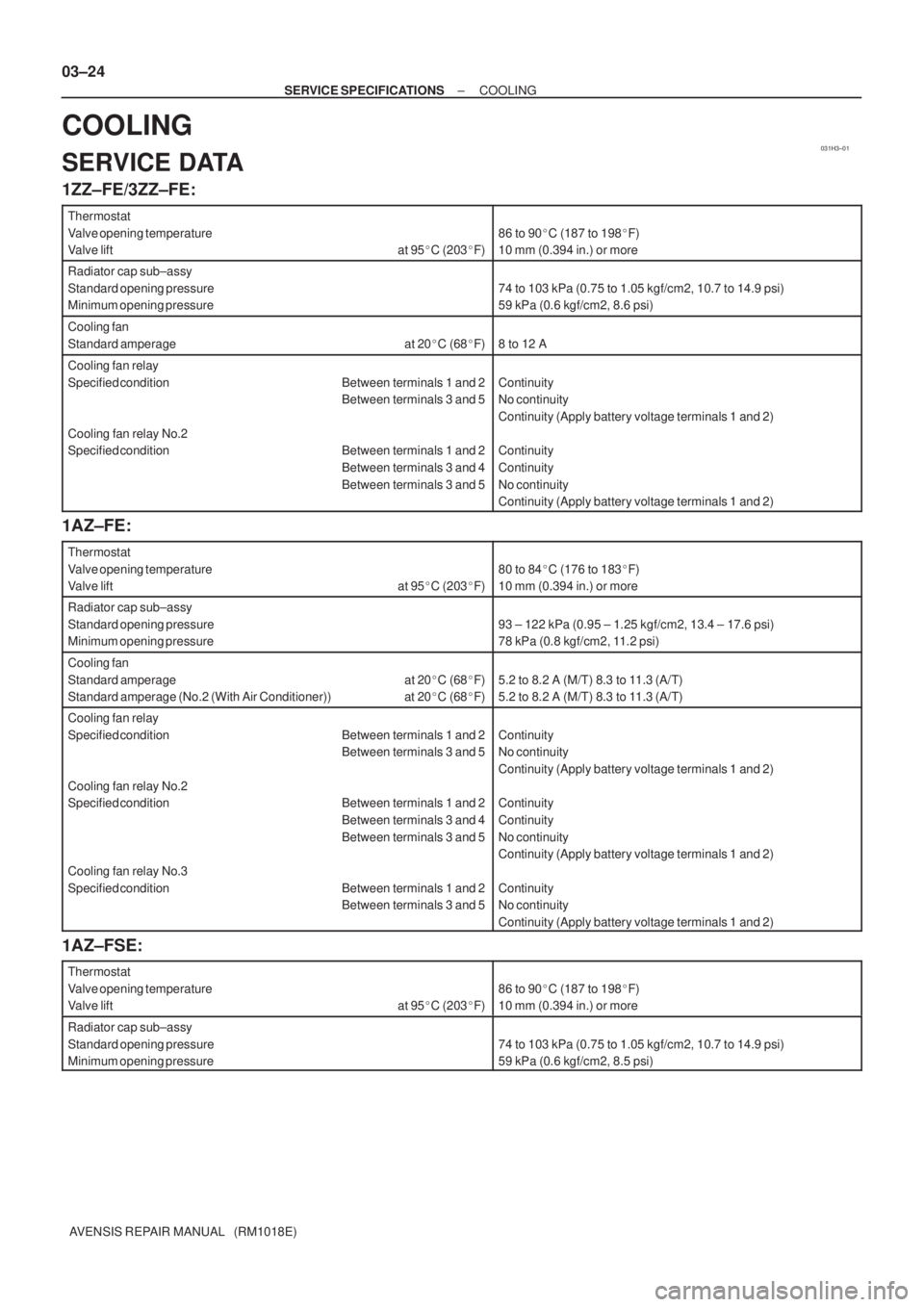

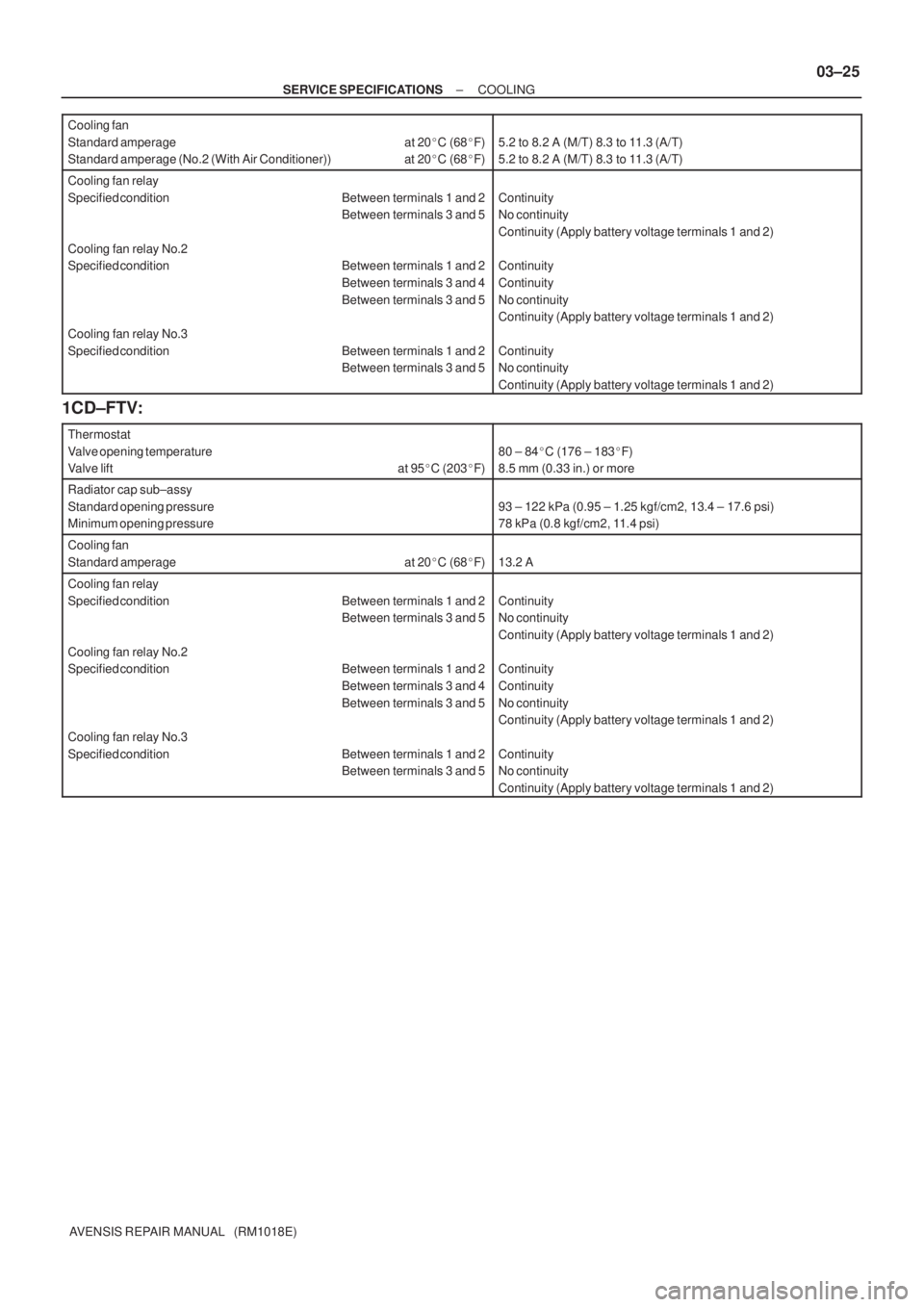

COOLING
SERVICE DATA
1ZZ±FE/3ZZ±FE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
86 to 90
C (187 to 198
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
74 to 103 kPa (0.75 to 1.05 kgf/cm2, 10.7 to 14.9 psi)
59 kPa (0.6 kgf/cm2, 8.6 psi)
Cooling fan
Standard amperage at 20
C (68
F)
8 to 12 A
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
1AZ±FE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
80 to 84
C (176 to 183
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
93 ± 122 kPa (0.95 ± 1.25 kgf/cm2, 13.4 ± 17.6 psi)
78 kPa (0.8 kgf/cm2, 11.2 psi)
Cooling fan
Standard amperage at 20
C (68
F)
Standard amperage (No.2 (With Air Conditioner)) at 20
C (68
F)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
1AZ±FSE:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
86 to 90
C (187 to 198
F)
10 mm (0.394 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
74 to 103 kPa (0.75 to 1.05 kgf/cm2, 10.7 to 14.9 psi)
59 kPa (0.6 kgf/cm2, 8.5 psi)

± SERVICE SPECIFICATIONSCOOLING
03±25
AVENSIS REPAIR MANUAL (RM1018E) Cooling fan
Standard amperage at 20
C (68
F)
Standard amperage (No.2 (With Air Conditioner)) at 20
C (68
F)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
5.2 to 8.2 A (M/T) 8.3 to 11.3 (A/T)
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
1CD±FTV:
Thermostat
Valve opening temperature
Valve lift at 95
C (203
F)
80 ± 84
C (176 ± 183
F)
8.5 mm (0.33 in.) or more
Radiator cap sub±assy
Standard opening pressure
Minimum opening pressure
93 ± 122 kPa (0.95 ± 1.25 kgf/cm2, 13.4 ± 17.6 psi)
78 kPa (0.8 kgf/cm2, 11.4 psi)
Cooling fan
Standard amperage at 20
C (68
F)
13.2 A
Cooling fan relay
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Cooling fan relay No.2
Specified condition Between terminals 1 and 2
Between terminals 3 and 4
Between terminals 3 and 5
Cooling fan relay No.3
Specified condition Between terminals 1 and 2
Between terminals 3 and 5
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)
Continuity
No continuity
Continuity (Apply battery voltage terminals 1 and 2)

±

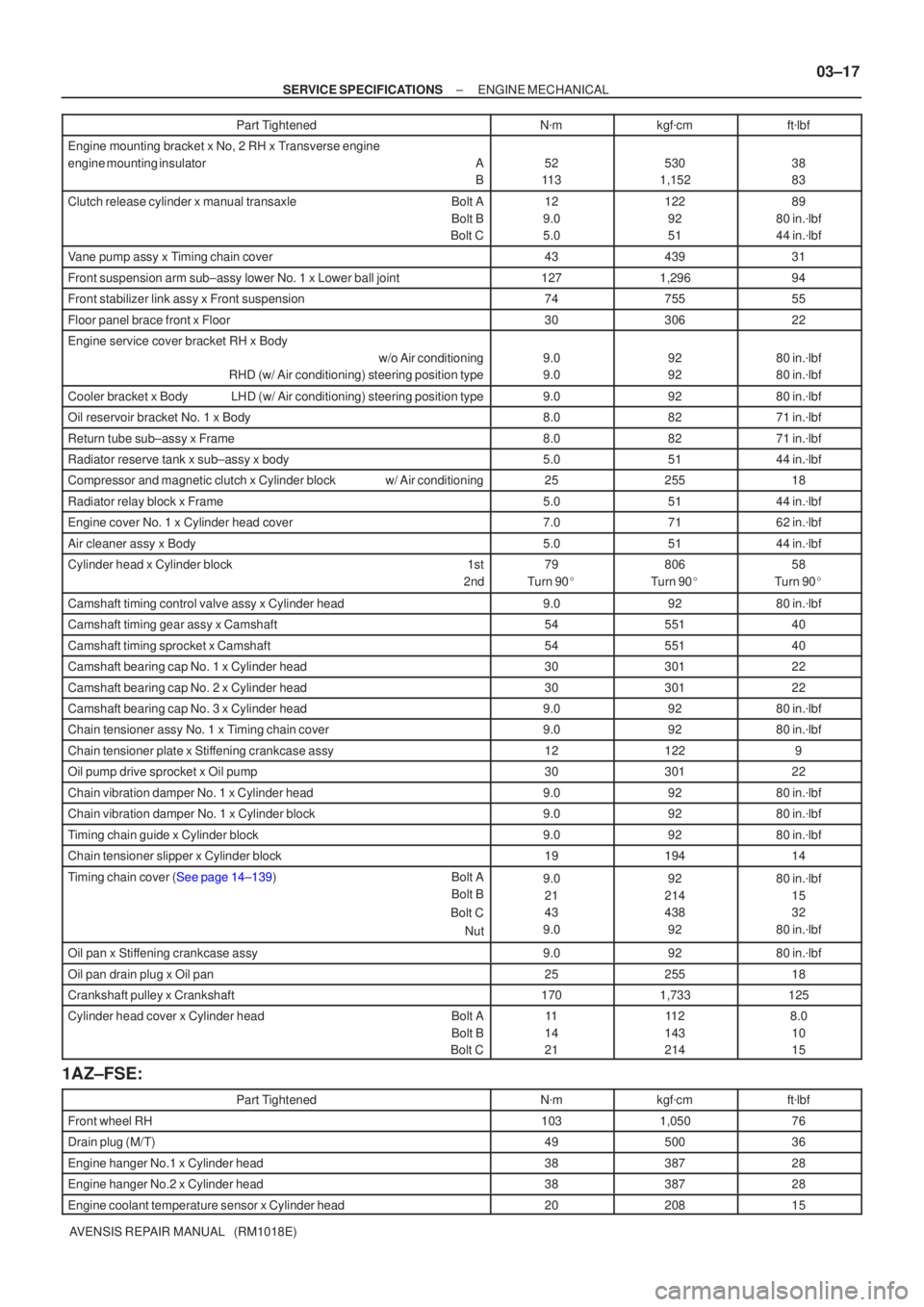

SERVICE SPECIFICATIONS ENGINE MECHANICAL
03±17
AVENSIS REPAIR MANUAL (RM1018E)Part Tightened
ft
lbf
kgf
cm
N
m
Engine mounting bracket x No, 2 RH x Transverse engine
engine mounting insulatorA
B
52
113530
1,15238
83
Clutch release cylinder x manual transaxleBolt A
Bolt B
Bolt C12
9.0
5.0122 92
5189
80 in.
lbf
44 in.
lbf
Vane pump assy x Timing chain cover4343931
Front suspension arm sub±assy lower No. 1 x Lower ball joint1271,29694
Front stabilizer link assy x Front suspension7475555
Floor panel brace front x Floor3030622
Engine service cover bracket RH x Body
w/o Air conditioning
RHD (w/ Air conditioning) steering position type
9.0
9.092
9280 in.
lbf
80 in.
lbf
Cooler bracket x BodyLHD (w/ Air conditioning) steering position type9.09280 in.
lbf
Oil reservoir bracket No. 1 x Body8.08271 in.
lbf
Return tube sub±assy x Frame8.08271 in.
lbf
Radiator reserve tank x sub±assy x body5.05144 in.
lbf
Compressor and magnetic clutch x Cylinder blockw/ Air conditioning2525518
Radiator relay block x Frame5.05144 in.
lbf
Engine cover No. 1 x Cylinder head cover7.07162 in.
lbf
Air cleaner assy x Body5.05144 in.
lbf
Cylinder head x Cylinder block1st
2nd79
Turn 90
806
Turn 90
58
Turn 90

Camshaft timing control valve assy x Cylinder head9.09280 in.
lbf
Camshaft timing gear assy x Camshaft5455140
Camshaft timing sprocket x Camshaft5455140
Camshaft bearing cap No. 1 x Cylinder head3030122
Camshaft bearing cap No. 2 x Cylinder head3030122
Camshaft bearing cap No. 3 x Cylinder head9.09280 in.
lbf
Chain tensioner assy No. 1 x Timing chain cover9.09280 in.
lbf
Chain tensioner plate x Stiffening crankcase assy121229
Oil pump drive sprocket x Oil pump3030122
Chain vibration damper No. 1 x Cylinder head9.09280 in.
lbf
Chain vibration damper No. 1 x Cylinder block9.09280 in.
lbf
Timing chain guide x Cylinder block9.09280 in.
lbf
Chain tensioner slipper x Cylinder block1919414
Timing chain cover (See page 14±139)Bolt A
Bolt B
Bolt C Nut9.021
43
9.092
214
438 9280 in.
lbf
15
32
80 in.
lbf
Oil pan x Stiffening crankcase assy9.09280 in.
lbf
Oil pan drain plug x Oil pan2525518
Crankshaft pulley x Crankshaft1701,733125
Cylinder head cover x Cylinder head Bolt A
Bolt B
Bolt C11
14
2111 2
143

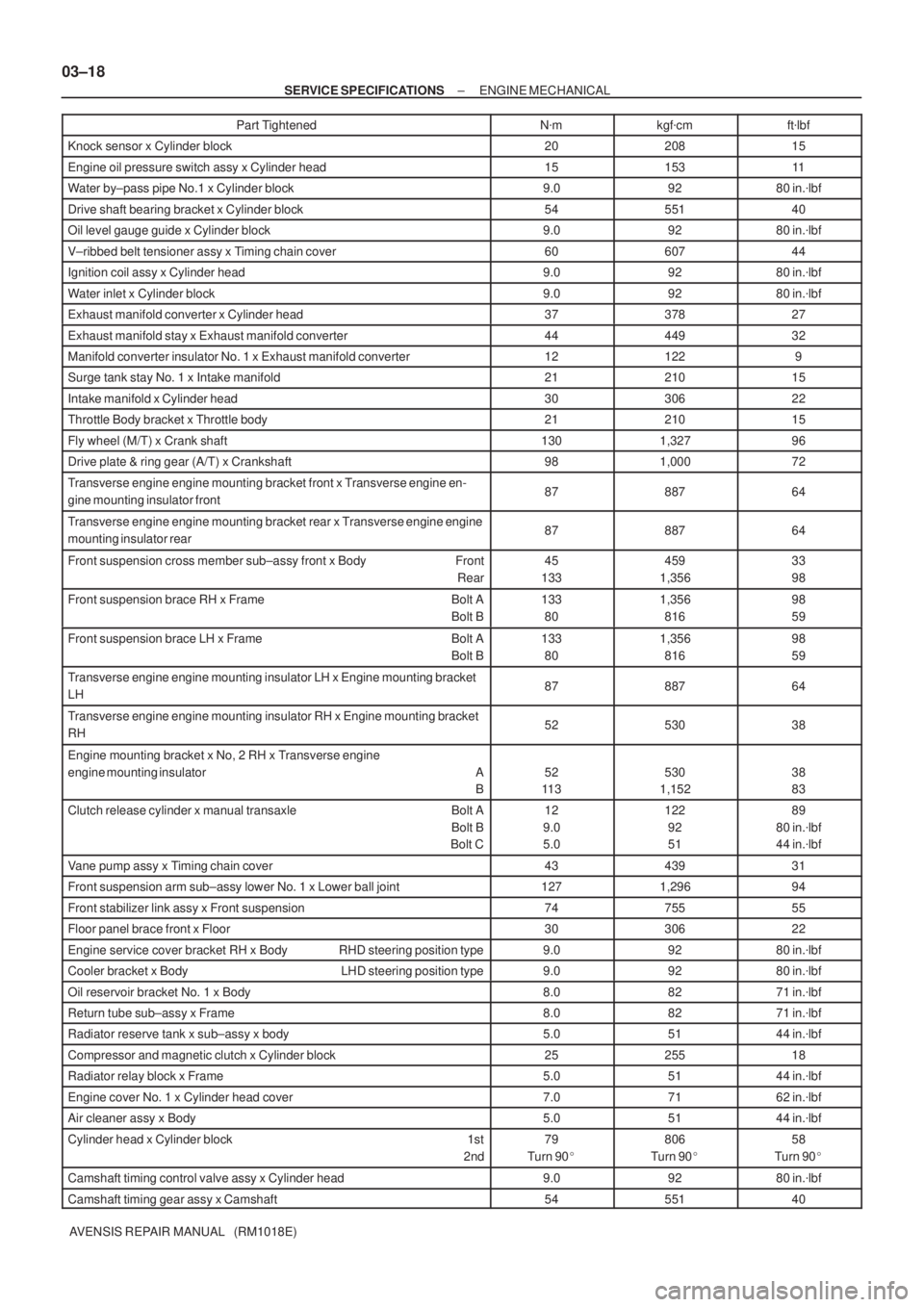

2148.0 10
15
1AZ±FSE:
Part TightenedN
mkgf
cmft
lbf
Front wheel RH1031,05076
Drain plug (M/T)4950036
Engine hanger No.1 x Cylinder head3838728
Engine hanger No.2 x Cylinder head3838728
Engine coolant temperature sensor x Cylinder head2020815

03±18
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedft
lbf kgf
cm N
m
Knock sensor x Cylinder block2020815
Engine oil pressure switch assy x Cylinder head1515311
Water by±pass pipe No.1 x Cylinder block9.09280 in.
lbf
Drive shaft bearing bracket x Cylinder block5455140
Oil level gauge guide x Cylinder block9.09280 in.
lbf
V±ribbed belt tensioner assy x Timing chain cover6060744
Ignition coil assy x Cylinder head9.09280 in.
lbf
Water inlet x Cylinder block9.09280 in.
lbf
Exhaust manifold converter x Cylinder head3737827
Exhaust manifold stay x Exhaust manifold converter4444932
Manifold converter insulator No. 1 x Exhaust manifold converter121229
Surge tank stay No. 1 x Intake manifold2121015
Intake manifold x Cylinder head3030622
Throttle Body bracket x Throttle body2121015
Fly wheel (M/T) x Crank shaft1301,32796
Drive plate & ring gear (A/T) x Crankshaft981,00072
Transverse engine engine mounting bracket front x Transverse engine en-
gine mounting insulator front8788764
Transverse engine engine mounting bracket rear x Transverse engine engine
mounting insulator rear8788764
Front suspension cross member sub±assy front x Body Front
Rear45
133459
1,35633
98
Front suspension brace RH x Frame Bolt A
Bolt B133
801,356
81698
59
Front suspension brace LH x Frame Bolt A
Bolt B133
801,356
81698
59
Transverse engine engine mounting insulator LH x Engine mounting bracket
LH8788764
Transverse engine engine mounting insulator RH x Engine mounting bracket
RH5253038
Engine mounting bracket x No, 2 RH x Transverse engine
engine mounting insulator A
B
52
11 3530
1,15238
83
Clutch release cylinder x manual transaxle Bolt A
Bolt B
Bolt C12
9.0
5.0122
92
5189
80 in.
lbf
44 in.
lbf
Vane pump assy x Timing chain cover4343931
Front suspension arm sub±assy lower No. 1 x Lower ball joint1271,29694
Front stabilizer link assy x Front suspension7475555
Floor panel brace front x Floor3030622
Engine service cover bracket RH x Body RHD steering position type9.09280 in.
lbf
Cooler bracket x Body LHD steering position type9.09280 in.
lbf
Oil reservoir bracket No. 1 x Body8.08271 in.
lbf
Return tube sub±assy x Frame8.08271 in.
lbf
Radiator reserve tank x sub±assy x body5.05144 in.
lbf
Compressor and magnetic clutch x Cylinder block2525518
Radiator relay block x Frame5.05144 in.
lbf
Engine cover No. 1 x Cylinder head cover7.07162 in.
lbf
Air cleaner assy x Body5.05144 in.
lbf
Cylinder head x Cylinder block 1st
2nd79
Turn 90
806
Turn 90
58
Turn 90

Camshaft timing control valve assy x Cylinder head9.09280 in.
lbf
Camshaft timing gear assy x Camshaft5455140

03±20
± SERVICE SPECIFICATIONSENGINE MECHANICAL
AVENSIS REPAIR MANUAL (RM1018E)Part Tightenedft
lbf kgf
cm N
m
Injection pipe, Fuel inlet pipe x Common rail
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Injection pipe x Injector
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Injection pipe clamp x Intake manifold5.05144 in.
lbf
Fuel inlet pipe x Common rail
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Fuel inlet pipe x injection pump
Used pipe using SST
Used pipe not using SST
New pipe using SST
New pipe not using SST
42
46
31
34428
469
316
34731
34
23
25
Nozzle leakage pipe No.2 x Cylinder head Check valve
Bolt21
8.8214
9015
78 in.
lbf
Vacuum pump x Cylinder head2121415
EGR valve assy x Cylinder head1818413
Intake air connector with diesel throttle body x Intake manifold2121415
Water inlet x Cylinder block8.89078 in.
lbf
Water outlet sub±assy x Cylinder head2121415
Exhaust manifold x Cylinder head4747935
EGR pipe sub±assy x Cylinder head Bolt
Nut37
25375
25027
18
Oil filter bracket x Oil pan sub±assy3434725
V±ribbed belt tensioner assy x Oil pump3131623
Generator bracket No.1 x Cylinder block3737727
Idler pulley Sub±assy x V±ribbed belt tensioner assy4040830
Engine mounting bracket RR x Engine mounting insulator RR6465347
Engine mounting bracket FR x Engine mounting insulator FR6465347
Drive shaft bearing bracket x Cylinder block6465347
Rear end plate x Cylinder block8.48674 in.
lbf
Flywheel x Crankshaft7172052
Engine mounting member sub±assy center x Body4545933
Front suspension crossmember sub±assy x Rear engine mounting bracket8788764
Front suspension crossmember sub±assy x Front engine mounting bracket5253038
Front suspension crossmember sub±assy x Body1331,35698
Front suspension member brace x Front suspension crossmember sub±assy1331,35698
Front suspension member brace x Body8081659
Return tube sub±assy x Body8.08271 in.
lbf
Engine mounting insulator RH x Body5253038
Engine mounting bracket LH x Engine mounting insulator LH8081659
Injector driver x Engine mounting insulator RH5.05144 in.
lbf
Engine wire x Body8.48574 in.
lbf
Air tube No.2 x Manual transaxle2525518
Relay box x Radiator assy5.35446 in.
lbf
Fuel filter assy x Fuel filter support1817813
