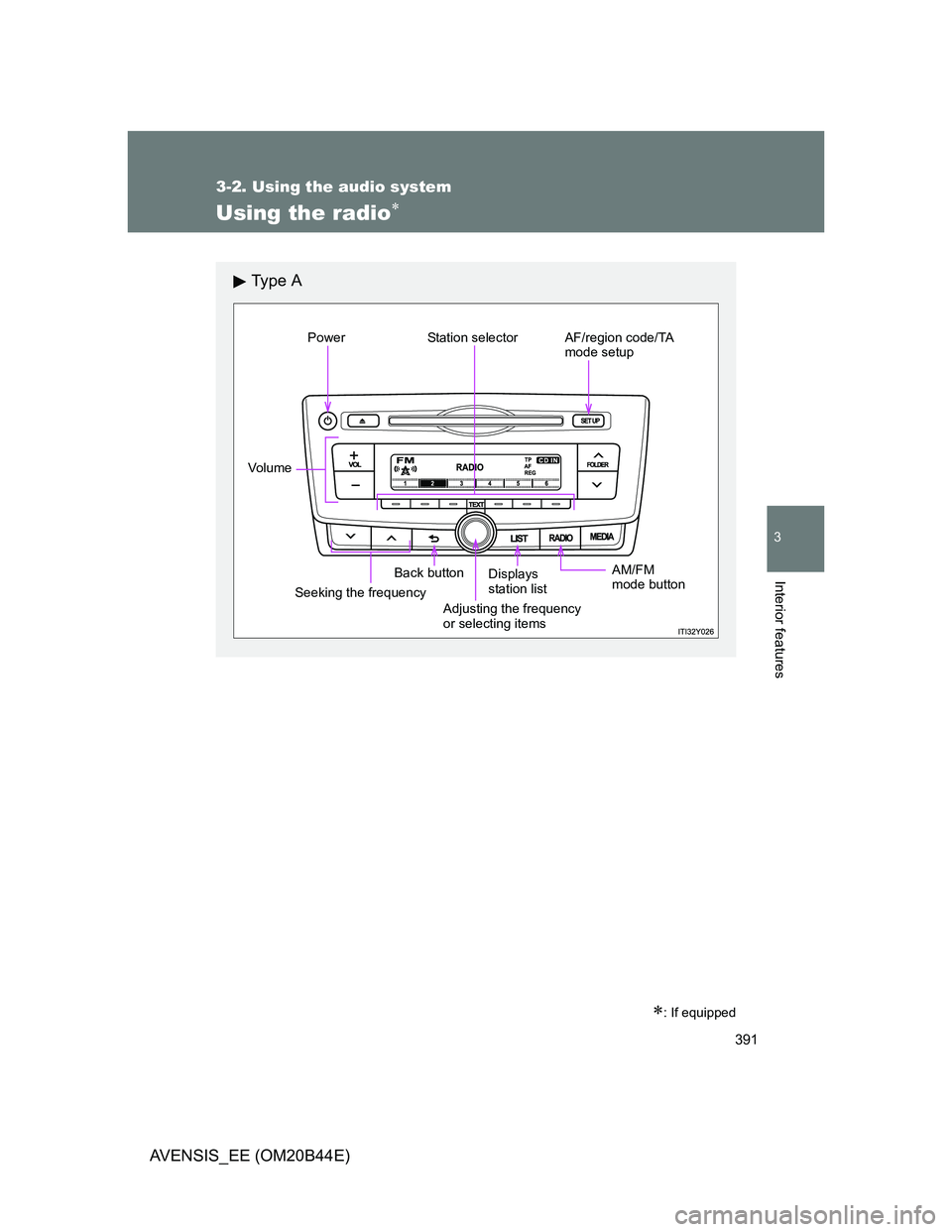

TOYOTA AVENSIS 2012 Owners Manual

391
3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Using the radio
: If equipped
Ty p e A
Power Station selector AF/region code/TA
mode setup
Vo lu m e
Seeking the frequencyBack buttonAM/FM
mode button
Adjusting the frequency
or selecting itemsDisplays
station list

392 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Ty p e B
Ty p e C
Power Station selector AF/region code/TA
mode setup
Vo lu m e
Seeking the frequencyBack button
Adjusting the frequency
or selecting itemsDisplays
station listAM/FM
mode button
Power Station selector AF/region code/TA
mode setup
Vo lu m e
Seeking the frequencyScanning for
receivable stations
AM/FM mode button
Adjusting the frequency or selecting
items/displays station list

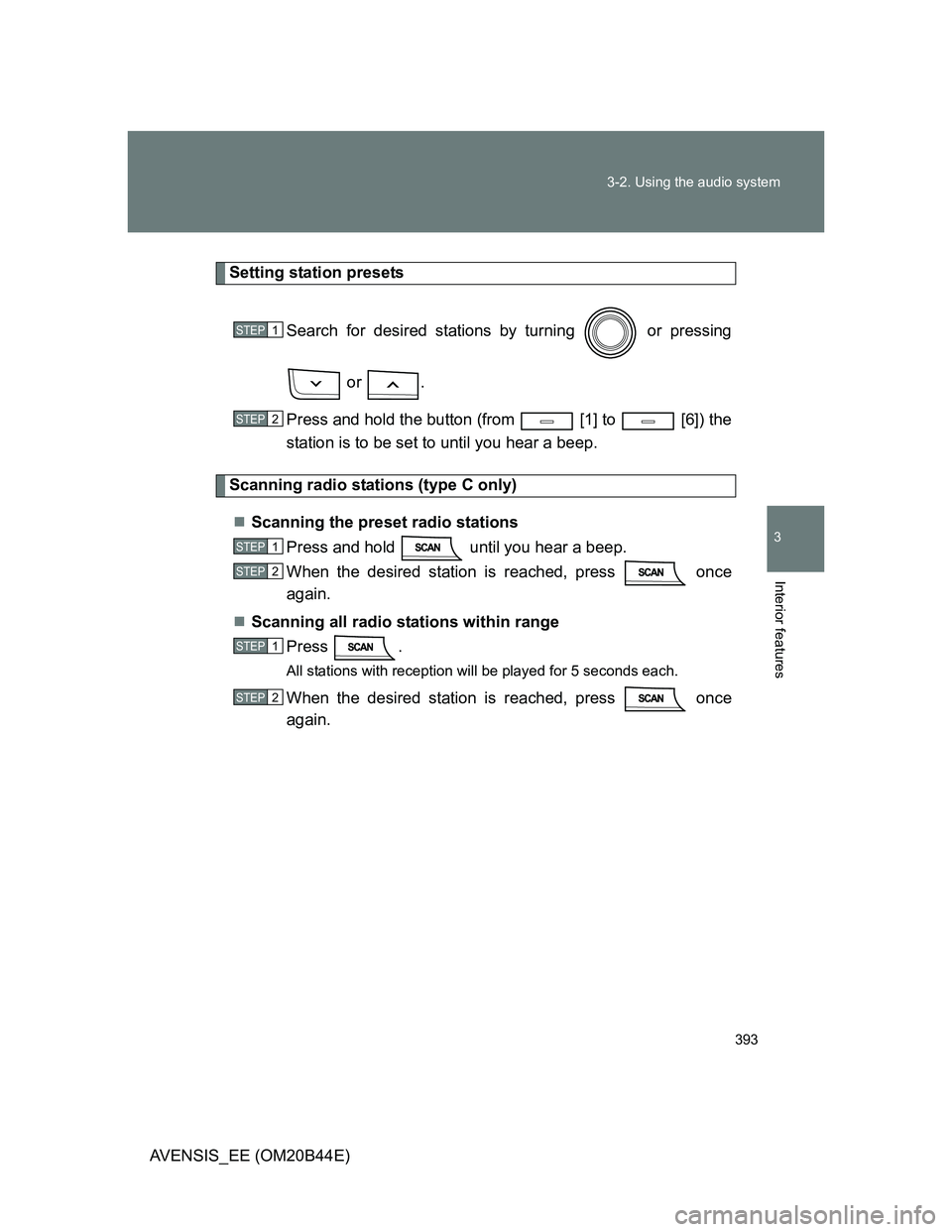

393 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Setting station presets
Search for desired stations by turning or pressing
or .
Press and hold the button (from [1] to [6]) the
station is to be set to until you hear a beep.
Scanning radio stations (type C only)
Scanning the preset radio stations
Press and hold until you hear a beep.
When the desired station is reached, press once
again.
Scanning all radio stations within range
Press .
All stations with reception will be played for 5 seconds each.
When the desired station is reached, press once
again.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

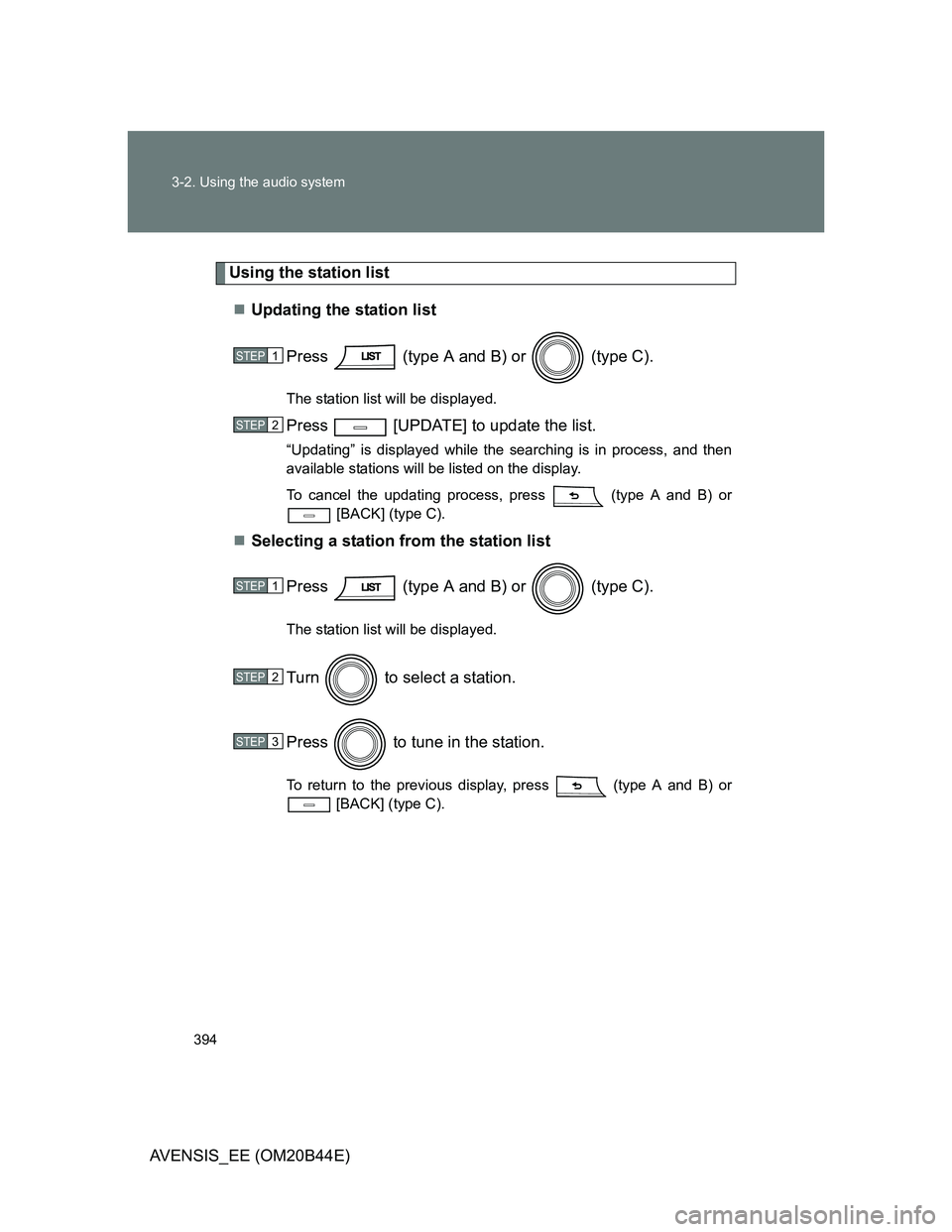

394 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Using the station list
Updating the station list
Press (type A and B) or (type C).
The station list will be displayed.
Press [UPDATE] to update the list.
“Updating” is displayed while the searching is in process, and then
available stations will be listed on the display.
To cancel the updating process, press (type A and B) or
[BACK] (type C).
Selecting a station from the station list
Press (type A and B) or (type C).
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press (type A and B) or
[BACK] (type C).
STEP1
STEP2
STEP1
STEP2
STEP3

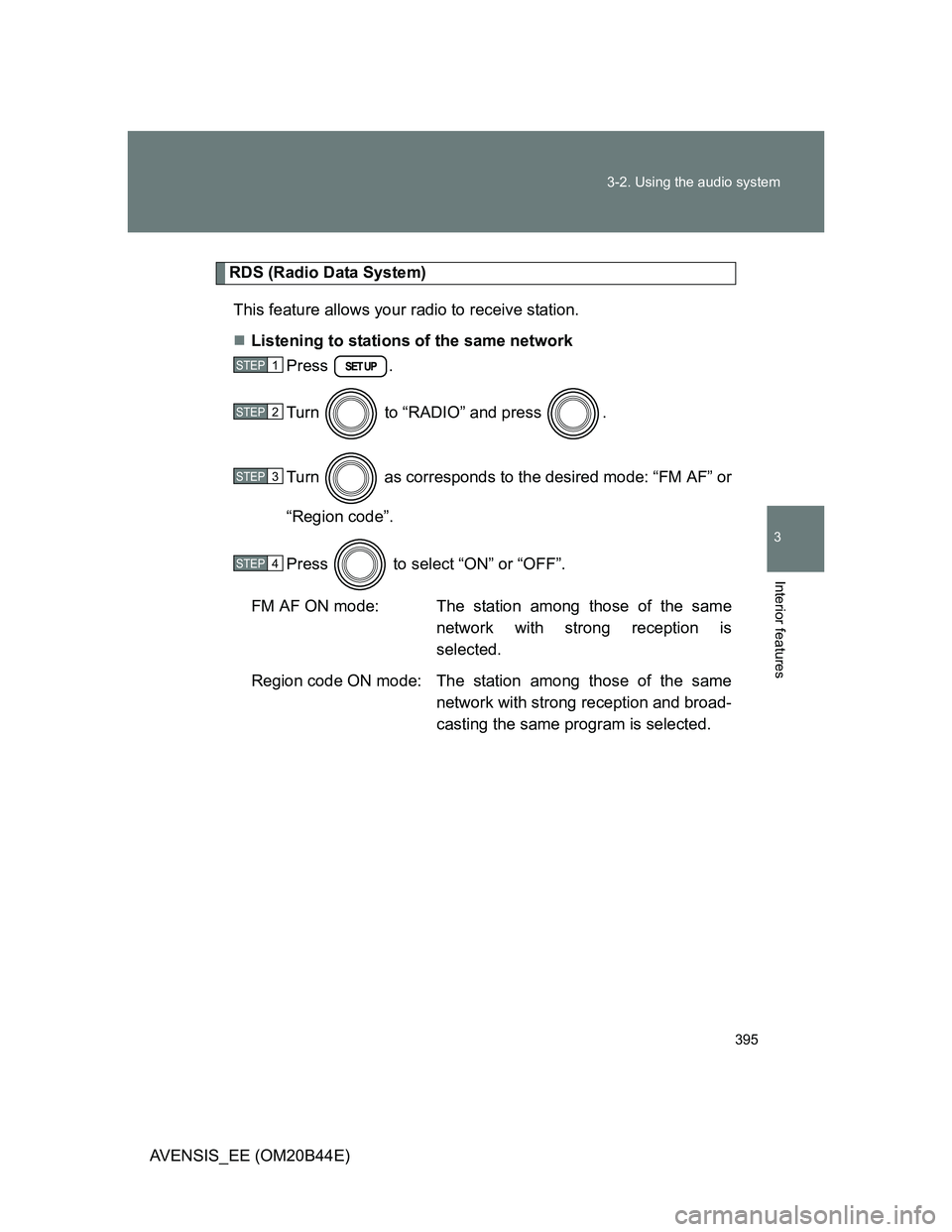

395 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
RDS (Radio Data System)
This feature allows your radio to receive station.
Listening to stations of the same network
Press .
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“Region code”.
Press to select “ON” or “OFF”.
FM AF ON mode: The station among those of the same
network with strong reception is
selected.
Region code ON mode: The station among those of the same
network with strong reception and broad-
casting the same program is selected.
STEP1
STEP2
STEP3
STEP4

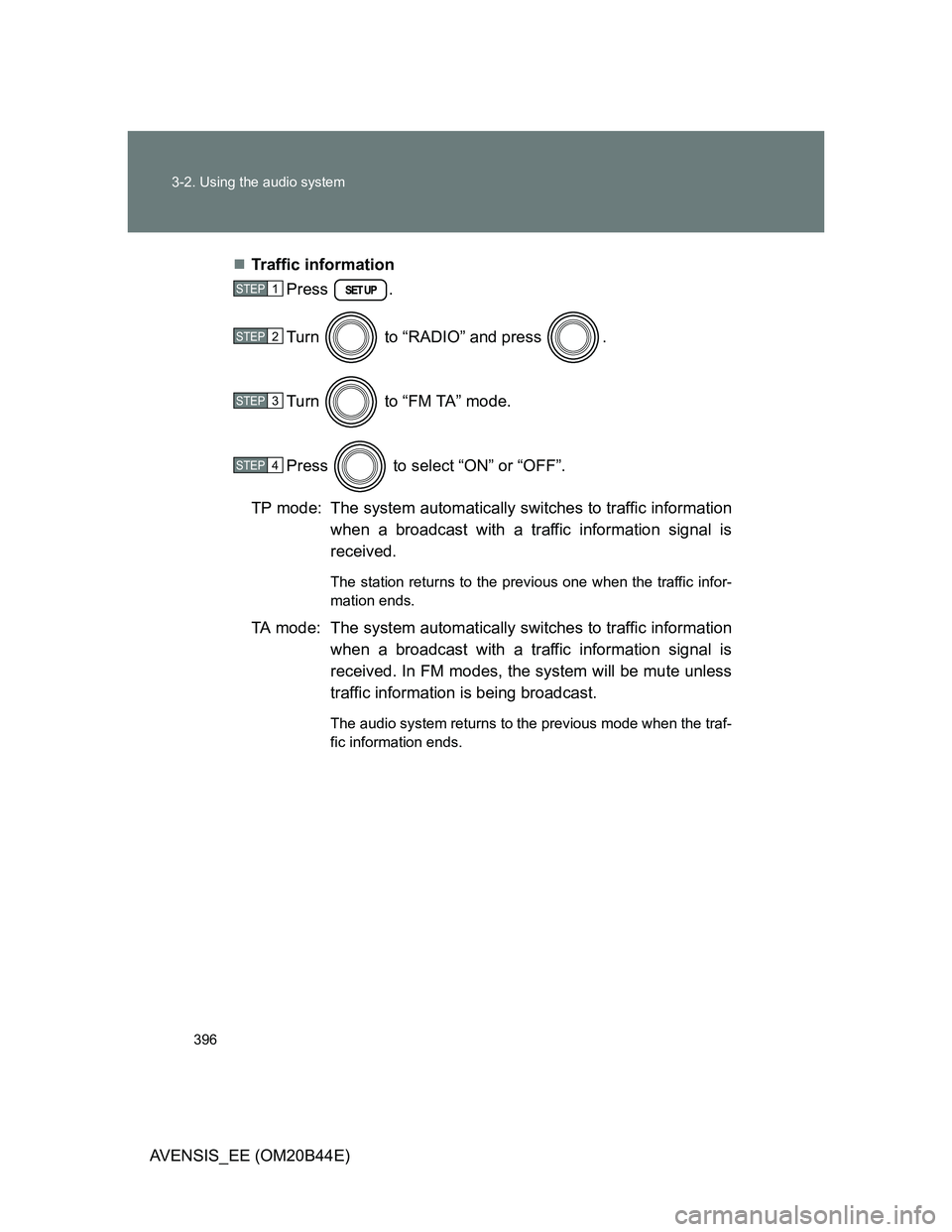

396 3-2. Using the audio system
AVENSIS_EE (OM20B44E)Traffic information
Press .
Turn to “RADIO” and press .
Turn to “FM TA” mode.
Press to select “ON” or “OFF”.
TP mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received.
The station returns to the previous one when the traffic infor-
mation ends.
TA mode: The system automatically switches to traffic information
when a broadcast with a traffic information signal is
received. In FM modes, the system will be mute unless
traffic information is being broadcast.
The audio system returns to the previous mode when the traf-
fic information ends.
STEP1
STEP2
STEP3
STEP4

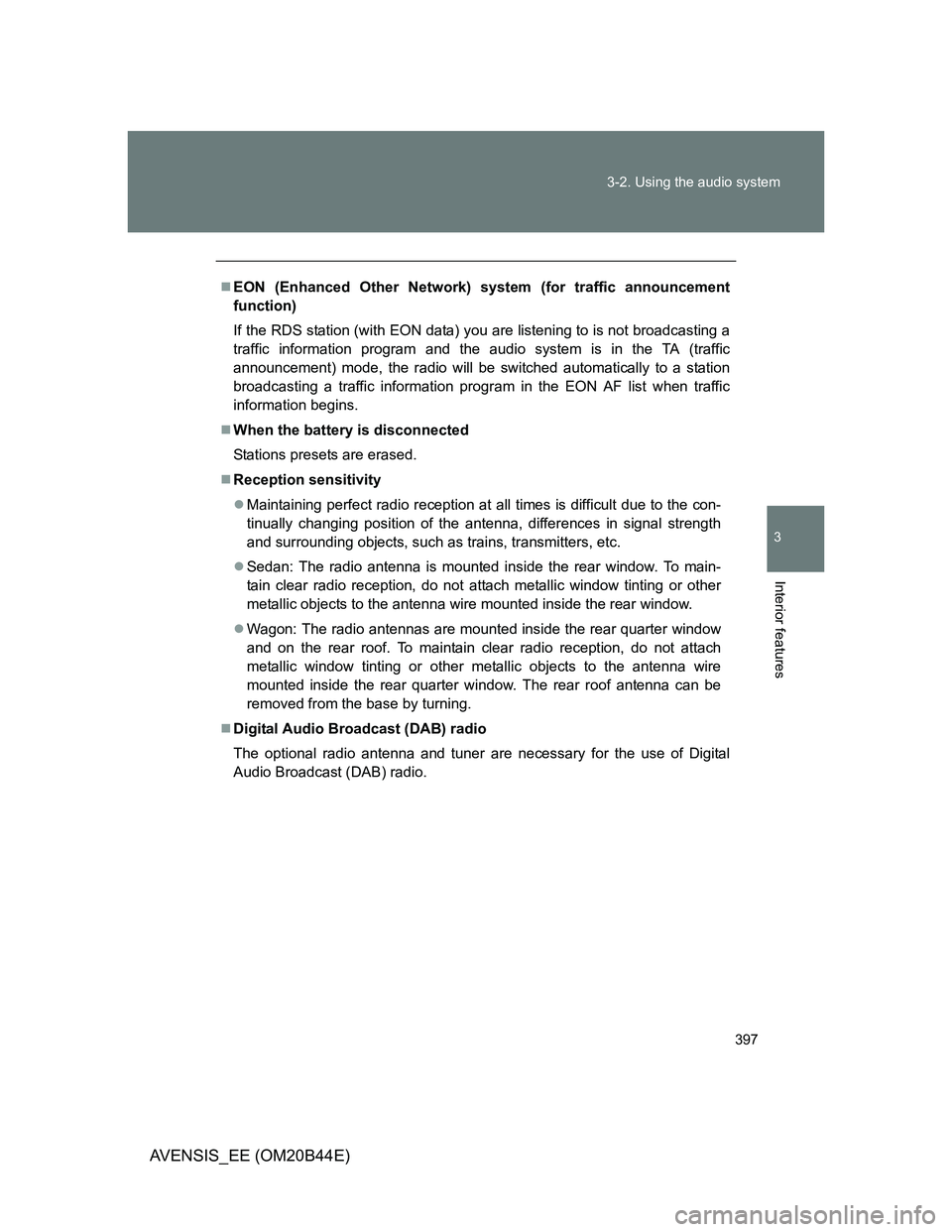

397 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
EON (Enhanced Other Network) system (for traffic announcement
function)
If the RDS station (with EON data) you are listening to is not broadcasting a
traffic information program and the audio system is in the TA (traffic
announcement) mode, the radio will be switched automatically to a station
broadcasting a traffic information program in the EON AF list when traffic
information begins.
When the battery is disconnected
Stations presets are erased.
Reception sensitivity
Maintaining perfect radio reception at all times is difficult due to the con-
tinually changing position of the antenna, differences in signal strength
and surrounding objects, such as trains, transmitters, etc.
Sedan: The radio antenna is mounted inside the rear window. To main-
tain clear radio reception, do not attach metallic window tinting or other
metallic objects to the antenna wire mounted inside the rear window.
Wagon: The radio antennas are mounted inside the rear quarter window
and on the rear roof. To maintain clear radio reception, do not attach
metallic window tinting or other metallic objects to the antenna wire
mounted inside the rear quarter window. The rear roof antenna can be
removed from the base by turning.
Digital Audio Broadcast (DAB) radio
The optional radio antenna and tuner are necessary for the use of Digital
Audio Broadcast (DAB) radio.

398
3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Using the CD player
: If equipped
Ty p e A
Power
Vo lu m e
Selecting a track,
fast-forwarding or
reversingBack button
Selecting a track or
displays text message
CD eject Repeat play
Random playback
Playback Displays
track list

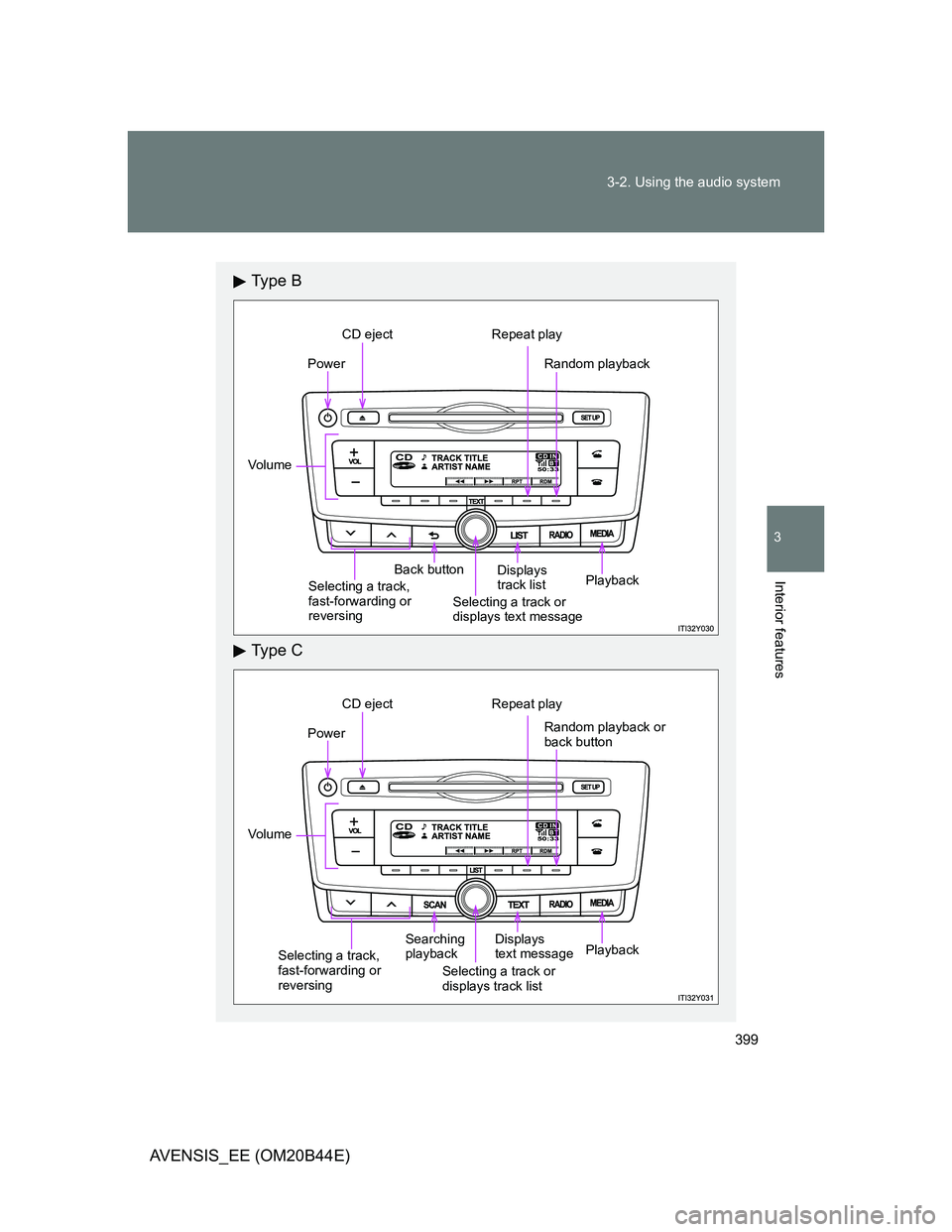

399 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Ty p e B
Ty p e C
Power
Vo lu m e
Back button
CD eject Repeat play
Random playback
Selecting a track,
fast-forwarding or
reversingSelecting a track or
displays text messageDisplays
track listPlayback
Power
Vo lu m e
Searching
playback
Selecting a track or
displays track listDisplays
text message
CD eject Repeat play
Random playback or
back button
Selecting a track,
fast-forwarding or
reversingPlayback

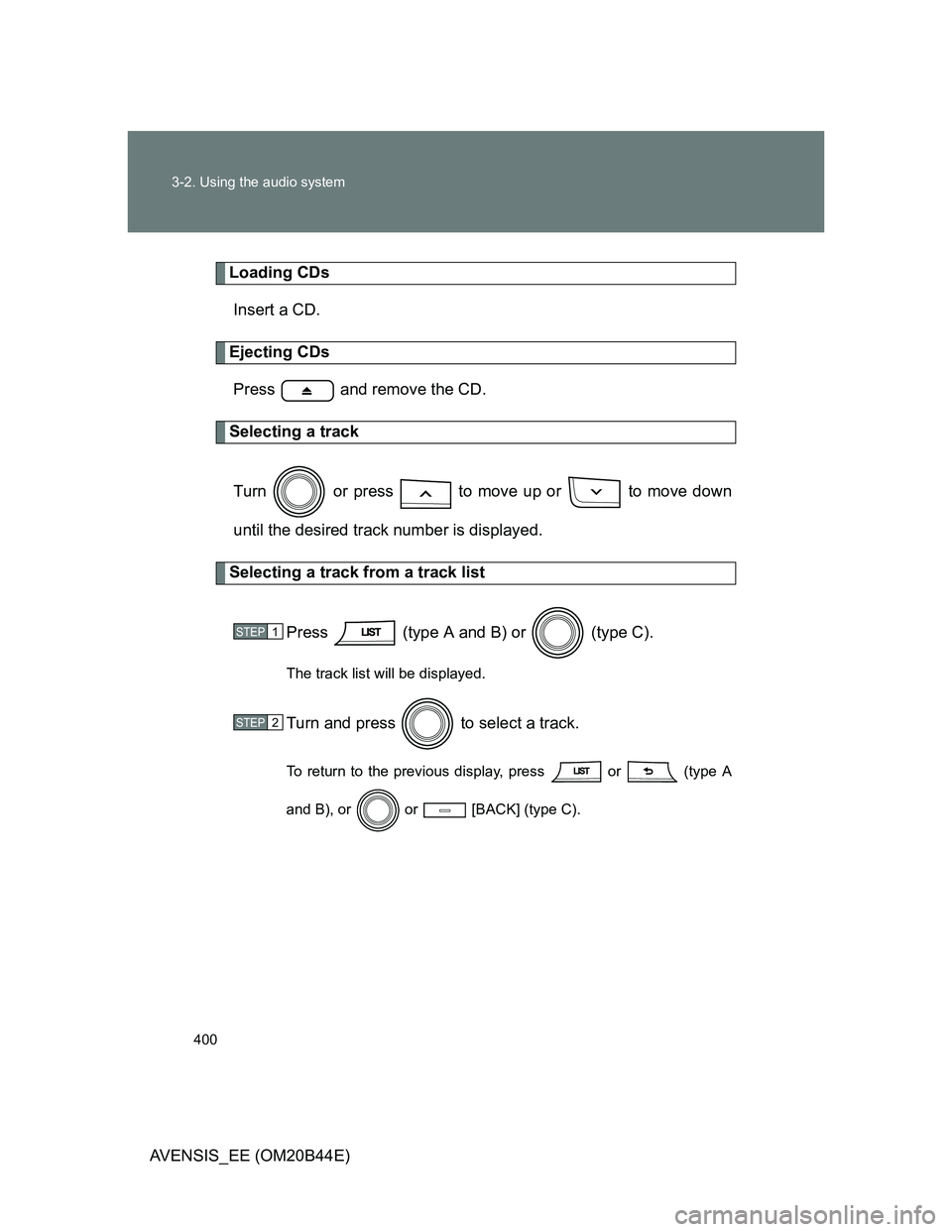

400 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Loading CDs
Insert a CD.
Ejecting CDs
Press and remove the CD.
Selecting a track
Turn or press to move up or to move down
until the desired track number is displayed.
Selecting a track from a track list
Press (type A and B) or (type C).
The track list will be displayed.
Turn and press to select a track.
To return to the previous display, press or (type A
and B), or or [BACK] (type C).
STEP1
STEP2
