TOYOTA AVENSIS 2012 Owners Manual

471
3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)

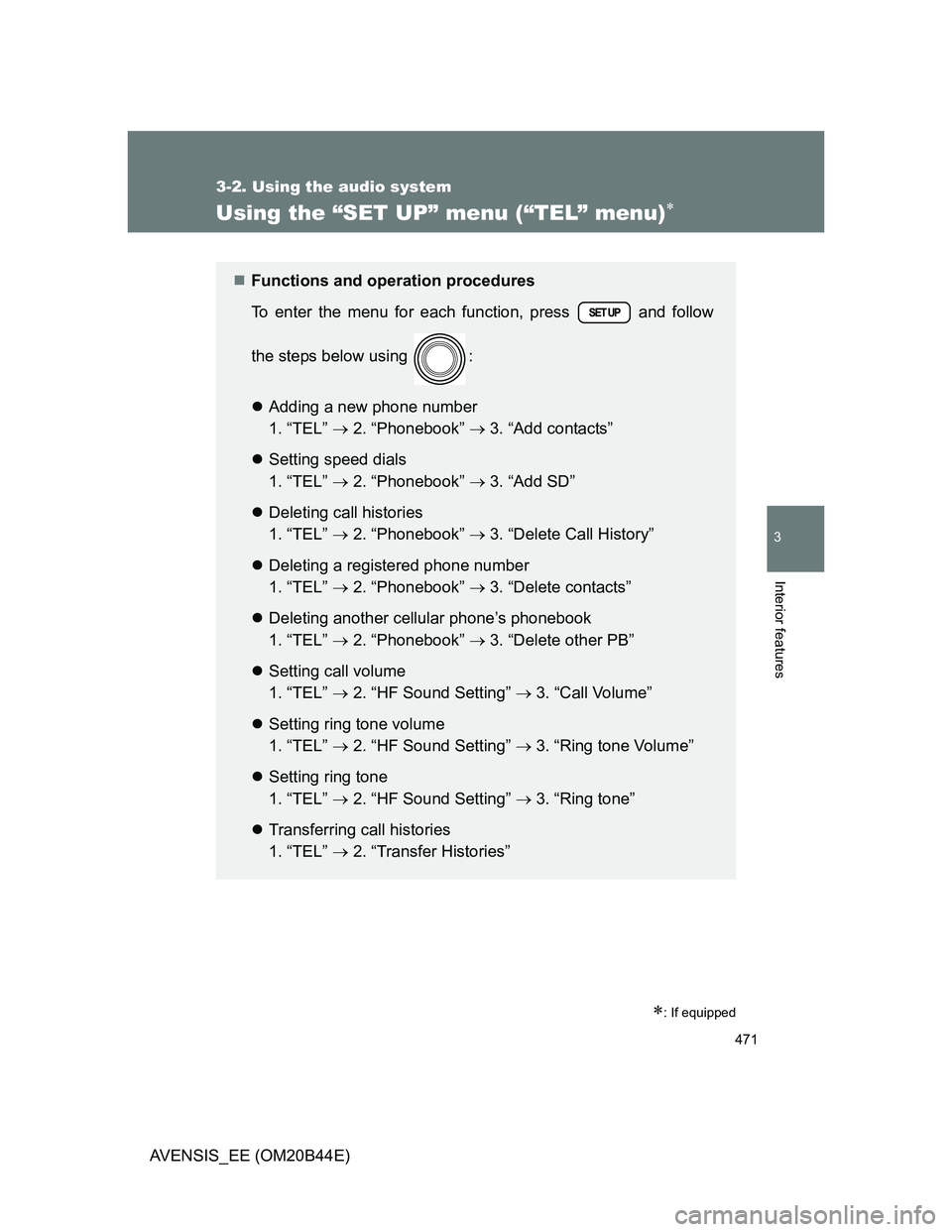

Using the “SET UP” menu (“TEL” menu)
: If equipped
Functions and operation procedures
To enter the menu for each function, press and follow
the steps below using :
Adding a new phone number
1. “TEL”  2. “Phonebook”  3. “Add contacts”
Setting speed dials
1. “TEL”  2. “Phonebook”  3. “Add SD”
Deleting call histories
1. “TEL”  2. “Phonebook”  3. “Delete Call History”
Deleting a registered phone number
1. “TEL”  2. “Phonebook”  3. “Delete contacts”
Deleting another cellular phone’s phonebook
1. “TEL”  2. “Phonebook”  3. “Delete other PB”
Setting call volume
1. “TEL”  2. “HF Sound Setting”  3. “Call Volume”
Setting ring tone volume
1. “TEL”  2. “HF Sound Setting”  3. “Ring tone Volume”
Setting ring tone
1. “TEL”  2. “HF Sound Setting”  3. “Ring tone”
Transferring call histories
1. “TEL”  2. “Transfer Histories”

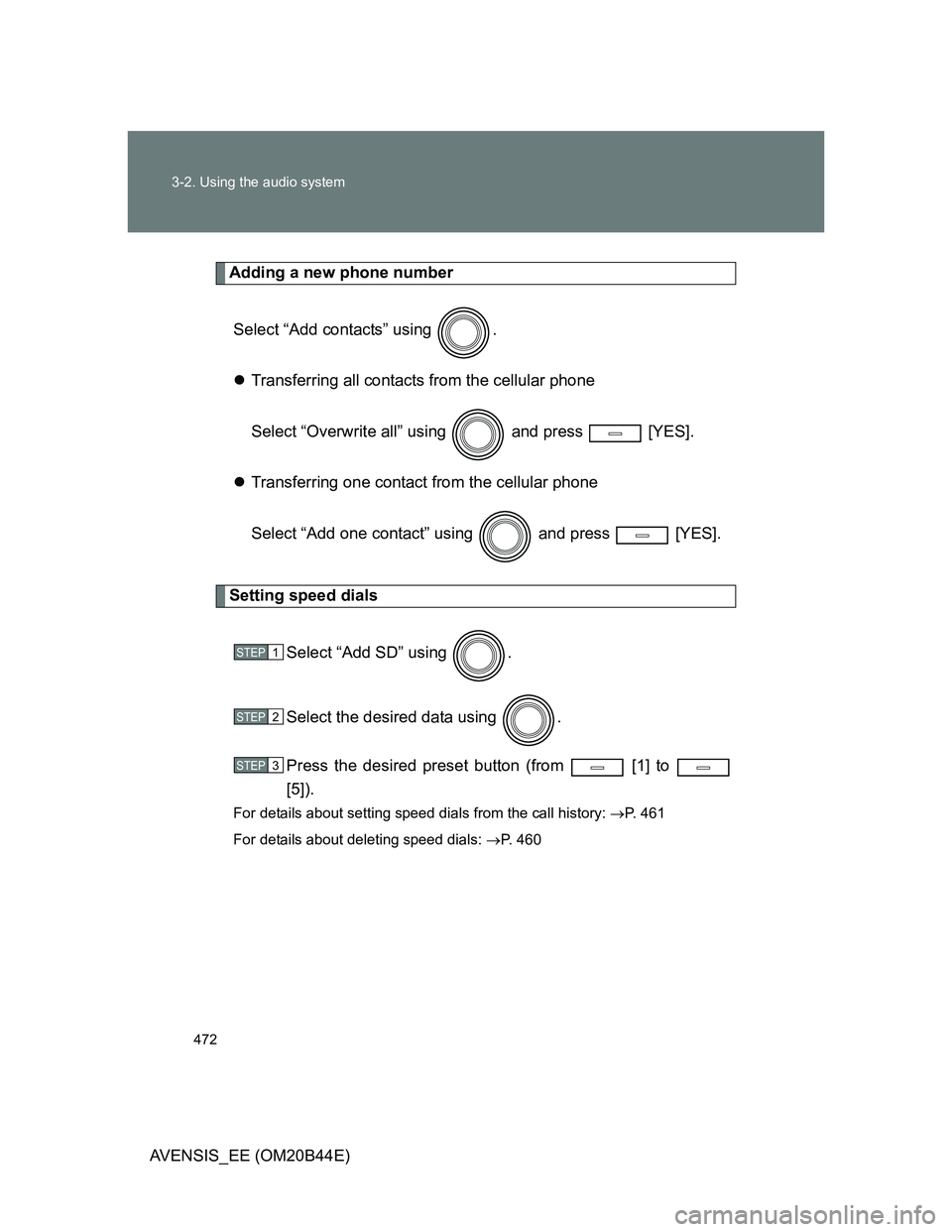

472 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Adding a new phone number
Select “Add contacts” using .
Transferring all contacts from the cellular phone
Select “Overwrite all” using and press [YES].
Transferring one contact from the cellular phone
Select “Add one contact” using and press [YES].
Setting speed dials
Select “Add SD” using .
Select the desired data using .
Press the desired preset button (from [1] to
[5]).
For details about setting speed dials from the call history: P. 461
For details about deleting speed dials: P. 460
STEP1
STEP2
STEP3

473 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)

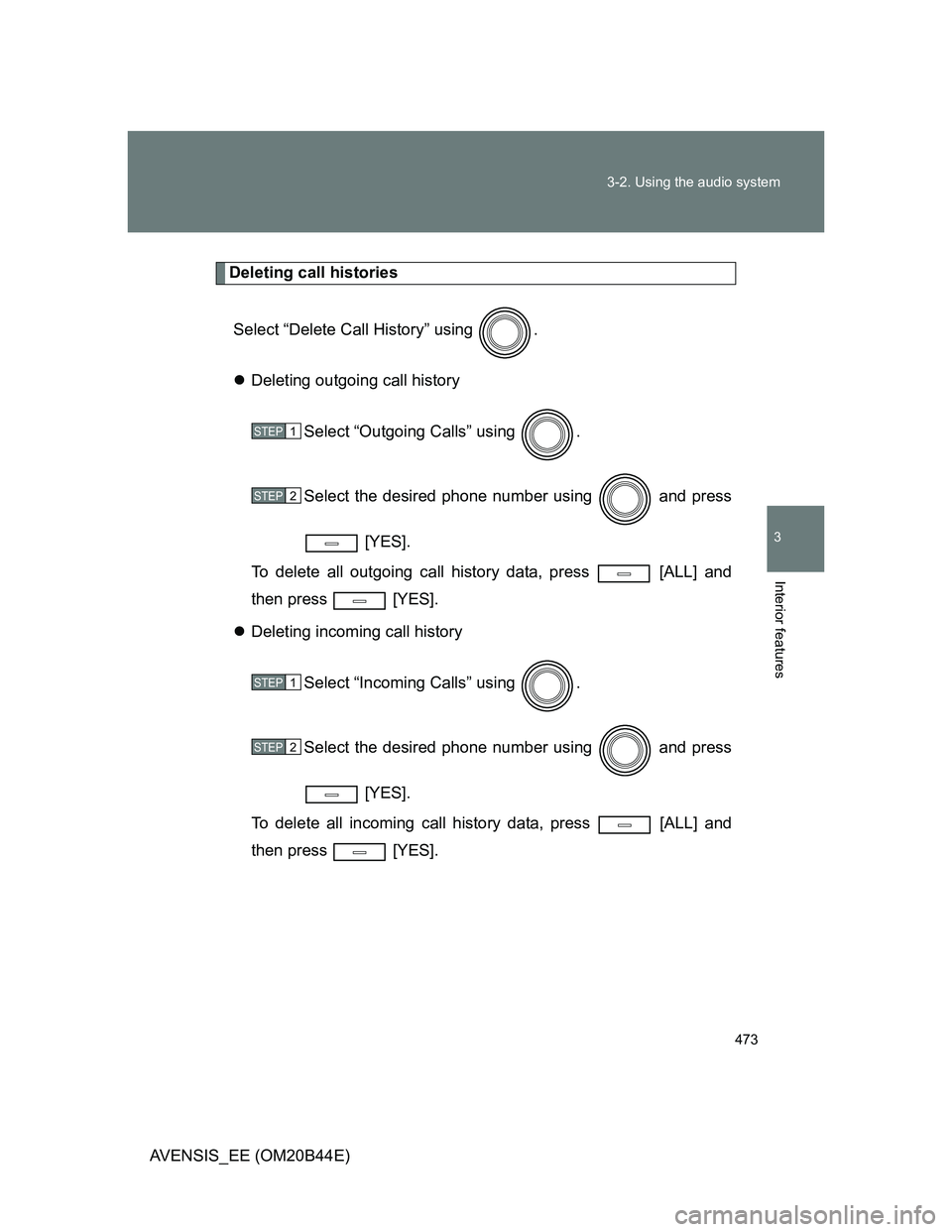

Deleting call histories
Select “Delete Call History” using .
Deleting outgoing call history
Select “Outgoing Calls” using .
Select the desired phone number using and press
[YES].
To delete all outgoing call history data, press [ALL] and
then press [YES].
Deleting incoming call history
Select “Incoming Calls” using .
Select the desired phone number using and press
[YES].
To delete all incoming call history data, press [ALL] and
then press [YES].
STEP1
STEP2
STEP1
STEP2

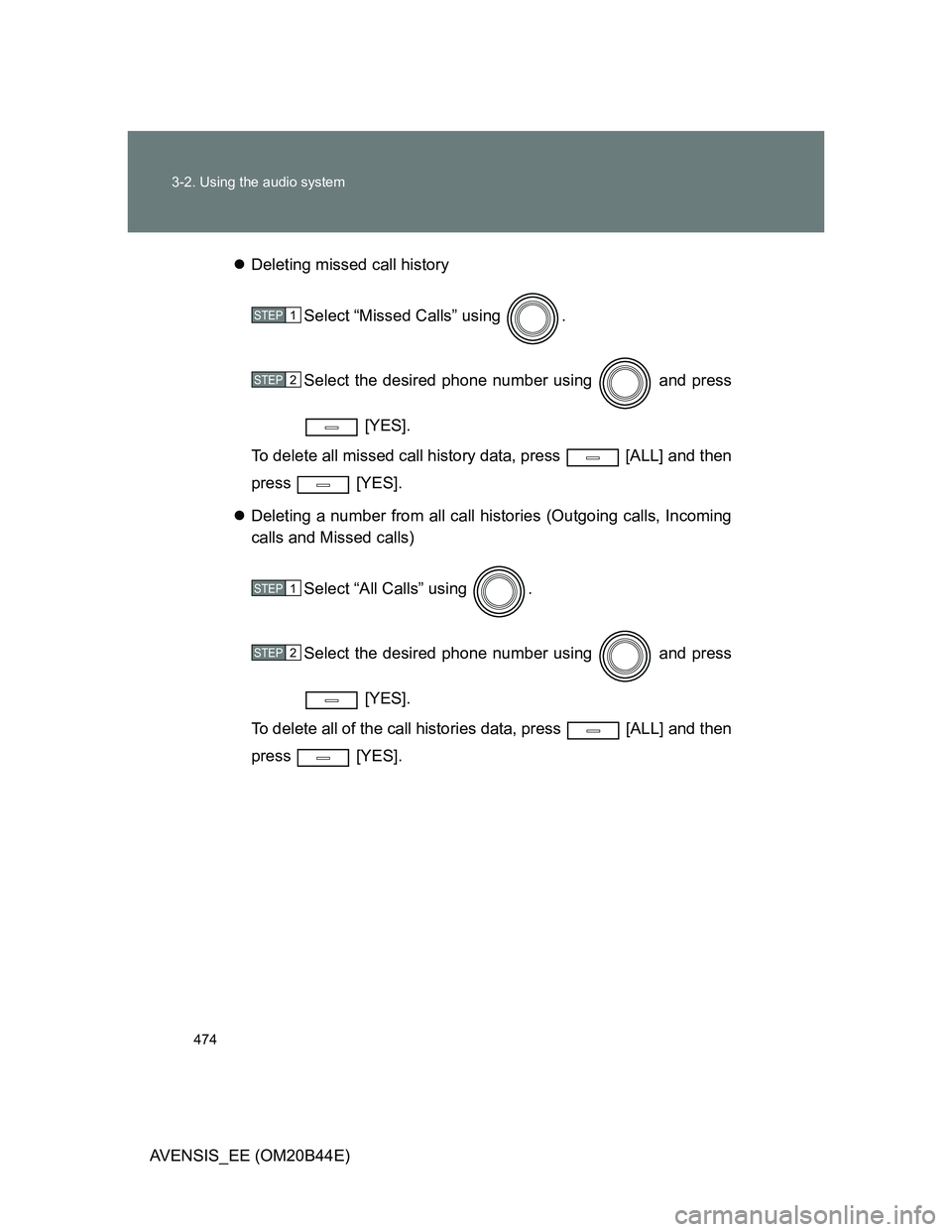

474 3-2. Using the audio system
AVENSIS_EE (OM20B44E)Deleting missed call history
Select “Missed Calls” using .
Select the desired phone number using and press
[YES].
To delete all missed call history data, press [ALL] and then
press [YES].
Deleting a number from all call histories (Outgoing calls, Incoming
calls and Missed calls)
Select “All Calls” using .
Select the desired phone number using and press
[YES].
To delete all of the call histories data, press [ALL] and then
press [YES].
STEP1
STEP2
STEP1
STEP2

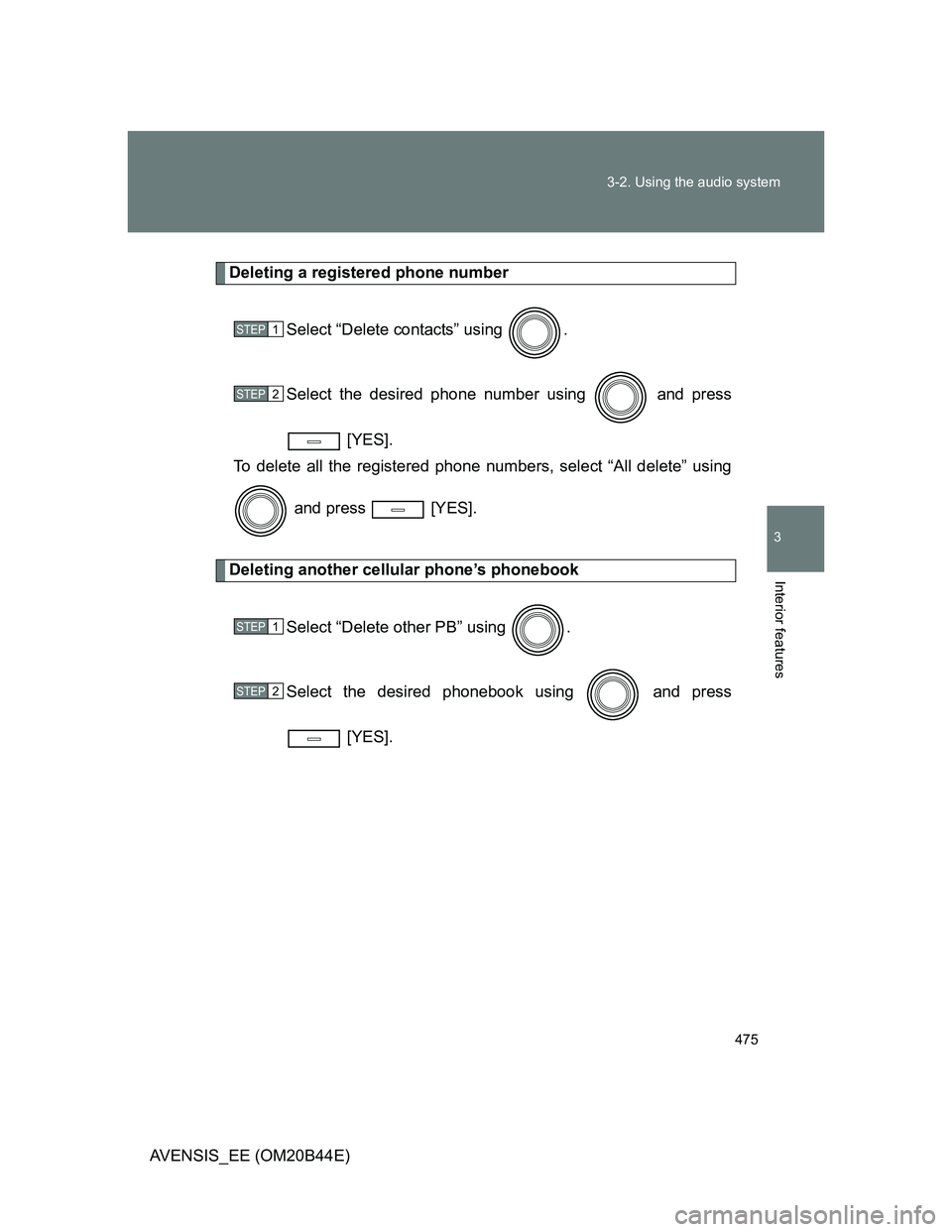

475 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Deleting a registered phone number
Select “Delete contacts” using .
Select the desired phone number using and press
[YES].
To delete all the registered phone numbers, select “All delete” using
and press [YES].
Deleting another cellular phone’s phonebook
Select “Delete other PB” using .
Select the desired phonebook using and press
[YES].
STEP1
STEP2
STEP1
STEP2

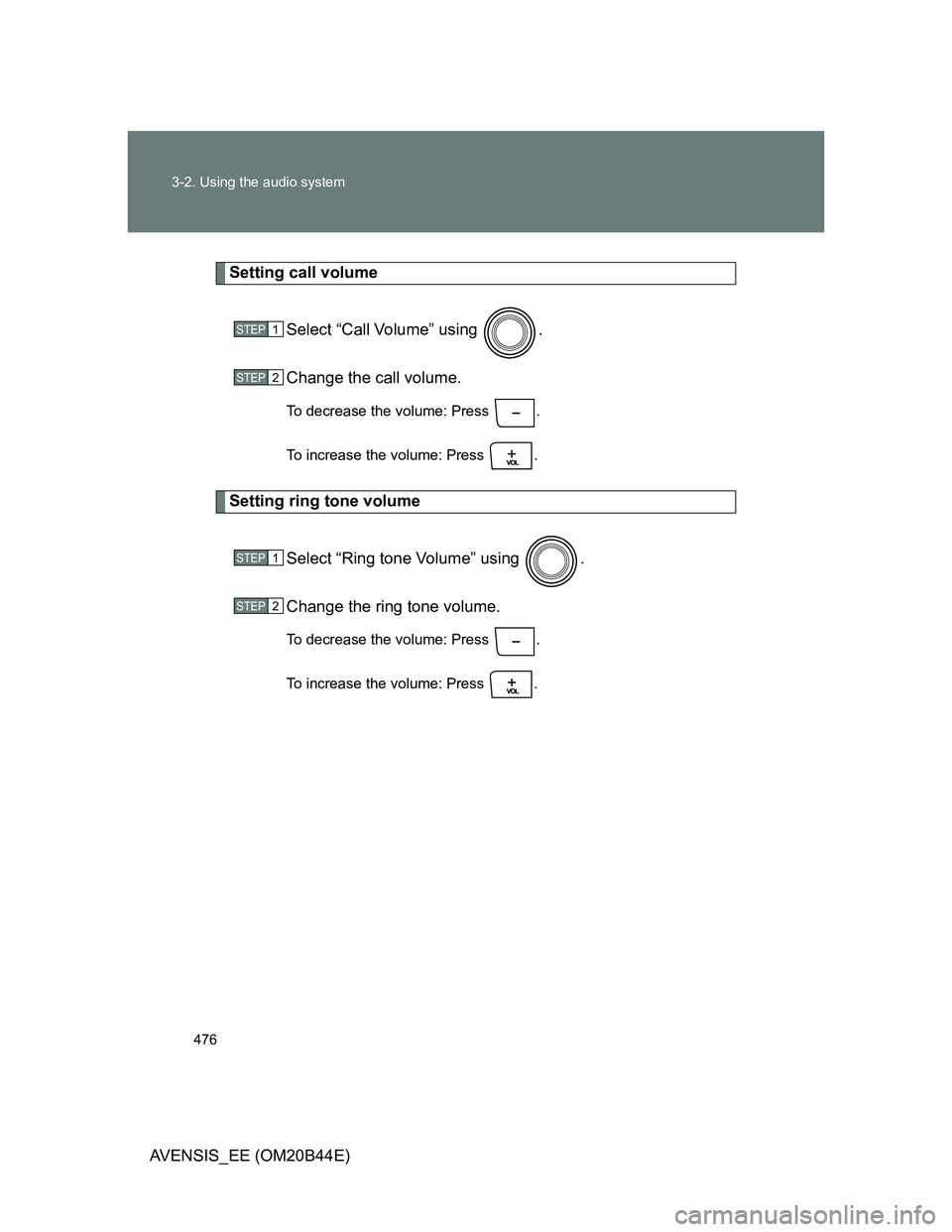

476 3-2. Using the audio system
AVENSIS_EE (OM20B44E)
Setting call volume
Select “Call Volume” using .
Change the call volume.
To decrease the volume: Press .
To increase the volume: Press .
Setting ring tone volume
Select “Ring tone Volume” using .
Change the ring tone volume.
To decrease the volume: Press .
To increase the volume: Press .
STEP1
STEP2
STEP1
STEP2

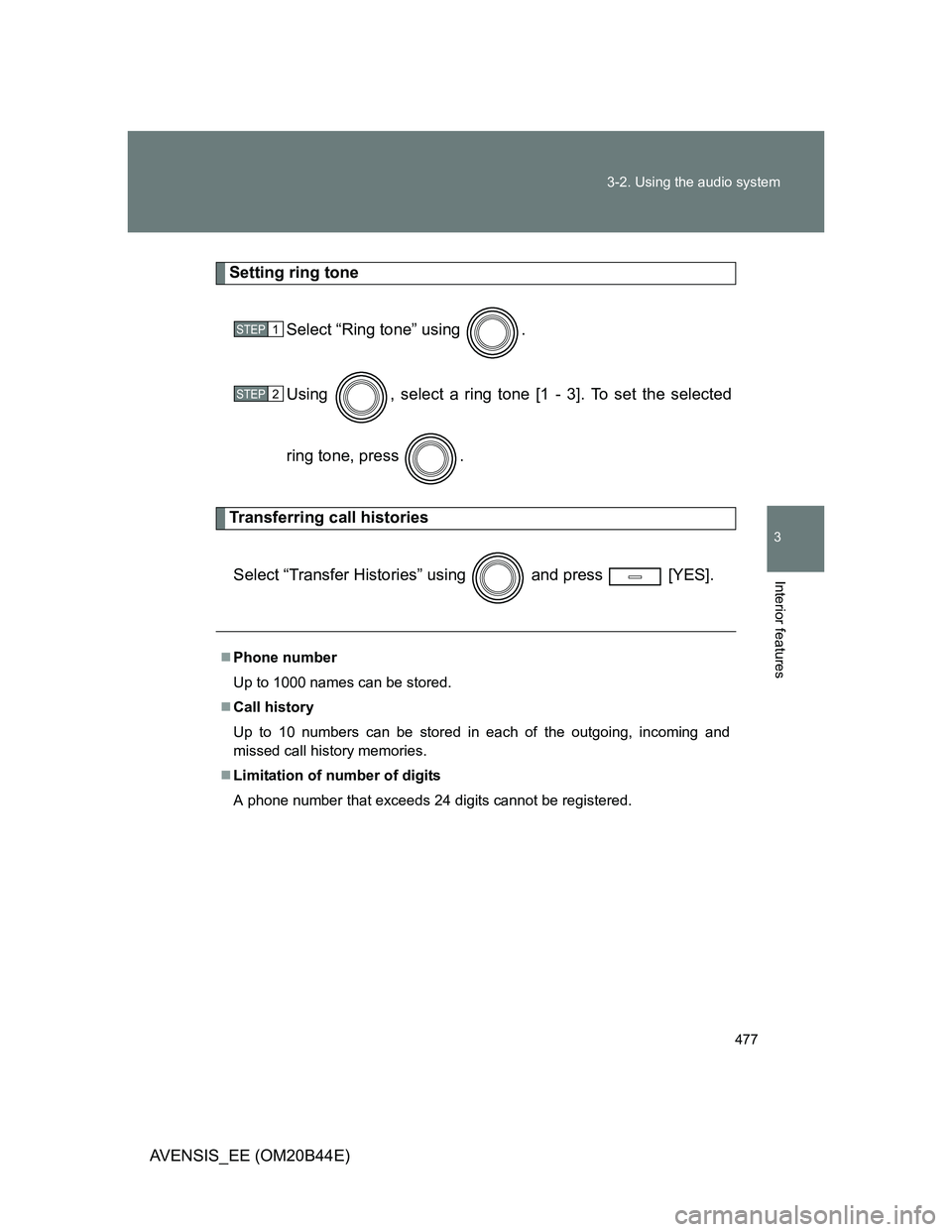

477 3-2. Using the audio system
3
Interior features
AVENSIS_EE (OM20B44E)
Setting ring tone
Select “Ring tone” using .
Using , select a ring tone [1 - 3]. To set the selected
ring tone, press .
Transferring call histories
Select “Transfer Histories” using and press [YES].
Phone number
Up to 1000 names can be stored.
Call history
Up to 10 numbers can be stored in each of the outgoing, incoming and
missed call history memories.
Limitation of number of digits
A phone number that exceeds 24 digits cannot be registered.
STEP1
STEP2

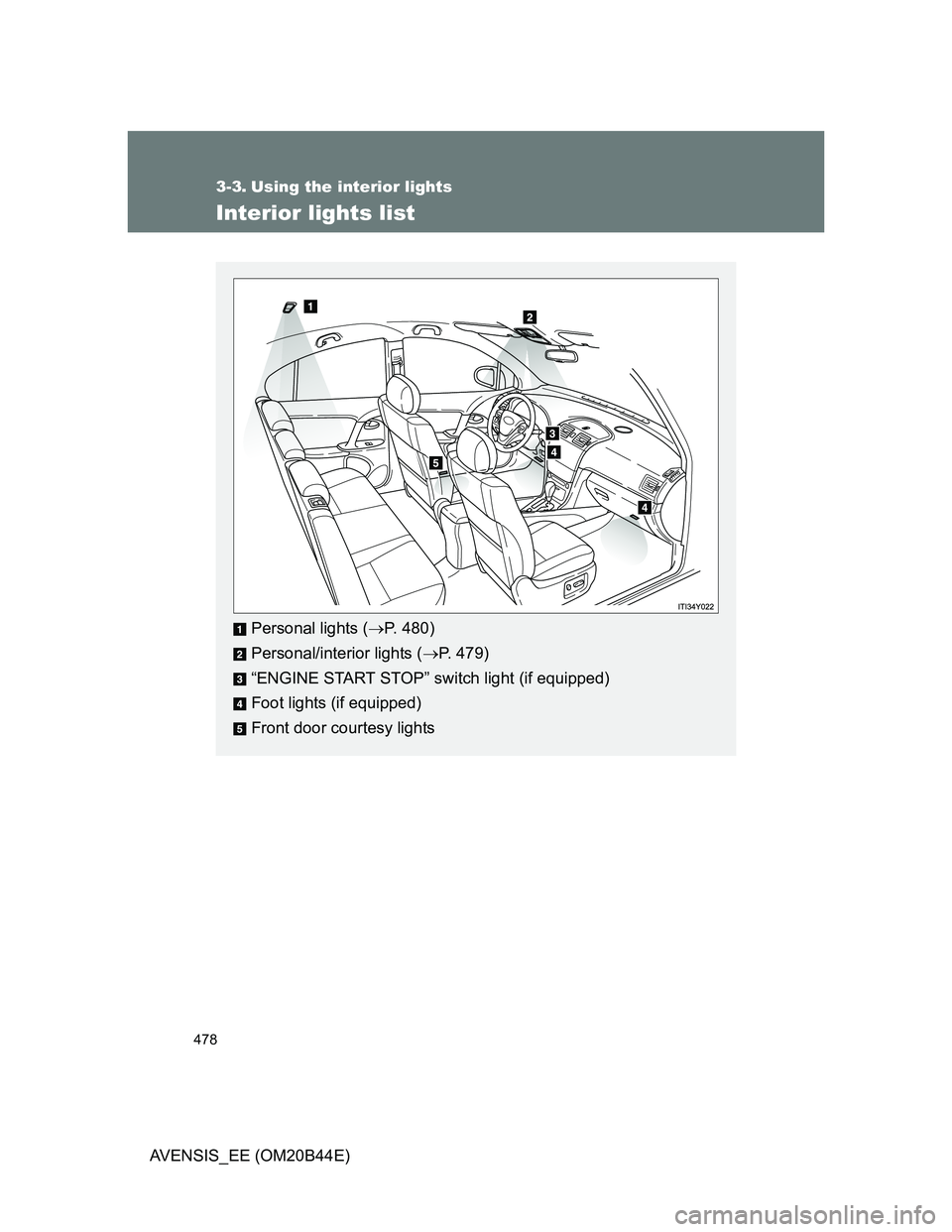

478
AVENSIS_EE (OM20B44E)
3-3. Using the interior lights
Interior lights list
Personal lights (P. 480)
Personal/interior lights (P. 479)
“ENGINE START STOP” switch light (if equipped)
Foot lights (if equipped)
Front door courtesy lights

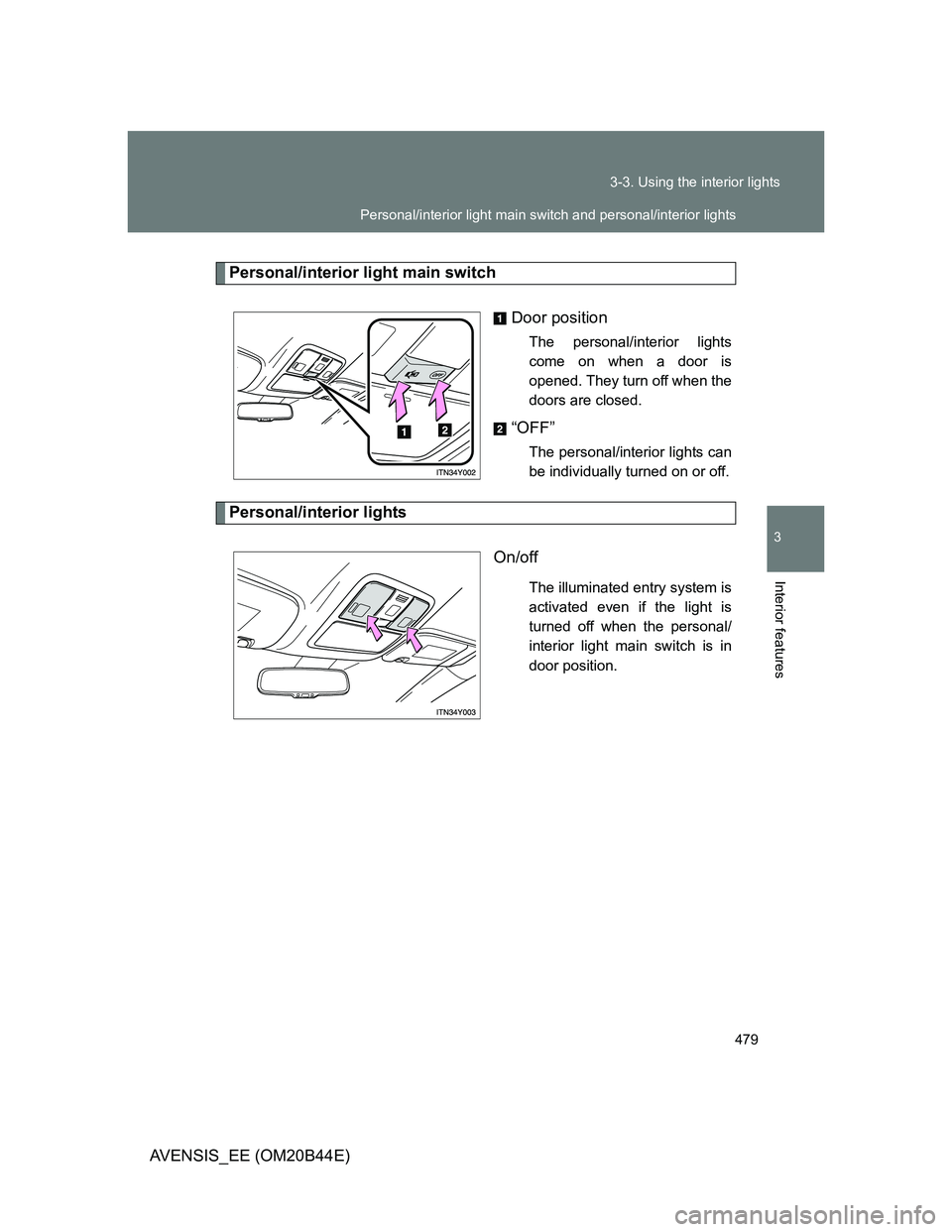

479 3-3. Using the interior lights
3
Interior features
AVENSIS_EE (OM20B44E)
Personal/interior light main switch
Door position
The personal/interior lights
come on when a door is
opened. They turn off when the
doors are closed.
“OFF”
The personal/interior lights can
be individually turned on or off.
Personal/interior lights
On/off
The illuminated entry system is
activated even if the light is
turned off when the personal/
interior light main switch is in
door position.
Personal/interior light main switch and personal/interior lights

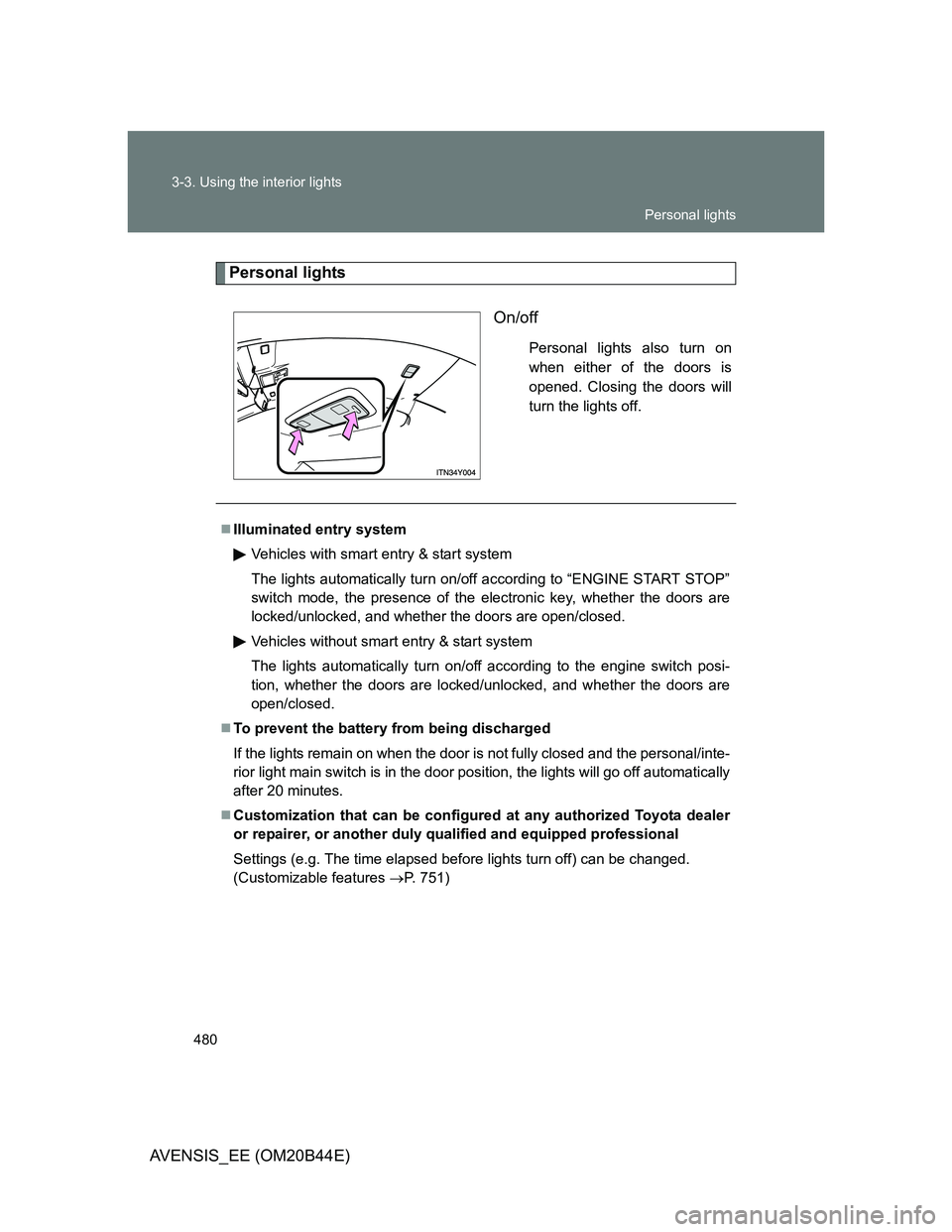

480 3-3. Using the interior lights
AVENSIS_EE (OM20B44E)
Personal lights
On/off
Personal lights also turn on
when either of the doors is
opened. Closing the doors will
turn the lights off.
Illuminated entry system
Vehicles with smart entry & start system
The lights automatically turn on/off according to “ENGINE START STOP”
switch mode, the presence of the electronic key, whether the doors are
locked/unlocked, and whether the doors are open/closed.
Vehicles without smart entry & start system
The lights automatically turn on/off according to the engine switch posi-
tion, whether the doors are locked/unlocked, and whether the doors are
open/closed.
To prevent the battery from being discharged
If the lights remain on when the door is not fully closed and the personal/inte-
rior light main switch is in the door position, the lights will go off automatically
after 20 minutes.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 751)
Personal lights
