TOYOTA AVENSIS 2012 Owners Manual

531
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)

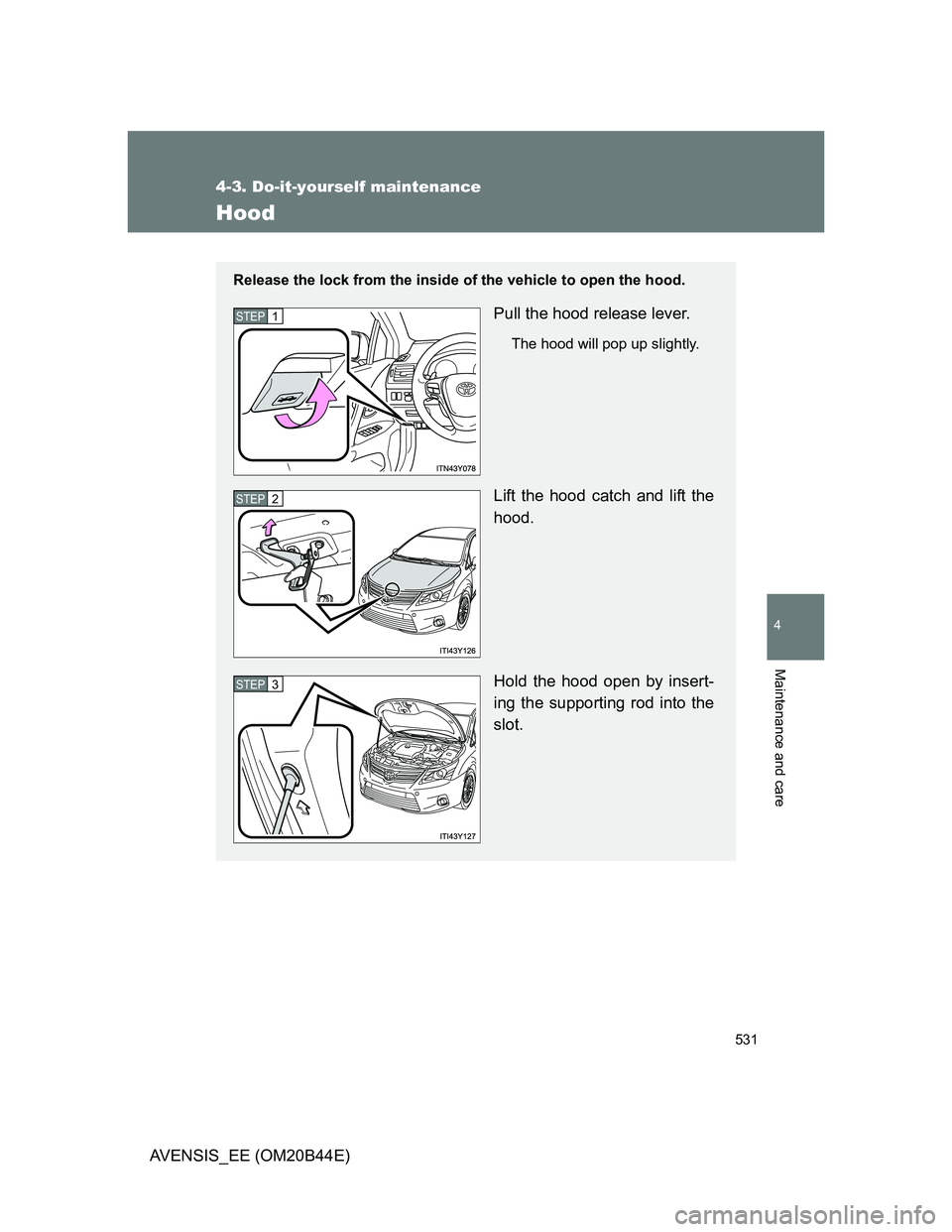

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the hood catch and lift the
hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3

532 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

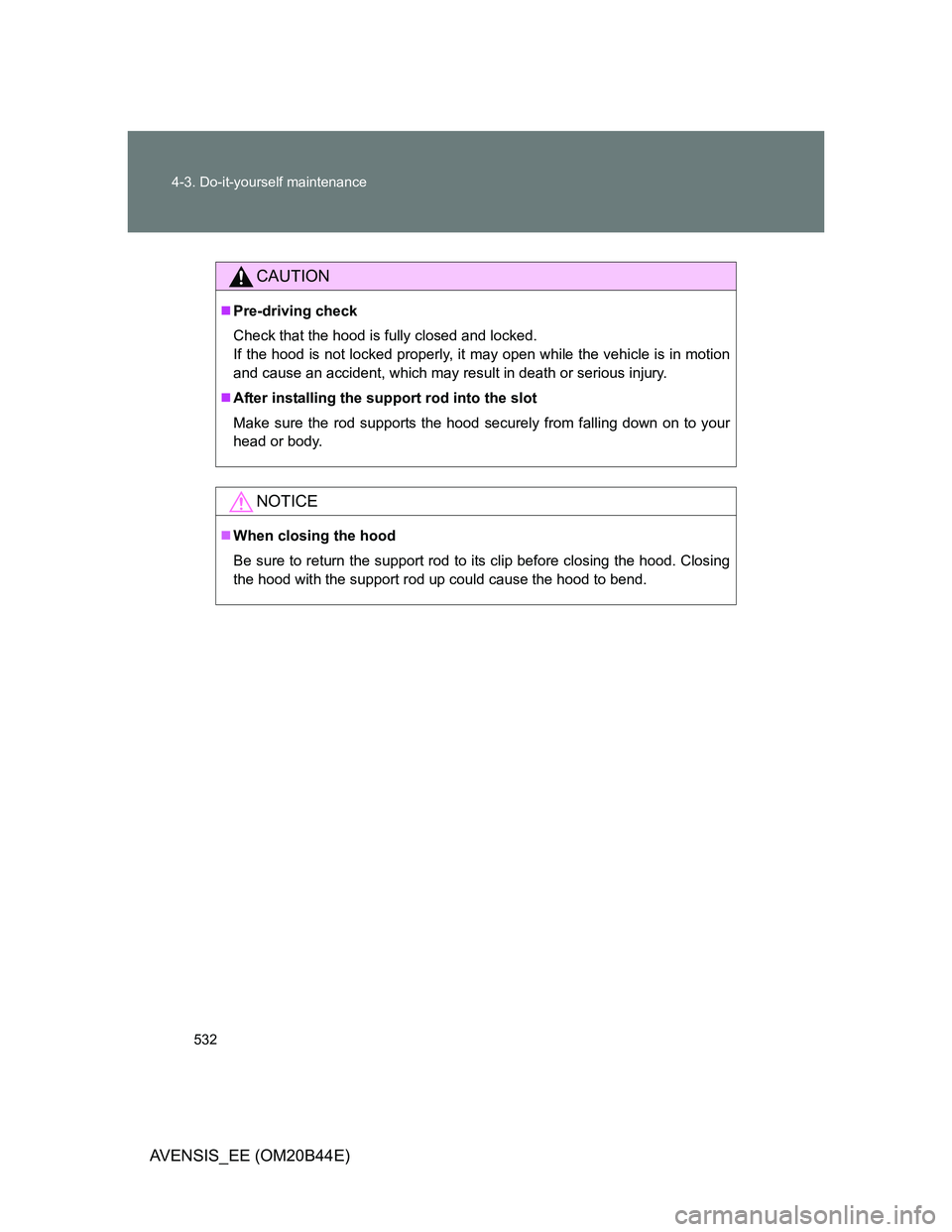

CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

533
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)

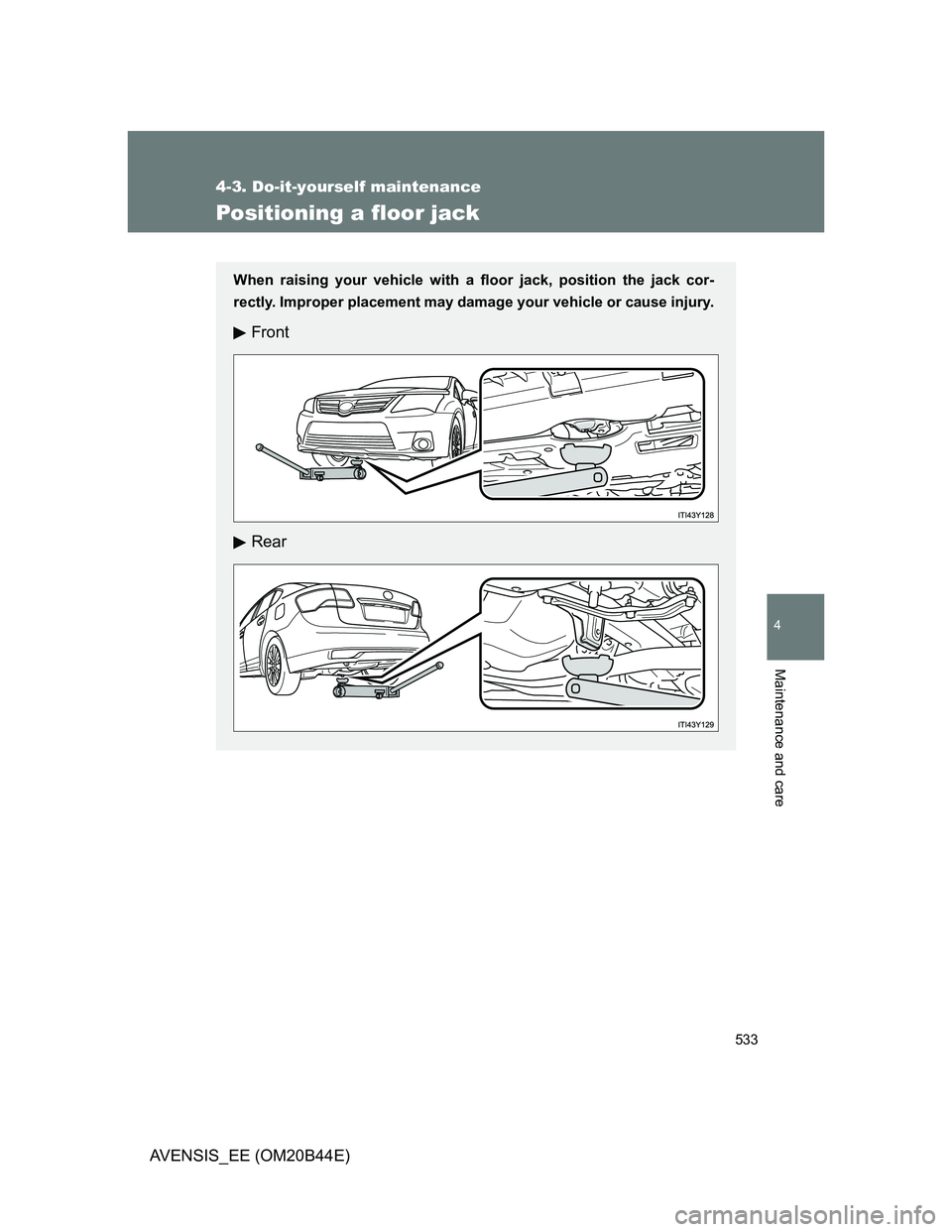

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
Front
Rear

534 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

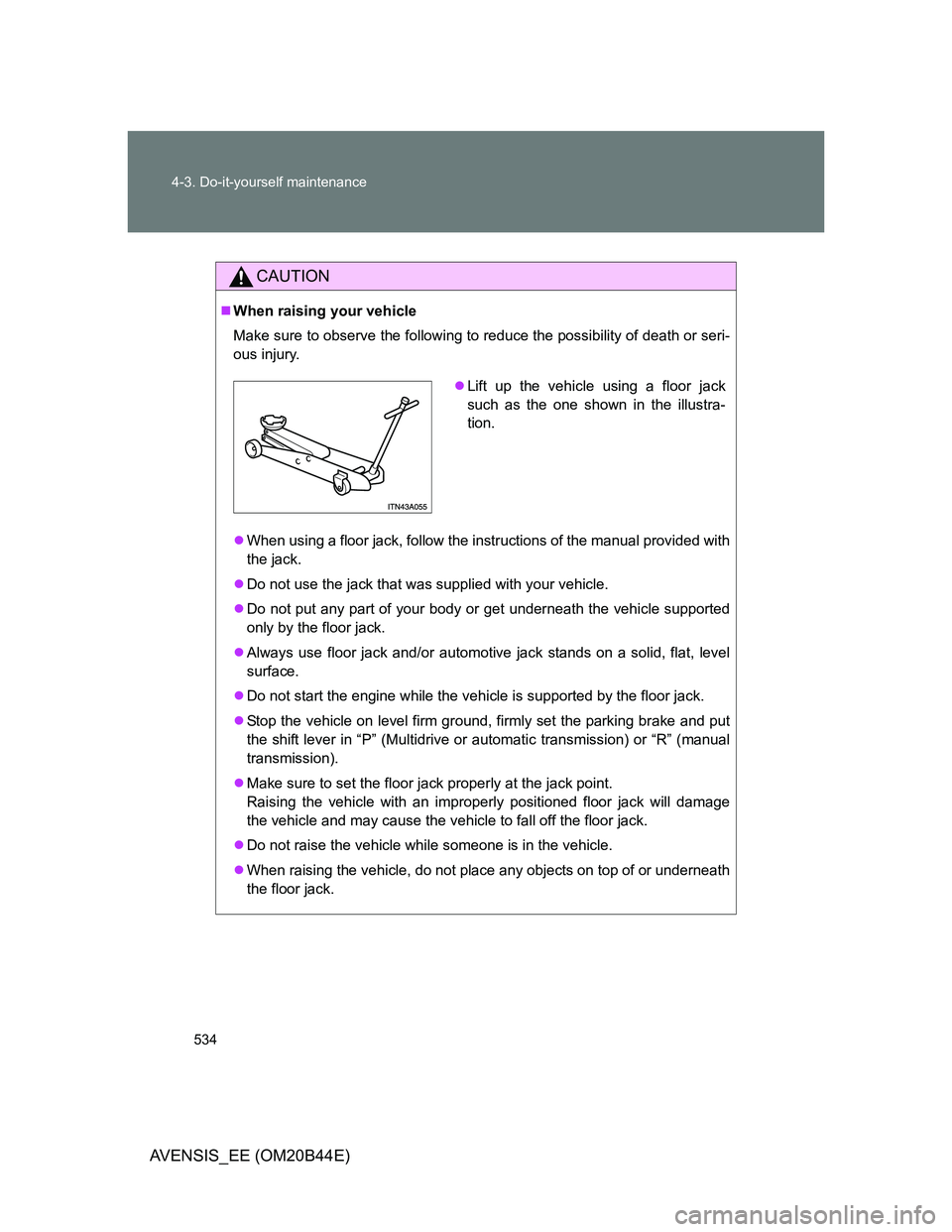

CAUTION
When raising your vehicle
Make sure to observe the following to reduce the possibility of death or seri-
ous injury.
When using a floor jack, follow the instructions of the manual provided with
the jack.
Do not use the jack that was supplied with your vehicle.
Do not put any part of your body or get underneath the vehicle supported
only by the floor jack.
Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
Do not start the engine while the vehicle is supported by the floor jack.
Stop the vehicle on level firm ground, firmly set the parking brake and put
the shift lever in “P” (Multidrive or automatic transmission) or “R” (manual
transmission).
Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
Do not raise the vehicle while someone is in the vehicle.
When raising the vehicle, do not place any objects on top of or underneath
the floor jack.
Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

535
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)

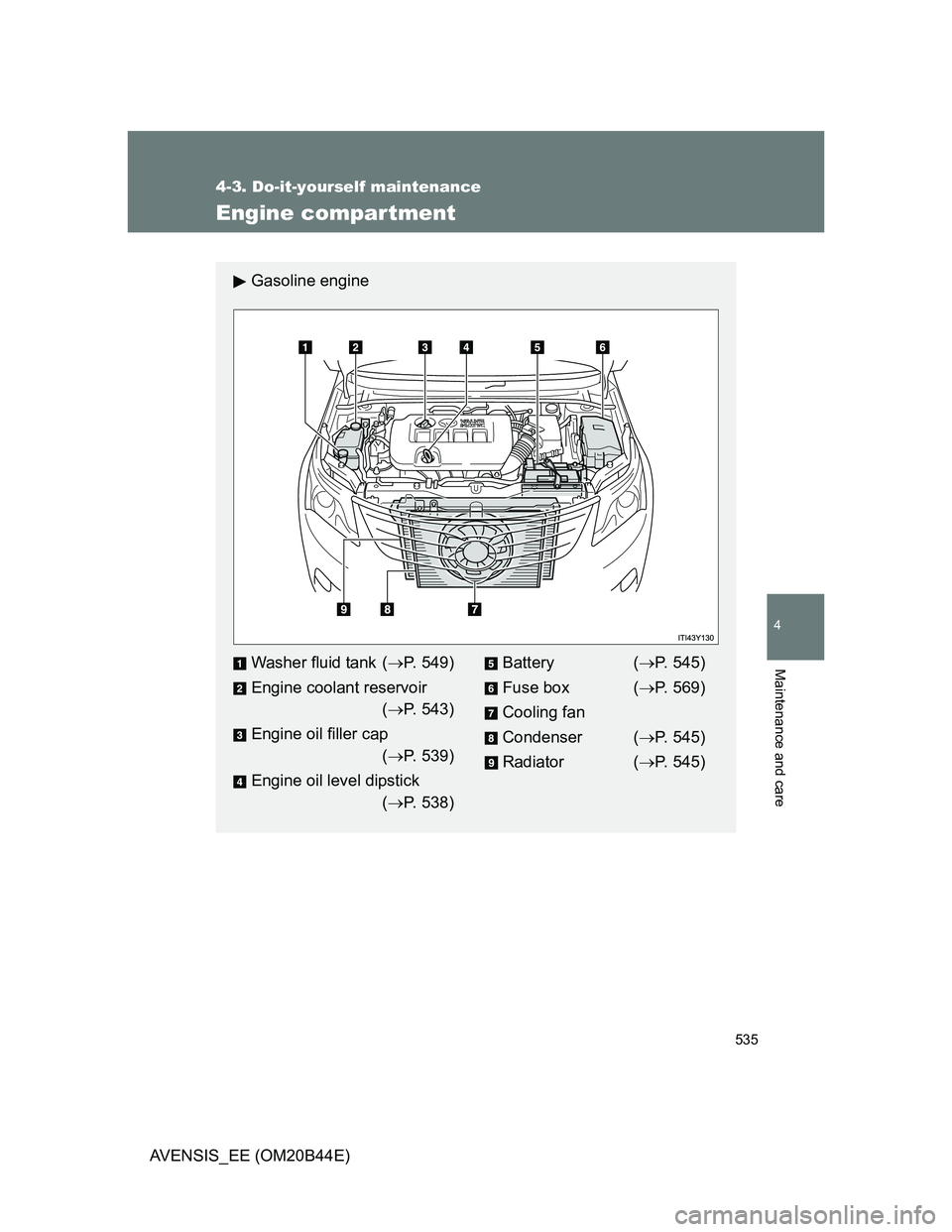

Engine compartment
Gasoline engine
Washer fluid tank (P. 549)
Engine coolant reservoir
(P. 543)
Engine oil filler cap
(P. 539)
Engine oil level dipstick
(P. 538)Battery (P. 545)
Fuse box (P. 569)
Cooling fan
Condenser (P. 545)
Radiator (P. 545)

536 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Diesel engine
Washer fluid tank (P. 549)
Engine coolant reservoir
(P. 543)
Engine oil level dipstick
(P. 538)
Engine oil filler cap
(P. 539)Fuel filter (P. 550, 713)
Fuse box (P. 569)
Battery (P. 545)
Cooling fans
Condenser (P. 545)
Intercooler (P. 545)
Radiator (P. 545)

537 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Engine compartment cover
Removing the engine compartment cover
Installing the clips
Rotate center portion
Push up center portion
Insert
Press
NOTICE
After installing an engine compartment cover
Make sure that the cover is securely installed in its original position.

538 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

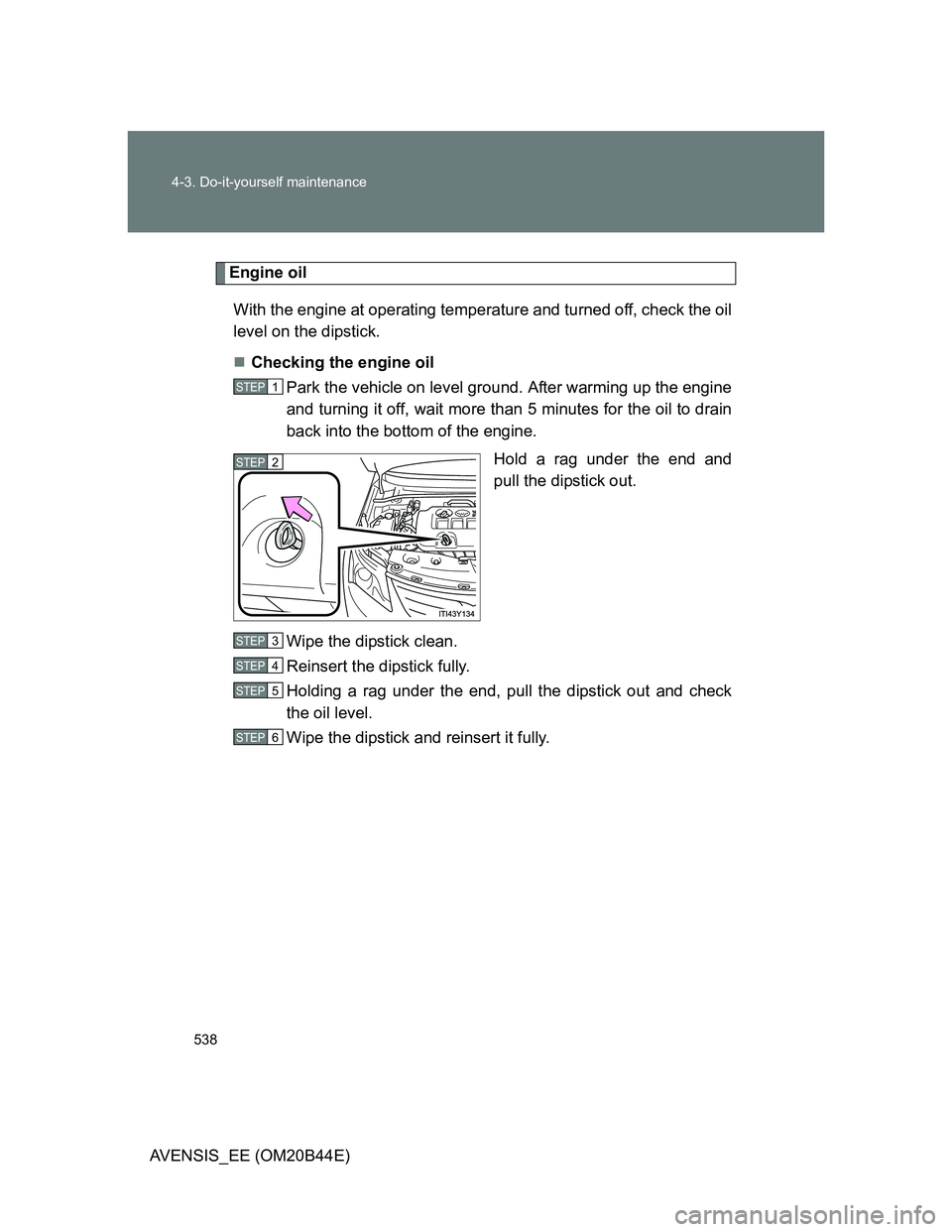

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than 5 minutes for the oil to drain
back into the bottom of the engine.
Hold a rag under the end and
pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6

539 4-3. Do-it-yourself maintenance
4
Maintenance and care

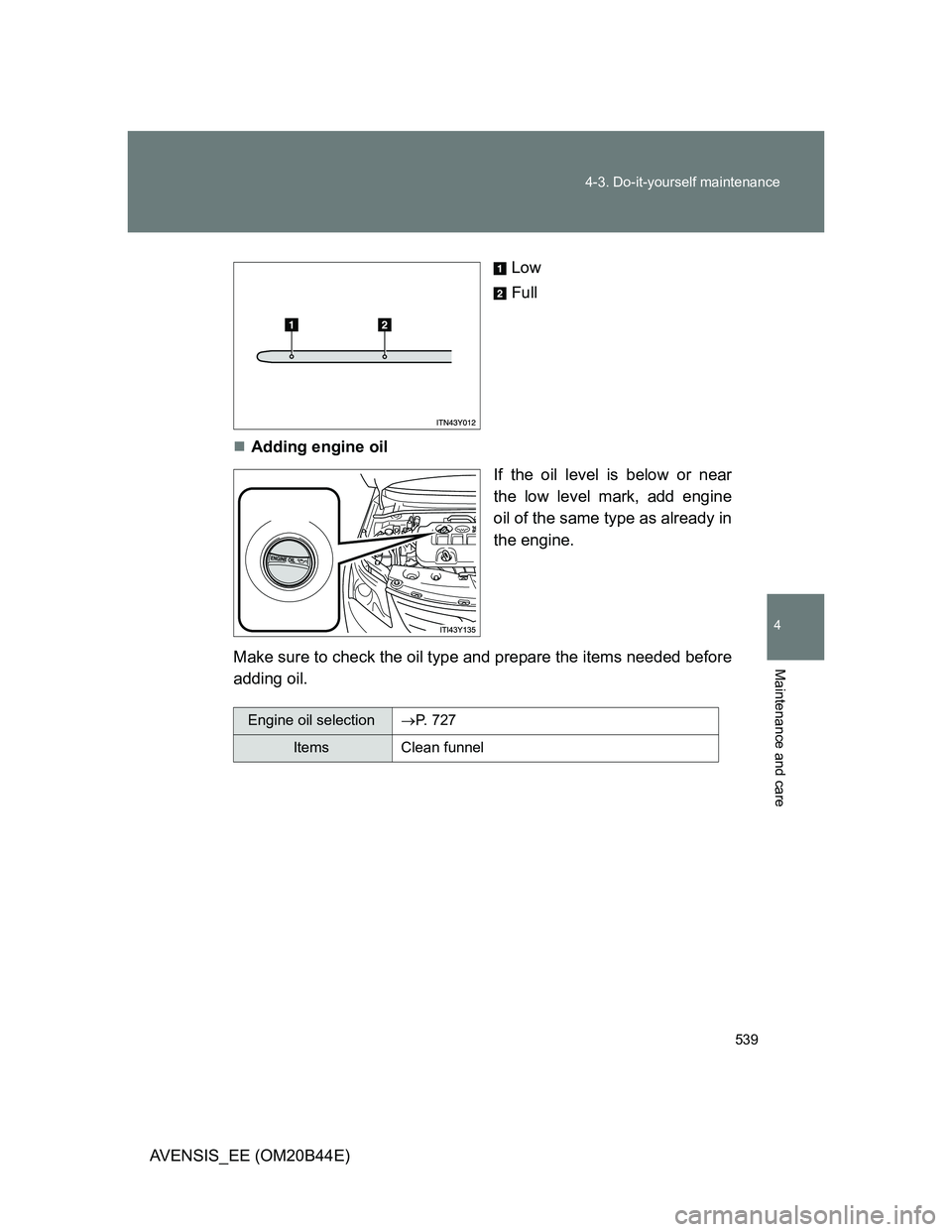

AVENSIS_EE (OM20B44E)Low
Full
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as already in
the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Engine oil selectionP. 727
Items Clean funnel

540 4-3. Do-it-yourself maintenance

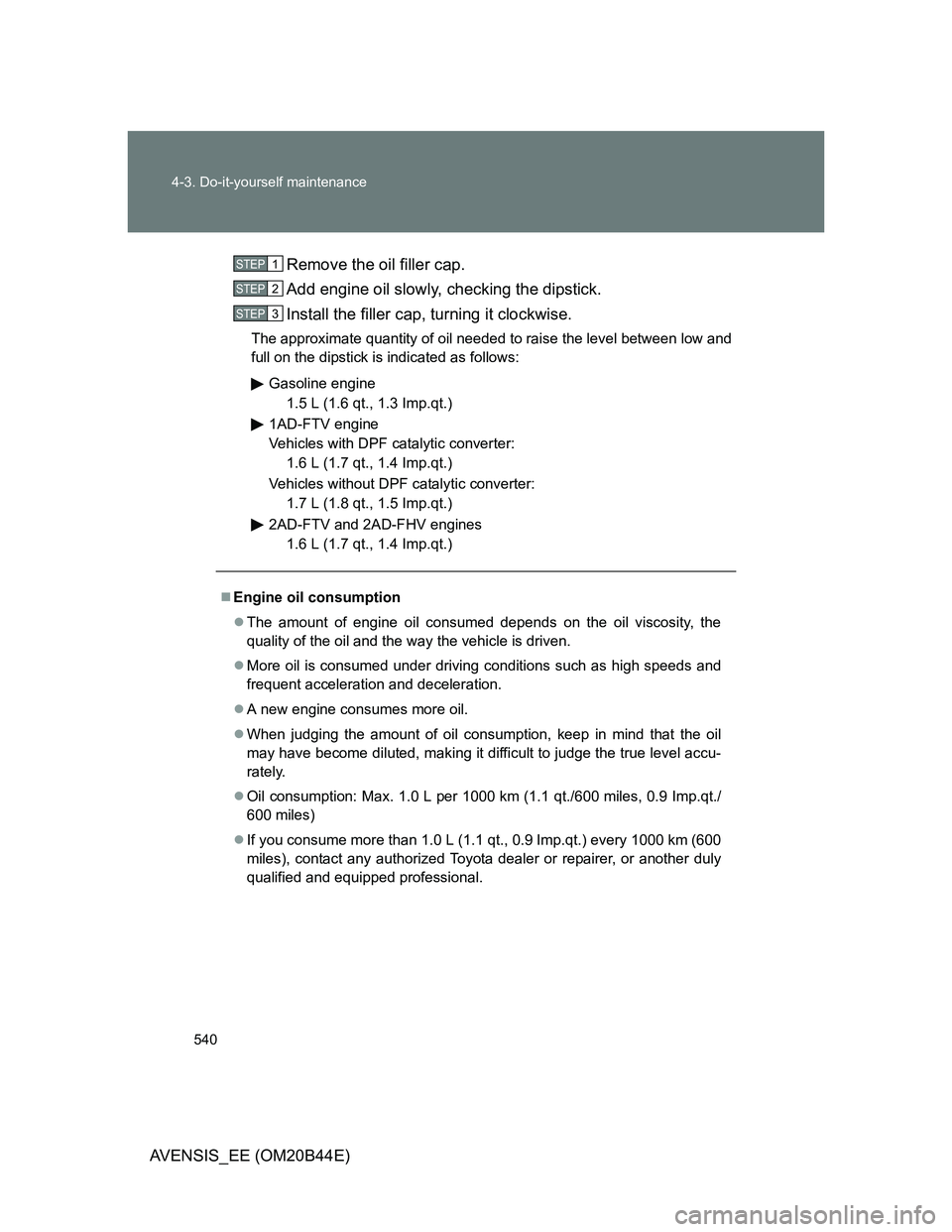

AVENSIS_EE (OM20B44E)Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.
The approximate quantity of oil needed to raise the level between low and
full on the dipstick is indicated as follows:
Gasoline engine
1.5 L (1.6 qt., 1.3 Imp.qt.)
1AD-FTV engine
Vehicles with DPF catalytic converter:
1.6 L (1.7 qt., 1.4 Imp.qt.)
Vehicles without DPF catalytic converter:
1.7 L (1.8 qt., 1.5 Imp.qt.)
2AD-FTV and 2AD-FHV engines
1.6 L (1.7 qt., 1.4 Imp.qt.)
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
Oil consumption: Max. 1.0 L per 1000 km (1.1 qt./600 miles, 0.9 Imp.qt./
600 miles)
If you consume more than 1.0 L (1.1 qt., 0.9 Imp.qt.) every 1000 km (600
miles), contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
STEP1
STEP2
STEP3
