TOYOTA AVENSIS 2012 Owners Manual

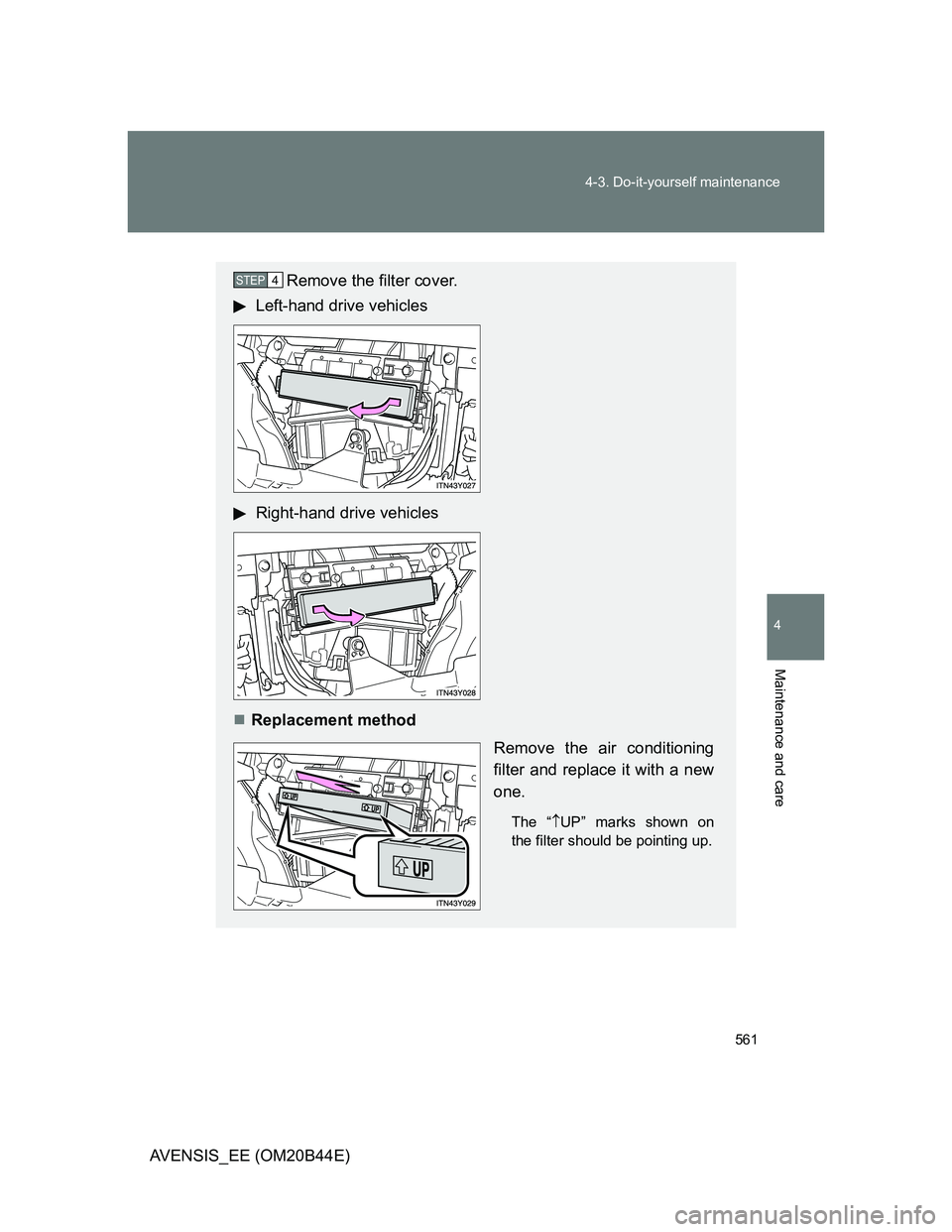

561 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Remove the filter cover.
Left-hand drive vehicles
Right-hand drive vehicles
Replacement method
Remove the air conditioning
filter and replace it with a new
one.
The “UP” marks shown on
the filter should be pointing up.
STEP4

562 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

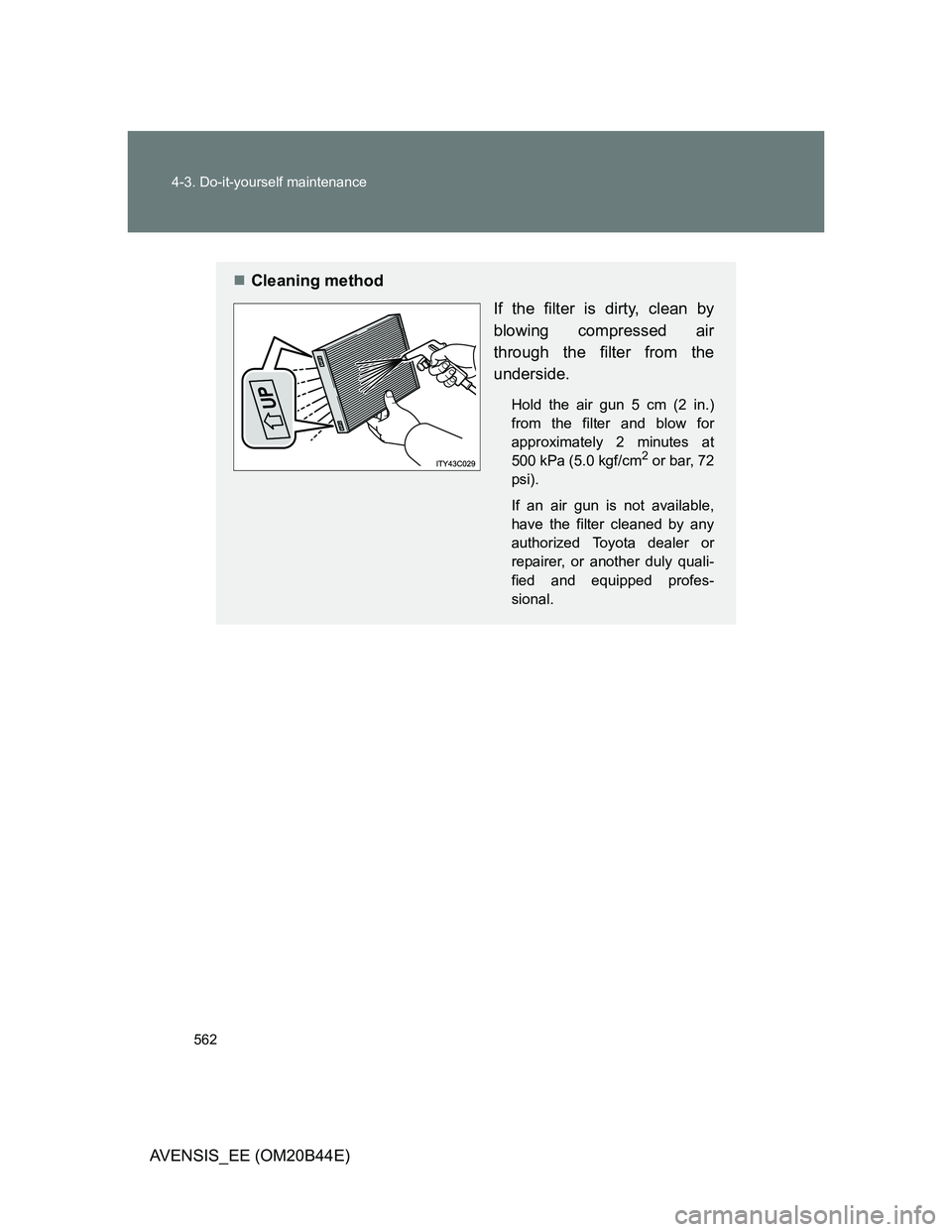

Cleaning method
If the filter is dirty, clean by
blowing compressed air
through the filter from the
underside.
Hold the air gun 5 cm (2 in.)
from the filter and blow for
approximately 2 minutes at
500 kPa (5.0 kgf/cm
2 or bar, 72
psi).
If an air gun is not available,
have the filter cleaned by any
authorized Toyota dealer or
repairer, or another duly quali-
fied and equipped profes-
sional.

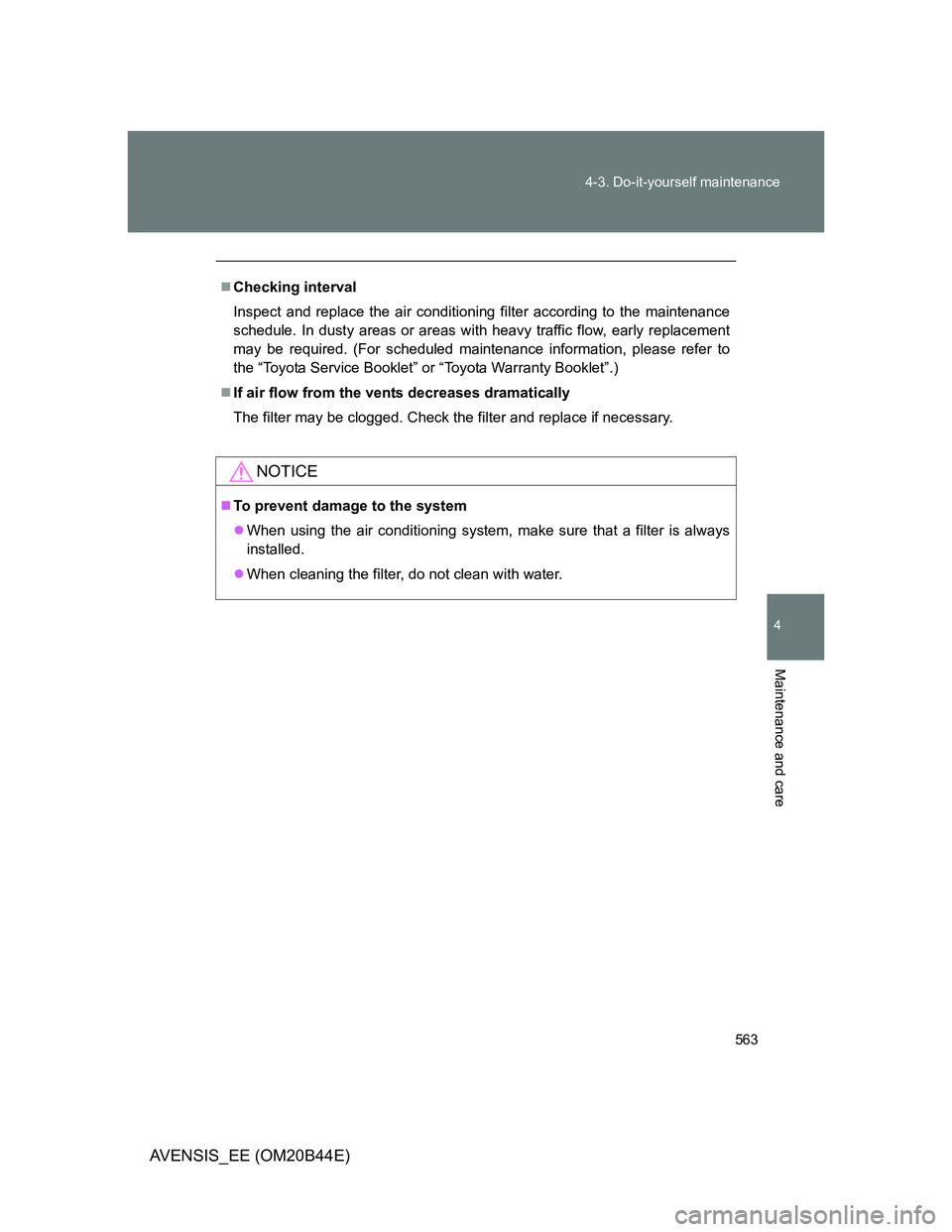

563 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to
the “Toyota Service Booklet” or “Toyota Warranty Booklet”.)
If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
NOTICE
To prevent damage to the system
When using the air conditioning system, make sure that a filter is always
installed.
When cleaning the filter, do not clean with water.

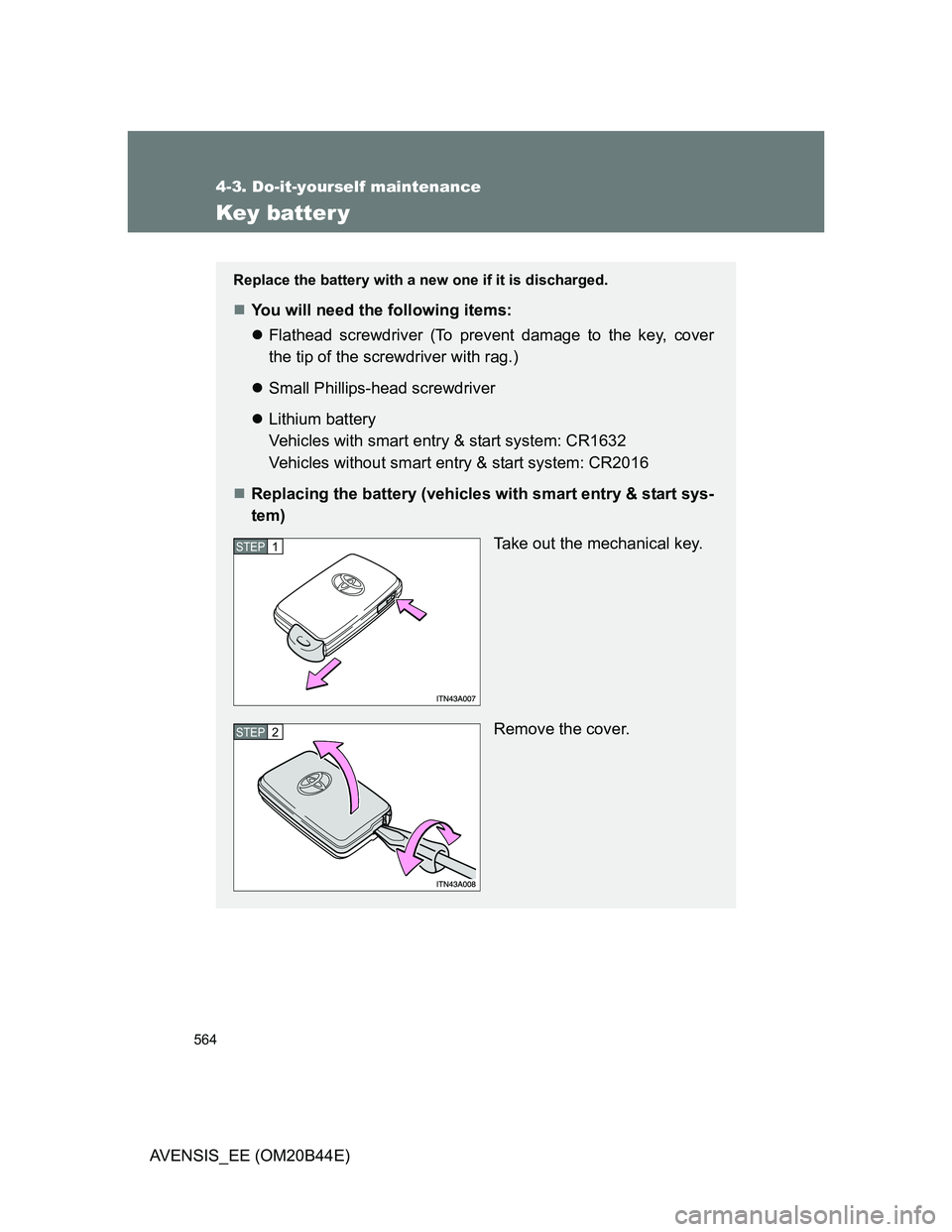

564
4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Key batter y
Replace the battery with a new one if it is discharged.
You will need the following items:
Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with rag.)
Small Phillips-head screwdriver
Lithium battery
Vehicles with smart entry & start system: CR1632
Vehicles without smart entry & start system: CR2016
Replacing the battery (vehicles with smart entry & start sys-
tem)
Take out the mechanical key.
Remove the cover.
STEP1
STEP2

565 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)

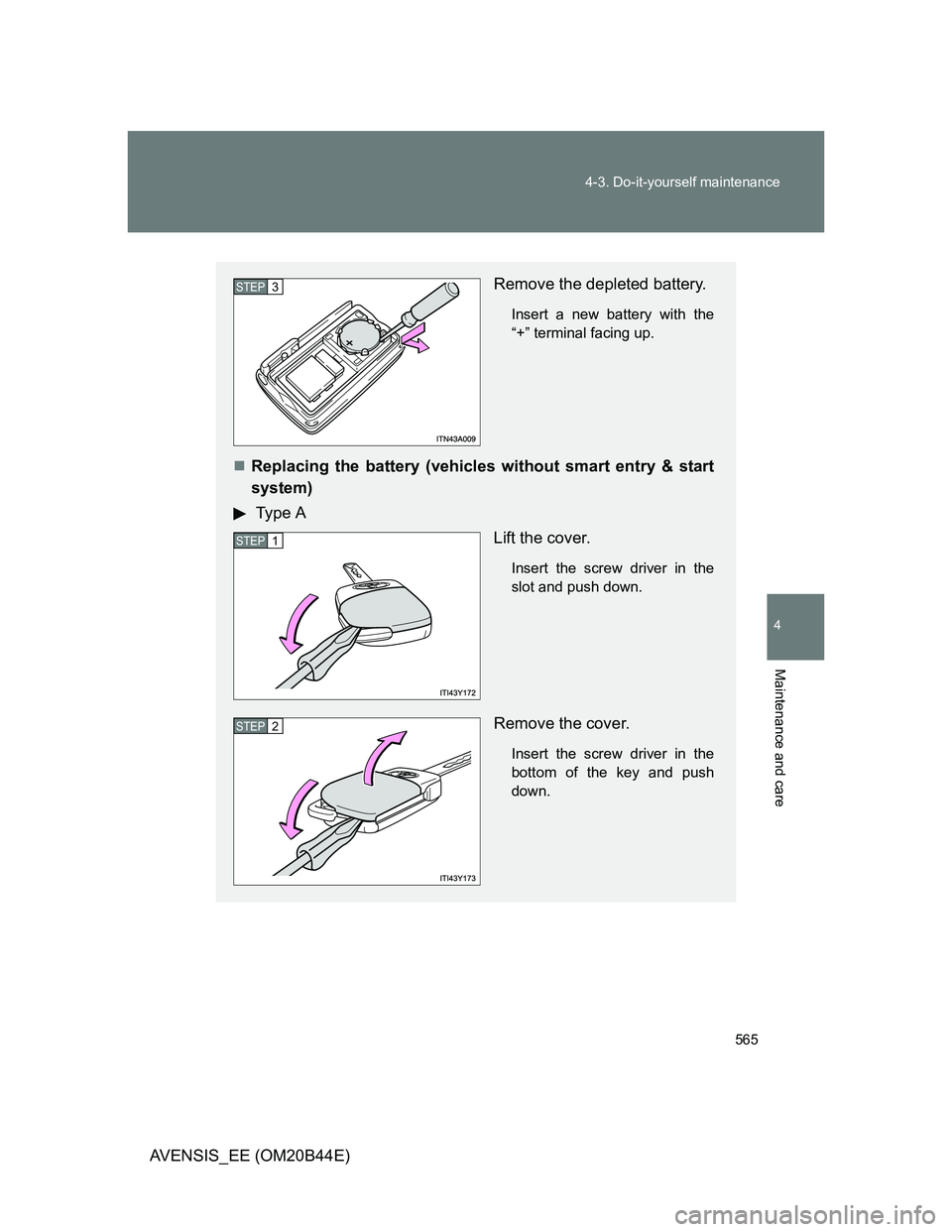

Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
Replacing the battery (vehicles without smart entry & start
system)
Type A
Lift the cover.
Insert the screw driver in the
slot and push down.
Remove the cover.
Insert the screw driver in the
bottom of the key and push
down.
STEP3
STEP1
STEP2

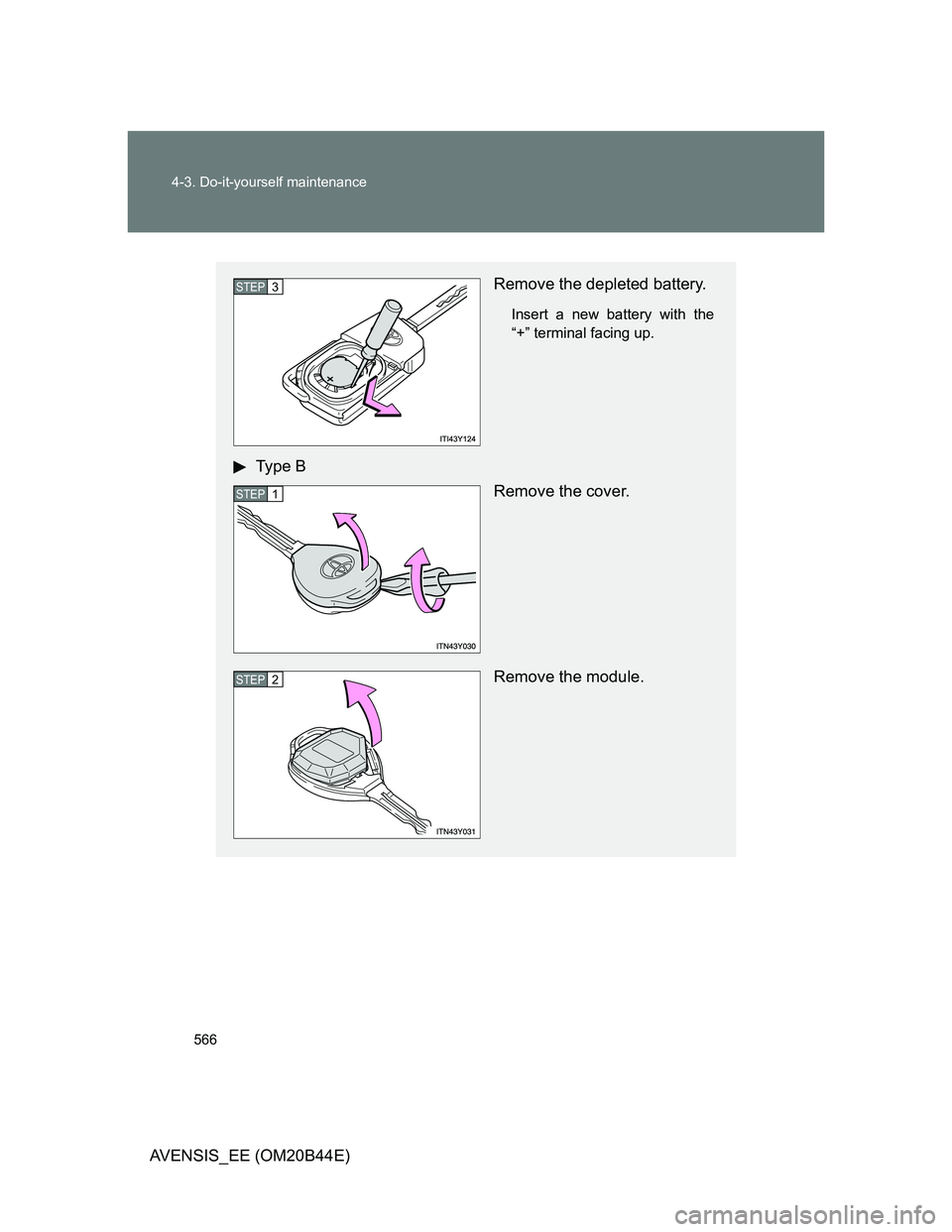

566 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
Type B
Remove the cover.
Remove the module.
STEP3
STEP1
STEP2

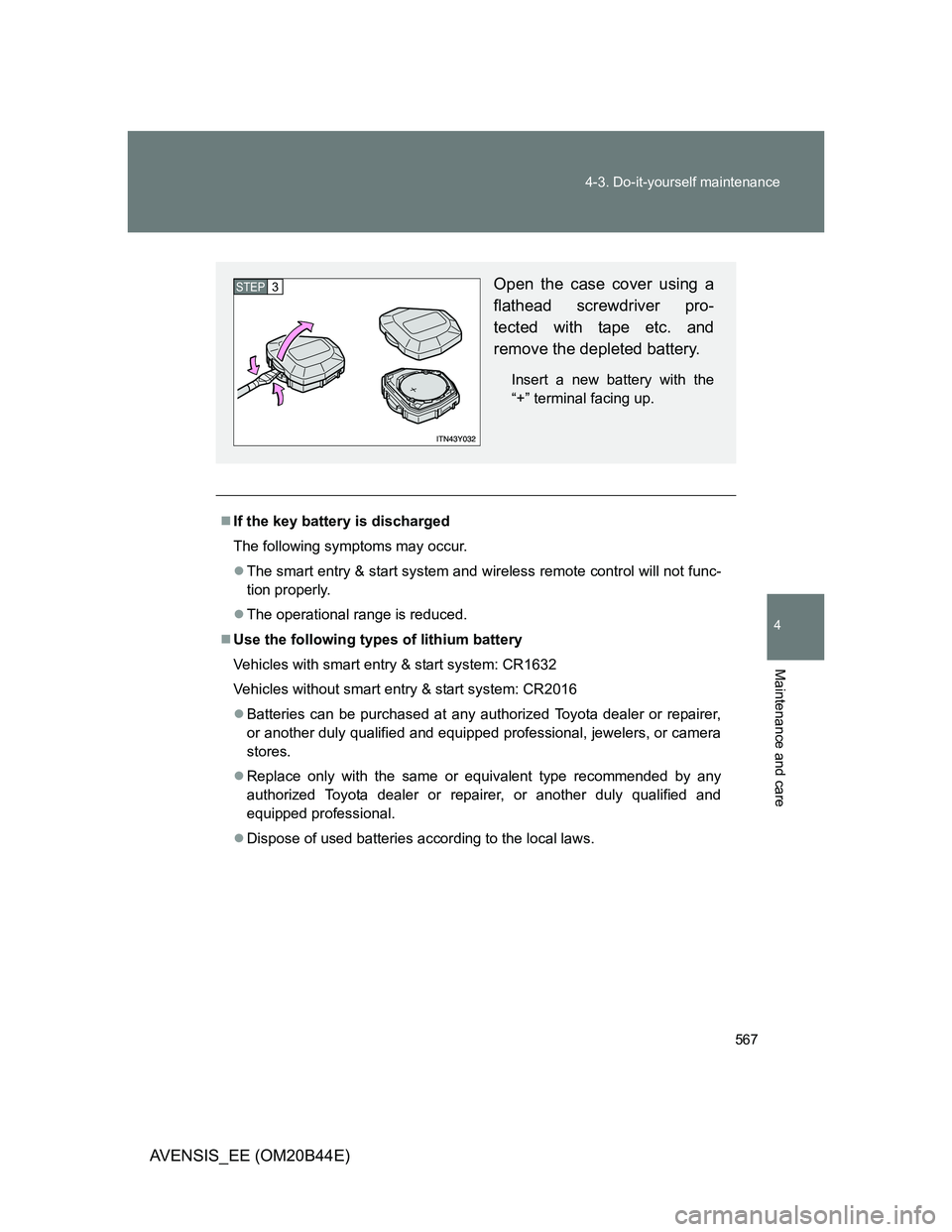

567 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
If the key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not func-
tion properly.
The operational range is reduced.
Use the following types of lithium battery
Vehicles with smart entry & start system: CR1632
Vehicles without smart entry & start system: CR2016
Batteries can be purchased at any authorized Toyota dealer or repairer,
or another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

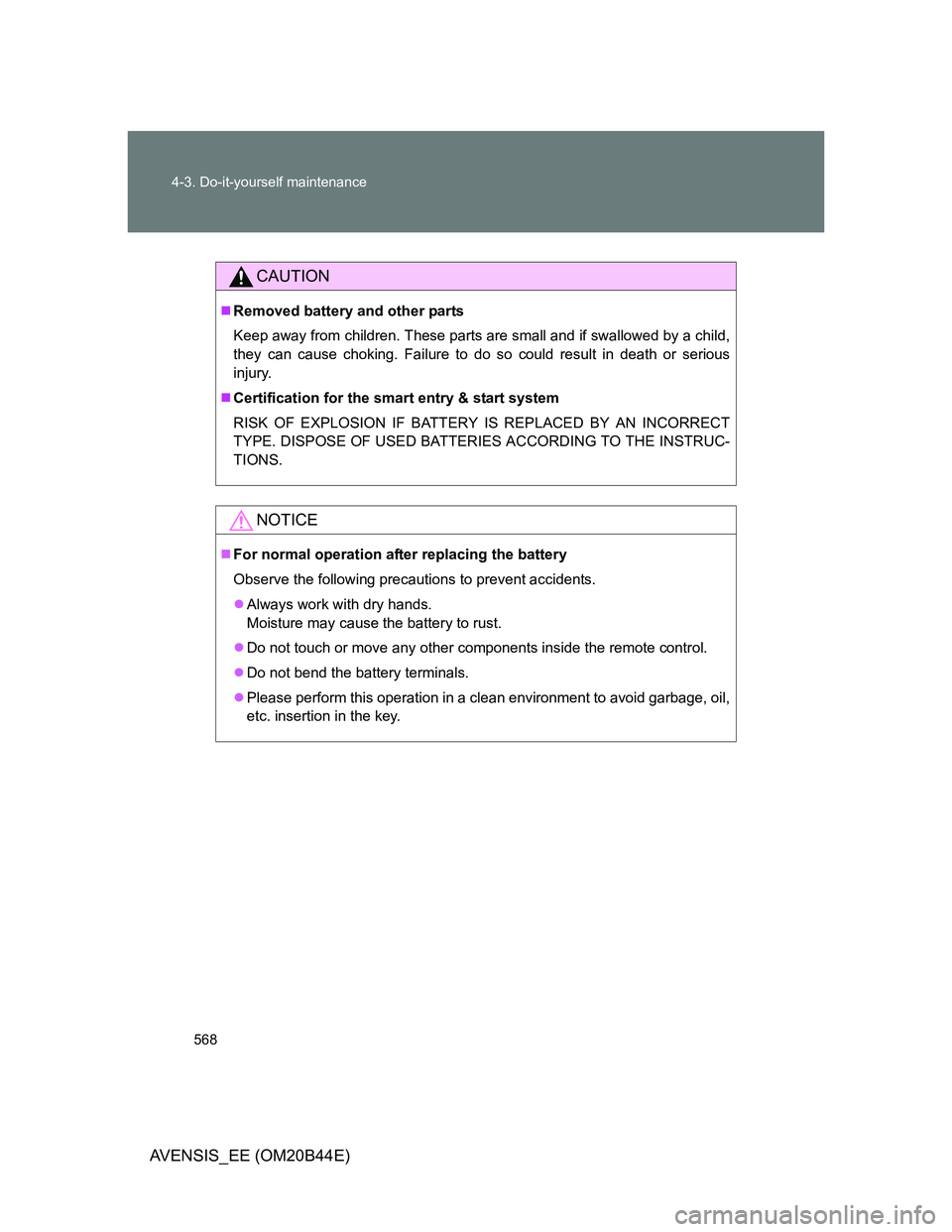

568 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT
TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUC-
TIONS.
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend the battery terminals.
Please perform this operation in a clean environment to avoid garbage, oil,
etc. insertion in the key.

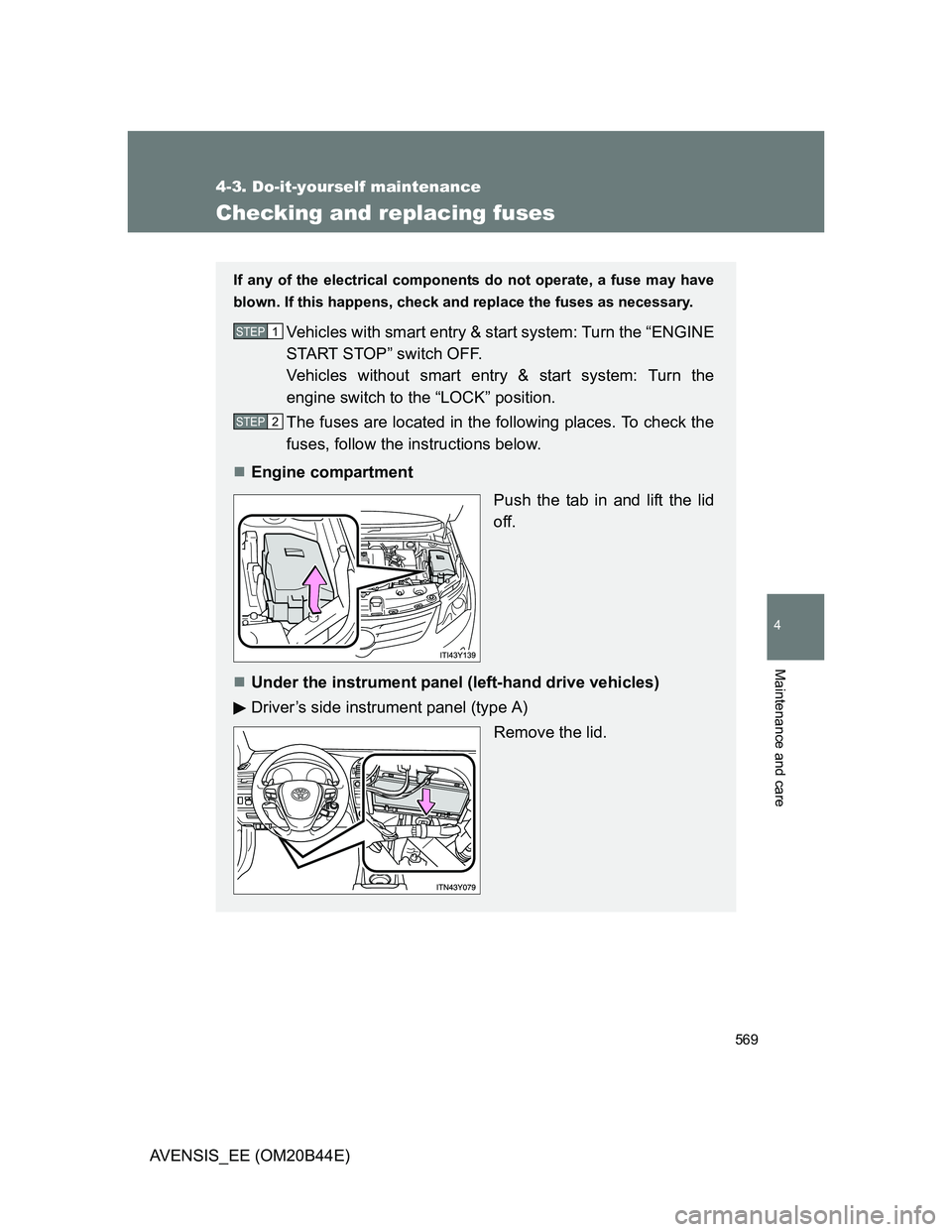

569
4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_EE (OM20B44E)
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have
blown. If this happens, check and replace the fuses as necessary.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch OFF.
Vehicles without smart entry & start system: Turn the
engine switch to the “LOCK” position.
The fuses are located in the following places. To check the
fuses, follow the instructions below.
Engine compartment
Push the tab in and lift the lid
off.
Under the instrument panel (left-hand drive vehicles)
Driver’s side instrument panel (type A)
Remove the lid.
STEP1
STEP2

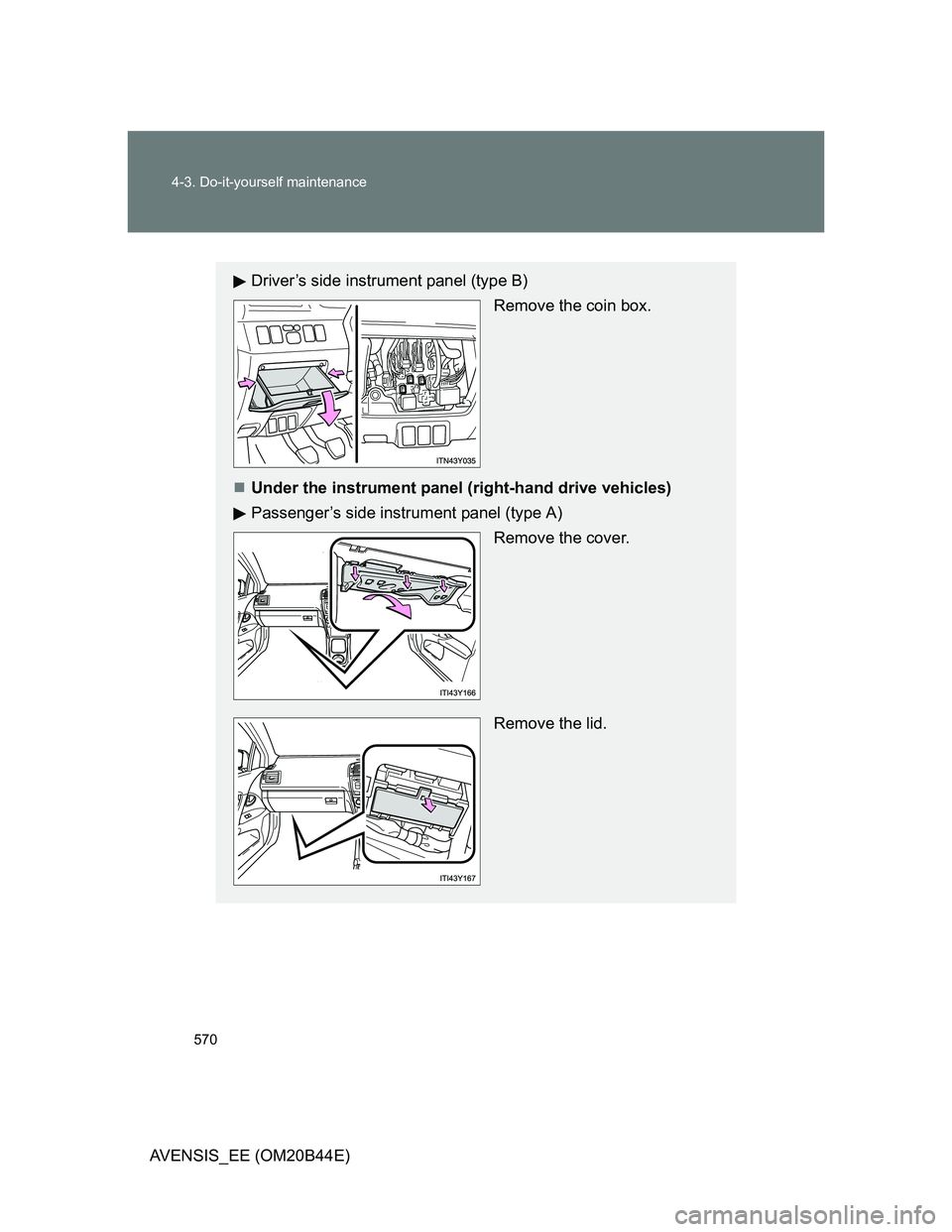

570 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)
Driver’s side instrument panel (type B) Remove the coin box.
Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
Remove the lid.
