TOYOTA AVENSIS 2012 Owners Manual

5

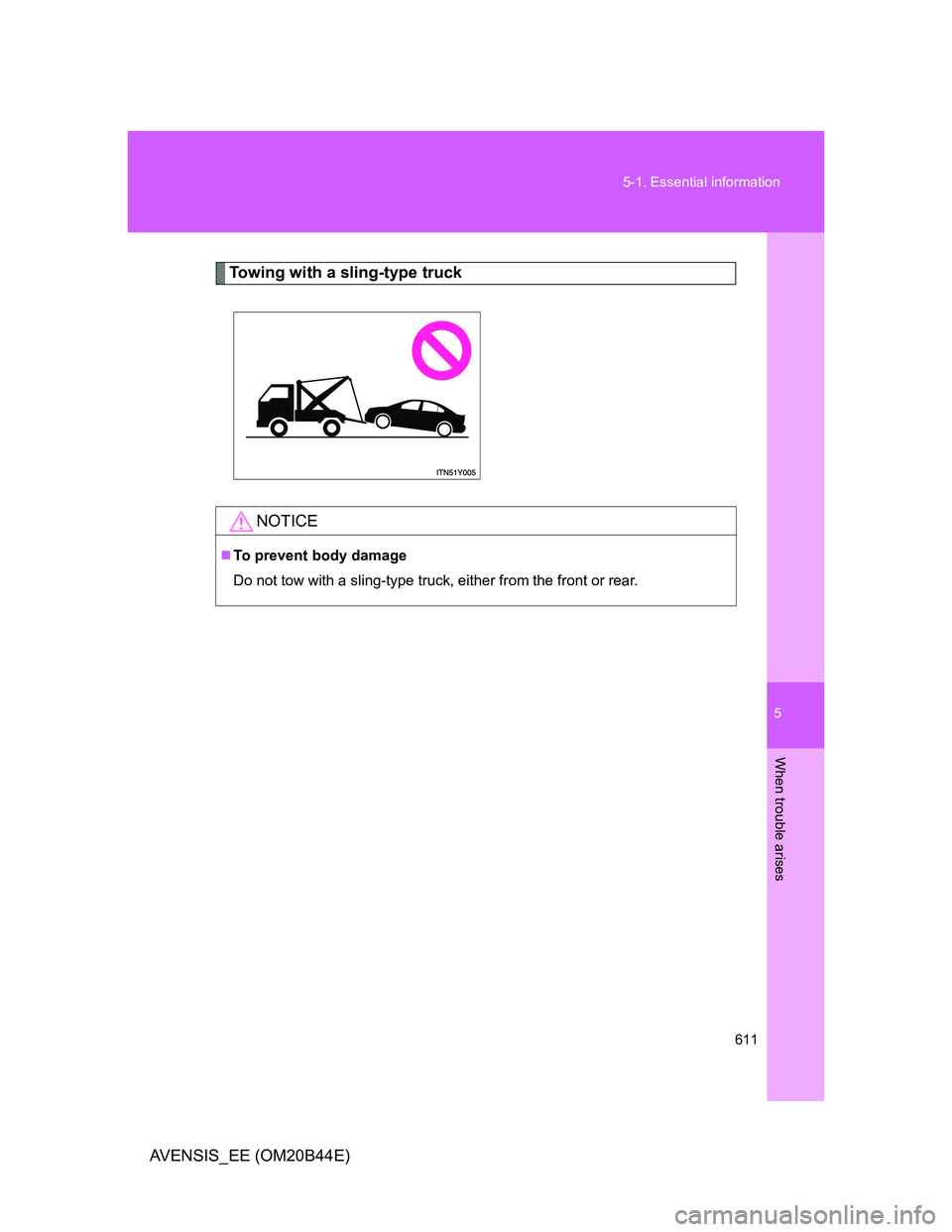

611 5-1. Essential information
When trouble arises
AVENSIS_EE (OM20B44E)
Towing with a sling-type truck
NOTICE
To prevent body damage
Do not tow with a sling-type truck, either from the front or rear.

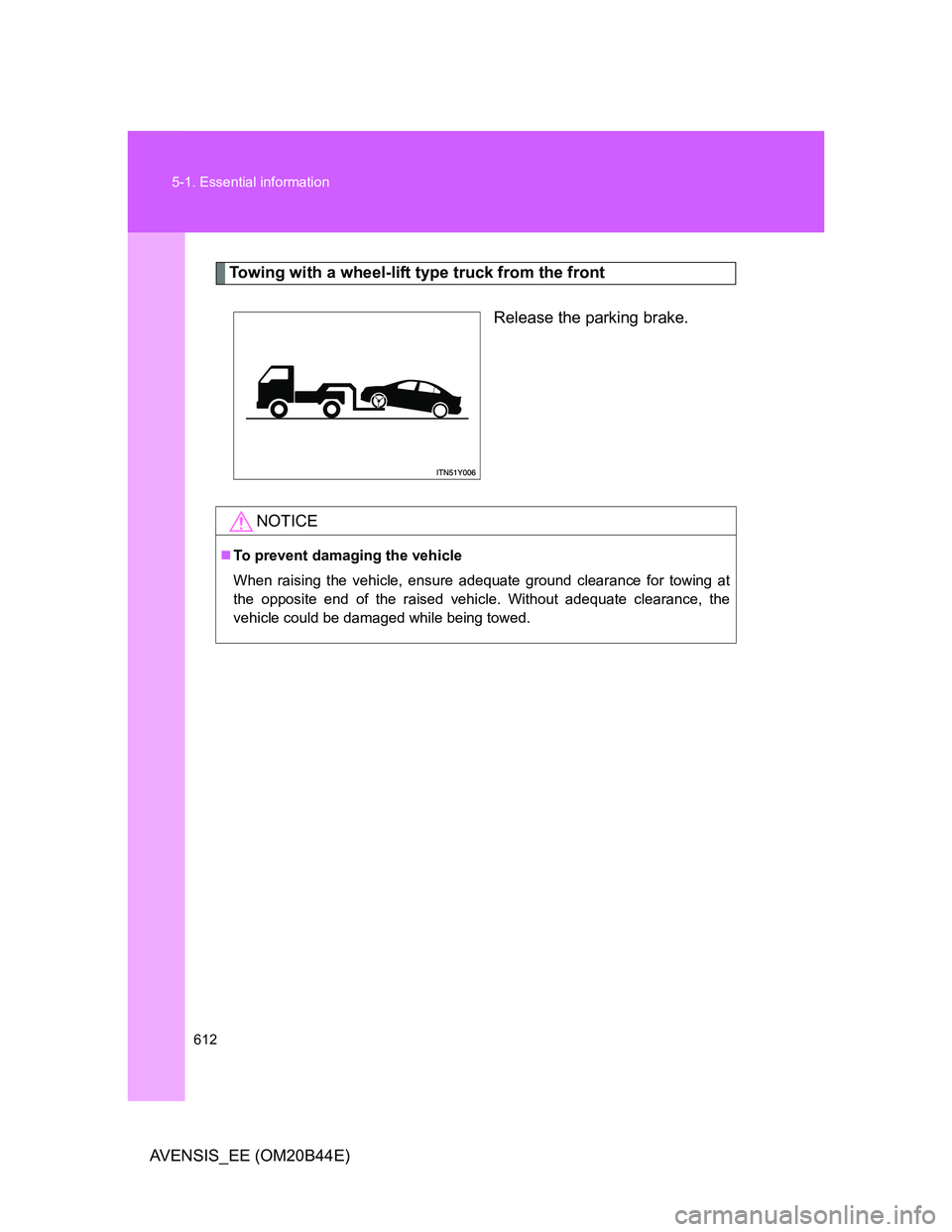

612 5-1. Essential information
AVENSIS_EE (OM20B44E)
Towing with a wheel-lift type truck from the front
Release the parking brake.
NOTICE
To prevent damaging the vehicle
When raising the vehicle, ensure adequate ground clearance for towing at
the opposite end of the raised vehicle. Without adequate clearance, the
vehicle could be damaged while being towed.

5
613 5-1. Essential information
When trouble arises
AVENSIS_EE (OM20B44E)

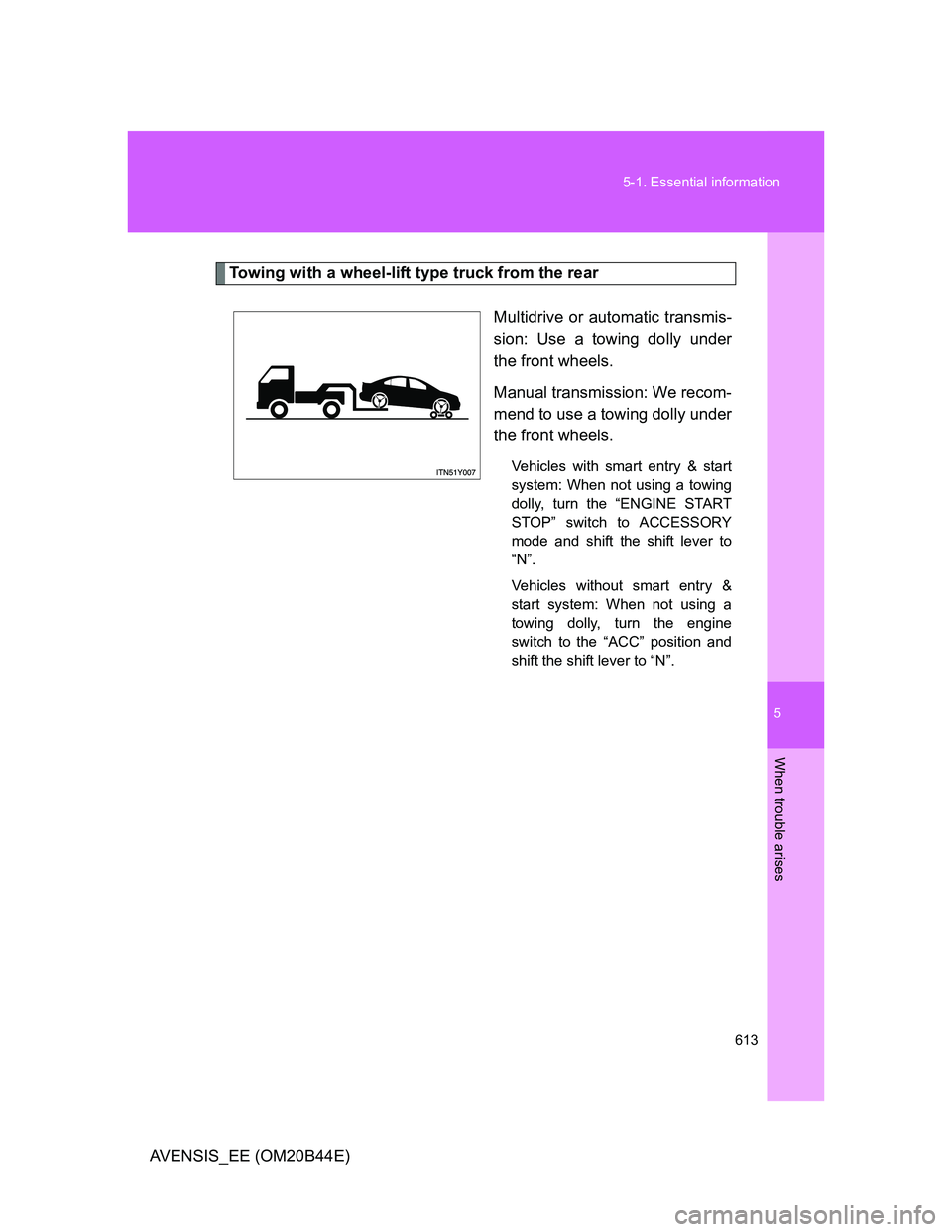

Towing with a wheel-lift type truck from the rear
Multidrive or automatic transmis-
sion: Use a towing dolly under
the front wheels.
Manual transmission: We recom-
mend to use a towing dolly under
the front wheels.
Vehicles with smart entry & start
system: When not using a towing
dolly, turn the “ENGINE START
STOP” switch to ACCESSORY
mode and shift the shift lever to
“N”.
Vehicles without smart entry &
start system: When not using a
towing dolly, turn the engine
switch to the “ACC” position and
shift the shift lever to “N”.

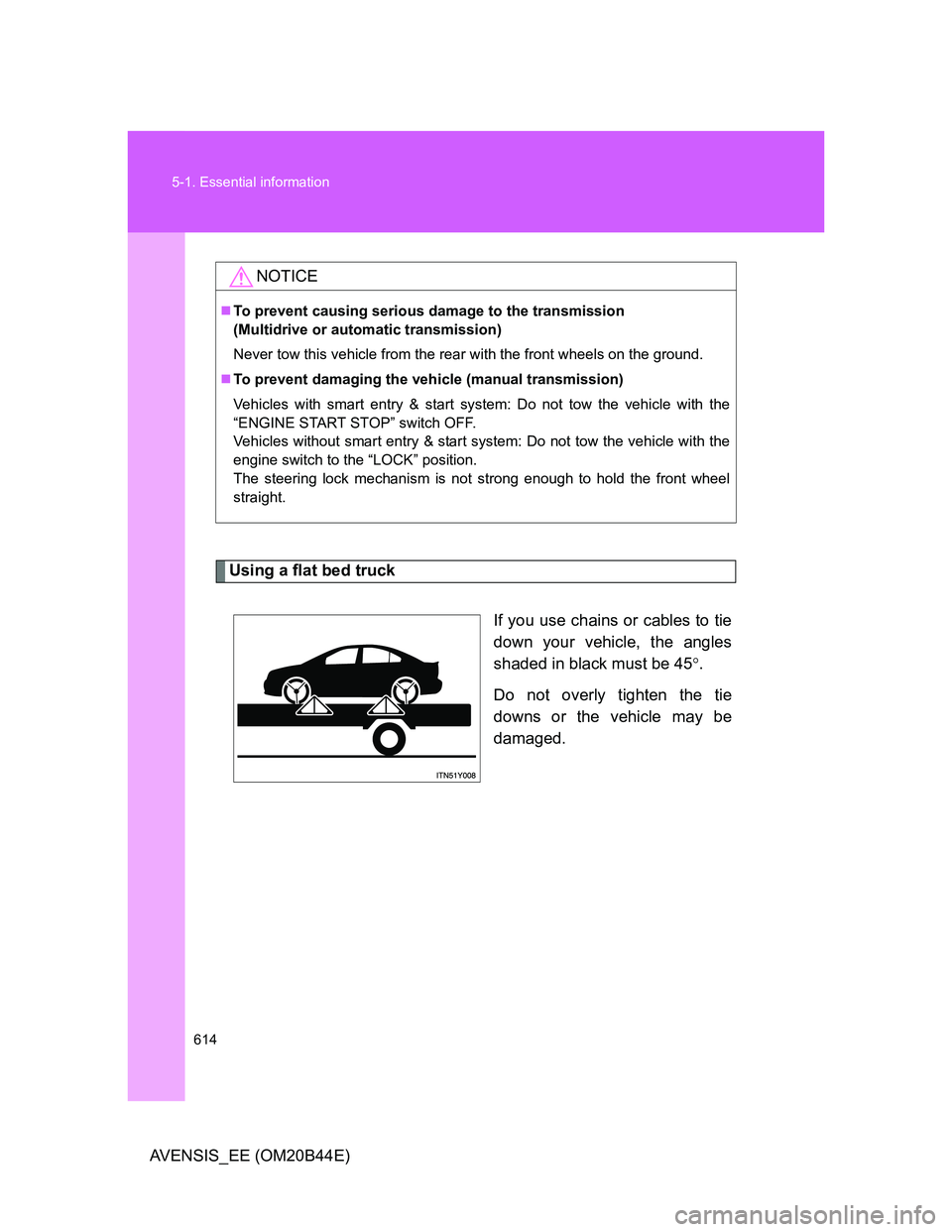

614 5-1. Essential information
AVENSIS_EE (OM20B44E)
Using a flat bed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
NOTICE
To prevent causing serious damage to the transmission
(Multidrive or automatic transmission)
Never tow this vehicle from the rear with the front wheels on the ground.
To prevent damaging the vehicle (manual transmission)
Vehicles with smart entry & start system: Do not tow the vehicle with the
“ENGINE START STOP” switch OFF.
Vehicles without smart entry & start system: Do not tow the vehicle with the
engine switch to the “LOCK” position.
The steering lock mechanism is not strong enough to hold the front wheel
straight.

5
615
5-1. Essential information
When trouble arises
AVENSIS_EE (OM20B44E)

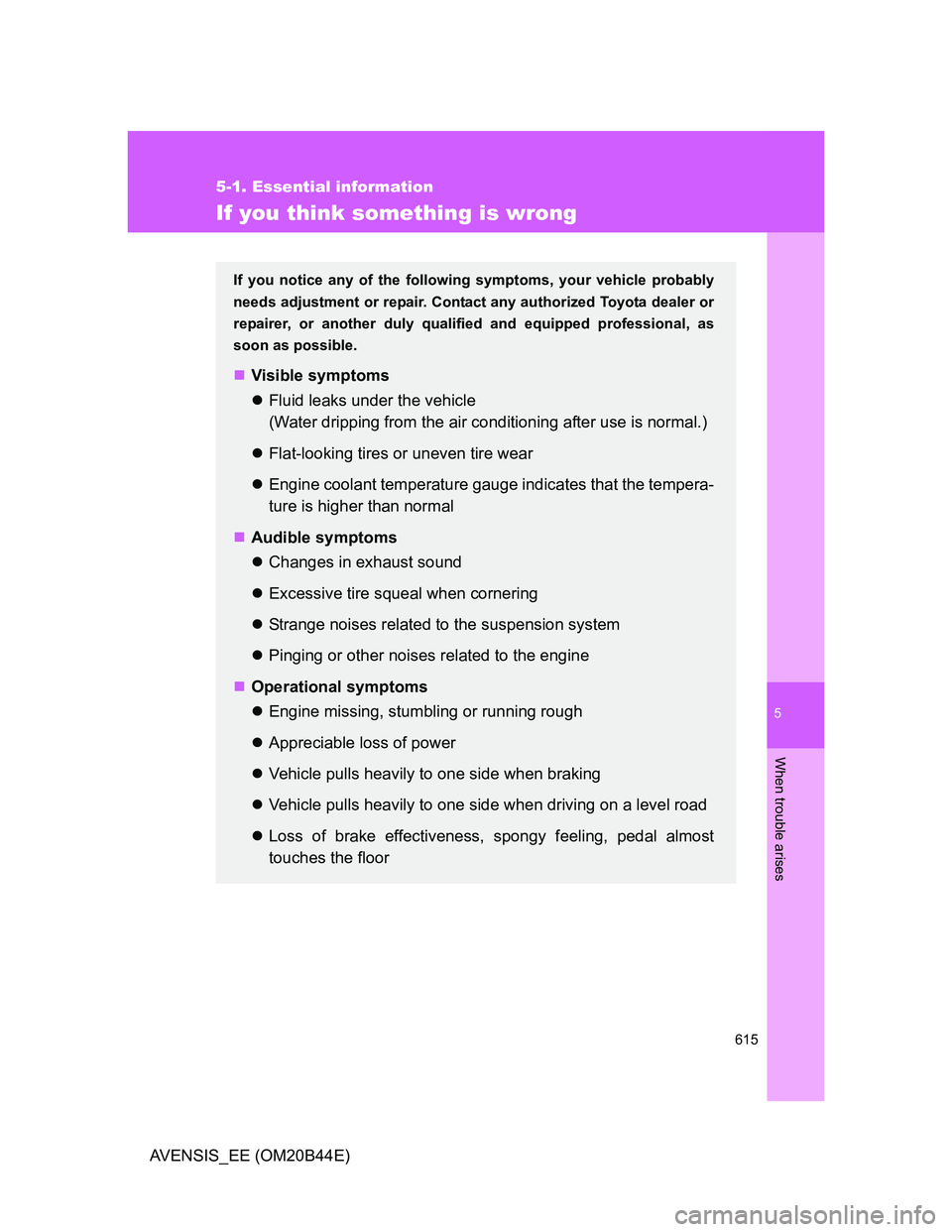

If you think something is wrong
If you notice any of the following symptoms, your vehicle probably
needs adjustment or repair. Contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, as
soon as possible.
Visible symptoms
Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
Flat-looking tires or uneven tire wear
Engine coolant temperature gauge indicates that the tempera-
ture is higher than normal
Audible symptoms
Changes in exhaust sound
Excessive tire squeal when cornering
Strange noises related to the suspension system
Pinging or other noises related to the engine
Operational symptoms
Engine missing, stumbling or running rough
Appreciable loss of power
Vehicle pulls heavily to one side when braking
Vehicle pulls heavily to one side when driving on a level road
Loss of brake effectiveness, spongy feeling, pedal almost
touches the floor

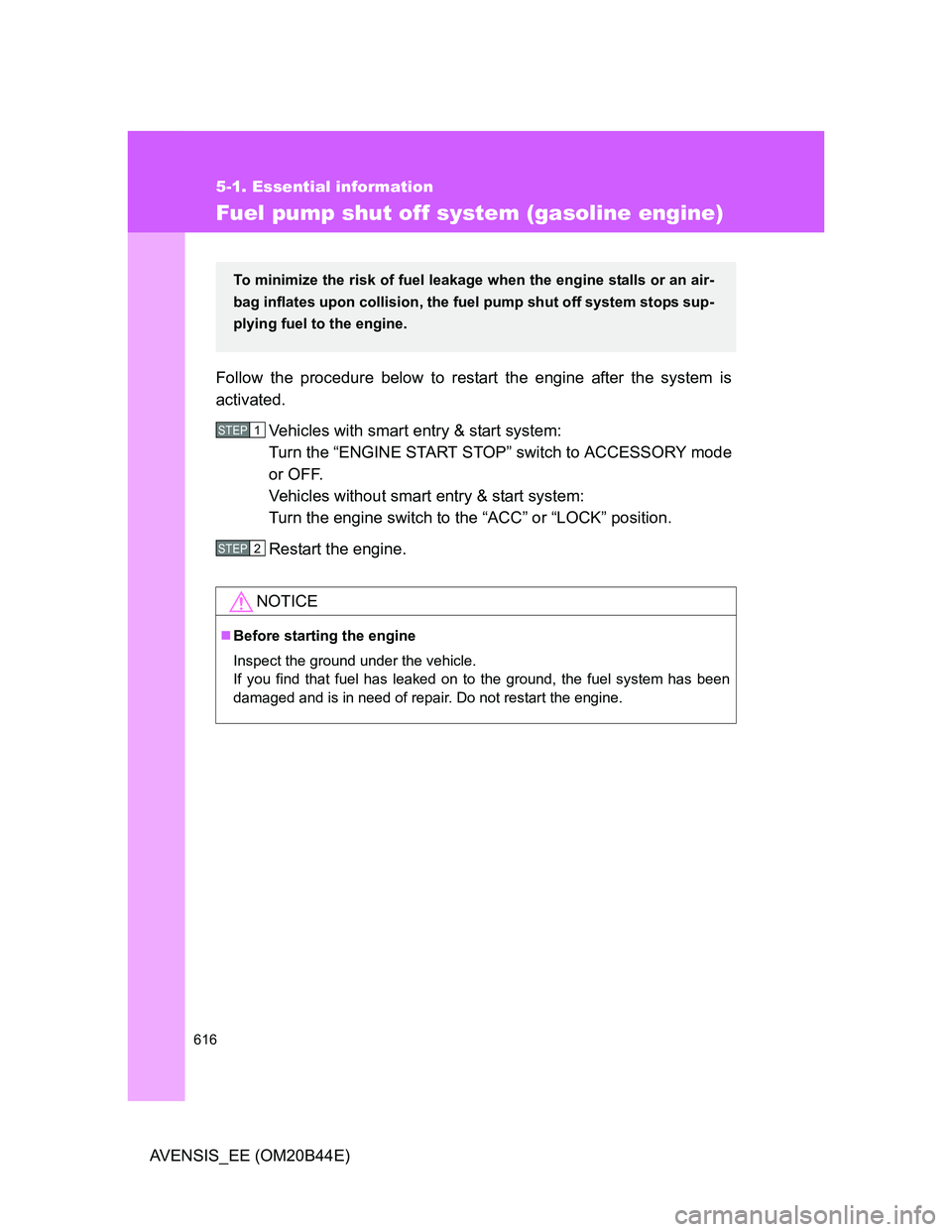

616
5-1. Essential information
AVENSIS_EE (OM20B44E)
Fuel pump shut off system (gasoline engine)
Follow the procedure below to restart the engine after the system is
activated.
Vehicles with smart entry & start system:
Turn the “ENGINE START STOP” switch to ACCESSORY mode
or OFF.
Vehicles without smart entry & start system:
Turn the engine switch to the “ACC” or “LOCK” position.
Restart the engine.
NOTICE
Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been
damaged and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an air-
bag inflates upon collision, the fuel pump shut off system stops sup-
plying fuel to the engine.
STEP1
STEP2

5

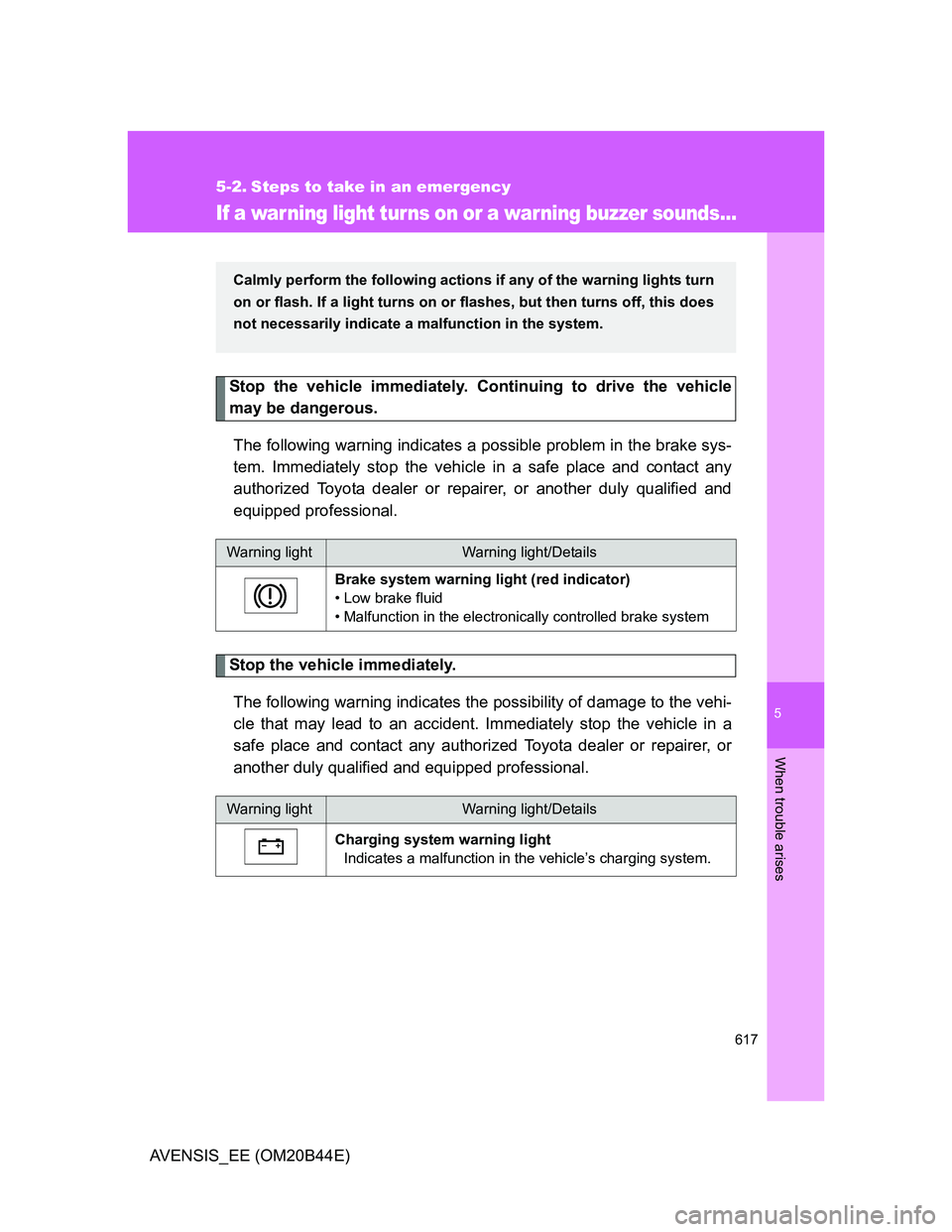

617
When trouble arises
AVENSIS_EE (OM20B44E)
5-2. Steps to take in an emergency
If a war ning light tur ns on or a war ning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle
may be dangerous.
The following warning indicates a possible problem in the brake sys-
tem. Immediately stop the vehicle in a safe place and contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehi-
cle that may lead to an accident. Immediately stop the vehicle in a
safe place and contact any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
Warning lightWarning light/Details
Brake system warning light (red indicator)
• Low brake fluid
• Malfunction in the electronically controlled brake system
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
Calmly perform the following actions if any of the warning lights turn
on or flash. If a light turns on or flashes, but then turns off, this does
not necessarily indicate a malfunction in the system.

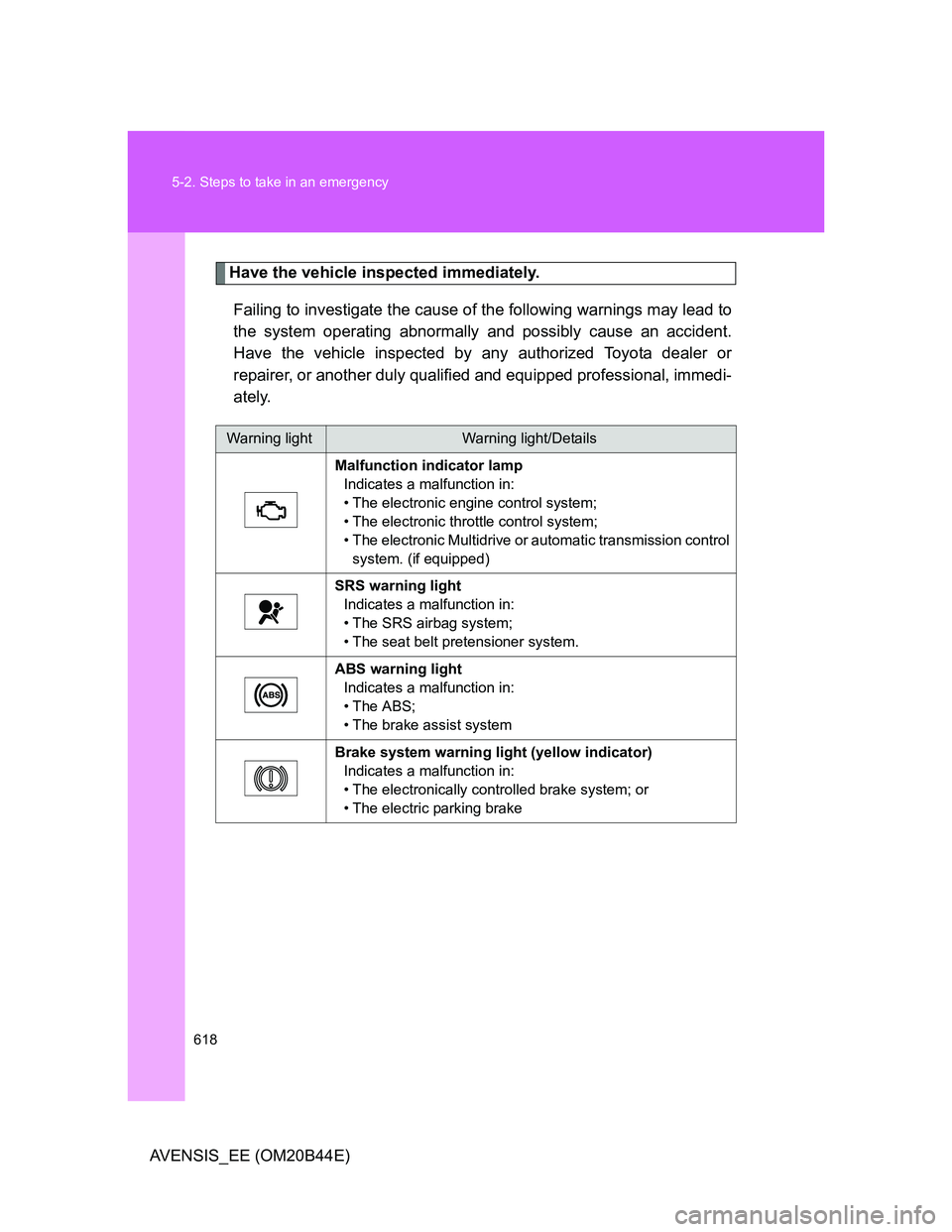

618 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional, immedi-
ately.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system;
• The electronic Multidrive or automatic transmission control
system. (if equipped)
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS;
• The brake assist system
Brake system warning light (yellow indicator)
Indicates a malfunction in:
• The electronically controlled brake system; or
• The electric parking brake

5

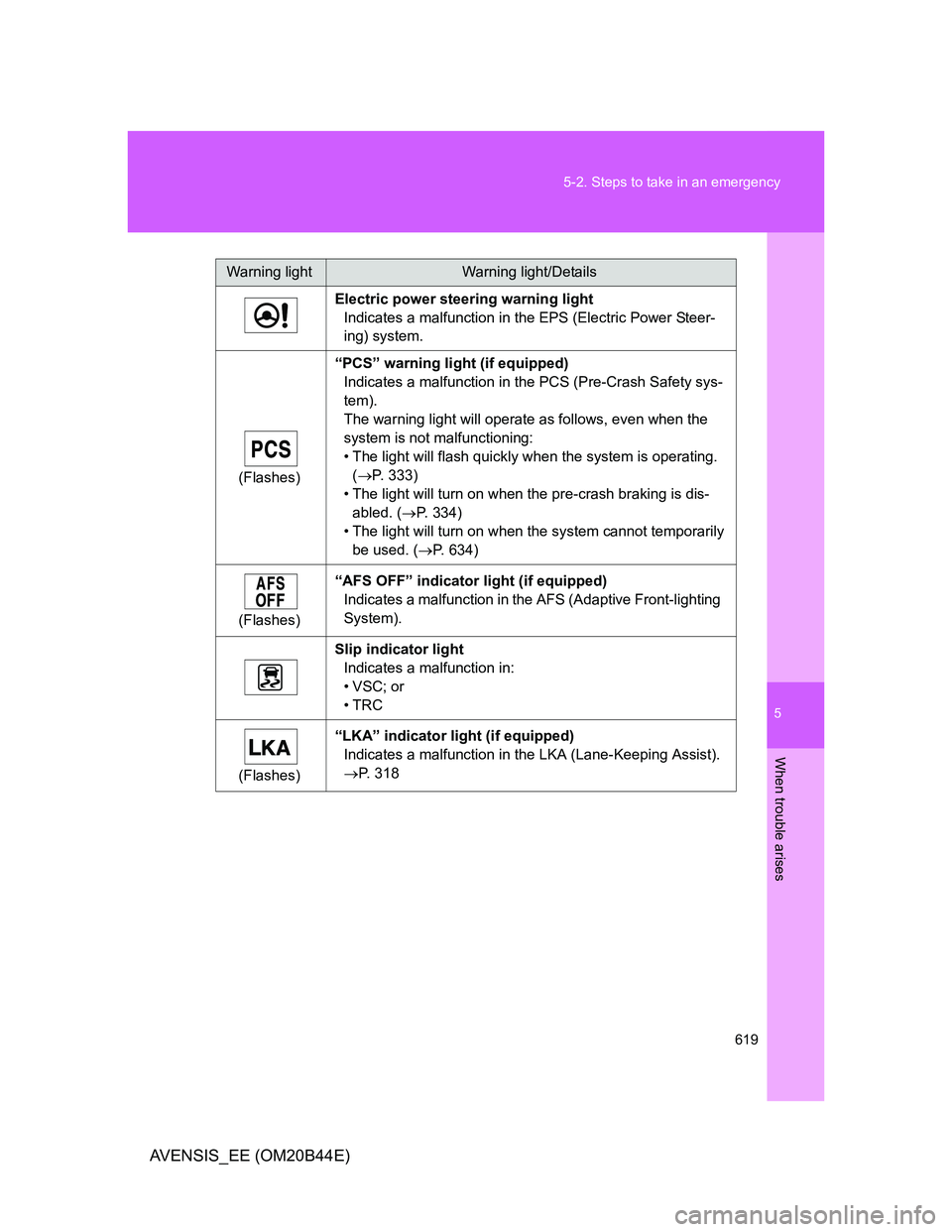

619 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)
Electric power steering warning light
Indicates a malfunction in the EPS (Electric Power Steer-
ing) system.
(Flashes)“PCS” warning light (if equipped)
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem).
The warning light will operate as follows, even when the
system is not malfunctioning:
• The light will flash quickly when the system is operating.
(P. 333)
• The light will turn on when the pre-crash braking is dis-
abled. (P. 334)
• The light will turn on when the system cannot temporarily
be used. (P. 634)
(Flashes)“AFS OFF” indicator light (if equipped)
Indicates a malfunction in the AFS (Adaptive Front-lighting
System).
Slip indicator light
Indicates a malfunction in:
•VSC; or
•TRC
(Flashes)“LKA” indicator light (if equipped)
Indicates a malfunction in the LKA (Lane-Keeping Assist).
P. 318
Warning lightWarning light/Details

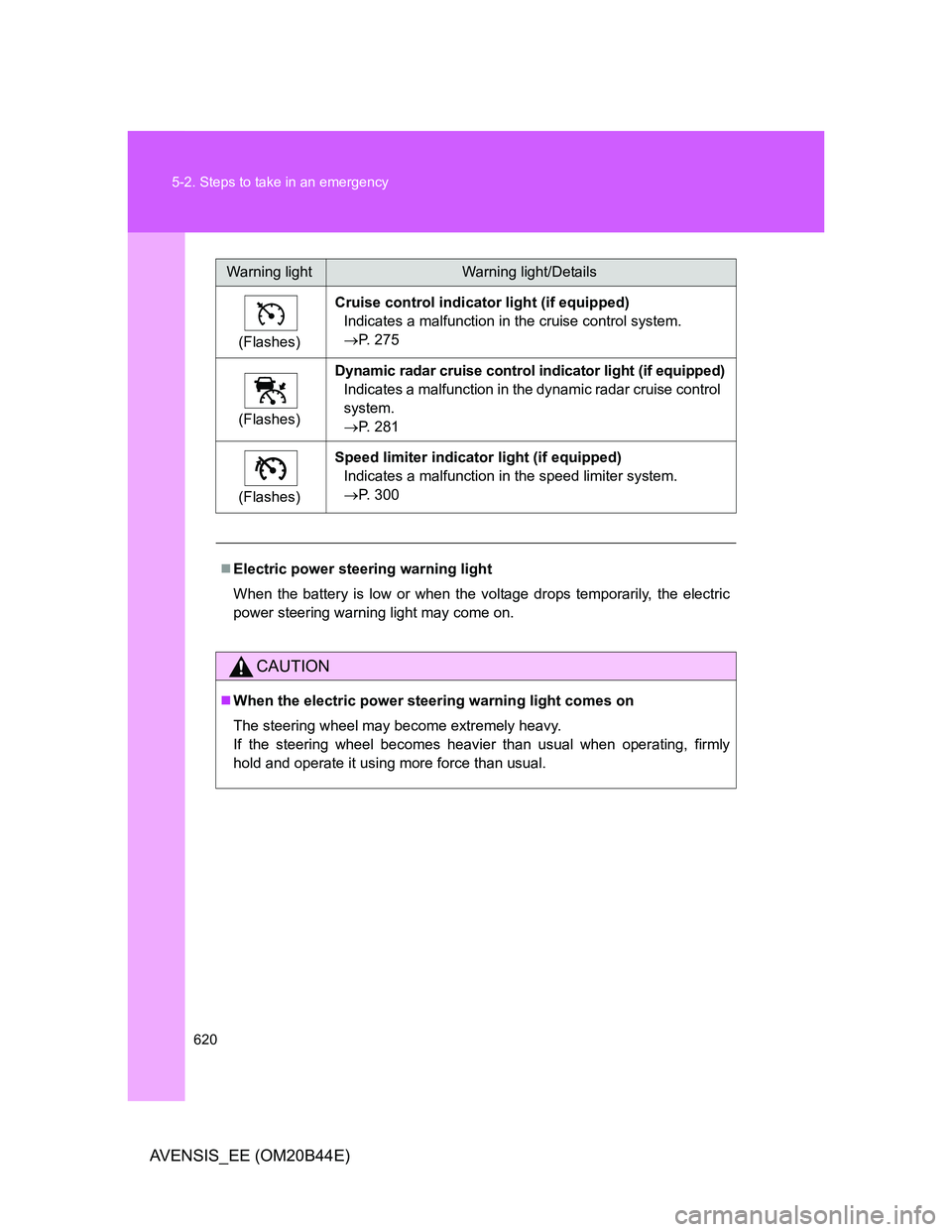

620 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)
(Flashes)Cruise control indicator light (if equipped)
Indicates a malfunction in the cruise control system.
P. 275
(Flashes)Dynamic radar cruise control indicator light (if equipped)
Indicates a malfunction in the dynamic radar cruise control
system.
P. 281
(Flashes)Speed limiter indicator light (if equipped)
Indicates a malfunction in the speed limiter system.
P. 300
Electric power steering warning light
When the battery is low or when the voltage drops temporarily, the electric
power steering warning light may come on.
CAUTION
When the electric power steering warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, firmly
hold and operate it using more force than usual.
Warning lightWarning light/Details
