TOYOTA AVENSIS 2012 Owners Manual

591 4-3. Do-it-yourself maintenance
4
Maintenance and care

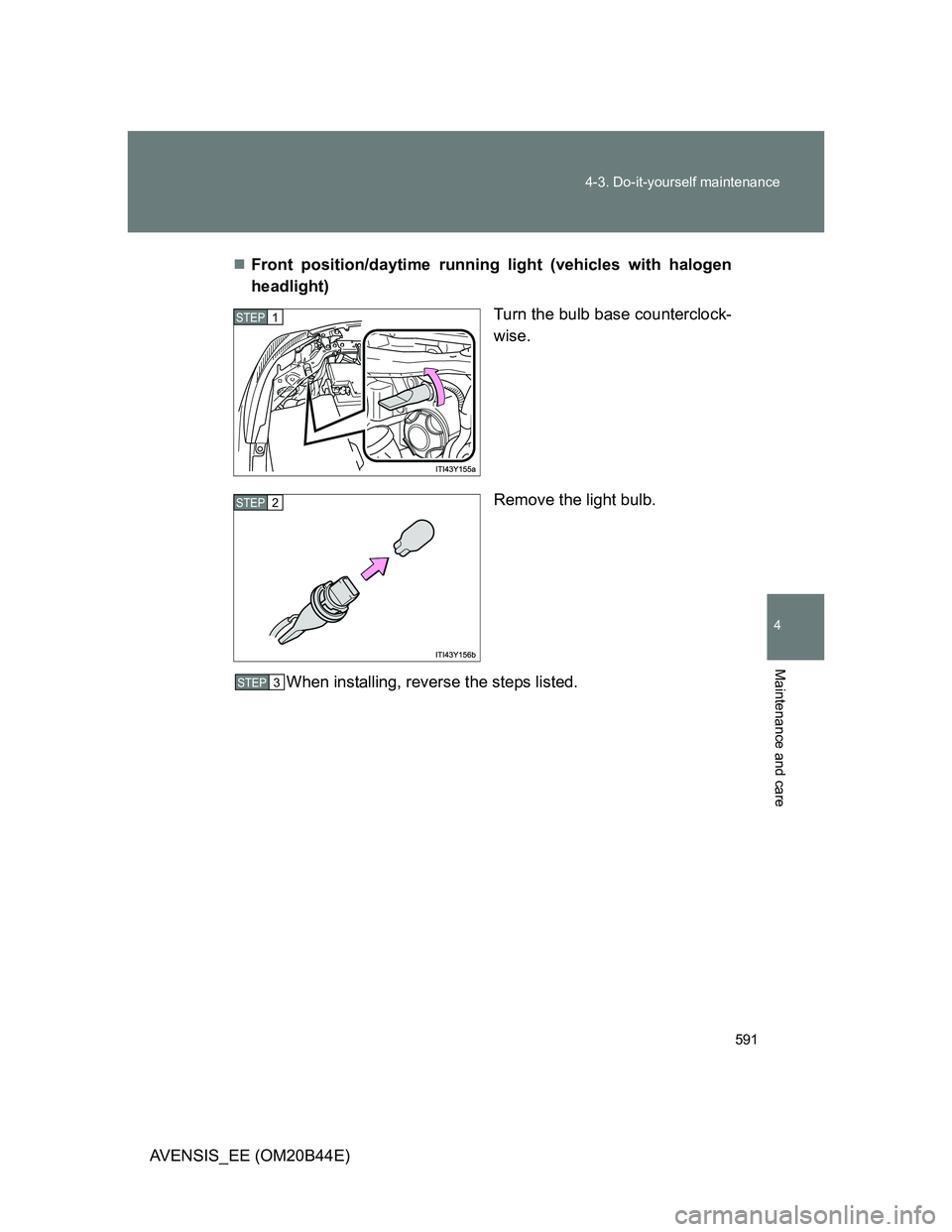

AVENSIS_EE (OM20B44E)Front position/daytime running light (vehicles with halogen
headlight)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

592 4-3. Do-it-yourself maintenance

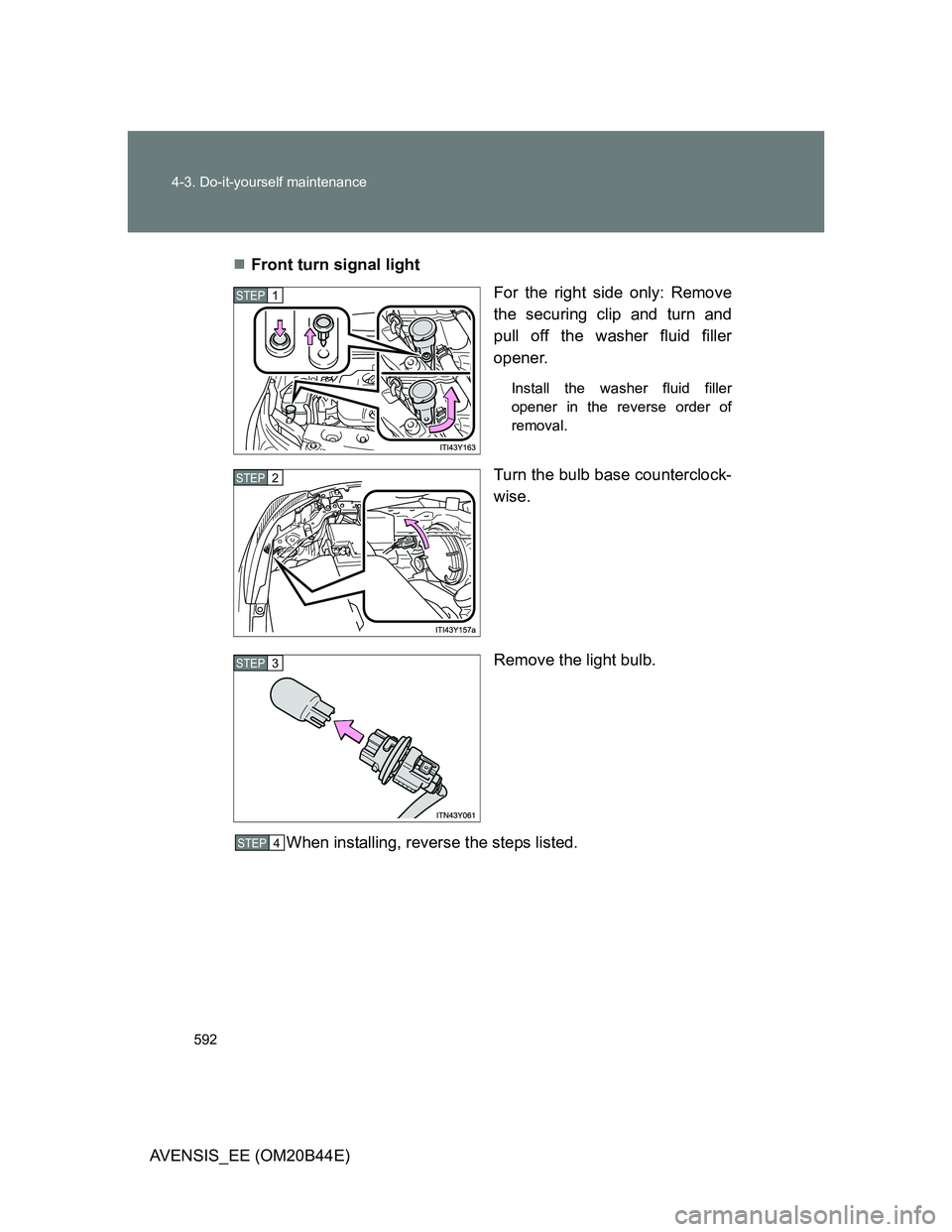

AVENSIS_EE (OM20B44E)Front turn signal light
For the right side only: Remove
the securing clip and turn and
pull off the washer fluid filler
opener.
Install the washer fluid filler
opener in the reverse order of
removal.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

593 4-3. Do-it-yourself maintenance
4
Maintenance and care

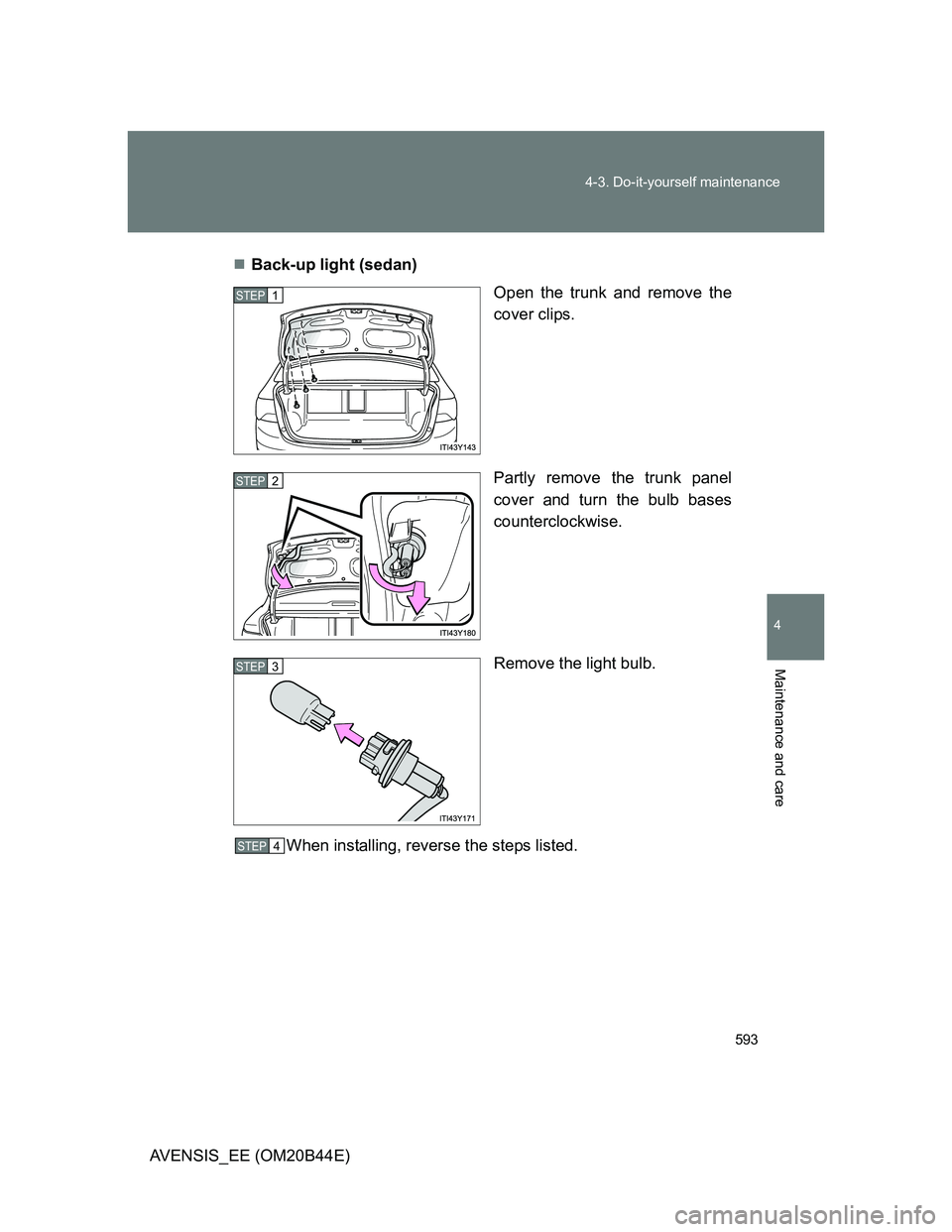

AVENSIS_EE (OM20B44E)Back-up light (sedan)
Open the trunk and remove the
cover clips.
Partly remove the trunk panel
cover and turn the bulb bases
counterclockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

594 4-3. Do-it-yourself maintenance

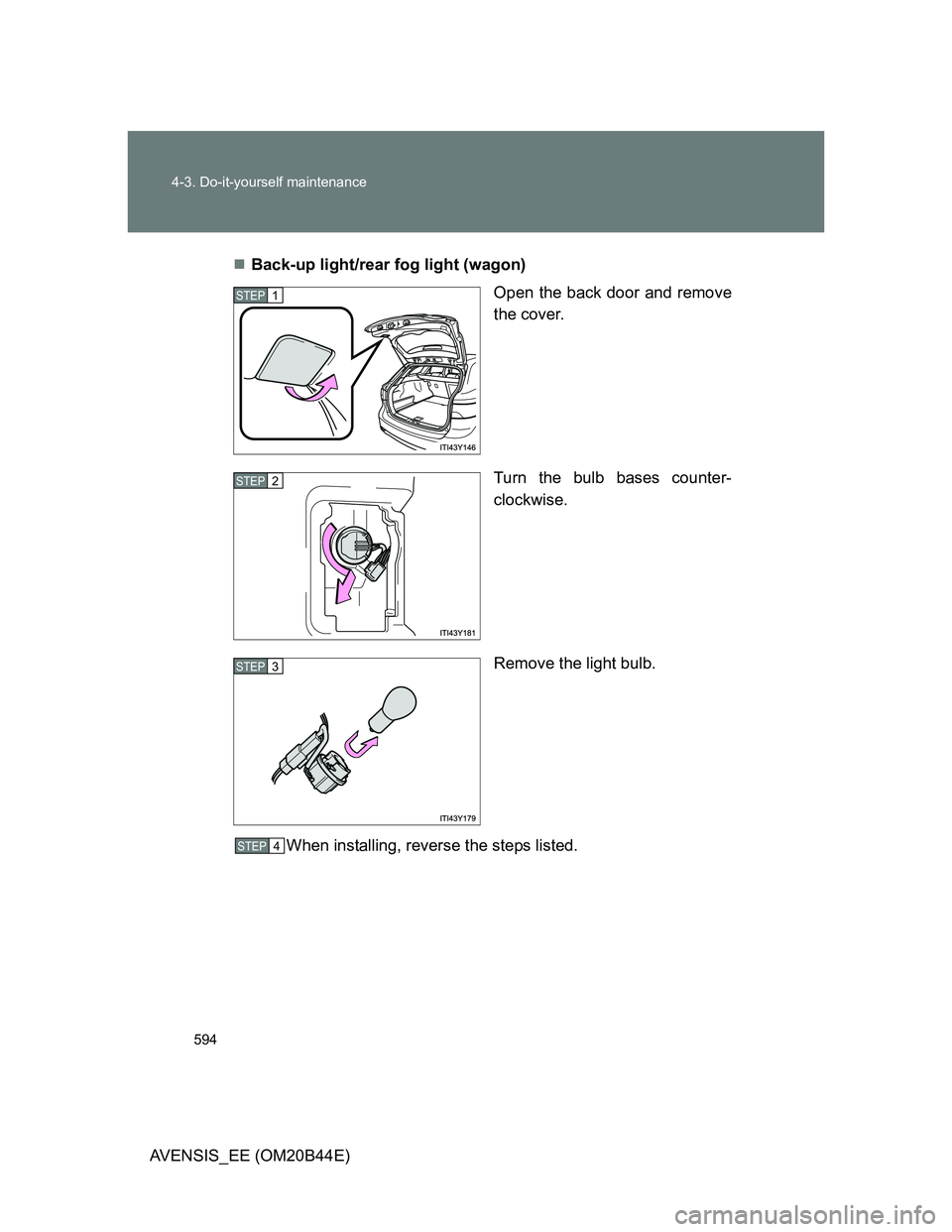

AVENSIS_EE (OM20B44E)Back-up light/rear fog light (wagon)
Open the back door and remove
the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

595 4-3. Do-it-yourself maintenance
4
Maintenance and care

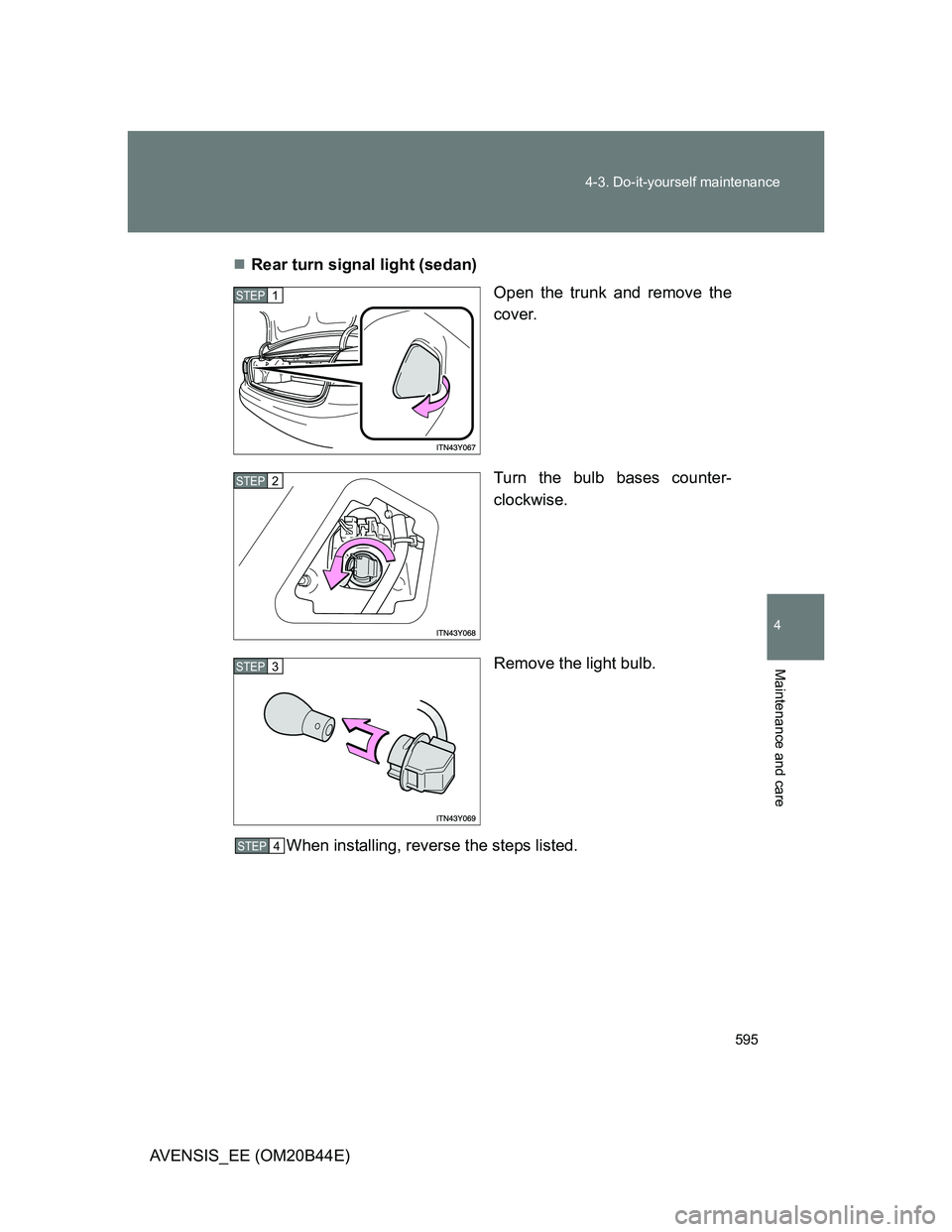

AVENSIS_EE (OM20B44E)Rear turn signal light (sedan)
Open the trunk and remove the
cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

596 4-3. Do-it-yourself maintenance

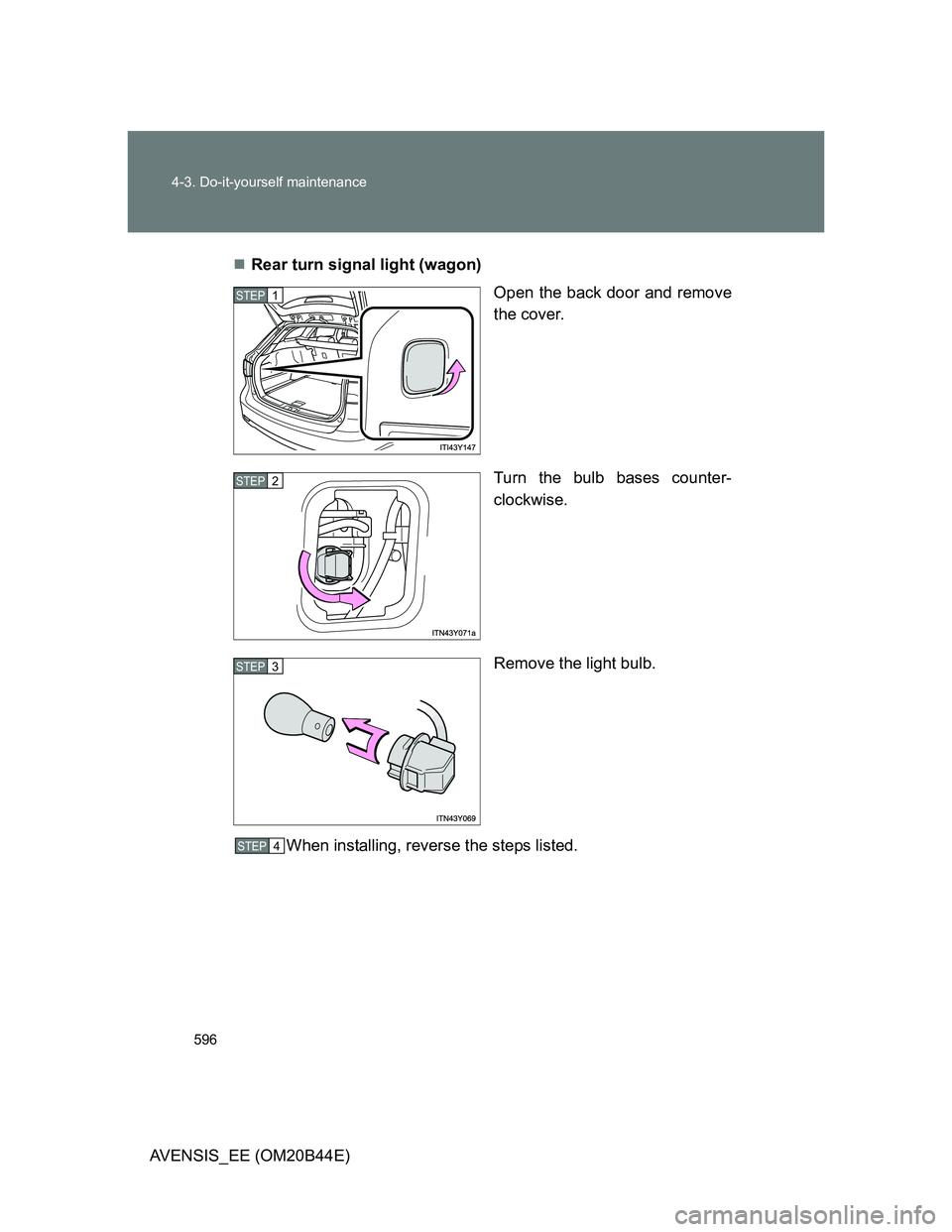

AVENSIS_EE (OM20B44E)Rear turn signal light (wagon)
Open the back door and remove
the cover.
Turn the bulb bases counter-
clockwise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

597 4-3. Do-it-yourself maintenance
4
Maintenance and care

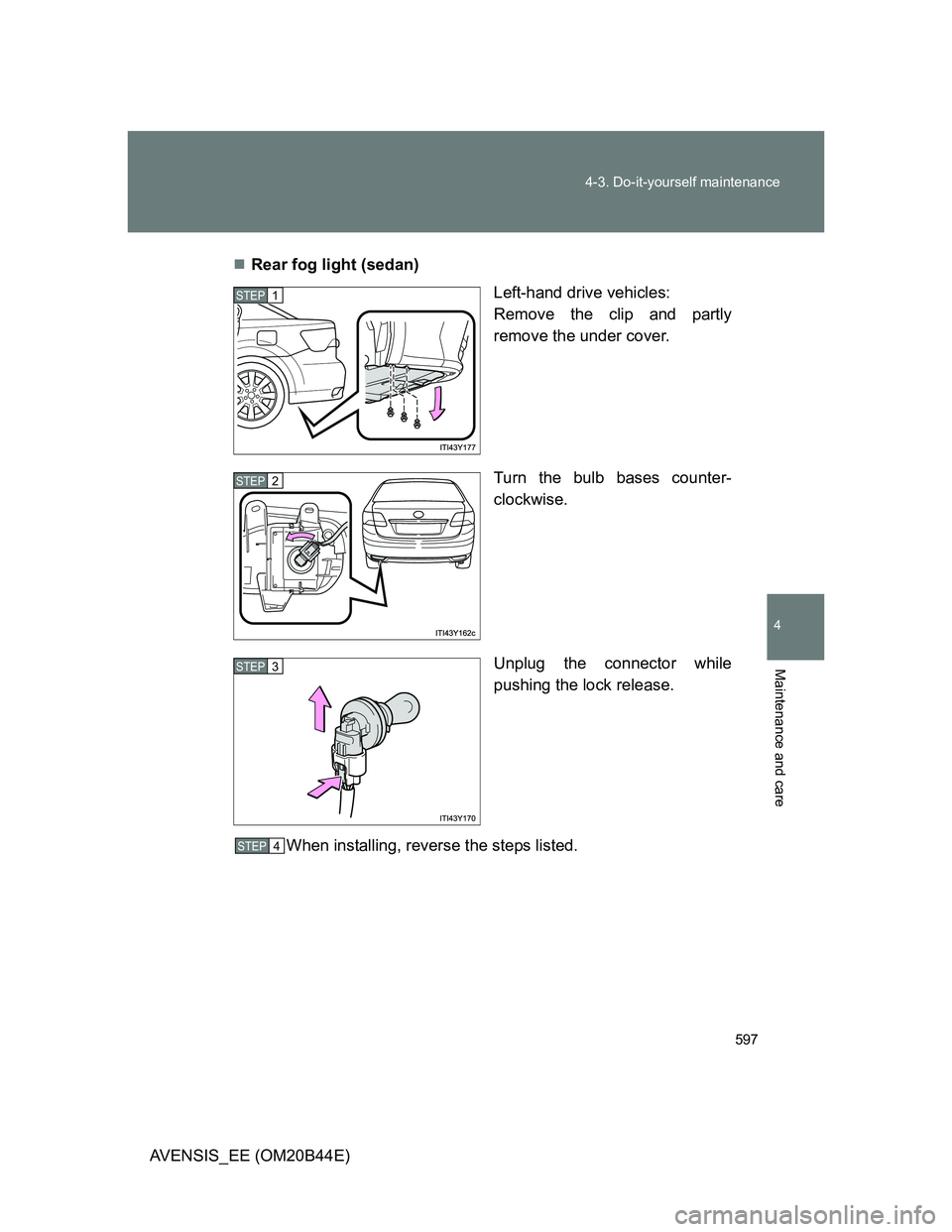

AVENSIS_EE (OM20B44E)Rear fog light (sedan)
Left-hand drive vehicles:
Remove the clip and partly
remove the under cover.
Turn the bulb bases counter-
clockwise.
Unplug the connector while
pushing the lock release.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3
STEP4

598 4-3. Do-it-yourself maintenance

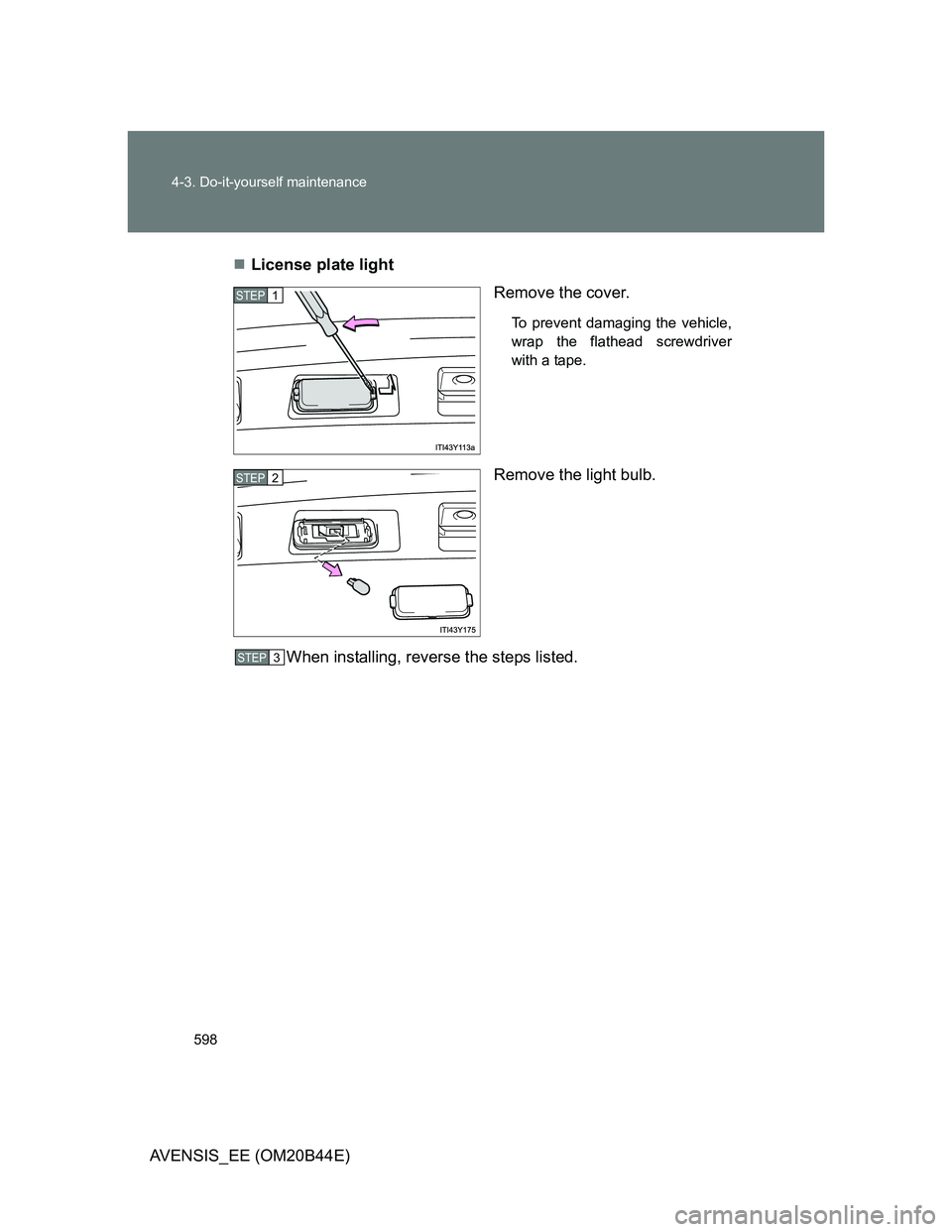

AVENSIS_EE (OM20B44E)License plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flathead screwdriver
with a tape.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
STEP2
STEP3

599 4-3. Do-it-yourself maintenance
4
Maintenance and care

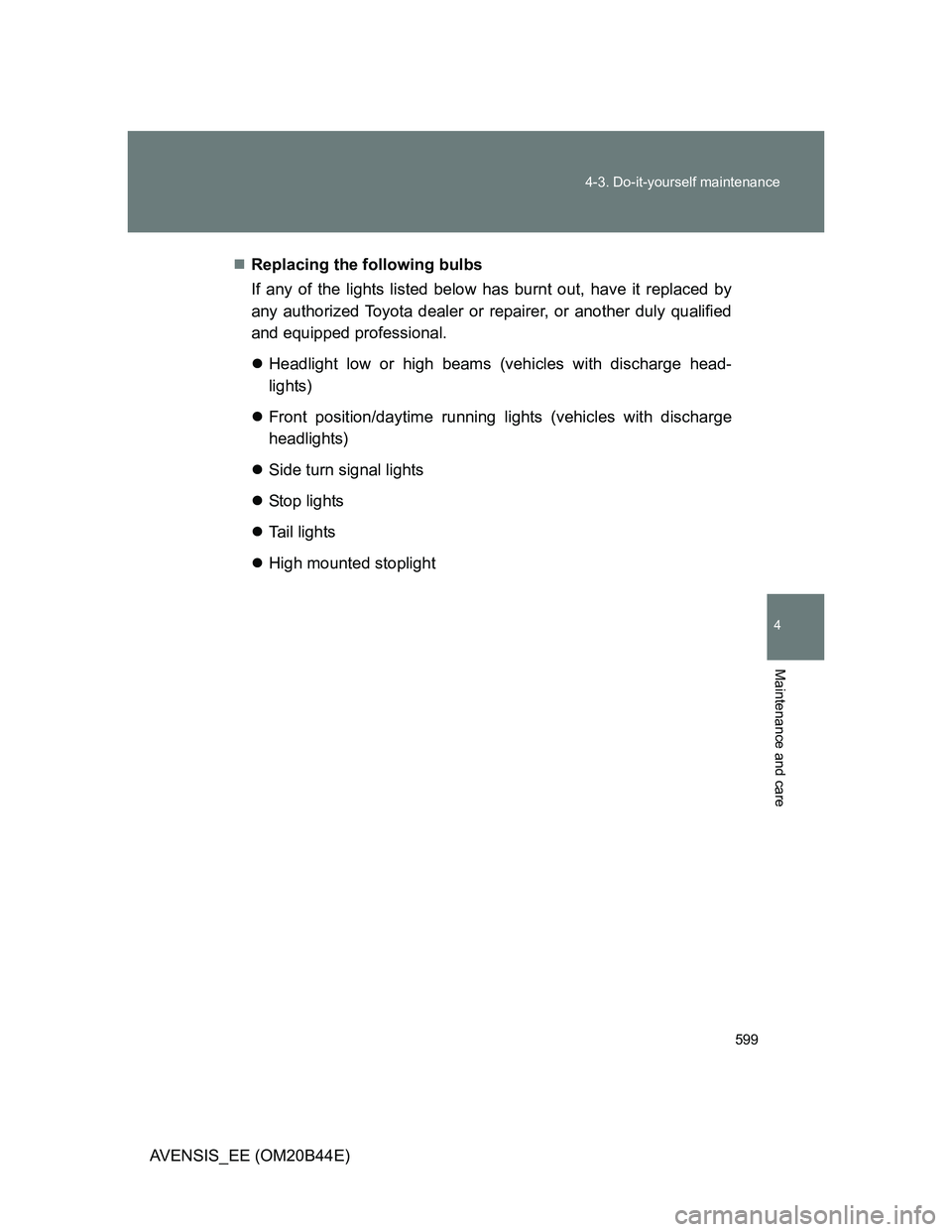

AVENSIS_EE (OM20B44E)Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low or high beams (vehicles with discharge head-
lights)
Front position/daytime running lights (vehicles with discharge
headlights)
Side turn signal lights
Stop lights
Tail lights
High mounted stoplight

600 4-3. Do-it-yourself maintenance
AVENSIS_EE (OM20B44E)

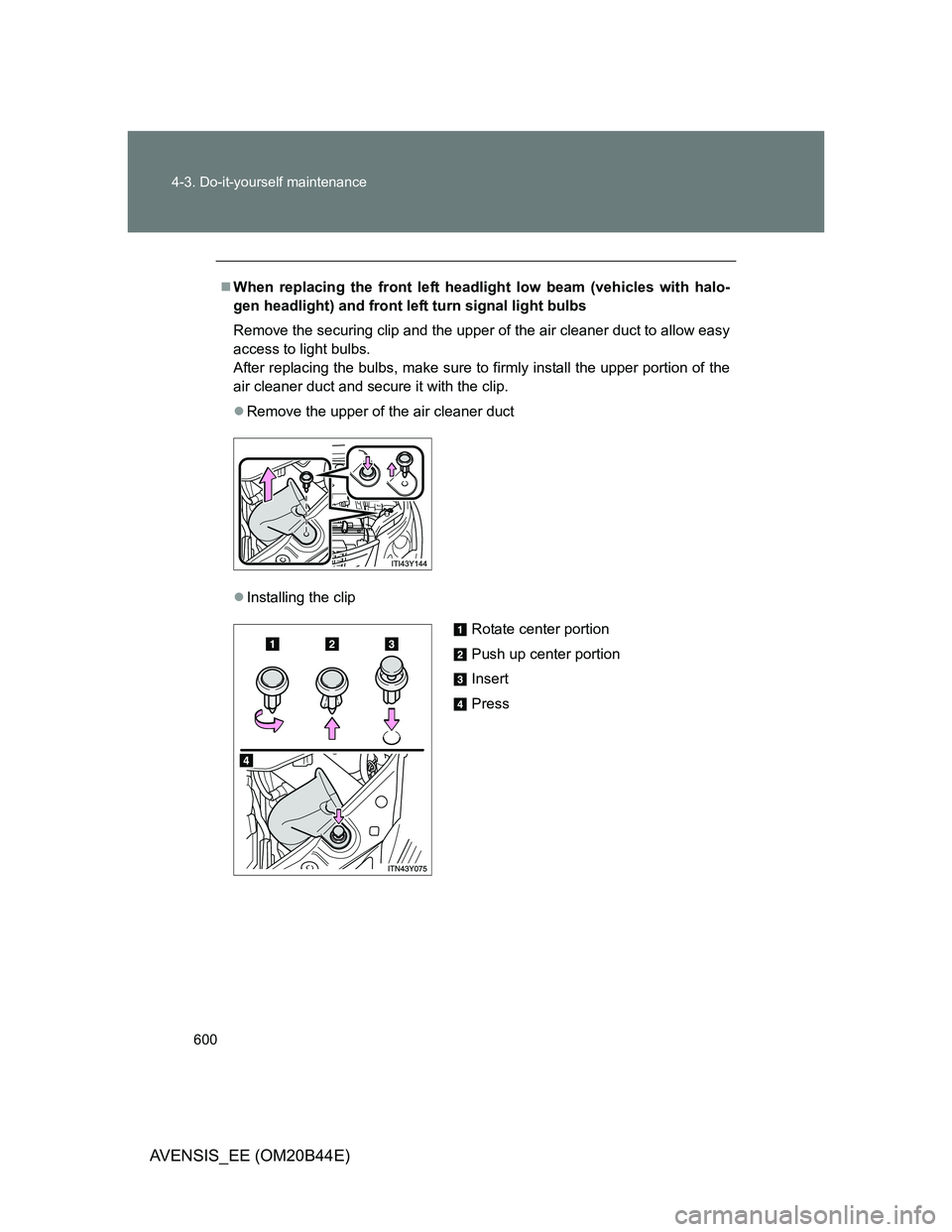

When replacing the front left headlight low beam (vehicles with halo-
gen headlight) and front left turn signal light bulbs
Remove the securing clip and the upper of the air cleaner duct to allow easy
access to light bulbs.
After replacing the bulbs, make sure to firmly install the upper portion of the
air cleaner duct and secure it with the clip.
Remove the upper of the air cleaner duct
Installing the clip
Rotate center portion
Push up center portion
Insert
Press
