681 5-2. Steps to take in an emergency
When trouble arises

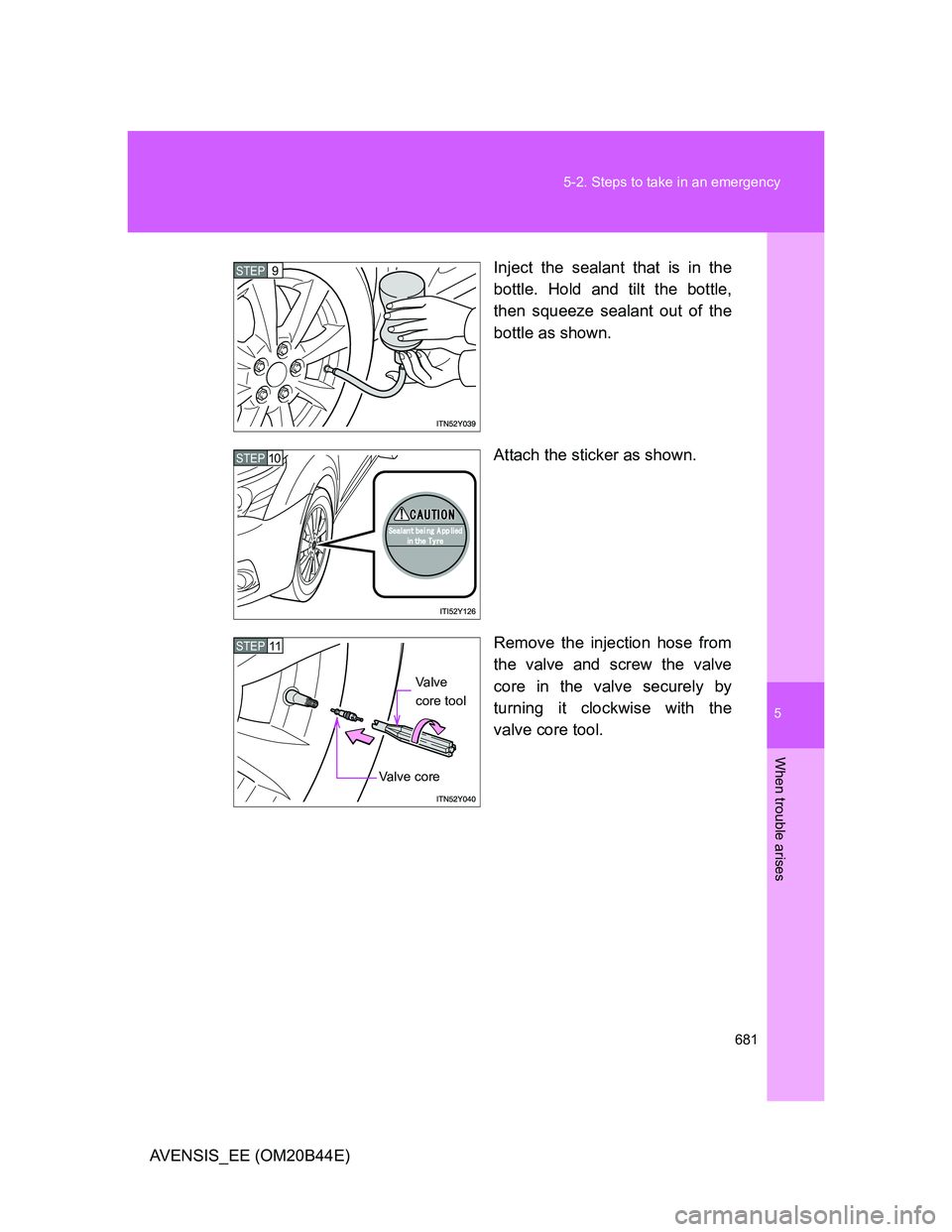

AVENSIS_EE (OM20B44E)Inject the sealant that is in the
bottle. Hold and tilt the bottle,
then squeeze sealant out of the
bottle as shown.
Attach the sticker as shown.
Remove the injection hose from
the valve and screw the valve
core in the valve securely by
turning it clockwise with the
valve core tool.
STEP9
STEP10
STEP11
Va l v e
core tool
Va l v e c o r e

682 5-2. Steps to take in an emergency

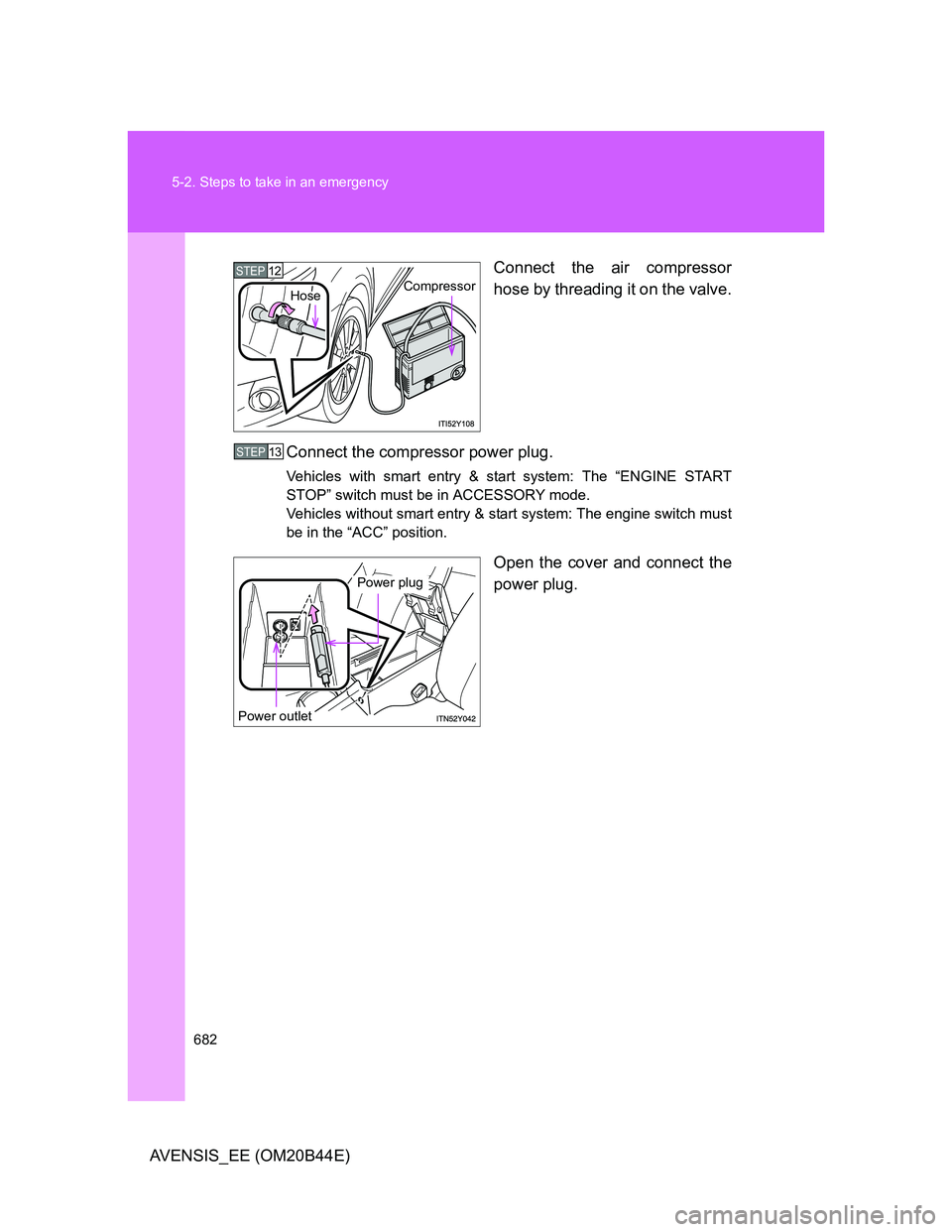

AVENSIS_EE (OM20B44E)Connect the air compressor
hose by threading it on the valve.
Connect the compressor power plug.
Vehicles with smart entry & start system: The “ENGINE START
STOP” switch must be in ACCESSORY mode.
Vehicles without smart entry & start system: The engine switch must
be in the “ACC” position.
Open the cover and connect the
power plug.
STEP12CompressorHose
STEP13
Power plug
Power outlet

5
683 5-2. Steps to take in an emergency
When trouble arises

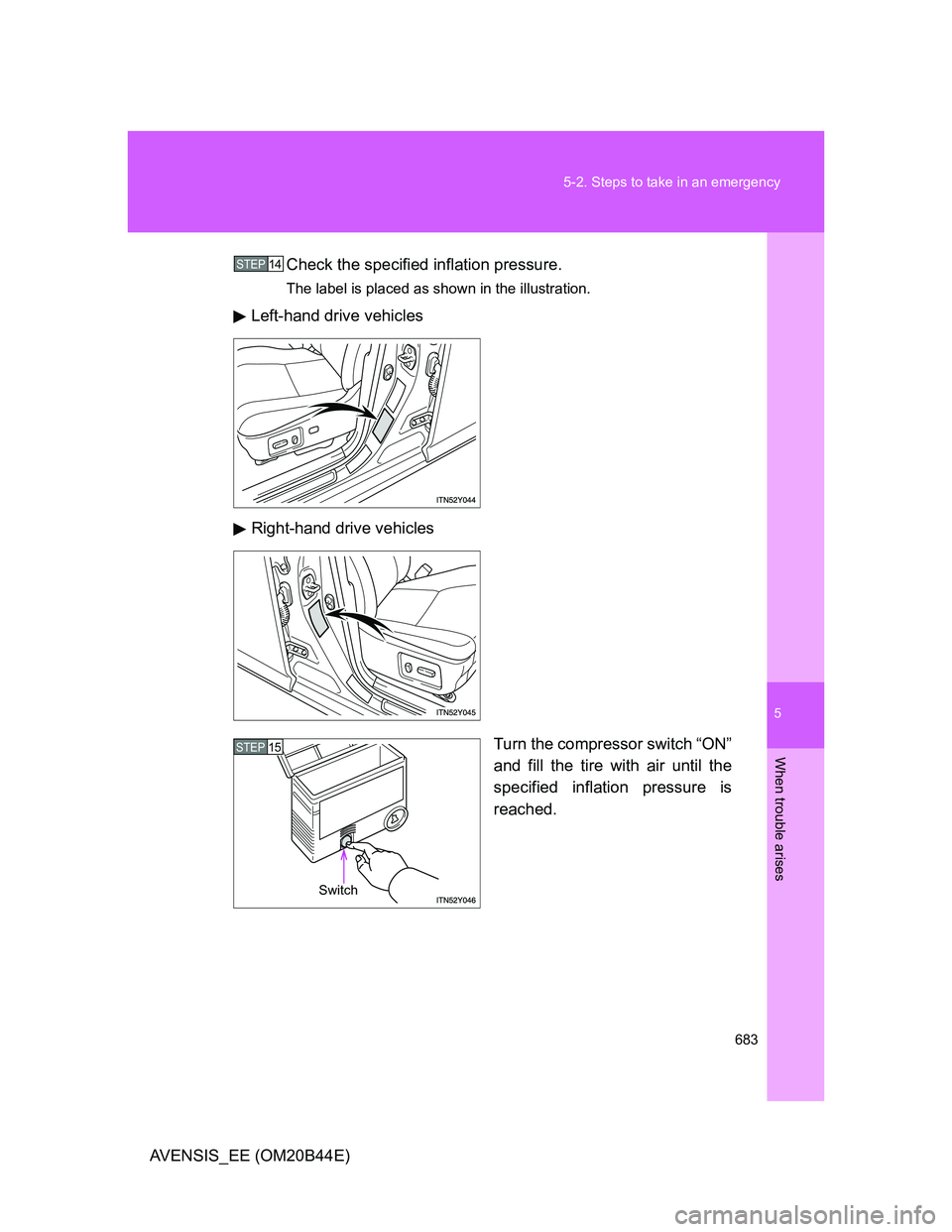

AVENSIS_EE (OM20B44E)Check the specified inflation pressure.
The label is placed as shown in the illustration.
Left-hand drive vehicles
Right-hand drive vehicles
Turn the compressor switch “ON”
and fill the tire with air until the
specified inflation pressure is
reached.
STEP14
STEP15
Switch

684 5-2. Steps to take in an emergency

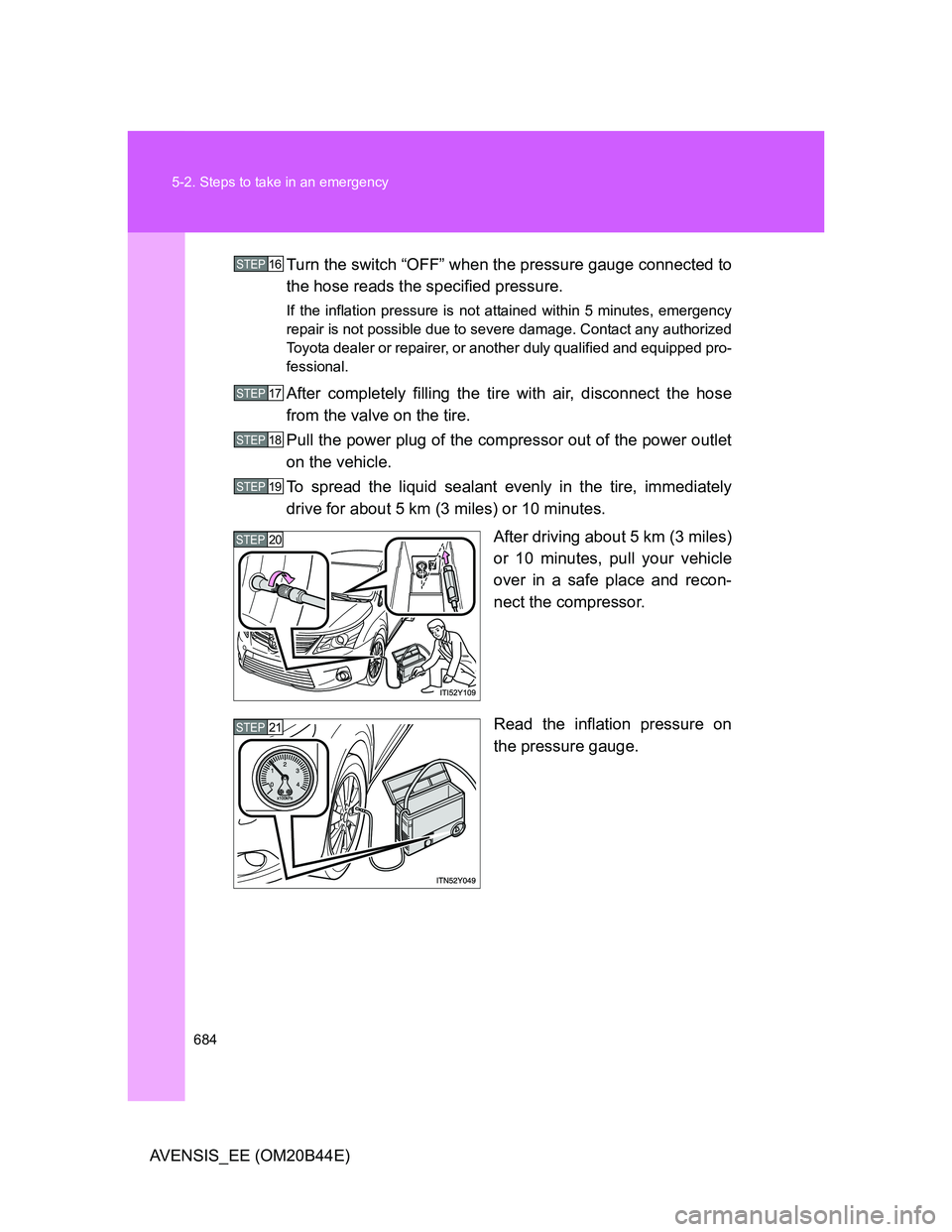

AVENSIS_EE (OM20B44E)Turn the switch “OFF” when the pressure gauge connected to
the hose reads the specified pressure.
If the inflation pressure is not attained within 5 minutes, emergency
repair is not possible due to severe damage. Contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional.
After completely filling the tire with air, disconnect the hose
from the valve on the tire.
Pull the power plug of the compressor out of the power outlet
on the vehicle.
To spread the liquid sealant evenly in the tire, immediately
drive for about 5 km (3 miles) or 10 minutes.
After driving about 5 km (3 miles)
or 10 minutes, pull your vehicle
over in a safe place and recon-
nect the compressor.
Read the inflation pressure on
the pressure gauge.
STEP16
STEP17
STEP18
STEP19
STEP20
STEP21

5
685 5-2. Steps to take in an emergency
When trouble arises

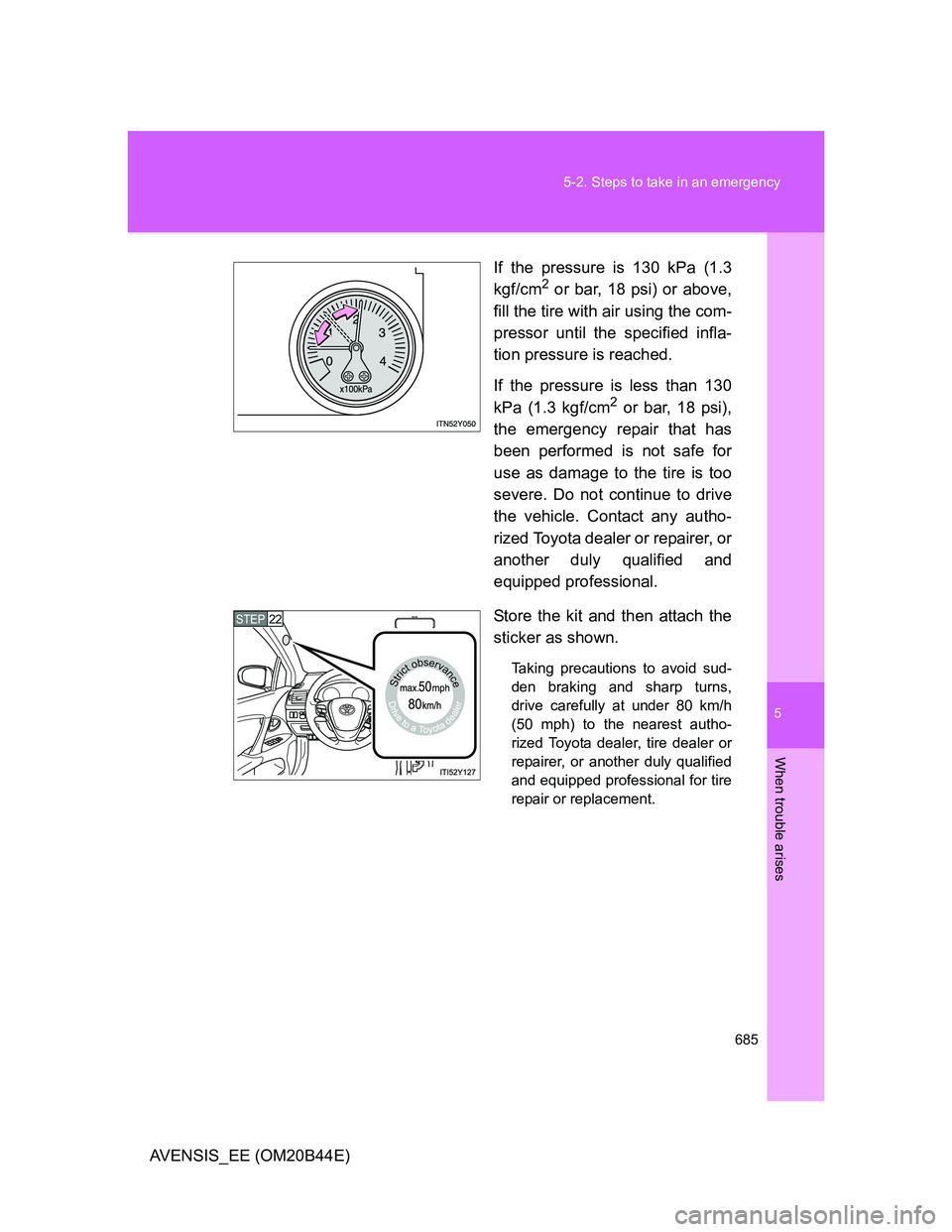

AVENSIS_EE (OM20B44E)If the pressure is 130 kPa (1.3
kgf/cm
2 or bar, 18 psi) or above,
fill the tire with air using the com-
pressor until the specified infla-
tion pressure is reached.
If the pressure is less than 130
kPa (1.3 kgf/cm
2 or bar, 18 psi),
the emergency repair that has
been performed is not safe for
use as damage to the tire is too
severe. Do not continue to drive
the vehicle. Contact any autho-
rized Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Store the kit and then attach the
sticker as shown.
Taking precautions to avoid sud-
den braking and sharp turns,
drive carefully at under 80 km/h
(50 mph) to the nearest autho-
rized Toyota dealer, tire dealer or
repairer, or another duly qualified
and equipped professional for tire
repair or replacement.
STEP22

686 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

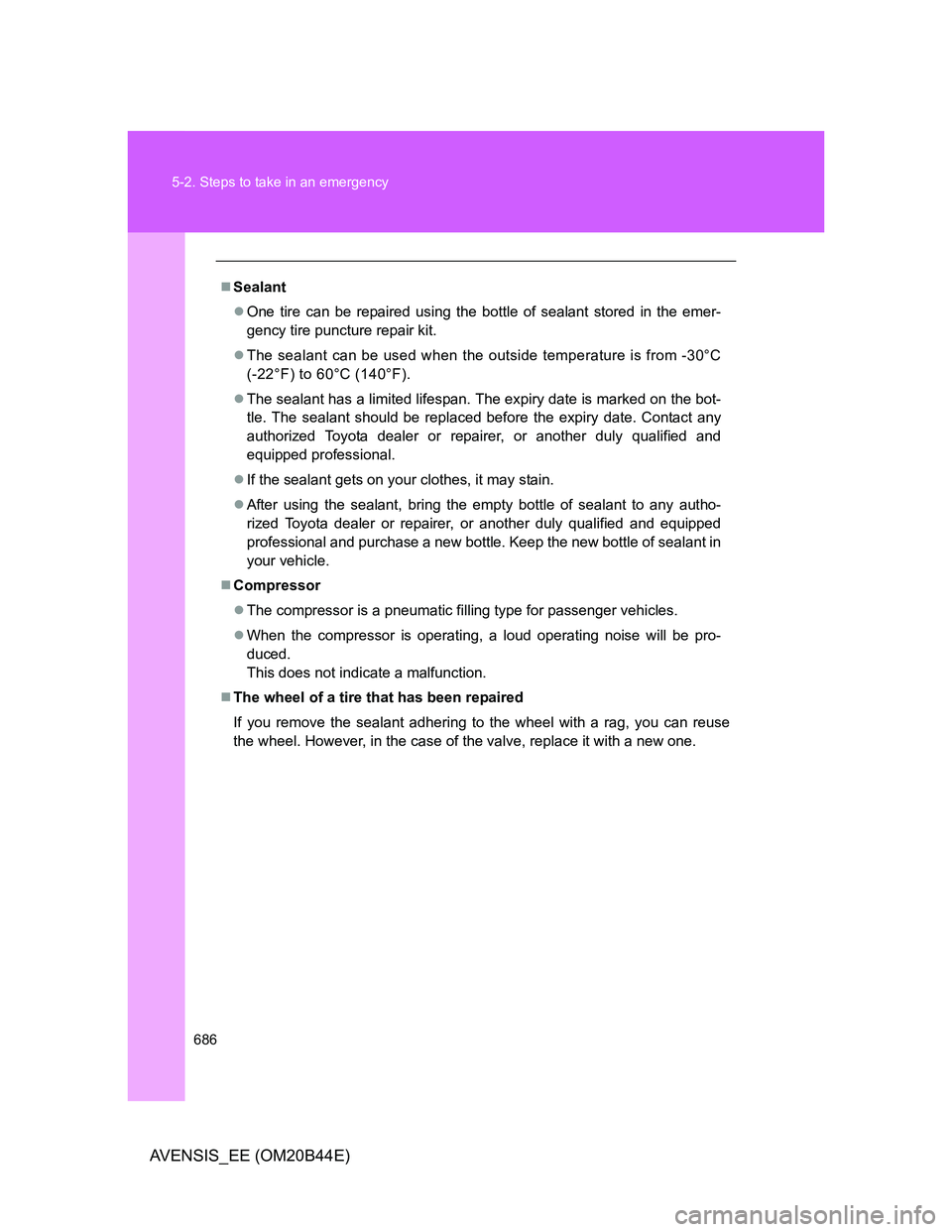

Sealant
One tire can be repaired using the bottle of sealant stored in the emer-
gency tire puncture repair kit.
The sealant can be used when the outside temperature is from -30°C
(-22°F) to 60°C (140°F).
The sealant has a limited lifespan. The expiry date is marked on the bot-
tle. The sealant should be replaced before the expiry date. Contact any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If the sealant gets on your clothes, it may stain.
After using the sealant, bring the empty bottle of sealant to any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped
professional and purchase a new bottle. Keep the new bottle of sealant in
your vehicle.
Compressor
The compressor is a pneumatic filling type for passenger vehicles.
When the compressor is operating, a loud operating noise will be pro-
duced.
This does not indicate a malfunction.
The wheel of a tire that has been repaired
If you remove the sealant adhering to the wheel with a rag, you can reuse
the wheel. However, in the case of the valve, replace it with a new one.

5
687 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

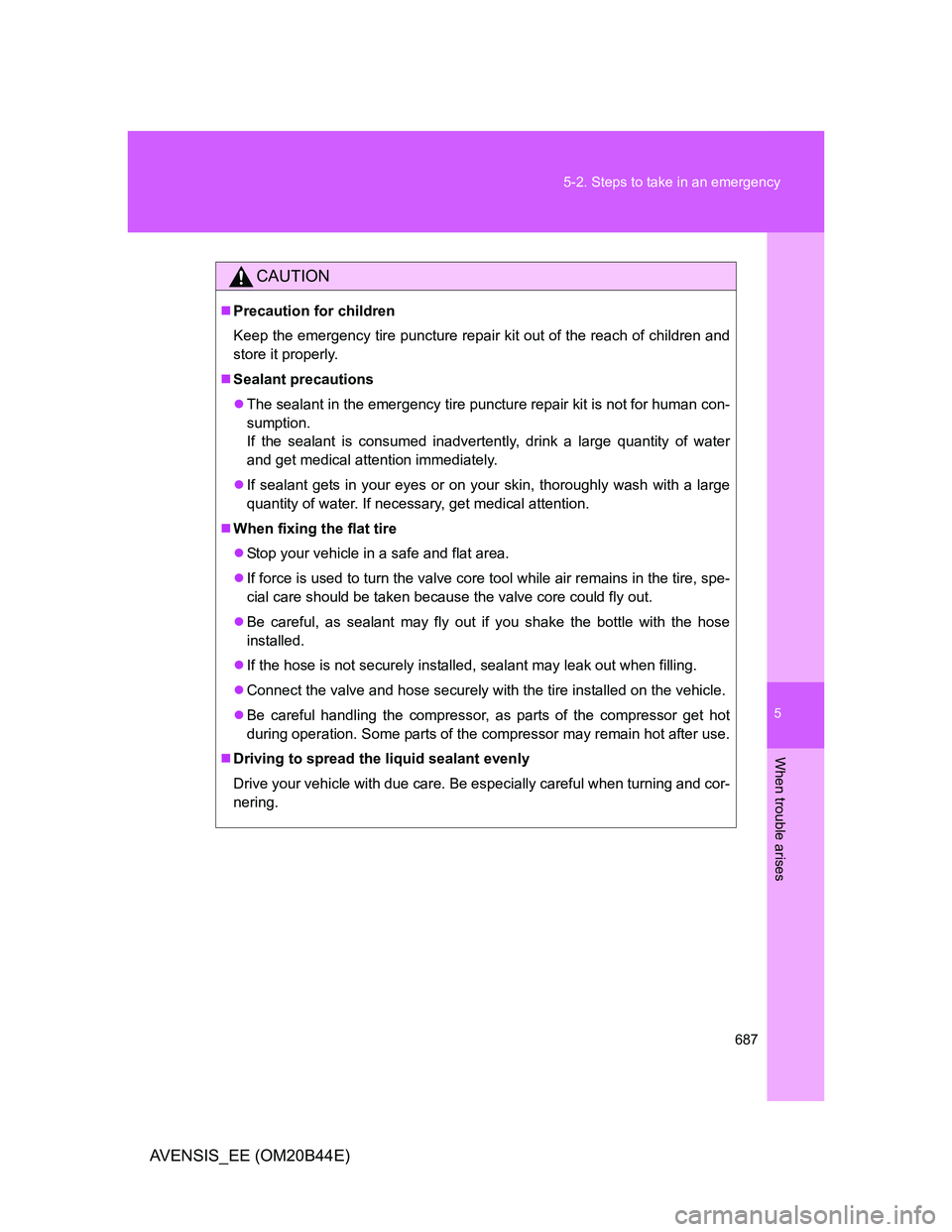

CAUTION
Precaution for children
Keep the emergency tire puncture repair kit out of the reach of children and
store it properly.
Sealant precautions
The sealant in the emergency tire puncture repair kit is not for human con-
sumption.
If the sealant is consumed inadvertently, drink a large quantity of water
and get medical attention immediately.
If sealant gets in your eyes or on your skin, thoroughly wash with a large
quantity of water. If necessary, get medical attention.
When fixing the flat tire
Stop your vehicle in a safe and flat area.
If force is used to turn the valve core tool while air remains in the tire, spe-
cial care should be taken because the valve core could fly out.
Be careful, as sealant may fly out if you shake the bottle with the hose
installed.
If the hose is not securely installed, sealant may leak out when filling.
Connect the valve and hose securely with the tire installed on the vehicle.
Be careful handling the compressor, as parts of the compressor get hot
during operation. Some parts of the compressor may remain hot after use.
Driving to spread the liquid sealant evenly
Drive your vehicle with due care. Be especially careful when turning and cor-
nering.

688 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

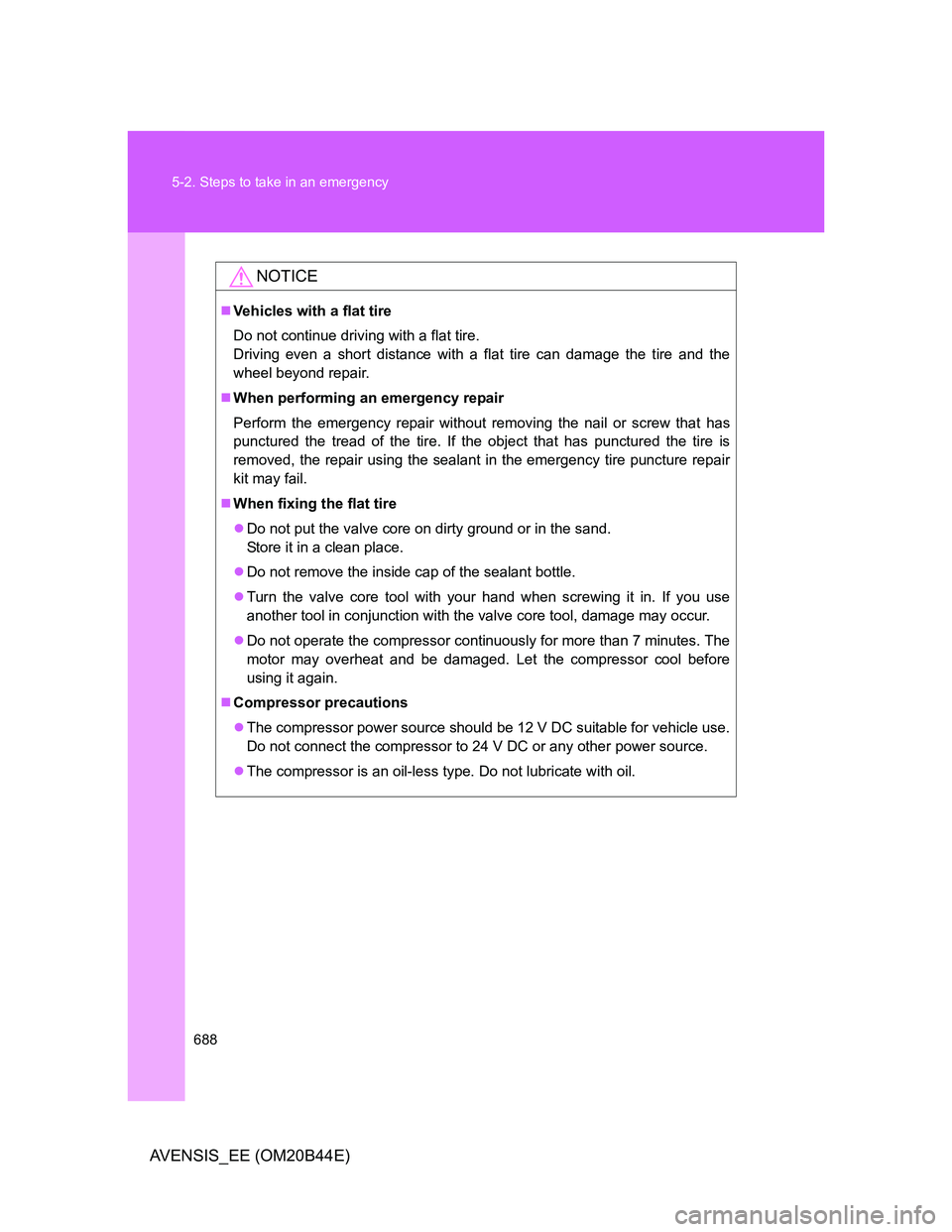

NOTICE
Vehicles with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When performing an emergency repair
Perform the emergency repair without removing the nail or screw that has
punctured the tread of the tire. If the object that has punctured the tire is
removed, the repair using the sealant in the emergency tire puncture repair
kit may fail.
When fixing the flat tire
Do not put the valve core on dirty ground or in the sand.
Store it in a clean place.
Do not remove the inside cap of the sealant bottle.
Turn the valve core tool with your hand when screwing it in. If you use
another tool in conjunction with the valve core tool, damage may occur.
Do not operate the compressor continuously for more than 7 minutes. The
motor may overheat and be damaged. Let the compressor cool before
using it again.
Compressor precautions
The compressor power source should be 12 V DC suitable for vehicle use.
Do not connect the compressor to 24 V DC or any other power source.
The compressor is an oil-less type. Do not lubricate with oil.

5
689
5-2. Steps to take in an emergency
When trouble arises
AVENSIS_EE (OM20B44E)

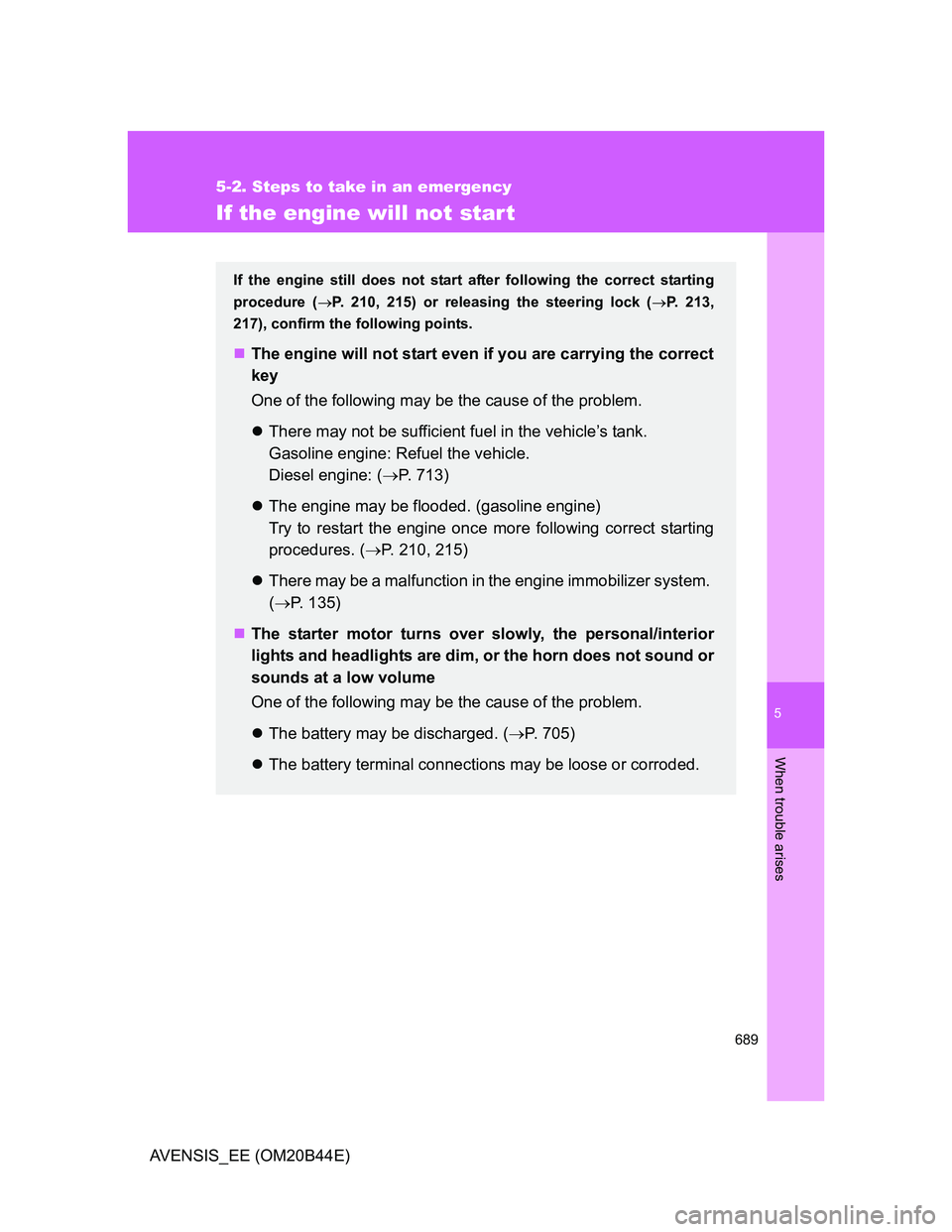

If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 210, 215) or releasing the steering lock (P. 213,
217), confirm the following points.
The engine will not start even if you are carrying the correct
key
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 713)
The engine may be flooded. (gasoline engine)
Try to restart the engine once more following correct starting
procedures. (P. 210, 215)
There may be a malfunction in the engine immobilizer system.
(P. 135)
The starter motor turns over slowly, the personal/interior
lights and headlights are dim, or the horn does not sound or
sounds at a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 705)
The battery terminal connections may be loose or corroded.

690 5-2. Steps to take in an emergency
AVENSIS_EE (OM20B44E)

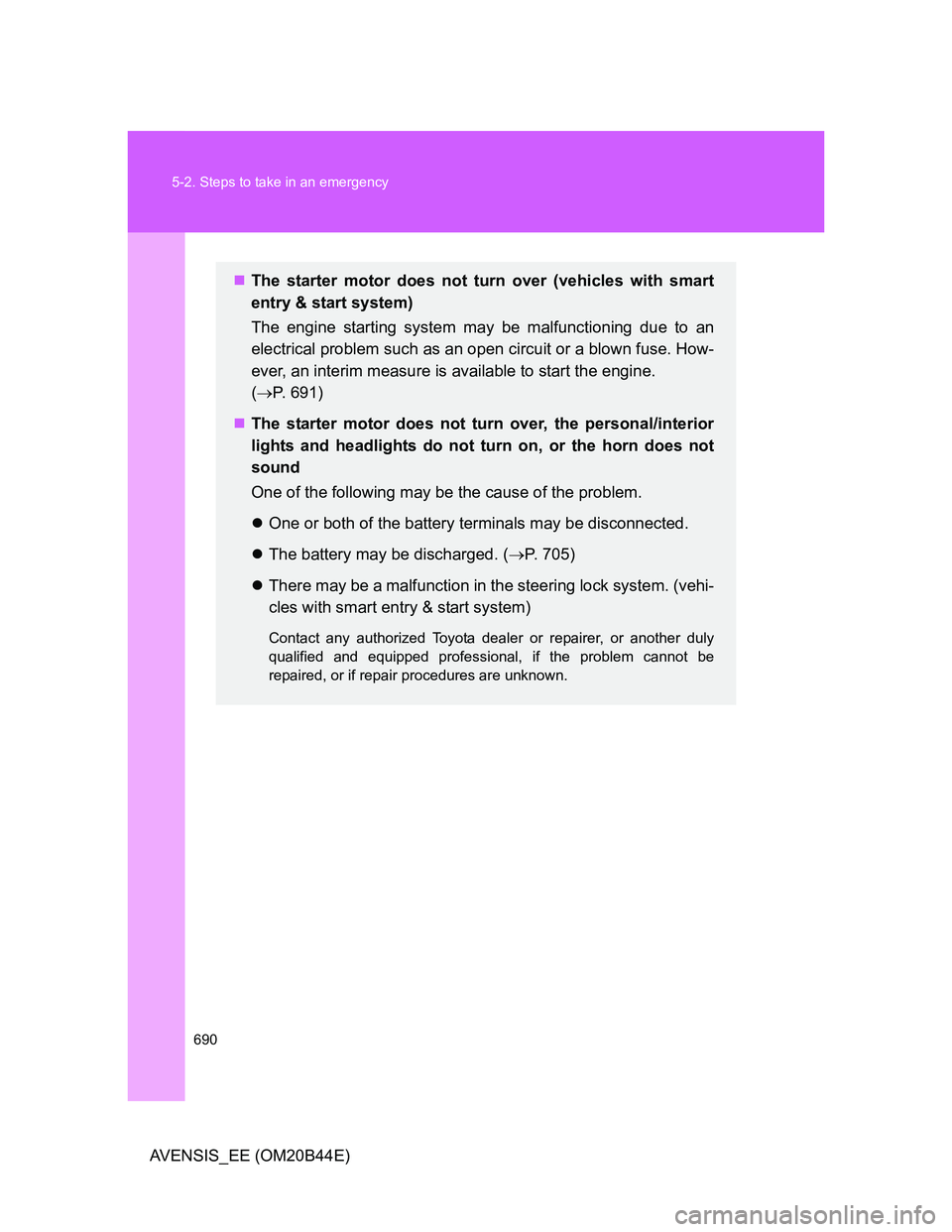

The starter motor does not turn over (vehicles with smart
entry & start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 691)
The starter motor does not turn over, the personal/interior
lights and headlights do not turn on, or the horn does not
sound
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 705)
There may be a malfunction in the steering lock system. (vehi-
cles with smart entry & start system)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.
