371 3-1. Using the air conditioning system and defogger
3
Interior features
AVENSIS_EE (OM20B44E)

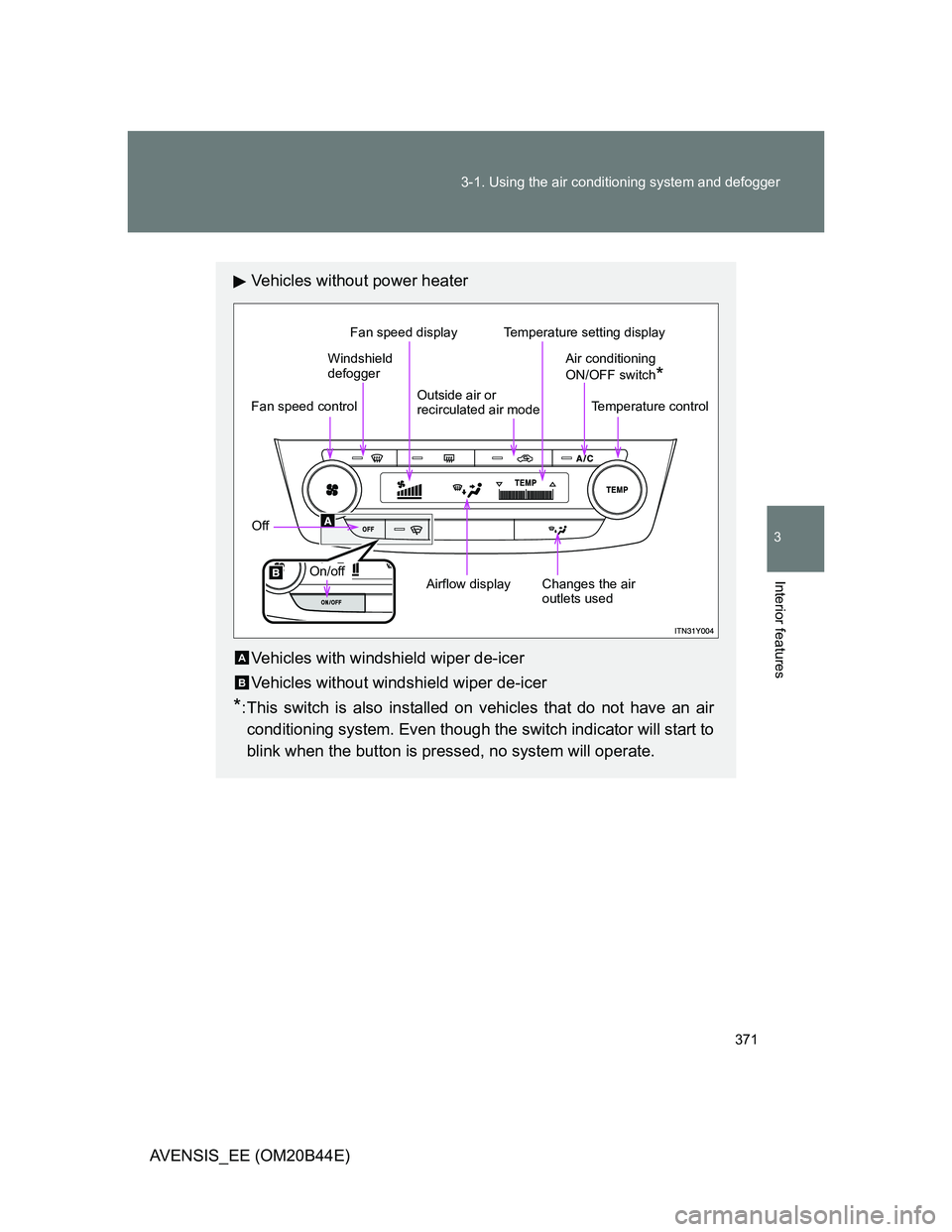

Vehicles without power heater
Vehicles with windshield wiper de-icer
Vehicles without windshield wiper de-icer
*:This switch is also installed on vehicles that do not have an air
conditioning system. Even though the switch indicator will start to
blink when the button is pressed, no system will operate.
Fan speed display
Off
On/off
Windshield
defogger
Outside air or
recirculated air modeTemperature setting display
Temperature control
Changes the air
outlets used Airflow display Fan speed controlAir conditioning
ON/OFF switch
*
A
B

372 3-1. Using the air conditioning system and defogger
AVENSIS_EE (OM20B44E)

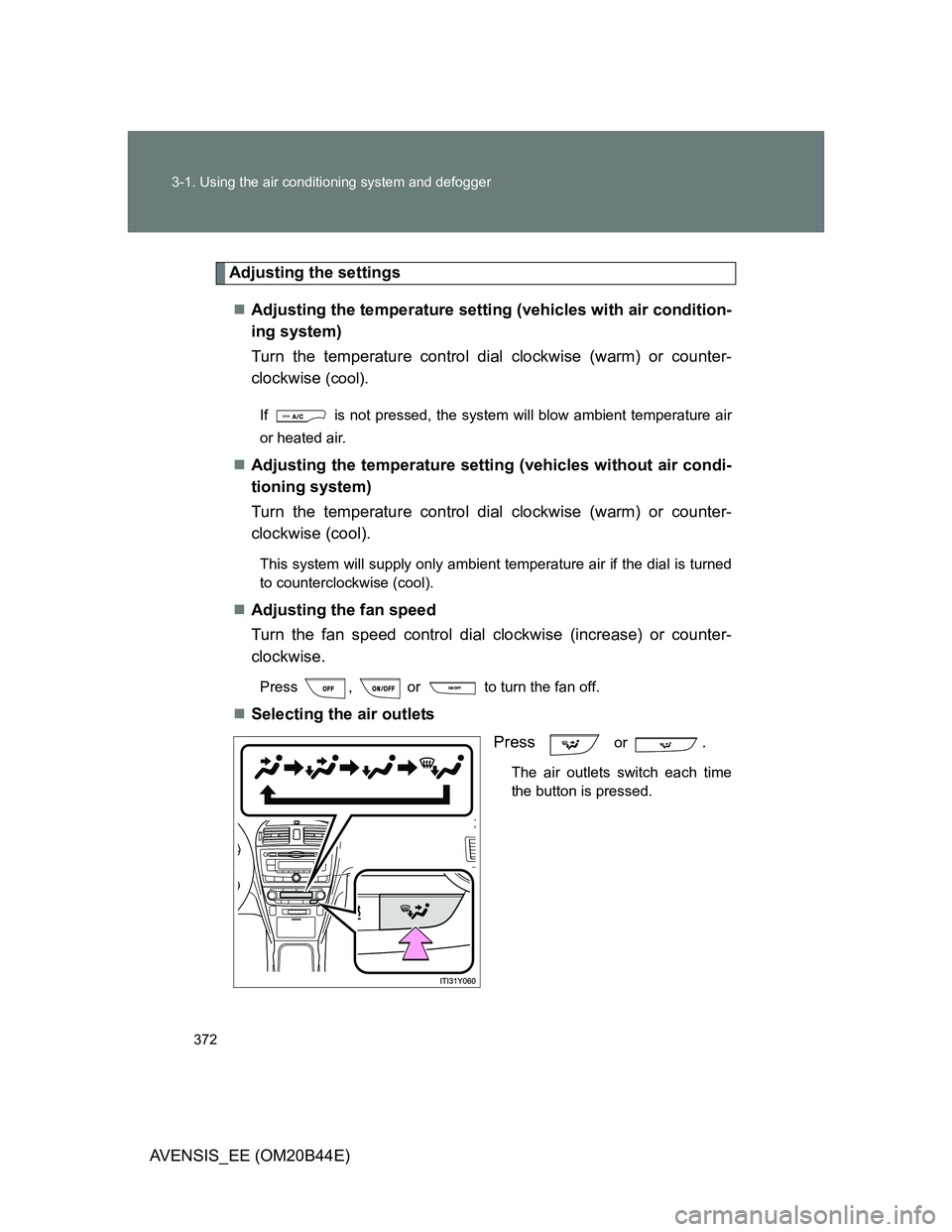

Adjusting the settings
Adjusting the temperature setting (vehicles with air condition-
ing system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise
(cool).
If is not pressed, the system will blow ambient temperature air
or heated air.
Adjusting the temperature setting (vehicles without air condi-
tioning system)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
This system will supply only ambient temperature air if the dial is turned
to counterclockwise (cool).
Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise.
Press , or to turn the fan off.
Selecting the air outlets
Press
or .
The air outlets switch each time
the button is pressed.

373 3-1. Using the air conditioning system and defogger
3
Interior features

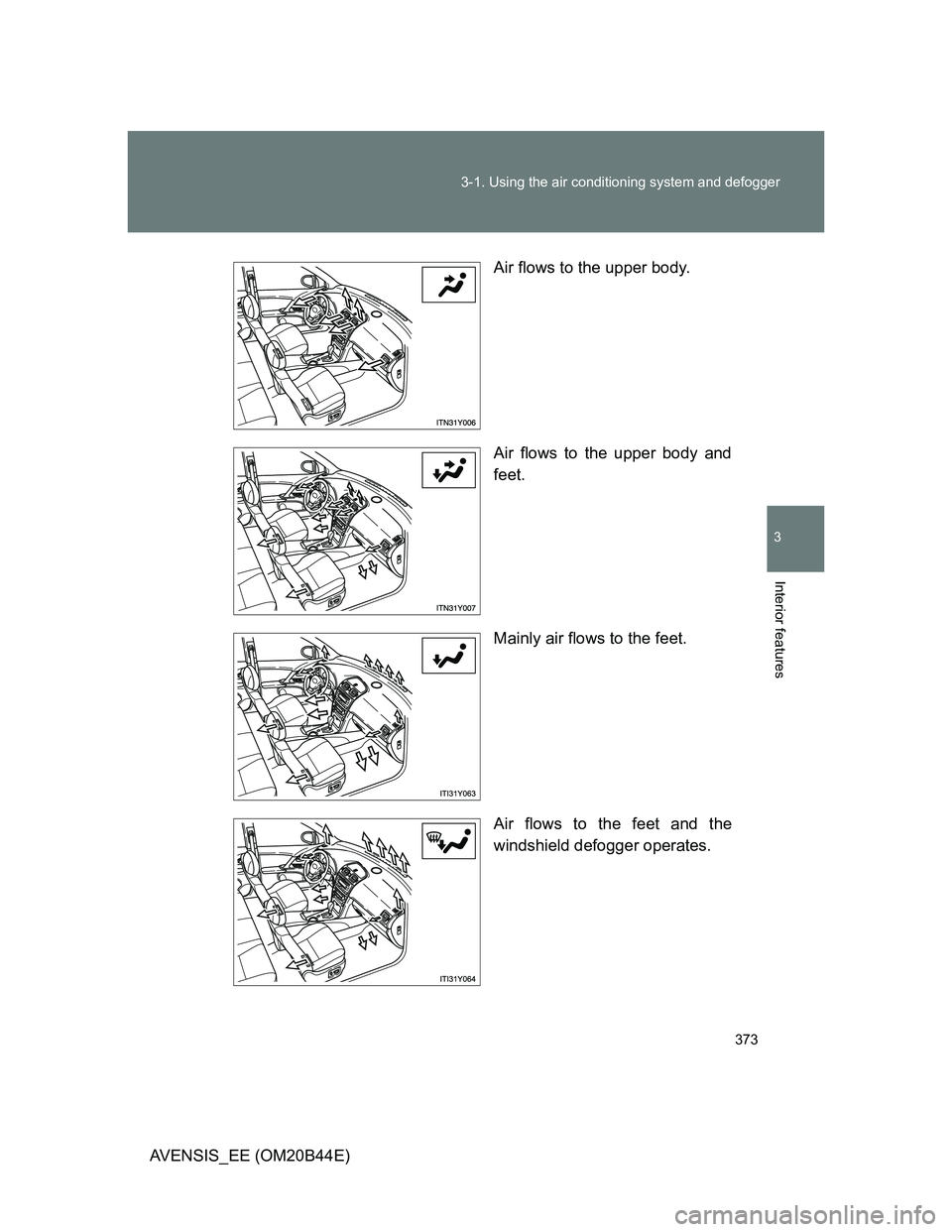

AVENSIS_EE (OM20B44E)Air flows to the upper body.
Air flows to the upper body and
feet.
Mainly air flows to the feet.
Air flows to the feet and the
windshield defogger operates.

374 3-1. Using the air conditioning system and defogger

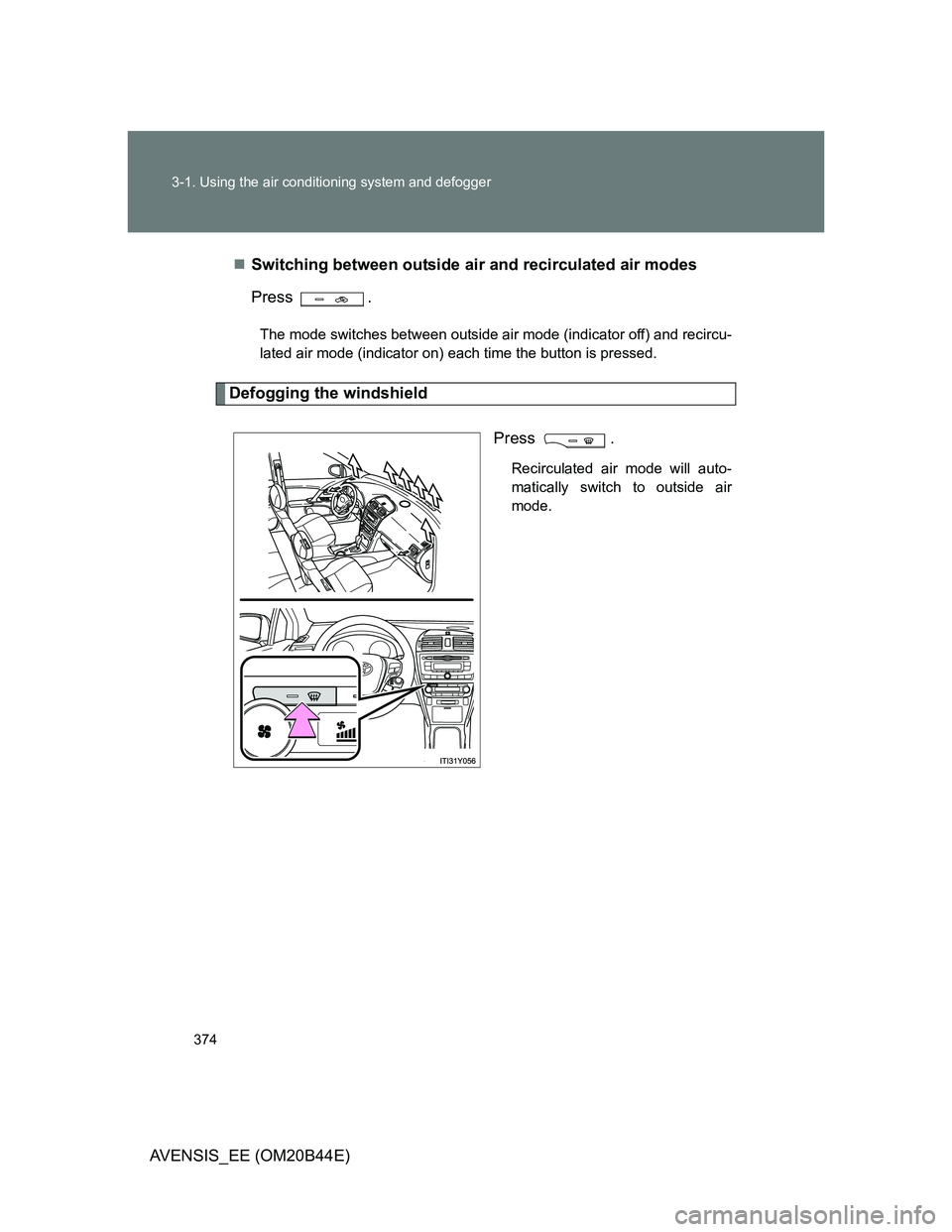

AVENSIS_EE (OM20B44E)Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode (indicator off) and recircu-
lated air mode (indicator on) each time the button is pressed.
Defogging the windshield
Press .
Recirculated air mode will auto-
matically switch to outside air
mode.

375 3-1. Using the air conditioning system and defogger
3
Interior features
AVENSIS_EE (OM20B44E)

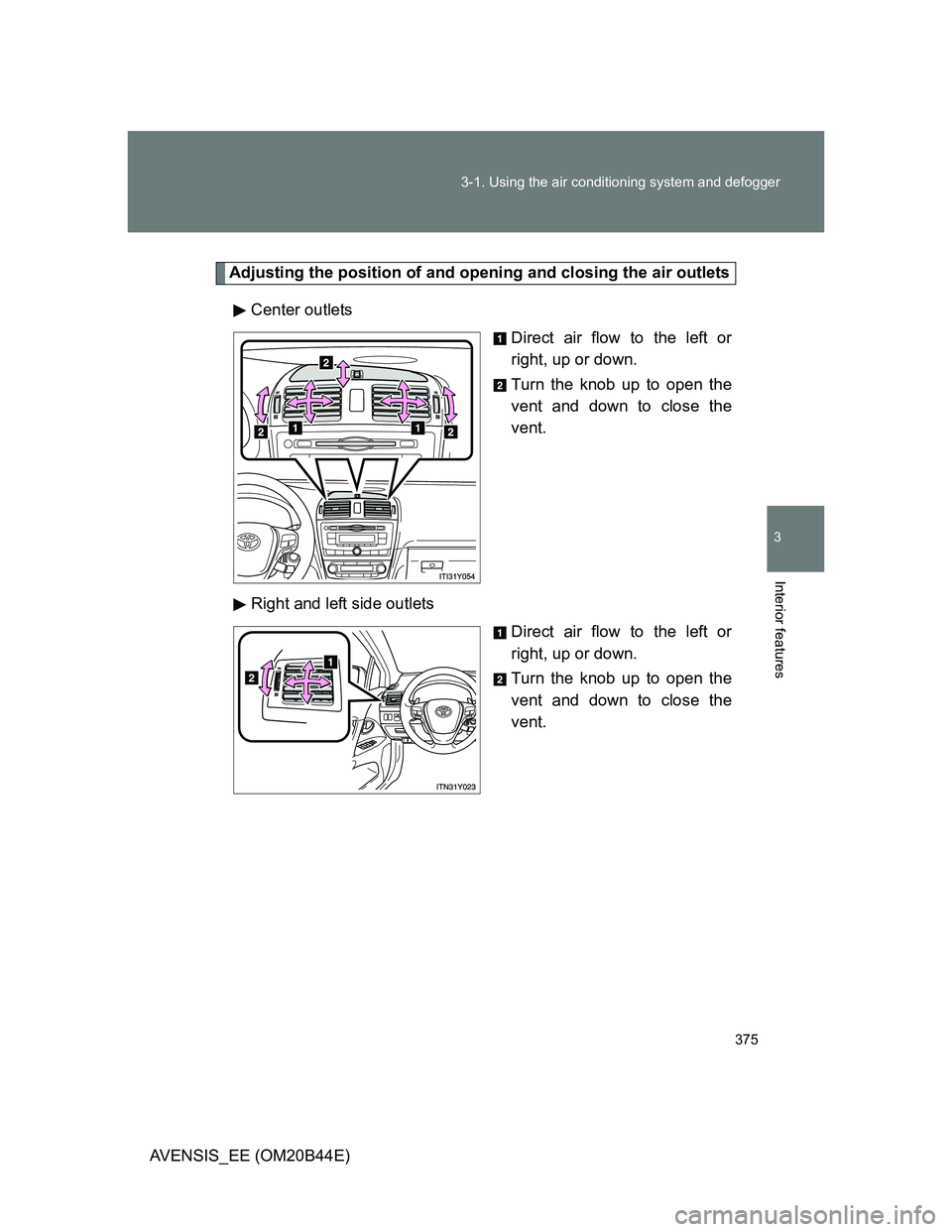

Adjusting the position of and opening and closing the air outlets
Center outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.
Right and left side outlets
Direct air flow to the left or
right, up or down.
Turn the knob up to open the
vent and down to close the
vent.

376 3-1. Using the air conditioning system and defogger
AVENSIS_EE (OM20B44E)

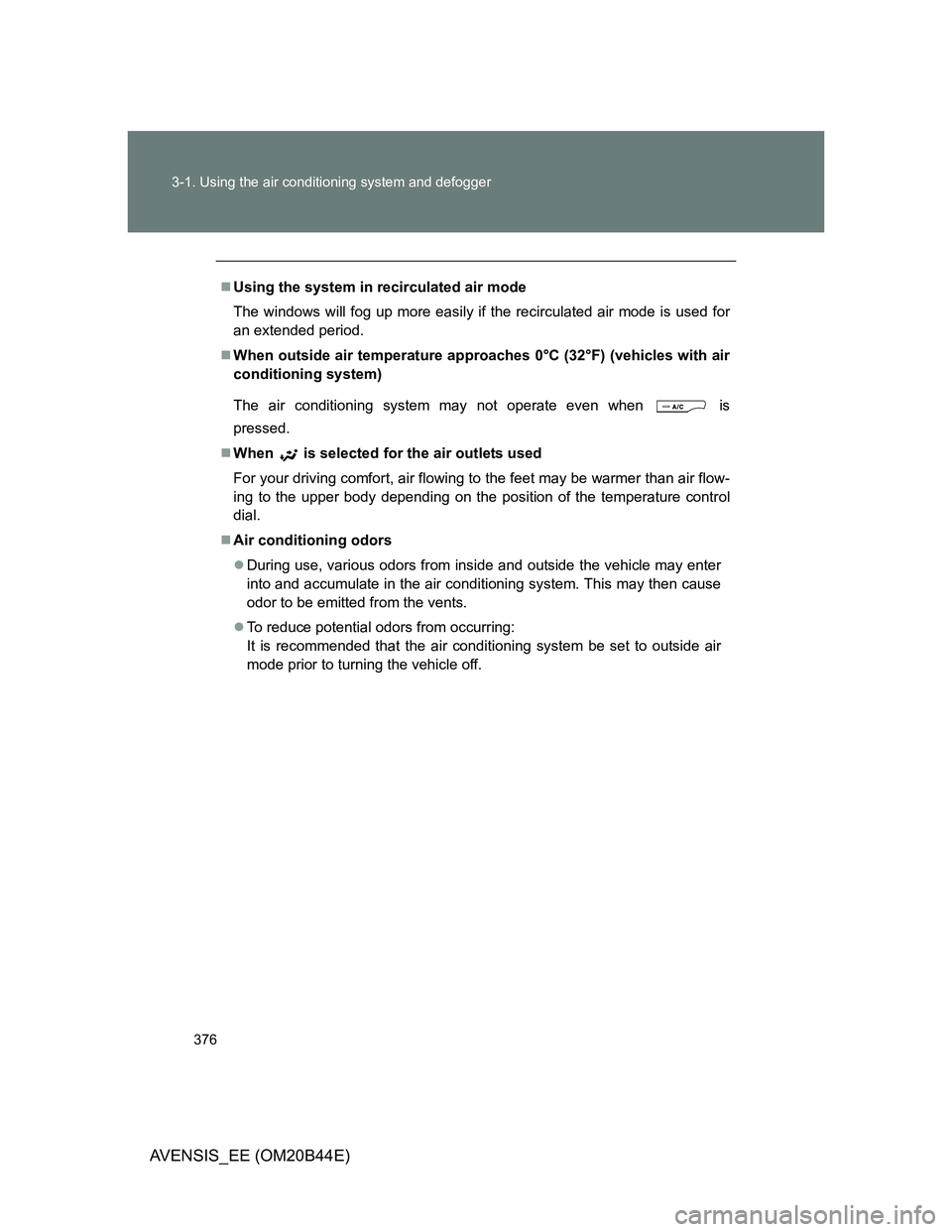

Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for
an extended period.
When outside air temperature approaches 0°C (32°F) (vehicles with air
conditioning system)
The air conditioning system may not operate even when is
pressed.
When is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the position of the temperature control
dial.
Air conditioning odors
During use, various odors from inside and outside the vehicle may enter
into and accumulate in the air conditioning system. This may then cause
odor to be emitted from the vents.
To reduce potential odors from occurring:
It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.

377 3-1. Using the air conditioning system and defogger
3
Interior features
AVENSIS_EE (OM20B44E)

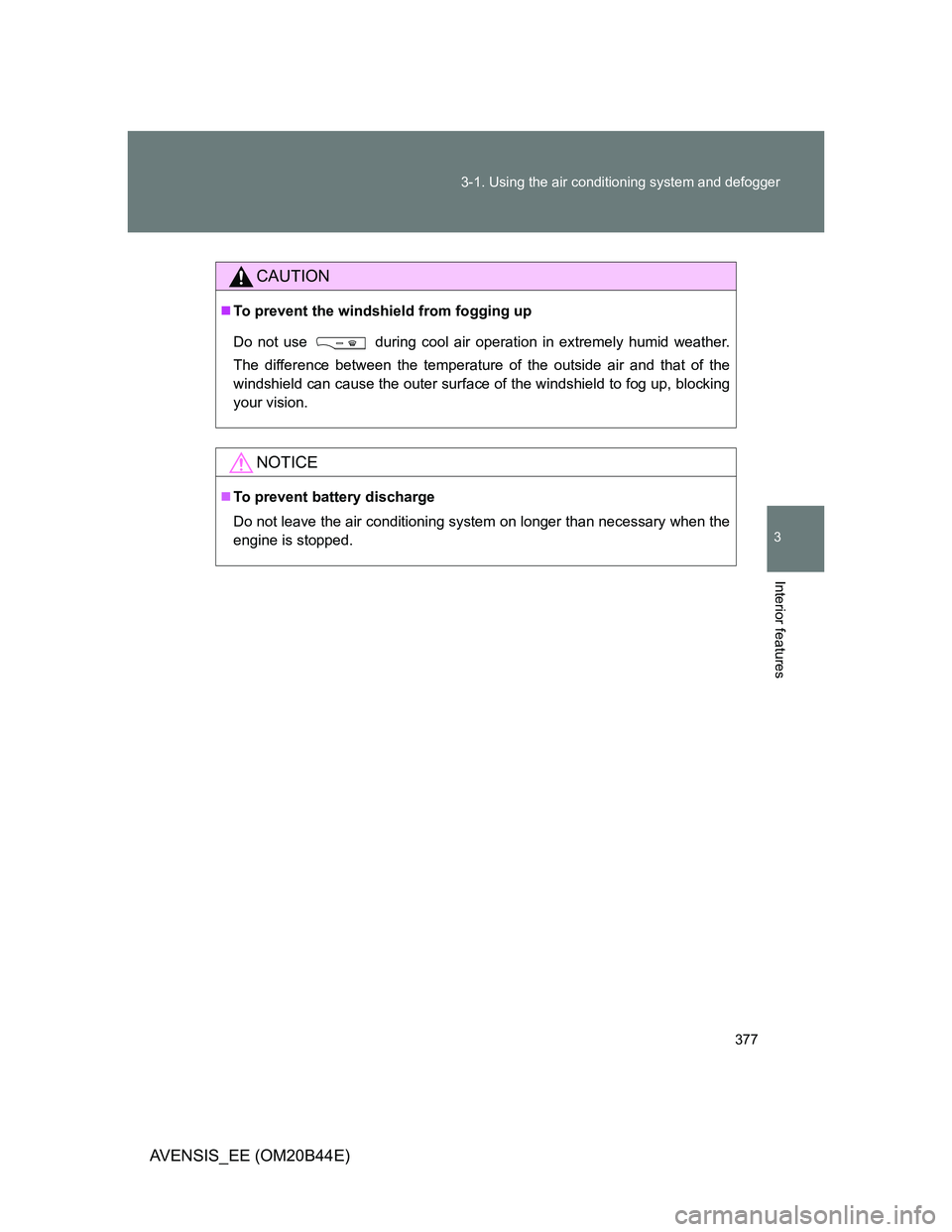

CAUTION
To prevent the windshield from fogging up
Do not use
during cool air operation in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, blocking
your vision.
NOTICE
To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.

378
3-1. Using the air conditioning system and defogger
AVENSIS_EE (OM20B44E)

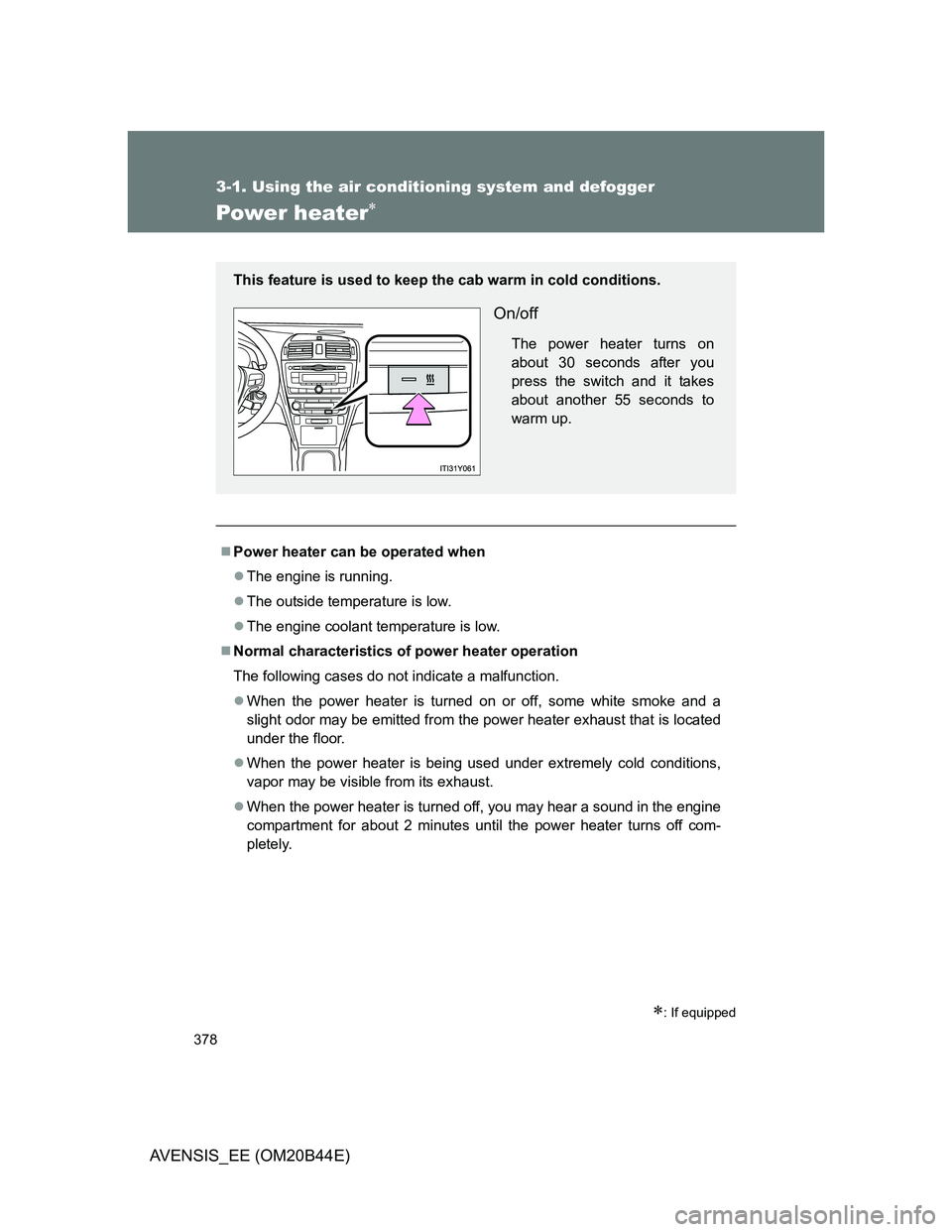

Power heater
: If equipped
Power heater can be operated when
The engine is running.
The outside temperature is low.
The engine coolant temperature is low.
Normal characteristics of power heater operation
The following cases do not indicate a malfunction.
When the power heater is turned on or off, some white smoke and a
slight odor may be emitted from the power heater exhaust that is located
under the floor.
When the power heater is being used under extremely cold conditions,
vapor may be visible from its exhaust.
When the power heater is turned off, you may hear a sound in the engine
compartment for about 2 minutes until the power heater turns off com-
pletely.
This feature is used to keep the cab warm in cold conditions.
On/off
The power heater turns on
about 30 seconds after you
press the switch and it takes
about another 55 seconds to
warm up.

379 3-1. Using the air conditioning system and defogger
3
Interior features
AVENSIS_EE (OM20B44E)

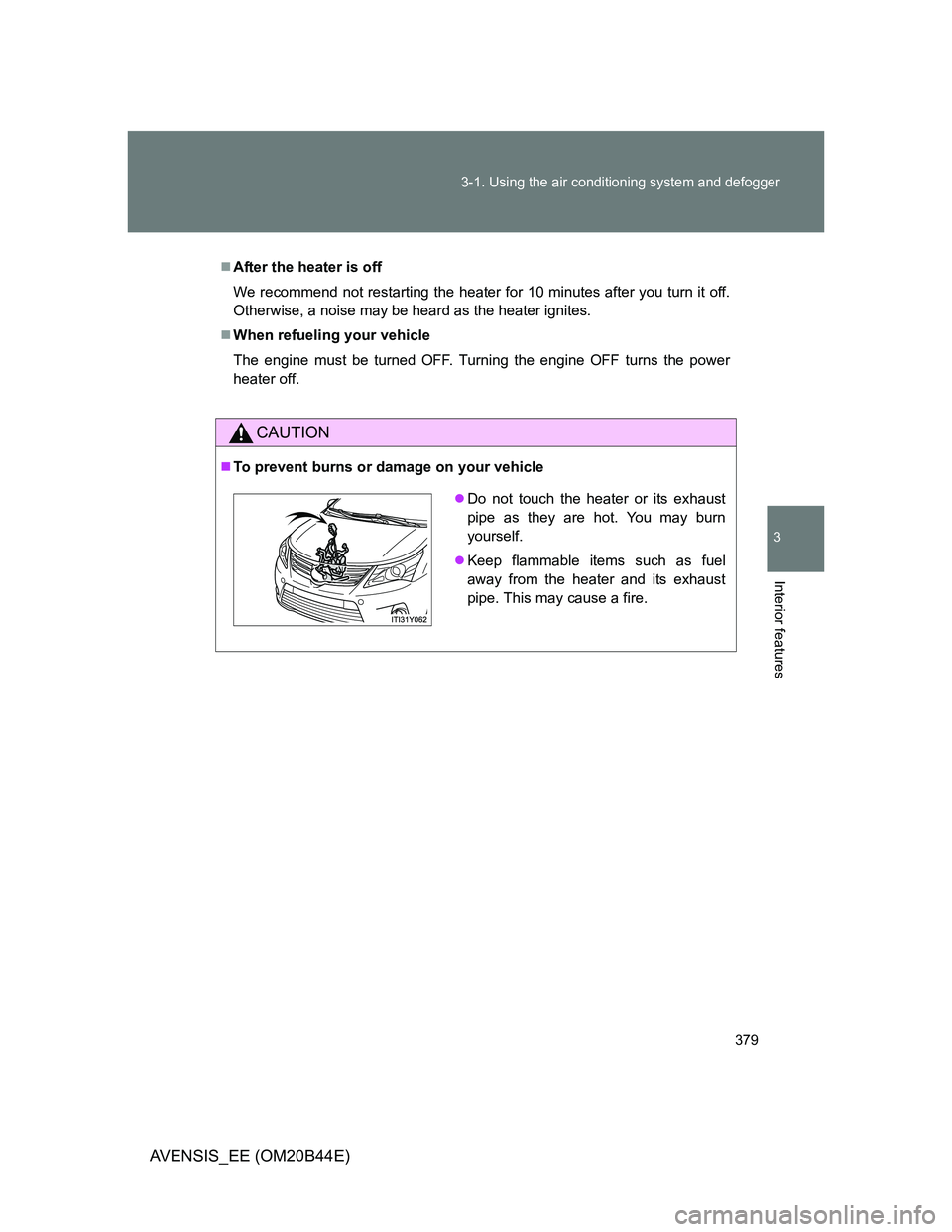

After the heater is off
We recommend not restarting the heater for 10 minutes after you turn it off.
Otherwise, a noise may be heard as the heater ignites.
When refueling your vehicle
The engine must be turned OFF. Turning the engine OFF turns the power
heater off.
CAUTION
To prevent burns or damage on your vehicle
Do not touch the heater or its exhaust
pipe as they are hot. You may burn
yourself.
Keep flammable items such as fuel
away from the heater and its exhaust
pipe. This may cause a fire.

380 3-1. Using the air conditioning system and defogger
AVENSIS_EE (OM20B44E)

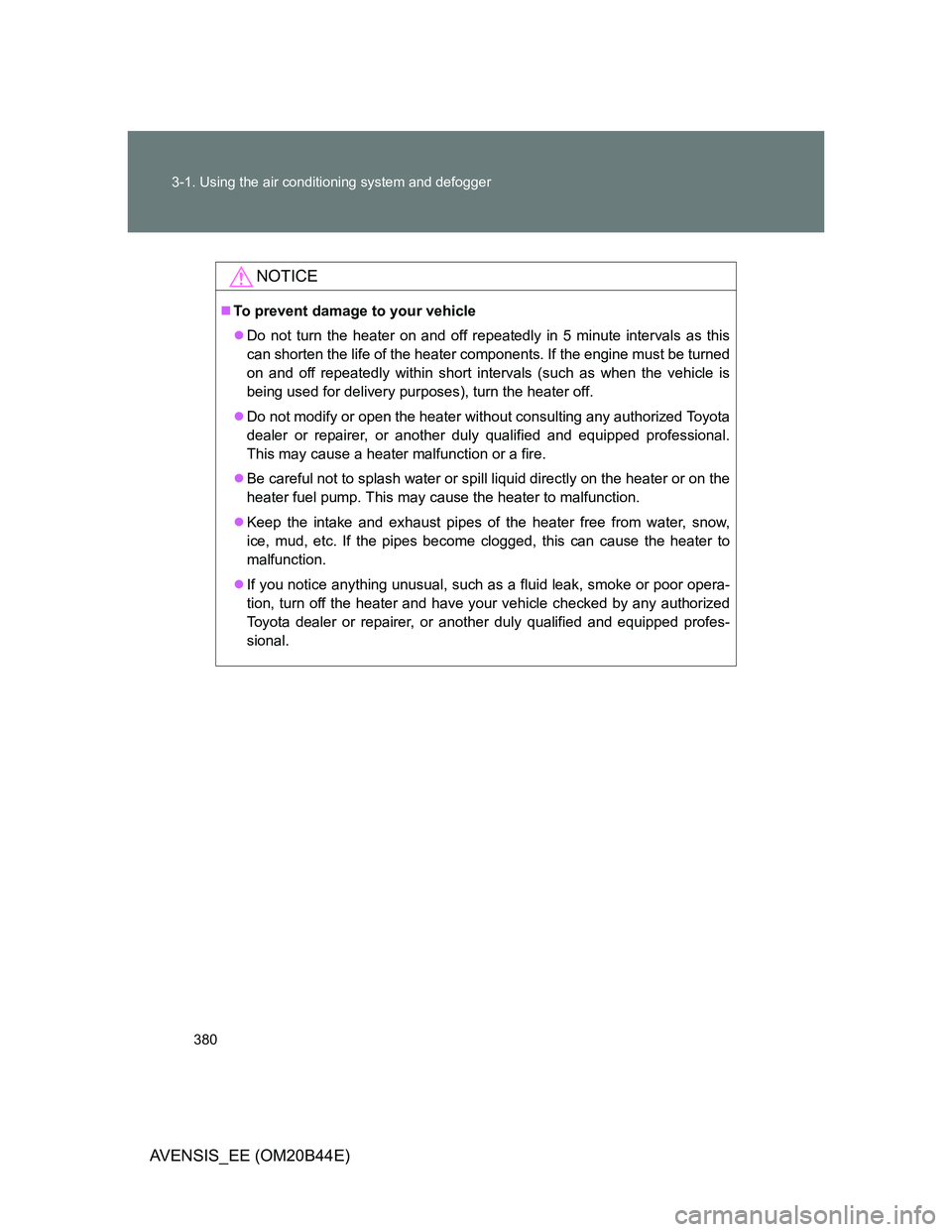

NOTICE
To prevent damage to your vehicle
Do not turn the heater on and off repeatedly in 5 minute intervals as this
can shorten the life of the heater components. If the engine must be turned
on and off repeatedly within short intervals (such as when the vehicle is
being used for delivery purposes), turn the heater off.
Do not modify or open the heater without consulting any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
This may cause a heater malfunction or a fire.
Be careful not to splash water or spill liquid directly on the heater or on the
heater fuel pump. This may cause the heater to malfunction.
Keep the intake and exhaust pipes of the heater free from water, snow,
ice, mud, etc. If the pipes become clogged, this can cause the heater to
malfunction.
If you notice anything unusual, such as a fluid leak, smoke or poor opera-
tion, turn off the heater and have your vehicle checked by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
