Installation of an RF-transmitter system
The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
Multiport fuel injection system/sequential multiport fuel injection system
Dynamic radar cruise control
Cruise control system
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional for precautionary measures or spe-
cial instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is
available on request at any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Scrapping of your Toyota
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional, before you scrap your vehicle.

32
AVENSIS_OM_OM20B88E_(EE)

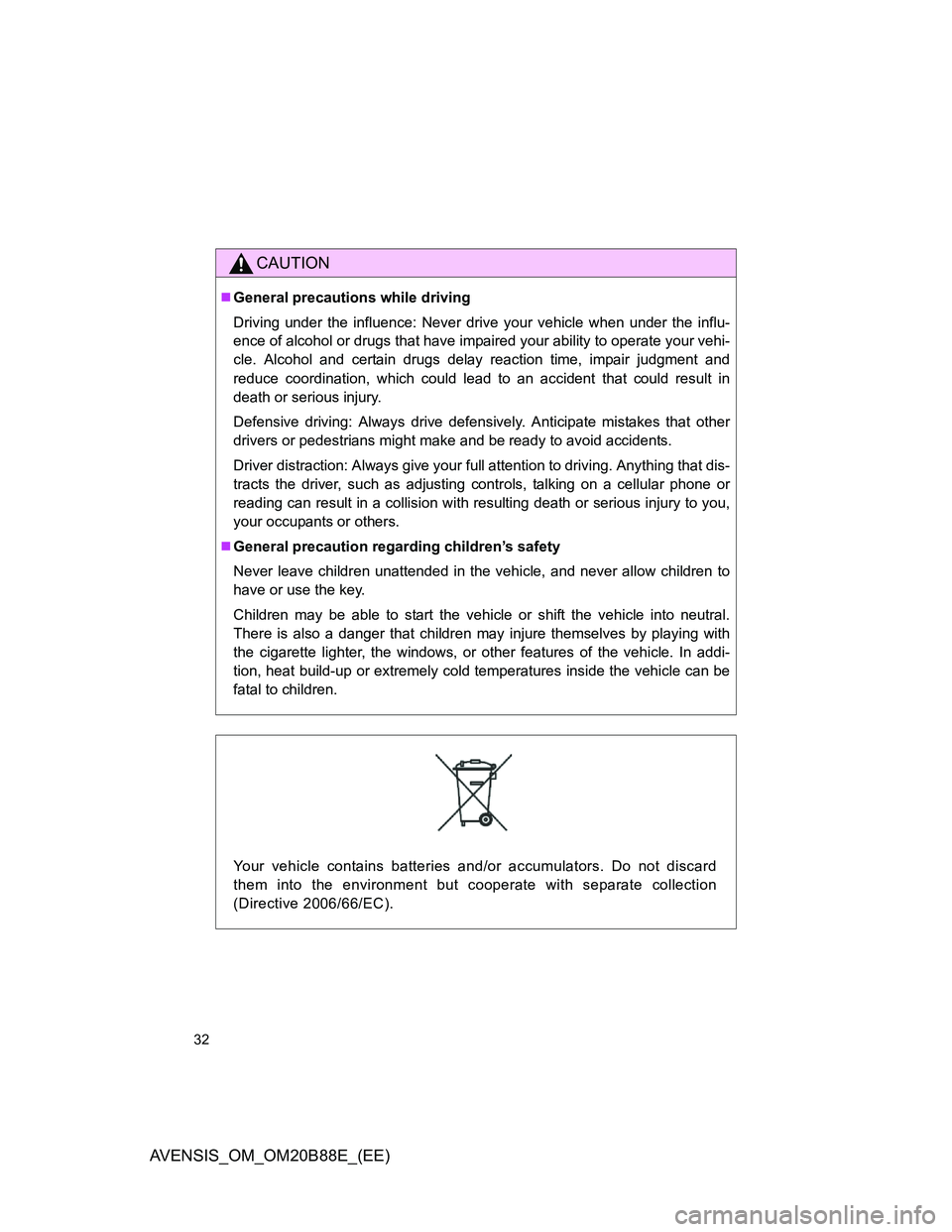

CAUTION
General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impaired your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that dis-
tracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the cigarette lighter, the windows, or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be
fatal to children.
Your vehicle contains batteries and/or accumulators. Do not discard
them into the environment but cooperate with separate collection
(Directive 2006/66/EC).

33
AVENSIS_OM_OM20B88E_(EE)

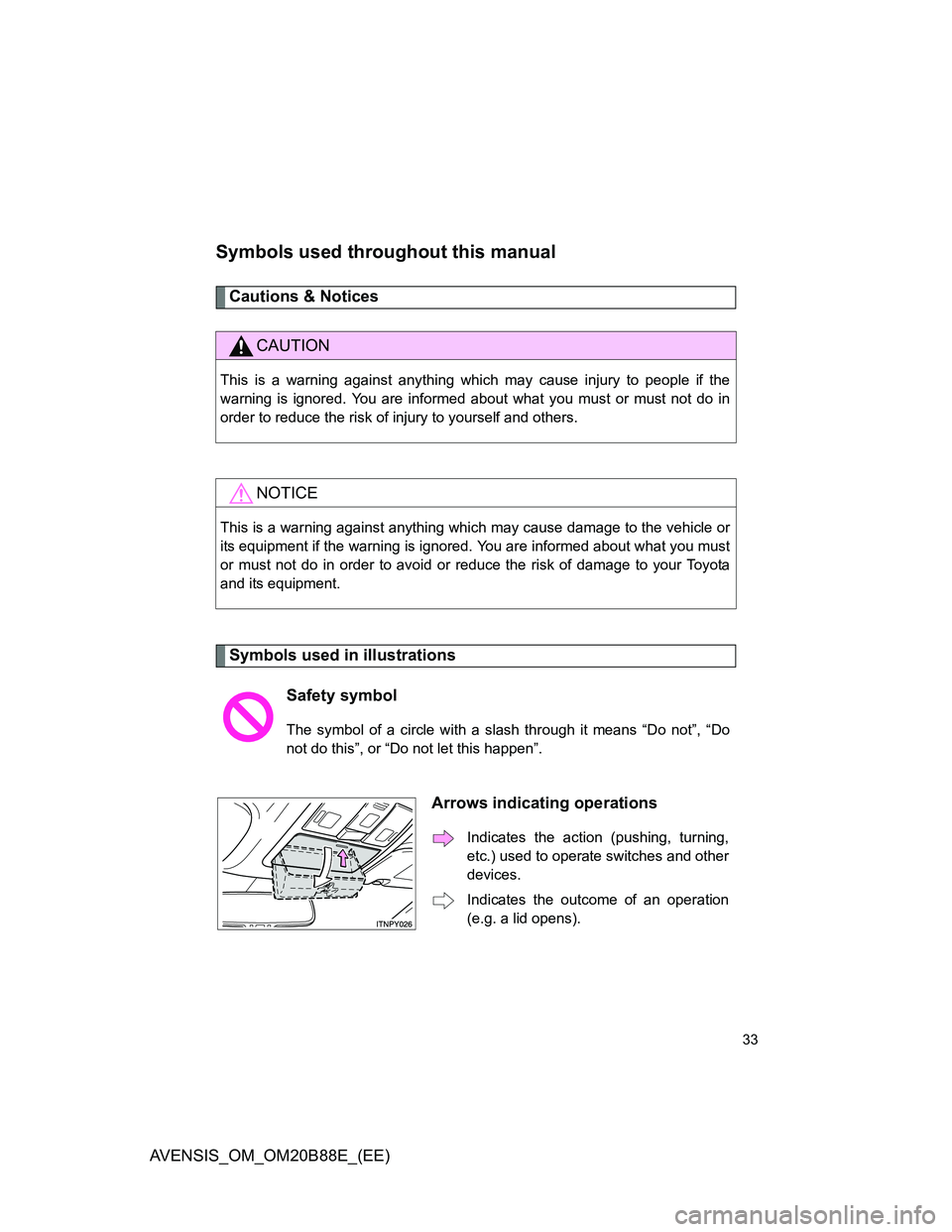

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against anything which may cause injury to people if the
warning is ignored. You are informed about what you must or must not do in
order to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or
its equipment if the warning is ignored. You are informed about what you must
or must not do in order to avoid or reduce the risk of damage to your Toyota
and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”, “Do
not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).

34
AVENSIS_OM_OM20B88E_(EE)

1Before driving
35
AVENSIS_OM_OM20B88E_(EE)
1-1. Key information
Keys.................................... 36
1-2. Opening, closing and locking
the doors
Smart entry & start
system .............................. 39
Wireless remote control ...... 62
Side doors .......................... 72
Trunk (sedan) ..................... 80
Back door (wagon) ............. 84
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 90
Rear seats .......................... 92
Driving position memory
system .............................. 95
Head restraints ................... 98
Seat belts.......................... 100
Steering wheel .................. 108
Inside rear view mirror ...... 111
Outside rear view
mirrors ............................ 1141-4. Opening and closing the
windows
Power windows ................. 117
1-5. Refueling
Opening the fuel tank
cap .................................. 121
1-6. Theft deterrent system
Engine immobilizer
system ............................ 127
Double locking system ...... 136
Alarm ................................ 138
1-7. Safety information
Correct driving posture ..... 146
SRS airbags...................... 148
Child restraint systems ..... 160
Installing child restraints ... 169
Airbag manual on-off
system ............................ 180

36
AVENSIS_OM_OM20B88E_(EE)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Vehicles with smart entry & start system
Electronic keys
• Operating the smart entry &
start system (P. 39)
• Operating the wireless
remote control function
(P. 62)
Mechanical keys
Key number plate
Vehicles without smart entry & start system
Master keys
Operating the wireless remote
control function (P. 62)
Key number plate

37 1-1. Key information
1
Before driving
AVENSIS_OM_OM20B88E_(EE)

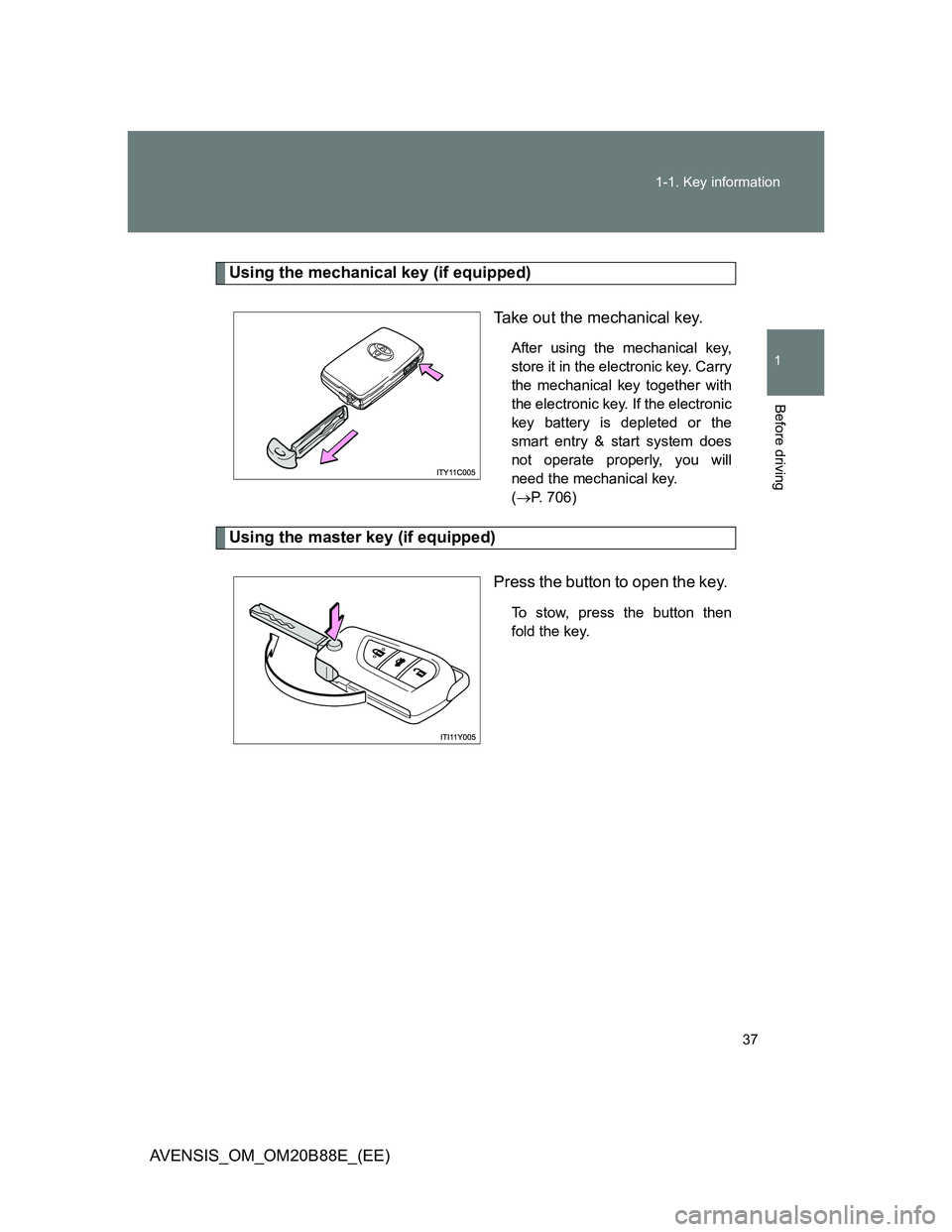

Using the mechanical key (if equipped)
Take out the mechanical key.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the
smart entry & start system does
not operate properly, you will
need the mechanical key.
(P. 706)
Using the master key (if equipped)
Press the button to open the key.
To stow, press the button then
fold the key.

38 1-1. Key information
AVENSIS_OM_OM20B88E_(EE)

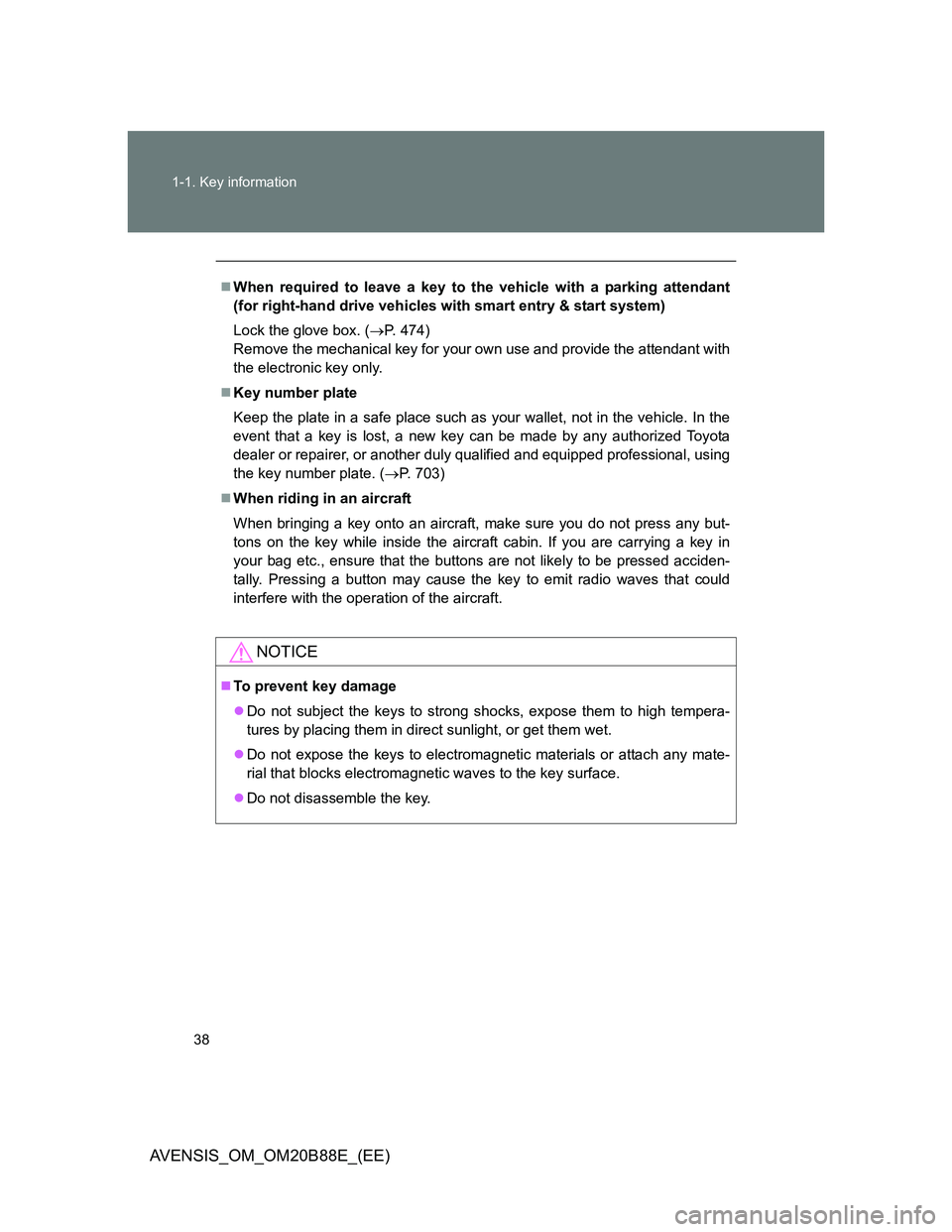

When required to leave a key to the vehicle with a parking attendant
(for right-hand drive vehicles with smart entry & start system)
Lock the glove box. (P. 474)
Remove the mechanical key for your own use and provide the attendant with
the electronic key only.
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 703)
When riding in an aircraft
When bringing a key onto an aircraft, make sure you do not press any but-
tons on the key while inside the aircraft cabin. If you are carrying a key in
your bag etc., ensure that the buttons are not likely to be pressed acciden-
tally. Pressing a button may cause the key to emit radio waves that could
interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the key.

39
1
Before driving
AVENSIS_OM_OM20B88E_(EE)
1-2. Opening, closing and locking the doors

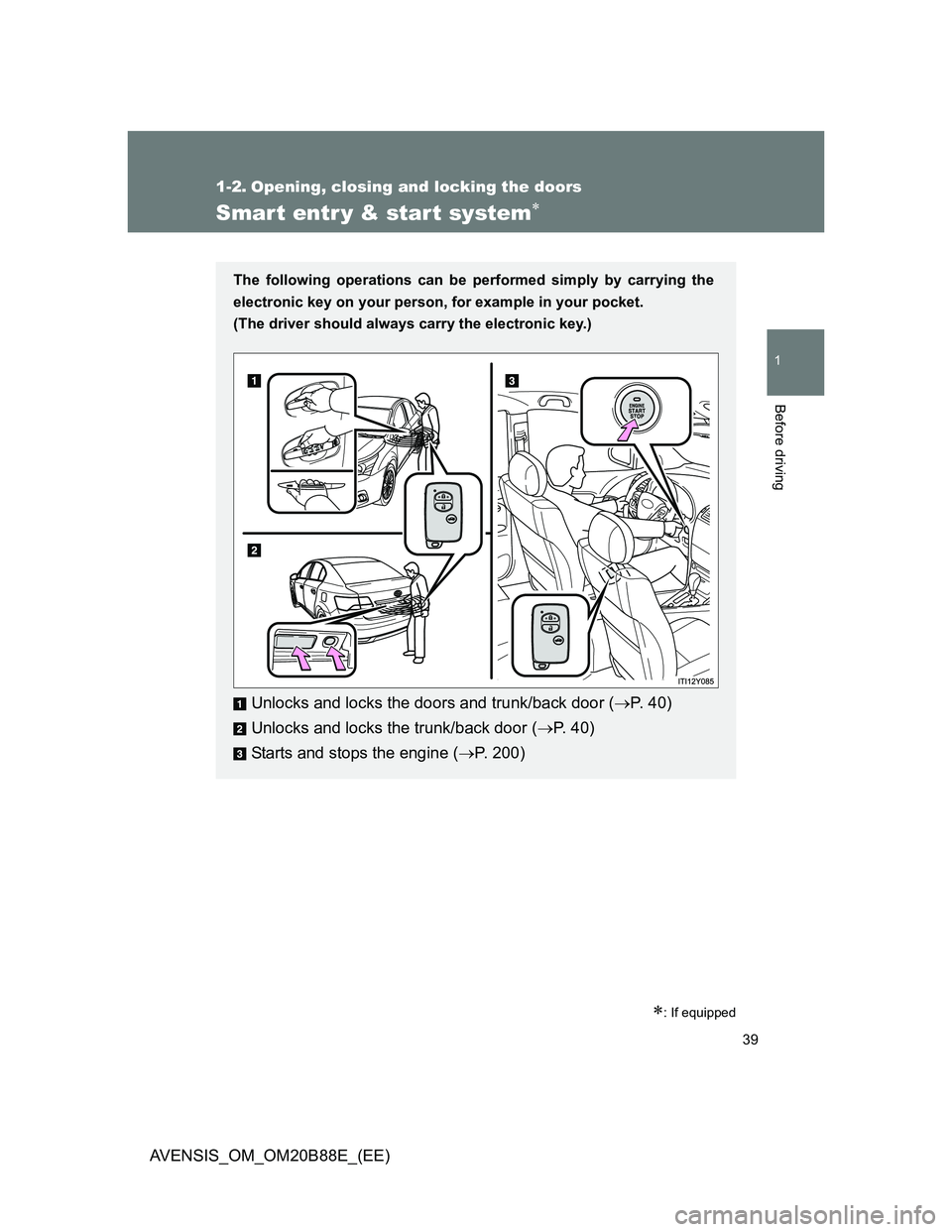

Smart entr y & start system
: If equipped
The following operations can be performed simply by carrying the
electronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Unlocks and locks the doors and trunk/back door (P. 40)
Unlocks and locks the trunk/back door (P. 4 0 )
Starts and stops the engine (P. 200)

40 1-2. Opening, closing and locking the doors
AVENSIS_OM_OM20B88E_(EE)
Unlocking and locking the doors and trunk/back door (front door
handles only)
Grip the handle to unlock.
Make sure to touch the sensor on
the back of the handle.
The doors and trunk/back door
cannot be unlocked for 3 seconds
after they are locked.
Touch the sensor area to lock.
Unlocking and locking the trunk/back door
Press the unlock button to
unlock.
Lock the trunk/back door again
when you leave the vehicle. They
will not lock automatically after
they have been opened and then
closed.
