TOYOTA AVENSIS 2014 (in English) Owner's Manual

21
AVENSIS_OM_OM20B88E_(EE)
A
Inside rear view mirror P. 111
Panoramic roof shade switch (wagon)  P. 490
Vanity mirrors
Sun visors
*2
P. 482
P. 481
SRS curtain shield airbags P. 148
Personal lights P. 472
Personal/interior lights
Microphone
*1
P. 471
P. 443
Intrusion sensor cancel switch 
Overhead console

P. 139
P. 476
: If equipped
*1: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.
*2: NEVER use a rearward facing child restraint
on a seat protected by an ACTIVE AIRBAG in
front of it, DEATH or SERIOUS INJURY to the
CHILD can occur. (P. 178)
Assist grips P. 495

22
AVENSIS_OM_OM20B88E_(EE)

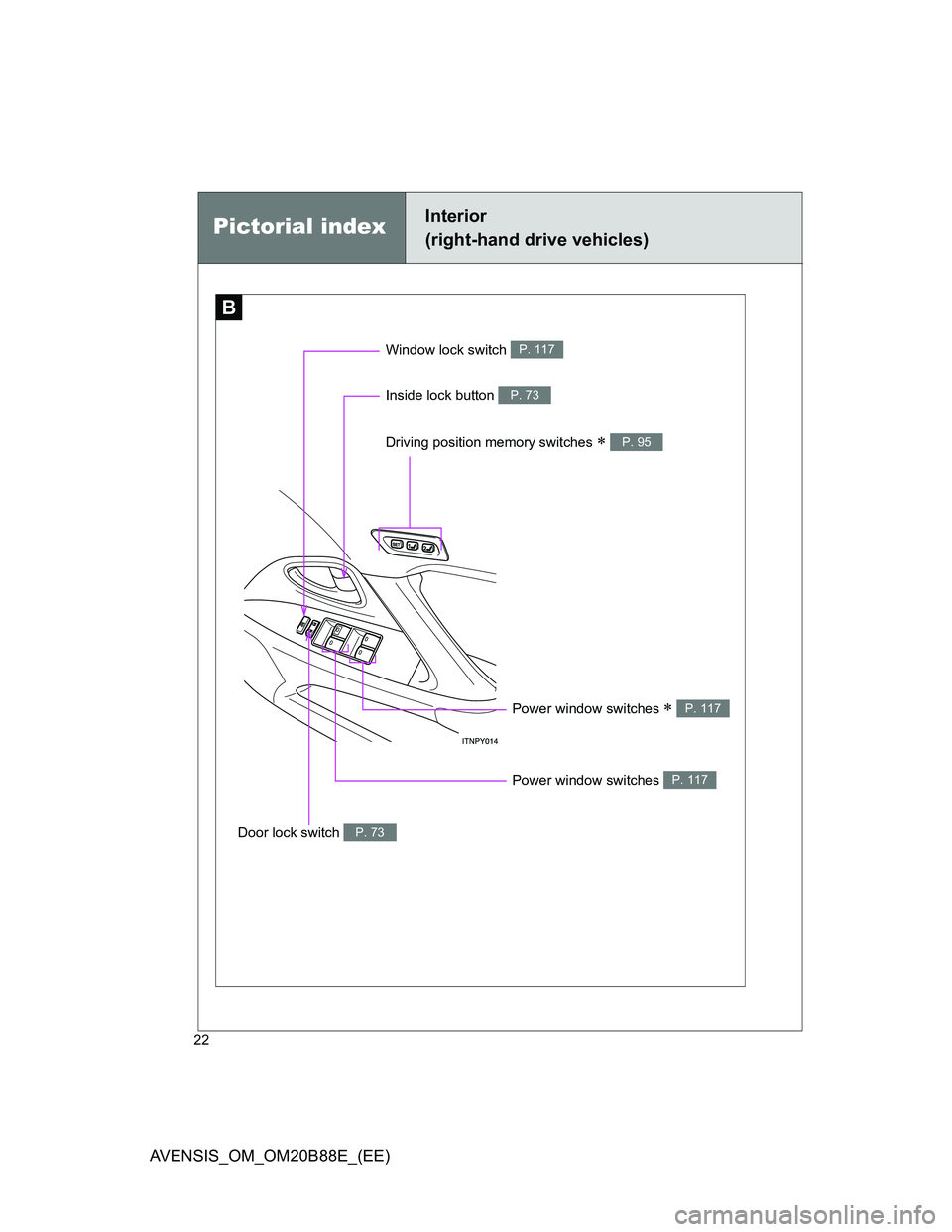

B
Window lock switch P. 117
Power window switches  P. 117
Door lock switch P. 73
Pictorial indexInterior
(right-hand drive vehicles)
Driving position memory switches  P. 95
Inside lock button P. 73
Power window switches P. 117

23
AVENSIS_OM_OM20B88E_(EE)

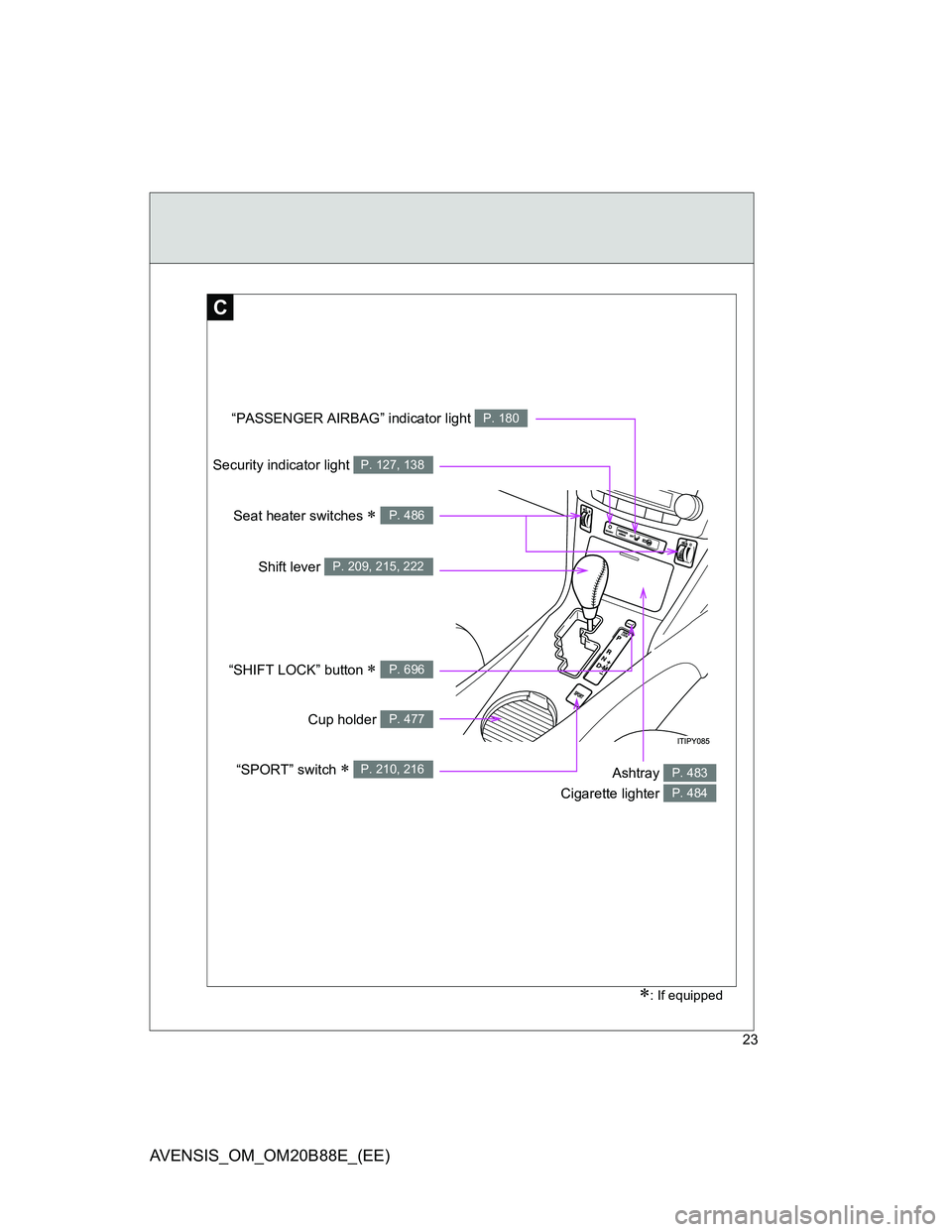

C
Security indicator light P. 127, 138
: If equipped
“SHIFT LOCK” button  P. 696
Shift lever P. 209, 215, 222
Seat heater switches  P. 486
Ashtray
Cigarette lighter P. 483
P. 484
“PASSENGER AIRBAG” indicator light P. 180
Cup holder P. 477
“SPORT” switch  P. 210, 216

24
AVENSIS_OM_OM20B88E_(EE)

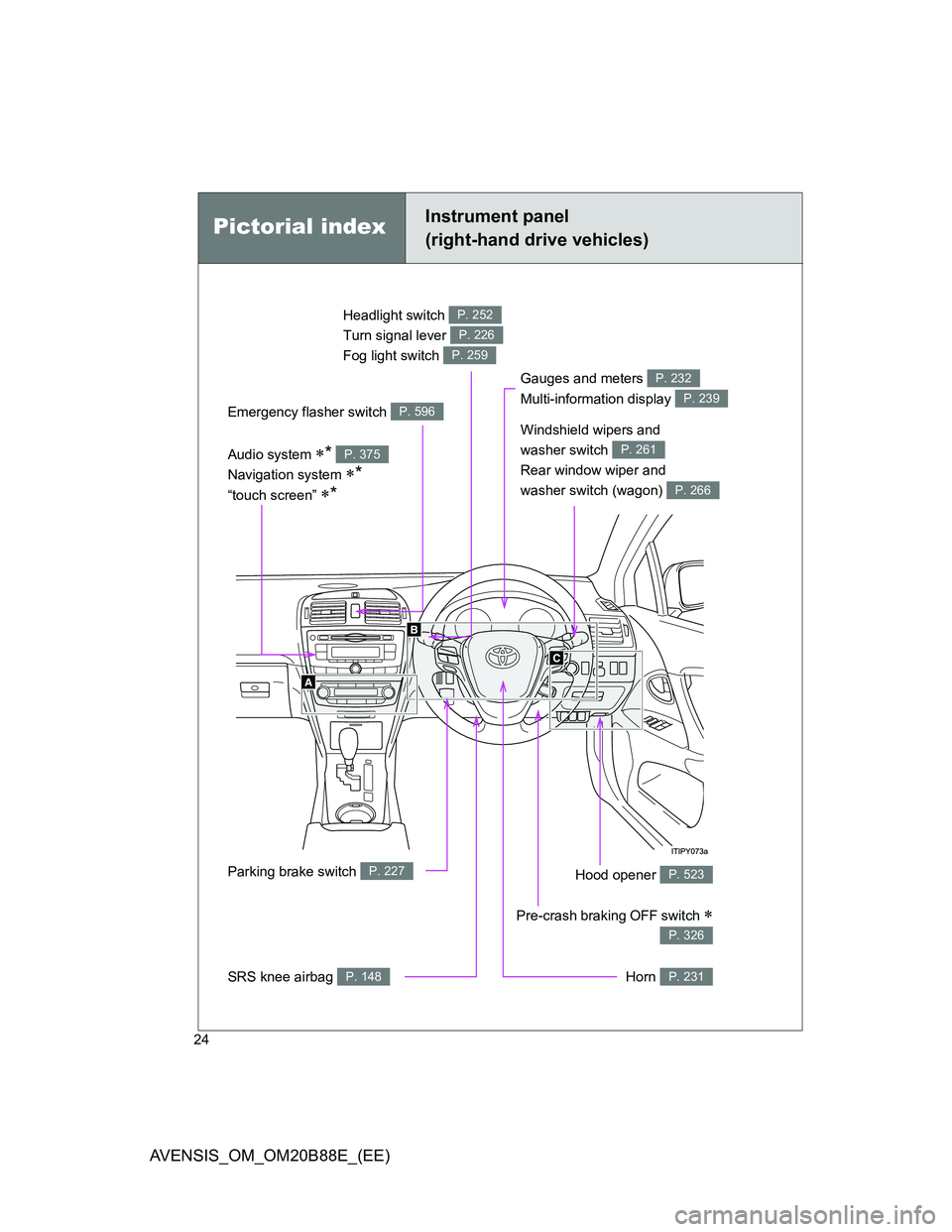

Headlight switch
Turn signal lever
Fog light switch P. 252
P. 226
P. 259
Gauges and meters
Multi-information display P. 232
P. 239
Audio system *
Navigation system
*
“touch screen” *
P. 375
Parking brake switch P. 227Hood opener P. 523
SRS knee airbag P. 148
Pictorial indexInstrument panel
(right-hand drive vehicles)
Windshield wipers and
washer switch
Rear window wiper and
washer switch (wagon)
P. 261
P. 266
Pre-crash braking OFF switch 
P. 326
Emergency flasher switch P. 596
Horn P. 231

25
AVENSIS_OM_OM20B88E_(EE)
A
: If equipped
*: Refer to ““touch screen” Owner’s Manual”.
Rear window defogger switch P. 373
Vehicle with automatic air conditioning system
Vehicle with manual air conditioning system
Rear window defogger switch P. 373
Rear window defogger switch P. 373
Air conditioning
system
P. 352
Air conditioning
system
P. 362

26
AVENSIS_OM_OM20B88E_(EE)
B
Pictorial indexInstrument panel
(right-hand drive vehicles)
Paddle shift switches  P. 211, 217
Talk switch * P. 443
“DISP” switch 
P. 240
Cruise control switch  P. 267, 273
Audio remote control
switches
P. 431
Telephone switches *
“DISP” switch

P. 443
P. 240
Toyota parking
assist-sensor
switch
 P. 295
Distance switch 
P. 273
Tilt and telescopic steering
control switch
 P. 108Tilt and telescopic steering lock
release lever
 P. 108

27
AVENSIS_OM_OM20B88E_(EE)

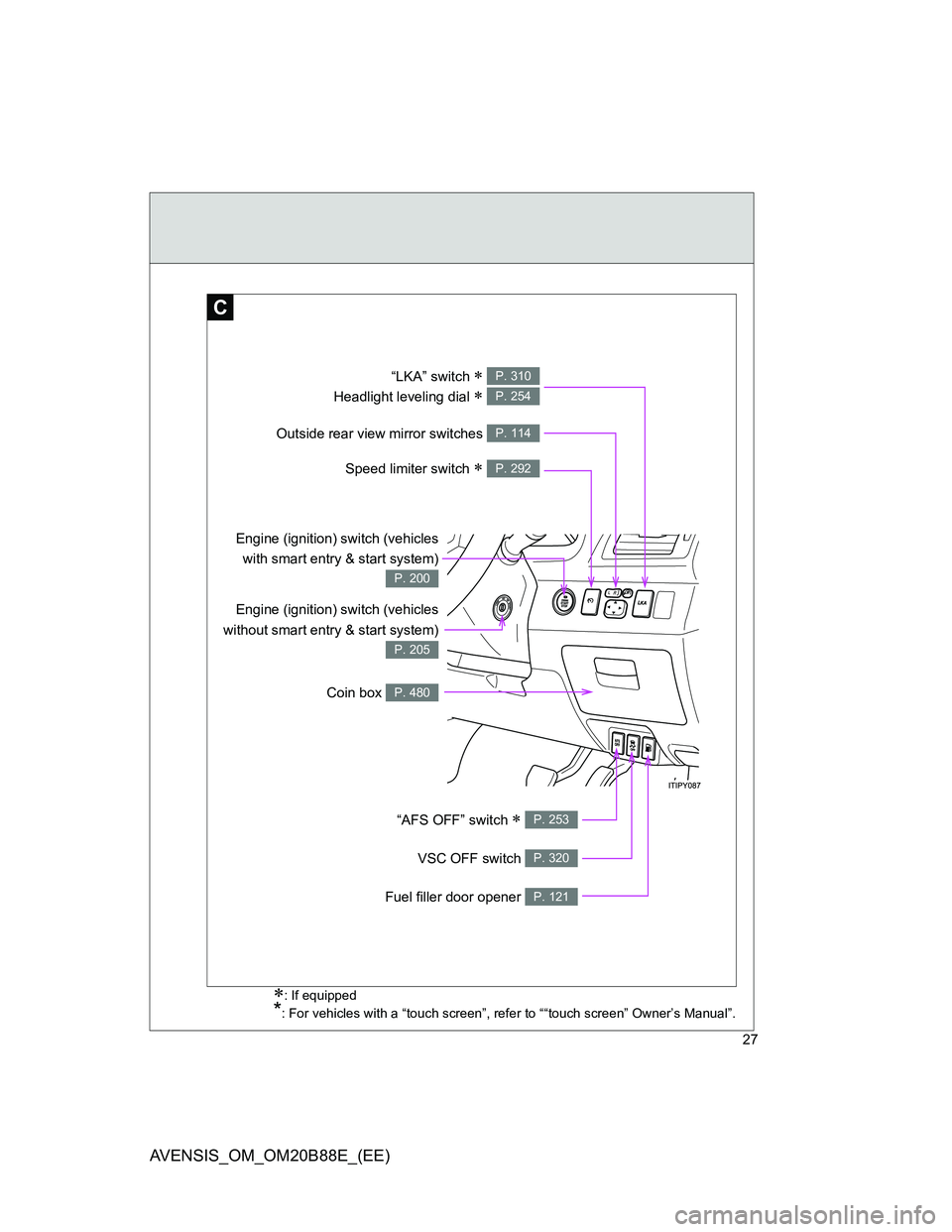

C
Outside rear view mirror switches P. 114
“LKA” switch 
Headlight leveling dial

P. 310
P. 254
Speed limiter switch  P. 292
Coin box P. 480
“AFS OFF” switch  P. 253
VSC OFF switch P. 320
Fuel filler door opener P. 121
Engine (ignition) switch (vehicles
without smart entry & start system)
P. 205
Engine (ignition) switch (vehicles
with smart entry & start system)
P. 200
: If equipped
*: For vehicles with a “touch screen”, refer to ““touch screen” Owner’s Manual”.

28
AVENSIS_OM_OM20B88E_(EE)

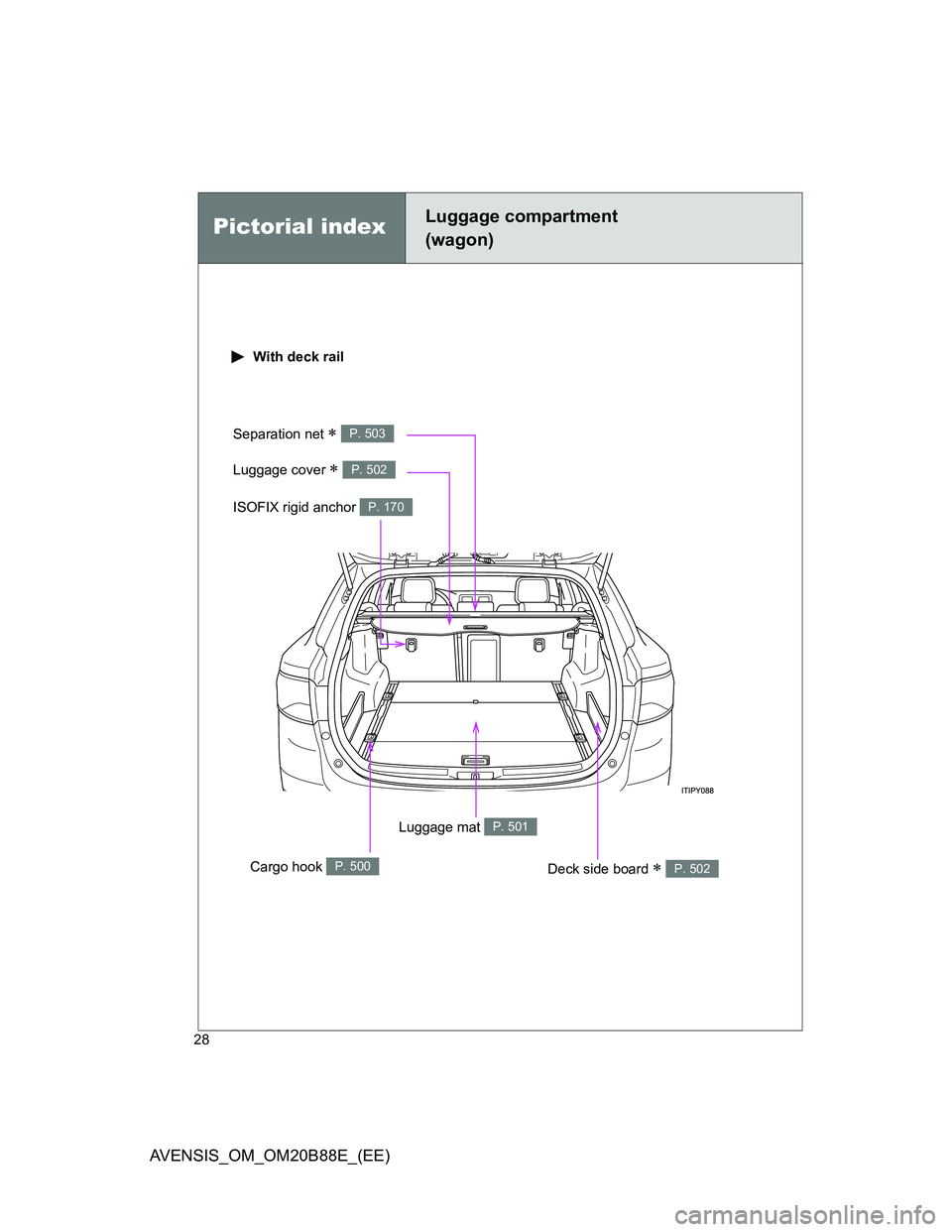

Pictorial indexLuggage compartment
(wagon)
With deck rail
Luggage mat P. 501
Deck side board  P. 502
Separation net  P. 503
Luggage cover  P. 502
Cargo hook P. 500
ISOFIX rigid anchor P. 170

29
AVENSIS_OM_OM20B88E_(EE)
: If equipped

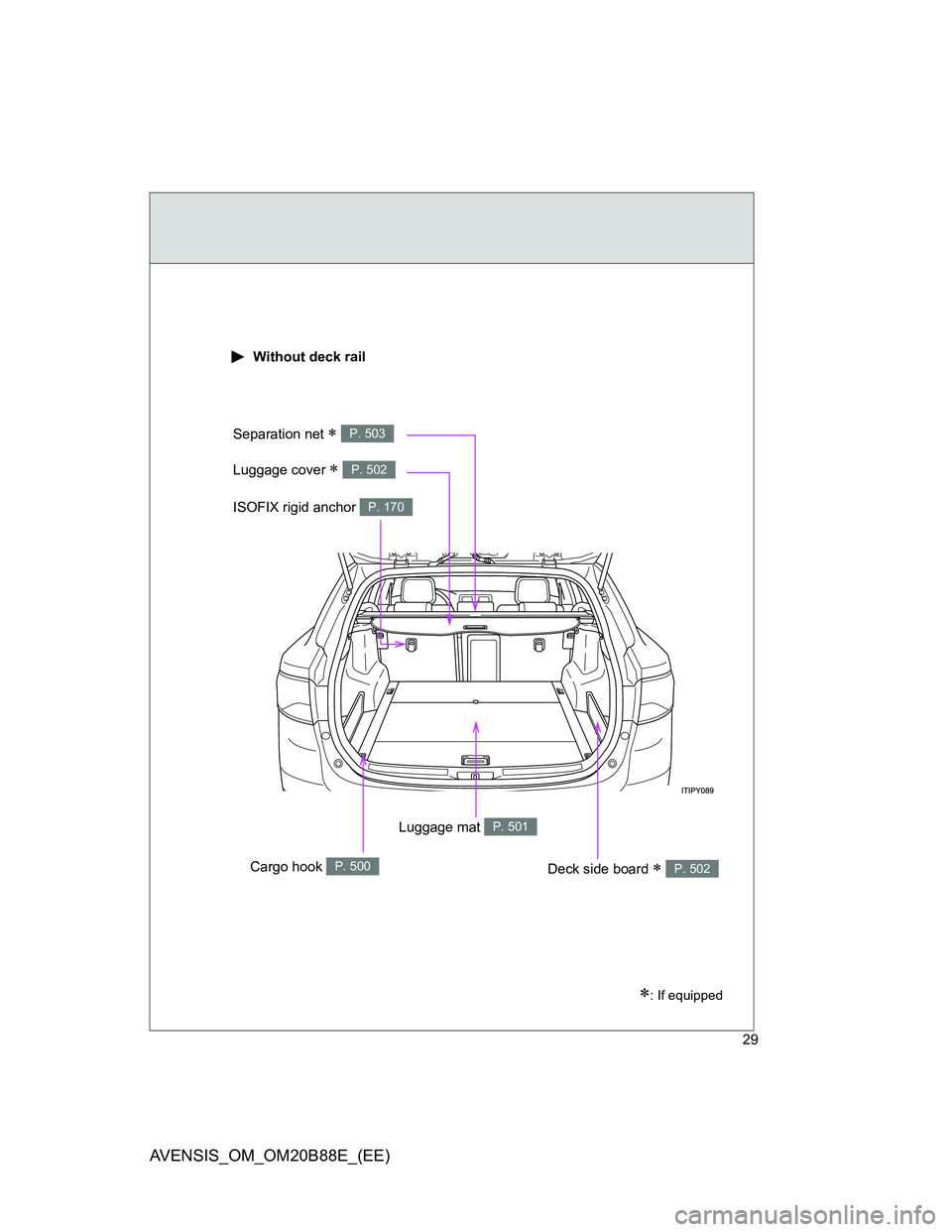

Without deck rail
Luggage mat P. 501
Deck side board  P. 502
Separation net  P. 503
Luggage cover  P. 502
Cargo hook P. 500
ISOFIX rigid anchor P. 170

30
AVENSIS_OM_OM20B88E_(EE)

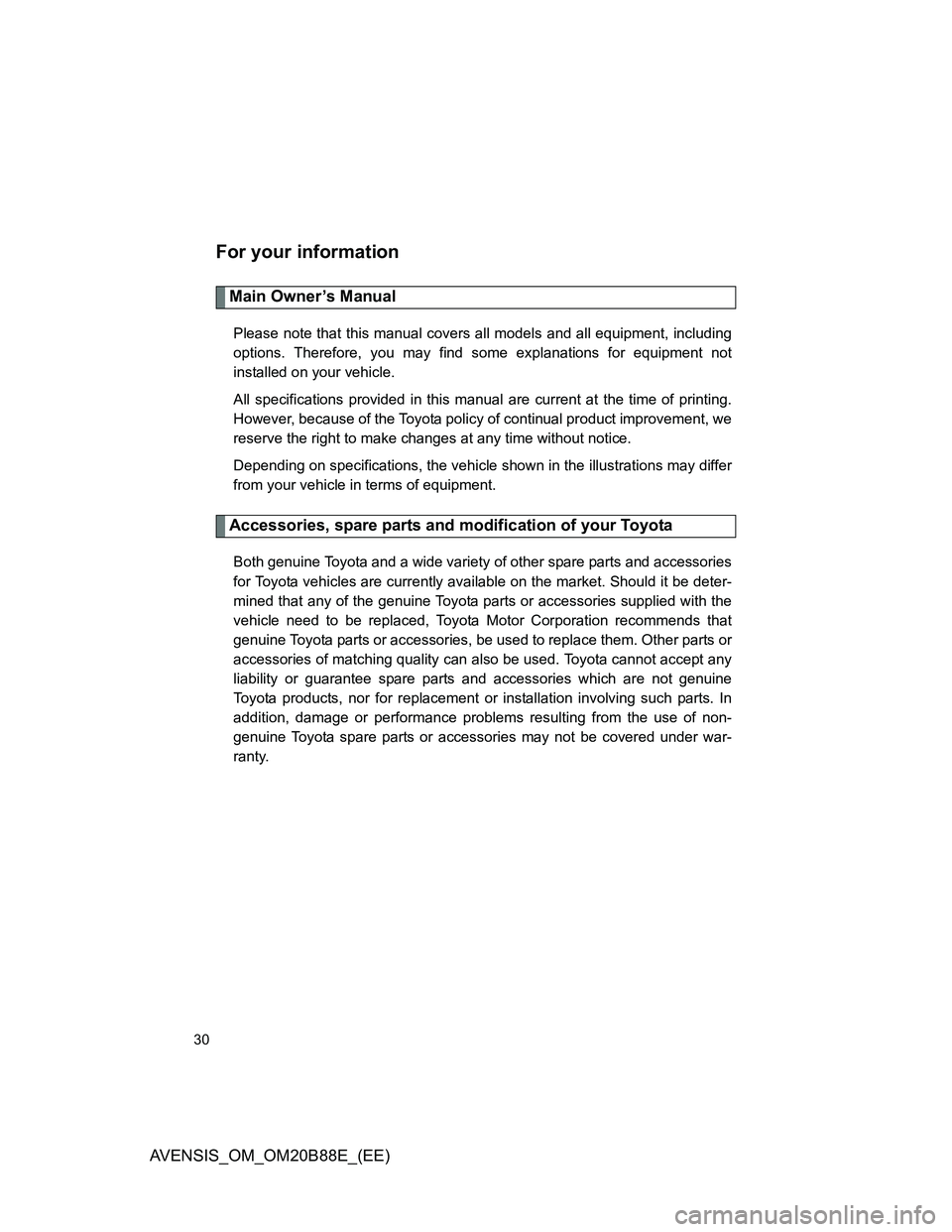

For your information
Main Owner’s Manual
Please note that this manual covers all models and all equipment, including
options. Therefore, you may find some explanations for equipment not
installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Toyota policy of continual product improvement, we
reserve the right to make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of equipment.
Accessories, spare parts and modification of your Toyota
Both genuine Toyota and a wide variety of other spare parts and accessories
for Toyota vehicles are currently available on the market. Should it be deter-
mined that any of the genuine Toyota parts or accessories supplied with the
vehicle need to be replaced, Toyota Motor Corporation recommends that
genuine Toyota parts or accessories, be used to replace them. Other parts or
accessories of matching quality can also be used. Toyota cannot accept any
liability or guarantee spare parts and accessories which are not genuine
Toyota products, nor for replacement or installation involving such parts. In
addition, damage or performance problems resulting from the use of non-
genuine Toyota spare parts or accessories may not be covered under war-
ranty.
