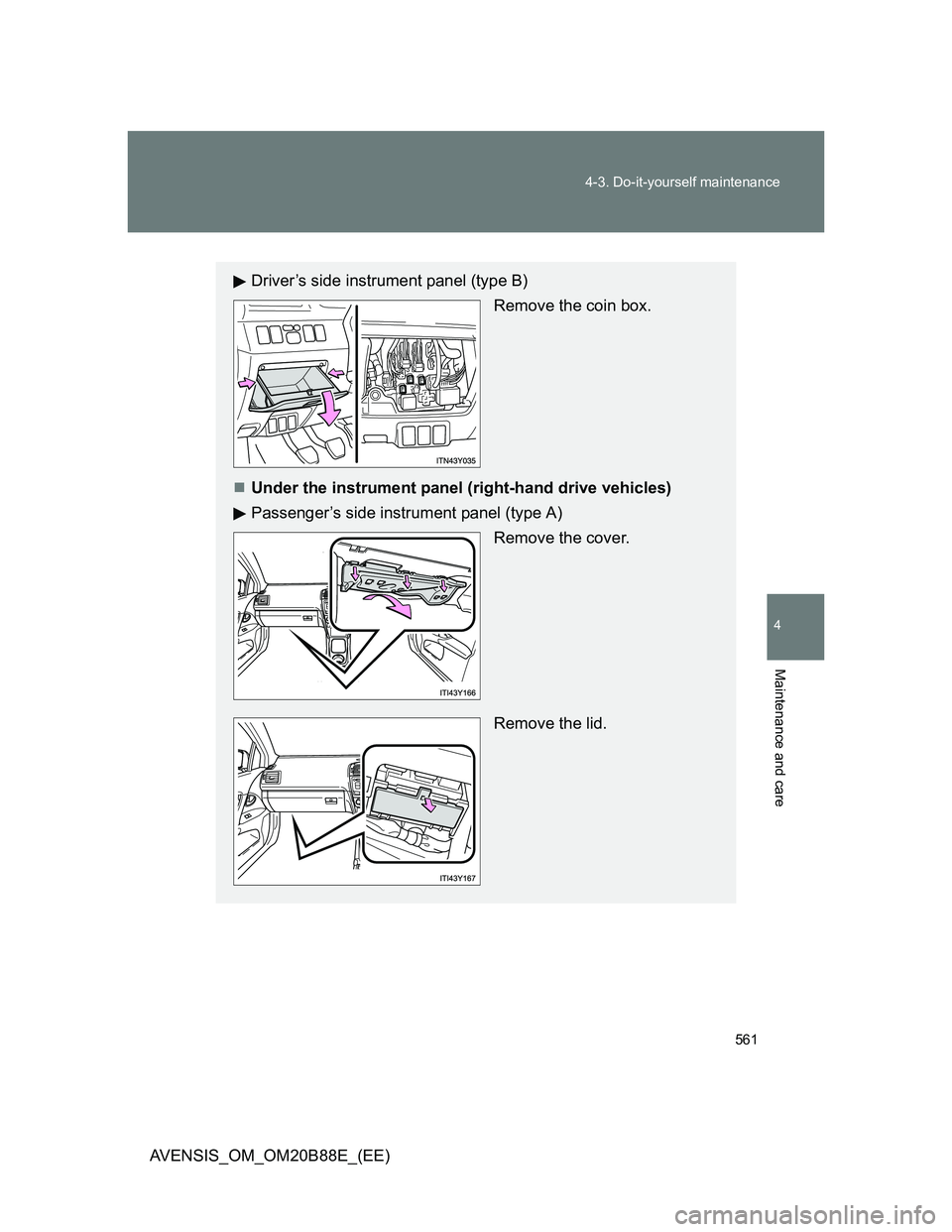

Page 561 of 776
561 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
Driver’s side instrument panel (type B)
Remove the coin box.
Under the instrument panel (right-hand drive vehicles)
Passenger’s side instrument panel (type A)
Remove the cover.
Remove the lid.
Page 562 of 776

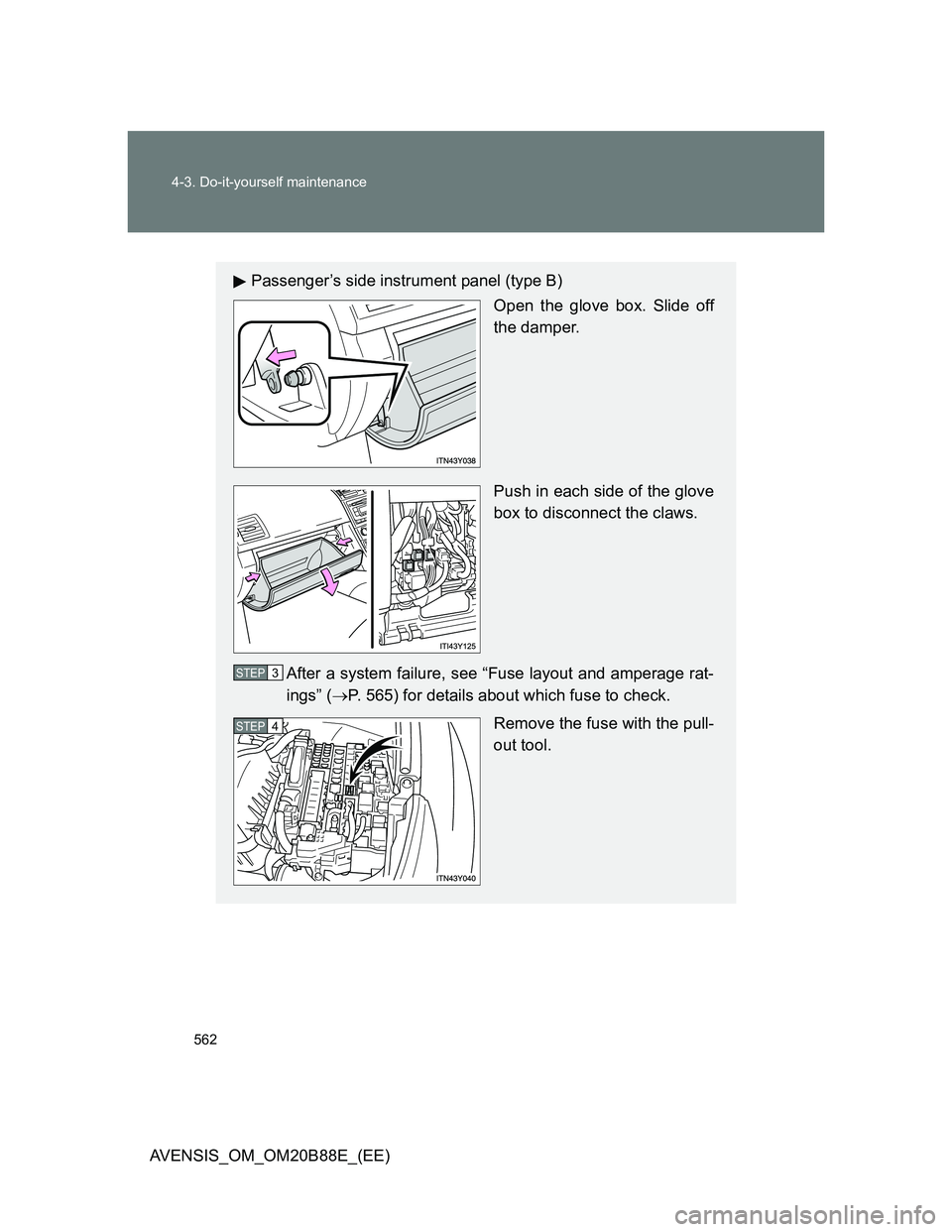

562 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
Passenger’s side instrument panel (type B)
Open the glove box. Slide off
the damper.
Push in each side of the glove
box to disconnect the claws.
After a system failure, see “Fuse layout and amperage rat-
ings” (P. 565) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP3
STEP4
Page 563 of 776

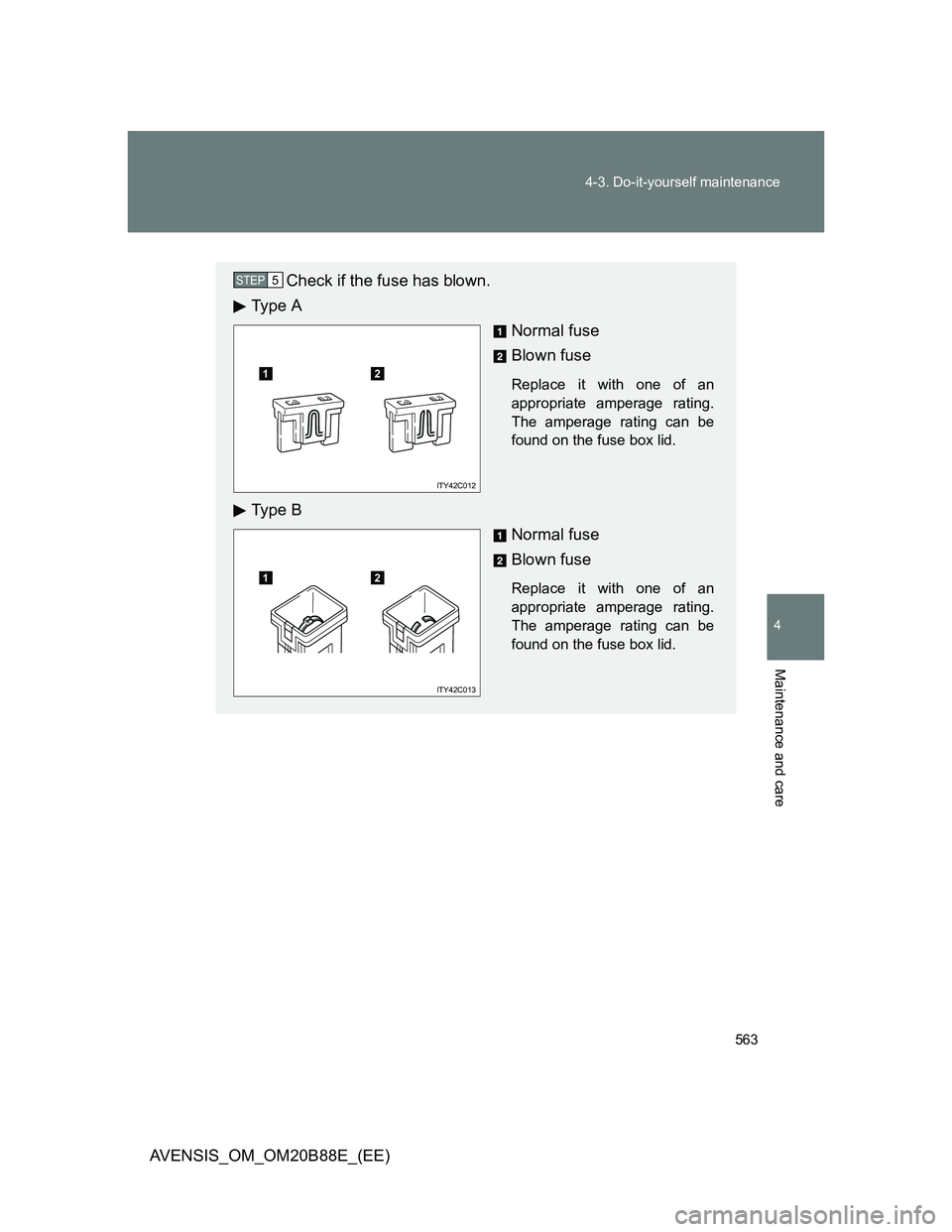

563 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
Check if the fuse has blown.
Ty p e A
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an
appropriate amperage rating.
The amperage rating can be
found on the fuse box lid.
STEP5
12
ITY42C012
12
ITY42C013
Page 564 of 776

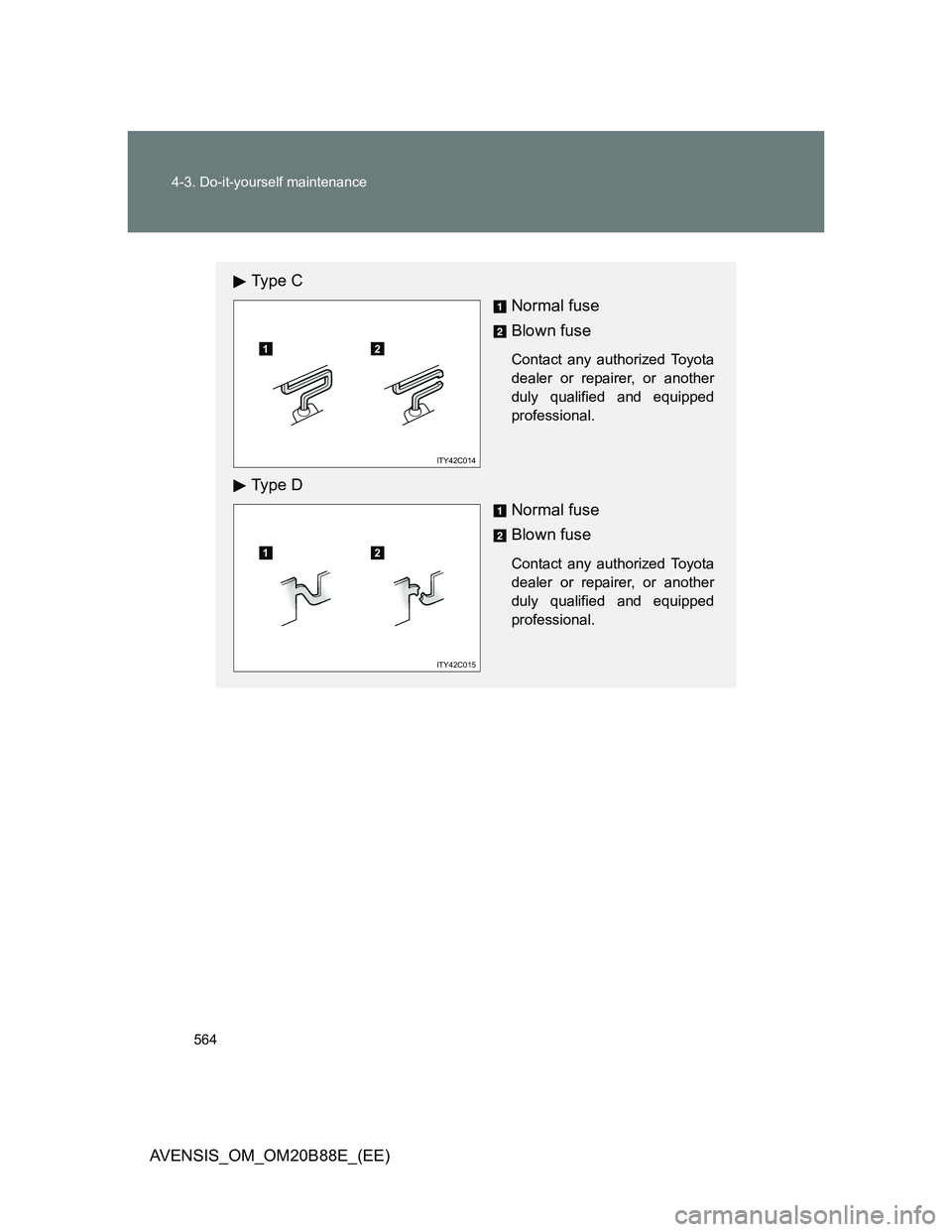

564 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
Ty p e C
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
Ty p e D
Normal fuse
Blown fuse
Contact any authorized Toyota
dealer or repairer, or another
duly qualified and equipped
professional.
12
ITY42C014
12
ITY42C015
Page 565 of 776

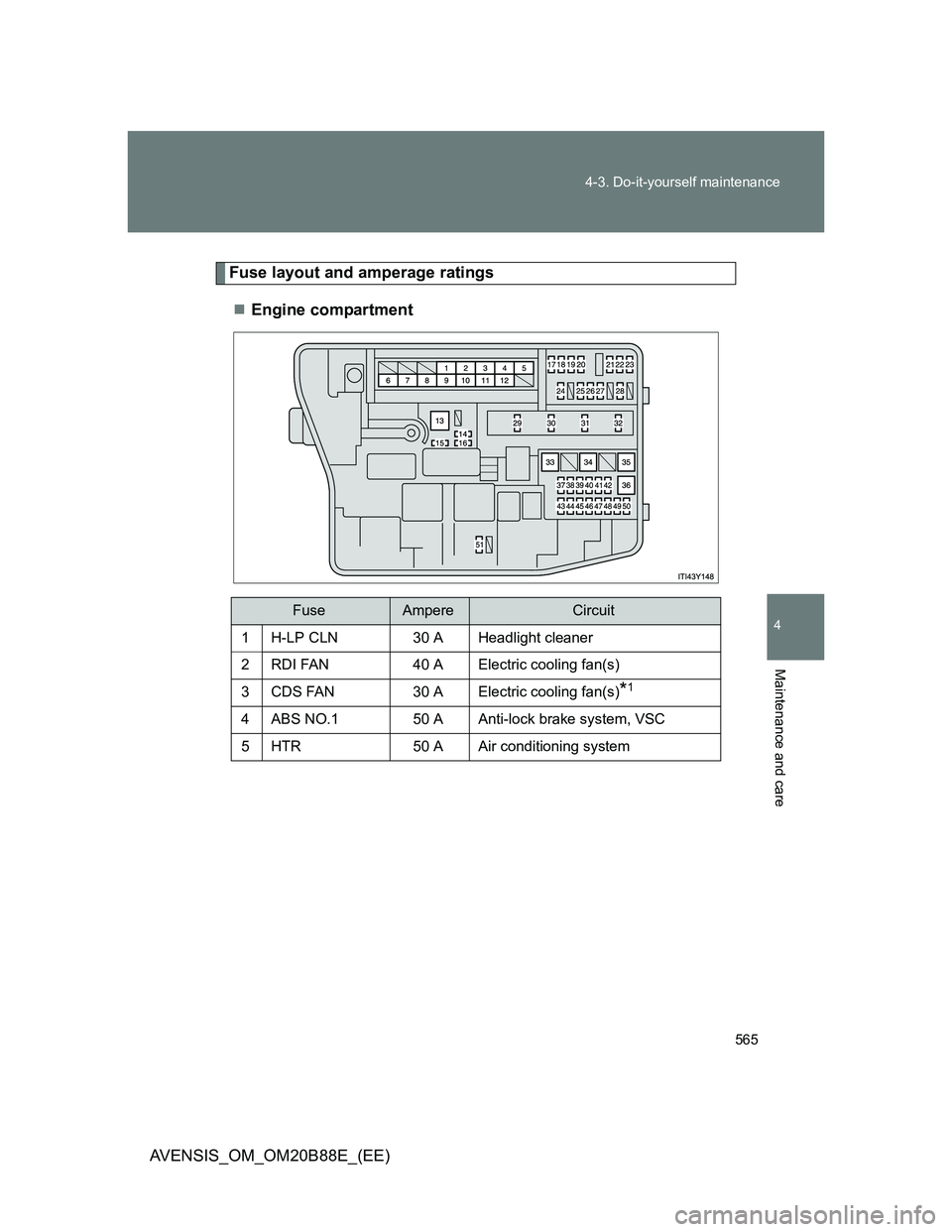

565 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
Fuse layout and amperage ratings
Engine compartment
FuseAmpereCircuit
1H-LP CLN30 A Headlight cleaner
2RDI FAN40 A Electric cooling fan(s)
3CDS FAN30 A Electric cooling fan(s)*1
4 ABS NO.1 50 A Anti-lock brake system, VSC
5 HTR 50 A Air conditioning system
Page 566 of 776

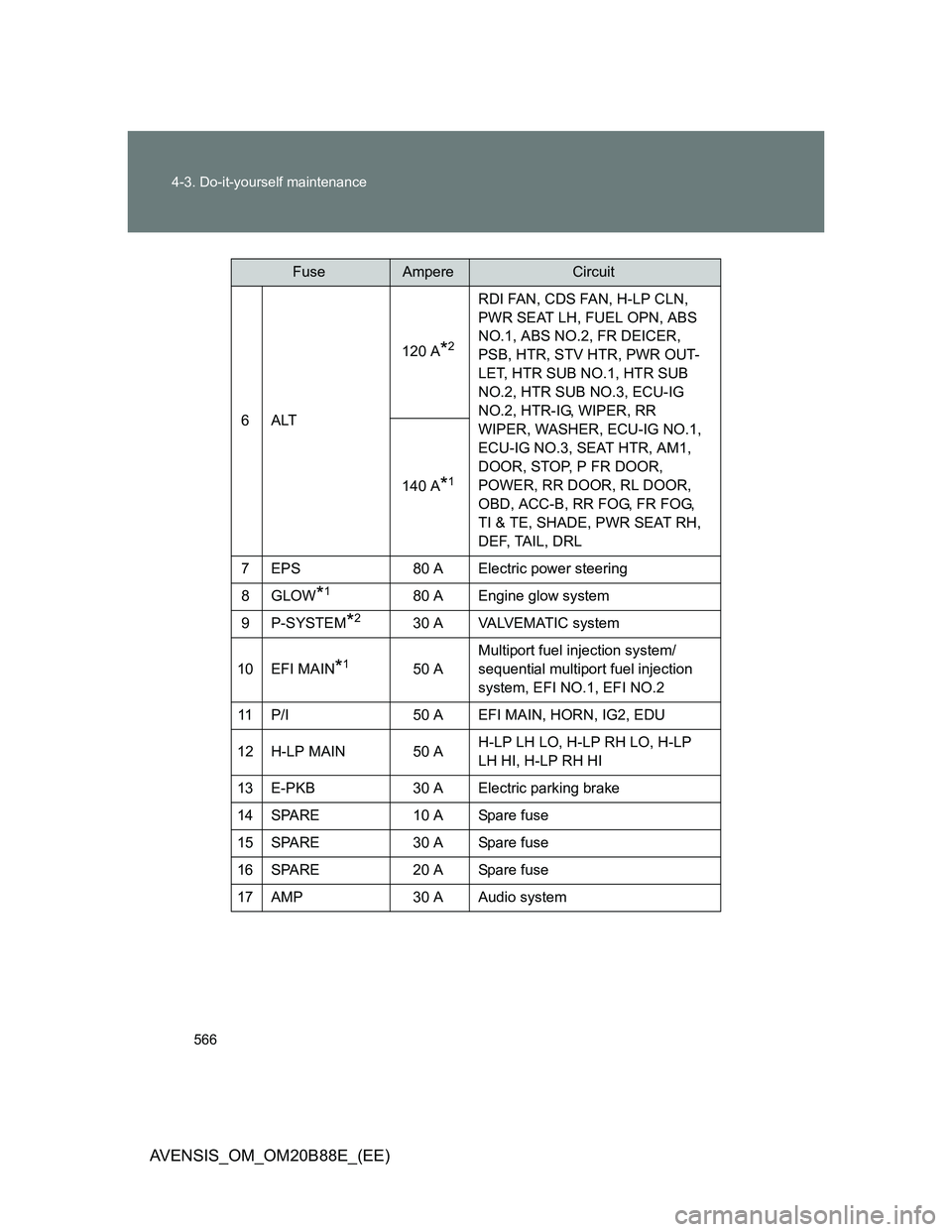

566 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
6ALT120 A
*2
RDI FAN, CDS FAN, H-LP CLN,
PWR SEAT LH, FUEL OPN, ABS
NO.1, ABS NO.2, FR DEICER,
PSB, HTR, STV HTR, PWR OUT-
LET, HTR SUB NO.1, HTR SUB
NO.2, HTR SUB NO.3, ECU-IG
NO.2, HTR-IG, WIPER, RR
WIPER, WASHER, ECU-IG NO.1,
ECU-IG NO.3, SEAT HTR, AM1,
DOOR, STOP, P FR DOOR,
POWER, RR DOOR, RL DOOR,
OBD, ACC-B, RR FOG, FR FOG,
TI & TE, SHADE, PWR SEAT RH,
DEF, TAIL, DRL 140 A
*1
7 EPS 80 A Electric power steering
8GLOW
*180 A Engine glow system
9P-SYSTEM
*230 A VALVEMATIC system
10 EFI MAIN
*150 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
11 P/I 50 A EFI MAIN, HORN, IG2, EDU
12 H-LP MAIN 50 AH-LP LH LO, H-LP RH LO, H-LP
LH HI, H-LP RH HI
13 E-PKB 30 A Electric parking brake
14 SPARE 10 A Spare fuse
15 SPARE 30 A Spare fuse
16 SPARE 20 A Spare fuse
17 AMP 30 A Audio system
FuseAmpereCircuit
Page 567 of 776

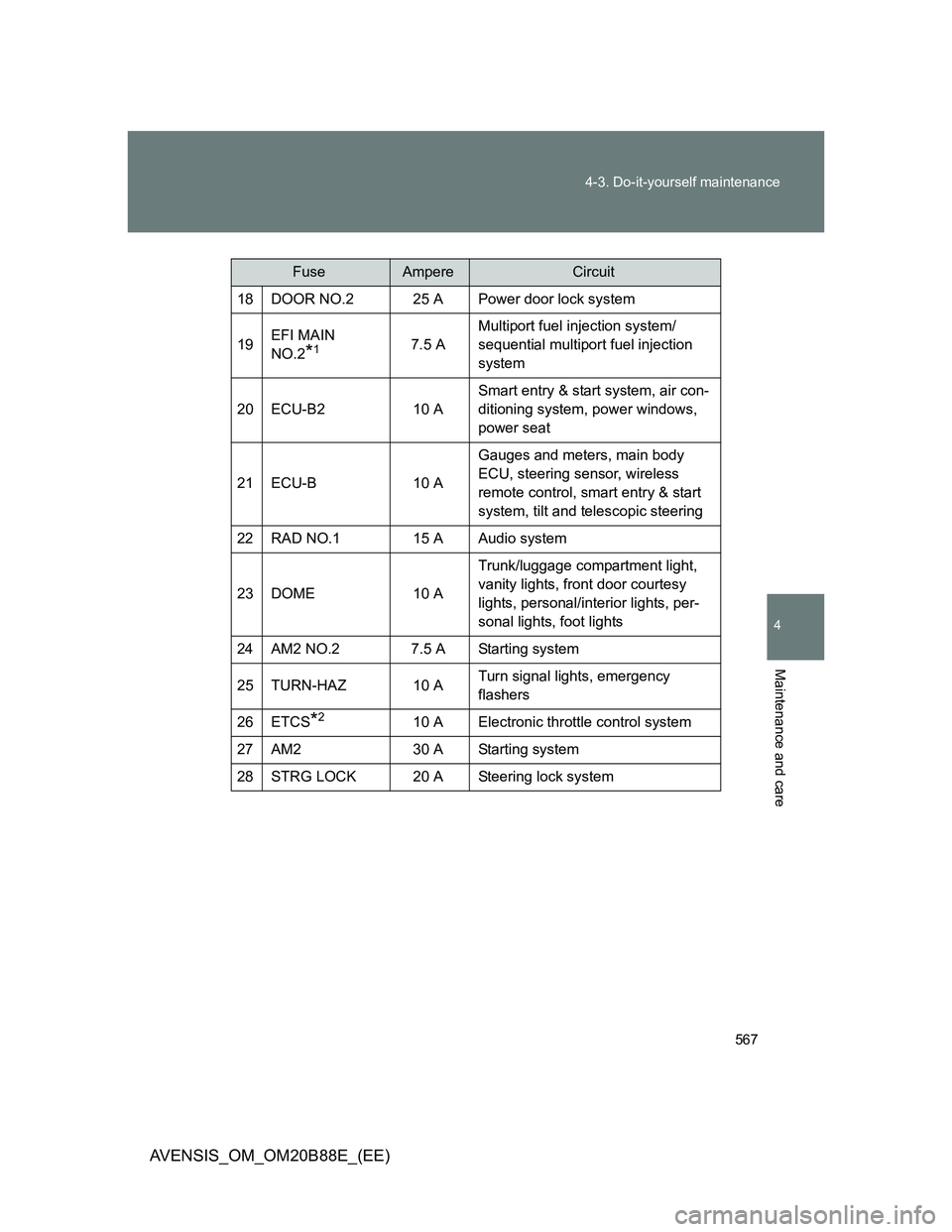

567 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
18 DOOR NO.2 25 A Power door lock system
19EFI MAIN
NO.2
*17.5 AMultiport fuel injection system/
sequential multiport fuel injection
system
20 ECU-B2 10 ASmart entry & start system, air con-
ditioning system, power windows,
power seat
21 ECU-B 10 AGauges and meters, main body
ECU, steering sensor, wireless
remote control, smart entry & start
system, tilt and telescopic steering
22 RAD NO.1 15 A Audio system
23 DOME 10 ATrunk/luggage compartment light,
vanity lights, front door courtesy
lights, personal/interior lights, per-
sonal lights, foot lights
24 AM2 NO.2 7.5 A Starting system
25 TURN-HAZ 10 ATurn signal lights, emergency
flashers
26 ETCS
*210 A Electronic throttle control system
27 AM2 30 A Starting system
28 STRG LOCK 20 A Steering lock system
FuseAmpereCircuit

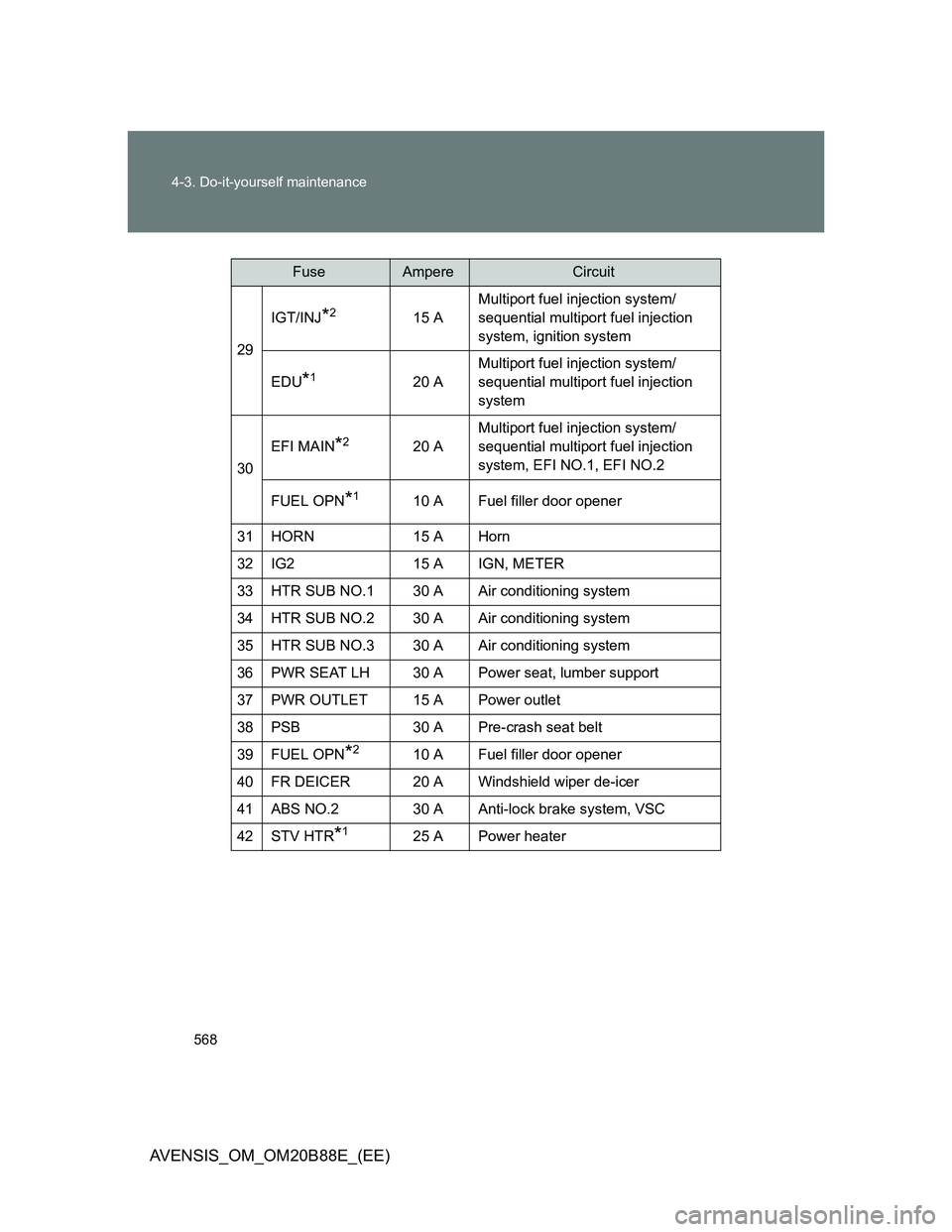

Page 568 of 776
568 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)
29IGT/INJ
*215 AMultiport fuel injection system/
sequential multiport fuel injection
system, ignition system
EDU
*120 AMultiport fuel injection system/
sequential multiport fuel injection
system
30EFI MAIN
*220 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
FUEL OPN
*110 A Fuel filler door opener
31 HORN 15 A Horn
32 IG2 15 A IGN, METER
33 HTR SUB NO.1 30 A Air conditioning system
34 HTR SUB NO.2 30 A Air conditioning system
35 HTR SUB NO.3 30 A Air conditioning system
36 PWR SEAT LH 30 A Power seat, lumber support
37 PWR OUTLET 15 A Power outlet
38 PSB 30 A Pre-crash seat belt
39 FUEL OPN
*210 A Fuel filler door opener
40 FR DEICER 20 A Windshield wiper de-icer
41 ABS NO.2 30 A Anti-lock brake system, VSC
42 STV HTR
*125 A Power heater
FuseAmpereCircuit
Page 569 of 776

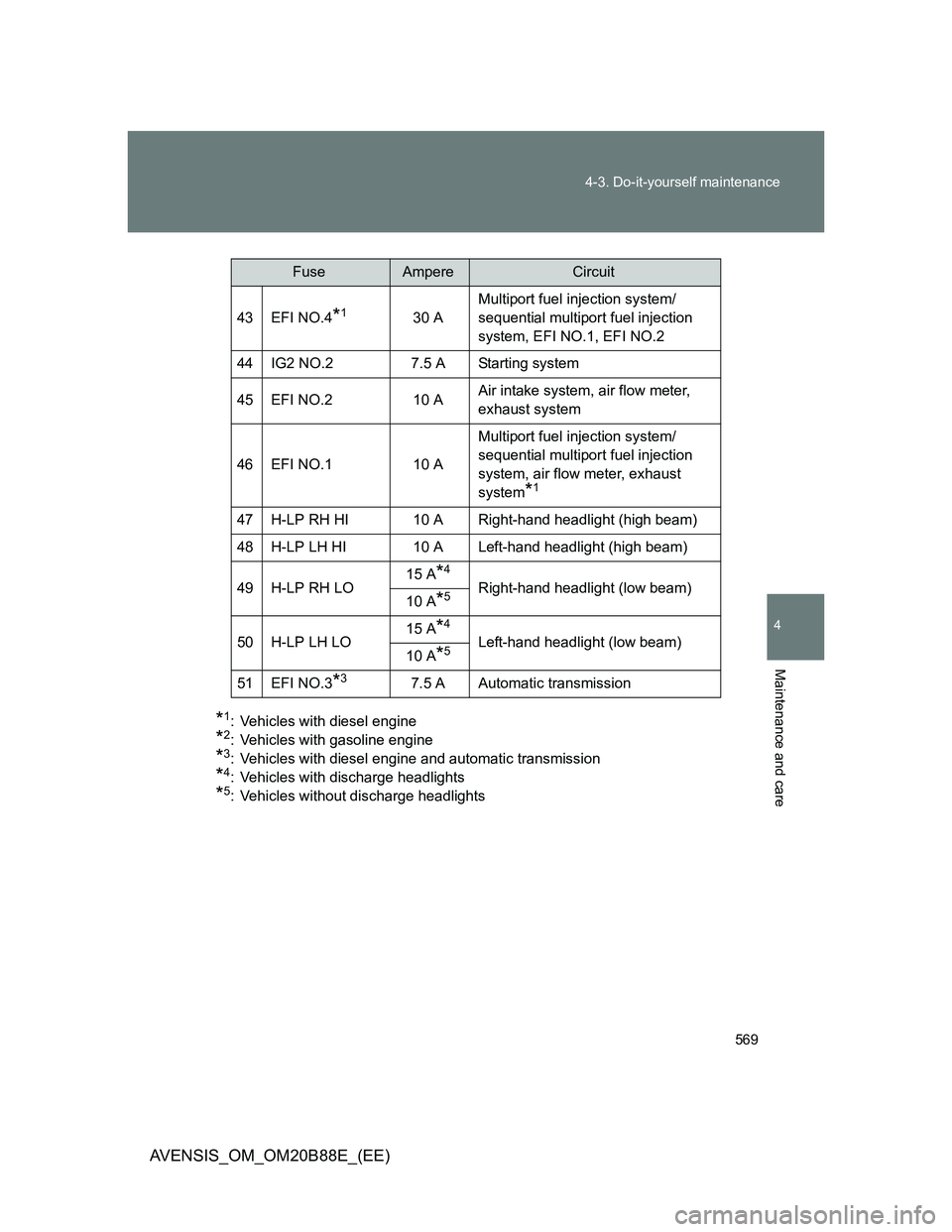

569 4-3. Do-it-yourself maintenance
4
Maintenance and care
AVENSIS_OM_OM20B88E_(EE)
*1: Vehicles with diesel engine
*2: Vehicles with gasoline engine
*3: Vehicles with diesel engine and automatic transmission
*4: Vehicles with discharge headlights
*5: Vehicles without discharge headlights43 EFI NO.4
*130 AMultiport fuel injection system/
sequential multiport fuel injection
system, EFI NO.1, EFI NO.2
44 IG2 NO.2 7.5 A Starting system
45 EFI NO.2 10 AAir intake system, air flow meter,
exhaust system
46 EFI NO.1 10 AMultiport fuel injection system/
sequential multiport fuel injection
system, air flow meter, exhaust
system
*1
47 H-LP RH HI 10 A Right-hand headlight (high beam)
48 H-LP LH HI 10 A Left-hand headlight (high beam)
49 H-LP RH LO15 A
*4
Right-hand headlight (low beam)
10 A*5
50 H-LP LH LO15 A*4
Left-hand headlight (low beam)
10 A*5
51 EFI NO.3*37.5 A Automatic transmission
FuseAmpereCircuit
Page 570 of 776

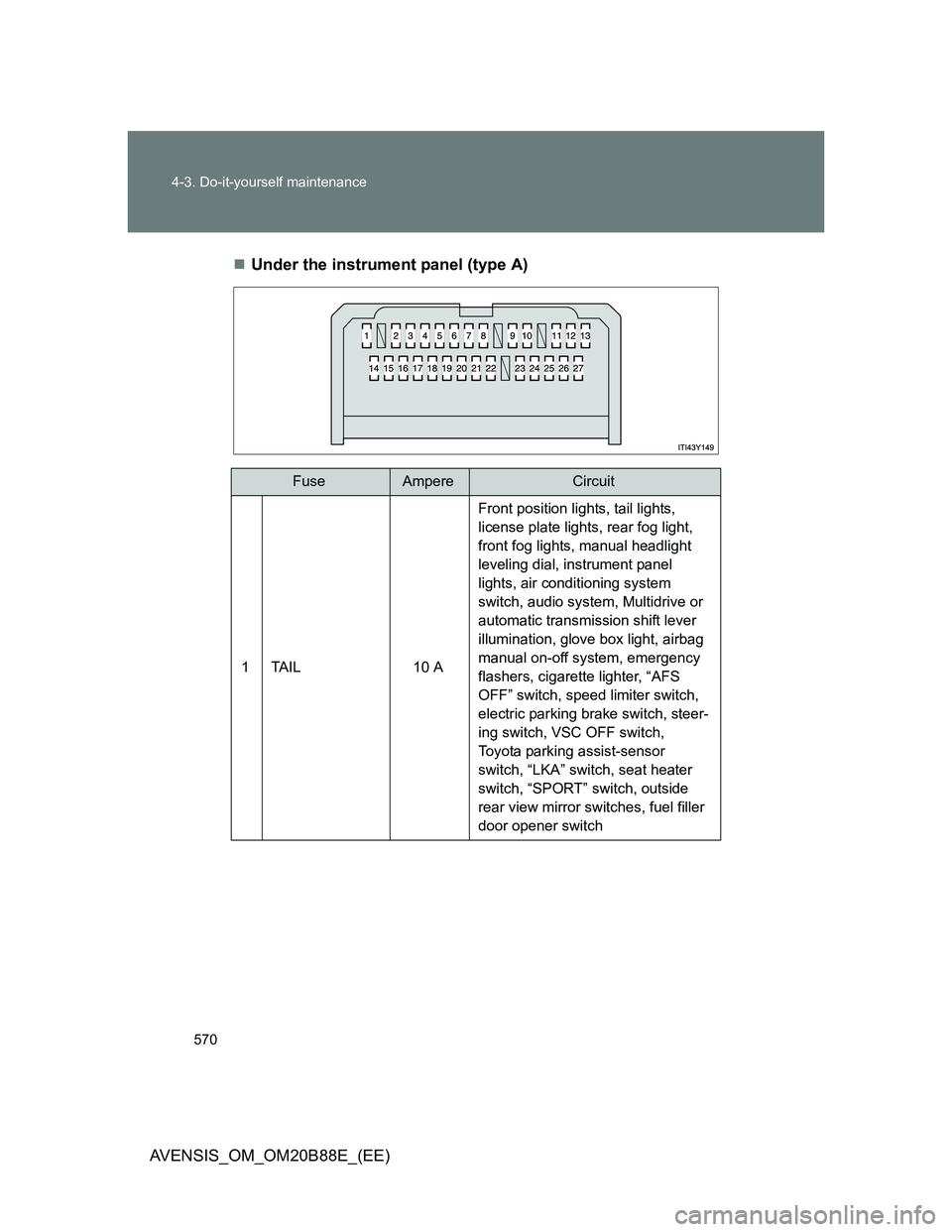

570 4-3. Do-it-yourself maintenance
AVENSIS_OM_OM20B88E_(EE)Under the instrument panel (type A)
FuseAmpereCircuit
1TAIL 10 AFront position lights, tail lights,
license plate lights, rear fog light,
front fog lights, manual headlight
leveling dial, instrument panel
lights, air conditioning system
switch, audio system, Multidrive or
automatic transmission shift lever
illumination, glove box light, airbag
manual on-off system, emergency
flashers, cigarette lighter, “AFS
OFF” switch, speed limiter switch,
electric parking brake switch, steer-
ing switch, VSC OFF switch,
Toyota parking assist-sensor
switch, “LKA” switch, seat heater
switch, “SPORT” switch, outside
rear view mirror switches, fuel filler
door opener switch
