TOYOTA AVENSIS 2014 Owners Manual (in English)

5
721

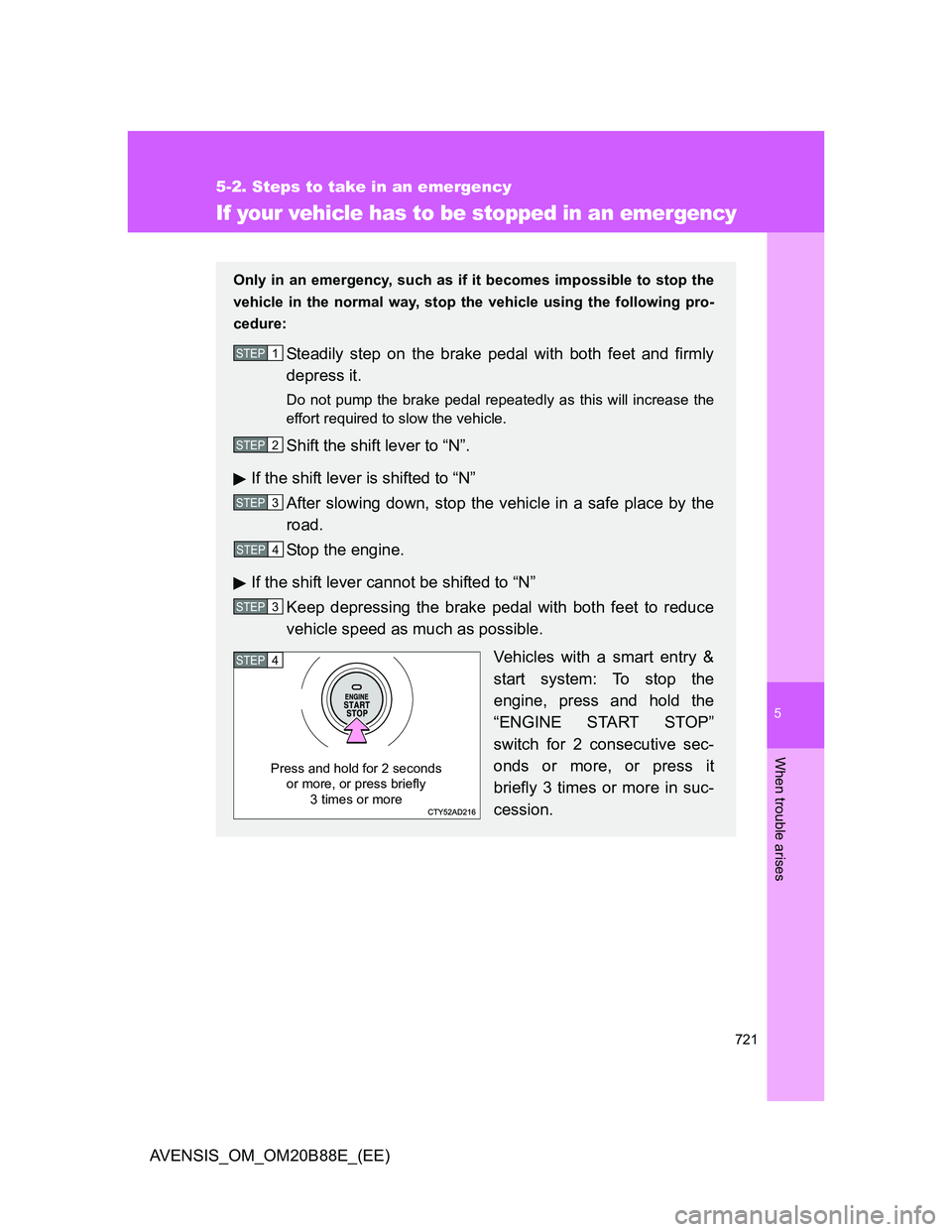

5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)
If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N”
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to “N”
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles with a smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 2 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
STEP1
STEP2
STEP3
STEP4
STEP3
STEP4
Press and hold for 2 seconds
or more, or press briefly
3 times or more

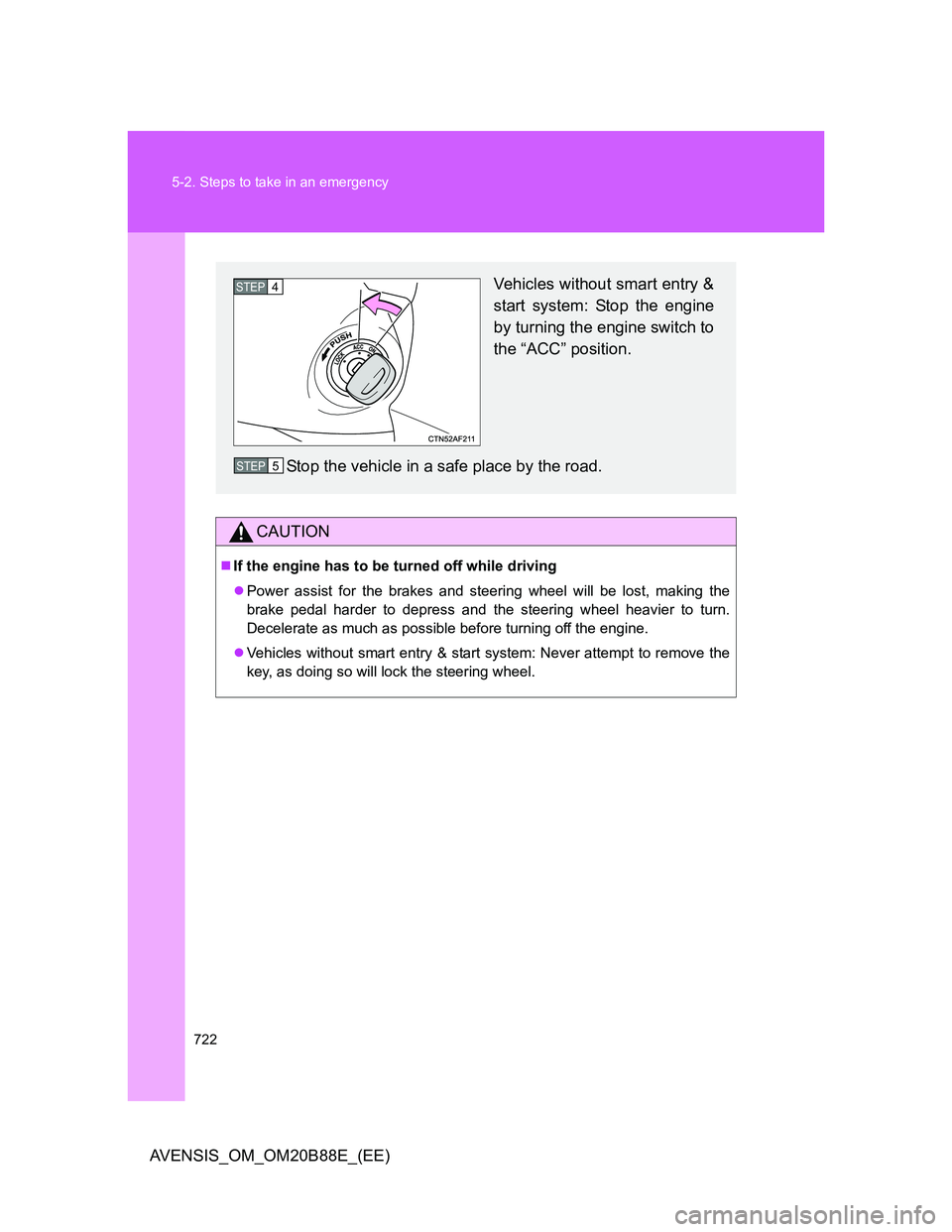

722 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)
CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.
Stop the vehicle in a safe place by the road.STEP4
STEP5

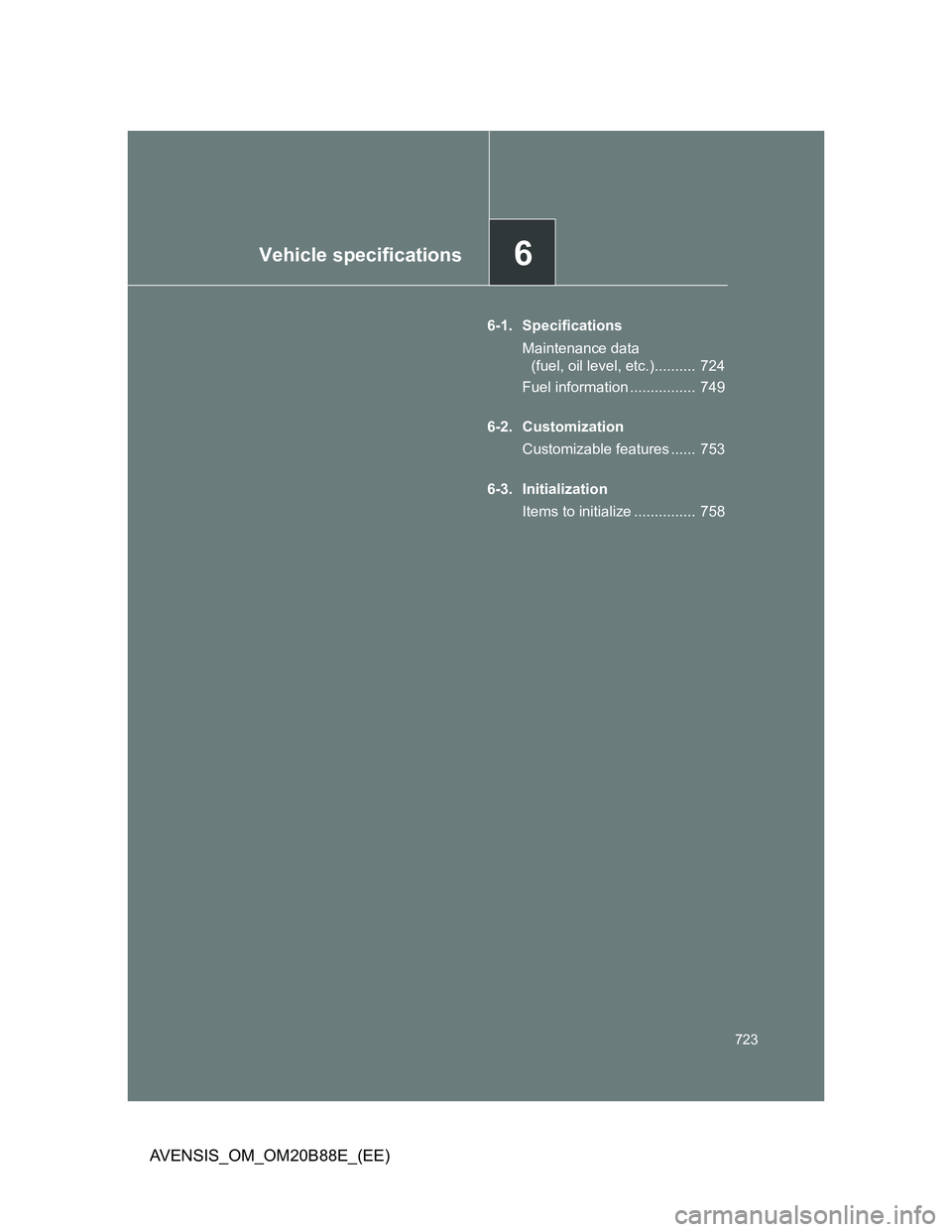

6Vehicle specifications
723
AVENSIS_OM_OM20B88E_(EE)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 724
Fuel information ................ 749
6-2. Customization
Customizable features ...... 753
6-3. Initialization
Items to initialize ............... 758

724
AVENSIS_OM_OM20B88E_(EE)

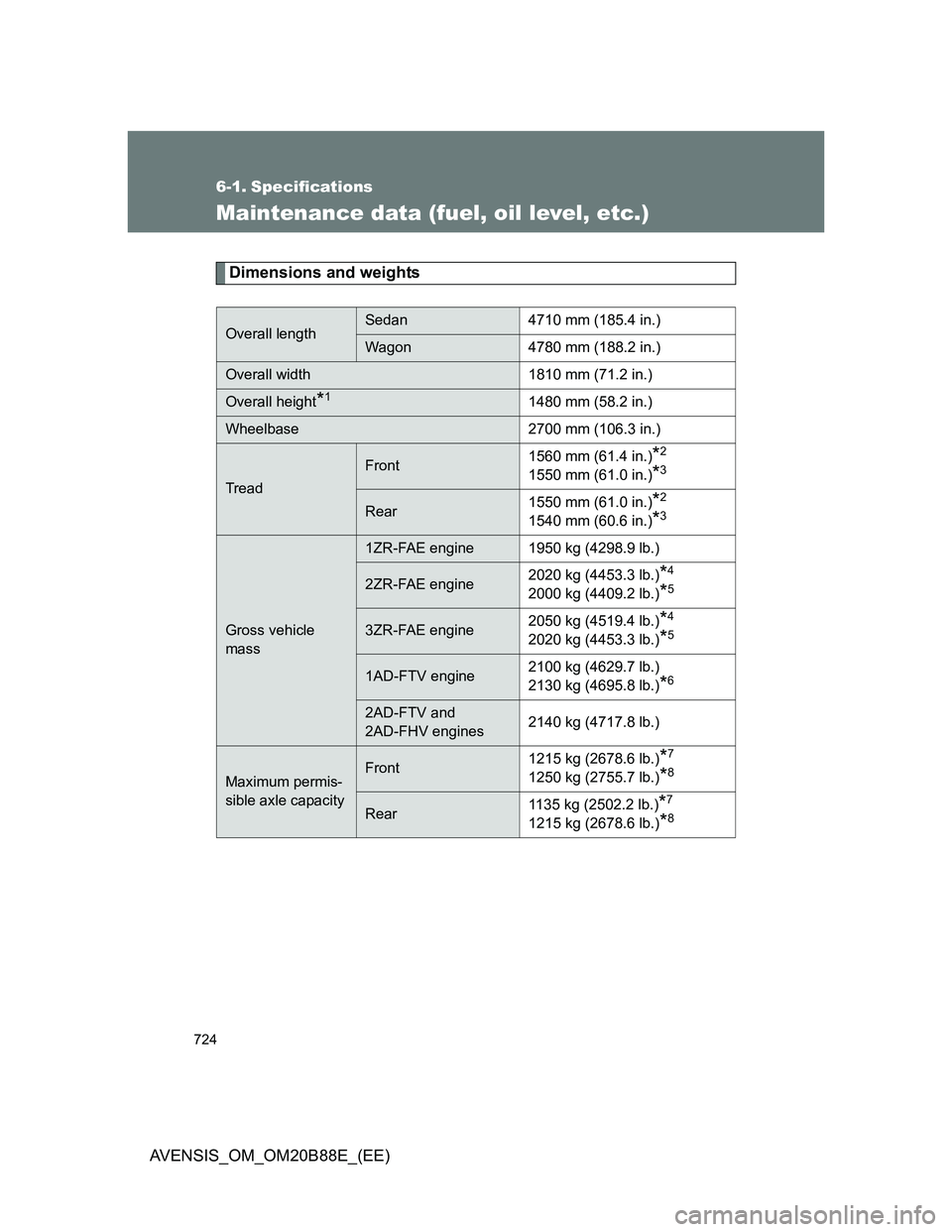

6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4710 mm (185.4 in.)
Wagon 4780 mm (188.2 in.)
Overall width 1810 mm (71.2 in.)
Overall height*11480 mm (58.2 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1550 mm (61.0 in.)*2
1540 mm (60.6 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1950 kg (4298.9 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine2050 kg (4519.4 lb.)*4
2020 kg (4453.3 lb.)*5
1AD-FTV engine2100 kg (4629.7 lb.)
2130 kg (4695.8 lb.)*6
2AD-FTV and
2AD-FHV engines2140 kg (4717.8 lb.)
Maximum permis-
sible axle capacityFront1215 kg (2678.6 lb.)*7
1250 kg (2755.7 lb.)*8
Rear1135 kg (2502.2 lb.)*7
1215 kg (2678.6 lb.)*8

725 6-1. Specifications
6
Vehicle specifications
AVENSIS_OM_OM20B88E_(EE)
*1: Unladen vehicles
*2: 205/60R16 tires
*3: 215/55R17 and 225/45R18 tires
*4: Vehicles with a Multidrive
*5: Vehicles with a manual transmission
*6: ADT270L-AWFEYW and ADT270R-AWFEYW models
The model code is indicated on the manufacturer’s label. (P. 726)
*7: Vehicle category M1 models
*8: Vehicle category N1 models
*9: Vehicles with an automatic transmission
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.

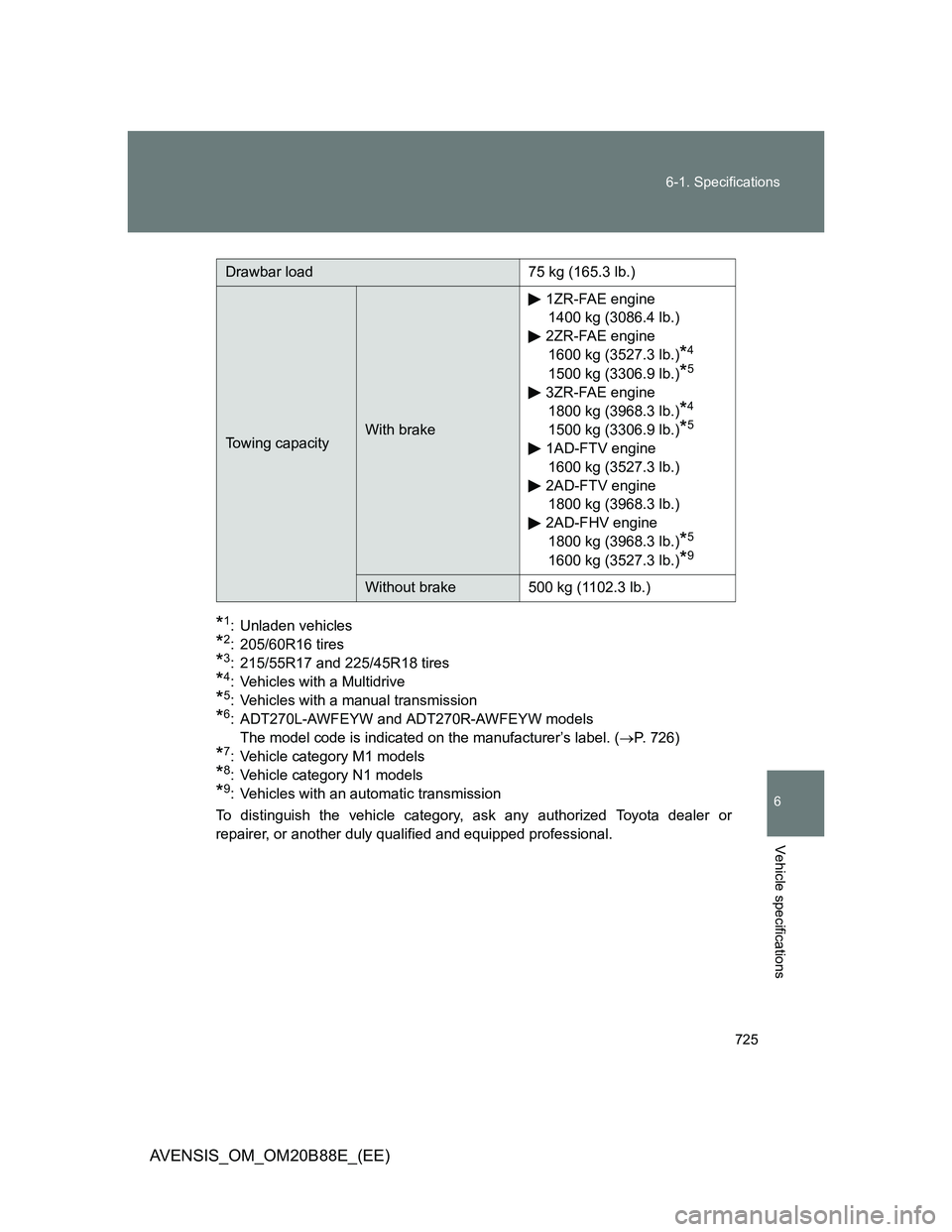

Drawbar load 75 kg (165.3 lb.)
Towing capacityWith brake1ZR-FAE engine
1400 kg (3086.4 lb.)
2ZR-FAE engine
1600 kg (3527.3 lb.)
*4
1500 kg (3306.9 lb.)*5
3ZR-FAE engine
1800 kg (3968.3 lb.)
*4
1500 kg (3306.9 lb.)*5
1AD-FTV engine
1600 kg (3527.3 lb.)
2AD-FTV engine
1800 kg (3968.3 lb.)
2AD-FHV engine
1800 kg (3968.3 lb.)
*5
1600 kg (3527.3 lb.)*9
Without brake 500 kg (1102.3 lb.)

726 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)

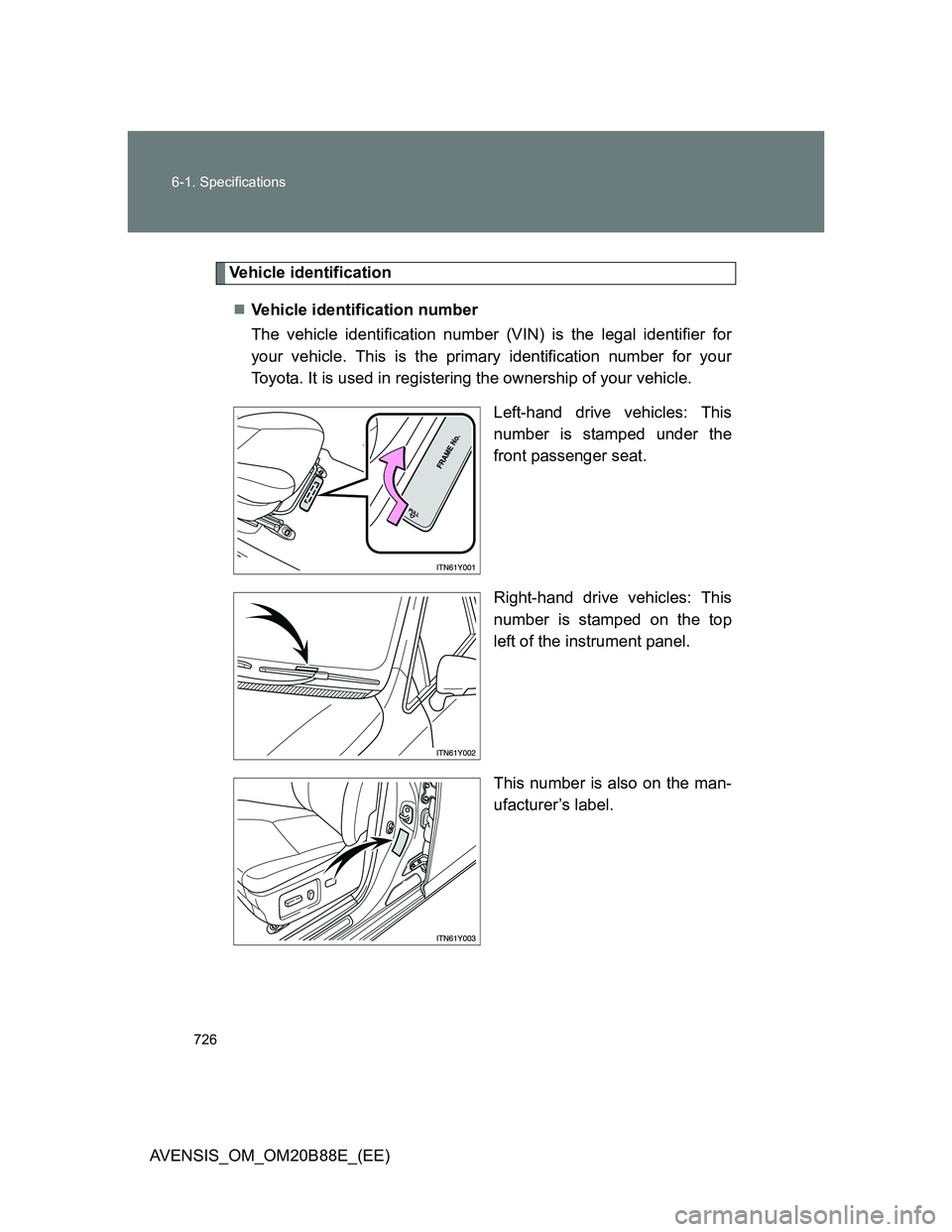

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
Left-hand drive vehicles: This
number is stamped under the
front passenger seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the man-
ufacturer’s label.

727 6-1. Specifications
6
Vehicle specifications

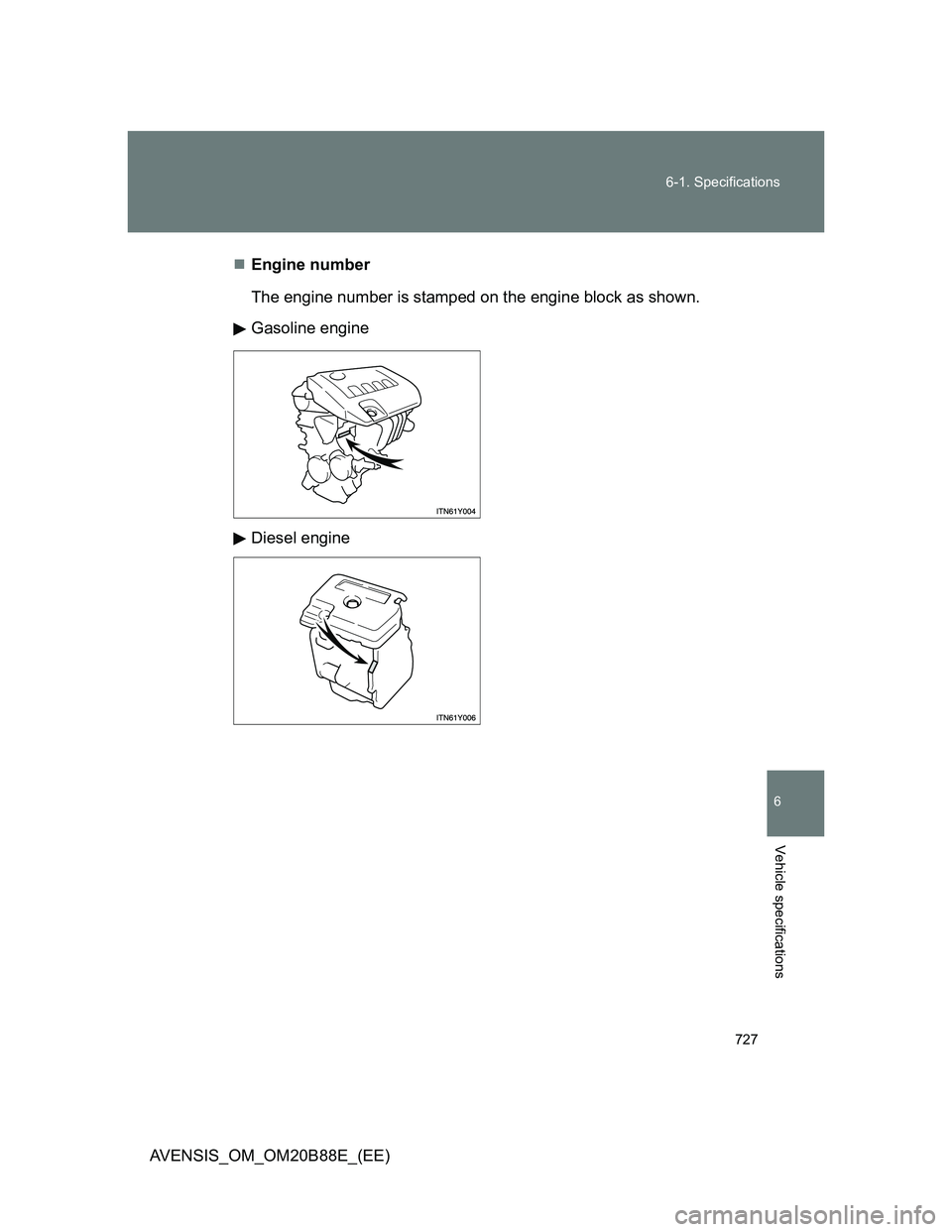

AVENSIS_OM_OM20B88E_(EE)Engine number
The engine number is stamped on the engine block as shown.
Gasoline engine
Diesel engine

728 6-1. Specifications
AVENSIS_OM_OM20B88E_(EE)

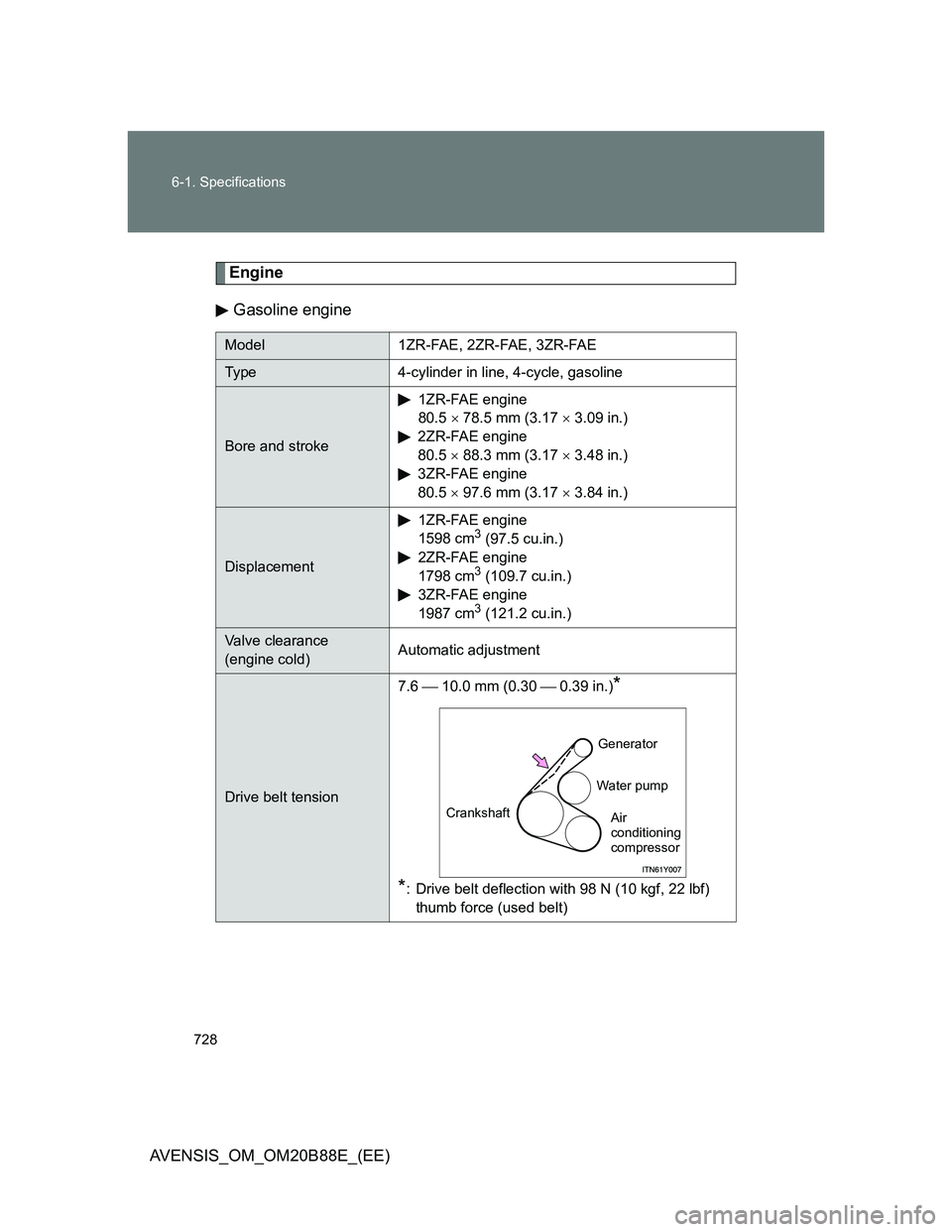

Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE, 3ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
3ZR-FAE engine
80.5  97.6 mm (3.17  3.84 in.)
Displacement1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu.in.)
3ZR-FAE engine
1987 cm
3 (121.2 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension7.6  10.0 mm (0.30  0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
CrankshaftGenerator
Water pump
Air
conditioning
compressor

729 6-1. Specifications
6
Vehicle specifications

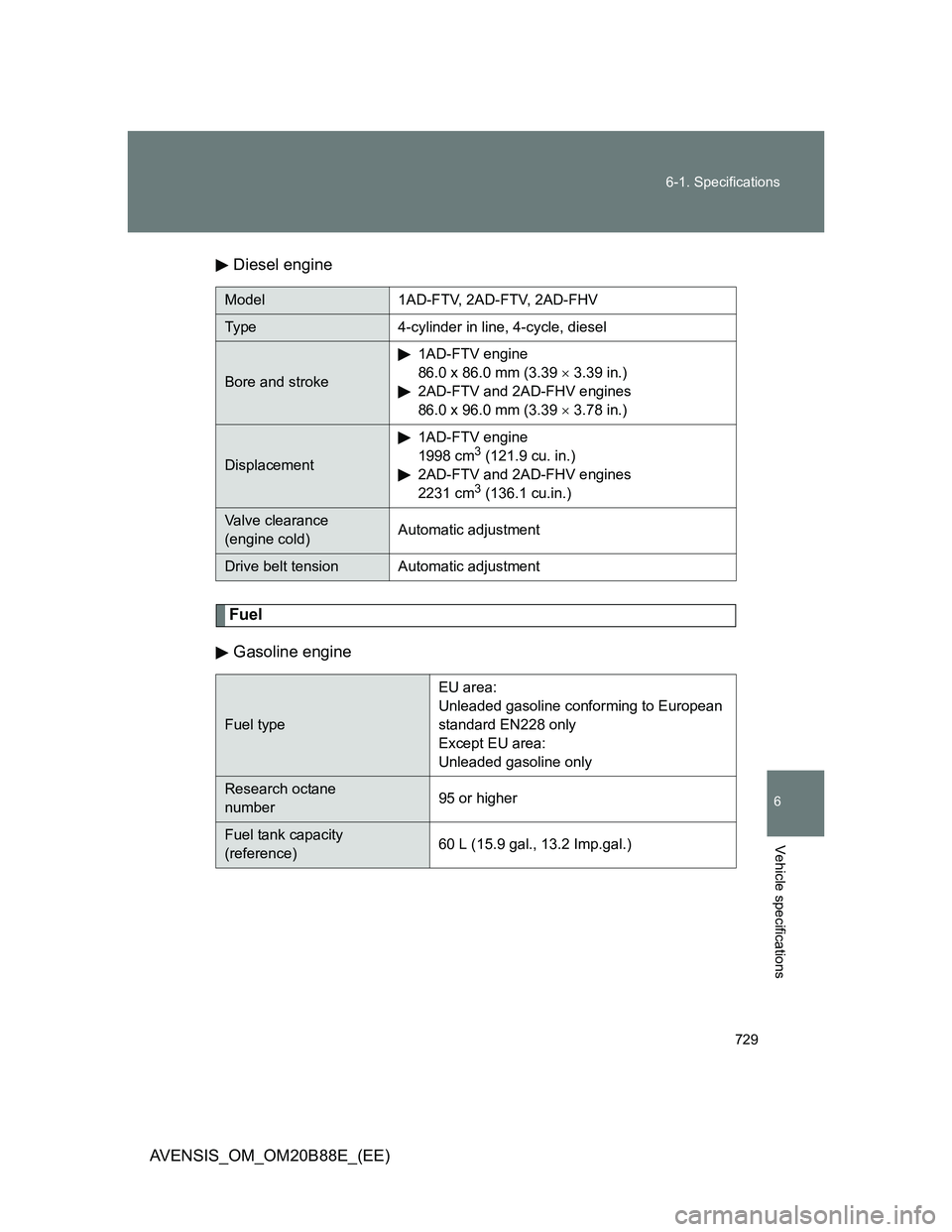

AVENSIS_OM_OM20B88E_(EE)Diesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FTV, 2AD-FHV
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke1AD-FTV engine
86.0 x 86.0 mm (3.39  3.39 in.)
2AD-FTV and 2AD-FHV engines
86.0 x 96.0 mm (3.39  3.78 in.)
Displacement1AD-FTV engine
1998 cm3 (121.9 cu. in.)
2AD-FTV and 2AD-FHV engines
2231 cm
3 (136.1 cu.in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane
number95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)

730 6-1. Specifications

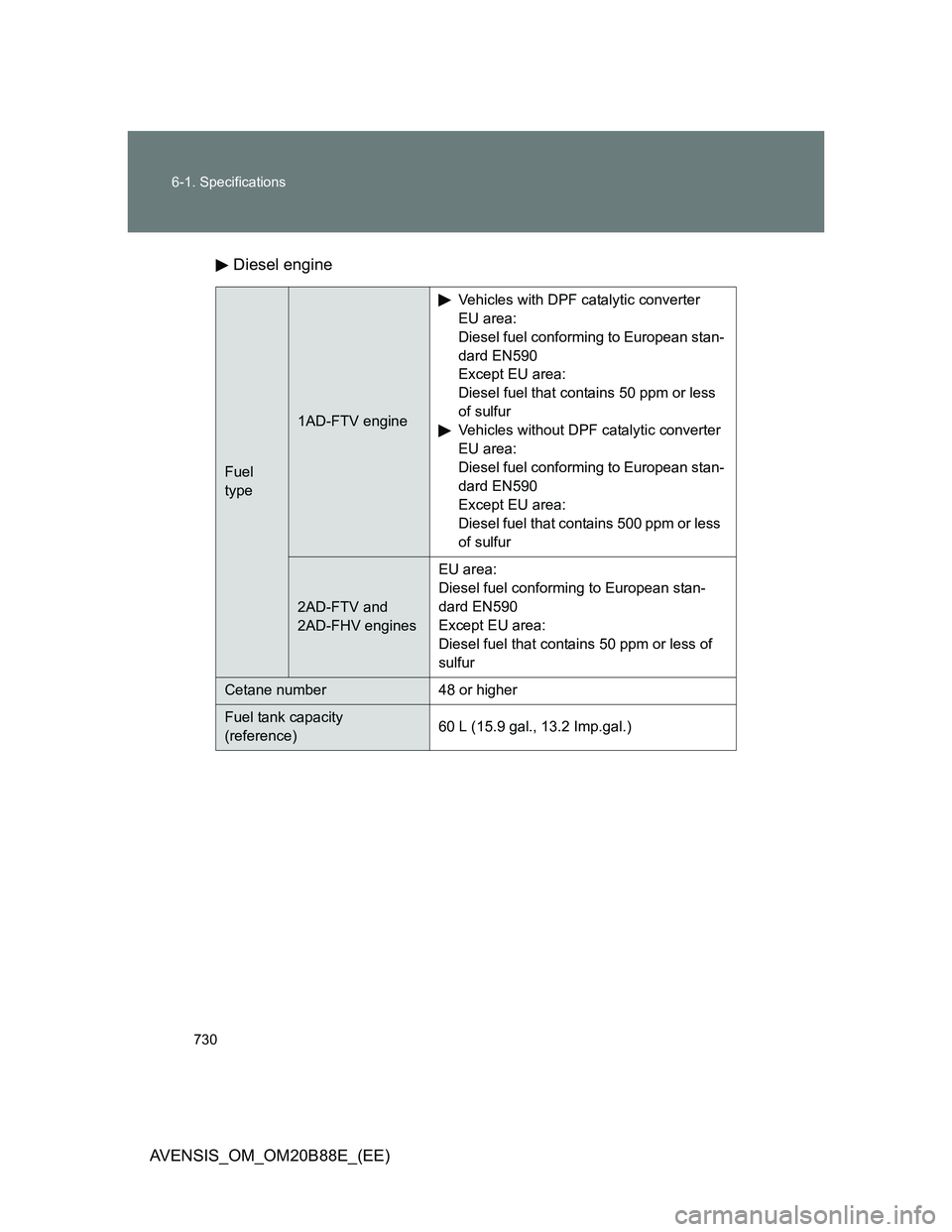

AVENSIS_OM_OM20B88E_(EE)Diesel engine
Fuel
type
1AD-FTV engineVehicles with DPF catalytic converter
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less
of sulfur
Vehicles without DPF catalytic converter
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 500 ppm or less
of sulfur
2AD-FTV and
2AD-FHV enginesEU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of
sulfur
Cetane number 48 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 Imp.gal.)
