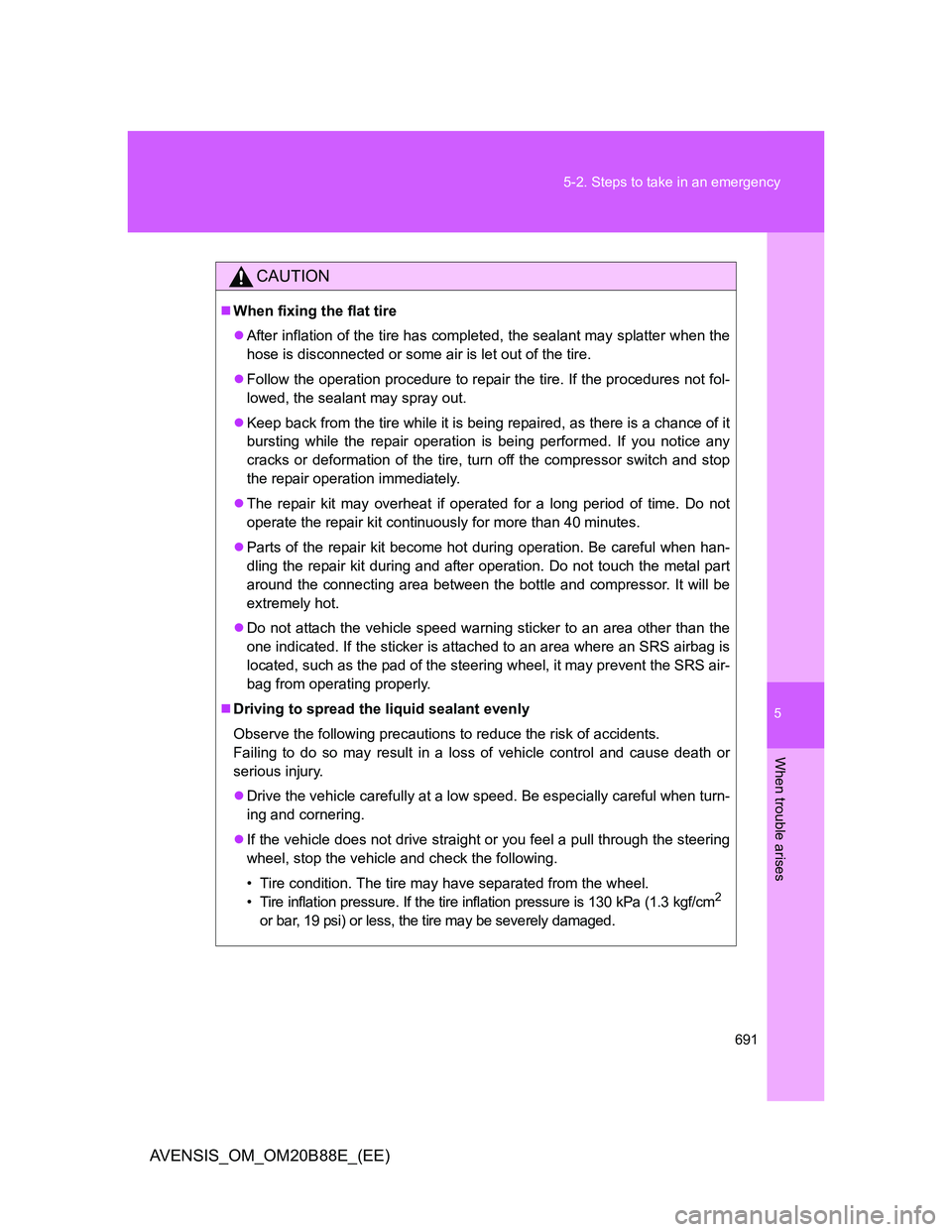

CAUTION
When fixing the flat tire
After inflation of the tire has completed, the sealant may splatter when the
hose is disconnected or some air is let out of the tire.
Follow the operation procedure to repair the tire. If the procedures not fol-
lowed, the sealant may spray out.
Keep back from the tire while it is being repaired, as there is a chance of it
bursting while the repair operation is being performed. If you notice any
cracks or deformation of the tire, turn off the compressor switch and stop
the repair operation immediately.
The repair kit may overheat if operated for a long period of time. Do not
operate the repair kit continuously for more than 40 minutes.
Parts of the repair kit become hot during operation. Be careful when han-
dling the repair kit during and after operation. Do not touch the metal part
around the connecting area between the bottle and compressor. It will be
extremely hot.
Do not attach the vehicle speed warning sticker to an area other than the
one indicated. If the sticker is attached to an area where an SRS airbag is
located, such as the pad of the steering wheel, it may prevent the SRS air-
bag from operating properly.
Driving to spread the liquid sealant evenly
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
Drive the vehicle carefully at a low speed. Be especially careful when turn-
ing and cornering.
If the vehicle does not drive straight or you feel a pull through the steering
wheel, stop the vehicle and check the following.
• Tire condition. The tire may have separated from the wheel.
• Tire inflation pressure. If the tire inflation pressure is 130 kPa (1.3 kgf/cm
2
or bar, 19 psi) or less, the tire may be severely damaged.

692 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)

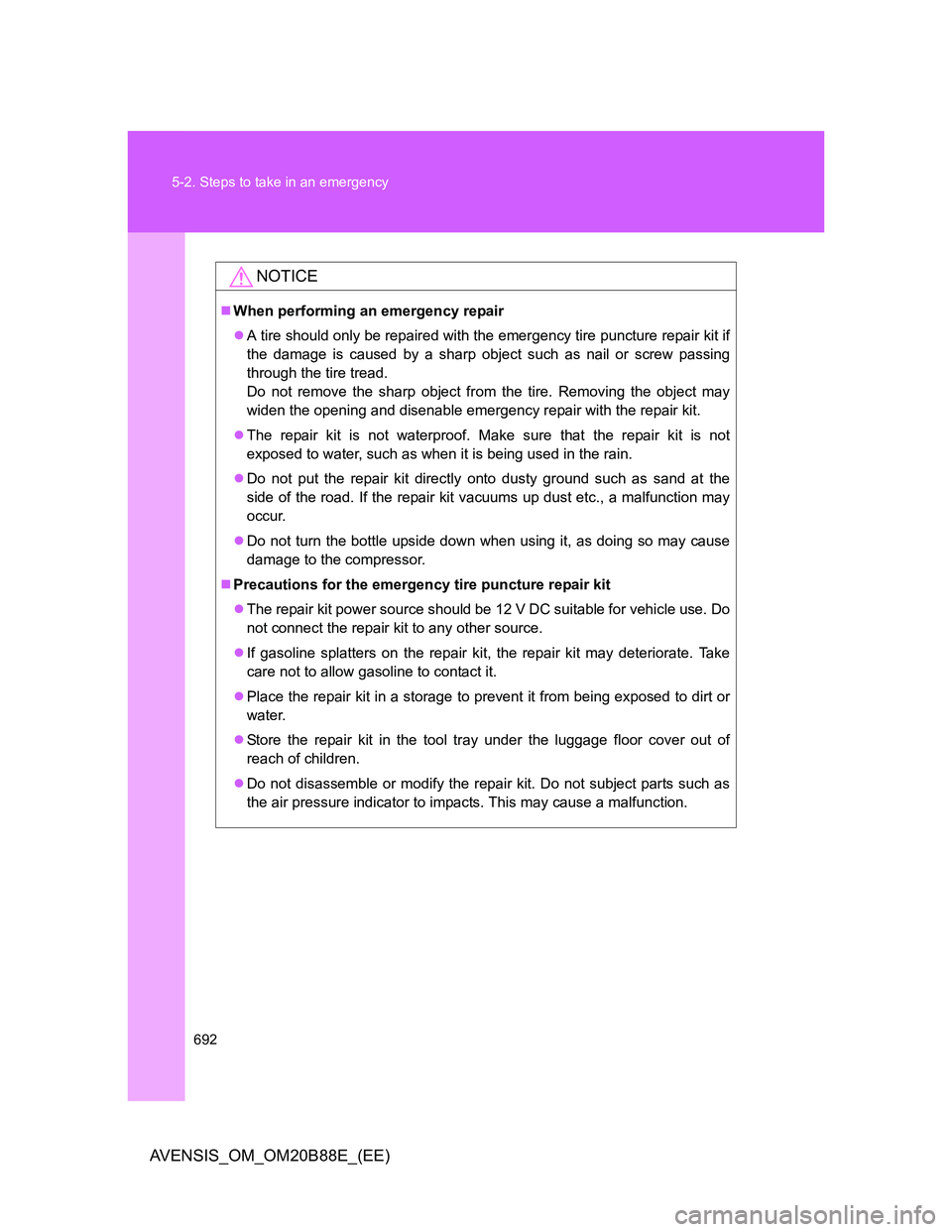

NOTICE
When performing an emergency repair
A tire should only be repaired with the emergency tire puncture repair kit if
the damage is caused by a sharp object such as nail or screw passing
through the tire tread.
Do not remove the sharp object from the tire. Removing the object may
widen the opening and disenable emergency repair with the repair kit.
The repair kit is not waterproof. Make sure that the repair kit is not
exposed to water, such as when it is being used in the rain.
Do not put the repair kit directly onto dusty ground such as sand at the
side of the road. If the repair kit vacuums up dust etc., a malfunction may
occur.
Do not turn the bottle upside down when using it, as doing so may cause
damage to the compressor.
Precautions for the emergency tire puncture repair kit
The repair kit power source should be 12 V DC suitable for vehicle use. Do
not connect the repair kit to any other source.
If gasoline splatters on the repair kit, the repair kit may deteriorate. Take
care not to allow gasoline to contact it.
Place the repair kit in a storage to prevent it from being exposed to dirt or
water.
Store the repair kit in the tool tray under the luggage floor cover out of
reach of children.
Do not disassemble or modify the repair kit. Do not subject parts such as
the air pressure indicator to impacts. This may cause a malfunction.

5
693
5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)

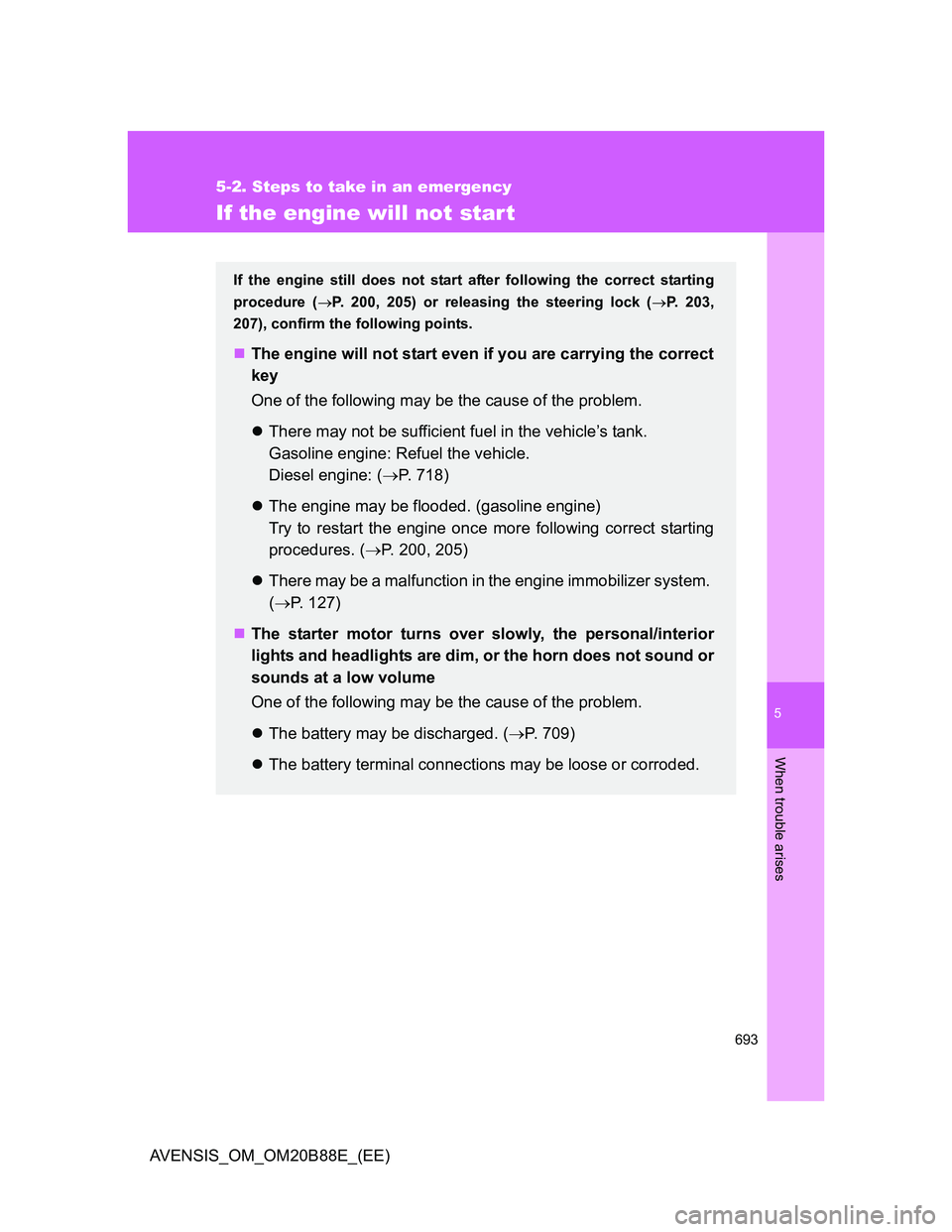

If the engine will not start
If the engine still does not start after following the correct starting
procedure (P. 200, 205) or releasing the steering lock (P. 203,
207), confirm the following points.
The engine will not start even if you are carrying the correct
key
One of the following may be the cause of the problem.
There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine: (P. 718)
The engine may be flooded. (gasoline engine)
Try to restart the engine once more following correct starting
procedures. (P. 200, 205)
There may be a malfunction in the engine immobilizer system.
(P. 127)
The starter motor turns over slowly, the personal/interior
lights and headlights are dim, or the horn does not sound or
sounds at a low volume
One of the following may be the cause of the problem.
The battery may be discharged. (P. 709)
The battery terminal connections may be loose or corroded.

694 5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)

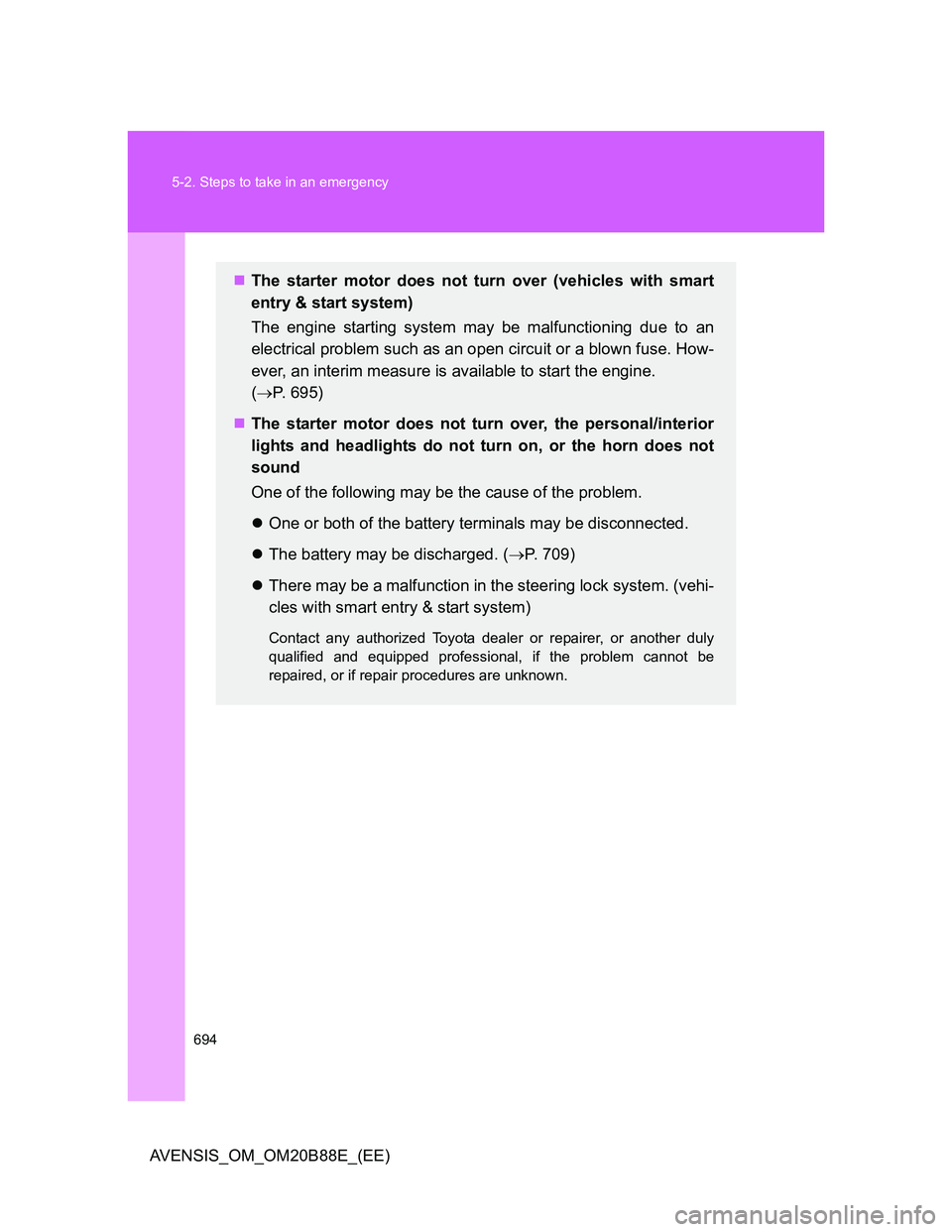

The starter motor does not turn over (vehicles with smart
entry & start system)
The engine starting system may be malfunctioning due to an
electrical problem such as an open circuit or a blown fuse. How-
ever, an interim measure is available to start the engine.
(P. 695)
The starter motor does not turn over, the personal/interior
lights and headlights do not turn on, or the horn does not
sound
One of the following may be the cause of the problem.
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 709)
There may be a malfunction in the steering lock system. (vehi-
cles with smart entry & start system)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.

5
695 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)

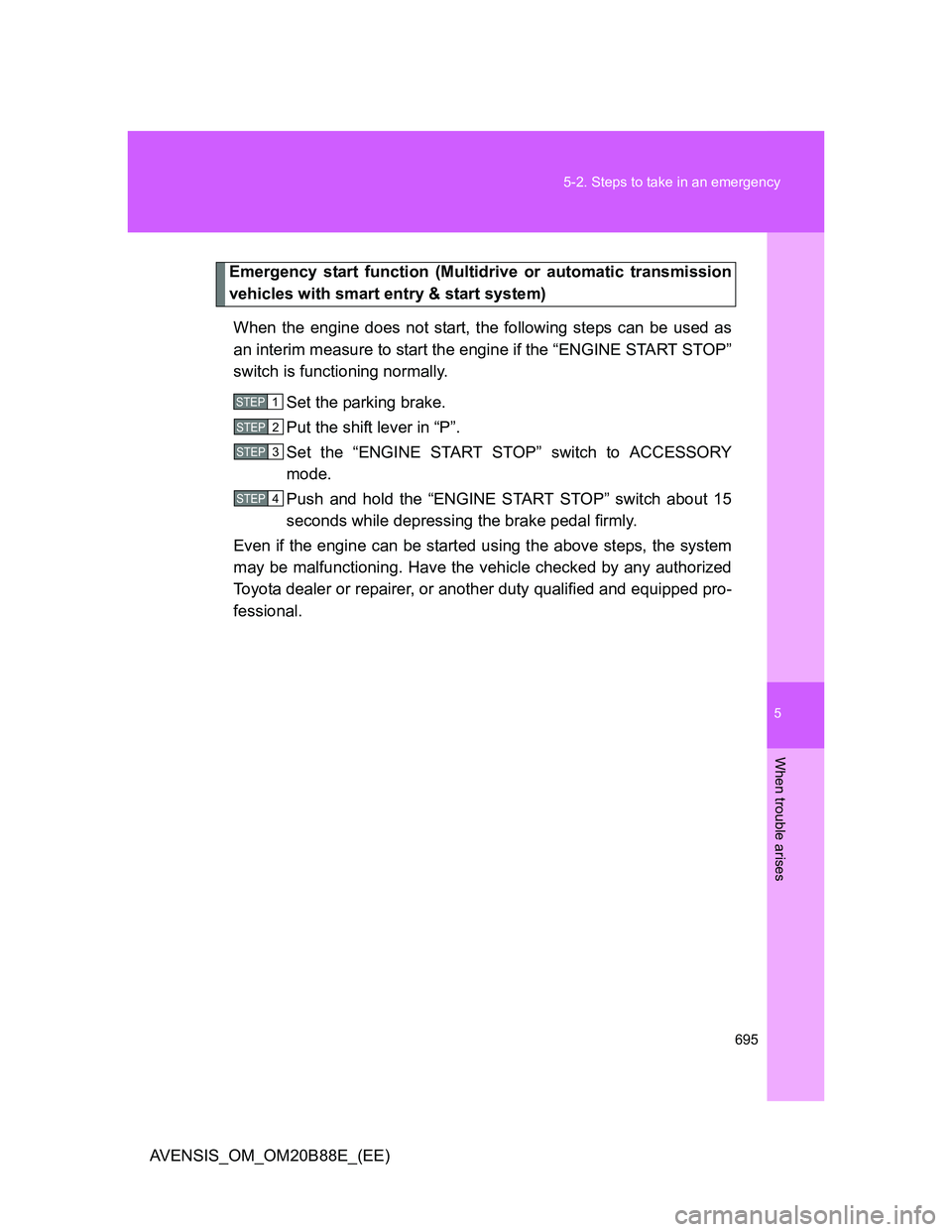

Emergency start function (Multidrive or automatic transmission
vehicles with smart entry & start system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally.
Set the parking brake.
Put the shift lever in “P”.
Set the “ENGINE START STOP” switch to ACCESSORY
mode.
Push and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any authorized
Toyota dealer or repairer, or another duty qualified and equipped pro-
fessional.
STEP1
STEP2
STEP3
STEP4

696
5-2. Steps to take in an emergency
AVENSIS_OM_OM20B88E_(EE)

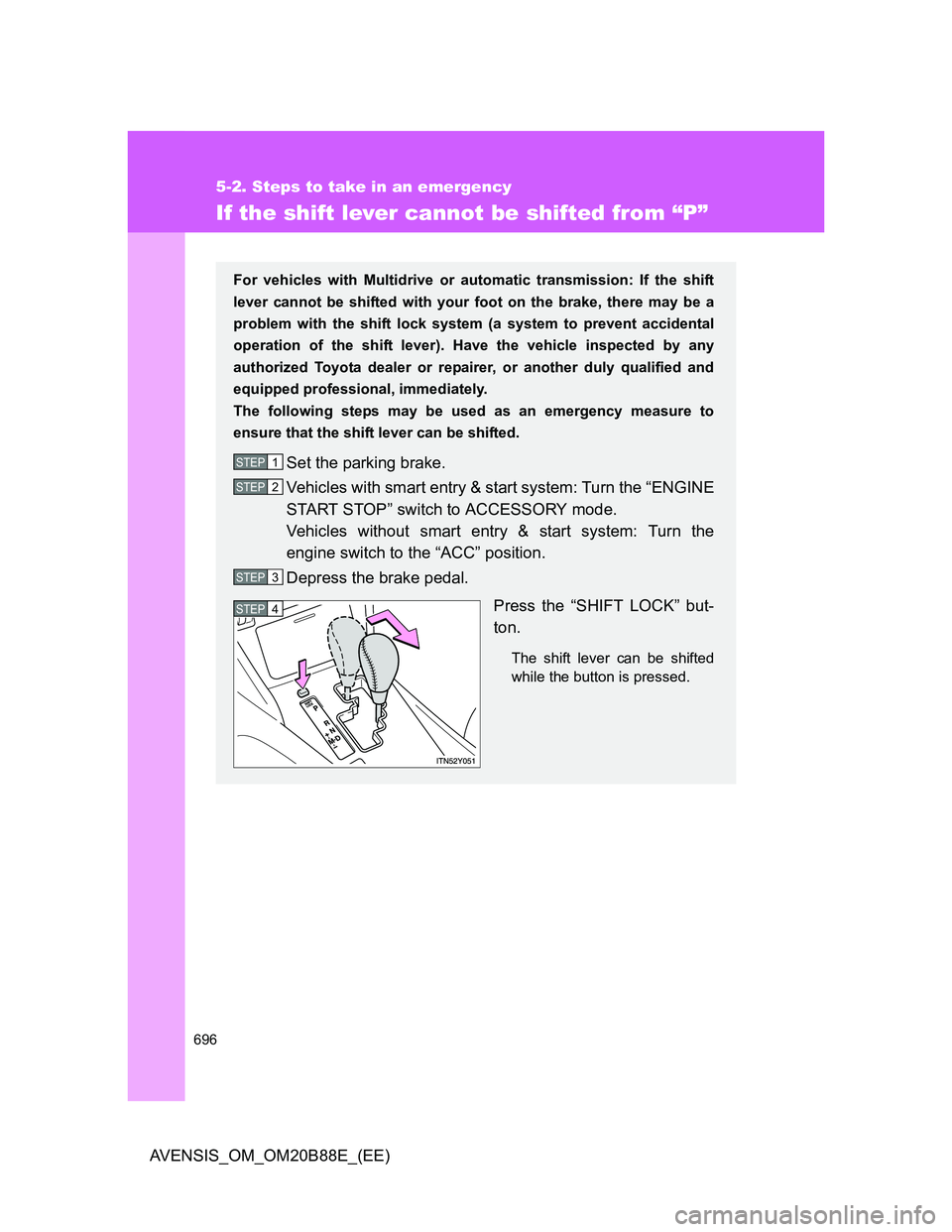

If the shift lever cannot be shifted from “P”
For vehicles with Multidrive or automatic transmission: If the shift
lever cannot be shifted with your foot on the brake, there may be a
problem with the shift lock system (a system to prevent accidental
operation of the shift lever). Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch to ACCESSORY mode.
Vehicles without smart entry & start system: Turn the
engine switch to the “ACC” position.
Depress the brake pedal.
Press the “SHIFT LOCK” but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4

5
697
5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)

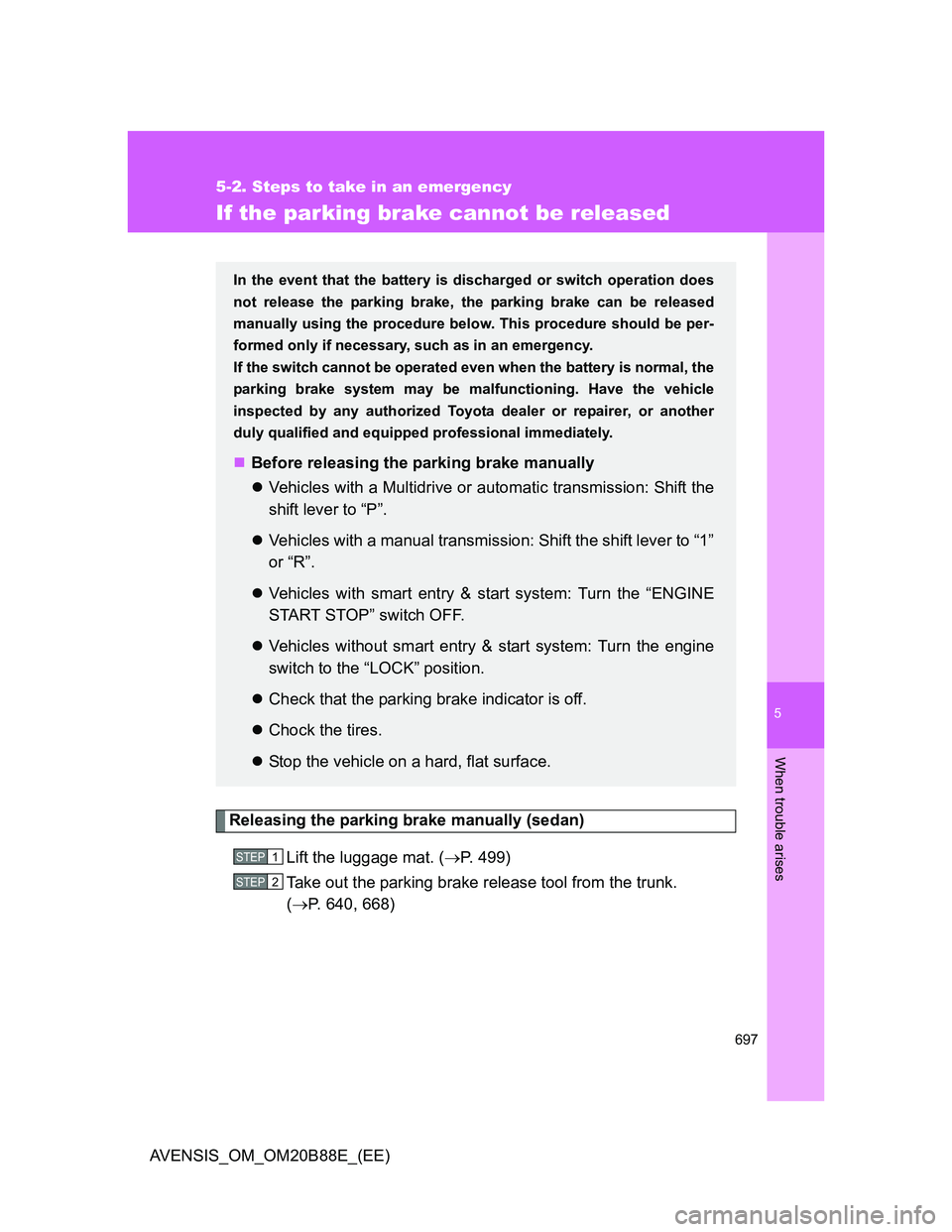

If the parking brake cannot be released
Releasing the parking brake manually (sedan)
Lift the luggage mat. (P. 499)
Take out the parking brake release tool from the trunk.
(P. 640, 668)
In the event that the battery is discharged or switch operation does
not release the parking brake, the parking brake can be released
manually using the procedure below. This procedure should be per-
formed only if necessary, such as in an emergency.
If the switch cannot be operated even when the battery is normal, the
parking brake system may be malfunctioning. Have the vehicle
inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Before releasing the parking brake manually
Vehicles with a Multidrive or automatic transmission: Shift the
shift lever to “P”.
Vehicles with a manual transmission: Shift the shift lever to “1”
or “R”.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch OFF.
Vehicles without smart entry & start system: Turn the engine
switch to the “LOCK” position.
Check that the parking brake indicator is off.
Chock the tires.
Stop the vehicle on a hard, flat surface.
STEP1
STEP2

698 5-2. Steps to take in an emergency

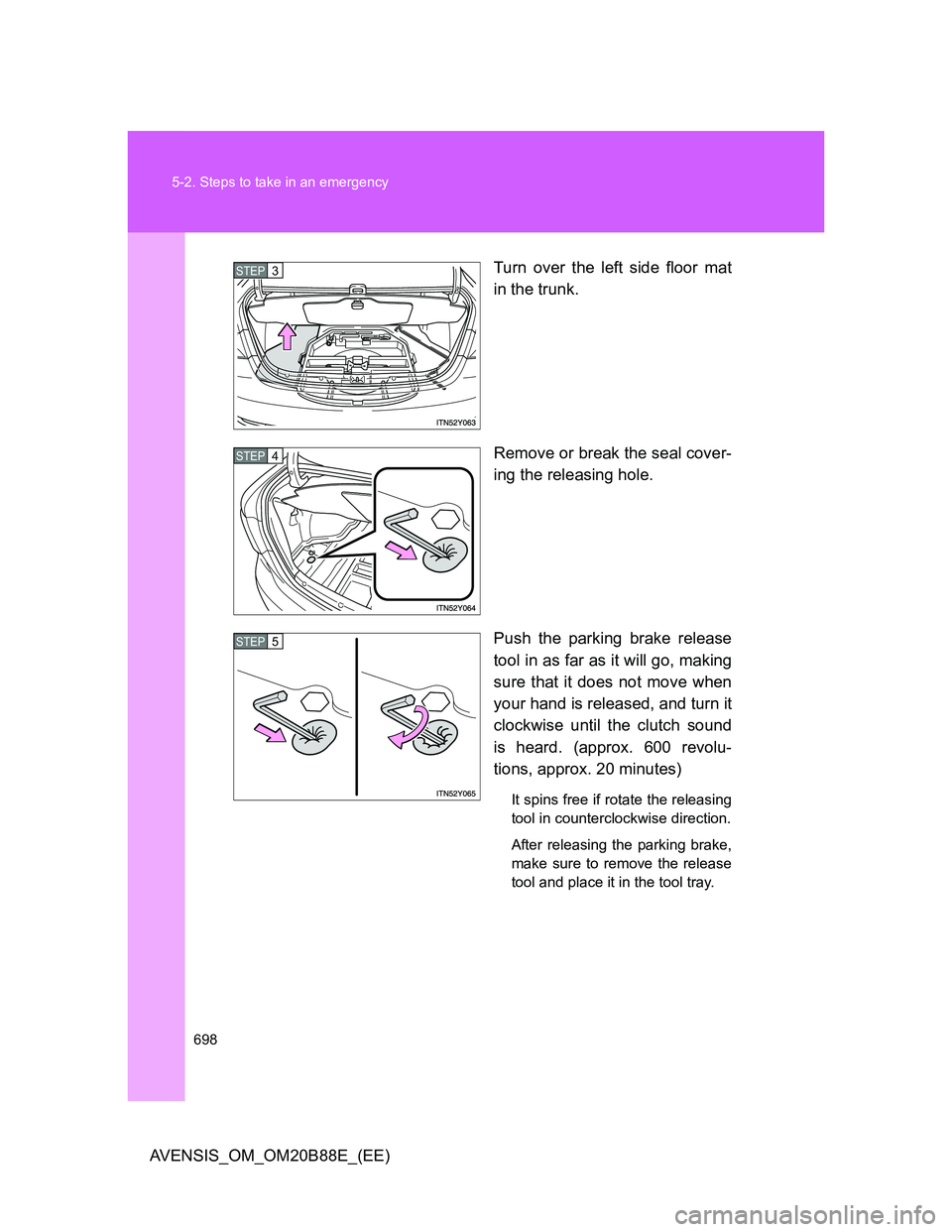

AVENSIS_OM_OM20B88E_(EE)Turn over the left side floor mat
in the trunk.
Remove or break the seal cover-
ing the releasing hole.
Push the parking brake release
tool in as far as it will go, making
sure that it does not move when
your hand is released, and turn it
clockwise until the clutch sound
is heard. (approx. 600 revolu-
tions, approx. 20 minutes)
It spins free if rotate the releasing
tool in counterclockwise direction.
After releasing the parking brake,
make sure to remove the release
tool and place it in the tool tray.
STEP3
STEP4
STEP5

5
699 5-2. Steps to take in an emergency
When trouble arises
AVENSIS_OM_OM20B88E_(EE)

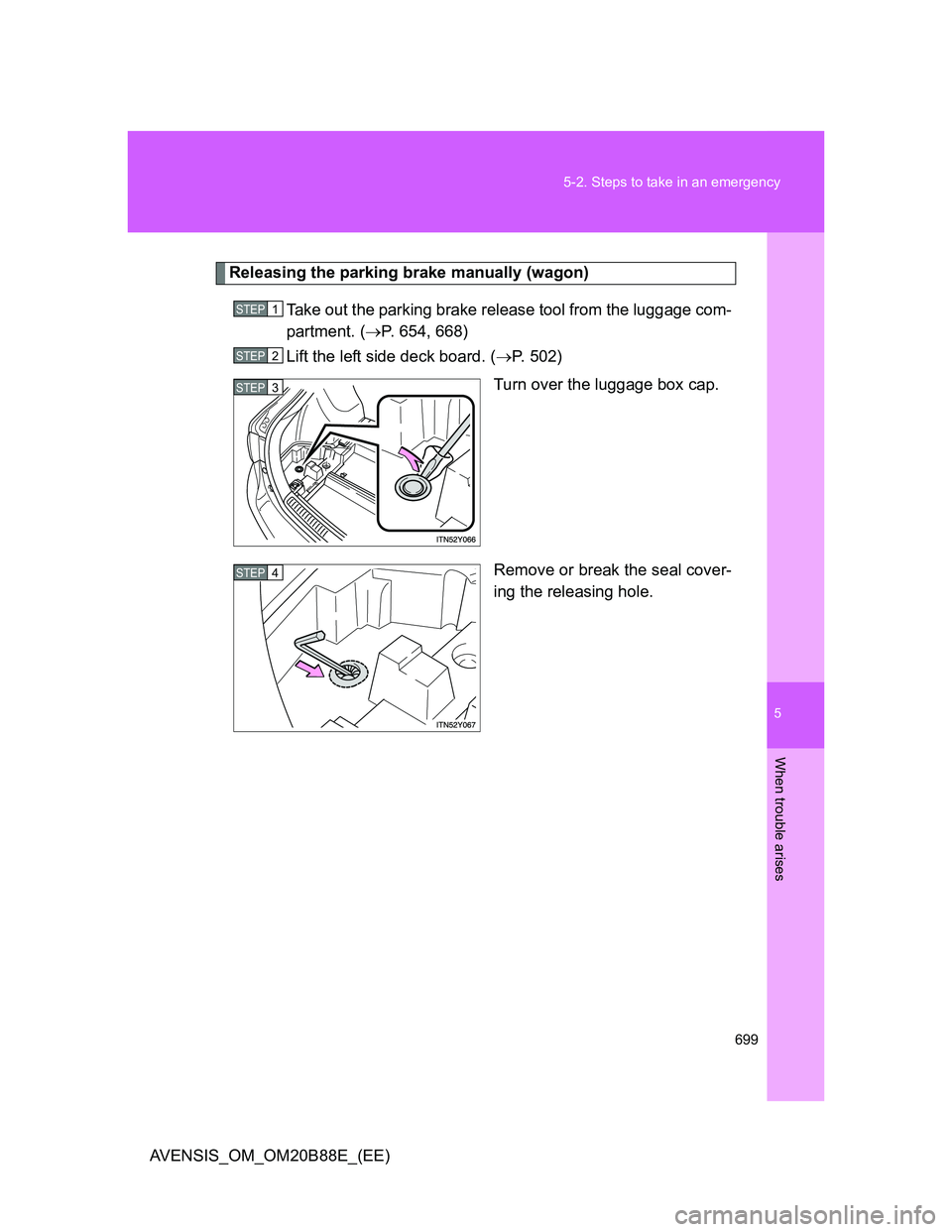

Releasing the parking brake manually (wagon)
Take out the parking brake release tool from the luggage com-
partment. (P. 654, 668)
Lift the left side deck board. (P. 502)
Turn over the luggage box cap.
Remove or break the seal cover-
ing the releasing hole.
STEP1
STEP2
STEP3
STEP4

700 5-2. Steps to take in an emergency

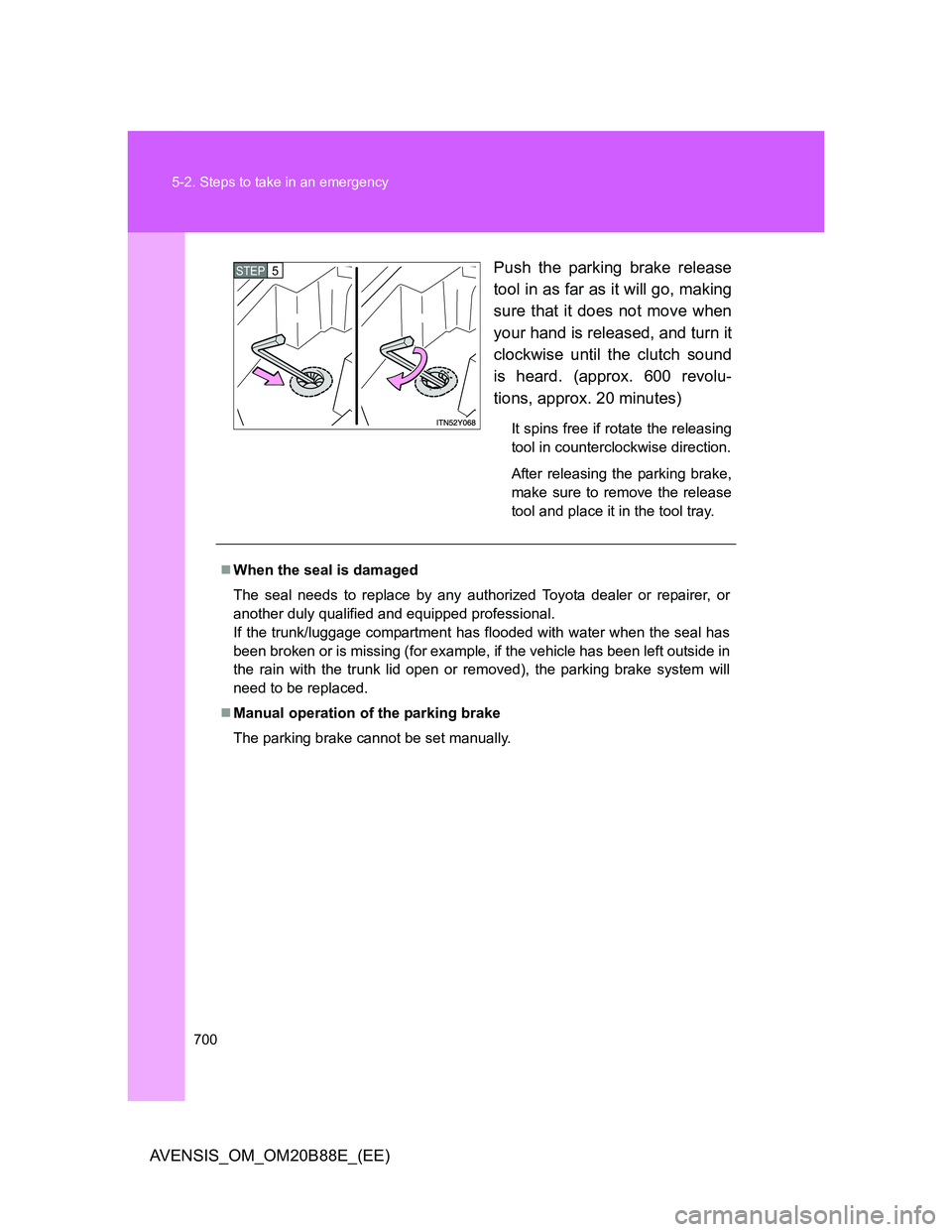

AVENSIS_OM_OM20B88E_(EE)Push the parking brake release
tool in as far as it will go, making
sure that it does not move when
your hand is released, and turn it
clockwise until the clutch sound
is heard. (approx. 600 revolu-
tions, approx. 20 minutes)
It spins free if rotate the releasing
tool in counterclockwise direction.
After releasing the parking brake,
make sure to remove the release
tool and place it in the tool tray.
STEP5
When the seal is damaged
The seal needs to replace by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
If the trunk/luggage compartment has flooded with water when the seal has
been broken or is missing (for example, if the vehicle has been left outside in
the rain with the trunk lid open or removed), the parking brake system will
need to be replaced.
Manual operation of the parking brake
The parking brake cannot be set manually.
