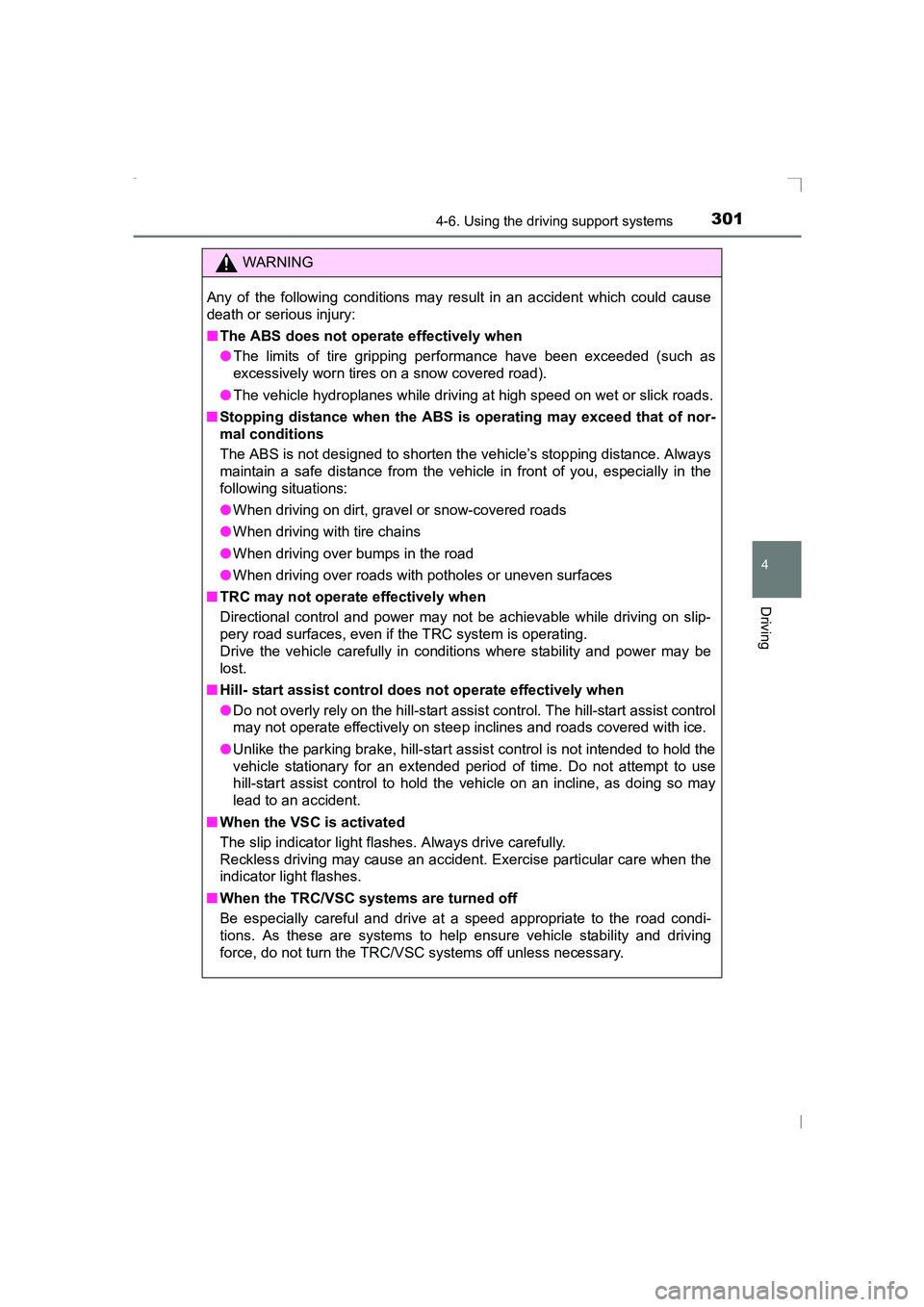

3014-6. Using the driving support systems
4
Driving
AVENSIS_OM_OM20C20E_(EE)
WARNING
Any of the following conditions may result in an accident which could cause
death or serious injury:
■ The ABS does not operate effectively when
●The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
● The vehicle hydroplanes while driving at high speed on wet or slick roads.
■ Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten t he vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the
following situations:
● When driving on dirt, gravel or snow-covered roads
● When driving with tire chains
● When driving over bumps in the road
● When driving over roads with potholes or uneven surfaces
■ TRC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC system is operating.
Drive the vehicle carefully in conditions where stability and power may be
lost.
■ Hill- start assist control does not operate effectively when
●Do not overly rely on the hill-start assist control. The hill-start assist control
may not operate effectively on steep inclines and roads covered with ice.
● Unlike the parking brake, hill-start assist control is not intended to hold the
vehicle stationary for an extended period of time. Do not attempt to use
hill-start assist control to hold the vehicle on an incline, as doing so may
lead to an accident.
■ When the VSC is activated
The slip indicator light flashes. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the
indicator light flashes.
■ When the TRC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are systems to help ensure vehicle stability and driving
force, do not turn the TRC/VSC systems off unless necessary.
AVENSIS_OM_OM20C20E_(EE).book Page 301 Thursday, January 29, 2015 1:47 PM

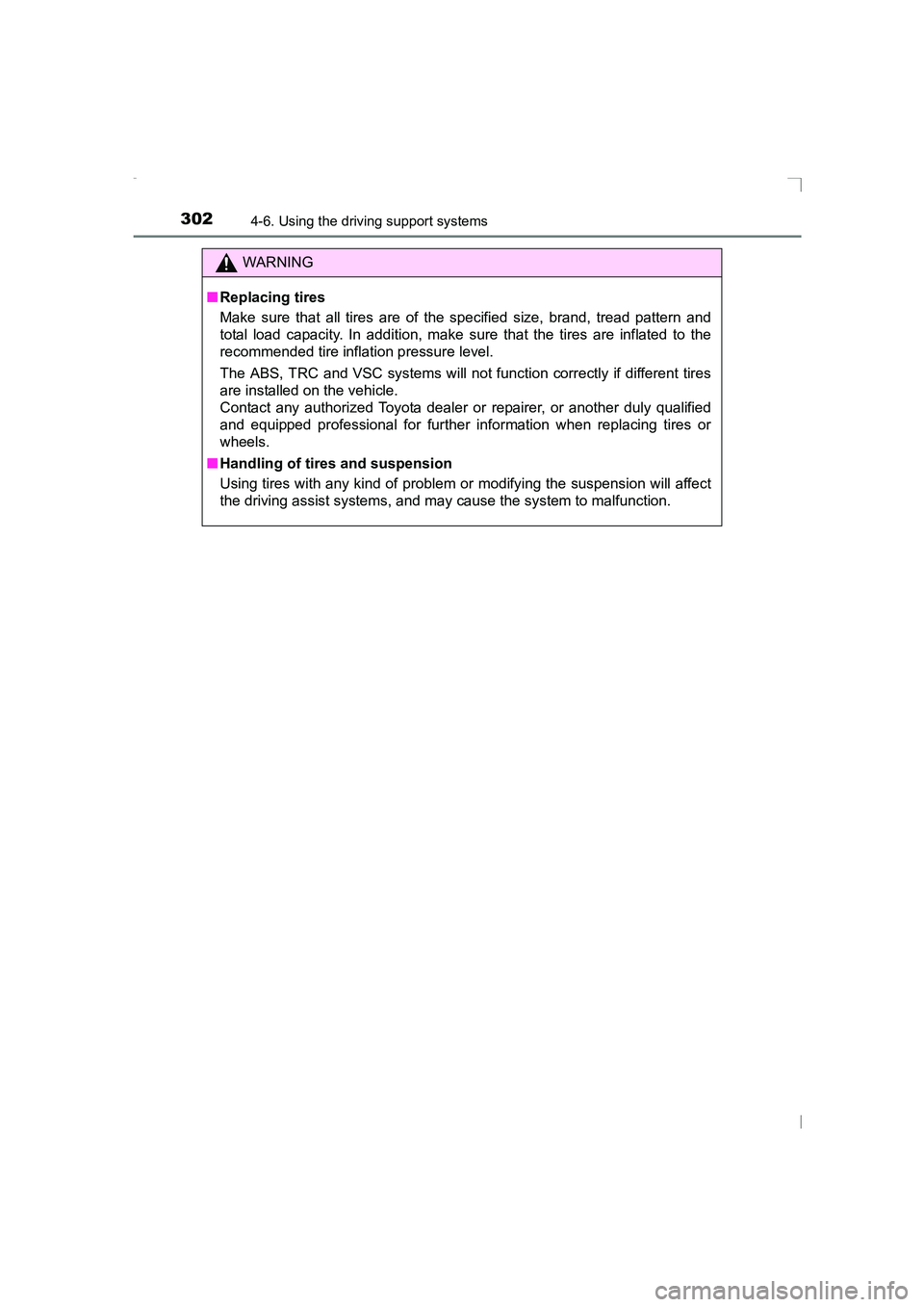

3024-6. Using the driving support systems
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.
The ABS, TRC and VSC systems will not function correctly if different tires
are installed on the vehicle.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for further in formation when replacing tires or
wheels.
■ Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.
AVENSIS_OM_OM20C20E_(EE).book Page 302 Thursday, January 29, 2015 1:47 PM

303
4

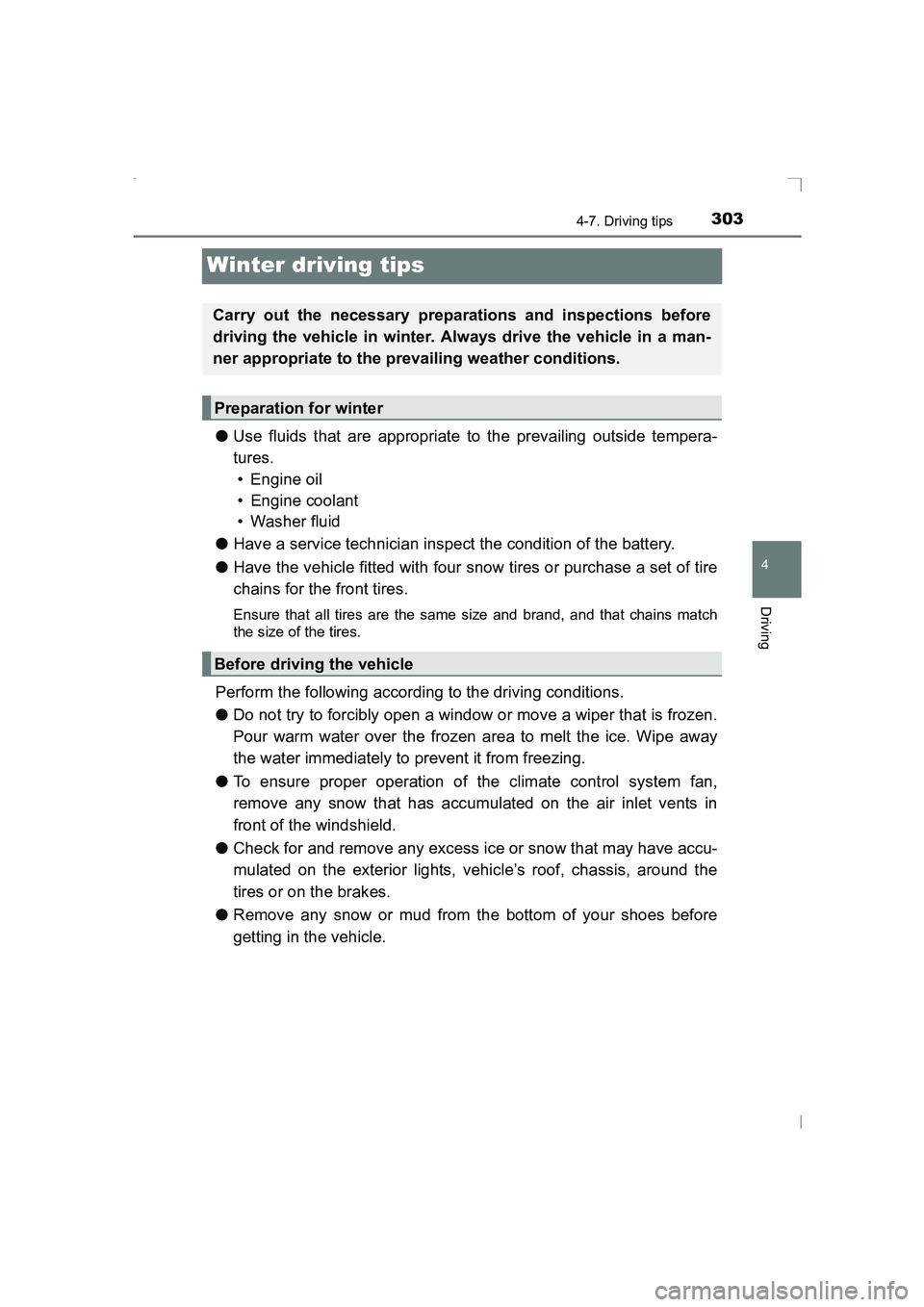

4-7. Driving tips
Driving
AVENSIS_OM_OM20C20E_(EE)
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
AVENSIS_OM_OM20C20E_(EE).book Page 303 Thursday, January 29, 2015 1:47 PM

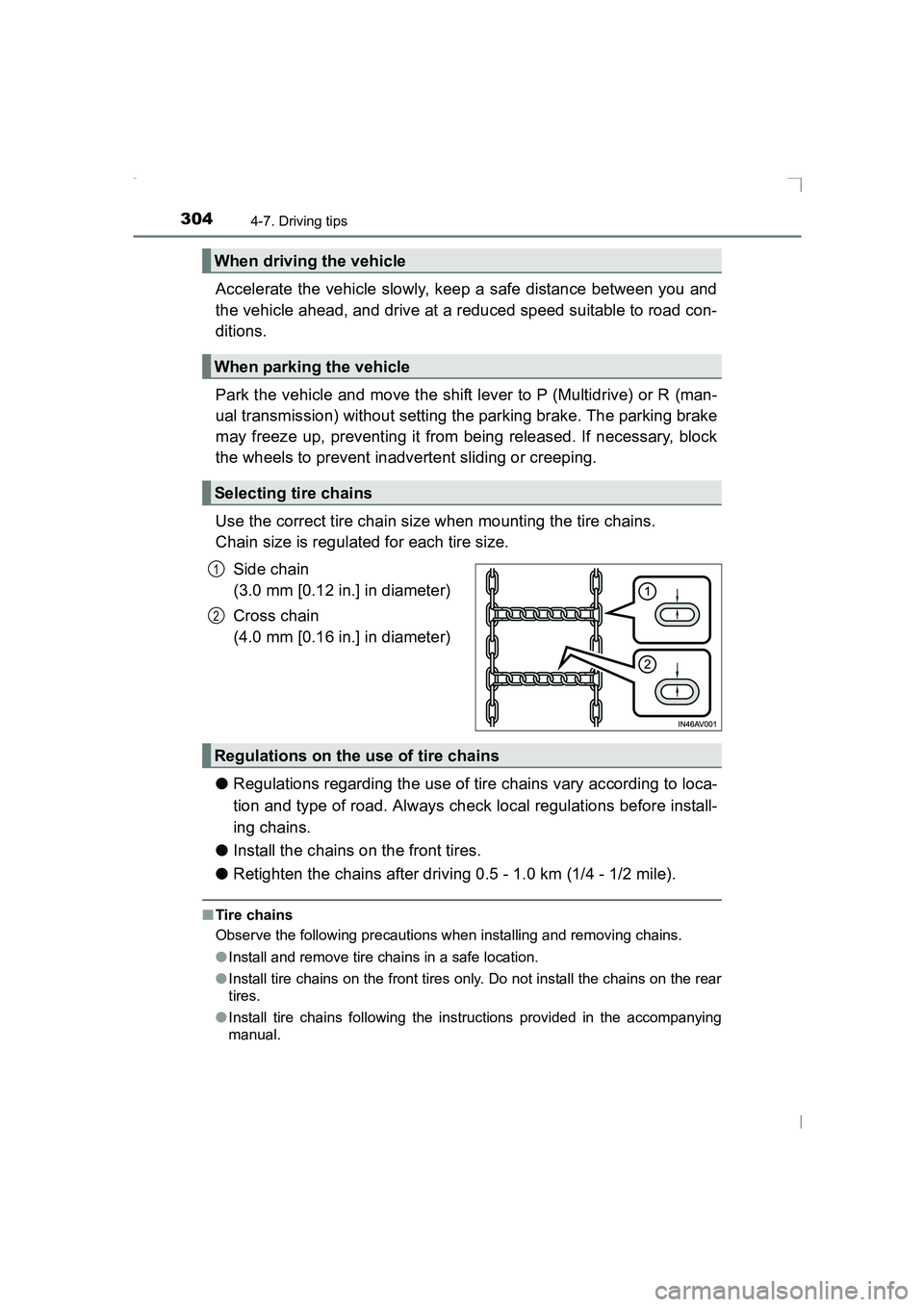

3044-7. Driving tips
AVENSIS_OM_OM20C20E_(EE)
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
Park the vehicle and move the shift lever to P (Multidrive) or R (man-
ual transmission) without setting the parking brake. The parking brake
may freeze up, preventing it from being released. If necessary, block
the wheels to prevent inadvertent sliding or creeping.
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.Side chain
(3.0 mm [0.12 in.] in diameter)
Cross chain
(4.0 mm [0.16 in.] in diameter)
● Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before install-
ing chains.
● Install the chains on the front tires.
● Retighten the chains after driving 0.5 - 1.0 km (1/4 - 1/2 mile).
■Tire chains
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install the chains on the rear
tires.
● Install tire chains following the instructions provided in the accompanying
manual.
When driving the vehicle
When parking the vehicle
Selecting tire chains
1
2
Regulations on the use of tire chains
AVENSIS_OM_OM20C20E_(EE).book Page 304 Thursday, January 29, 2015 1:47 PM

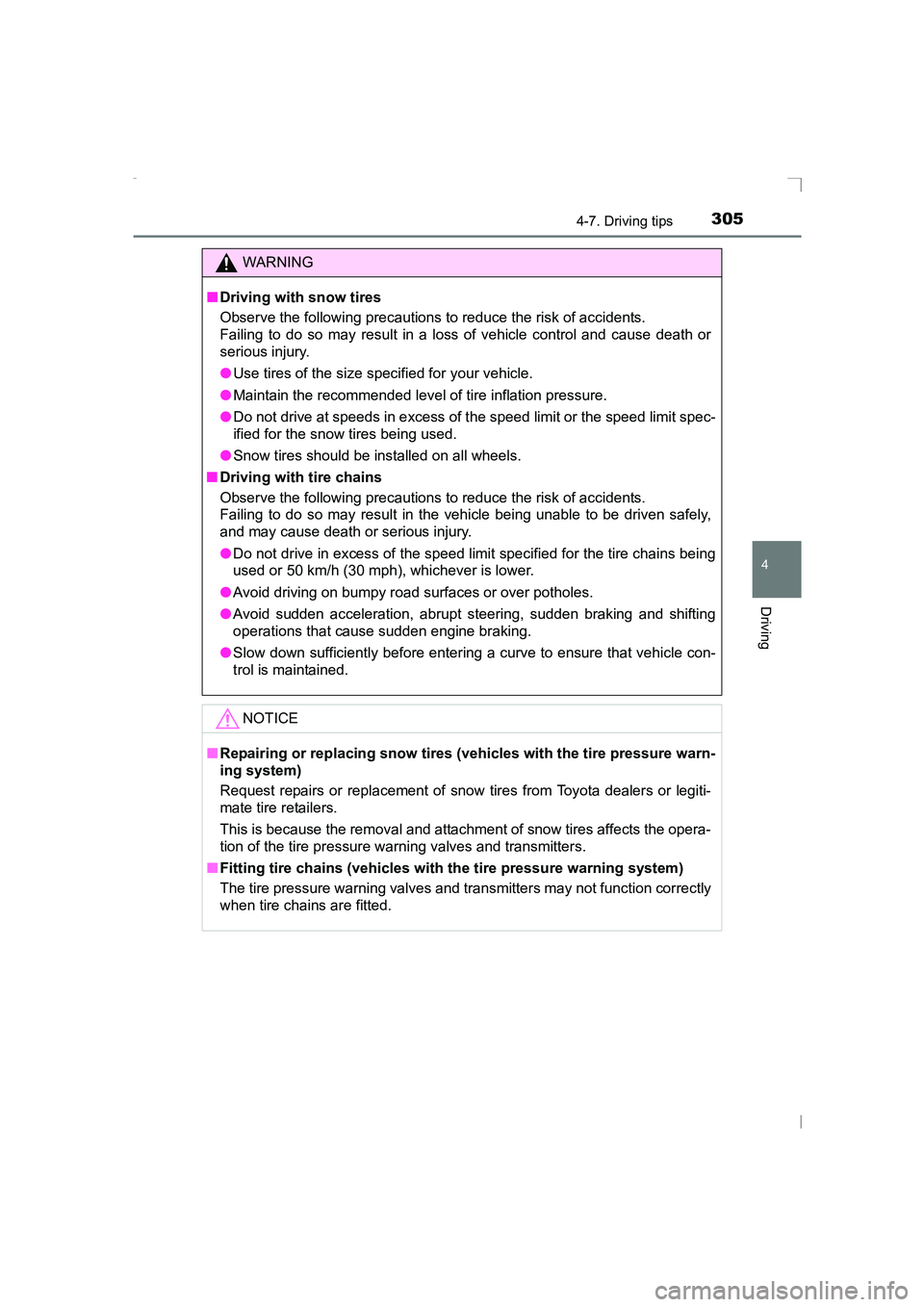

3054-7. Driving tips
4
Driving
AVENSIS_OM_OM20C20E_(EE)
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified for your vehicle.
● Maintain the recommended level of tire inflation pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Snow tires should be installed on all wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
NOTICE
■ Repairing or replacing snow tires (vehicles with the tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains (vehicles with the tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
AVENSIS_OM_OM20C20E_(EE).book Page 305 Thursday, January 29, 2015 1:47 PM

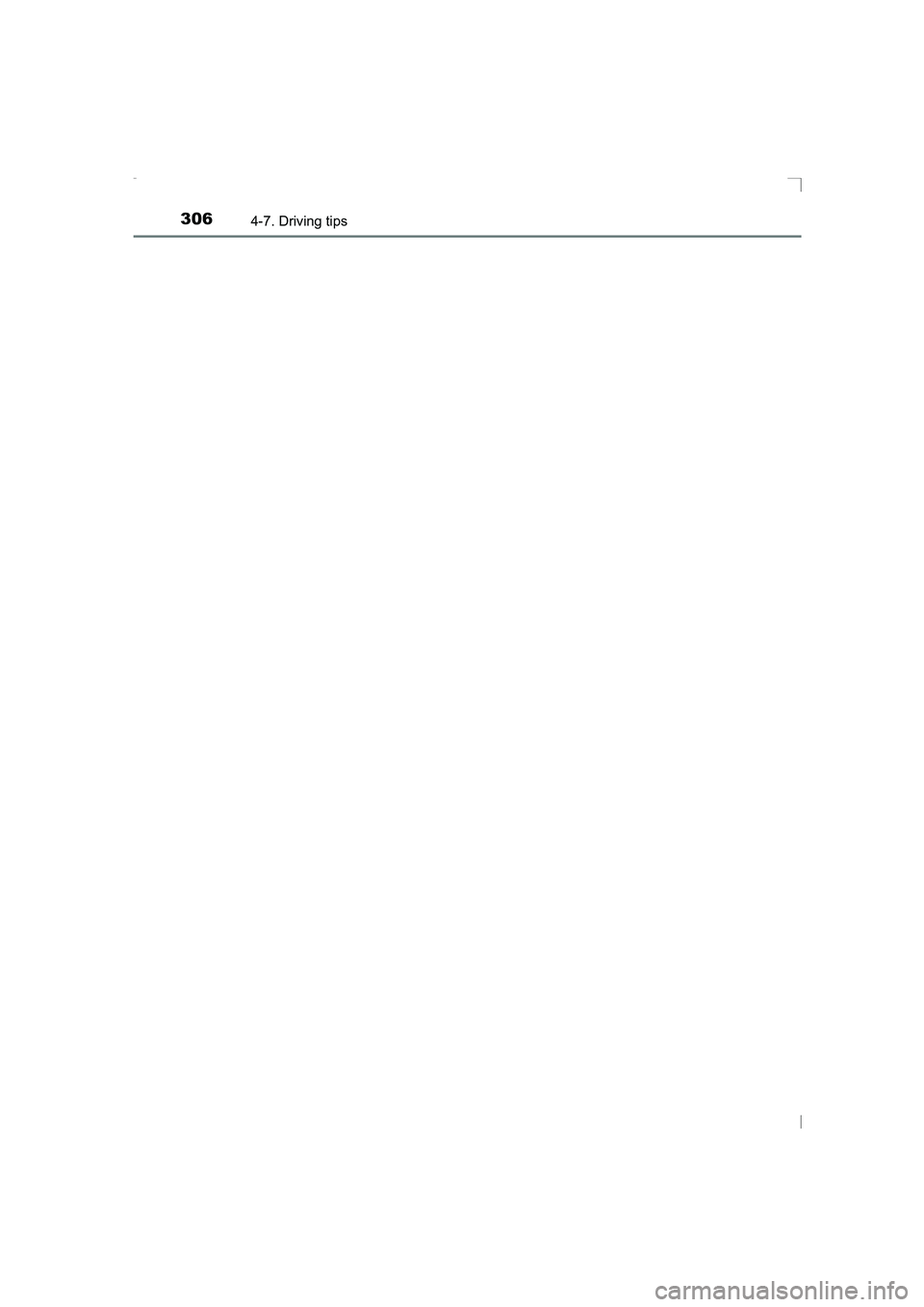

3064-7. Driving tips
AVENSIS_OM_OM20C20E_(EE)
AVENSIS_OM_OM20C20E_(EE).book Page 306 Thursday, January 29, 2015 1:47 PM

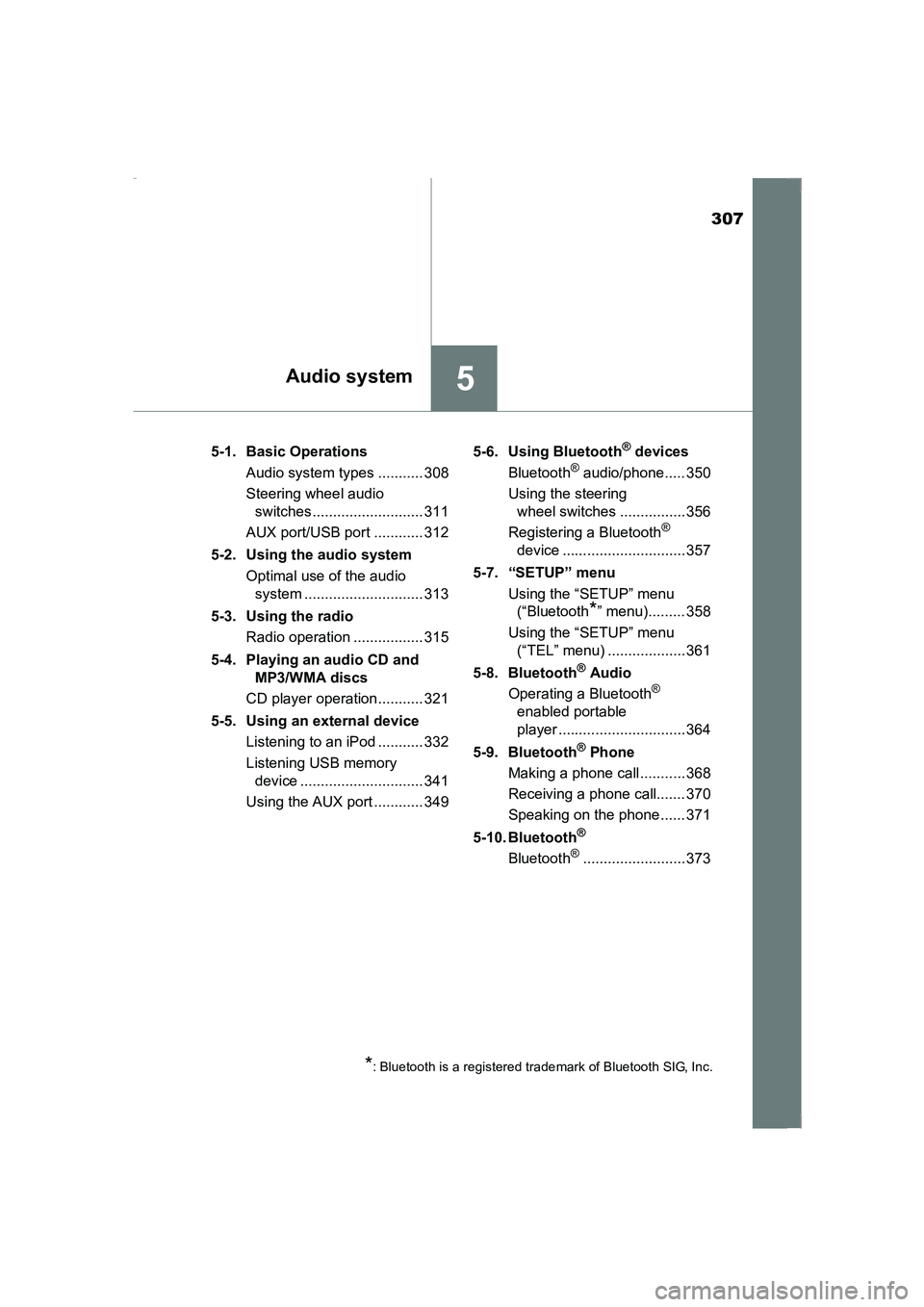

307
5Audio system
AVENSIS_OM_OM20C20E_(EE)5-1. Basic Operations
Audio system types ........... 308
Steering wheel audio switches ........................... 311
AUX port/USB port ............ 312
5-2. Using the audio system Optimal use of the audio system ............................. 313
5-3. Using the radio Radio operation ................. 315
5-4. Playing an audio CD and MP3/WMA discs
CD player operation........... 321
5-5. Using an external device Listening to an iPod ........... 332
Listening USB memory device .............................. 341
Using the AUX port ............ 349 5-6. Using Bluetooth
® devices
Bluetooth® audio/phone..... 350
Using the steering wheel switches ................356
Registering a Bluetooth
®
device .............................. 357
5-7. “SETUP” menu Using the “SETUP” menu(“Bluetooth
*” menu)......... 358
Using the “SETUP” menu (“TEL” menu) ................... 361
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player ............................... 364
5-9. Bluetooth
® Phone
Making a phone call ........... 368
Receiving a phone call....... 370
Speaking on the phone ...... 371
5-10. Bluetooth
®
Bluetooth®......................... 373
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
AVENSIS_OM_OM20C20E_(EE).book Page 307 Thursday, January 29, 2015 1:47 PM

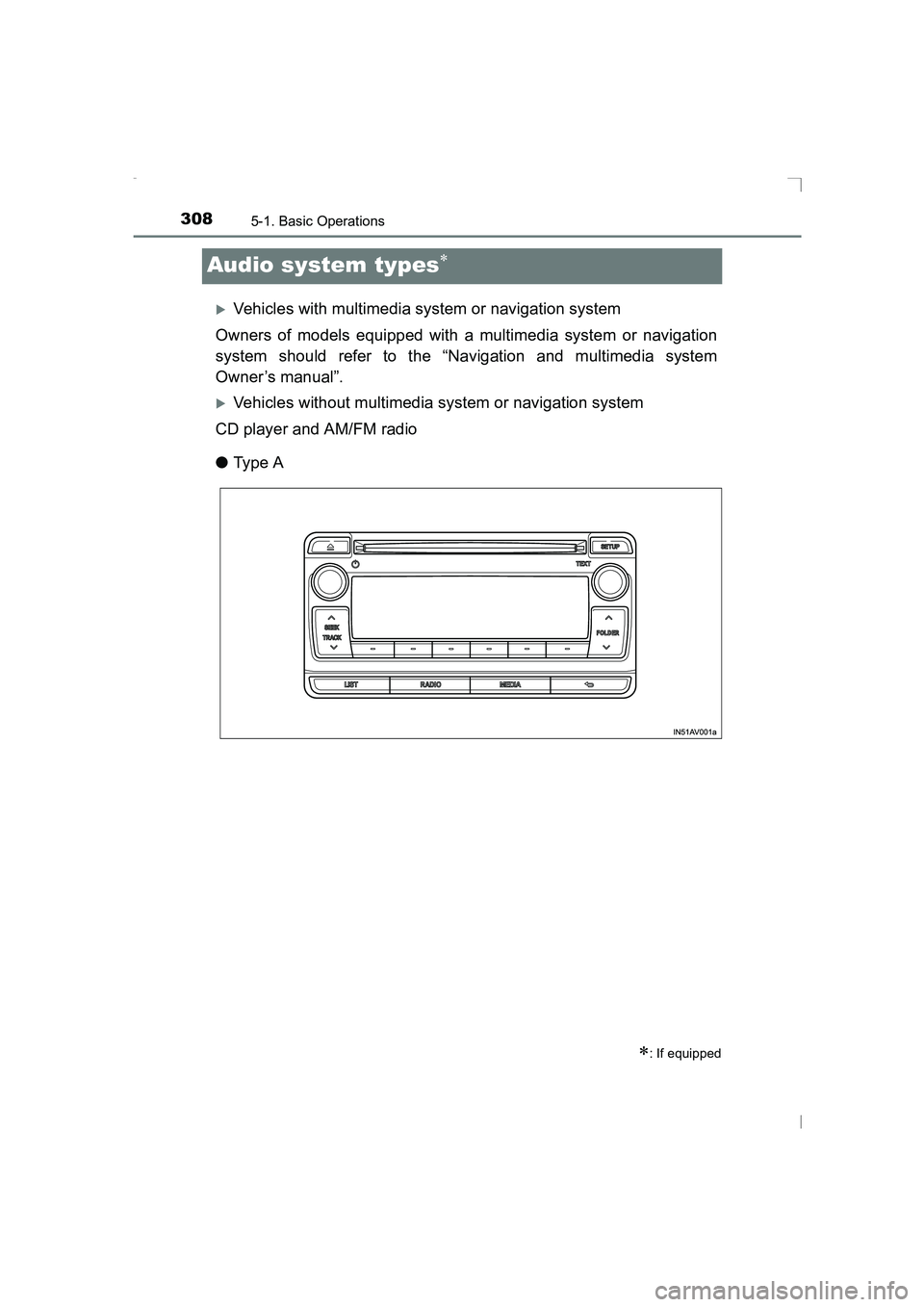

3085-1. Basic Operations
AVENSIS_OM_OM20C20E_(EE)
Audio system types∗
XVehicles with multimedia system or navigation system
Owners of models equipped with a multimedia system or navigation
system should refer to the “Navigation and multimedia system
Owner’s manual”.
XVehicles without multimedia system or navigation system
CD player and AM/FM radio
● Ty pe A
∗: If equipped
AVENSIS_OM_OM20C20E_(EE).book Page 308 Thursday, January 29, 2015 1:47 PM

3095-1. Basic Operations
5
Audio system
AVENSIS_OM_OM20C20E_(EE)

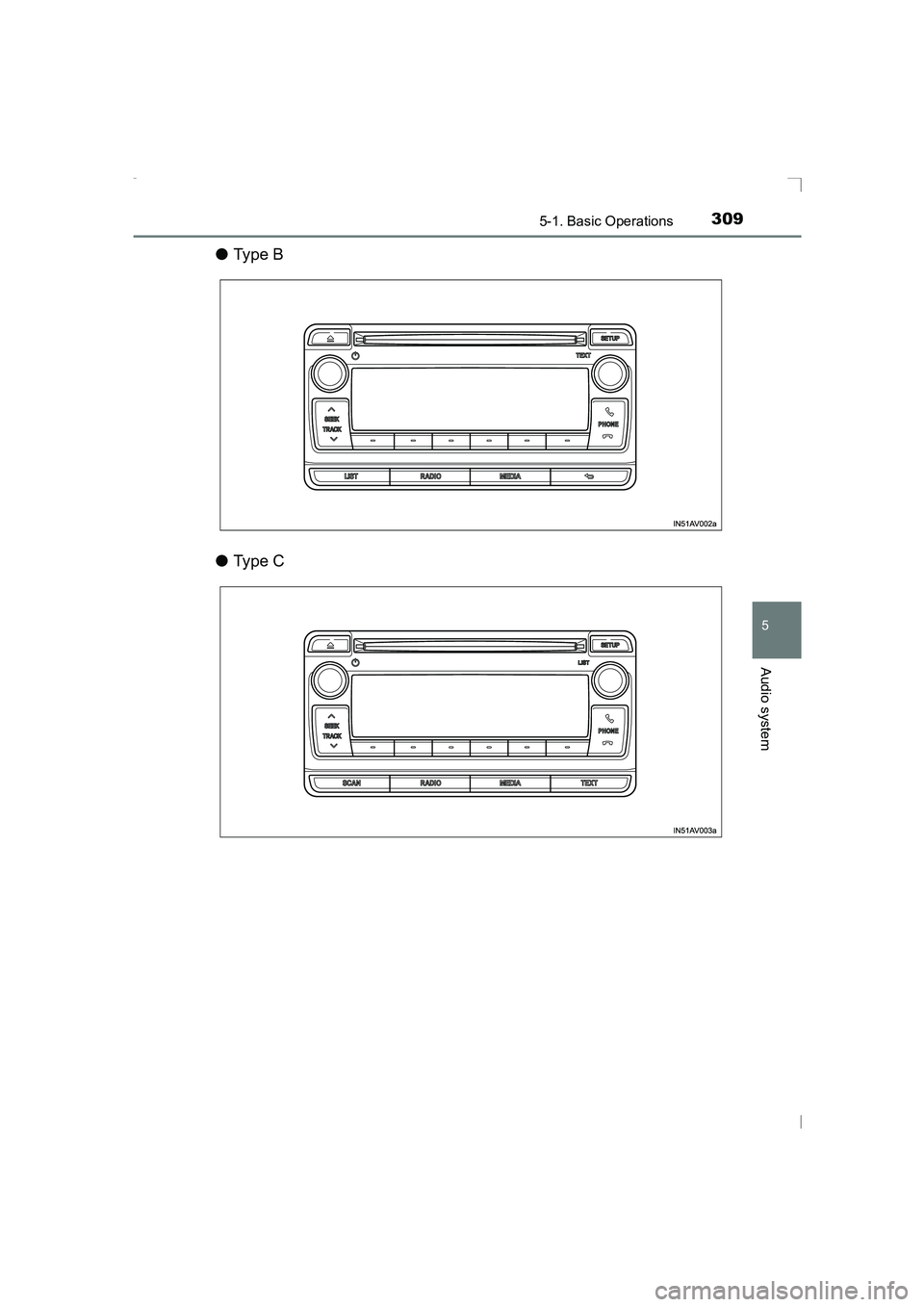

●Ty pe B
● Ty pe C
AVENSIS_OM_OM20C20E_(EE).book Page 309 Thursday, January 29, 2015 1:47 PM

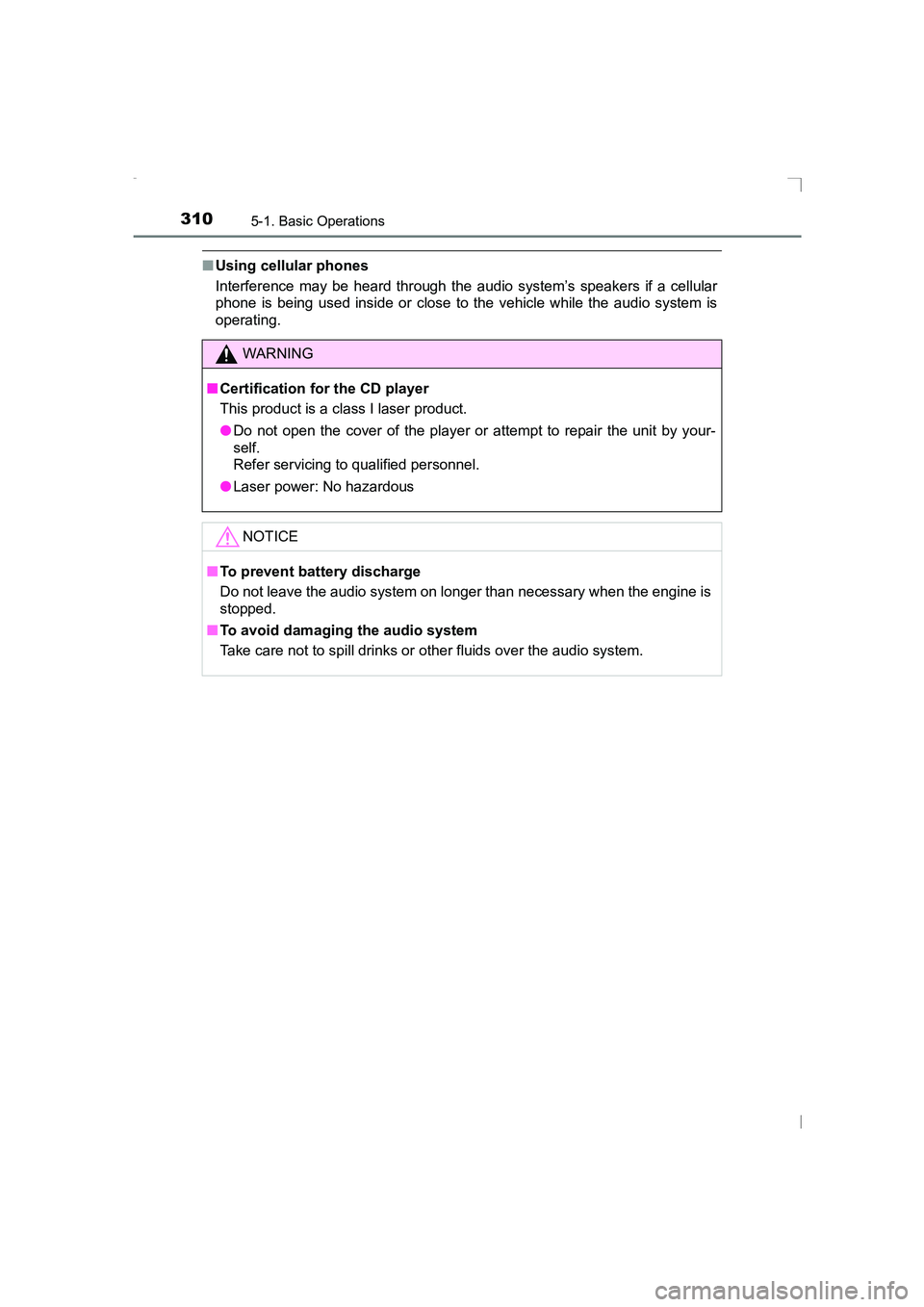

3105-1. Basic Operations
AVENSIS_OM_OM20C20E_(EE)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
WARNING
■ Certification for the CD player
This product is a class I laser product.
●Do not open the cover of the player or attempt to repair the unit by your-
self.
Refer servicing to qualified personnel.
● Laser power: No hazardous
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
AVENSIS_OM_OM20C20E_(EE).book Page 310 Thursday, January 29, 2015 1:47 PM
