TOYOTA AVENSIS 2017 Owners Manual (in English)

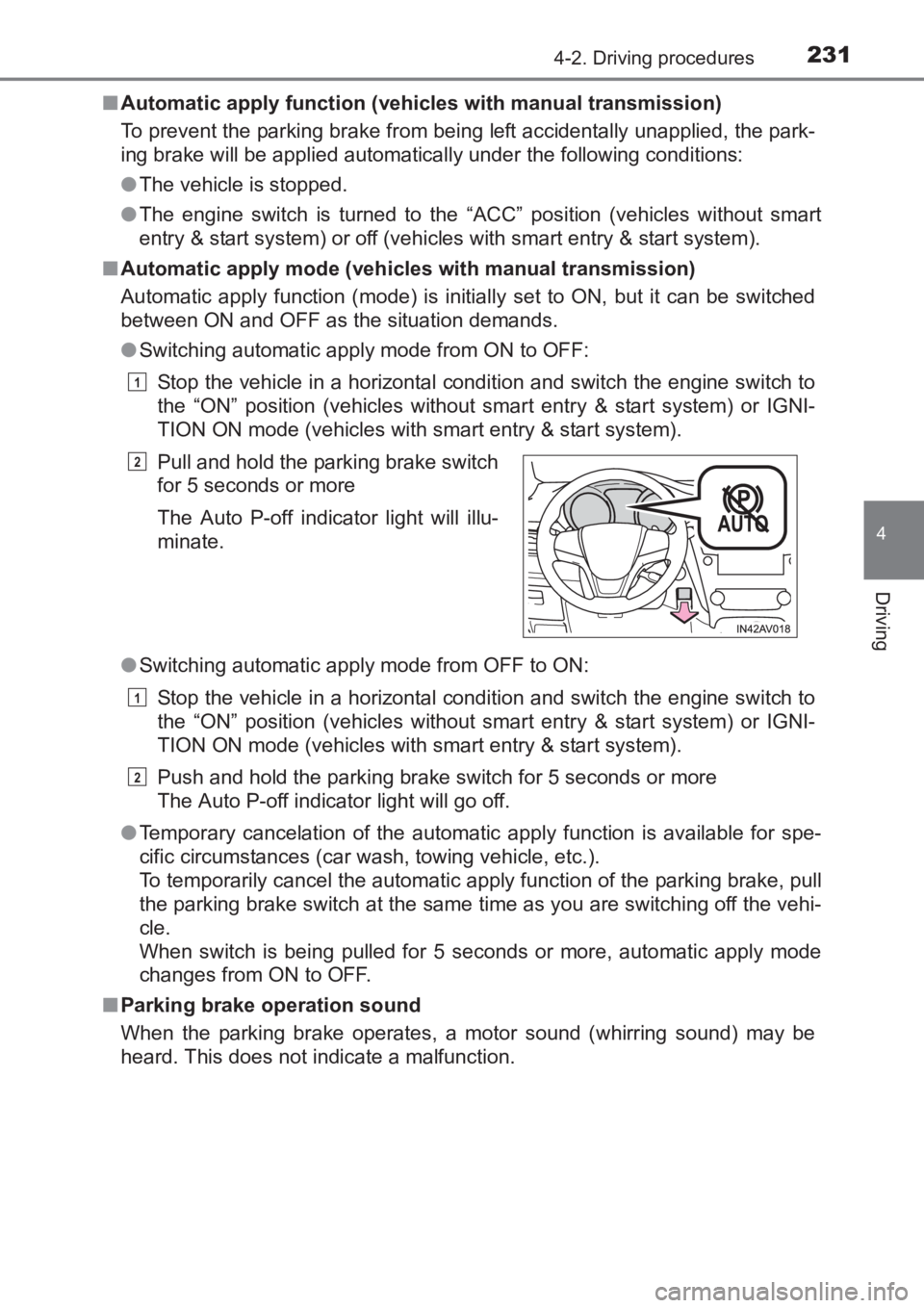

2314-2. Driving procedures
4
Driving
AVENSIS_OM_OM20C66E_(EE)■
Automatic apply function (vehicles with manual transmission)
To prevent the parking brake from being left accidentally unapplied, the park-
ing brake will be applied automatically under the following conditions:
●The vehicle is stopped.
● The engine switch is turned to the “ACC” position (vehicles without smart
entry & start system) or off (vehicles with smart entry & start system).
■ Automatic apply mode (vehicles with manual transmission)
Automatic apply function (mode) is initially set to ON, but it can be switched
between ON and OFF as the situation demands.
●Switching automatic apply mode from ON to OFF:
Stop the vehicle in a horizontal condition and switch the engine switch to
the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
● Switching automatic apply mode from OFF to ON:
Stop the vehicle in a horizontal condition and switch the engine switch to
the “ON” position (vehicles without smart entry & start system) or IGNI-
TION ON mode (vehicles with smart entry & start system).
Push and hold the parking brake switch for 5 seconds or more
The Auto P-off indicator light will go off.
● Temporary cancelation of the automatic apply function is available for spe-
cific circumstances (car wash, towing vehicle, etc.).
To temporarily cancel the automatic apply function of the parking brake, pull
the parking brake switch at the same time as you are switching off the vehi-
cle.
When switch is being pulled for 5 seconds or more, automatic apply mode
changes from ON to OFF.
■ Parking brake operation sound
When the parking brake operates, a motor sound (whirring sound) may be
heard. This does not indicate a malfunction. Pull and hold the parking brake switch
for 5 seconds or more
The Auto P-off indicator light will illu-
minate.
1
2
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 231 Wednesday, June 15, 20
16 4:07 PM

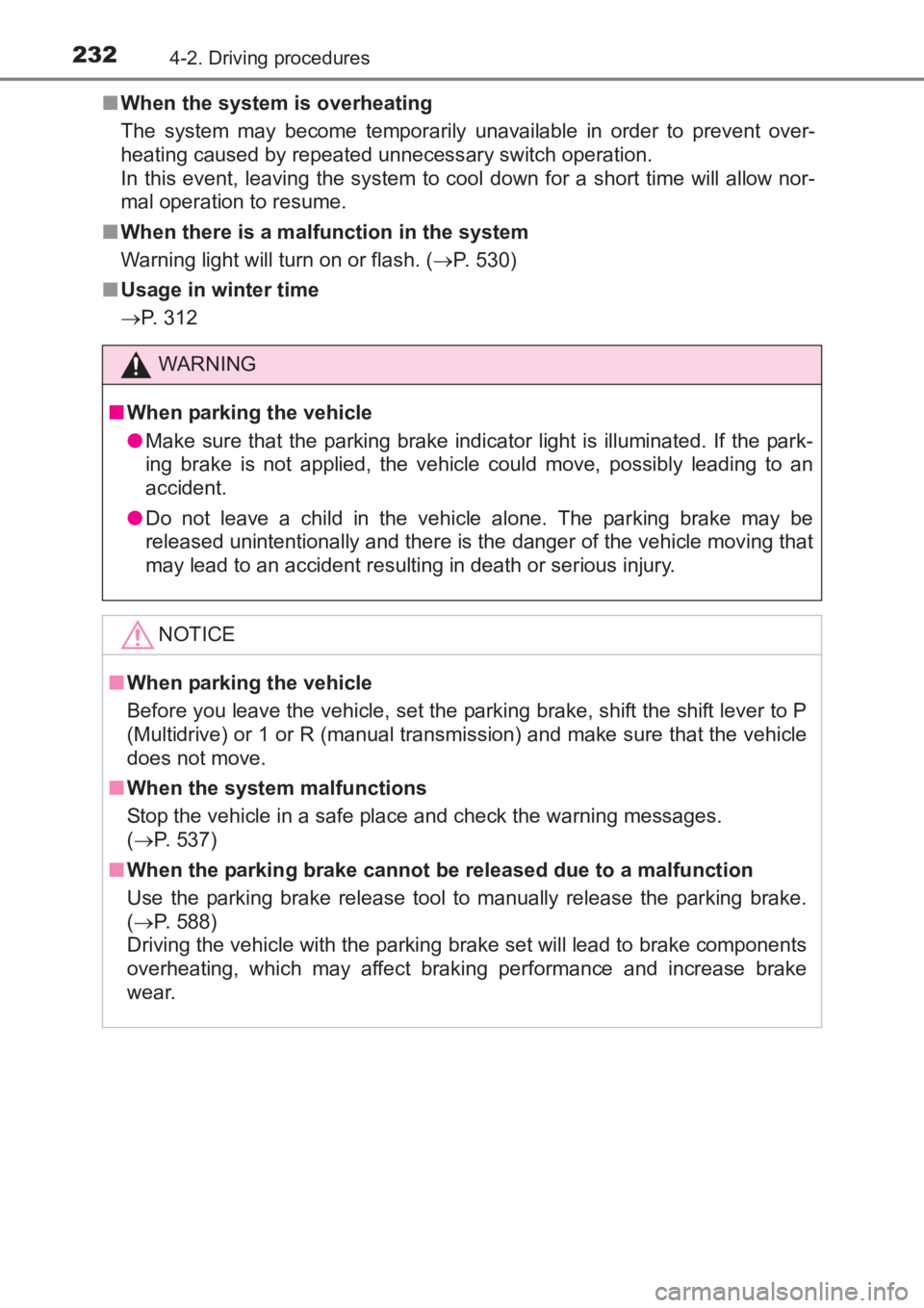

2324-2. Driving procedures
AVENSIS_OM_OM20C66E_(EE)■
When the system is overheating
The system may become temporarily unavailable in order to prevent over-
heating caused by repeated unnecessary switch operation.
In this event, leaving the system to cool down for a short time will allow nor-
mal operation to resume.
■ When there is a malf unction in the system
Warning light will turn on or flash. ( →P. 530)
■ Usage in winter time
→ P. 312
WARNING
■ When parking the vehicle
●Make sure that the parking brake indicator light is illuminated. If the park-
ing brake is not applied, the vehicle could move, possibly leading to an
accident.
● Do not leave a child in the vehicle alone. The parking brake may be
released unintentionally and there is the danger of the vehicle moving that
may lead to an accident resulting in death or serious injury.
NOTICE
■ When parking the vehicle
Before you leave the vehicle, set the parking brake, shift the shift lever to P
(Multidrive) or 1 or R (manual transmi ssion) and make sure that the vehicle
does not move.
■ When the system malfunctions
Stop the vehicle in a safe place and check the warning messages.
(→ P. 537)
■ When the parking brake cannot be released due to a malfunction
Use the parking brake release tool to manually release the parking brake.
(→ P. 588)
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
AVENSIS_OM_OM20C66E_(EE).book Page 232 Wednesday, June 15, 20 16 4:07 PM

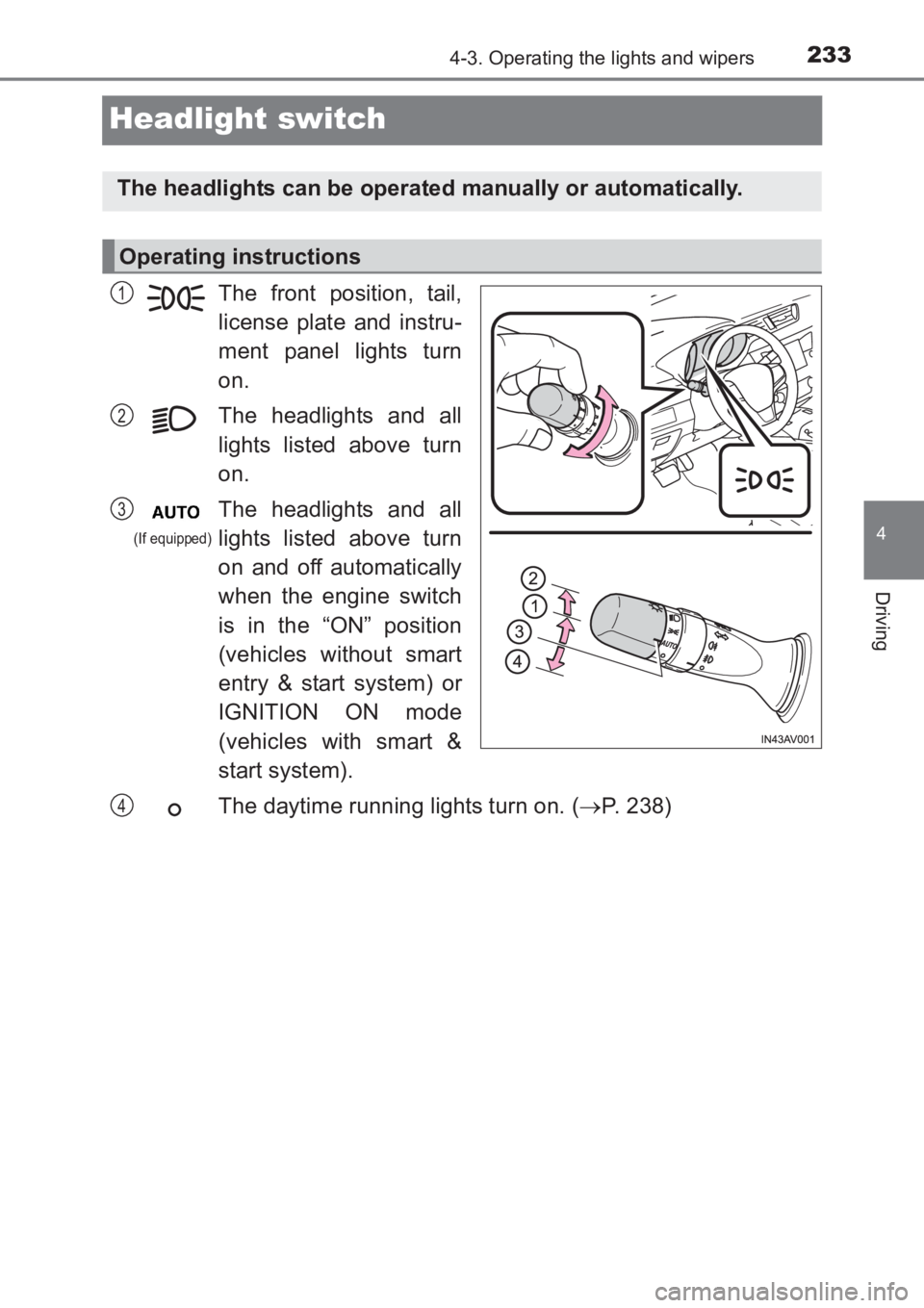

233
4
4-3. Operating the lights and wipers
Driving
AVENSIS_OM_OM20C66E_(EE)
Headlight switch
The front position, tail,
license plate and instru-
ment panel lights turn
on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automatically
when the engine switch
is in the “ON” position
(vehicles without smart
entry & start system) or
IGNITION ON mode
(vehicles with smart &
start system).
The daytime running lights turn on. (→P. 238)
The headlights can be operated manually or automatically.
Operating instructions
1
2
3
(If equipped)
4
AVENSIS_OM_OM20C66E_(EE).book Page 233 Wednesday, June 15, 20 16 4:07 PM

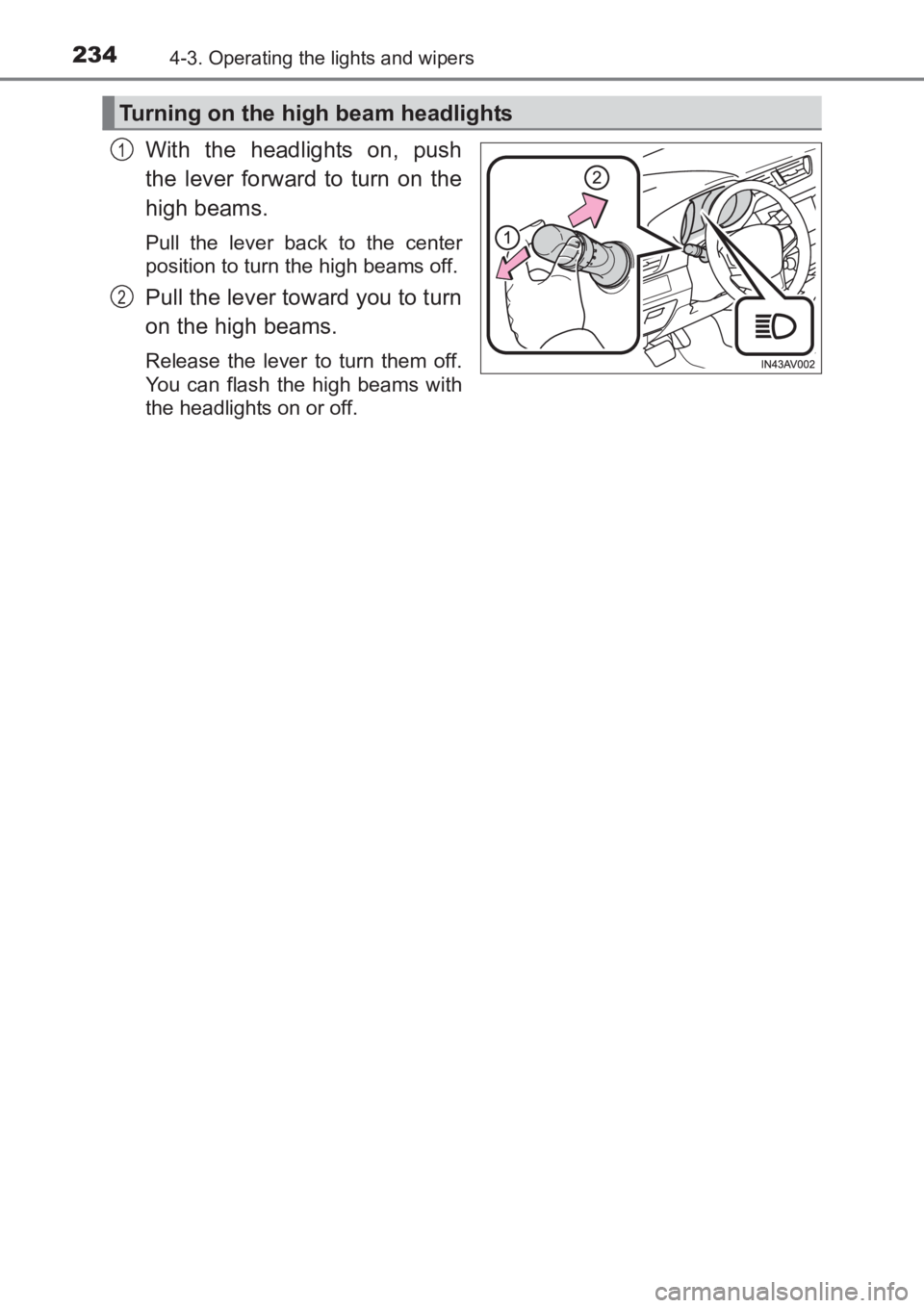

2344-3. Operating the lights and wipers
AVENSIS_OM_OM20C66E_(EE)
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams off.
Pull the lever toward you to turn
on the high beams.
Release the lever to turn them off.
You can flash the high beams with
the headlights on or off.
Turning on the high beam headlights
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 234 Wednesday, June 15, 2016 4:07 PM

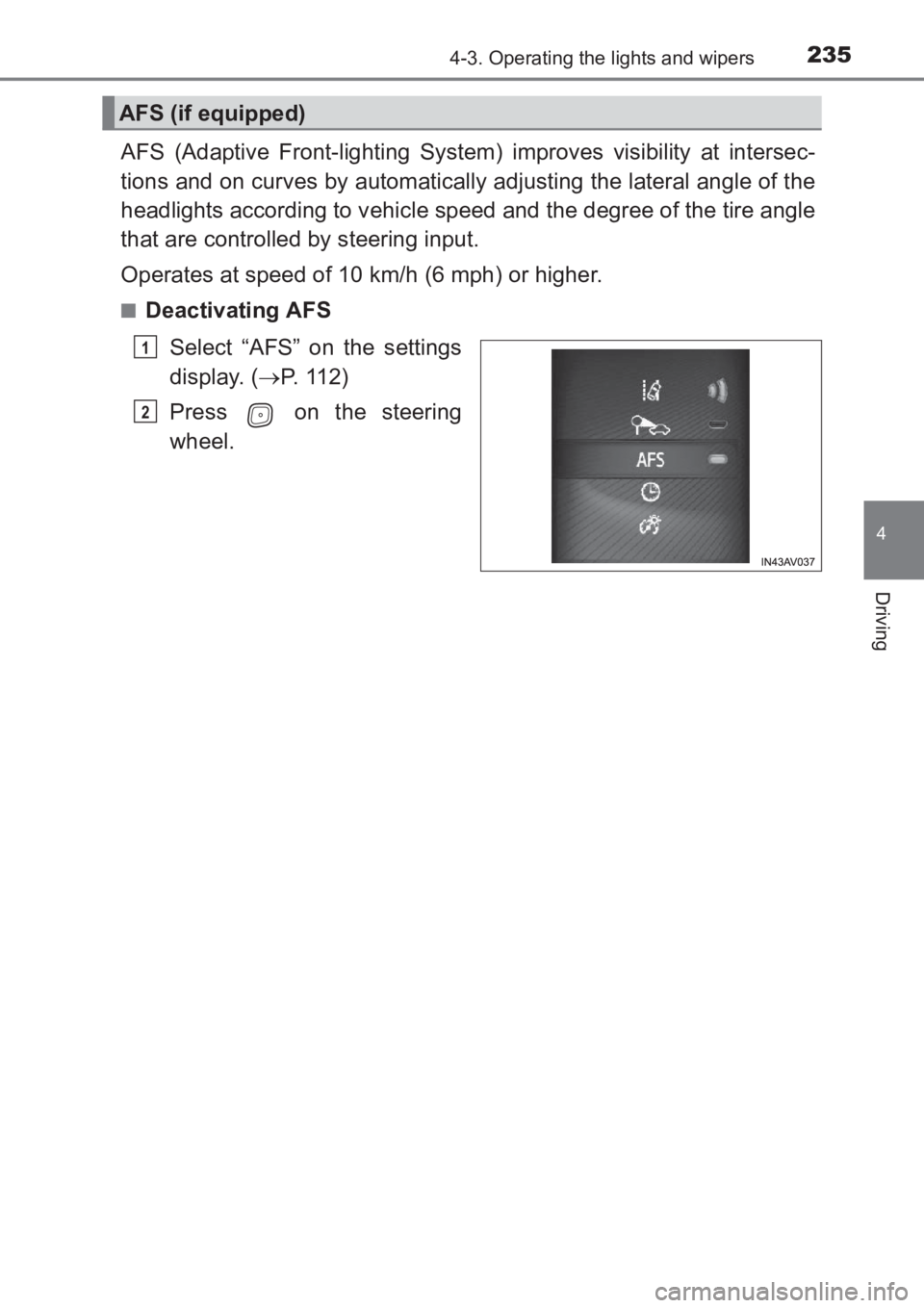

2354-3. Operating the lights and wipers
4
Driving
AVENSIS_OM_OM20C66E_(EE)
AFS (Adaptive Front-lighting System) improves visibility at intersec-
tions and on curves by automatically adjusting the lateral angle of the
headlights according to vehicle speed and the degree of the tire angle
that are controlled by steering input.
Operates at speed of 10 km/h (6 mph) or higher.
■Deactivating AFSSelect “AFS” on the settings
display. ( →P. 1 1 2 )
Press on the steering
wheel.
AFS (if equipped)
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 235 Wednesday, June 15, 20 16 4:07 PM

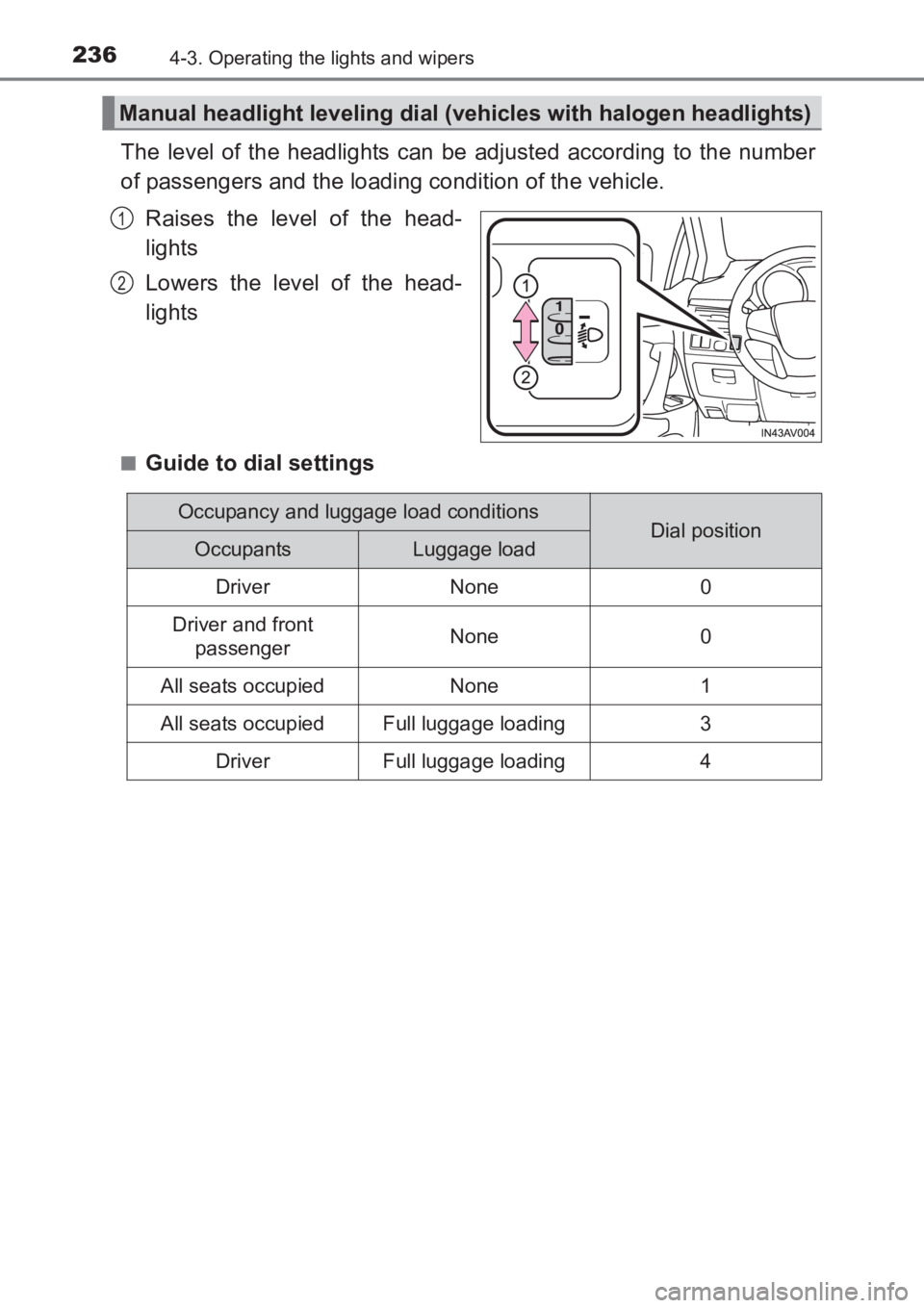

2364-3. Operating the lights and wipers
AVENSIS_OM_OM20C66E_(EE)
The level of the headlights can be adjusted according to the number
of passengers and the loading condition of the vehicle.Raises the level of the head-
lights
Lowers the level of the head-
lights
■Guide to dial settings
Manual headlight leveling dial (vehicles with halogen headlights)
1
2
Occupancy and luggage load conditionsDial positionOccupantsLuggage load
DriverNone0
Driver and front passengerNone0
All seats occupiedNone1
All seats occupiedFull luggage loading3
DriverFull luggage loading4
AVENSIS_OM_OM20C66E_(EE).book Page 236 Wednesday, June 15, 20 16 4:07 PM

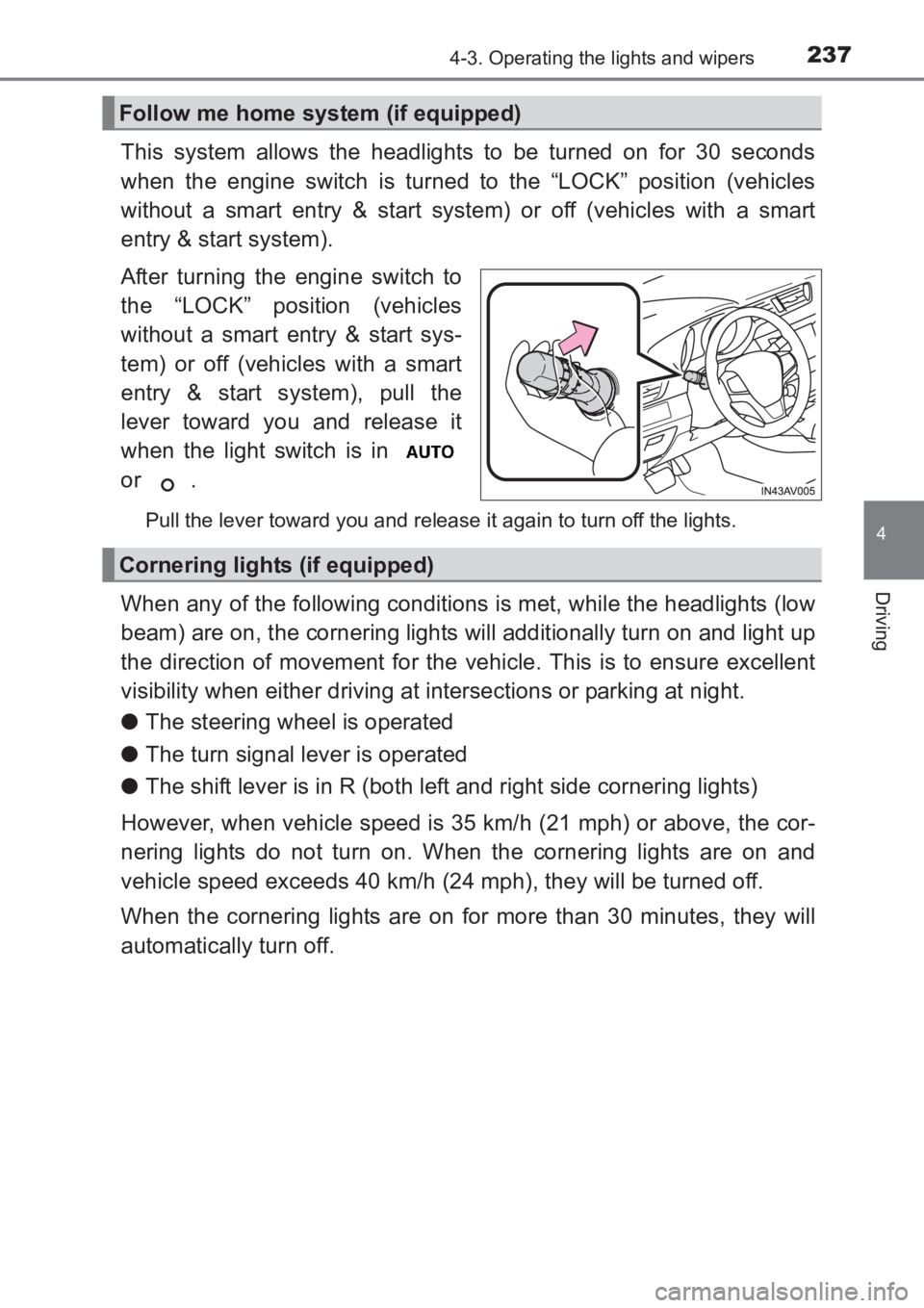

2374-3. Operating the lights and wipers
4
Driving
AVENSIS_OM_OM20C66E_(EE)
This system allows the headlights to be turned on for 30 seconds
when the engine switch is turned to the “LOCK” position (vehicles
without a smart entry & start system) or off (vehicles with a smart
entry & start system).
After turning the engine switch to
the “LOCK” position (vehicles
without a smart entry & start sys-
tem) or off (vehicles with a smart
entry & start system), pull the
lever toward you and release it
when the light switch is in
or .
Pull the lever toward you and release it again to turn off the lights.
When any of the following conditions is met, while the headlights (low
beam) are on, the cornering lights will additionally turn on and light up
the direction of movement for the vehicle. This is to ensure excellent
visibility when either driving at intersections or parking at night.
●The steering wheel is operated
● The turn signal lever is operated
● The shift lever is in R (both left and right side cornering lights)
However, when vehicle speed is 35 km/h (21 mph) or above, the cor-
nering lights do not turn on. When the cornering lights are on and
vehicle speed exceeds 40 km/h (24 mph), they will be turned off.
When the cornering lights are on for more than 30 minutes, they will
automatically turn off.
Follow me home system (if equipped)
Cornering lights (if equipped)
AVENSIS_OM_OM20C66E_(EE).book Page 237 Wednesday, June 15, 20 16 4:07 PM

2384-3. Operating the lights and wipers
AVENSIS_OM_OM20C66E_(EE)

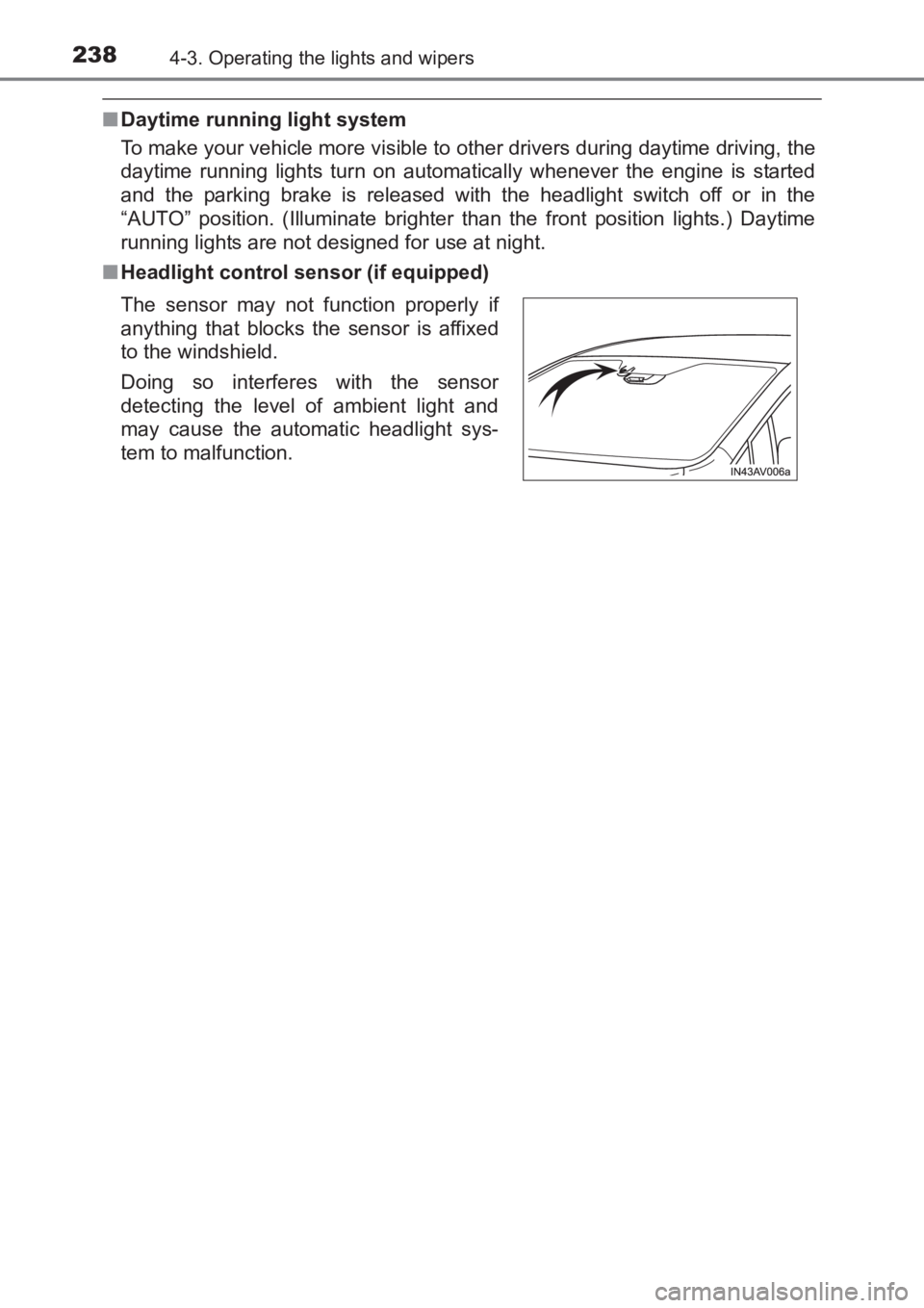

■Daytime running light system
To make your vehicle more visible to other drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released with the headlight switch off or in the
“AUTO” position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
■ Headlight control sensor (if equipped)
The sensor may not function properly if
anything that blocks the sensor is affixed
to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.
AVENSIS_OM_OM20C66E_(EE).book Page 238 Wednesday, June 15, 20 16 4:07 PM

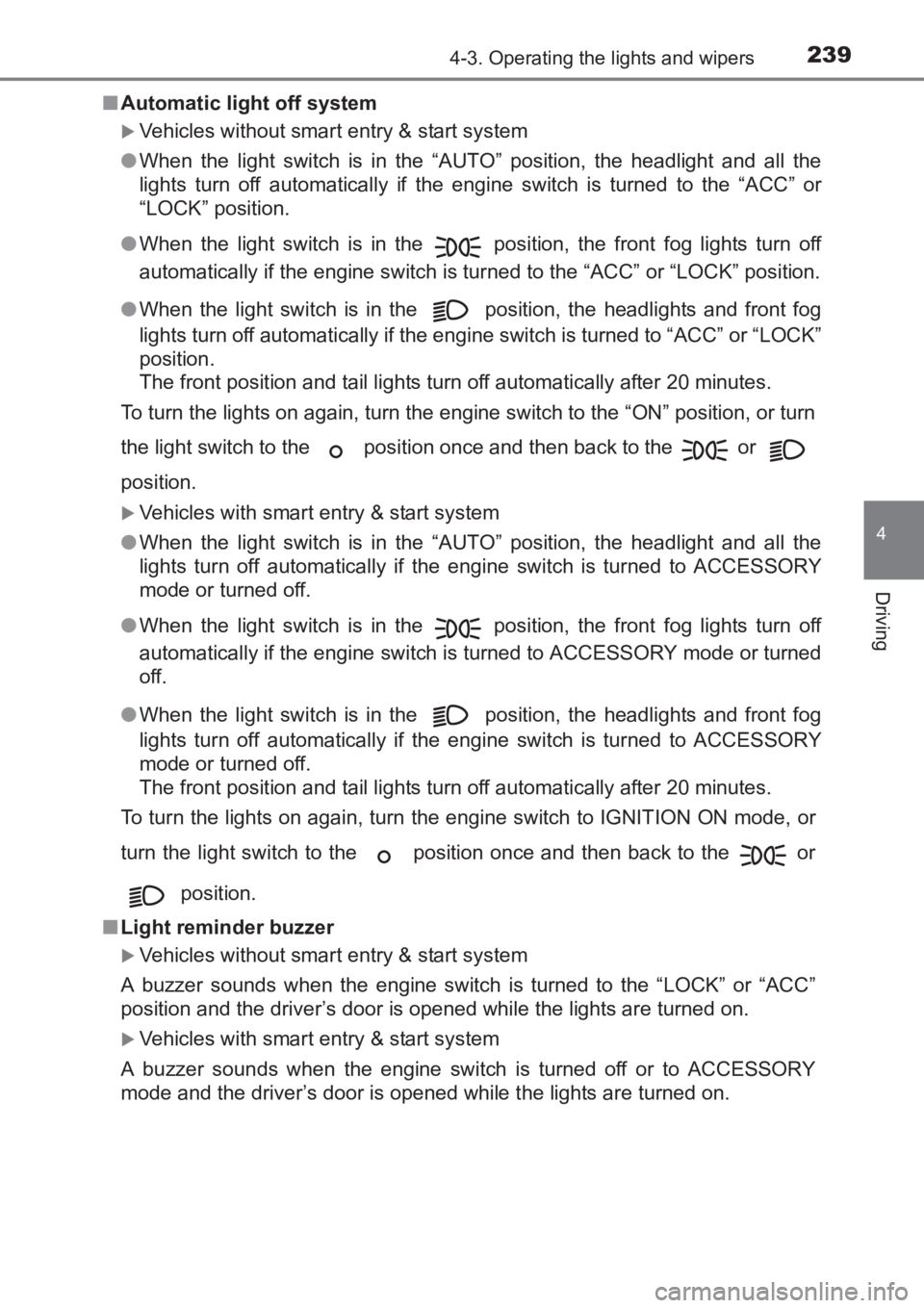

2394-3. Operating the lights and wipers
4
Driving
AVENSIS_OM_OM20C66E_(EE)■
Automatic light off system
XVehicles without smart entry & start system
● When the light switch is in the “AUTO” position, the headlight and all the
lights turn off automatically if the engine switch is turned to the “ACC” or
“LOCK” position.
● When the light switch is in the position, the front fog lights turn off
automatically if the engine switch is turned to the “ACC” or “LOCK” position.
● When the light switch is in the
position, the headlights and front fog
lights turn off automatically if the engine switch is turned to “ACC” or “LOCK”
position.
The front position and tail lights turn off automatically after 20 minutes.
To turn the lights on again, turn the engine switch to the “ON” position, or turn
the light switch to the position once and then back to the or
position.
XVehicles with smart entry & start system
● When the light switch is in the “AUTO” position, the headlight and all the
lights turn off automatically if the engine switch is turned to ACCESSORY
mode or turned off.
● When the light switch is in the position, the front fog lights turn off
automatically if the engine switch is turned to ACCESSORY mode or turned
off.
● When the light switch is in the
position, the headlights and front fog
lights turn off automatically if the engine switch is turned to ACCESSORY
mode or turned off.
The front position and tail lights turn off automatically after 20 minutes.
To turn the lights on again, turn the engine switch to IGNITION ON mode, or
turn the light switch to the position once and then back to the or
position.
■ Light reminder buzzer
XVehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” or “ACC”
position and the driver’s door is opened while the lights are turned on.
XVehicles with smart entry & start system
A buzzer sounds when the engine switch is turned off or to ACCESSORY
mode and the driver’s door is opened while the lights are turned on.
AVENSIS_OM_OM20C66E_(EE).book Page 239 Wednesday, June 15, 20 16 4:07 PM

2404-3. Operating the lights and wipers
AVENSIS_OM_OM20C66E_(EE)■
Automatic headlight leveling system (vehicles with LED headlights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
■ If the indicator flashes...
It may indicate a malfunction in the system. Contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
■ Customization
Settings (e.g. light sensor sensitivity) can be changed.
(Customizable features →P. 636)
NOTICE
■ To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not
running.
AVENSIS_OM_OM20C66E_(EE).book Page 240 Wednesday, June 15, 20 16 4:07 PM
