3114-6. Using the driving support systems
4
Driving
AVENSIS_OM_OM20C66E_(EE)
WARNING
■ Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.
The ABS, TRC and VSC systems will not function correctly if different tires
are installed on the vehicle.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for further in formation when replacing tires or
wheels.
■ Handling of tires and suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.
AVENSIS_OM_OM20C66E_(EE).book Page 311 Wednesday, June 15, 20 16 4:07 PM

3124-7. Driving tips
AVENSIS_OM_OM20C66E_(EE)
Winter driving tips
●Use fluids that are appropriate to the prevailing outside tempera-
tures.
• Engine oil
• Engine coolant
• Washer fluid
● Have a service technician inspect the condition of the battery.
● Have the vehicle fitted with four snow tires or purchase a set of tire
chains for the front tires.
Ensure that all tires are the same size and brand, and that chains match
the size of the tires.
Perform the following according to the driving conditions.
●Do not try to forcibly open a window or move a wiper that is frozen.
Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
● To ensure proper operation of the climate control system fan,
remove any snow that has accumulated on the air inlet vents in
front of the windshield.
● Check for and remove any excess ice or snow that may have accu-
mulated on the exterior lights, vehicle’s roof, chassis, around the
tires or on the brakes.
● Remove any snow or mud from the bottom of your shoes before
getting in the vehicle.
Carry out the necessary preparations and inspections before
driving the vehicle in winter. Always drive the vehicle in a man-
ner appropriate to the prevailing weather conditions.
Preparation for winter
Before driving the vehicle
AVENSIS_OM_OM20C66E_(EE).book Page 312 Wednesday, June 15, 20 16 4:07 PM

3134-7. Driving tips
4
Driving
AVENSIS_OM_OM20C66E_(EE)
Accelerate the vehicle slowly, keep a safe distance between you and
the vehicle ahead, and drive at a reduced speed suitable to road con-
ditions.
●Park the vehicle and move the shift lever to P (Multidrive) or R
(manual transmission) without setting the parking brake. The park-
ing brake may freeze up, preventing it from being released. If the
vehicle is parked without setting the parking brake, make sure to
block the wheels.
Failure to do so may be dangerous because it may cause the vehi-
cle to move unexpectedly, possibly leading to an accident.
● If the vehicle is parked without setting the parking brake, confirm
that the shift lever cannot be moved out of P
*.
*: The shift lever will be locked if it is attempted to be shifted from P to any
other position without depressing the brake pedal. If the shift lever can be
shifted from P, there may be a problem with the shift lock system. Have the
vehicle inspected by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional immediately.
Use the correct tire chain size when mounting the tire chains.
Chain size is regulated for each tire size.
Side chain
(3.0 mm [0.12 in.] in diameter)
Cross chain
(4.0 mm [0.16 in.] in diameter)
When driving the vehicle
When parking the vehicle
Selecting tire chains
1
2
AVENSIS_OM_OM20C66E_(EE).book Page 313 Friday, June 17, 2016 11:26 AM

3144-7. Driving tips
AVENSIS_OM_OM20C66E_(EE)
●Regulations regarding the use of tire chains vary according to loca-
tion and type of road. Always check local regulations before install-
ing chains.
● Install the chains on the front tires.
● Retighten the chains after driving 0.5 - 1.0 km (1/4 - 1/2 mile).
■Tire chains
Observe the following precautions when installing and removing chains.
●Install and remove tire chains in a safe location.
● Install tire chains on the front tires only. Do not install the chains on the rear
tires.
● Install tire chains following the instructions provided in the accompanying
manual.
Regulations on the use of tire chains
WARNING
■ Driving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified for your vehicle.
● Maintain the recommended level of tire inflation pressure.
● Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
● Snow tires should be installed on all wheels.
■ Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains being
used or 50 km/h (30 mph), whichever is lower.
● Avoid driving on bumpy road surfaces or over potholes.
● Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
● Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
AVENSIS_OM_OM20C66E_(EE).book Page 314 Wednesday, June 15, 20 16 4:07 PM

3154-7. Driving tips
4
Driving
AVENSIS_OM_OM20C66E_(EE)NOTICE
■
Repairing or replacing snow tires (vehicles with the tire pressure warn-
ing system)
Request repairs or replacement of snow tires from Toyota dealers or legiti-
mate tire retailers.
This is because the removal and attachment of snow tires affects the opera-
tion of the tire pressure warning valves and transmitters.
■ Fitting tire chains (vehicles with the tire pressure warning system)
The tire pressure warning valves and transmitters may not function correctly
when tire chains are fitted.
AVENSIS_OM_OM20C66E_(EE).book Page 315 Wednesday, June 15, 20 16 4:07 PM

3164-7. Driving tips
AVENSIS_OM_OM20C66E_(EE)
AVENSIS_OM_OM20C66E_(EE).book Page 316 Wednesday, June 15, 2016 4:07 PM

317

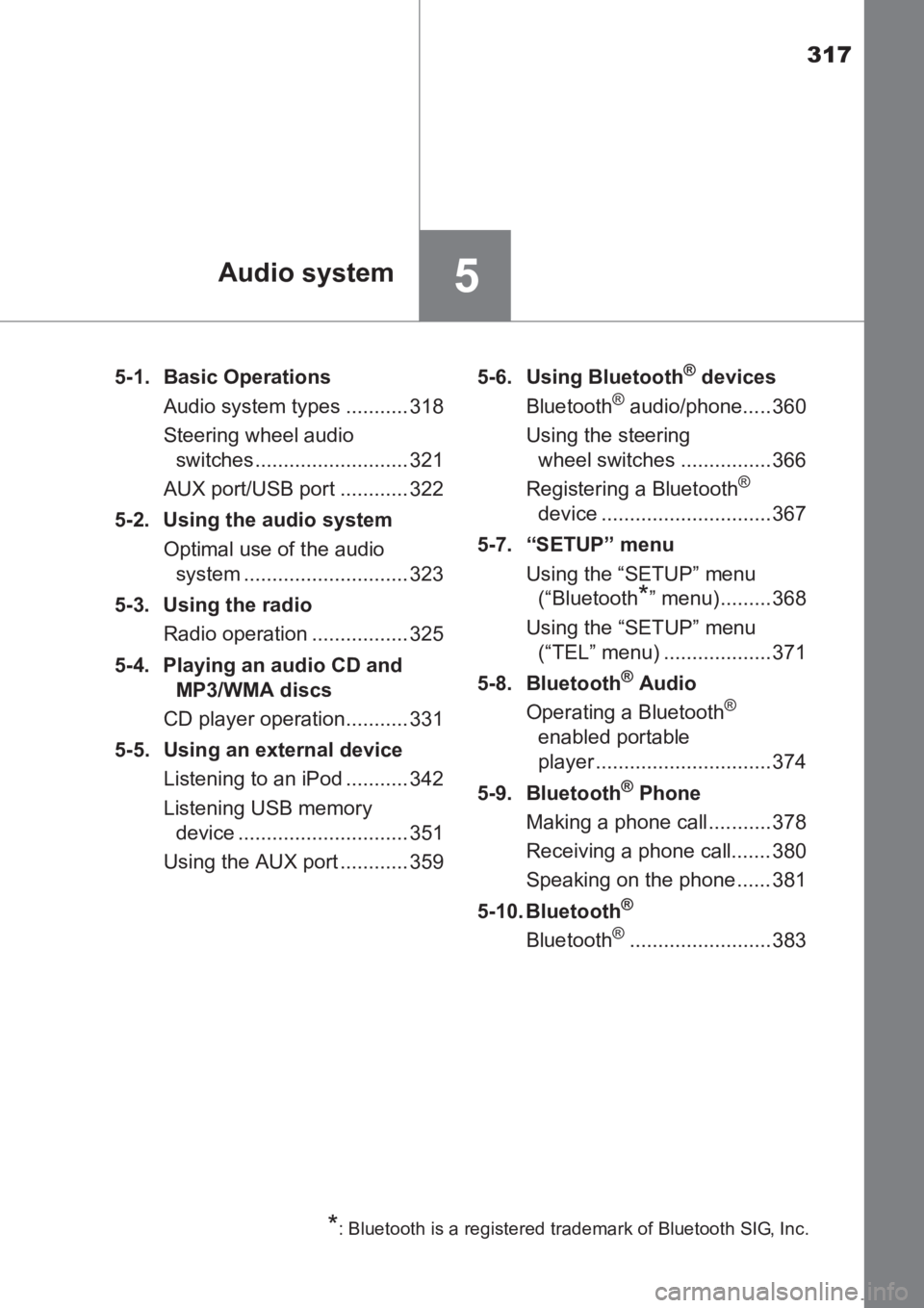

5Audio system
AVENSIS_OM_OM20C66E_(EE)5-1. Basic Operations
Audio system types ........... 318
Steering wheel audio switches ........................... 321
AUX port/USB port ............ 322
5-2. Using the audio system Optimal use of the audio system ............................. 323
5-3. Using the radio Radio operation ................. 325
5-4. Playing an audio CD and MP3/WMA discs
CD player operation........... 331
5-5. Using an external device Listening to an iPod ........... 342
Listening USB memory device .............................. 351
Using the AUX port ............ 359 5-6. Using Bluetooth
® devices
Bluetooth® audio/phone..... 360
Using the steering wheel switches ................366
Registering a Bluetooth
®
device .............................. 367
5-7. “SETUP” menu Using the “SETUP” menu(“Bluetooth
*” menu)......... 368
Using the “SETUP” menu (“TEL” menu) ................... 371
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player ............................... 374
5-9. Bluetooth
® Phone
Making a phone call ........... 378
Receiving a phone call....... 380
Speaking on the phone ...... 381
5-10. Bluetooth
®
Bluetooth®......................... 383
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
AVENSIS_OM_OM20C66E_(EE).book Page 317 Wednesday, June 15, 20 16 4:07 PM

3185-1. Basic Operations
AVENSIS_OM_OM20C66E_(EE)

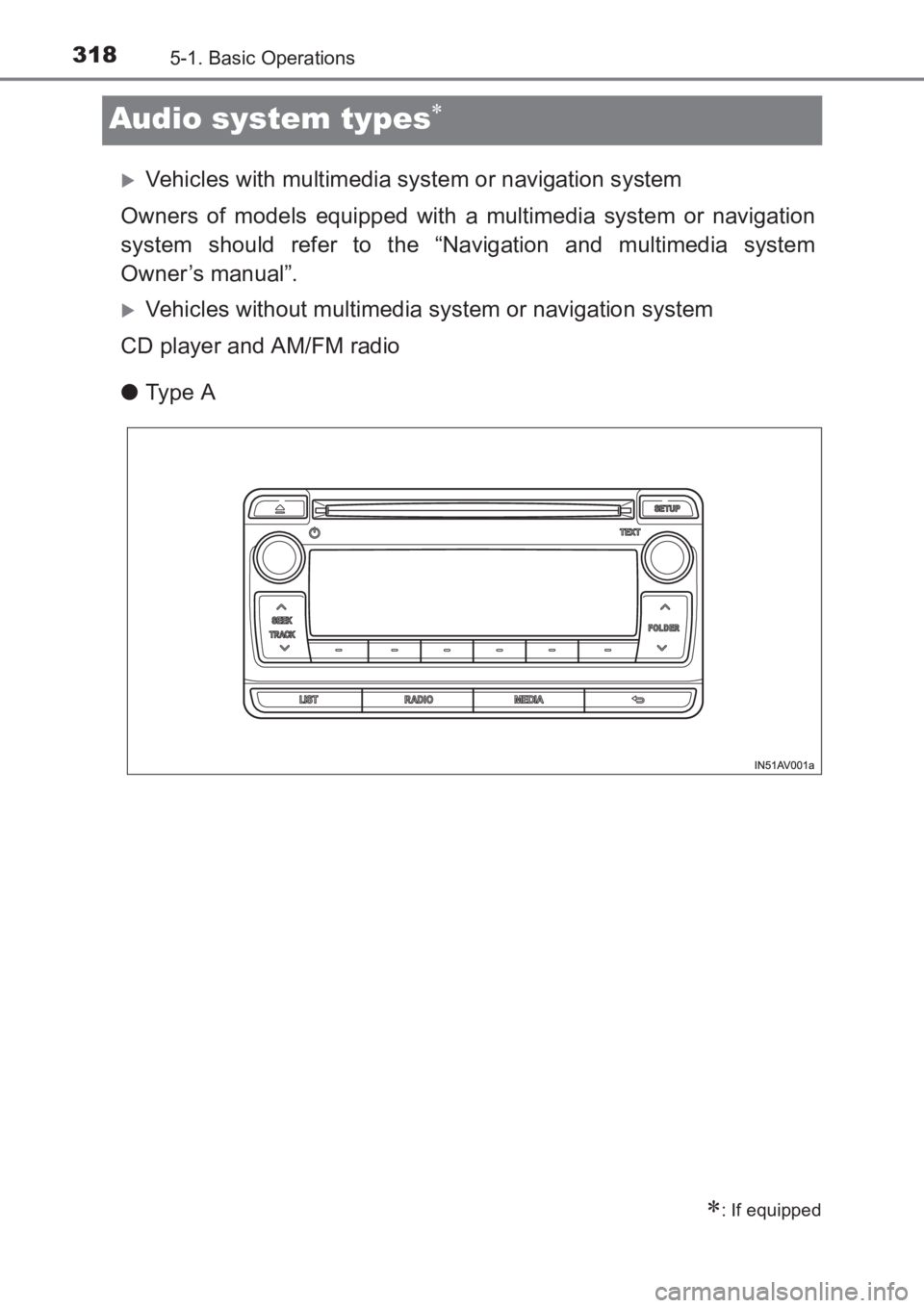

Audio system types∗
XVehicles with multimedia system or navigation system
Owners of models equipped with a multimedia system or navigation
system should refer to the “Navigation and multimedia system
Owner’s manual”.
XVehicles without multimedia system or navigation system
CD player and AM/FM radio
● Ty pe A
∗: If equipped
AVENSIS_OM_OM20C66E_(EE).book Page 318 Wednesday, June 15, 20 16 4:07 PM

3195-1. Basic Operations
5
Audio system
AVENSIS_OM_OM20C66E_(EE)

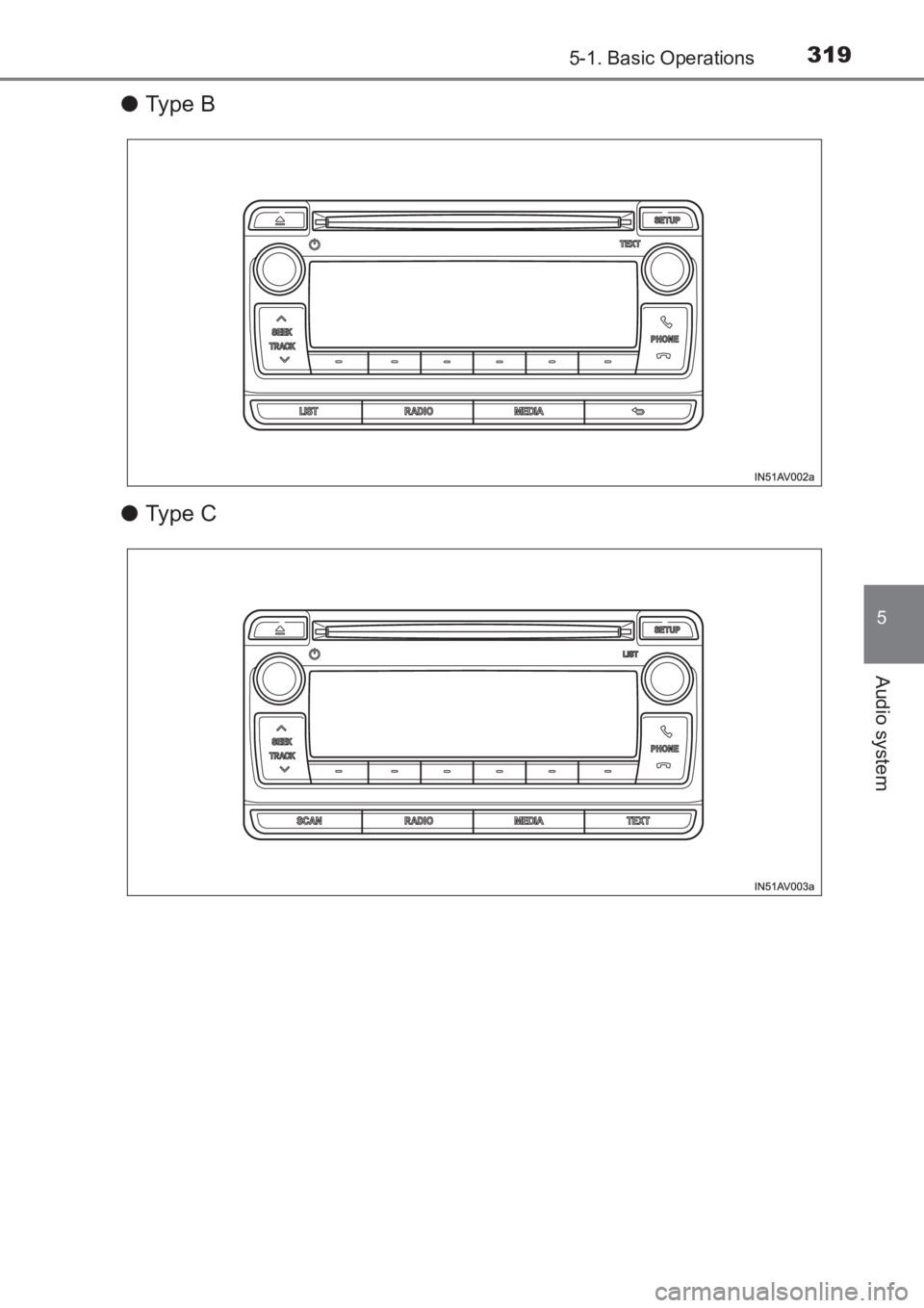

●Ty pe B
● Ty pe C
AVENSIS_OM_OM20C66E_(EE).book Page 319 Wednesday, June 15, 20 16 4:07 PM

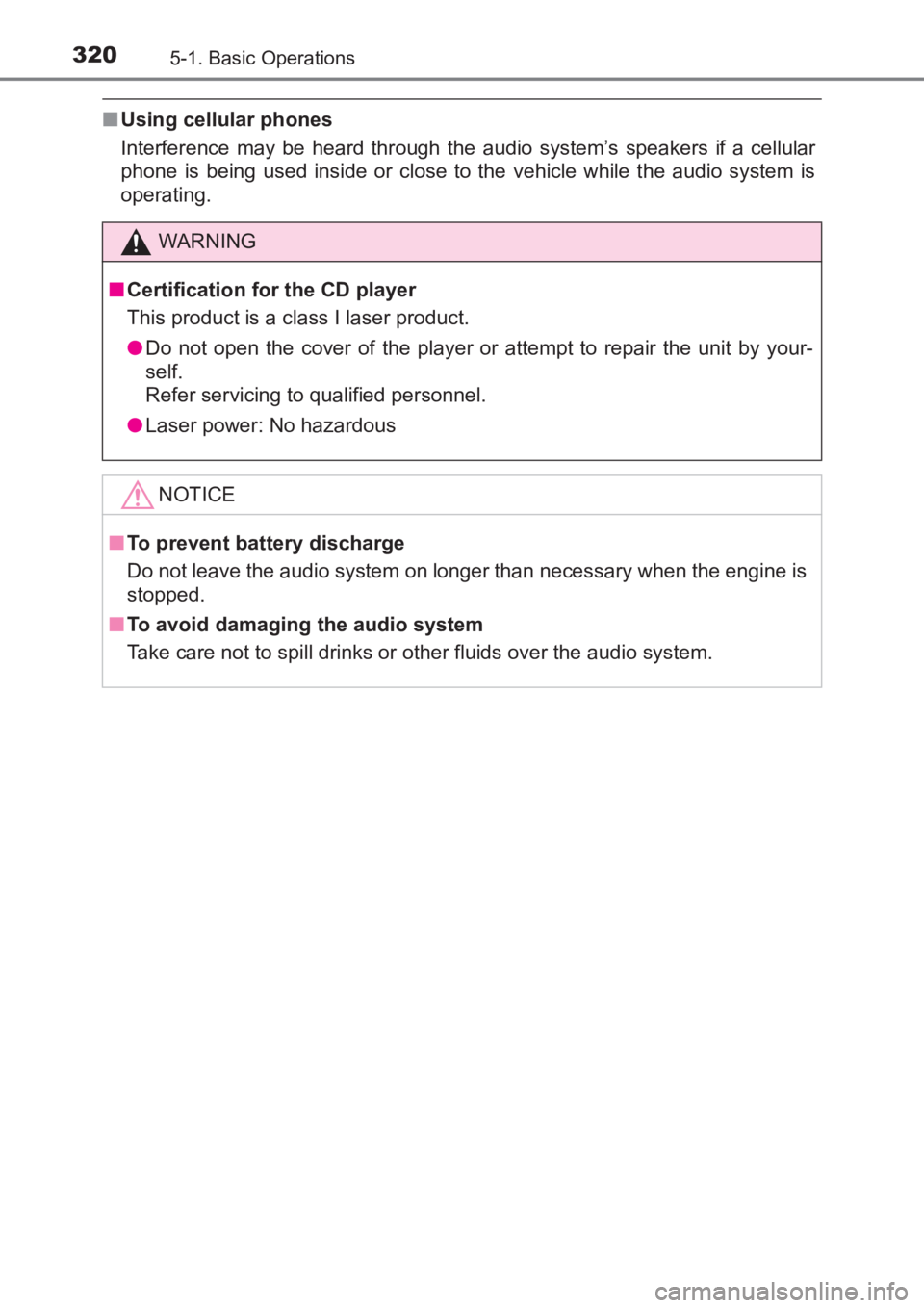

3205-1. Basic Operations
AVENSIS_OM_OM20C66E_(EE)
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
WARNING
■ Certification for the CD player
This product is a class I laser product.
●Do not open the cover of the player or attempt to repair the unit by your-
self.
Refer servicing to qualified personnel.
● Laser power: No hazardous
NOTICE
■ To prevent battery discharge
Do not leave the audio system on longer than necessary when the engine is
stopped.
■ To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.
