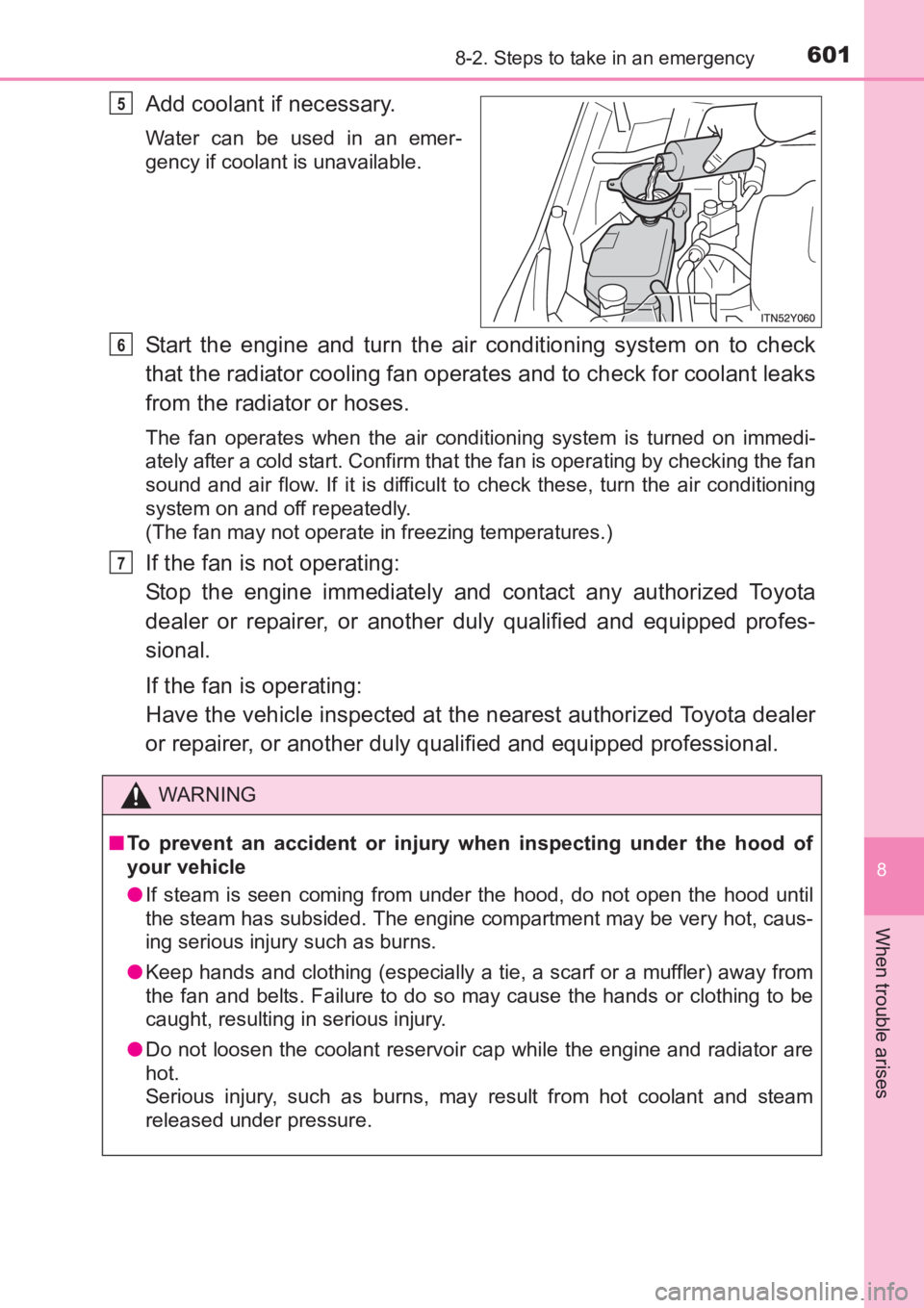

6018-2. Steps to take in an emergency
AVENSIS_OM_OM20C66E_(EE)
8
When trouble arises
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the engine and turn the air conditioning system on to check
that the radiator cooling fan operates and to check for coolant leaks
from the radiator or hoses.
The fan operates when the air conditioning system is turned on immedi-
ately after a cold start. Confirm that the fan is operating by checking the fan
sound and air flow. If it is difficult to check these, turn the air conditioning
system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota dealer
or repairer, or another duly qualified and equipped professional.
5
WARNING
■ To prevent an accident or injury when inspecting under the hood of
your vehicle
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot, caus-
ing serious injury such as burns.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
Serious injury, such as burns, may result from hot coolant and steam
released under pressure.
6
7
AVENSIS_OM_OM20C66E_(EE).book Page 601 Wednesday, June 15, 20 16 4:07 PM

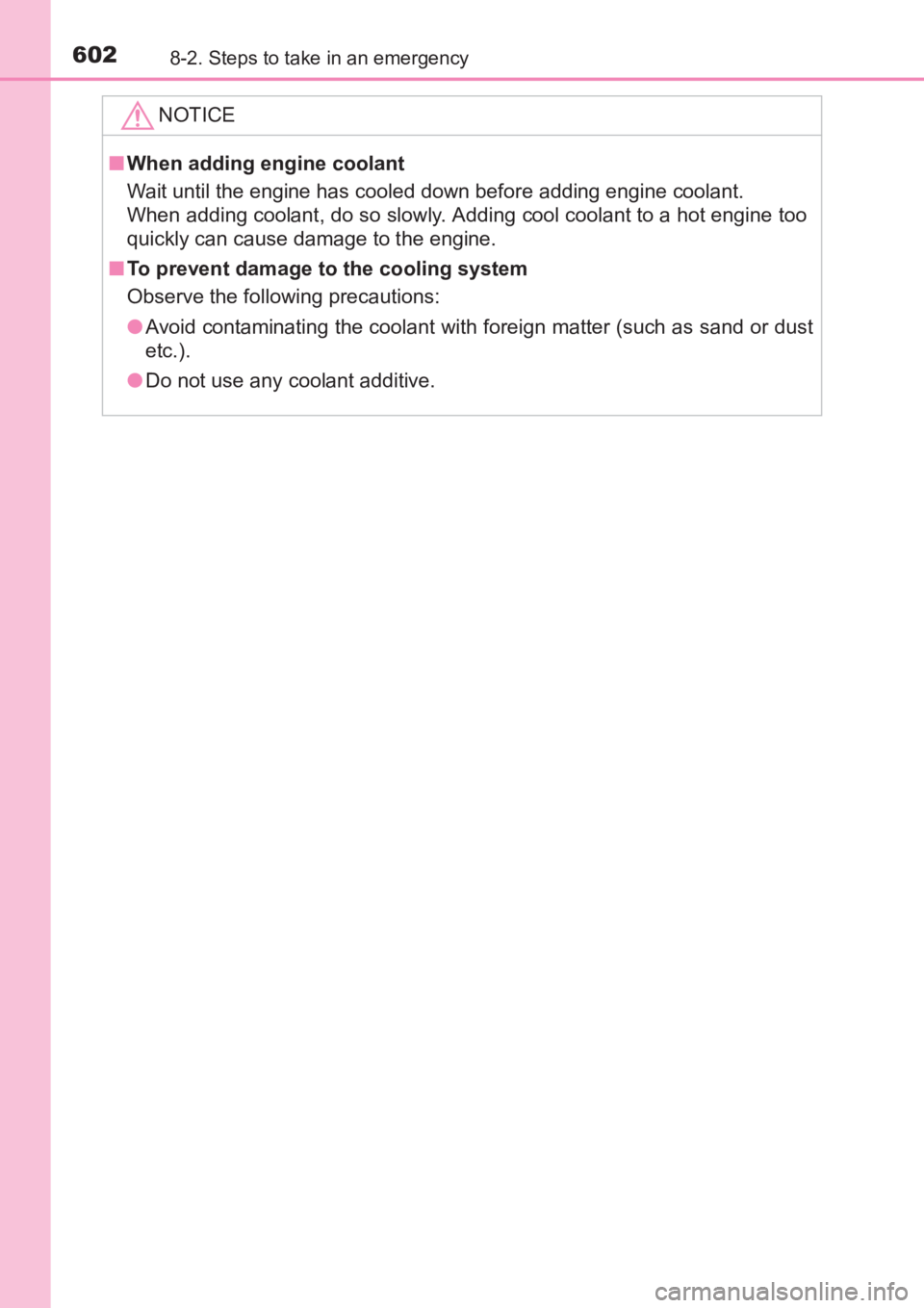

6028-2. Steps to take in an emergency
AVENSIS_OM_OM20C66E_(EE)NOTICE
■
When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Addi ng cool coolant to a hot engine too
quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.
AVENSIS_OM_OM20C66E_(EE).book Page 602 Wednesday, June 15, 20 16 4:07 PM

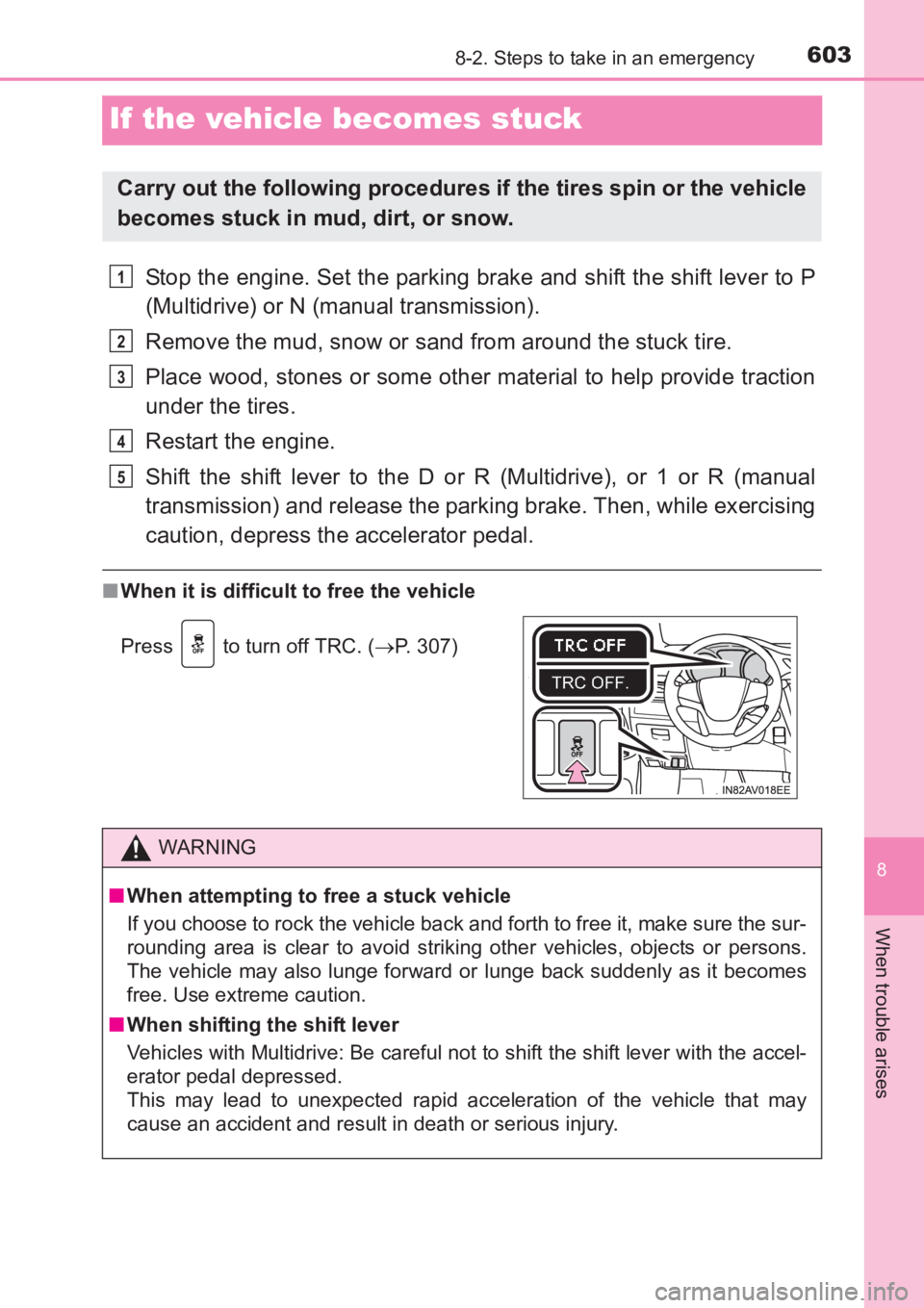

6038-2. Steps to take in an emergency
AVENSIS_OM_OM20C66E_(EE)
8
When trouble arises
If the vehicle becomes stuck
Stop the engine. Set the parking brake and shift the shift lever to P
(Multidrive) or N (manual transmission).
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material to help provide traction
under the tires.
Restart the engine.
Shift the shift lever to the D or R (Multidrive), or 1 or R (manual
transmission) and release the parking brake. Then, while exercising
caution, depress the accelerator pedal.
■When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt, or snow.
Press to turn off TRC. ( →P. 307)
WARNING
■ When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When shifting the shift lever
Vehicles with Multidrive: Be careful not to shift the shift lever with the accel-
erator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
1
2
3
4
5
AVENSIS_OM_OM20C66E_(EE).book Page 603 Wednesday, June 15, 20 16 4:07 PM

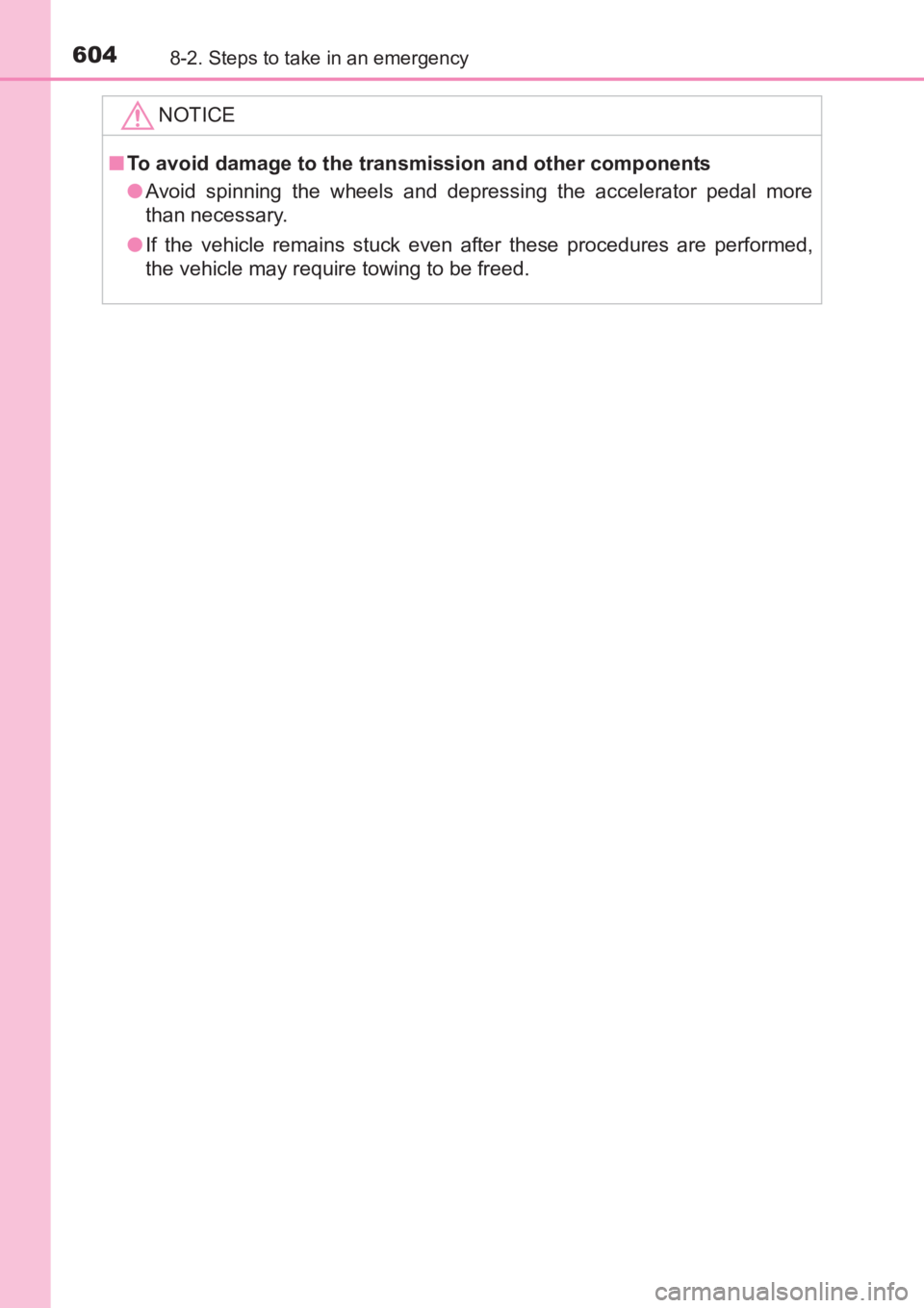

6048-2. Steps to take in an emergency
AVENSIS_OM_OM20C66E_(EE)NOTICE
■
To avoid damage to the transmission and other components
●Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.
AVENSIS_OM_OM20C66E_(EE).book Page 604 Wednesday, June 15, 20 16 4:07 PM

605
9Vehicle specifications
AVENSIS_OM_OM20C66E_(EE)9-1. Specifications
Maintenance data (fuel, oil level, etc.)........... 606
Fuel information ................. 626
9-2. Customization Customizable features ....... 629
9-3. Items to initialize Items to initialize ................638
AVENSIS_OM_OM20C66E_(EE).book Page 605 Wednesday, June 15, 20 16 4:07 PM

6069-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall lengthSedan 4750 mm (187.0 in.)
Wagon 4820 mm (189.8 in.)
Overall width 1810 mm (71.3 in.)
Overall height*11480 mm (58.3 in.)
Wheelbase 2700 mm (106.3 in.)
Tread
Front1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Rear1560 mm (61.4 in.)*2
1550 mm (61.0 in.)*3
Gross vehicle
mass
1ZR-FAE engine 1970 kg (4343.1 lb.)
2ZR-FAE engine2020 kg (4453.3 lb.)*4
2000 kg (4409.2 lb.)*5
3ZR-FAE engine 2050 kg (4519.5 lb.)
1WW engine 2040 kg (4497.4 lb.)
2WW engine 2100 kg (4629.7 lb.)
Maximum permis-
sible axle capacityFront 1215 kg (2678.6 lb.)
Rear 1135 kg (2502.2 lb.)
AVENSIS_OM_OM20C66E_(EE).book Page 606 Wednesday, June 15, 20
16 4:07 PM

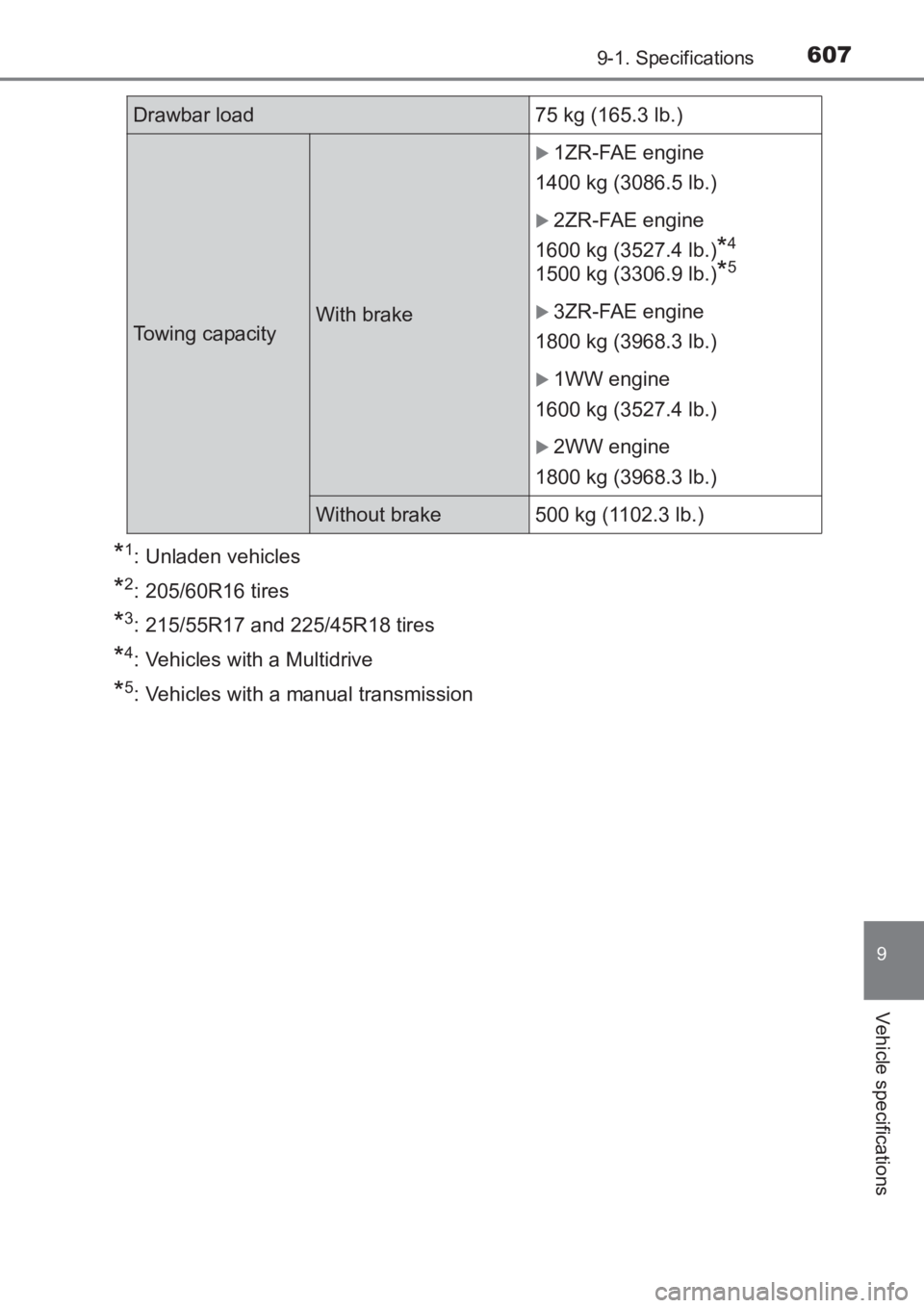

6079-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
9
Vehicle specifications
*1: Unladen vehicles
*2: 205/60R16 tires
*3: 215/55R17 and 225/45R18 tires
*4: Vehicles with a Multidrive
*5: Vehicles with a manual transmission
Drawbar load 75 kg (165.3 lb.)
Towing capacityWith brake
X1ZR-FAE engine
1400 kg (3086.5 lb.)
X2ZR-FAE engine
1600 kg (3527.4 lb.)
*4
1500 kg (3306.9 lb.)*5
X3ZR-FAE engine
1800 kg (3968.3 lb.)
X1WW engine
1600 kg (3527.4 lb.)
X2WW engine
1800 kg (3968.3 lb.)
Without brake 500 kg (1102.3 lb.)
AVENSIS_OM_OM20C66E_(EE).book Page 607 Wednesday, June 15, 20 16 4:07 PM

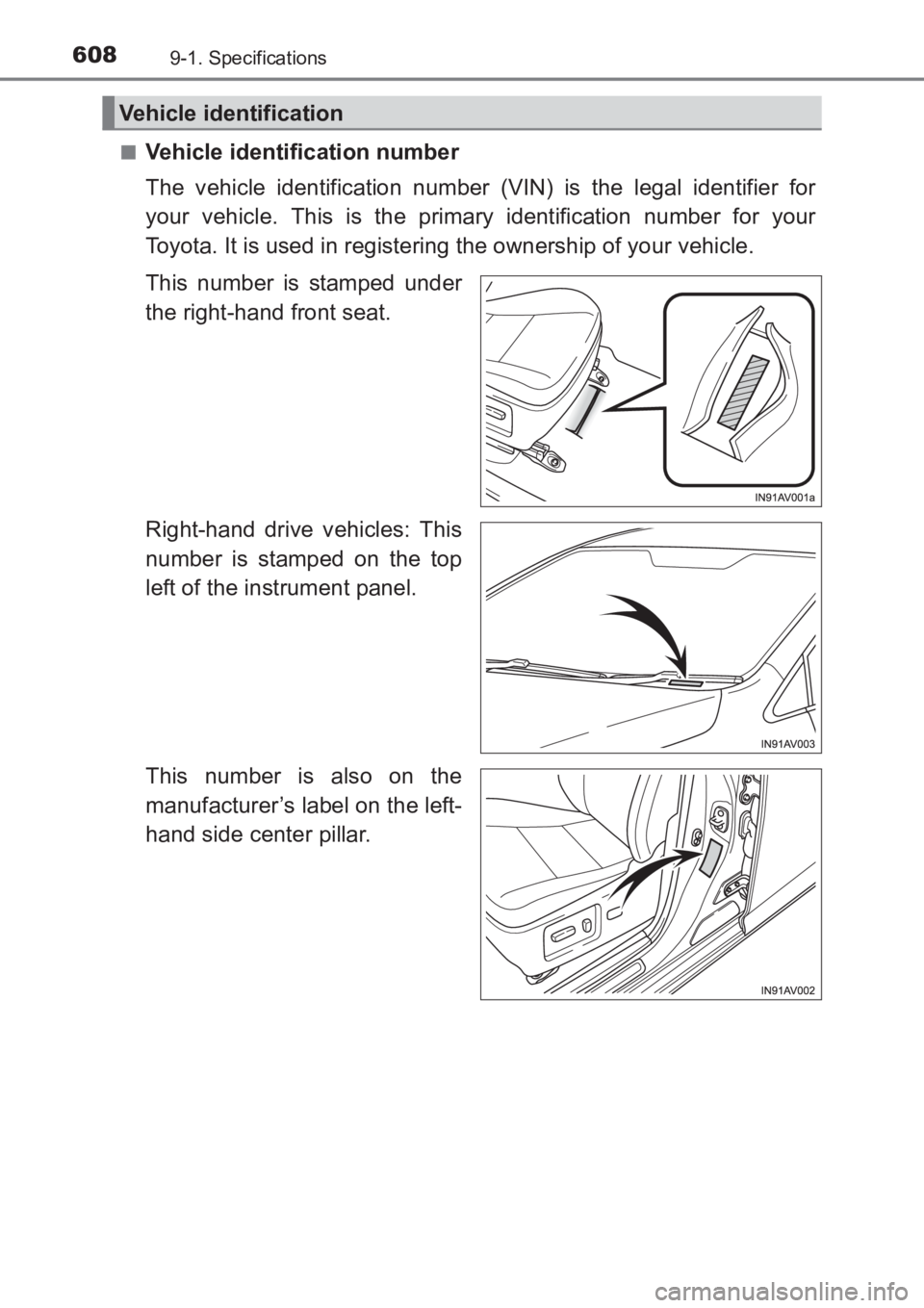

6089-1. Specifications
AVENSIS_OM_OM20C66E_(EE)■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped under
the right-hand front seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the
manufacturer’s label on the left-
hand side center pillar.
Vehicle identification
AVENSIS_OM_OM20C66E_(EE).book Page 608 Wednesday, June 15, 20
16 4:07 PM

6099-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
9
Vehicle specifications
■Engine number
The engine number is stamped on the engine block as shown.
XGasoline engine
XGasoline engineXDiesel engine
Engine
Model 1ZR-FAE, 2ZR-FAE, 3ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke
X1ZR-FAE engine
80.5 × 78.5 mm (3.17 × 3.09 in.)
X2ZR-FAE engine
80.5 × 88.3 mm (3.17 × 3.48 in.)
X3ZR-FAE engine
80.5 × 97.6 mm (3.17 × 3.84 in.)
Displacement
X1ZR-FAE engine
1598 cm
3 (97.5 cu.in.)
X2ZR-FAE engine
1798 cm
3 (109.7 cu.in.)
X3ZR-FAE engine
1987 cm
3 (121.3 cu.in.)
Valve clearance
(engine cold) Automatic adjustment
AVENSIS_OM_OM20C66E_(EE).book Page 609 Wednesday, June 15, 20
16 4:07 PM

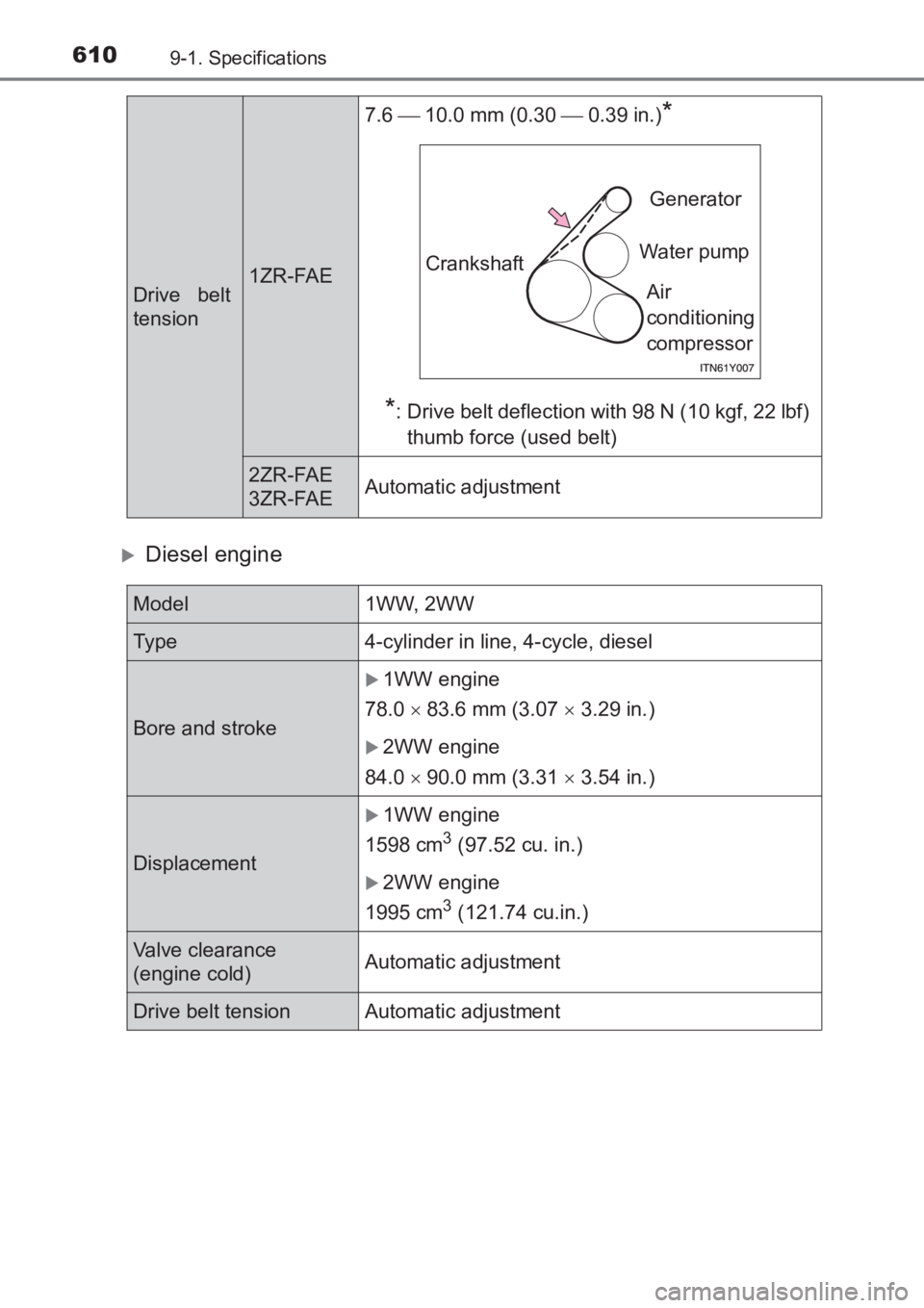

6109-1. Specifications
AVENSIS_OM_OM20C66E_(EE)
XDiesel engine
Drive belt
tension1ZR-FAE7.6
 10.0 mm (0.30  0.39 in.)
*
*
: Drive belt deflection with 98 N (10 kgf, 22 lbf) thumb force (used belt)
2ZR-FAE
3ZR-FAE Automatic adjustment
Crankshaft Generator
Water pump Air
conditioning
compressor
Model 1WW, 2WW
Type 4-cylinder in line, 4-cycle, diesel
Bore and stroke
X1WW engine
78.0 × 83.6 mm (3.07 × 3.29 in.)
X2WW engine
84.0 × 90.0 mm (3.31 × 3.54 in.)
Displacement
X1WW engine
1598 cm
3 (97.52 cu. in.)
X2WW engine
1995 cm
3 (121.74 cu.in.)
Valve clearance
(engine cold) Automatic adjustment
Drive belt tension Automatic adjustment
